◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11151 - FTS(LHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#69284) — 43 parça

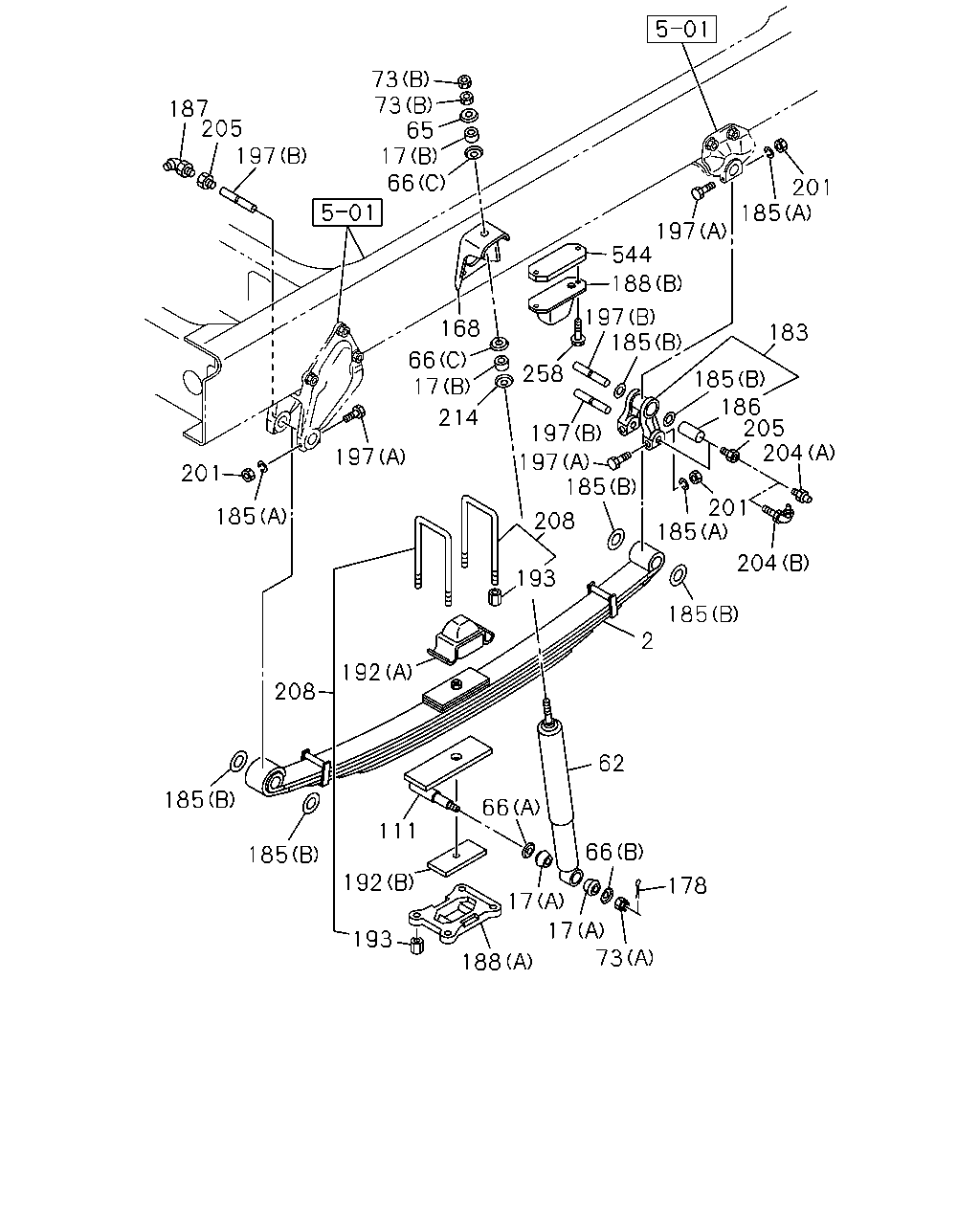

çizim 187834
73 73 65 17 66 187 205 197 201 185 197 544 188 197 185 168 183 66 17 258 185 186 205 204 214 197 197 197 185 201 201 185 185 208 204 193 185 2 192 208 62 185 66 111 66 185 192 178 17 17 73 193 188
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98135-956-0 02 1 0812-
17 BUSHING; RUBBER,S/ABS
(A) 		1-51631-009-1 04 1 0812-
17 BUSHING; RUBBER,S/ABS
(B) 		9-51631-050-0 04 1 0812-
62 ABSORBER ASM; SHOCK,FRT 1-51630-180-4 02 1 0812-
62 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		1-87610-153-0 02 1 0907-1412
65 WASHER; S/ABS
ID=14.5 		9-51631-051-0 02 1 0812-
66 WASHER; LK,S/ABS SETTING
(A) ID=23 		1-51631-019-0 02 1 0812-
66 WASHER; LK,S/ABS SETTING
(B) ID=17 		1-51631-020-0 02 1 0812-
66 WASHER; LK,S/ABS SETTING
(C) ID=16.8 		1-51631-022-0 04 1 0812-
73 NUT; BRKT,SHOCK
(A) M16 SLOTTED 		0-91116-516-0 02 1 0812-1204
73 NUT; BRKT,SHOCK
(A) M16 SLOTTED 		8-98049-689-0 02 1 1205-
73 NUT; BRKT,SHOCK
(B) M12 		8-98010-412-0 04 1 0812-
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-743-0 01 1 0812-
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-744-0 01 1 0812-
168 BRACKET; S/ABS,FRT SUSP 1-51681-306-0 02 1 0812-
178 PIN; SPLIT,S/ABS
OD=3.7 L=25 		0-81124-025-0 02 1 0812-
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 0812-
185 WASHER; LK,PIN
(A) ID=12.2 		0-91510-612-0 12 1 0812-
185 WASHER; LK,PIN
(B) ID=32.4 		1-51169-018-0 12 1 0812-
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 0812-0902
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 0903-
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0812-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) 		1-51173-038-0 02 1 0812-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) 		1-51174-008-2 01 1 0812-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) 		1-51174-009-2 01 1 0812-
192 PIECE; DIST
(A) 		1-51172-106-0 02 1 0812-
192 PIECE; DIST
(B) 		9-51377-038-0 01 1 0812-
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0812-1206
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207-
197 PIN; FRT SPR,FRT
(A) M12X80 		0-10856-280-0 12 1 0812-
197 PIN; FRT SPR,FRT
(B) 		1-51161-031-0 06 1 0812-
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0812-
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0812-0906
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0907-
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 0812-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0812-
208 U-BOLT SET; FRT SPRING
L=400 		1-87870-356-2 04 1 0812-1206
208 U-BOLT SET; FRT SPRING
L=400 		1-87870-503-0 04 1 1207-
214 WASHER; S/ABS,UPR,INNER
ID=14.5 		9-51631-051-0 02 1 0812-
258 BOLT; CUSHION,WIND UP
M8X35 FLANGE 		0-28050-835-0 04 1 0812-
544 BRACKET; RUBBER 1-51174-017-1 02 1 0812-
çizim 187889
344 82
BalonParca AdiParca NoAdetTipApplied Date
82 PIN; SPLIT,FRT S/ABS
OD=2.8 L=25 		9-08113-025-0 01 1 0812-
344 PIN; FRT S/ABS 9-43219-034-0 01 1 0812-
