◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11151 - FTS(LHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#69281) — 14 parça

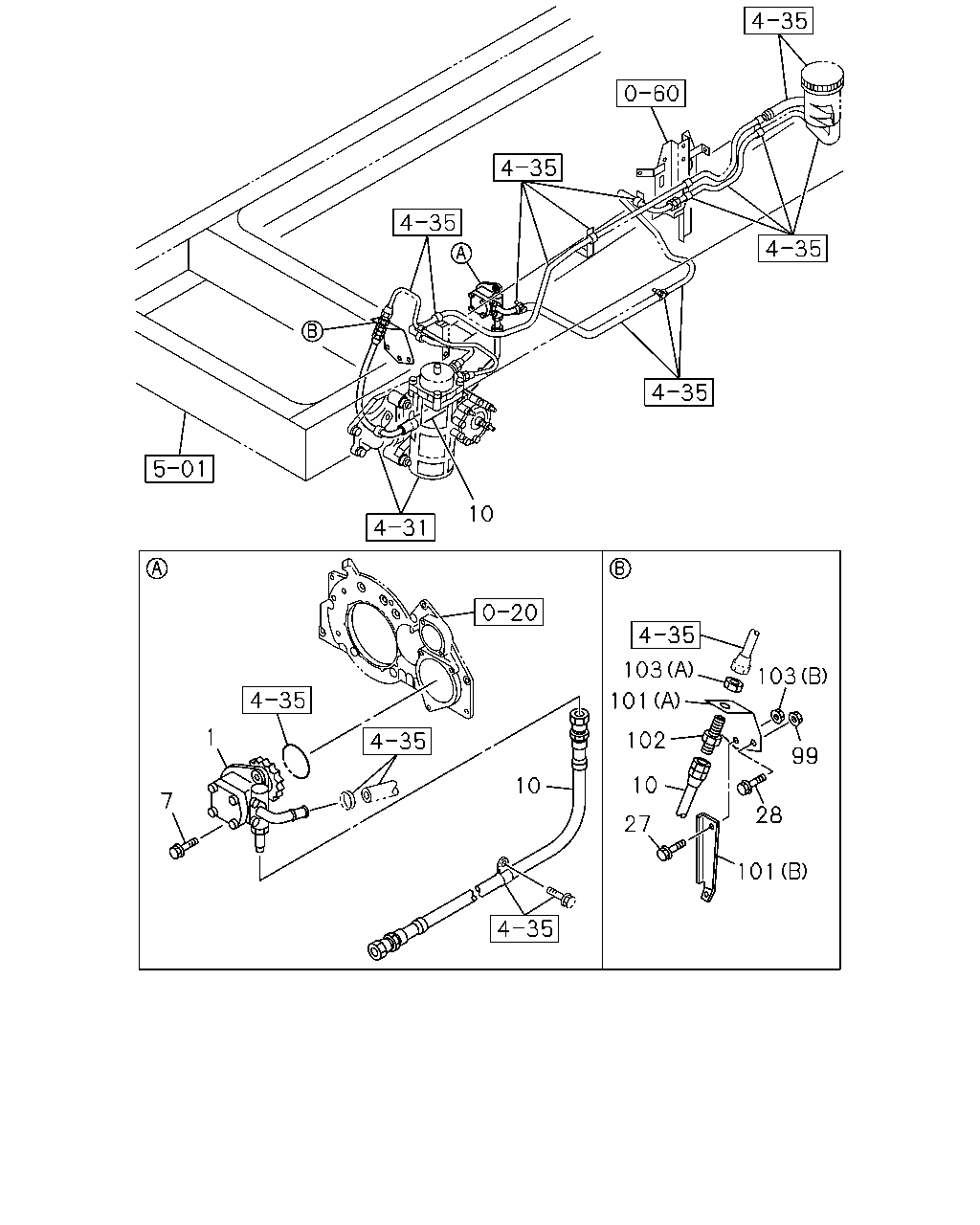

çizim 123835
10 103 103 101 1 102 99 10 10 7 28 27 101
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-634-1 01 1 0812-
7 BOLT; OIL PUMP,P/S
M10X55 FLANGE 		8-97365-449-0 02 1 0812-
10 HOSE; FLEX,P/S OIL PUMP,INL 8-98098-277-0 01 1 0812-
27 BOLT; BRKT TO BODY
REARWARD INNER SINGLE TIRE<YK3> M8X20 FLANGE 		0-28650-820-0 01 1 1003-1011
27 BOLT; BRKT TO BODY
EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> M8X20 FLANGE 		0-28650-820-0 01 1 1012-
28 BOLT; BRKT,FLEX HOSE,P/S
M8X20 FLANGE 		0-28650-820-0 02 1 0812-
99 NUT; BRKT,FLEX HOSE,P/S
M8 FLANGE 		0-91180-108-0 02 1 0812-
101 BRACKET; UNION
REARWARD INNER SINGLE TIRE<YK3> (B) 		8-98152-872-1 01 1 1003-1011
101 BRACKET; UNION
EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> (B) 		8-98152-872-1 01 1 1012-
101 BRACKET; UNION
(A) 		8-98052-888-1 01 1 0812-
102 UNION
M20 & M22 STRAIGHT 		1-09654-167-1 01 1 0812-
103 NUT; UNION
REARWARD INNER SINGLE TIRE<YK3> (B) M8 FLANGE 		0-91180-108-0 01 1 1003-1011
103 NUT; UNION
EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> (B) M8 FLANGE 		0-91180-108-0 01 1 1012-
103 NUT; UNION
(A) M22 		0-91111-522-0 01 1 0812-
