◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11151 - FTS(LHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-33 - STEERING LINKAGE ▶
4-33 — STEERING LINKAGE (#69279) — 15 parça

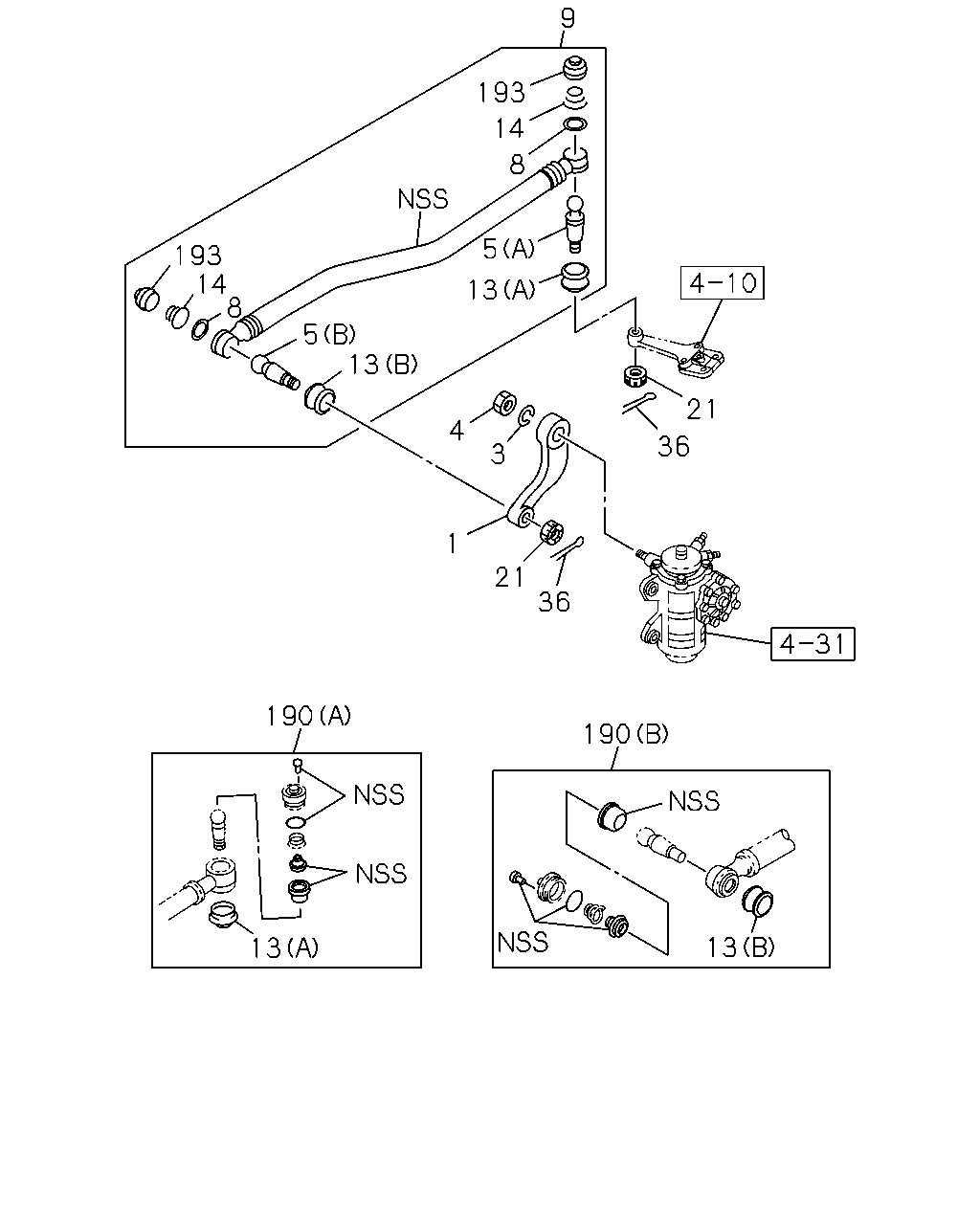

çizim 123923
9 193 14 8 5 193 14 8 13 5 13 21 4 36 3 1 21 36 190 190 13 13
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; PITMAN,STRG 1-44341-507-1 01 1 0812-
3 WASHER; LK,PITMAN ARM
ID=36.5 		1-09500-056-0 01 1 0812-
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-098-0 01 1 0812-
5 BALL; JOINT,DRAG LINK
(A) 		1-44361-098-0 01 1 0812-
5 BALL; JOINT,DRAG LINK
(B) 		1-44361-105-1 01 1 0812-
8 SEAT; SPR,ROD END 1-43159-075-0 02 1 0812-
9 LINK; DRAG 1-44380-196-2 01 1 0812-
13 BOOT; DRAG LINK
(A) 		1-43159-078-0 01 1 0812-
13 BOOT; DRAG LINK
(B) 		1-43159-081-0 01 1 0812-
14 SPRING; COIL,DRAG LINK 1-43159-074-0 02 1 0812-
21 NUT; LK,JOINT BALL
M24 		1-09442-032-0 02 1 0812-
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		0-81125-035-0 02 1 0812-
190 REPAIR KIT; DRAG LINK
(B) 		1-85574-040-0 01 1 0812-
190 REPAIR KIT; DRAG LINK
(A) 		1-85574-041-0 01 1 0812-
193 PLUG; END,DRAG LINK 1-43159-093-0 02 1 0812-
