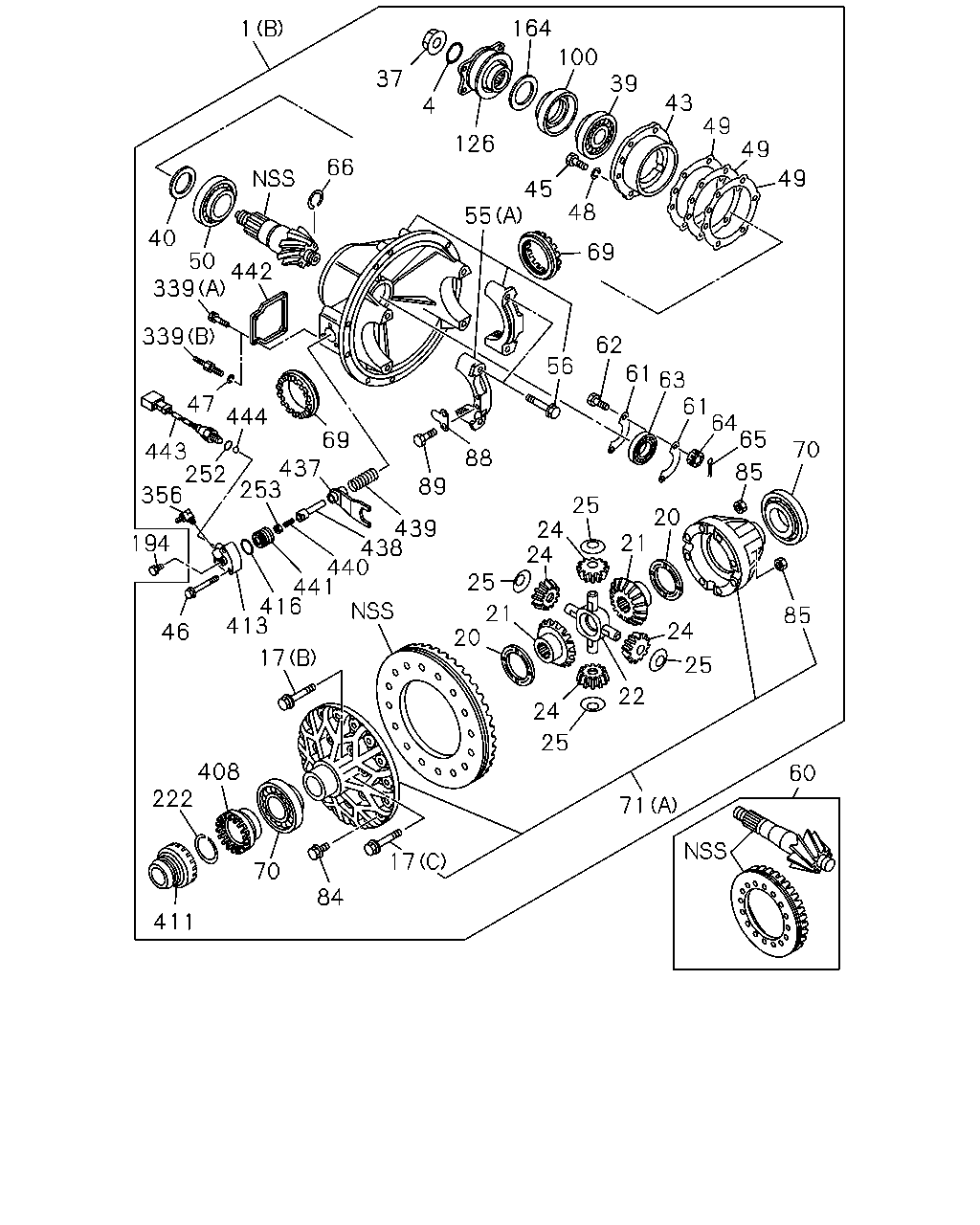

4-25B — REAR FINAL DRIVE (#69276) — 187 parça

164 1 100 37 39 43 49 4 126 49 66 49 45 48 55 40 69 50 442 339 339 62 56 61 63 61 64 65 47 444 69 437 253 70 443 252 356 88 85 89 25 24 24 20 439 438 440 441 416 413 21 194 25 21 20 85 24 46 17 25 22 24 25 408 222 60 71 17 70 84 411

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (B) 39/6	1-41003-386-0	01	1	1003-
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 39/6	1-41003-306-0	01	1	1003-
4	GASKET; FLANGE,FINAL PINION ID=37.5 T=4	1-09623-582-0	01	1	1003-
17	BOLT; DIFF CAGE SETTING DIFF LOCK<C3N> (C) M14X112 FLANGE	1-09070-057-1	04	1	1003-
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	1003-
17	BOLT; DIFF CAGE SETTING EXC. DIFF LOCK<C3N> (A) M14X121 FLANGE	1-09044-006-0	04	1	1003-
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> T=2.80	1-41562-061-0	AR	1	1003-
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> T=3.00	1-41562-062-0	AR	1	1003-
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> T=3.20	1-41562-063-0	AR	1	1003-
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> T=3.40	1-41562-064-0	AR	1	1003-
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> T=2.90	1-41562-080-0	AR	1	1003-
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> T=3.10	1-41562-081-0	AR	1	1003-
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> T=3.30	1-41562-082-0	AR	1	1003-
21	GEAR; SIDE,DIFF DIFF LOCK<C3N> Z=16	1-41561-149-0	02	1	1003-
22	SPIDER; DIFF PINION DIFF LOCK<C3N>	1-41521-050-2	01	1	1003-
24	GEAR; PINION,DIFF DIFF LOCK<C3N> Z=10	1-41551-049-0	04	1	1003-
25	WASHER; THRUST,PINION DIFF LOCK<C3N> ID=29 OD=60	1-41562-119-0	04	1	1003-
37	NUT; DRIVING PINION M36 FLANGE	1-09449-083-0	01	1	1003-
39	BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1003-
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1003-
40	SHIM; FINAL PINION T=1.60	1-41229-179-0	AR	1	1003-
40	SHIM; FINAL PINION T=1.61	1-41229-180-0	AR	1	1003-
40	SHIM; FINAL PINION T=1.62	1-41229-181-0	AR	1	1003-
40	SHIM; FINAL PINION T=1.63	1-41229-182-0	AR	1	1003-
40	SHIM; FINAL PINION T=1.64	1-41229-183-0	AR	1	1003-
40	SHIM; FINAL PINION T=1.65	1-41229-184-0	AR	1	1003-
40	SHIM; FINAL PINION T=1.66	1-41229-185-0	AR	1	1003-
40	SHIM; FINAL PINION T=1.67	1-41229-186-0	AR	1	1003-
40	SHIM; FINAL PINION T=1.68	1-41229-187-0	AR	1	1003-
40	SHIM; FINAL PINION T=1.69	1-41229-188-0	AR	1	1003-
40	SHIM; FINAL PINION T=1.70	1-41229-189-0	AR	1	1003-
43	CAGE; FINAL PINION	1-41151-027-0	01	1	1003-
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	1003-
46	BOLT DIFF LOCK<C3N> M8X60 FLANGE	0-28050-860-0	03	1	1003-
47	WASHER; LK DIFF LOCK<C3N> ID=8.2	1-09985-177-0	04	1	1204-
48	WASHER; LK,FINAL PINION ID=12.2	0-91510-812-0	06	1	1003-
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	1003-
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	1003-
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	1003-
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	1003-
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1003-
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1003-
55	CARRIER; DIFF DIFF LOCK<C3N> (A)	1-41110-122-0	01	1	1003-
55	CARRIER; DIFF EXC. DIFF LOCK<C3N> (B)	1-41110-048-1	01	1	1003-1006
55	CARRIER; DIFF EXC. DIFF LOCK<C3N> (B)	1-41110-129-0	01	1	1007-
56	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	1003-
60	GEAR SET; FINAL DRIVE,RR 39/6	1-41210-394-2	01	1	1003-
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1003-
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-046-0	02	1	1003-
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	1003-
63	BEARING; PINION PILOT JTEKT	1-09810-074-1	01	1	1003-
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1003-
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1003-
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-214-0	01	1	1003-
69	NUT; ADJ,DIFF CAGE DIFF LOCK<C3N> M138 H=30	1-41121-054-0	01	1	1003-
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	1003-
69	NUT; ADJ,DIFF CAGE EXC. DIFF LOCK<C3N> M128 H=30	1-41121-015-0	01	1	1003-
70	BEARING; DIFF CAGE DIFF LOCK<C3N> NSK ID=85 OD=130 T=29	1-09812-088-0	01	1	1003-
70	BEARING; DIFF CAGE DIFF LOCK<C3N> JTEKT ID=85 OD=130 T=29	1-09812-089-0	01	1	1003-
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1012-
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1012-
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1003-
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1003-1011
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1012-
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1003-
70	BEARING; DIFF CAGE DIFF LOCK<C3N> NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1003-
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1003-
70	BEARING; DIFF CAGE DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1003-
71	CAGE ASM; DIFF,FINAL DRIVE DIFF LOCK<C3N> (A)	1-41510-335-0	01	1	1003-
71	CAGE ASM; DIFF,FINAL DRIVE EXC. DIFF LOCK<C3N> (B)	1-41510-112-0	01	1	1003-1006
71	CAGE ASM; DIFF,FINAL DRIVE EXC. DIFF LOCK<C3N> (B)	1-41510-343-0	01	1	1007-
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	1003-
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	1003-
88	PLATE; LK,ADJ NUT T=2.3	9-41124-015-0	02	1	1003-
89	BOLT; LK PLATE M8X12 FLANGE	8-94479-696-1	04	1	1003-
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	1003-
100	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	1003-
126	COUPLING; DRIVING PINION	1-37245-414-0	01	1	1003-
164	COLLAR; DIST,PINION T=10.7	1-36355-031-0	01	1	1003-
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	1003-
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	1003-
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	1003-
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	1003-
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	1003-
164	COLLAR; DIST,PINION T=11.9	1-36355-043-0	01	1	1003-
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	1003-
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	1003-
194	PLUG DIFF LOCK<C3N> M12X9	9-99202-312-0	01	1	1003-1304
194	PLUG DIFF LOCK<C3N> M12X9	0-92002-412-0	01	1	1305-
222	RING; SNAP DIFF LOCK<C3N>	1-09588-186-0	01	1	1003-
252	GASKET; CARRIER DIFF LOCK<C3N> ID=14.2	8-94462-114-0	01	1	1003-
253	NUT DIFF LOCK<C3N> M12	0-91111-512-0	01	1	1003-
339	BOLT; COVER DIFF LOCK<C3N> (A) M8X16 W/LK WASHER	0-50540-816-0	04	1	1003-1203
339	BOLT; COVER DIFF LOCK<C3N> (B) M6X14,M8X17 L=42	5-09309-006-1	04	1	1204-
356	NIPPLE; SHIFT UNIT DIFF LOCK<C3N> M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1003-
408	CLAW; CLU,DIFF LK DIFF LOCK<C3N>	1-41266-025-0	01	1	1003-
411	SLEEVE; CLU DIFF LOCK<C3N>	1-41266-027-0	01	1	1003-
413	CYLINDER; DIFF LK DIFF LOCK<C3N>	1-41279-021-0	01	1	1003-
416	GASKET DIFF LOCK<C3N> ID=43.7	9-09561-344-0	01	1	1003-
437	FORK ASM; SHIFT,DIFF LK DIFF LOCK<C3N>	1-41271-015-0	01	1	1003-
438	ROD; SHIFTER,DIFF LK DIFF LOCK<C3N>	1-41271-014-0	01	1	1003-
439	SPRING; RETUN,DIFF LK DIFF LOCK<C3N>	1-09580-507-0	01	1	1003-
440	SCREW SET; DIFF LK DIFF LOCK<C3N> M12X31	1-09120-021-0	01	1	1003-
441	PISTON; CHAMBER,DIFF LK DIFF LOCK<C3N>	1-41279-020-0	01	1	1003-
442	COVER; CARRIER,DIFF LK DIFF LOCK<C3N>	1-41117-005-0	01	1	1003-
443	SWITCH; STROKE DIFF LOCK<C3N>	1-82340-534-0	01	1	1003-
444	BALL DIFF LOCK<C3N>	9-00097-010-0	01	1	1003-

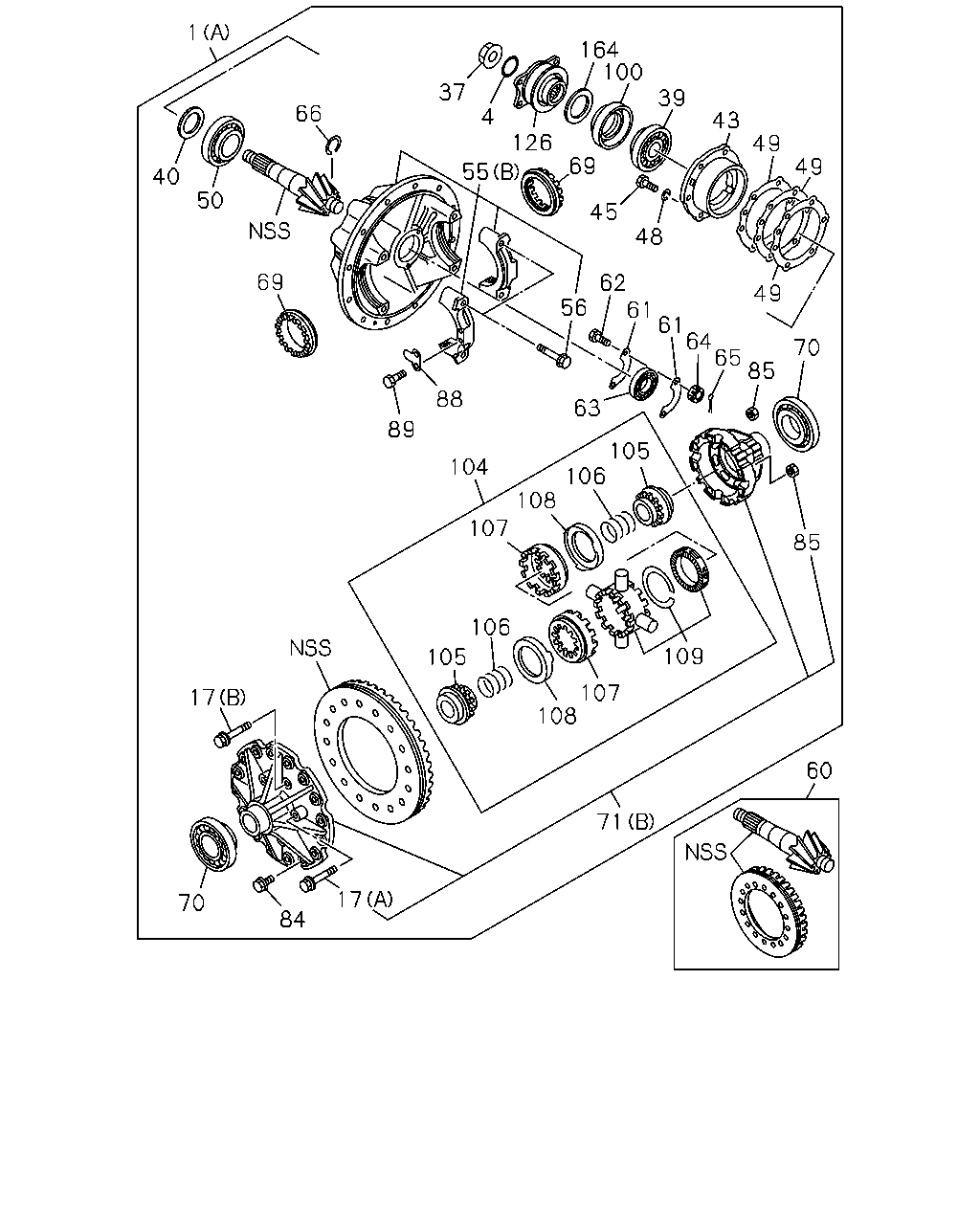

1 164 100 37 39 66 4 43 126 49 69 49 55 40 50 45 48 69 62 61 61 64 65 85 49 56 70 88 63 89 105 106 104 108 107 85 106 109 105 107 108 17 60 71 17 70 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (B) 39/6	1-41003-386-0	01	1	1003-
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 39/6	1-41003-306-0	01	1	1003-
4	GASKET; FLANGE,FINAL PINION ID=37.5 T=4	1-09623-582-0	01	1	1003-
17	BOLT; DIFF CAGE SETTING DIFF LOCK<C3N> (C) M14X112 FLANGE	1-09070-057-1	04	1	1003-
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	1003-
17	BOLT; DIFF CAGE SETTING EXC. DIFF LOCK<C3N> (A) M14X121 FLANGE	1-09044-006-0	04	1	1003-
37	NUT; DRIVING PINION M36 FLANGE	1-09449-083-0	01	1	1003-
39	BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1003-
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1003-
40	SHIM; FINAL PINION T=1.60	1-41229-179-0	AR	1	1003-
40	SHIM; FINAL PINION T=1.61	1-41229-180-0	AR	1	1003-
40	SHIM; FINAL PINION T=1.62	1-41229-181-0	AR	1	1003-
40	SHIM; FINAL PINION T=1.63	1-41229-182-0	AR	1	1003-
40	SHIM; FINAL PINION T=1.64	1-41229-183-0	AR	1	1003-
40	SHIM; FINAL PINION T=1.65	1-41229-184-0	AR	1	1003-
40	SHIM; FINAL PINION T=1.66	1-41229-185-0	AR	1	1003-
40	SHIM; FINAL PINION T=1.67	1-41229-186-0	AR	1	1003-
40	SHIM; FINAL PINION T=1.68	1-41229-187-0	AR	1	1003-
40	SHIM; FINAL PINION T=1.69	1-41229-188-0	AR	1	1003-
40	SHIM; FINAL PINION T=1.70	1-41229-189-0	AR	1	1003-
43	CAGE; FINAL PINION	1-41151-027-0	01	1	1003-
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	1003-
48	WASHER; LK,FINAL PINION ID=12.2	0-91510-812-0	06	1	1003-
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	1003-
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	1003-
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	1003-
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	1003-
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1003-
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1003-
55	CARRIER; DIFF DIFF LOCK<C3N> (A)	1-41110-122-0	01	1	1003-
55	CARRIER; DIFF EXC. DIFF LOCK<C3N> (B)	1-41110-048-1	01	1	1003-1006
55	CARRIER; DIFF EXC. DIFF LOCK<C3N> (B)	1-41110-129-0	01	1	1007-
56	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	1003-
60	GEAR SET; FINAL DRIVE,RR 39/6	1-41210-394-2	01	1	1003-
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1003-
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-046-0	02	1	1003-
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	1003-
63	BEARING; PINION PILOT JTEKT	1-09810-074-1	01	1	1003-
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1003-
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1003-
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-214-0	01	1	1003-
69	NUT; ADJ,DIFF CAGE DIFF LOCK<C3N> M138 H=30	1-41121-054-0	01	1	1003-
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	1003-
69	NUT; ADJ,DIFF CAGE EXC. DIFF LOCK<C3N> M128 H=30	1-41121-015-0	01	1	1003-
70	BEARING; DIFF CAGE DIFF LOCK<C3N> NSK ID=85 OD=130 T=29	1-09812-088-0	01	1	1003-
70	BEARING; DIFF CAGE DIFF LOCK<C3N> JTEKT ID=85 OD=130 T=29	1-09812-089-0	01	1	1003-
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1012-
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1012-
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1003-
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1003-1011
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1012-
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1003-
70	BEARING; DIFF CAGE DIFF LOCK<C3N> NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1003-
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1003-
70	BEARING; DIFF CAGE DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1003-
71	CAGE ASM; DIFF,FINAL DRIVE DIFF LOCK<C3N> (A)	1-41510-335-0	01	1	1003-
71	CAGE ASM; DIFF,FINAL DRIVE EXC. DIFF LOCK<C3N> (B)	1-41510-112-0	01	1	1003-1006
71	CAGE ASM; DIFF,FINAL DRIVE EXC. DIFF LOCK<C3N> (B)	1-41510-343-0	01	1	1007-
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	1003-
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	1003-
88	PLATE; LK,ADJ NUT T=2.3	9-41124-015-0	02	1	1003-
89	BOLT; LK PLATE M8X12 FLANGE	8-94479-696-1	04	1	1003-
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	1003-
100	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	1003-
104	DIFF ASM; NO SPIN EXC. DIFF LOCK<C3N>	1-41530-053-0	01	1	1003-
105	GEAR; SIDE EXC. DIFF LOCK<C3N>	1-41539-043-0	02	1	1003-
106	SPRING; NO SPIN DIFF EXC. DIFF LOCK<C3N>	1-41539-006-0	02	1	1003-
107	CLUTCH; DRIVEN EXC. DIFF LOCK<C3N>	1-41539-003-0	02	1	1003-
108	RING; HOLD OUT EXC. DIFF LOCK<C3N>	1-41539-004-1	02	1	1003-
109	SPIDER; DIFF EXC. DIFF LOCK<C3N>	1-41539-014-0	01	1	1003-
126	COUPLING; DRIVING PINION	1-37245-414-0	01	1	1003-
164	COLLAR; DIST,PINION T=10.7	1-36355-031-0	01	1	1003-
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	1003-
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	1003-
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	1003-
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	1003-
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	1003-
164	COLLAR; DIST,PINION T=11.9	1-36355-043-0	01	1	1003-
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	1003-
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	1003-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
