4-10 — FRONT AXLE (#69269) — 176 parça

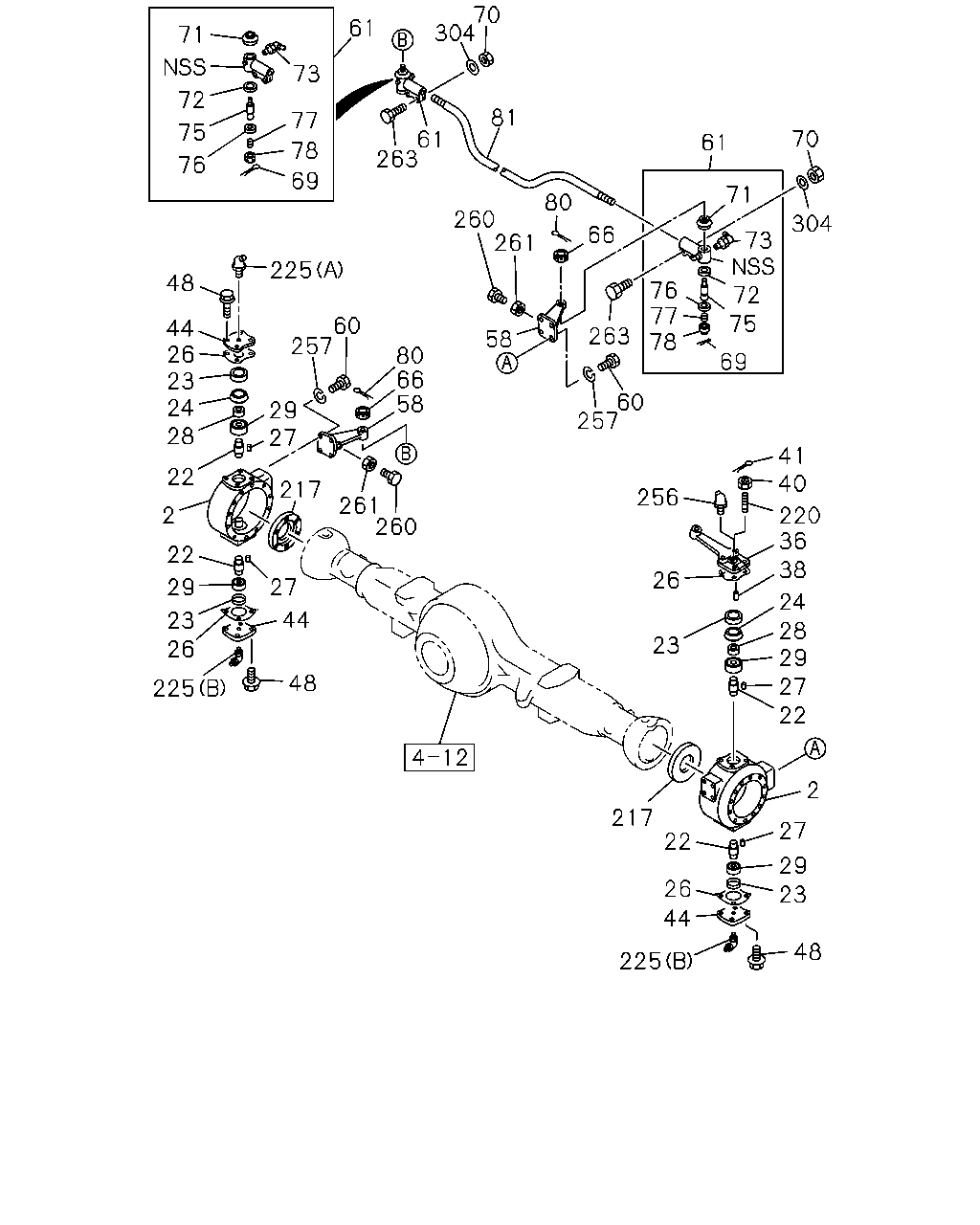

70 304 61 71 73 72 81 77 75 70 61 263 61 78 76 69 71 80 260 261 304 73 72 66 225 48 76 77 78 75 60 257 44 26 23 24 28 263 58 80 66 58 69 60 257 29 27 41 40 22 217 256 261 260 2 220 36 22 38 26 29 27 24 44 23 28 29 23 26 48 27 225 22 2 217 27 22 29 26 23 44 48 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	KNUCKLE; FRT AXLE FINAL GEAR 39/6 14.5"(W1J)	8-98090-493-2	01	1	1003-
2	KNUCKLE; FRT AXLE FINAL GEAR 39/6 14.5"(W1J)	8-98090-494-2	01	1	1003-
2	KNUCKLE; FRT AXLE	1-43242-006-3	01	1	0812-1002
2	KNUCKLE; FRT AXLE FINAL GEAR 39/7 15.5"(W3K)	1-43242-006-4	01	1	1003-
2	KNUCKLE; FRT AXLE	9-43241-037-1	01	1	0812-1002
2	KNUCKLE; FRT AXLE FINAL GEAR 39/7 15.5"(W3K)	9-43241-037-2	01	1	1003-
22	PIN; KING,FRT AXLE H=50	1-43264-003-0	04	1	0812-
23	COLLAR; DIST BRG	9-43267-004-0	04	1	0812-
24	RECEIVER; KING PIN	9-43269-008-0	02	1	0812-
26	SHIM; KING PIN,BRG T=0.1	9-43266-013-0	AR	1	0812-
26	SHIM; KING PIN,BRG T=0.2	9-43266-014-0	AR	1	0812-
26	SHIM; KING PIN,BRG T=0.5	9-43266-015-0	AR	1	0812-
27	PIN; STRAIGHT,KING PIN OD=5 L=10	9-08160-510-0	04	1	0812-
28	WASHER; KING PIN	9-43269-007-0	02	1	0812-
29	BEARING; KING PIN	9-00093-181-0	04	1	0812-
36	ARM; KNUCKLE FINAL GEAR 39/6 14.5"(W1J)	1-43261-035-0	01	1	1003-1003
36	ARM; KNUCKLE	1-43261-035-0	01	1	1004-
36	ARM; KNUCKLE	1-43261-029-0	01	1	0812-1002
36	ARM; KNUCKLE FINAL GEAR 39/7 15.5"(W3K)	1-43261-029-0	01	1	1003-1003
38	KNOCK; KNUCKLE ARM	9-43269-009-1	02	1	0812-
40	NUT; KNUCKLE ARM M14 SLOTTED	0-91116-514-0	04	1	0812-
41	PIN; KNOCK,KNUCKLE ARM OD=2.8 L=25	0-81123-025-0	04	1	0812-
44	COVER; KING PIN	9-43265-007-1	03	1	0812-
48	BOLT; COVER M14X35 FLANGE	0-28861-435-0	12	1	0812-
58	ARM; TIE ROD FINAL GEAR 39/6 14.5"(W1J)	8-98138-221-0	01	1	1003-1003
58	ARM; TIE ROD	8-98138-221-0	01	1	1004-
58	ARM; TIE ROD FINAL GEAR 39/6 14.5"(W1J)	8-98138-222-0	01	1	1003-1003
58	ARM; TIE ROD	8-98138-222-0	01	1	1004-
58	ARM; TIE ROD	9-43262-017-1	01	1	0812-1002
58	ARM; TIE ROD FINAL GEAR 39/7 15.5"(W3K)	9-43262-017-1	01	1	1003-1003
58	ARM; TIE ROD	9-43263-011-1	01	1	0812-1002
58	ARM; TIE ROD FINAL GEAR 39/7 15.5"(W3K)	9-43263-011-1	01	1	1003-1003
60	BOLT; TIE ROD ARM M16X40	0-20951-640-0	08	1	0812-
61	ROD END; TIE ROD FINAL GEAR 39/6 14.5"(W1J)	8-98138-799-0	01	1	1003-1003
61	ROD END; TIE ROD	8-98138-799-0	01	1	1004-1306
61	ROD END; TIE ROD	8-98236-792-1	01	1	1307-
61	ROD END; TIE ROD FINAL GEAR 39/6 14.5"(W1J)	8-98138-800-0	01	1	1003-1003
61	ROD END; TIE ROD	8-98138-800-0	01	1	1004-1306
61	ROD END; TIE ROD	8-98236-793-1	01	1	1307-
61	ROD END; TIE ROD	1-43150-191-0	01	1	0812-1002
61	ROD END; TIE ROD FINAL GEAR 39/7 15.5"(W3K)	1-43150-191-0	01	1	1003-1003
61	ROD END; TIE ROD	1-43150-192-0	01	1	0812-1002
61	ROD END; TIE ROD FINAL GEAR 39/7 15.5"(W3K)	1-43150-192-0	01	1	1003-1003
66	NUT; TIE ROD END FINAL GEAR 39/6 14.5"(W1J) M24	1-09442-032-0	02	1	1003-1003
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1004-
66	NUT; TIE ROD END M16	9-09841-068-0	02	1	0812-1002
66	NUT; TIE ROD END FINAL GEAR 39/7 15.5"(W3K) M16	9-09841-068-0	02	1	1003-1003
69	PIN; SPLIT,TIE ROD END	0-81124-065-0	02	1	0812-1002
69	PIN; SPLIT,TIE ROD END FINAL GEAR 39/7 15.5"(W3K)	0-81124-065-0	02	1	1003-1003
70	NUT; TIE ROD END M12	0-91110-512-0	04	1	0812-
71	BOOT; TIE ROD END	1-43159-009-0	02	1	0812-1002
71	BOOT; TIE ROD END FINAL GEAR 39/7 15.5"(W3K)	1-43159-009-0	02	1	1003-1003
72	SEAT; BALL,TIE ROD JOINT	9-44371-133-0	02	1	0812-1002
72	SEAT; BALL,TIE ROD JOINT FINAL GEAR 39/7 15.5"(W3K)	9-44371-133-0	02	1	1003-1003
73	NIPPLE; GREASE,TIE ROD END FINAL GEAR 39/6 14.5"(W1J)	1-43159-133-0	02	1	1003-1003
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1004-1404
73	NIPPLE; GREASE,TIE ROD END	1-43159-132-0	02	1	1405-
73	NIPPLE; GREASE,TIE ROD END PT1/8 ELBOW	0-90301-610-0	02	1	0812-1002
73	NIPPLE; GREASE,TIE ROD END FINAL GEAR 39/7 15.5"(W3K) PT1/8 ELBOW	0-90301-610-0	02	1	1003-1003
75	JOINT; BALL,DRAG LINK	1-44361-042-2	02	1	0812-1002
75	JOINT; BALL,DRAG LINK FINAL GEAR 39/7 15.5"(W3K)	1-44361-042-2	02	1	1003-1003
76	SEAT; SPR,DRAG LINK	9-44373-006-0	02	1	0812-1002
76	SEAT; SPR,DRAG LINK FINAL GEAR 39/7 15.5"(W3K)	9-44373-006-0	02	1	1003-1003
77	SPRING; TIE ROD END	9-09940-057-0	02	1	0812-1002
77	SPRING; TIE ROD END FINAL GEAR 39/7 15.5"(W3K)	9-09940-057-0	02	1	1003-1003
78	PLUG; ADJ,ROD END	1-44375-017-0	02	1	0812-1002
78	PLUG; ADJ,ROD END FINAL GEAR 39/7 15.5"(W3K)	1-44375-017-0	02	1	1003-1003
80	PIN; SPLIT,ROD END FINAL GEAR 39/6 14.5"(W1J) OD=4.6 L=35	0-81125-035-0	02	1	1003-1003
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1004-
80	PIN; SPLIT,ROD END OD=3.7 L=30	0-81124-030-0	02	1	0812-1002
80	PIN; SPLIT,ROD END FINAL GEAR 39/7 15.5"(W3K) OD=3.7 L=30	0-81124-030-0	02	1	1003-1003
81	ROD; TIE	1-43151-070-0	01	1	0812-1002
81	ROD; TIE FINAL GEAR 39/7 15.5"(W3K)	1-43151-070-0	01	1	1003-1003
81	ROD; TIE FINAL GEAR 39/7 15.5"(W3K)	8-98147-602-0	01	1	1003-
81	ROD; TIE FINAL GEAR 39/6 14.5"(W1J)	8-98147-601-0	01	1	1003-
217	WASHER; THRUST,SHAFT LOCKING HUB FRT WHEEL DRIVE(W12) OD=100 ID=71	1-43321-009-0	02	1	0812-1001
220	STUD; KNUCKLE ARM M14X54.5 L=72	9-09830-131-0	01	1	0812-
220	STUD; KNUCKLE ARM M14X41.5 L=60.5	9-09830-132-0	01	1	0812-
220	STUD; KNUCKLE ARM M14X46.5 L=72	9-09830-133-0	01	1	0812-
220	STUD; KNUCKLE ARM M14X33.5 L=60.5	9-09830-134-0	01	1	0812-
225	NIPPLE; GREASE,COVER (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0812-
225	NIPPLE; GREASE,COVER (B) PT1/8 ELBOW	0-90301-610-0	02	1	0812-
256	NIPPLE; GREASE,KNUCKLE ARM PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0812-
257	WASHER; LK,TIE ROD ARM ID=16.2	0-91510-516-0	08	1	0812-
260	BOLT; STOPPER,TIE ROD ARM FINAL GEAR 39/6 14.5"(W1J) M14X45	0-20951-445-0	02	1	1010-
260	BOLT; STOPPER,TIE ROD ARM M14X35	0-20851-435-0	02	1	0812-1009
260	BOLT; STOPPER,TIE ROD ARM FINAL GEAR 39/7 15.5"(W3K) M14X35	0-20851-435-0	02	1	1010-
261	NUT; STOPPER BOLT M14	0-91111-514-0	02	1	0812-
263	BOLT; ROD END FINAL GEAR 39/6 14.5"(W1J) M12X65	8-98053-922-0	04	1	1003-1003
263	BOLT; ROD END M12X65	8-98053-922-0	04	1	1004-
263	BOLT; ROD END M12X50	0-20951-250-0	04	1	0812-1002
263	BOLT; ROD END FINAL GEAR 39/7 15.5"(W3K) M12X50	0-20951-250-0	04	1	1003-1003
304	WASHER; PL ID=12.5	0-91614-512-0	04	1	0812-

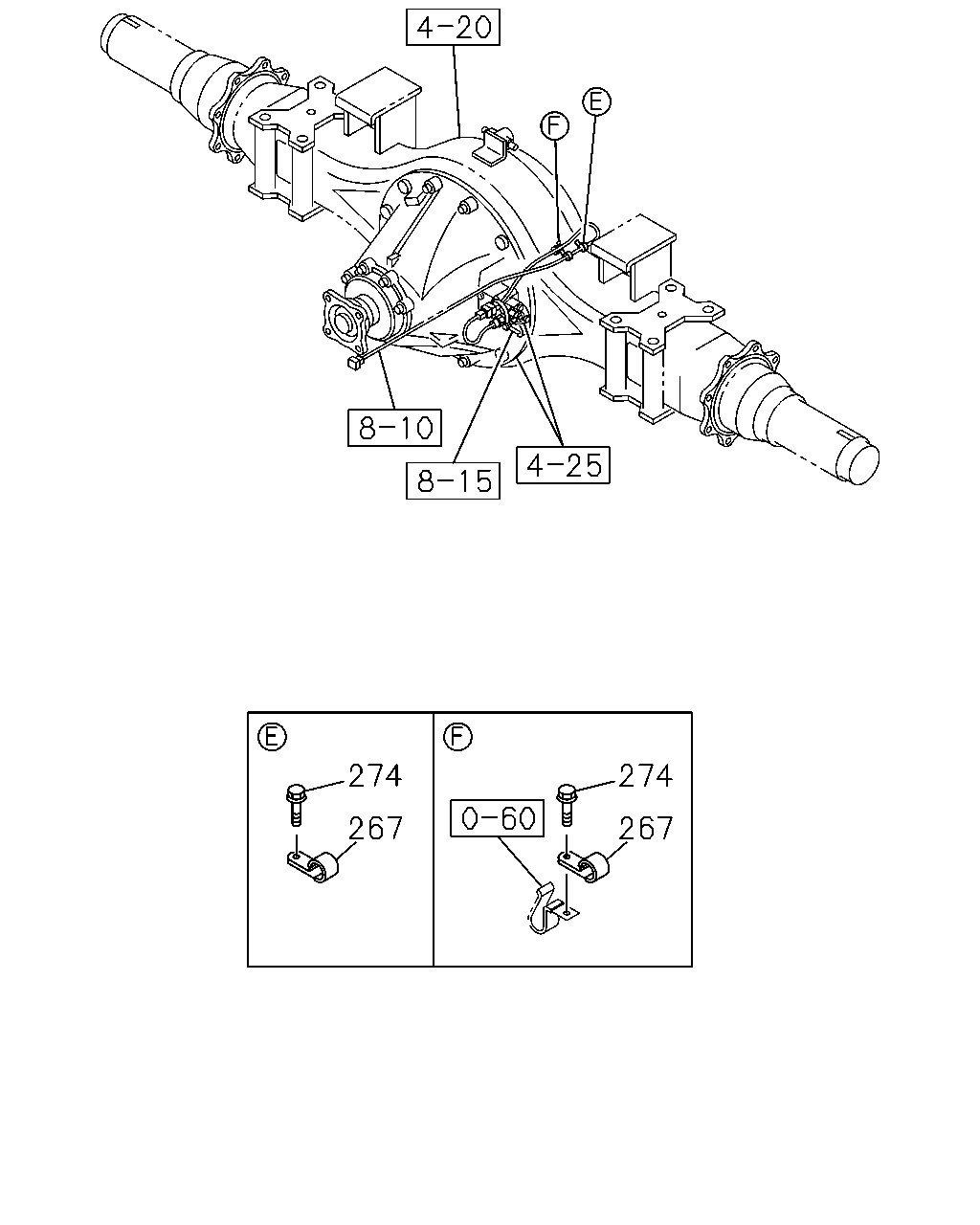

274 274 267 267

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	267	CLIP; HARNESS FINAL GEAR 39/6 14.5"(W1J) DIFF LOCK<C3N> ID=11 L=20	0-95235-035-0	02	1	1003-
	274	BOLT; CLIP FINAL GEAR 39/6 14.5"(W1J) DIFF LOCK<C3N> M8X10 FLANGE	0-28050-810-0	02	1	1003-

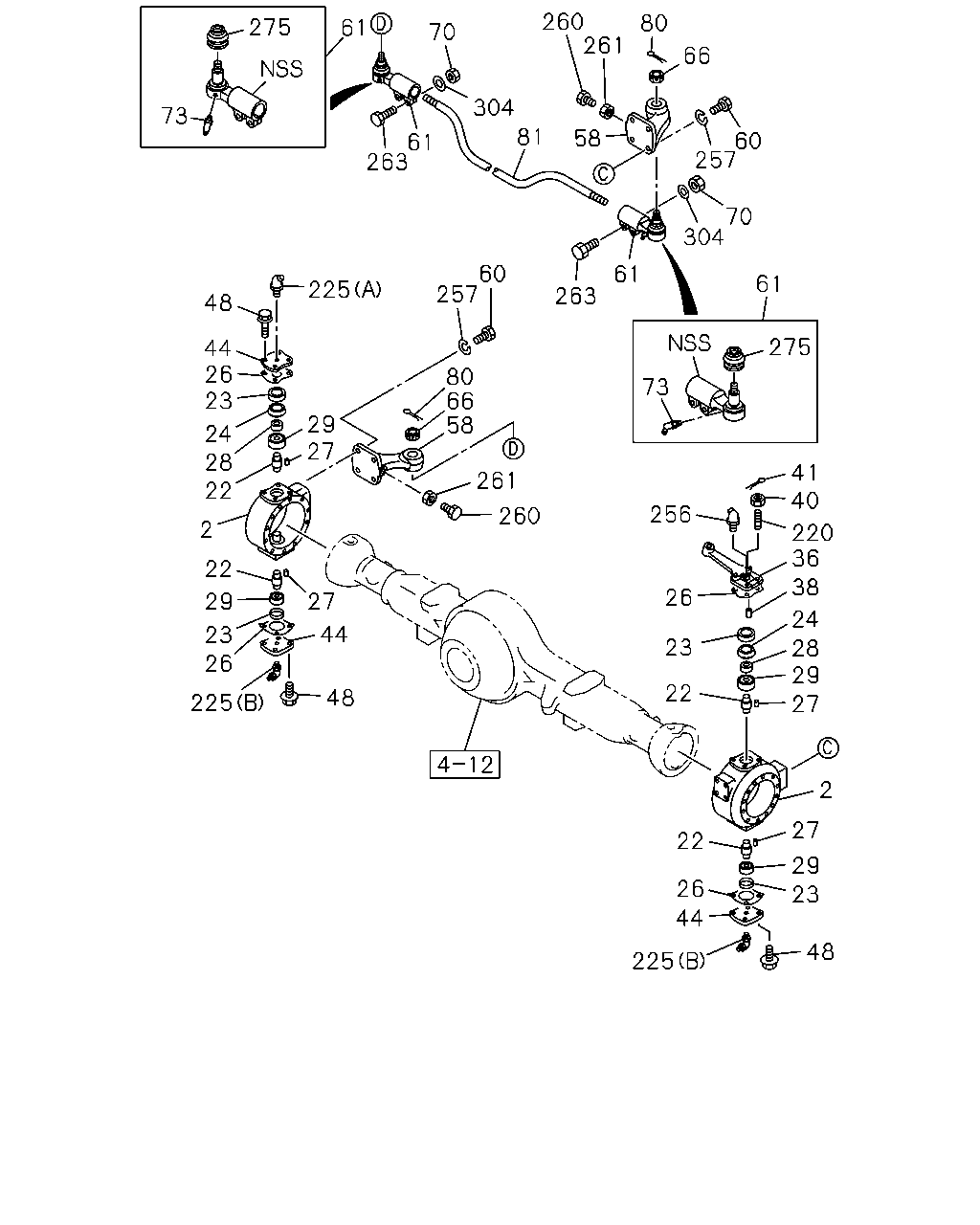

260 261 80 275 61 70 66 304 73 81 58 60 257 61 263 70 304 60 257 61 61 225 263 48 275 44 26 23 80 66 58 73 29 27 24 28 22 41 40 261 256 260 2 220 36 22 38 26 29 27 24 44 23 23 28 29 26 22 48 225 27 2 27 22 29 26 23 44 48 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	KNUCKLE; FRT AXLE FINAL GEAR 39/6 14.5"(W1J)	8-98090-493-2	01	1	1003-
2	KNUCKLE; FRT AXLE FINAL GEAR 39/6 14.5"(W1J)	8-98090-494-2	01	1	1003-
2	KNUCKLE; FRT AXLE	1-43242-006-3	01	1	0812-1002
2	KNUCKLE; FRT AXLE FINAL GEAR 39/7 15.5"(W3K)	1-43242-006-4	01	1	1003-
2	KNUCKLE; FRT AXLE	9-43241-037-1	01	1	0812-1002
2	KNUCKLE; FRT AXLE FINAL GEAR 39/7 15.5"(W3K)	9-43241-037-2	01	1	1003-
22	PIN; KING,FRT AXLE H=50	1-43264-003-0	04	1	0812-
23	COLLAR; DIST BRG	9-43267-004-0	04	1	0812-
24	RECEIVER; KING PIN	9-43269-008-0	02	1	0812-
26	SHIM; KING PIN,BRG T=0.1	9-43266-013-0	AR	1	0812-
26	SHIM; KING PIN,BRG T=0.2	9-43266-014-0	AR	1	0812-
26	SHIM; KING PIN,BRG T=0.5	9-43266-015-0	AR	1	0812-
27	PIN; STRAIGHT,KING PIN OD=5 L=10	9-08160-510-0	04	1	0812-
28	WASHER; KING PIN	9-43269-007-0	02	1	0812-
29	BEARING; KING PIN	9-00093-181-0	04	1	0812-
36	ARM; KNUCKLE FINAL GEAR 39/6 14.5"(W1J)	1-43261-035-0	01	1	1003-1003
36	ARM; KNUCKLE	1-43261-035-0	01	1	1004-
36	ARM; KNUCKLE	1-43261-029-0	01	1	0812-1002
36	ARM; KNUCKLE FINAL GEAR 39/7 15.5"(W3K)	1-43261-029-0	01	1	1003-1003
38	KNOCK; KNUCKLE ARM	9-43269-009-1	02	1	0812-
40	NUT; KNUCKLE ARM M14 SLOTTED	0-91116-514-0	04	1	0812-
41	PIN; KNOCK,KNUCKLE ARM OD=2.8 L=25	0-81123-025-0	04	1	0812-
44	COVER; KING PIN	9-43265-007-1	03	1	0812-
48	BOLT; COVER M14X35 FLANGE	0-28861-435-0	12	1	0812-
58	ARM; TIE ROD FINAL GEAR 39/6 14.5"(W1J)	8-98138-221-0	01	1	1003-1003
58	ARM; TIE ROD	8-98138-221-0	01	1	1004-
58	ARM; TIE ROD FINAL GEAR 39/6 14.5"(W1J)	8-98138-222-0	01	1	1003-1003
58	ARM; TIE ROD	8-98138-222-0	01	1	1004-
58	ARM; TIE ROD	9-43262-017-1	01	1	0812-1002
58	ARM; TIE ROD FINAL GEAR 39/7 15.5"(W3K)	9-43262-017-1	01	1	1003-1003
58	ARM; TIE ROD	9-43263-011-1	01	1	0812-1002
58	ARM; TIE ROD FINAL GEAR 39/7 15.5"(W3K)	9-43263-011-1	01	1	1003-1003
60	BOLT; TIE ROD ARM M16X40	0-20951-640-0	08	1	0812-
61	ROD END; TIE ROD FINAL GEAR 39/6 14.5"(W1J)	8-98138-799-0	01	1	1003-1003
61	ROD END; TIE ROD	8-98138-799-0	01	1	1004-1306
61	ROD END; TIE ROD	8-98236-792-1	01	1	1307-
61	ROD END; TIE ROD FINAL GEAR 39/6 14.5"(W1J)	8-98138-800-0	01	1	1003-1003
61	ROD END; TIE ROD	8-98138-800-0	01	1	1004-1306
61	ROD END; TIE ROD	8-98236-793-1	01	1	1307-
61	ROD END; TIE ROD	1-43150-191-0	01	1	0812-1002
61	ROD END; TIE ROD FINAL GEAR 39/7 15.5"(W3K)	1-43150-191-0	01	1	1003-1003
61	ROD END; TIE ROD	1-43150-192-0	01	1	0812-1002
61	ROD END; TIE ROD FINAL GEAR 39/7 15.5"(W3K)	1-43150-192-0	01	1	1003-1003
66	NUT; TIE ROD END FINAL GEAR 39/6 14.5"(W1J) M24	1-09442-032-0	02	1	1003-1003
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1004-
66	NUT; TIE ROD END M16	9-09841-068-0	02	1	0812-1002
66	NUT; TIE ROD END FINAL GEAR 39/7 15.5"(W3K) M16	9-09841-068-0	02	1	1003-1003
70	NUT; TIE ROD END M12	0-91110-512-0	04	1	0812-
73	NIPPLE; GREASE,TIE ROD END FINAL GEAR 39/6 14.5"(W1J)	1-43159-133-0	02	1	1003-1003
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1004-1404
73	NIPPLE; GREASE,TIE ROD END	1-43159-132-0	02	1	1405-
73	NIPPLE; GREASE,TIE ROD END PT1/8 ELBOW	0-90301-610-0	02	1	0812-1002
73	NIPPLE; GREASE,TIE ROD END FINAL GEAR 39/7 15.5"(W3K) PT1/8 ELBOW	0-90301-610-0	02	1	1003-1003
80	PIN; SPLIT,ROD END FINAL GEAR 39/6 14.5"(W1J) OD=4.6 L=35	0-81125-035-0	02	1	1003-1003
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1004-
80	PIN; SPLIT,ROD END OD=3.7 L=30	0-81124-030-0	02	1	0812-1002
80	PIN; SPLIT,ROD END FINAL GEAR 39/7 15.5"(W3K) OD=3.7 L=30	0-81124-030-0	02	1	1003-1003
81	ROD; TIE	1-43151-070-0	01	1	0812-1002
81	ROD; TIE FINAL GEAR 39/7 15.5"(W3K)	1-43151-070-0	01	1	1003-1003
81	ROD; TIE FINAL GEAR 39/7 15.5"(W3K)	8-98147-602-0	01	1	1003-
81	ROD; TIE FINAL GEAR 39/6 14.5"(W1J)	8-98147-601-0	01	1	1003-
220	STUD; KNUCKLE ARM M14X54.5 L=72	9-09830-131-0	01	1	0812-
220	STUD; KNUCKLE ARM M14X41.5 L=60.5	9-09830-132-0	01	1	0812-
220	STUD; KNUCKLE ARM M14X46.5 L=72	9-09830-133-0	01	1	0812-
220	STUD; KNUCKLE ARM M14X33.5 L=60.5	9-09830-134-0	01	1	0812-
225	NIPPLE; GREASE,COVER (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0812-
225	NIPPLE; GREASE,COVER (B) PT1/8 ELBOW	0-90301-610-0	02	1	0812-
256	NIPPLE; GREASE,KNUCKLE ARM PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0812-
257	WASHER; LK,TIE ROD ARM ID=16.2	0-91510-516-0	08	1	0812-
260	BOLT; STOPPER,TIE ROD ARM FINAL GEAR 39/6 14.5"(W1J) M14X45	0-20951-445-0	02	1	1010-
260	BOLT; STOPPER,TIE ROD ARM M14X35	0-20851-435-0	02	1	0812-1009
260	BOLT; STOPPER,TIE ROD ARM FINAL GEAR 39/7 15.5"(W3K) M14X35	0-20851-435-0	02	1	1010-
261	NUT; STOPPER BOLT M14	0-91111-514-0	02	1	0812-
263	BOLT; ROD END FINAL GEAR 39/6 14.5"(W1J) M12X65	8-98053-922-0	04	1	1003-1003
263	BOLT; ROD END M12X65	8-98053-922-0	04	1	1004-
263	BOLT; ROD END M12X50	0-20951-250-0	04	1	0812-1002
263	BOLT; ROD END FINAL GEAR 39/7 15.5"(W3K) M12X50	0-20951-250-0	04	1	1003-1003
275	BOOT; ROD END,TIE FINAL GEAR 39/6 14.5"(W1J)	1-43159-131-0	02	1	1003-1003
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1004-1306
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-
304	WASHER; PL ID=12.5	0-91614-512-0	04	1	0812-
