3-78 — FIXING PARTS; AIR PIPING (#69265) — 66 parça

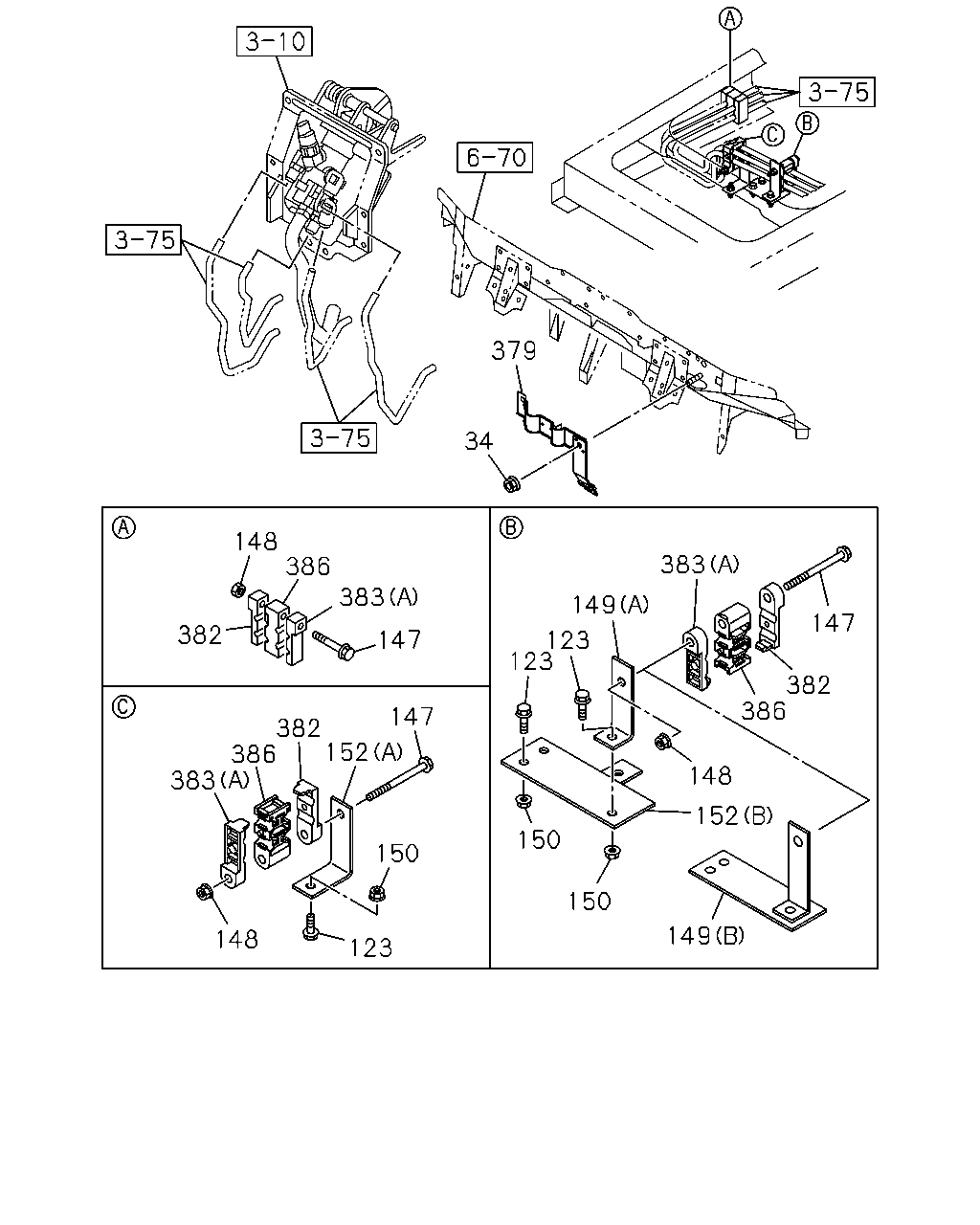

379 34 148 386 383 383 149 147 382 147 123 123 382 386 147 382 386 152 383 148 152 150 150 150 149 148 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	NUT; BRKT M6 FLANGE	0-91180-106-0	02	1	0812-
123	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	04	1	0812-0905
123	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	03	1	0906-
147	BOLT; PIPE CLIP M8X70 FLANGE	0-28050-870-0	05	1	0812-
148	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	05	1	0812-
149	BRACKET; PIPE CLIP (A) L=75	1-47478-323-0	01	1	0812-0905
149	BRACKET; PIPE CLIP (B)	8-98149-978-0	01	1	0906-
150	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	04	1	0812-0905
150	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	03	1	0906-
152	BRACKET; PIPE CLIP (A)	8-98116-193-0	01	1	0812-
152	BRACKET; PIPE CLIP (B)	8-98130-912-0	01	1	0812-0905
379	BRACKET; NYLON TUBE	8-98112-515-1	01	1	0812-
382	CLIP; UPR ID=10 & 10	1-09709-241-0	05	1	0812-
382	CLIP; UPR ID=10 & 10	1-09709-241-0	02	1	0812-
383	CLIP; LWR (A) ID=10 & 10	1-09709-241-0	05	1	0812-
383	CLIP; LWR (B) ID=10 & 10	1-09709-243-0	02	1	0812-
386	CLIP; CENTER ID=10	1-09709-242-0	05	1	0812-

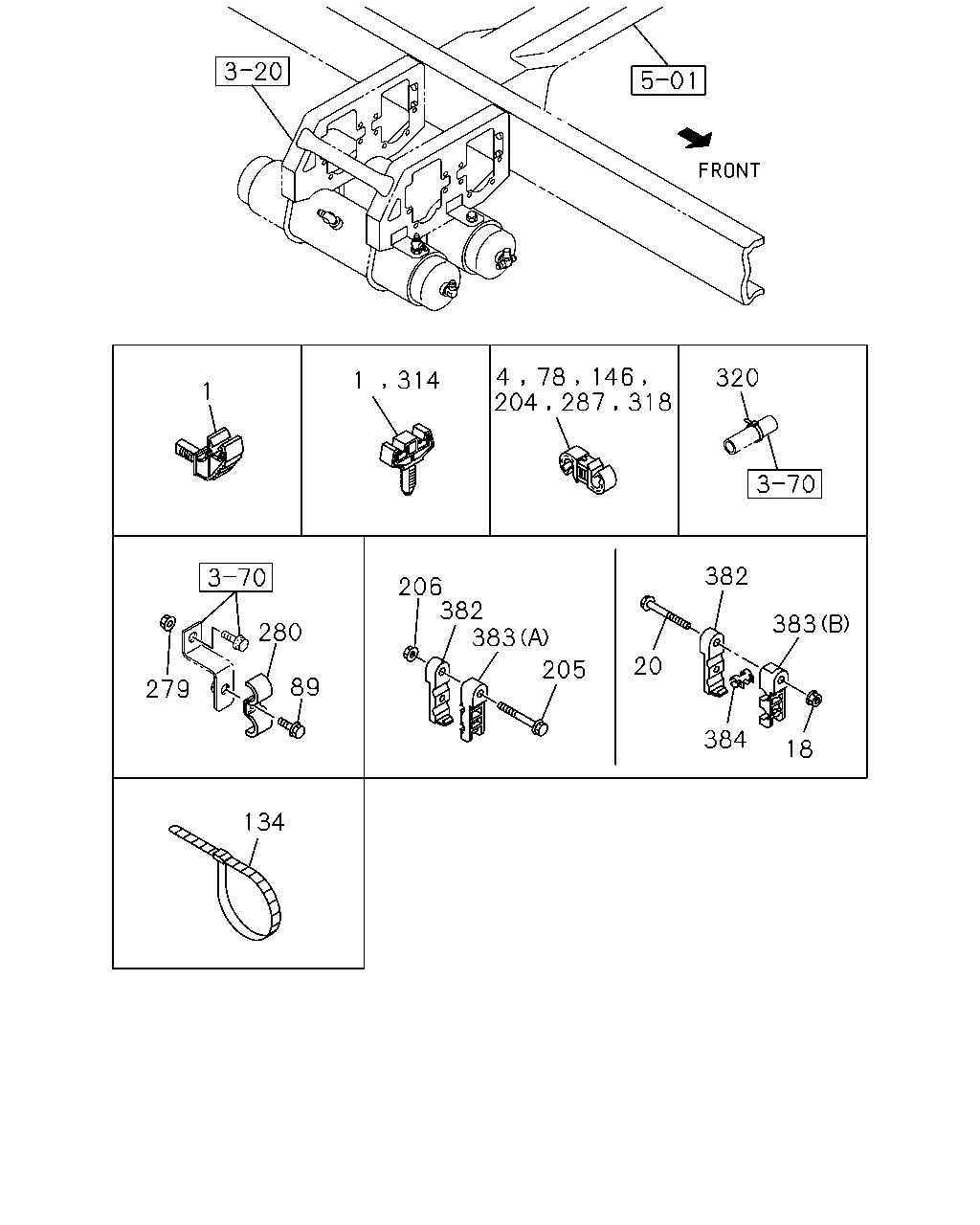

146 320 314 1 1 382 206 382 383 383 280 20 205 279 89 384 18 134 4 78 204 287 318

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLIP; AIR PIPE	8-98012-254-1	01	1	0812-
4	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	02	1	0812-0812
4	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	04	1	0812-
4	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	06	1	0812-0812
4	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	02	1	0812-0812
4	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	04	1	0812-
4	CLIP; AIR PIPE ID=10 & 12	1-09709-278-1	01	1	0812-
4	CLIP; AIR PIPE ID=10 & 12	1-09709-278-1	02	1	0812-0812
18	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0812-
20	BOLT; CLIP M8X50 FLANGE	0-28050-850-0	02	1	0812-
78	CLIP; AIR PIPE AIR DRYER<PS7> ID=10 & 12	1-09709-278-1	02	1	0812-0812
78	CLIP; AIR PIPE AIR DRYER<PS7> ID=10 & 12	1-09709-278-1	01	1	0812-1011
78	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> ID=10 & 12	1-09709-278-1	01	1	1012-
78	CLIP; AIR PIPE EURO3 SPECIFICATION<NT3> ID=10 & 12	1-09709-278-1	01	1	1012-
78	CLIP; AIR PIPE EXC. AIR DRYER<PS7> ID=10 & 15	1-09709-279-1	01	1	0812-0812
89	BOLT; PIPE CLIP WHEEL BASE 3600MM(36W) EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0812-
134	CLIP; AIR PIPE L=350	1-09707-183-0	01	1	0812-
146	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	07	1	0812-
204	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	01	1	0909-
205	BOLT; PIPE CLIP M8X50 FLANGE	0-28050-850-0	01	1	0812-
206	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	0812-
279	NUT; BRKT WHEEL BASE 3600MM(36W) EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0812-
280	CLIP; AIR PIPE WHEEL BASE 3600MM(36W) EXC. RIGID SEAT WO/ARM REST<TAZ> ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0812-
287	CLIP; AIR PIPE AIR DRYER<PS7> ID=6.35 & 12	1-09709-275-1	01	1	0812-0908
287	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	01	1	0909-1011
287	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> ID=6.35 & 10.0	1-09709-274-1	01	1	1012-
287	CLIP; AIR PIPE EXC. AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	01	1	0812-0908
314	CLIP; AIR PIPE WHEEL BASE 3600MM(36W) EXC. RIGID SEAT WO/ARM REST<TAZ>	8-98012-254-1	05	1	0812-
314	CLIP; AIR PIPE	8-98012-254-1	02	1	0812-1001
314	CLIP; AIR PIPE WHEEL BASE 4200MM(42W) EXC. RIGID SEAT WO/ARM REST<TAZ>	8-98012-254-1	06	1	0812-
318	CLIP; AIR PIPE AIR DRYER<PS7> ID=6.35 & 12	1-09709-275-1	02	1	0812-0812
318	CLIP; AIR PIPE AIR DRYER<PS7> ID=6.35 & 12	1-09709-275-1	01	1	0812-1011
318	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> ID=6.35 & 12	1-09709-275-1	01	1	1012-
318	CLIP; AIR PIPE AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	02	1	0812-0812
318	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	02	1	0812-1011
318	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> ID=6.35 & 15	1-09709-276-1	02	1	1012-
318	CLIP; AIR PIPE EXC. AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	03	1	0812-0812
320	CLIP; BAND,FLEX FIX L=250	5-09707-030-1	01	1	0812-1011
320	CLIP; BAND,FLEX FIX EURO2 SPECIFICATION<NT2> L=250	5-09707-030-1	01	1	1012-
382	CLIP; UPR ID=10 & 10	1-09709-241-0	05	1	0812-
382	CLIP; UPR ID=10 & 10	1-09709-241-0	02	1	0812-
383	CLIP; LWR (A) ID=10 & 10	1-09709-241-0	05	1	0812-
383	CLIP; LWR (B) ID=10 & 10	1-09709-243-0	02	1	0812-
384	COLLAR ID=6	1-47459-010-0	02	1	0812-

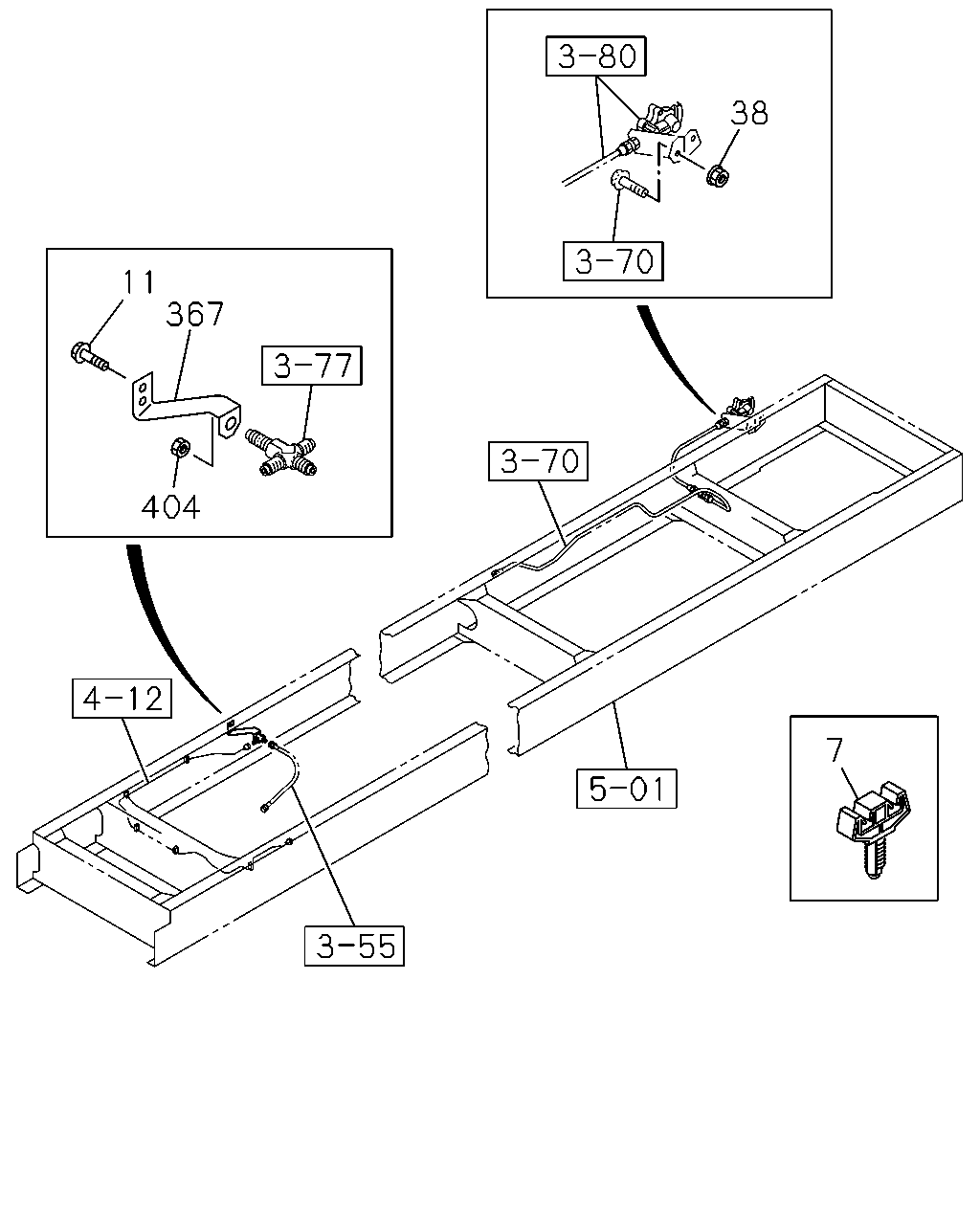

38 11 367 404 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	CLIP; AIR PIPE REARWARD INNER SINGLE TIRE<YK3>	8-98012-254-1	10	1	1003-
11	BOLT; CLIP BRKT REARWARD INNER SINGLE TIRE<YK3> M8X25 FLANGE	0-28650-825-0	02	1	1003-
38	NUT; BRKT TRAILER BRAKE CONTROL<J91> M10 FLANGE	0-91180-210-0	02	1	1003-
367	BRACKET ASM REARWARD INNER SINGLE TIRE<YK3>	8-98152-567-0	01	1	1003-
404	NUT REARWARD INNER SINGLE TIRE<YK3> M12	0-91111-512-0	01	1	1003-
