◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11151 - FTS(LHD) ▶ 3 - Brakes, Brake System ▶ 3-75 - BRAKE PIPING; AIR,FRONT ▶
3-75 — BRAKE PIPING; AIR,FRONT (#69263) — 48 parça

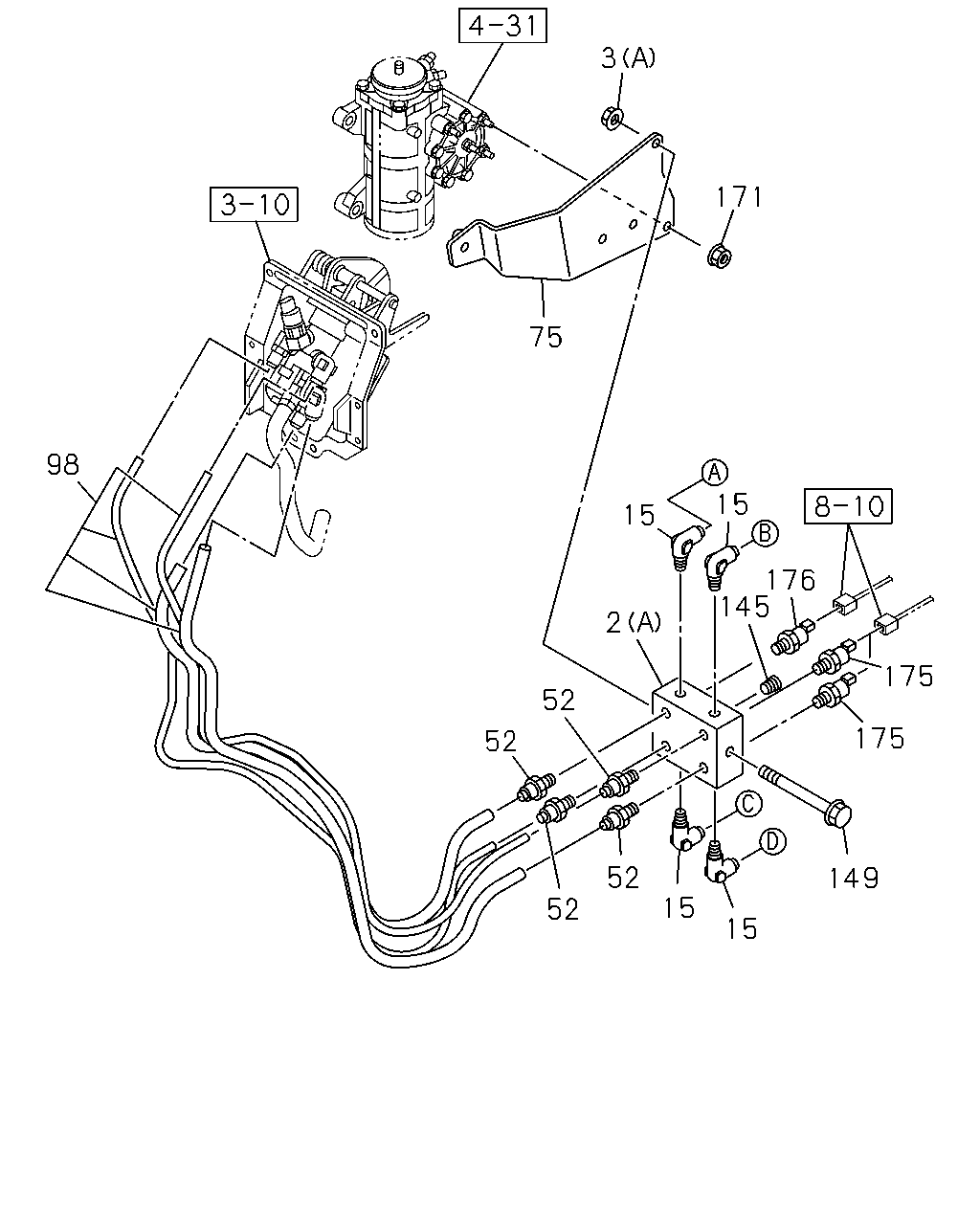

çizim 122154
3 171 75 98 15 15 176 145 2 175 52 175 52 52 149 15 52 15
BalonParca AdiParca NoAdetTipApplied Date
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0812-0812
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 0901-1002
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 0901-1002
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1003-
2 UNION; AIR PIPE
EXC. TRAILER BRAKE CONTROL<J91> (B) M16 ELBOW 		0-92135-210-0 01 1 1003-
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 0812-
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 0812-
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 0812-
15 CONNECTOR; AIR PIPE
M16 & PT1/4 ELBOW 		0-92134-310-0 04 1 0812-
52 CONNECTOR; NYLON TUBE
DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 0812-
75 BRACKET; UNION 8-98126-944-0 01 1 0812-
98 TUBE; NYLON 8-98123-961-0 01 1 0812-0905
98 TUBE; NYLON 8-98144-914-0 01 1 0906-0911
98 TUBE; NYLON 8-98158-188-0 01 1 0912-
145 PLUG
PT1/4 		9-99204-513-0 01 1 0812-
149 BOLT; UNION
M8X100 FLANGE 		0-28050-800-0 01 1 0812-
171 NUT; BRACKET
M10 FLANGE 		0-91180-210-0 02 1 0812-
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 0812-
176 SWITCH; AIR PRESS
STAMP 0.3 		8-98010-857-0 01 1 0812-

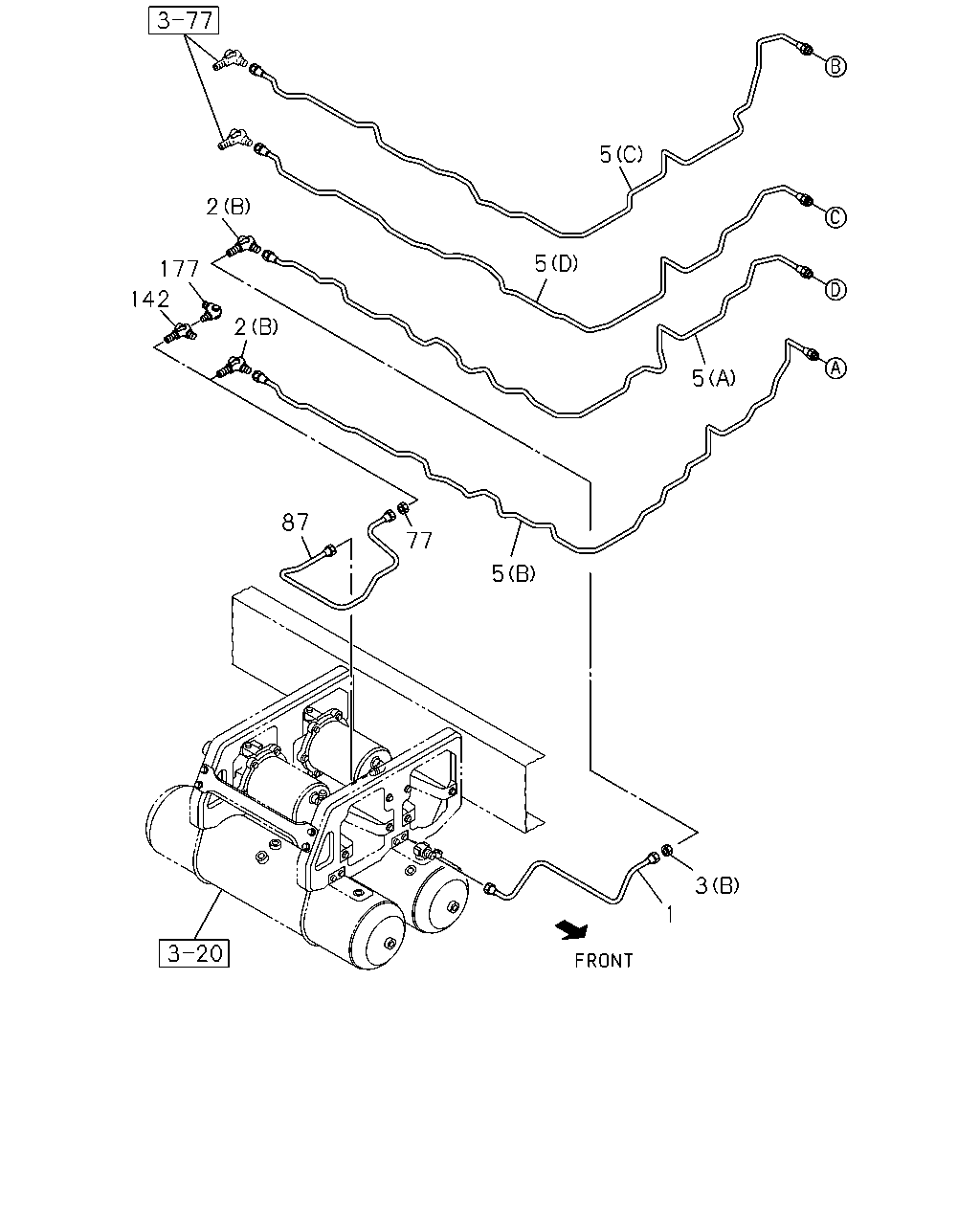

çizim 187831
5 2 5 177 142 2 5 87 77 5 3 1
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; AIR,AIR TANK TO UNION
L=568 SERVICED BY L=600 		1-47428-868-0 01 1 0812-
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0812-0812
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 0901-1002
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 0901-1002
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1003-
2 UNION; AIR PIPE
EXC. TRAILER BRAKE CONTROL<J91> (B) M16 ELBOW 		0-92135-210-0 01 1 1003-
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 0812-
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 0812-
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 0812-
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 4100MM(41W) (A) L=3504 		8-98152-817-0 01 1 1003-
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 4100MM(41W) (B) L=3660 		8-98152-819-0 01 1 1003-
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 4100MM(41W) (C) L=3907 		8-98152-821-0 01 1 1003-
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 4100MM(41W) (D) L=3825 		8-98152-823-0 01 1 1003-
5 PIPE; AIR,UNION TO UNION
(A) L=3503 		8-98111-230-0 01 1 0812-0905
5 PIPE; AIR,UNION TO UNION
(A) L=3517 		8-98145-010-0 01 1 0906-1002
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) L=3517 		8-98145-010-0 01 1 1003-
5 PIPE; AIR,UNION TO UNION
(B) L=3612 		8-98111-238-0 01 1 0812-0905
5 PIPE; AIR,UNION TO UNION
(B) L=3660 		8-98145-012-0 01 1 0906-1002
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (B) L=3660 		8-98145-012-0 01 1 1003-
5 PIPE; AIR,UNION TO UNION
(C) L=3837 		8-98130-892-0 01 1 0812-0905
5 PIPE; AIR,UNION TO UNION
(C) L=3907 		8-98145-013-0 01 1 0906-1002
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C) L=3907 		8-98145-013-0 01 1 1003-
5 PIPE; AIR,UNION TO UNION
(D) L=3701 		8-98130-893-0 01 1 0812-0905
5 PIPE; AIR,UNION TO UNION
(D) L=3825 		8-98145-014-0 01 1 0906-1002
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (D) L=3825 		8-98145-014-0 01 1 1003-
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0812-
87 PIPE; AIR,UNION TO AIR MASTER
L=661 SERVICED BY L=700 		1-47428-870-0 01 1 0812-
142 UNION; 3-WAY
TRAILER BRAKE CONTROL<J91> 		1-09656-561-1 01 1 1003-
177 CONNECTOR
TRAILER BRAKE CONTROL<J91> M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 1003-
