3-70 — BRAKE PIPING; AIR,AIR MASTER (#69262) — 251 parça

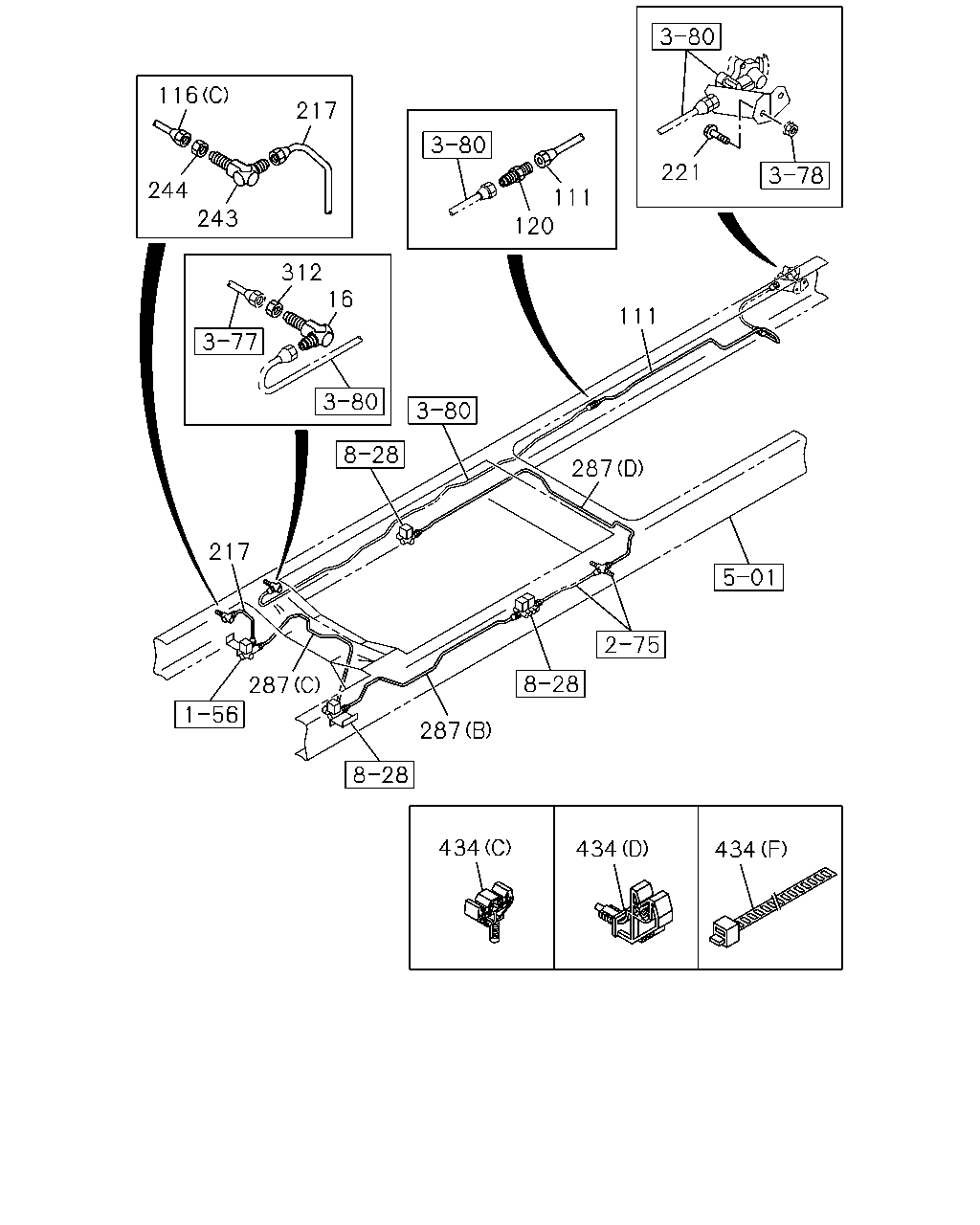

çizim 121319
116 217 221 244 111 243 120 312 16 111 287 217 287 287 434 434 434
BalonParca AdiParca NoAdetTipApplied Date
16 UNION; AIR PIPE
TRAILER BRAKE CONTROL<J91> M16 ELBOW 		0-92135-210-0 01 1 1003-
111 PIPE; AIR,UNION TO UNION
TRAILER BRAKE CONTROL<J91> L=1277 SERVICED BY L=1300 		1-47428-877-0 01 1 1003-
116 PIPE; AIR,PROTECTION VLV
TRAILER BRAKE CONTROL<J91> (C) L=957 SERVICED BY L=1000 		1-47428-814-0 01 1 1003-
116 PIPE; AIR,PROTECTION VLV
(A) 		8-98108-561-0 01 1 0812-
116 PIPE; AIR,PROTECTION VLV
(B) 		8-98108-563-0 01 1 0812-
116 PIPE; AIR,PROTECTION VLV
(C) L=973 SERVICED BY L=1000 		1-47428-814-0 01 1 0812-1002
116 PIPE; AIR,PROTECTION VLV
EXC. TRAILER BRAKE CONTROL<J91> (C) L=973 SERVICED BY L=1000 		1-47428-814-0 01 1 1003-
120 CONNECTOR; AIR PIPE
TRAILER BRAKE CONTROL<J91> M16 STRAIGHT L=42 		0-92123-010-0 01 1 1003-
217 PIPE; VAC,UNION TO MAG VLV
L=268 		8-98111-589-0 01 1 0812-1011
217 PIPE; VAC,UNION TO MAG VLV
L=268 		8-98111-589-0 01 1 1012-
221 BOLT; BRKT
TRAILER BRAKE CONTROL<J91> M10X30 FLANGE 		0-28651-030-0 02 1 1003-
243 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0812-
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0812-
287 PIPE; AIR,MAG VLV
REARWARD INNER SINGLE TIRE<YK3> (C) L=1114 SERVICED BY L=1200 		1-47428-816-0 01 1 1003-
287 PIPE; AIR,MAG VLV
WHEEL BASE 4100MM(41W) (D) L=1672 SERVICED BY L=1700 		1-47428-821-0 01 1 1003-
287 PIPE; AIR,MAG VLV
WHEEL BASE 4100MM(41W) (B) L=1092 SERVICED BY L=1100 		1-47428-815-0 01 1 1003-
287 PIPE; AIR,MAG VLV
WHEEL BASE 3600MM(36W) (A) L=1207 SERVICED BY L=1250 		1-47428-817-0 01 1 0812-
287 PIPE; AIR,MAG VLV
WHEEL BASE 4200MM(42W) (A) L=1212 SERVICED BY L=1250 		1-47428-817-0 01 1 0812-
312 NUT; UNION
TRAILER BRAKE CONTROL<J91> M16 		0-91111-516-0 01 1 1003-
434 CLIP
EURO3 SPECIFICATION<NT3> (G) ID=16 L=20 		0-95235-536-0 01 1 1012-
434 CLIP
EURO3 SPECIFICATION<NT3> (A) ID=12 & 15 		1-09709-281-1 01 1 1012-
434 CLIP
WHEEL BASE 4100MM(41W) (D) ID=6.35 		1-09701-247-1 04 1 1003-
434 CLIP
(F) L=600 		1-09707-107-1 01 1 0906-
434 CLIP
(F) L=250 		5-09707-030-1 01 1 0906-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (F) L=350 		1-09707-183-0 01 1 0901-
434 CLIP
WHEEL BASE 4200MM(42W) (A) ID=6.35 & 6.35 		1-09709-273-1 01 1 0812-
434 CLIP
(C) 		8-98012-254-1 01 1 0812-
434 CLIP
WHEEL BASE 4200MM(42W) (C) 		8-98012-254-1 01 1 0812-
434 CLIP
(D) ID=6.35 		1-09701-247-1 01 1 0812-1002
434 CLIP
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (D) ID=6.35 		1-09701-247-1 01 1 1003-
434 CLIP
(D) ID=6.35 		1-09701-247-1 02 1 0812-1002
434 CLIP
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (D) ID=6.35 		1-09701-247-1 02 1 1003-
434 CLIP
(A) ID=10 & 15 		1-09709-279-1 01 1 0812-0812
434 CLIP
EXC. AIR DRYER<PS7> (A) ID=10 & 15 		1-09709-279-1 01 1 0812-1011
434 CLIP
EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (A) ID=10 & 15 		1-09709-279-1 01 1 1012-
434 CLIP
EURO3 SPECIFICATION<NT3> (A) ID=10 & 15 		1-09709-279-1 01 1 1012-
434 CLIP
(A) ID=12 & 15 		1-09709-281-1 01 1 0812-0812
434 CLIP
EXC. AIR DRYER<PS7> (E) ID=16 & 7 L=21 & 17 		1-09700-675-0 01 1 0812-1011
434 CLIP
EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (E) ID=16 & 7 L=21 & 17 		1-09700-675-0 01 1 1012-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20 		0-95234-635-0 01 1 0812-

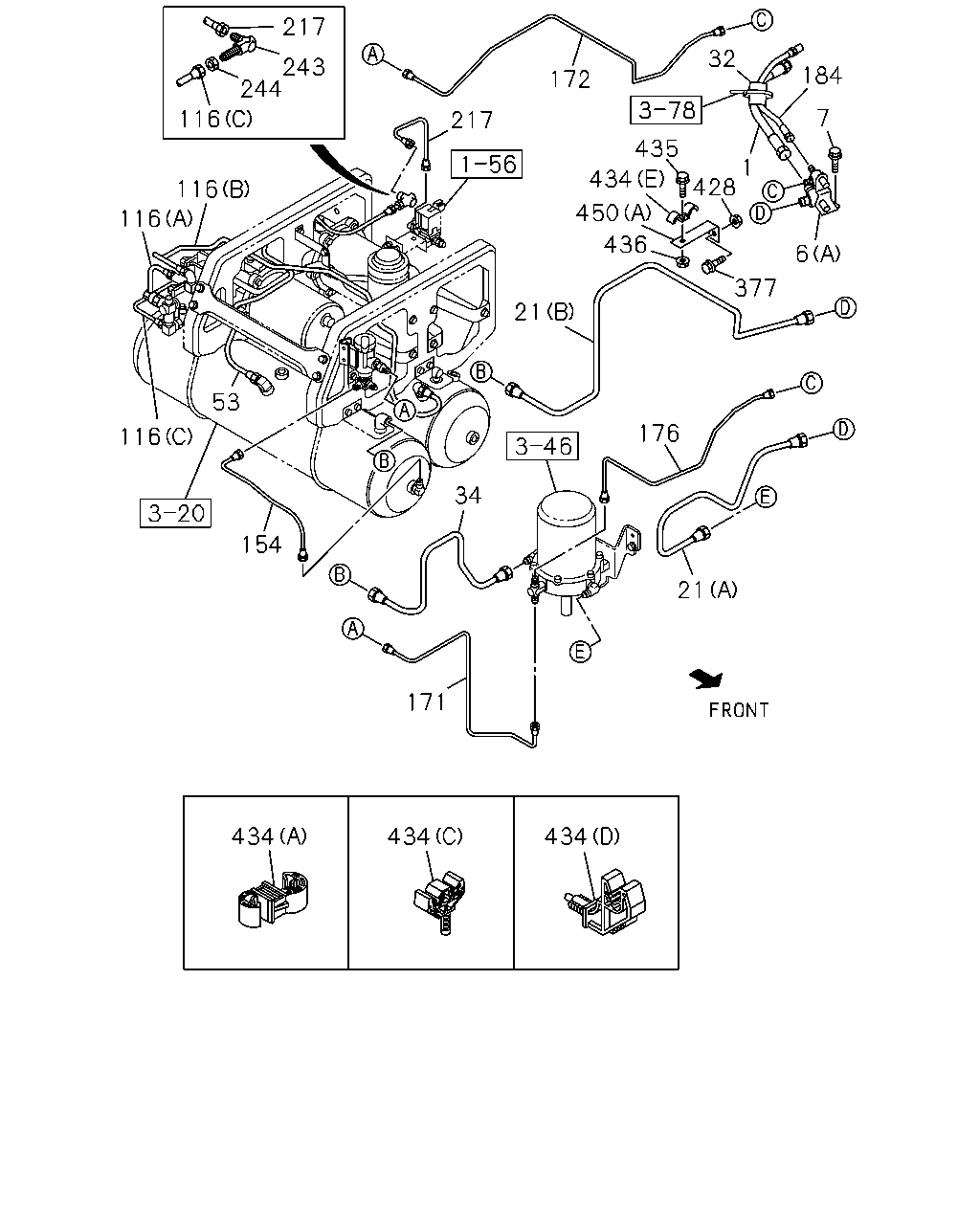

çizim 121428
217 32 243 244 184 172 7 116 217 435 1 428 434 116 450 116 436 6 377 21 53 176 116 34 154 21 171 434 434 434
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
EURO3 SPECIFICATION<NT3> 		8-97607-418-0 01 1 1012-
1 HOSE; FLEX,AIR TANK 1-09363-910-0 01 1 0812-0812
1 HOSE; FLEX,AIR TANK 8-98140-111-0 01 1 0812-1011
1 HOSE; FLEX,AIR TANK
EURO2 SPECIFICATION<NT2> 		8-98140-111-0 01 1 1012-
6 BRACKET; FLEX HOSE,AIR TANK
EURO3 SPECIFICATION<NT3> (B) 		8-98076-344-0 01 1 1012-
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98120-436-0 01 1 0812-0903
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98133-392-0 01 1 0904-1011
6 BRACKET; FLEX HOSE,AIR TANK
EURO2 SPECIFICATION<NT2> (A) 		8-98133-392-0 01 1 1012-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 0812-
21 PIPE; AIR,UNION TO AIR DRYER
EURO3 SPECIFICATION<NT3> (C) L=1748 		8-98126-086-0 01 1 1012-
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> (A) L=751 		8-98111-626-0 01 1 0812-1011
21 PIPE; AIR,UNION TO AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) L=751 		8-98111-626-0 01 1 1012-
21 PIPE; AIR,UNION TO AIR DRYER
EXC. AIR DRYER<PS7> (B) L=1345 		8-98130-957-0 01 1 0812-1003
21 PIPE; AIR,UNION TO AIR DRYER
EXC. AIR DRYER<PS7> (B) L=1511 		8-98164-599-0 01 1 1004-1011
21 PIPE; AIR,UNION TO AIR DRYER
EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (B) L=1511 		8-98164-599-0 01 1 1012-
32 SLEEVE; RUBBER,AIR PIPE
ID=32 OD=36 L=50 		1-09337-023-0 01 1 0812-1011
32 SLEEVE; RUBBER,AIR PIPE
EURO2 SPECIFICATION<NT2> ID=32 OD=36 L=50 		1-09337-023-0 01 1 1012-
34 PIPE; AIR
AIR DRYER<PS7> L=639 SERVICED BY L=660 		1-49115-480-0 01 1 0812-
53 PIPE; AIR,AIR TANK TO VALVE
L=732 		8-98108-559-0 01 1 0812-
116 PIPE; AIR,PROTECTION VLV
TRAILER BRAKE CONTROL<J91> (C) L=957 SERVICED BY L=1000 		1-47428-814-0 01 1 1003-
116 PIPE; AIR,PROTECTION VLV
(A) 		8-98108-561-0 01 1 0812-
116 PIPE; AIR,PROTECTION VLV
(B) 		8-98108-563-0 01 1 0812-
116 PIPE; AIR,PROTECTION VLV
(C) L=973 SERVICED BY L=1000 		1-47428-814-0 01 1 0812-1002
116 PIPE; AIR,PROTECTION VLV
EXC. TRAILER BRAKE CONTROL<J91> (C) L=973 SERVICED BY L=1000 		1-47428-814-0 01 1 1003-
154 PIPE; AIR,AIR TANK TO AIR GOV 8-98131-480-0 01 1 0812-0908
154 PIPE; AIR,AIR TANK TO AIR GOV 8-98152-813-0 01 1 0909-1011
154 PIPE; AIR,AIR TANK TO AIR GOV
EURO2 SPECIFICATION<NT2> 		8-98152-813-0 01 1 1012-
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> L=762 SERVICED BY L=800 		1-47428-812-0 01 1 0812-1011
171 PIPE; AIR,GOV TO AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=762 SERVICED BY L=800 		1-47428-812-0 01 1 1012-
172 PIPE; AIR,GOV TO UNION
EXC. AIR DRYER<PS7> 		8-98131-481-0 01 1 0812-1003
172 PIPE; AIR,GOV TO UNION
EXC. AIR DRYER<PS7> 		8-98164-600-0 01 1 1004-1011
172 PIPE; AIR,GOV TO UNION
EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> 		8-98164-600-0 01 1 1012-
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> L=695 SERVICED BY L=700 		1-47428-811-0 01 1 0812-1011
176 PIPE; AIR,AIR DRYER TO UNION
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=695 SERVICED BY L=700 		1-47428-811-0 01 1 1012-
184 HOSE; FLEX,AIR GOV
L=340 		1-09363-622-0 01 1 0812-1011
184 HOSE; FLEX,AIR GOV
EURO2 SPECIFICATION<NT2> L=340 		1-09363-622-0 01 1 1012-
217 PIPE; VAC,UNION TO MAG VLV
L=268 		8-98111-589-0 01 1 0812-1011
217 PIPE; VAC,UNION TO MAG VLV
L=268 		8-98111-589-0 01 1 1012-
243 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0812-
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0812-
377 BOLT; BRKT FIX
EXC. AIR DRYER<PS7> M8X25 FLANGE 		0-28650-825-0 01 1 0812-1011
377 BOLT; BRKT FIX
EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> M8X25 FLANGE 		0-28650-825-0 01 1 1012-
377 BOLT; BRKT FIX
EURO3 SPECIFICATION<NT3> M8X25 FLANGE 		0-28650-825-0 01 1 1012-
377 BOLT; BRKT FIX
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE 		0-28650-825-0 02 1 0812-
428 NUT; BRKT
EXC. AIR DRYER<PS7> M8 FLANGE 		0-91180-108-0 01 1 0812-1011
428 NUT; BRKT
EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> M8 FLANGE 		0-91180-108-0 01 1 1012-
428 NUT; BRKT
EURO3 SPECIFICATION<NT3> M8 FLANGE 		0-91180-108-0 01 1 1012-
434 CLIP
EURO3 SPECIFICATION<NT3> (G) ID=16 L=20 		0-95235-536-0 01 1 1012-
434 CLIP
EURO3 SPECIFICATION<NT3> (A) ID=12 & 15 		1-09709-281-1 01 1 1012-
434 CLIP
WHEEL BASE 4100MM(41W) (D) ID=6.35 		1-09701-247-1 04 1 1003-
434 CLIP
(F) L=600 		1-09707-107-1 01 1 0906-
434 CLIP
(F) L=250 		5-09707-030-1 01 1 0906-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (F) L=350 		1-09707-183-0 01 1 0901-
434 CLIP
WHEEL BASE 4200MM(42W) (A) ID=6.35 & 6.35 		1-09709-273-1 01 1 0812-
434 CLIP
(C) 		8-98012-254-1 01 1 0812-
434 CLIP
WHEEL BASE 4200MM(42W) (C) 		8-98012-254-1 01 1 0812-
434 CLIP
(D) ID=6.35 		1-09701-247-1 01 1 0812-1002
434 CLIP
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (D) ID=6.35 		1-09701-247-1 01 1 1003-
434 CLIP
(D) ID=6.35 		1-09701-247-1 02 1 0812-1002
434 CLIP
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (D) ID=6.35 		1-09701-247-1 02 1 1003-
434 CLIP
(A) ID=10 & 15 		1-09709-279-1 01 1 0812-0812
434 CLIP
EXC. AIR DRYER<PS7> (A) ID=10 & 15 		1-09709-279-1 01 1 0812-1011
434 CLIP
EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (A) ID=10 & 15 		1-09709-279-1 01 1 1012-
434 CLIP
EURO3 SPECIFICATION<NT3> (A) ID=10 & 15 		1-09709-279-1 01 1 1012-
434 CLIP
(A) ID=12 & 15 		1-09709-281-1 01 1 0812-0812
434 CLIP
EXC. AIR DRYER<PS7> (E) ID=16 & 7 L=21 & 17 		1-09700-675-0 01 1 0812-1011
434 CLIP
EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (E) ID=16 & 7 L=21 & 17 		1-09700-675-0 01 1 1012-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20 		0-95234-635-0 01 1 0812-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 0812-1011
435 BOLT; CLIP
EXC. AIR DRYER<PS7> M8X20 FLANGE 		0-28650-820-0 01 1 0812-1011
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 1012-
435 BOLT; CLIP
EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> M8X20 FLANGE 		0-28650-820-0 01 1 1012-
435 BOLT; CLIP
EURO3 SPECIFICATION<NT3> M8X20 FLANGE 		0-28650-820-0 01 1 1012-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 0812-1011
436 NUT; CLIP
EXC. AIR DRYER<PS7> M8 FLANGE 		0-91180-108-0 01 1 0812-1011
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1012-
436 NUT; CLIP
EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> M8 FLANGE 		0-91180-108-0 01 1 1012-
450 BRACKET; CLIP
EXC. AIR DRYER<PS7> (A) L=115 B=25 		1-47476-758-0 01 1 0812-1011
450 BRACKET; CLIP
EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (A) L=115 B=25 		1-47476-758-0 01 1 1012-
450 BRACKET; CLIP
EURO3 SPECIFICATION<NT3> (A) L=115 B=25 		1-47476-758-0 01 1 1012-
450 BRACKET; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) 		8-98070-479-0 01 1 0812-1107
450 BRACKET; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) 		8-98180-947-0 01 1 1108-

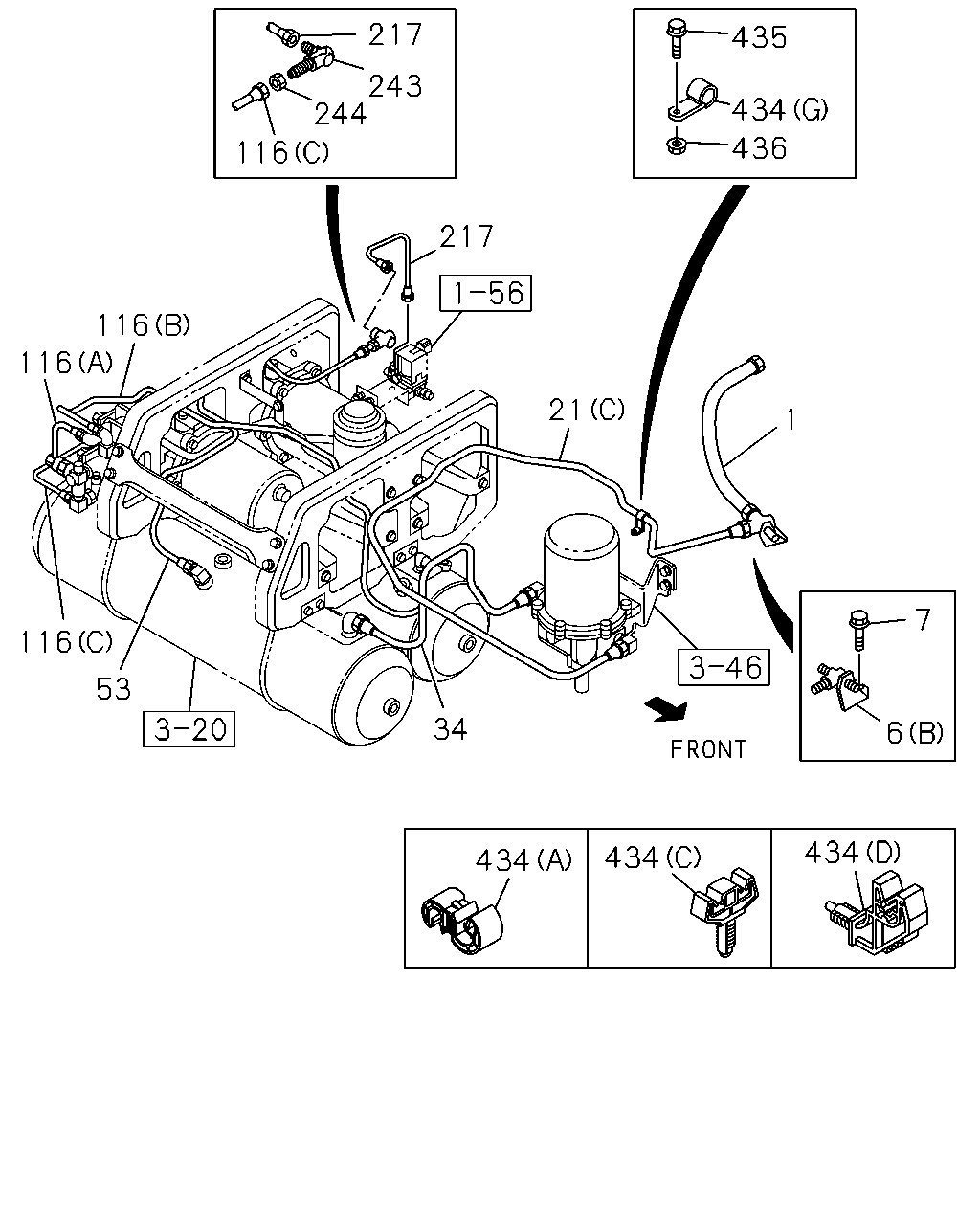

çizim 121530
217 435 243 244 434 436 116 217 116 116 21 1 7 116 53 34 6 434 434 434
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
EURO3 SPECIFICATION<NT3> 		8-97607-418-0 01 1 1012-
1 HOSE; FLEX,AIR TANK 1-09363-910-0 01 1 0812-0812
1 HOSE; FLEX,AIR TANK 8-98140-111-0 01 1 0812-1011
1 HOSE; FLEX,AIR TANK
EURO2 SPECIFICATION<NT2> 		8-98140-111-0 01 1 1012-
6 BRACKET; FLEX HOSE,AIR TANK
EURO3 SPECIFICATION<NT3> (B) 		8-98076-344-0 01 1 1012-
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98120-436-0 01 1 0812-0903
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98133-392-0 01 1 0904-1011
6 BRACKET; FLEX HOSE,AIR TANK
EURO2 SPECIFICATION<NT2> (A) 		8-98133-392-0 01 1 1012-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 0812-
21 PIPE; AIR,UNION TO AIR DRYER
EURO3 SPECIFICATION<NT3> (C) L=1748 		8-98126-086-0 01 1 1012-
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> (A) L=751 		8-98111-626-0 01 1 0812-1011
21 PIPE; AIR,UNION TO AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) L=751 		8-98111-626-0 01 1 1012-
21 PIPE; AIR,UNION TO AIR DRYER
EXC. AIR DRYER<PS7> (B) L=1345 		8-98130-957-0 01 1 0812-1003
21 PIPE; AIR,UNION TO AIR DRYER
EXC. AIR DRYER<PS7> (B) L=1511 		8-98164-599-0 01 1 1004-1011
21 PIPE; AIR,UNION TO AIR DRYER
EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (B) L=1511 		8-98164-599-0 01 1 1012-
34 PIPE; AIR
AIR DRYER<PS7> L=639 SERVICED BY L=660 		1-49115-480-0 01 1 0812-
53 PIPE; AIR,AIR TANK TO VALVE
L=732 		8-98108-559-0 01 1 0812-
116 PIPE; AIR,PROTECTION VLV
TRAILER BRAKE CONTROL<J91> (C) L=957 SERVICED BY L=1000 		1-47428-814-0 01 1 1003-
116 PIPE; AIR,PROTECTION VLV
(A) 		8-98108-561-0 01 1 0812-
116 PIPE; AIR,PROTECTION VLV
(B) 		8-98108-563-0 01 1 0812-
116 PIPE; AIR,PROTECTION VLV
(C) L=973 SERVICED BY L=1000 		1-47428-814-0 01 1 0812-1002
116 PIPE; AIR,PROTECTION VLV
EXC. TRAILER BRAKE CONTROL<J91> (C) L=973 SERVICED BY L=1000 		1-47428-814-0 01 1 1003-
217 PIPE; VAC,UNION TO MAG VLV
L=268 		8-98111-589-0 01 1 0812-1011
217 PIPE; VAC,UNION TO MAG VLV
L=268 		8-98111-589-0 01 1 1012-
243 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0812-
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0812-
434 CLIP
EURO3 SPECIFICATION<NT3> (G) ID=16 L=20 		0-95235-536-0 01 1 1012-
434 CLIP
EURO3 SPECIFICATION<NT3> (A) ID=12 & 15 		1-09709-281-1 01 1 1012-
434 CLIP
WHEEL BASE 4100MM(41W) (D) ID=6.35 		1-09701-247-1 04 1 1003-
434 CLIP
(F) L=600 		1-09707-107-1 01 1 0906-
434 CLIP
(F) L=250 		5-09707-030-1 01 1 0906-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (F) L=350 		1-09707-183-0 01 1 0901-
434 CLIP
WHEEL BASE 4200MM(42W) (A) ID=6.35 & 6.35 		1-09709-273-1 01 1 0812-
434 CLIP
(C) 		8-98012-254-1 01 1 0812-
434 CLIP
WHEEL BASE 4200MM(42W) (C) 		8-98012-254-1 01 1 0812-
434 CLIP
(D) ID=6.35 		1-09701-247-1 01 1 0812-1002
434 CLIP
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (D) ID=6.35 		1-09701-247-1 01 1 1003-
434 CLIP
(D) ID=6.35 		1-09701-247-1 02 1 0812-1002
434 CLIP
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (D) ID=6.35 		1-09701-247-1 02 1 1003-
434 CLIP
(A) ID=10 & 15 		1-09709-279-1 01 1 0812-0812
434 CLIP
EXC. AIR DRYER<PS7> (A) ID=10 & 15 		1-09709-279-1 01 1 0812-1011
434 CLIP
EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (A) ID=10 & 15 		1-09709-279-1 01 1 1012-
434 CLIP
EURO3 SPECIFICATION<NT3> (A) ID=10 & 15 		1-09709-279-1 01 1 1012-
434 CLIP
(A) ID=12 & 15 		1-09709-281-1 01 1 0812-0812
434 CLIP
EXC. AIR DRYER<PS7> (E) ID=16 & 7 L=21 & 17 		1-09700-675-0 01 1 0812-1011
434 CLIP
EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (E) ID=16 & 7 L=21 & 17 		1-09700-675-0 01 1 1012-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20 		0-95234-635-0 01 1 0812-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 0812-1011
435 BOLT; CLIP
EXC. AIR DRYER<PS7> M8X20 FLANGE 		0-28650-820-0 01 1 0812-1011
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 1012-
435 BOLT; CLIP
EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> M8X20 FLANGE 		0-28650-820-0 01 1 1012-
435 BOLT; CLIP
EURO3 SPECIFICATION<NT3> M8X20 FLANGE 		0-28650-820-0 01 1 1012-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 0812-1011
436 NUT; CLIP
EXC. AIR DRYER<PS7> M8 FLANGE 		0-91180-108-0 01 1 0812-1011
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1012-
436 NUT; CLIP
EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> M8 FLANGE 		0-91180-108-0 01 1 1012-

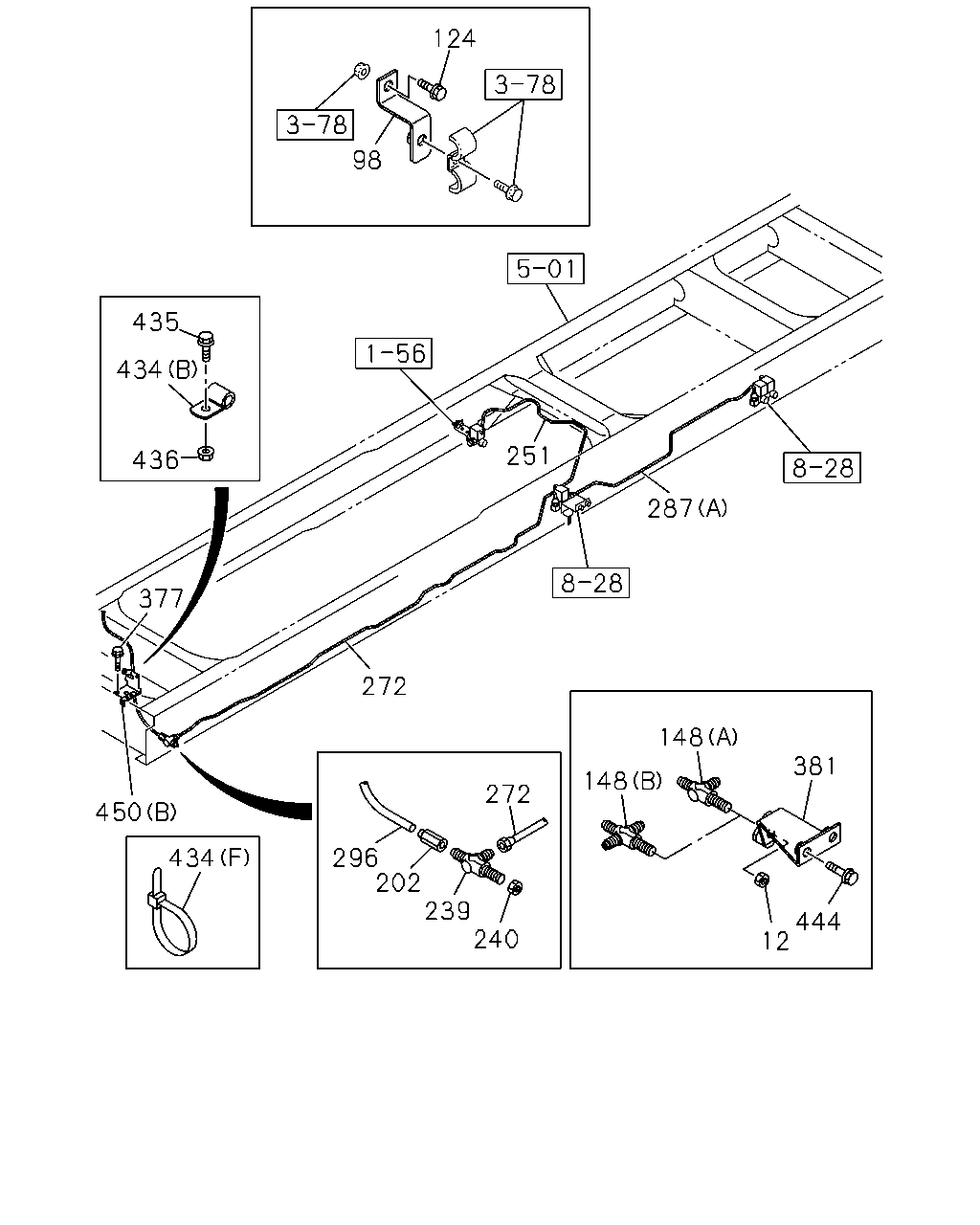

çizim 121661
124 98 435 434 251 436 287 377 272 148 381 148 272 450 296 202 239 240 434 444 12
BalonParca AdiParca NoAdetTipApplied Date
12 NUT; UNION
EXC. PTO CONTROL<SV6> M12 		0-91111-512-0 01 1 0812-1002
12 NUT; UNION
RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,REARWARD INNER SINGLE TIRE<YK3> M12 		0-91111-512-0 01 1 1003-
12 NUT; UNION
EXC. DIFF LOCK<C3N>,PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>,REARWARD INNER SINGLE TIRE<YK3> M12 		0-91111-512-0 01 1 1003-
98 BRACKET; AIR PIPE
WHEEL BASE 3600MM(36W) EXC. RIGID SEAT WO/ARM REST<TAZ> 		1-47478-981-0 01 1 0812-
124 BOLT; BRKT
WHEEL BASE 3600MM(36W) EXC. RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE 		0-28650-825-0 01 1 0812-
148 CONNECTOR; UNION
RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> (A) M12 2WAY 		1-09654-059-2 01 1 0812-1002
148 CONNECTOR; UNION
RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,REARWARD INNER SINGLE TIRE<YK3> (A) M12 2WAY 		1-09654-059-2 01 1 1003-
148 CONNECTOR; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) M12 		0-92138-306-0 01 1 0812-1002
148 CONNECTOR; UNION
EXC. DIFF LOCK<C3N>,PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>,REARWARD INNER SINGLE TIRE<YK3> (B) M12 		0-92138-306-0 01 1 1003-
202 ADAPTER
EXC. RIGID SEAT WO/ARM REST<TAZ> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0812-
239 UNION; AIR PIPE
EXC. RIGID SEAT WO/ARM REST<TAZ> M12 2WAY 		1-09654-059-2 01 1 0812-
240 NUT; UNION,AIR PIPE
EXC. RIGID SEAT WO/ARM REST<TAZ> M12 		0-91111-512-0 01 1 0812-
251 PIPE; AIR,UNION TO MAG VLV
L=1154 SERVICED BY L=1200 		1-47428-816-0 01 1 0812-1002
251 PIPE; AIR,UNION TO MAG VLV
EXC. REARWARD INNER SINGLE TIRE<YK3> L=1154 SERVICED BY L=1200 		1-47428-816-0 01 1 1003-
272 PIPE; AIR,MAG VLV TO UNION
WHEEL BASE 3600MM(36W) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> L=2584 SERVICED BY L=2650 		1-47428-827-0 01 1 0812-1011
272 PIPE; AIR,MAG VLV TO UNION
WHEEL BASE 3600MM(36W) EURO2 SPECIFICATION<NT2> PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> L=2584 SERVICED BY L=2650 		1-47428-827-0 01 1 1012-
272 PIPE; AIR,MAG VLV TO UNION
WHEEL BASE 3600MM(36W) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=2651 SERVICED BY L=2900 		1-47428-828-0 01 1 0812-1011
272 PIPE; AIR,MAG VLV TO UNION
WHEEL BASE 3600MM(36W) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=2651 SERVICED BY L=2900 		1-47428-828-0 01 1 1012-
272 PIPE; AIR,MAG VLV TO UNION
WHEEL BASE 4200MM(42W) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> L=2580 SERVICED BY L=2650 		1-47428-827-0 01 1 0812-1011
272 PIPE; AIR,MAG VLV TO UNION
WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> L=2580 SERVICED BY L=2650 		1-47428-827-0 01 1 1012-
272 PIPE; AIR,MAG VLV TO UNION
WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=2646 SERVICED BY L=2650 		1-47428-827-0 01 1 0812-1011
272 PIPE; AIR,MAG VLV TO UNION
WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=2646 SERVICED BY L=2650 		1-47428-827-0 01 1 1012-
287 PIPE; AIR,MAG VLV
REARWARD INNER SINGLE TIRE<YK3> (C) L=1114 SERVICED BY L=1200 		1-47428-816-0 01 1 1003-
287 PIPE; AIR,MAG VLV
WHEEL BASE 4100MM(41W) (D) L=1672 SERVICED BY L=1700 		1-47428-821-0 01 1 1003-
287 PIPE; AIR,MAG VLV
WHEEL BASE 4100MM(41W) (B) L=1092 SERVICED BY L=1100 		1-47428-815-0 01 1 1003-
287 PIPE; AIR,MAG VLV
WHEEL BASE 3600MM(36W) (A) L=1207 SERVICED BY L=1250 		1-47428-817-0 01 1 0812-
287 PIPE; AIR,MAG VLV
WHEEL BASE 4200MM(42W) (A) L=1212 SERVICED BY L=1250 		1-47428-817-0 01 1 0812-
296 TUBE; NYLON
EXC. RIGID SEAT WO/ARM REST<TAZ> SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0812-
377 BOLT; BRKT FIX
EXC. AIR DRYER<PS7> M8X25 FLANGE 		0-28650-825-0 01 1 0812-1011
377 BOLT; BRKT FIX
EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> M8X25 FLANGE 		0-28650-825-0 01 1 1012-
377 BOLT; BRKT FIX
EURO3 SPECIFICATION<NT3> M8X25 FLANGE 		0-28650-825-0 01 1 1012-
377 BOLT; BRKT FIX
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE 		0-28650-825-0 02 1 0812-
381 BRACKET
EXC. PTO CONTROL<SV6> 		8-98131-569-0 01 1 0812-1002
381 BRACKET
RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,REARWARD INNER SINGLE TIRE<YK3> 		8-98131-569-0 01 1 1003-
381 BRACKET
EXC. DIFF LOCK<C3N>,PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>,REARWARD INNER SINGLE TIRE<YK3> 		8-98131-569-0 01 1 1003-
434 CLIP
EURO3 SPECIFICATION<NT3> (G) ID=16 L=20 		0-95235-536-0 01 1 1012-
434 CLIP
EURO3 SPECIFICATION<NT3> (A) ID=12 & 15 		1-09709-281-1 01 1 1012-
434 CLIP
WHEEL BASE 4100MM(41W) (D) ID=6.35 		1-09701-247-1 04 1 1003-
434 CLIP
(F) L=600 		1-09707-107-1 01 1 0906-
434 CLIP
(F) L=250 		5-09707-030-1 01 1 0906-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (F) L=350 		1-09707-183-0 01 1 0901-
434 CLIP
WHEEL BASE 4200MM(42W) (A) ID=6.35 & 6.35 		1-09709-273-1 01 1 0812-
434 CLIP
(C) 		8-98012-254-1 01 1 0812-
434 CLIP
WHEEL BASE 4200MM(42W) (C) 		8-98012-254-1 01 1 0812-
434 CLIP
(D) ID=6.35 		1-09701-247-1 01 1 0812-1002
434 CLIP
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (D) ID=6.35 		1-09701-247-1 01 1 1003-
434 CLIP
(D) ID=6.35 		1-09701-247-1 02 1 0812-1002
434 CLIP
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (D) ID=6.35 		1-09701-247-1 02 1 1003-
434 CLIP
(A) ID=10 & 15 		1-09709-279-1 01 1 0812-0812
434 CLIP
EXC. AIR DRYER<PS7> (A) ID=10 & 15 		1-09709-279-1 01 1 0812-1011
434 CLIP
EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (A) ID=10 & 15 		1-09709-279-1 01 1 1012-
434 CLIP
EURO3 SPECIFICATION<NT3> (A) ID=10 & 15 		1-09709-279-1 01 1 1012-
434 CLIP
(A) ID=12 & 15 		1-09709-281-1 01 1 0812-0812
434 CLIP
EXC. AIR DRYER<PS7> (E) ID=16 & 7 L=21 & 17 		1-09700-675-0 01 1 0812-1011
434 CLIP
EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (E) ID=16 & 7 L=21 & 17 		1-09700-675-0 01 1 1012-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20 		0-95234-635-0 01 1 0812-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 0812-1011
435 BOLT; CLIP
EXC. AIR DRYER<PS7> M8X20 FLANGE 		0-28650-820-0 01 1 0812-1011
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 1012-
435 BOLT; CLIP
EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> M8X20 FLANGE 		0-28650-820-0 01 1 1012-
435 BOLT; CLIP
EURO3 SPECIFICATION<NT3> M8X20 FLANGE 		0-28650-820-0 01 1 1012-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 0812-1011
436 NUT; CLIP
EXC. AIR DRYER<PS7> M8 FLANGE 		0-91180-108-0 01 1 0812-1011
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1012-
436 NUT; CLIP
EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> M8 FLANGE 		0-91180-108-0 01 1 1012-
444 BOLT; UNION
EXC. PTO CONTROL<SV6> M10X30 FLANGE 		0-28651-030-0 02 1 0812-1002
444 BOLT; UNION
RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,REARWARD INNER SINGLE TIRE<YK3> M10X30 FLANGE 		0-28651-030-0 02 1 1003-
444 BOLT; UNION
EXC. DIFF LOCK<C3N>,PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>,REARWARD INNER SINGLE TIRE<YK3> M10X30 FLANGE 		0-28651-030-0 02 1 1003-
450 BRACKET; CLIP
EXC. AIR DRYER<PS7> (A) L=115 B=25 		1-47476-758-0 01 1 0812-1011
450 BRACKET; CLIP
EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (A) L=115 B=25 		1-47476-758-0 01 1 1012-
450 BRACKET; CLIP
EURO3 SPECIFICATION<NT3> (A) L=115 B=25 		1-47476-758-0 01 1 1012-
450 BRACKET; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) 		8-98070-479-0 01 1 0812-1107
450 BRACKET; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) 		8-98180-947-0 01 1 1108-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
