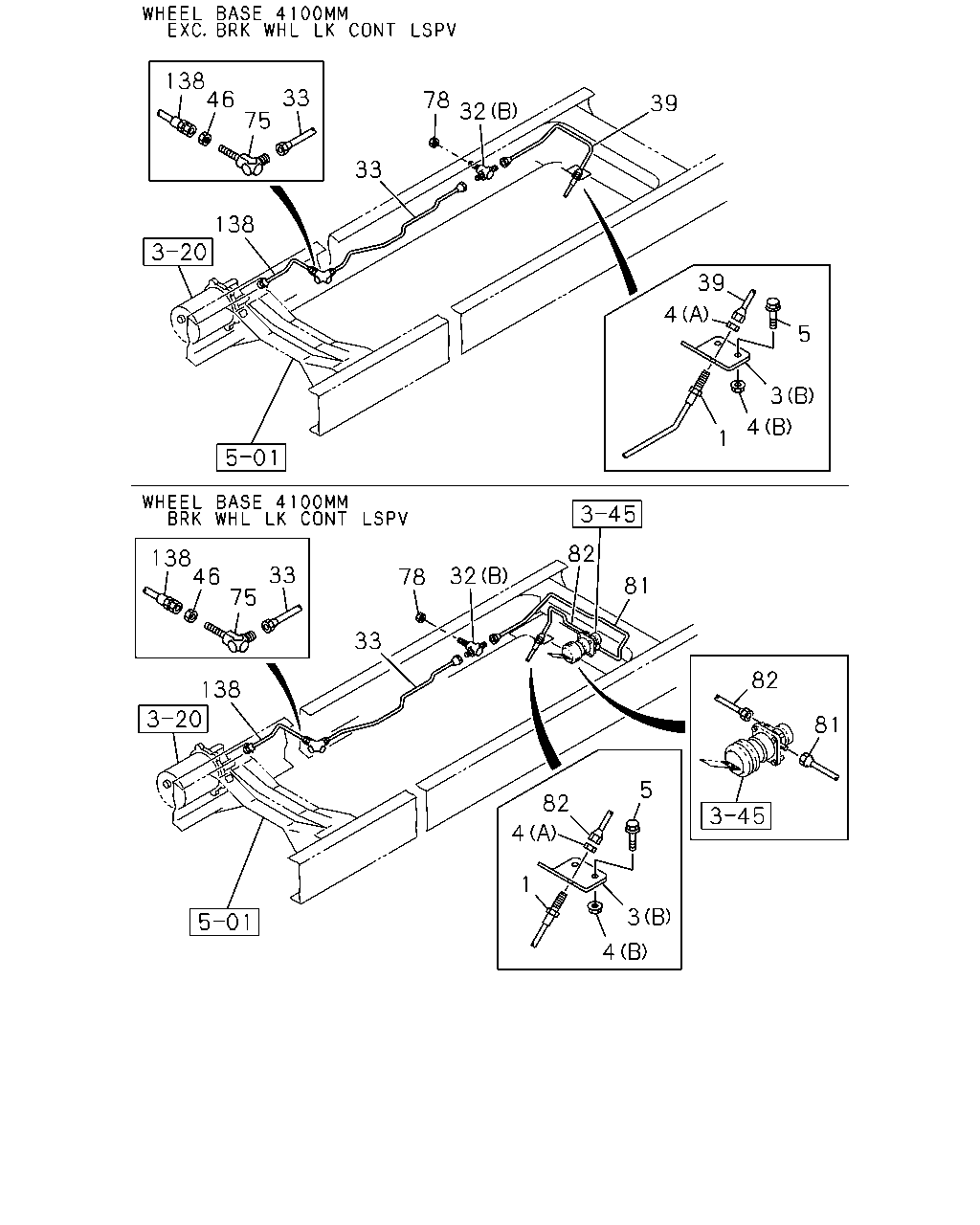

3-55 — BRAKE PIPING; OIL,REAR (#69260) — 60 parça

138 46 75 33 78 32 39 33 138 39 4 5 3 4 1 82 138 46 75 33 32 78 81 33 82 138 81 5 82 4 1 3 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK REARWARD INNER SINGLE TIRE<YK3> L=770	0-05212-770-0	01	1	1003-
1	HOSE; FLEX,RR BRK L=730	0-05312-730-0	01	1	0812-0901
1	HOSE; FLEX,RR BRK L=730	0-05212-730-0	01	1	0902-1002
1	HOSE; FLEX,RR BRK DOUBLE TIRE REARWARD<SR6> L=730	0-05212-730-0	01	1	1003-
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 4100MM(41W) (B)	8-98146-322-0	01	1	1003-
3	BRACKET; FLEX HOSE,RR BRK (A)	1-47465-251-0	01	1	0812-1002
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A)	1-47465-251-0	01	1	1003-
4	NUT; BRKT,FLEX HOSE,RR BRK (B) M8 FLANGE	0-91180-108-0	02	1	0812-
4	NUT; BRKT,FLEX HOSE,RR BRK (A) M12	9-09840-280-0	01	1	0812-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	0812-
32	UNION; OIL PIPE WHEEL BASE 4100MM(41W) (B) M12 3WAY	1-09654-137-2	01	1	1003-
32	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	01	1	0812-1002
32	UNION; OIL PIPE DOUBLE TIRE REARWARD<SR6> (A) M12 L=40	0-92113-006-0	01	1	1003-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4100MM(41W) L=2668 SERVICED BY L=2900	1-47428-744-0	01	1	1003-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3600MM(36W) L=1439 SERVICED BY L=1500	1-47428-735-0	01	1	0812-0906
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3600MM(36W) L=1439	8-98111-269-1	01	1	0907-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) L=2044 SERVICED BY L=2200	1-47428-740-0	01	1	0812-1003
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) L=2052	8-98167-793-1	01	1	1004-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4100MM(41W) EXC. BRK WHL LK CONT LSPV<6PH> L=612 SERVICED BY L=650	1-47428-726-0	01	1	1003-
39	PIPE; OIL,UNION TO RR FLEX HOSE L=1416 SERVICED BY L=1500	1-47428-735-0	01	1	0812-1002
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) L=1416 SERVICED BY L=1500	1-47428-735-0	01	1	1003-
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0812-
75	UNION; OIL PIPE M12 ELBOW	0-92125-206-0	01	1	0812-
78	NUT; UNION,OIL PIPE WHEEL BASE 4100MM(41W) M12	0-91111-512-0	01	1	1003-
81	PIPE; OIL,UNION TO LSPV WHEEL BASE 4100MM(41W) BRK WHL LK CONT LSPV<6PH> L=1222 SERVICED BY L=1250	1-47428-733-0	01	1	1003-
82	PIPE; OIL,LSPV TO FLEX HOSE WHEEL BASE 4100MM(41W) BRK WHL LK CONT LSPV<6PH> L=366	8-98152-597-0	01	1	1003-
138	PIPE; HYDRAULIC UNIT L=531 SERVICED BY L=550	1-47428-724-0	01	1	0812-

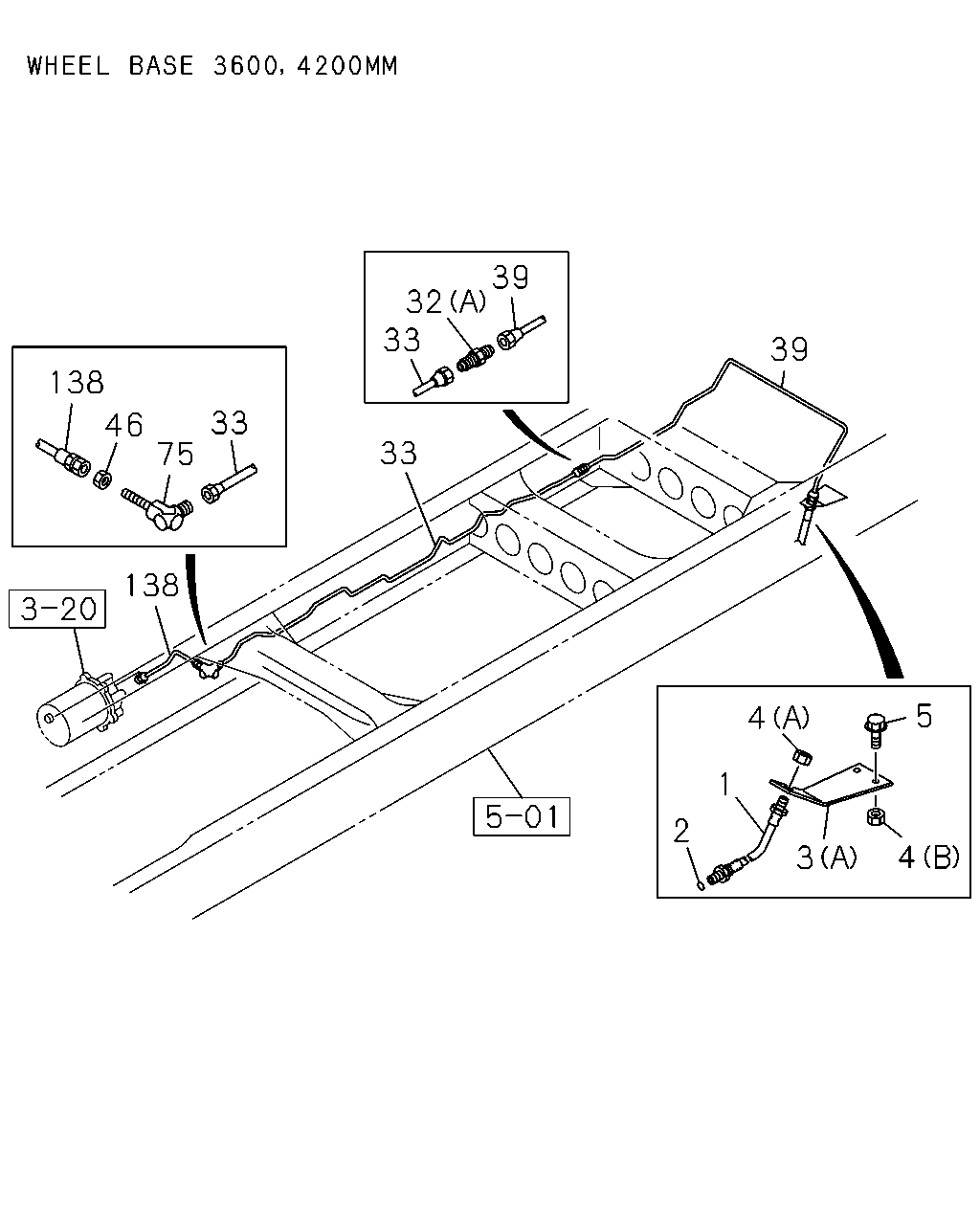

39 32 33 39 138 33 46 75 33 138 5 4 1 2 4 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK REARWARD INNER SINGLE TIRE<YK3> L=770	0-05212-770-0	01	1	1003-
1	HOSE; FLEX,RR BRK L=730	0-05312-730-0	01	1	0812-0901
1	HOSE; FLEX,RR BRK L=730	0-05212-730-0	01	1	0902-1002
1	HOSE; FLEX,RR BRK DOUBLE TIRE REARWARD<SR6> L=730	0-05212-730-0	01	1	1003-
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	0812-
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 4100MM(41W) (B)	8-98146-322-0	01	1	1003-
3	BRACKET; FLEX HOSE,RR BRK (A)	1-47465-251-0	01	1	0812-1002
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A)	1-47465-251-0	01	1	1003-
4	NUT; BRKT,FLEX HOSE,RR BRK (B) M8 FLANGE	0-91180-108-0	02	1	0812-
4	NUT; BRKT,FLEX HOSE,RR BRK (A) M12	9-09840-280-0	01	1	0812-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	0812-
32	UNION; OIL PIPE WHEEL BASE 4100MM(41W) (B) M12 3WAY	1-09654-137-2	01	1	1003-
32	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	01	1	0812-1002
32	UNION; OIL PIPE DOUBLE TIRE REARWARD<SR6> (A) M12 L=40	0-92113-006-0	01	1	1003-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4100MM(41W) L=2668 SERVICED BY L=2900	1-47428-744-0	01	1	1003-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3600MM(36W) L=1439 SERVICED BY L=1500	1-47428-735-0	01	1	0812-0906
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3600MM(36W) L=1439	8-98111-269-1	01	1	0907-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) L=2044 SERVICED BY L=2200	1-47428-740-0	01	1	0812-1003
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) L=2052	8-98167-793-1	01	1	1004-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4100MM(41W) EXC. BRK WHL LK CONT LSPV<6PH> L=612 SERVICED BY L=650	1-47428-726-0	01	1	1003-
39	PIPE; OIL,UNION TO RR FLEX HOSE L=1416 SERVICED BY L=1500	1-47428-735-0	01	1	0812-1002
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) L=1416 SERVICED BY L=1500	1-47428-735-0	01	1	1003-
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0812-
75	UNION; OIL PIPE M12 ELBOW	0-92125-206-0	01	1	0812-
138	PIPE; HYDRAULIC UNIT L=531 SERVICED BY L=550	1-47428-724-0	01	1	0812-

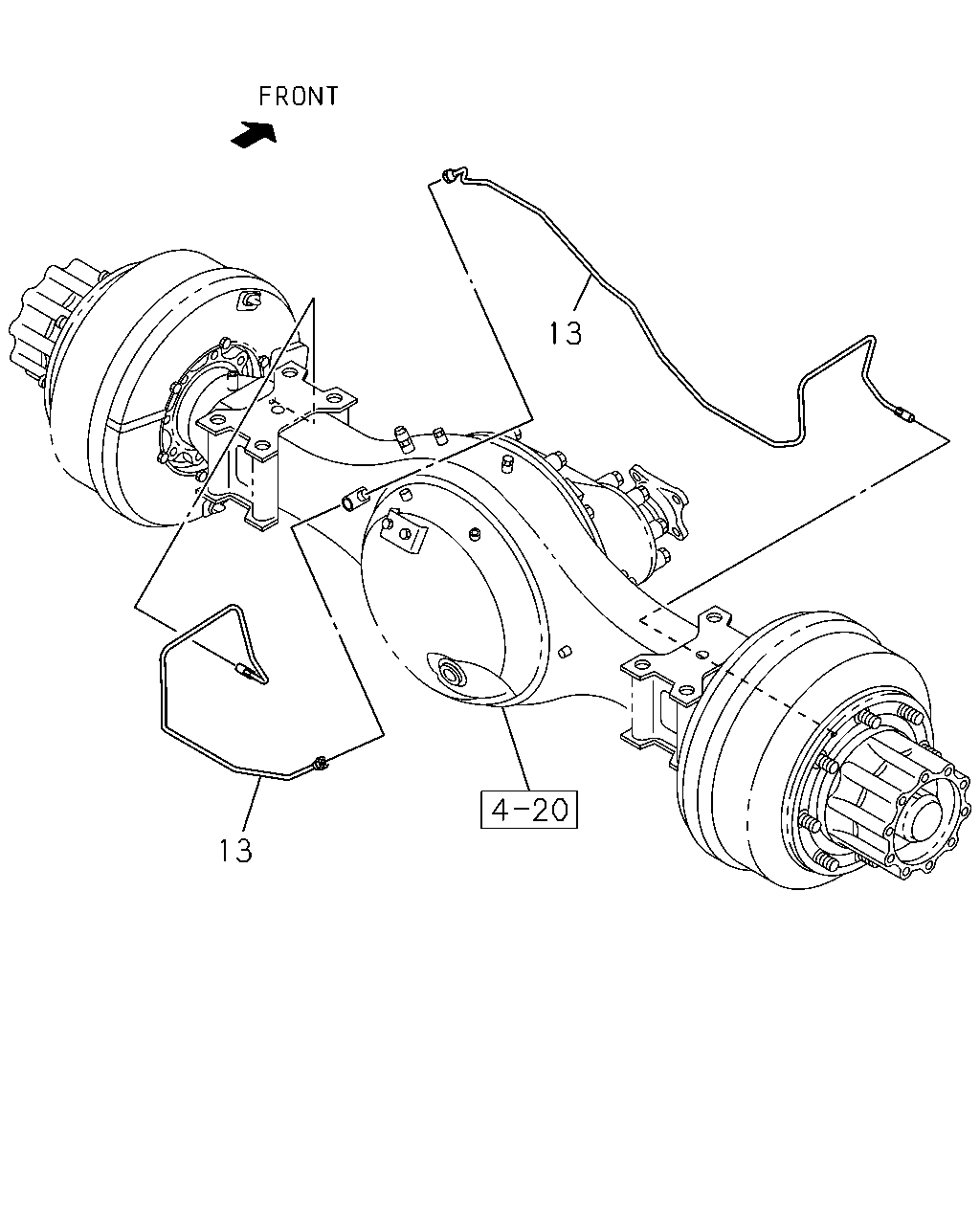

13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	PIPE; BRK,RR AXLE FINAL GEAR 39/6 14.5"(W1J)	8-98139-122-1	01	1	1003-
13	PIPE; BRK,RR AXLE FINAL GEAR 39/6 14.5"(W1J)	8-98139-123-1	01	1	1003-
13	PIPE; BRK,RR AXLE	8-98134-989-0	01	1	0812-1002
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 15.5"(W3K)	8-98134-989-0	01	1	1003-
13	PIPE; BRK,RR AXLE	8-98134-990-0	01	1	0812-1002
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 15.5"(W3K)	8-98134-990-0	01	1	1003-

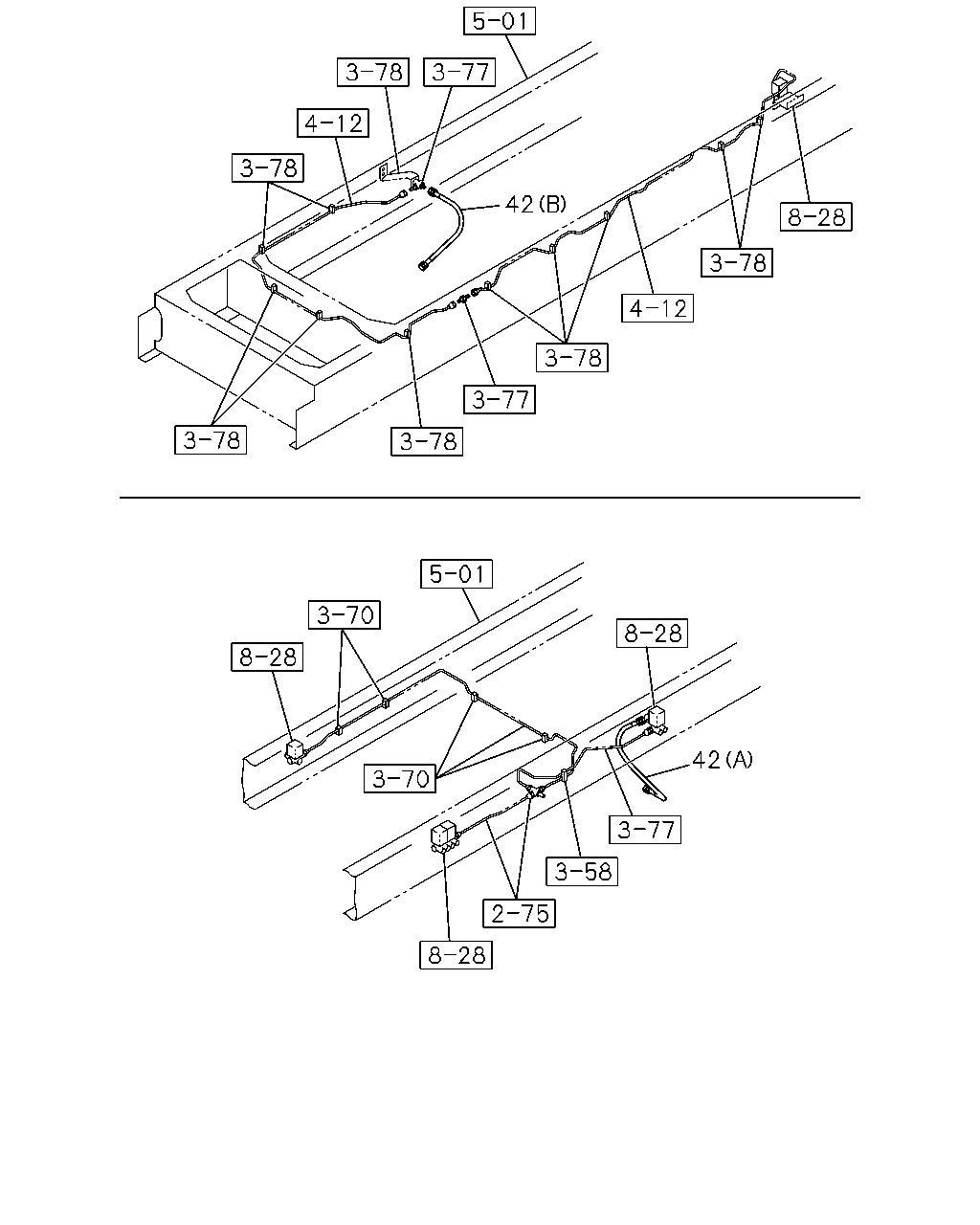

42 42

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	42	HOSE; FLEX,DIFF LOCK DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (A)	8-98142-049-0	01	1	1003-
	42	HOSE; FLEX,DIFF LOCK REARWARD INNER SINGLE TIRE<YK3> (B)	1-09363-650-0	01	1	1003-
