Sayfa 3-46 - Isuzu EPC

3-46 — AIR DRYER (#69258) — 163 parça

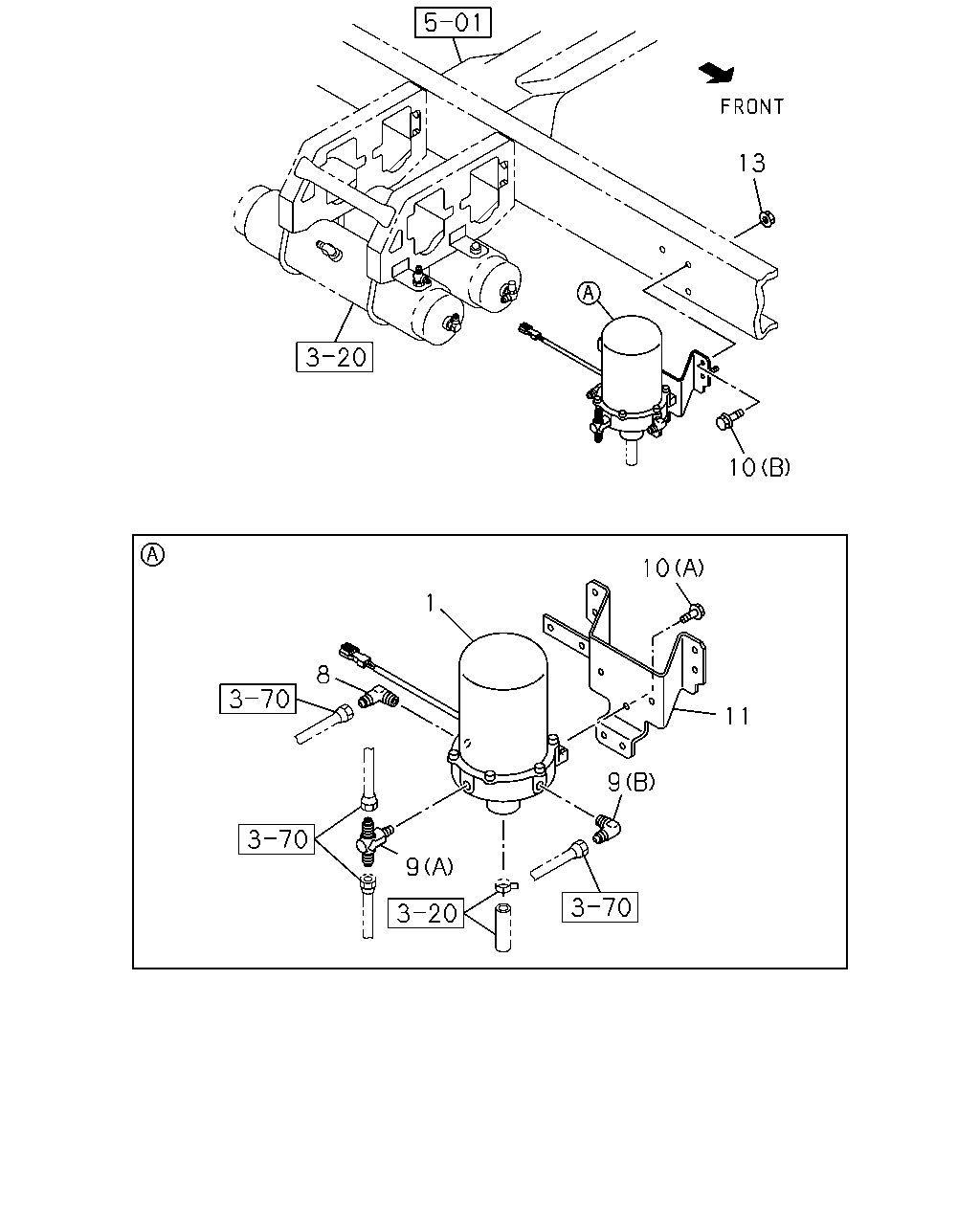

13 10 10 1 8 11 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	1-48190-370-2	01	1	1012-1211
1	DRYER; AIR SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	8-98225-285-0	01	1	1212-
1	DRYER; AIR AIR DRYER<PS7>	1-48190-210-1	01	1	0812-1011
1	DRYER; AIR EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-48190-210-1	01	1	1012-
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> M20 & PT1/2 ELBOW	1-09650-443-0	01	1	0812-1011
8	CONNECTOR; OUT,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> M20 & PT1/2 ELBOW	1-09650-443-0	01	1	1012-
8	CONNECTOR; OUT,AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> M20 & PT1/2 ELBOW	1-09650-443-0	01	1	1012-
9	CONNECTOR; PIPE,AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (C) M22 & PT1/2 ELBOW	0-92134-315-0	01	1	1012-
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (A) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	0812-1011
9	CONNECTOR; PIPE,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	1012-
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (B) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	0812-1011
9	CONNECTOR; PIPE,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	1012-
10	BOLT; AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (C) M10X25 FLANGE	0-28051-025-0	03	1	1012-
10	BOLT; AIR DRYER AIR DRYER<PS7> (A) M10X20 FLANGE	0-28051-020-0	03	1	0812-1011
10	BOLT; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) M10X20 FLANGE	0-28051-020-0	03	1	1012-
10	BOLT; AIR DRYER (B) M10X30 FLANGE	0-28051-030-0	02	1	0812-1009
10	BOLT; AIR DRYER AIR DRYER<PS7> (B) M10X30 FLANGE	0-28051-030-0	02	1	1010-
11	BRACKET; AIR DRYER AIR DRYER<PS7>	8-97621-375-2	01	1	0812-1011
11	BRACKET; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	8-97621-375-2	01	1	1012-
11	BRACKET; AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	8-97621-375-2	01	1	1012-
13	NUT; AIR DRYER M10 FLANGE	0-91180-210-0	02	1	0812-1009
13	NUT; AIR DRYER AIR DRYER<PS7> M10 FLANGE	0-91180-210-0	02	1	1010-

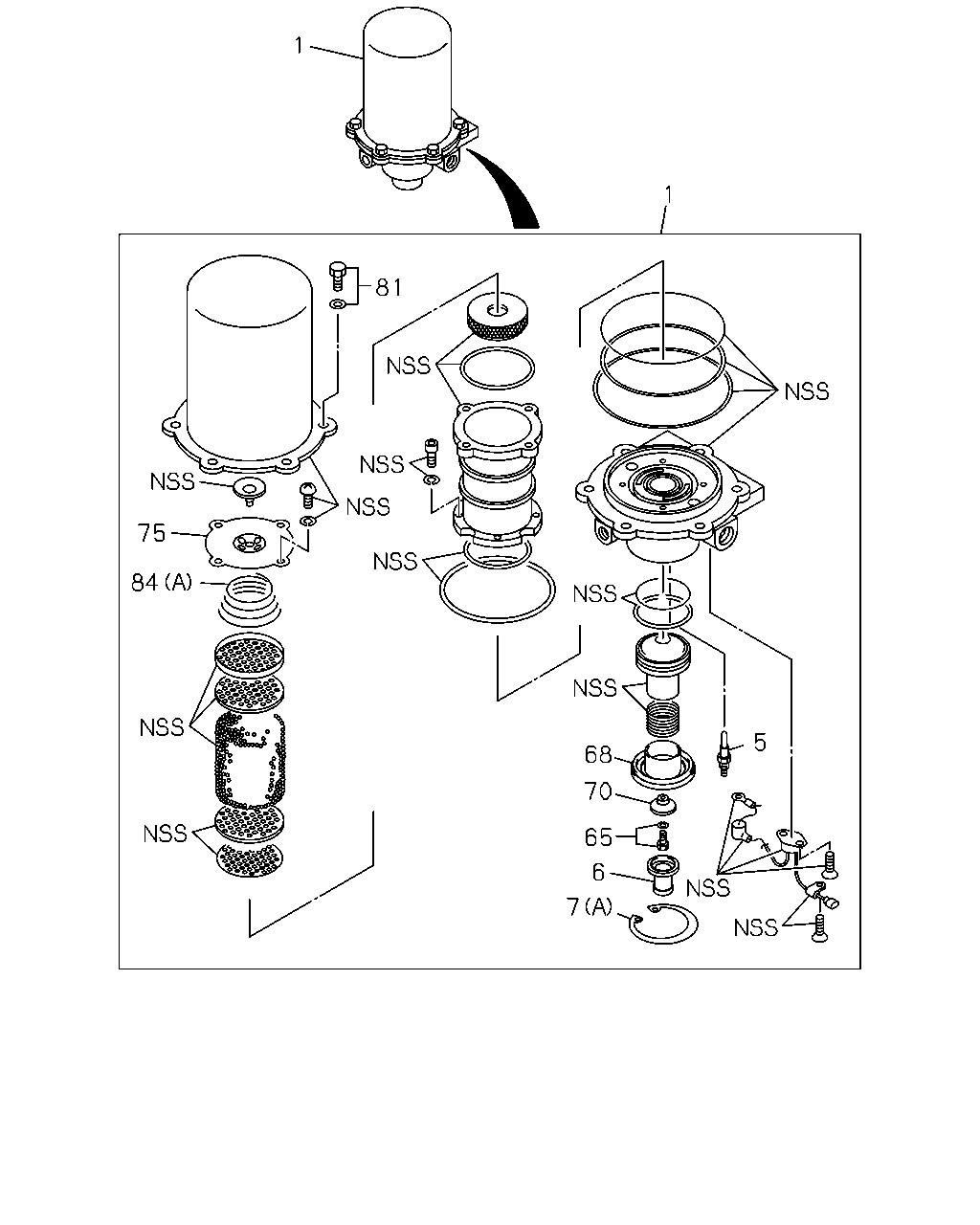

1 1 81 75 84 5 68 70 65 6 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	1-48190-370-2	01	1	1012-1211
1	DRYER; AIR SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	8-98225-285-0	01	1	1212-
1	DRYER; AIR AIR DRYER<PS7>	1-48190-210-1	01	1	0812-1011
1	DRYER; AIR EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-48190-210-1	01	1	1012-
5	HEATER ASM; AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	1-48199-530-0	01	1	1012-
5	HEATER ASM; AIR DRYER AIR DRYER<PS7>	1-48199-085-0	01	1	0812-1011
5	HEATER ASM; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-48199-085-0	01	1	1012-
6	COVER; EXH,AIR DRYER AIR DRYER<PS7>	1-48199-404-0	01	1	0812-1011
6	COVER; EXH,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-48199-404-0	01	1	1012-
7	RING; SNAP,AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (C)	1-48199-520-0	02	1	1012-
7	RING; SNAP,AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (B)	1-48199-529-0	01	1	1012-
7	RING; SNAP,AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (D)	1-48199-579-0	01	1	1012-
7	RING; SNAP,AIR DRYER AIR DRYER<PS7> (A)	1-48199-403-0	01	1	0812-1011
7	RING; SNAP,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A)	1-48199-403-0	01	1	1012-
65	BOLT; PURGE VLV SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	1-48199-517-0	01	1	1012-
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-393-0	01	1	0812-1011
65	BOLT; PURGE VLV EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-48199-393-0	01	1	1012-
68	BODY; VALVE SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	1-48199-515-0	01	1	1012-
68	BODY; VALVE AIR DRYER<PS7>	1-48199-408-0	01	1	0812-1011
68	BODY; VALVE EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-48199-408-0	01	1	1012-
70	VALVE; AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	1-48199-504-0	01	1	1012-
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	0812-1011
70	VALVE; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-48199-105-0	01	1	1012-
75	COVER; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-427-0	01	1	0812-1011
75	COVER; CASE,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-48199-427-0	01	1	1012-
75	COVER; CASE,AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	1-48199-427-0	01	1	1012-
81	BOLT; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-436-0	06	1	0812-1011
81	BOLT; CASE,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-48199-436-0	06	1	1012-
81	BOLT; CASE,AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	1-48199-436-0	06	1	1012-
84	SPRING; AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (B)	1-48199-523-0	01	1	1012-
84	SPRING; AIR DRYER AIR DRYER<PS7> (A)	1-48199-425-0	01	1	0812-1011
84	SPRING; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A)	1-48199-425-0	01	1	1012-
84	SPRING; AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (A)	1-48199-425-0	01	1	1012-

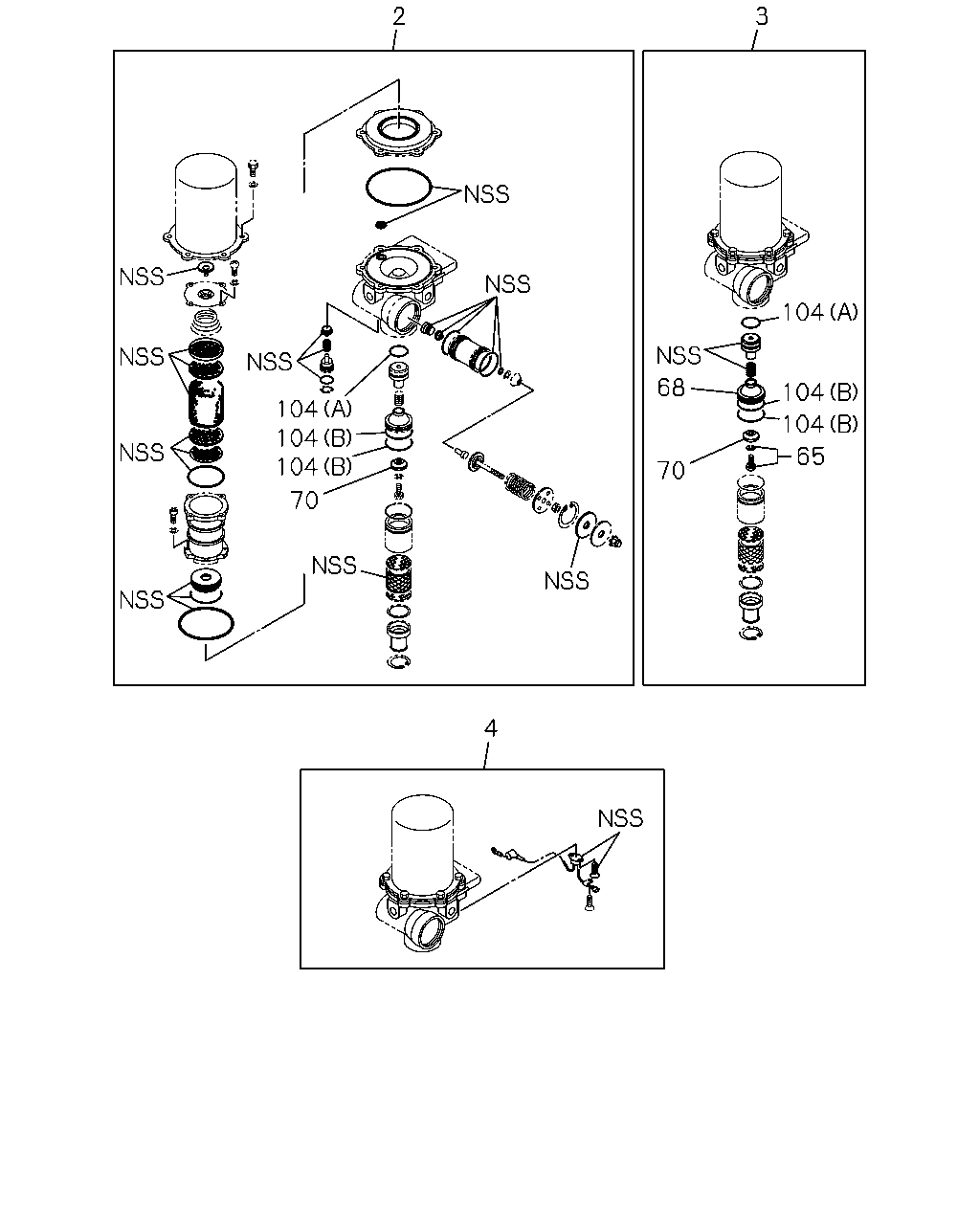

2 3 104 68 104 104 104 104 104 65 70 70 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	1-85576-457-0	01	1	1012-1211
2	REPAIR KIT; AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	8-98226-323-0	01	1	1212-
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7>	1-85576-217-0	01	1	0812-1011
2	REPAIR KIT; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-85576-217-0	01	1	1012-
3	PISTON KIT; AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	1-85576-383-0	01	1	1012-1211
3	PISTON KIT; AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	8-98226-322-0	01	1	1212-
3	PISTON KIT; AIR DRYER AIR DRYER<PS7>	1-85576-193-0	01	1	0812-1011
3	PISTON KIT; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-85576-193-0	01	1	1012-
4	THERMOSTAT KIT; AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	1-85576-443-0	01	1	1012-
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7>	1-85576-218-0	01	1	0812-1011
4	THERMOSTAT KIT; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-85576-218-0	01	1	1012-
65	BOLT; PURGE VLV SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	1-48199-517-0	01	1	1012-
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-393-0	01	1	0812-1011
65	BOLT; PURGE VLV EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-48199-393-0	01	1	1012-
68	BODY; VALVE SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	1-48199-515-0	01	1	1012-
68	BODY; VALVE AIR DRYER<PS7>	1-48199-408-0	01	1	0812-1011
68	BODY; VALVE EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-48199-408-0	01	1	1012-
70	VALVE; AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	1-48199-504-0	01	1	1012-
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	0812-1011
70	VALVE; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-48199-105-0	01	1	1012-
104	GASKET SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (A)	1-48199-495-0	01	1	1012-1211
104	GASKET SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (A)	8-98226-321-0	01	1	1212-
104	GASKET SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (B)	1-48199-496-0	02	1	1012-

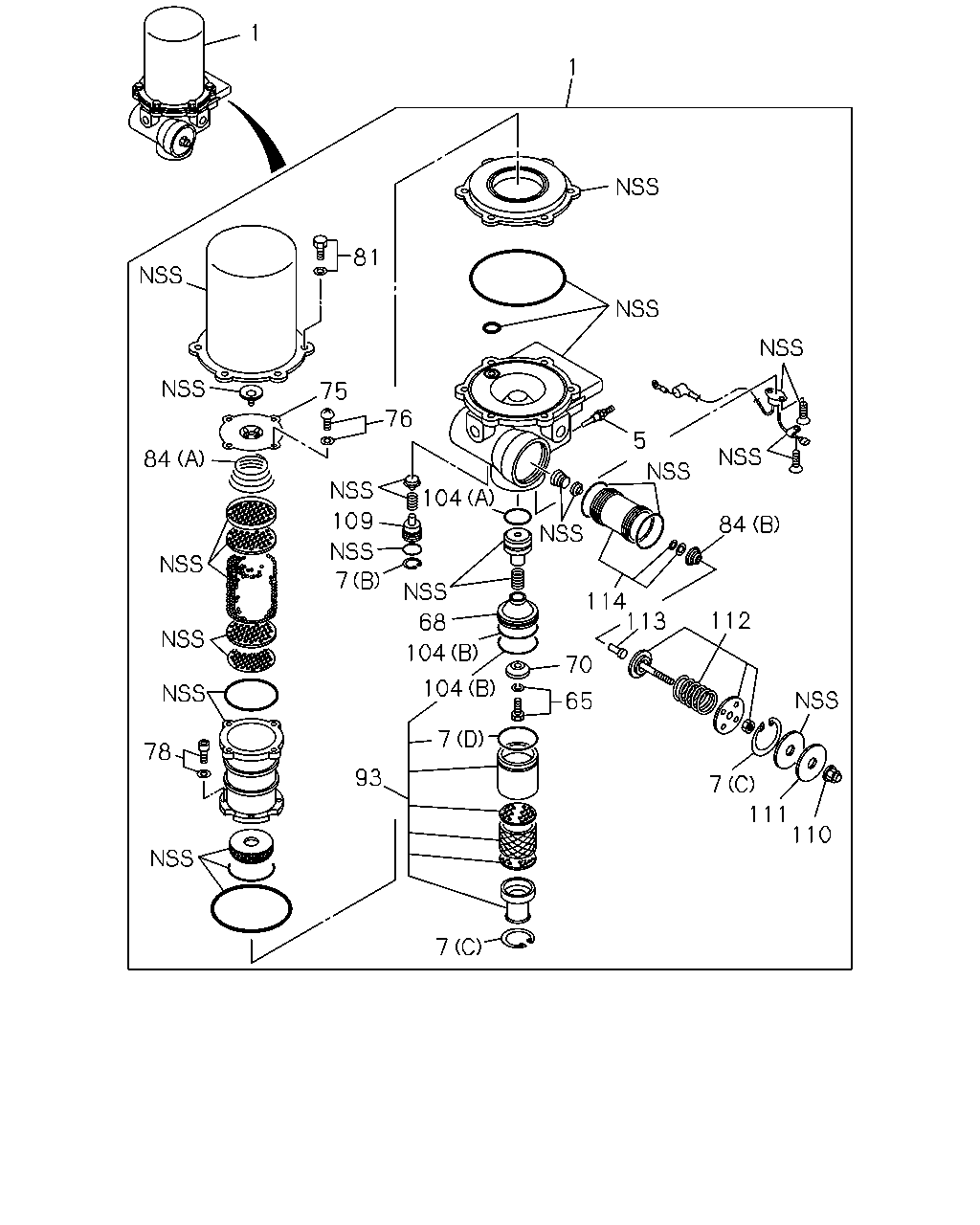

1 1 81 75 84 76 109 7 78 93 104 7 104 68 104 7 65 70 114 113 112 7 111 110 84 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	1-48190-370-2	01	1	1012-1211
1	DRYER; AIR SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	8-98225-285-0	01	1	1212-
1	DRYER; AIR AIR DRYER<PS7>	1-48190-210-1	01	1	0812-1011
1	DRYER; AIR EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-48190-210-1	01	1	1012-
5	HEATER ASM; AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	1-48199-530-0	01	1	1012-
5	HEATER ASM; AIR DRYER AIR DRYER<PS7>	1-48199-085-0	01	1	0812-1011
5	HEATER ASM; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-48199-085-0	01	1	1012-
7	RING; SNAP,AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (C)	1-48199-520-0	02	1	1012-
7	RING; SNAP,AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (B)	1-48199-529-0	01	1	1012-
7	RING; SNAP,AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (D)	1-48199-579-0	01	1	1012-
7	RING; SNAP,AIR DRYER AIR DRYER<PS7> (A)	1-48199-403-0	01	1	0812-1011
7	RING; SNAP,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A)	1-48199-403-0	01	1	1012-
65	BOLT; PURGE VLV SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	1-48199-517-0	01	1	1012-
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-393-0	01	1	0812-1011
65	BOLT; PURGE VLV EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-48199-393-0	01	1	1012-
68	BODY; VALVE SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	1-48199-515-0	01	1	1012-
68	BODY; VALVE AIR DRYER<PS7>	1-48199-408-0	01	1	0812-1011
68	BODY; VALVE EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-48199-408-0	01	1	1012-
70	VALVE; AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	1-48199-504-0	01	1	1012-
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	0812-1011
70	VALVE; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-48199-105-0	01	1	1012-
75	COVER; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-427-0	01	1	0812-1011
75	COVER; CASE,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-48199-427-0	01	1	1012-
75	COVER; CASE,AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	1-48199-427-0	01	1	1012-
76	BOLT; COVER,AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	1-48199-412-0	04	1	1012-
78	BOLT; OIL FILTER,AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	1-48199-417-0	04	1	1012-
81	BOLT; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-436-0	06	1	0812-1011
81	BOLT; CASE,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-48199-436-0	06	1	1012-
81	BOLT; CASE,AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	1-48199-436-0	06	1	1012-
84	SPRING; AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (B)	1-48199-523-0	01	1	1012-
84	SPRING; AIR DRYER AIR DRYER<PS7> (A)	1-48199-425-0	01	1	0812-1011
84	SPRING; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A)	1-48199-425-0	01	1	1012-
84	SPRING; AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (A)	1-48199-425-0	01	1	1012-
93	SILENCER; AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	1-48199-619-0	01	1	1012-
104	GASKET SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (A)	1-48199-495-0	01	1	1012-1211
104	GASKET SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (A)	8-98226-321-0	01	1	1212-
104	GASKET SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (B)	1-48199-496-0	02	1	1012-
109	STOPPER; CHECK VALVE SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	1-48199-539-0	01	1	1012-
110	NUT; CAP SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	1-48199-527-0	01	1	1012-
111	PLATE; GOVERNOR SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	1-48199-526-0	01	1	1012-
112	SCREW & SPRING ASM; AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	1-48199-524-0	01	1	1012-
113	STEM; EXHAUST SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	1-48199-522-0	01	1	1012-
114	PISTON ASM; GOVERNOR SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	1-48199-521-0	01	1	1012-

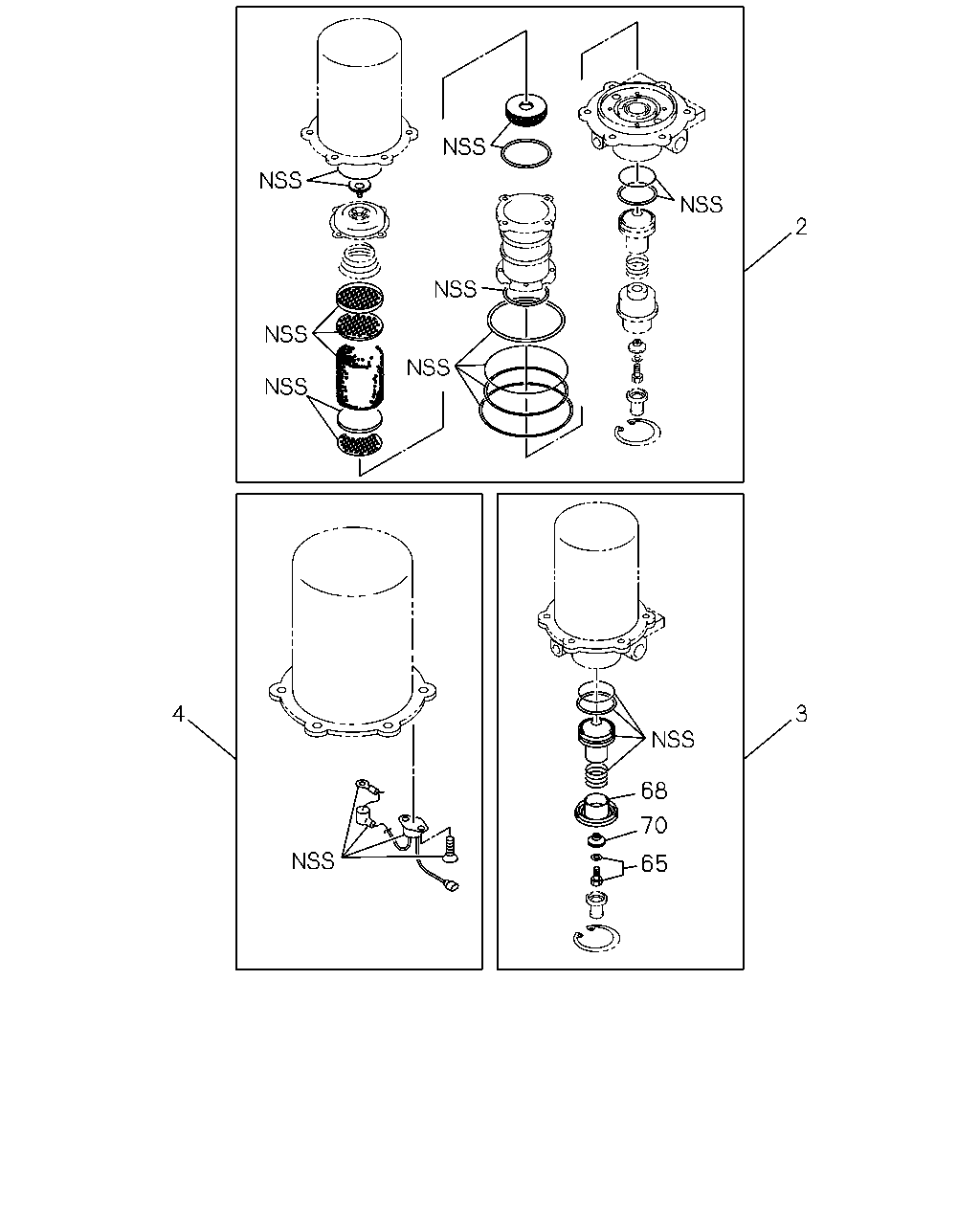

2 3 4 68 70 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	1-85576-457-0	01	1	1012-1211
2	REPAIR KIT; AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	8-98226-323-0	01	1	1212-
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7>	1-85576-217-0	01	1	0812-1011
2	REPAIR KIT; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-85576-217-0	01	1	1012-
3	PISTON KIT; AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	1-85576-383-0	01	1	1012-1211
3	PISTON KIT; AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	8-98226-322-0	01	1	1212-
3	PISTON KIT; AIR DRYER AIR DRYER<PS7>	1-85576-193-0	01	1	0812-1011
3	PISTON KIT; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-85576-193-0	01	1	1012-
4	THERMOSTAT KIT; AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	1-85576-443-0	01	1	1012-
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7>	1-85576-218-0	01	1	0812-1011
4	THERMOSTAT KIT; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-85576-218-0	01	1	1012-
65	BOLT; PURGE VLV SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	1-48199-517-0	01	1	1012-
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-393-0	01	1	0812-1011
65	BOLT; PURGE VLV EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-48199-393-0	01	1	1012-
68	BODY; VALVE SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	1-48199-515-0	01	1	1012-
68	BODY; VALVE AIR DRYER<PS7>	1-48199-408-0	01	1	0812-1011
68	BODY; VALVE EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-48199-408-0	01	1	1012-
70	VALVE; AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	1-48199-504-0	01	1	1012-
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	0812-1011
70	VALVE; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-48199-105-0	01	1	1012-

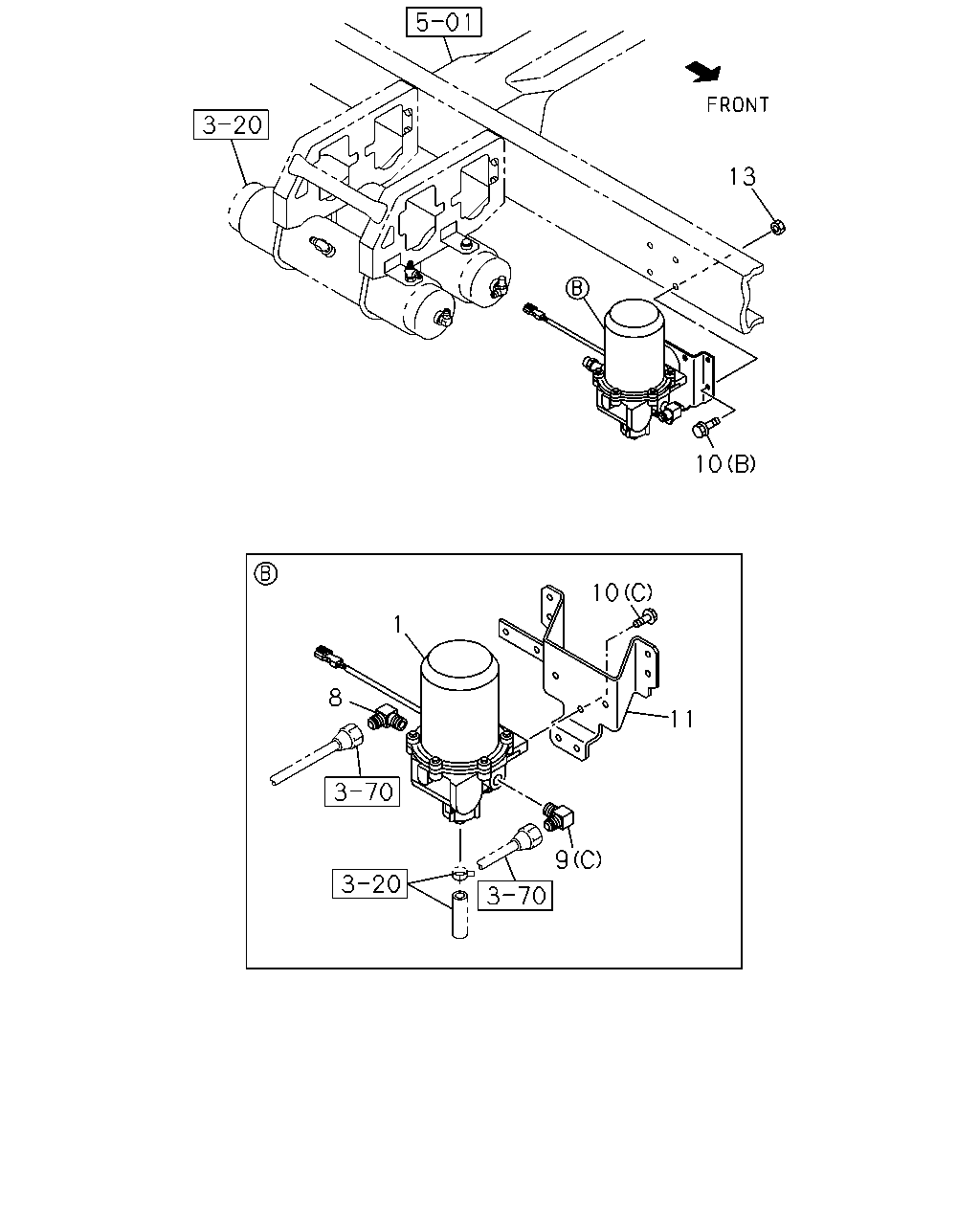

13 10 10 1 8 11 9 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	1-48190-370-2	01	1	1012-1211
1	DRYER; AIR SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	8-98225-285-0	01	1	1212-
1	DRYER; AIR AIR DRYER<PS7>	1-48190-210-1	01	1	0812-1011
1	DRYER; AIR EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-48190-210-1	01	1	1012-
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> M20 & PT1/2 ELBOW	1-09650-443-0	01	1	0812-1011
8	CONNECTOR; OUT,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> M20 & PT1/2 ELBOW	1-09650-443-0	01	1	1012-
8	CONNECTOR; OUT,AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> M20 & PT1/2 ELBOW	1-09650-443-0	01	1	1012-
9	CONNECTOR; PIPE,AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (C) M22 & PT1/2 ELBOW	0-92134-315-0	01	1	1012-
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (A) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	0812-1011
9	CONNECTOR; PIPE,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	1012-
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (B) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	0812-1011
9	CONNECTOR; PIPE,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	1012-
10	BOLT; AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (C) M10X25 FLANGE	0-28051-025-0	03	1	1012-
10	BOLT; AIR DRYER AIR DRYER<PS7> (A) M10X20 FLANGE	0-28051-020-0	03	1	0812-1011
10	BOLT; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) M10X20 FLANGE	0-28051-020-0	03	1	1012-
10	BOLT; AIR DRYER (B) M10X30 FLANGE	0-28051-030-0	02	1	0812-1009
10	BOLT; AIR DRYER AIR DRYER<PS7> (B) M10X30 FLANGE	0-28051-030-0	02	1	1010-
11	BRACKET; AIR DRYER AIR DRYER<PS7>	8-97621-375-2	01	1	0812-1011
11	BRACKET; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	8-97621-375-2	01	1	1012-
11	BRACKET; AIR DRYER SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3>	8-97621-375-2	01	1	1012-
13	NUT; AIR DRYER M10 FLANGE	0-91180-210-0	02	1	0812-1009
13	NUT; AIR DRYER AIR DRYER<PS7> M10 FLANGE	0-91180-210-0	02	1	1010-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
