3-20 — AIR TANK (#69252) — 137 parça

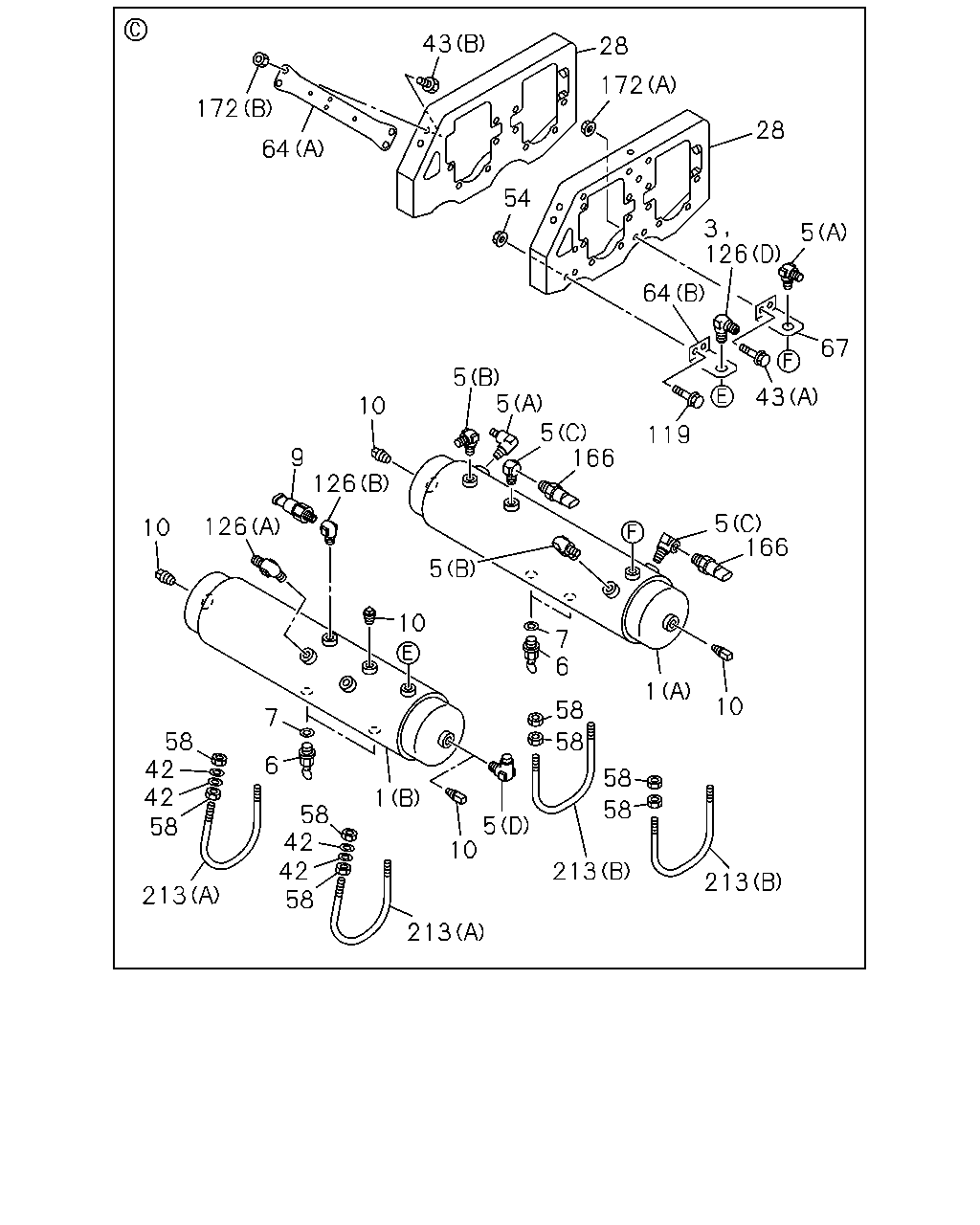

43 28 172 172 28 64 54 3 126 5 64 67 5 5 43 5 166 10 119 9 126 166 126 10 5 10 7 6 1 10 58 7 58 42 42 58 58 6 58 1 58 58 42 42 58 5 10 213 213 213 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (B)	1-48330-598-0	01	1	0812-1011
1	TANK ASM; AIR EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B)	1-48330-598-0	01	1	1012-
1	TANK ASM; AIR EURO2 SPECIFICATION<NT2> (B)	1-48330-598-0	01	1	1012-
1	TANK ASM; AIR (A)	1-48370-541-0	01	1	0812-1011
1	TANK ASM; AIR EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (A)	1-48370-541-0	01	1	1012-
1	TANK ASM; AIR EURO2 SPECIFICATION<NT2> (A)	1-48370-541-0	01	1	1012-
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0812-1011
3	VALVE; CHECK,AIR TANK EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1012-
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0812-1011
3	VALVE; CHECK,AIR TANK EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1012-
5	UNION; AIR TANK (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0812-1011
5	UNION; AIR TANK EURO2 SPECIFICATION<NT2> (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-
5	UNION; AIR TANK (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0812-1011
5	UNION; AIR TANK EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1012-
5	UNION; AIR TANK EURO2 SPECIFICATION<NT2> (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1012-
5	UNION; AIR TANK (C) PT1/4 2WAY	1-09660-693-0	02	1	0812-1011
5	UNION; AIR TANK EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) PT1/4 2WAY	1-09660-693-0	02	1	1012-
5	UNION; AIR TANK EURO2 SPECIFICATION<NT2> (C) PT1/4 2WAY	1-09660-693-0	02	1	1012-
5	UNION; AIR TANK (B)	8-98111-509-0	02	1	0812-1011
5	UNION; AIR TANK EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B)	8-98111-509-0	02	1	1012-
5	UNION; AIR TANK EURO2 SPECIFICATION<NT2> (B)	8-98111-509-0	02	1	1012-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	0812-1011
6	COCK; DRAIN,AIR TANK EURO3 SPECIFICATION<NT3> AIR DRYER<PS7>	1-48312-015-0	04	1	1012-
6	COCK; DRAIN,AIR TANK EURO2 SPECIFICATION<NT2>	1-48312-015-0	04	1	1012-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0812-1011
7	GASKET; DRAIN COCK EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> ID=14	1-09630-145-0	04	1	1012-
7	GASKET; DRAIN COCK EURO2 SPECIFICATION<NT2> ID=14	1-09630-145-0	04	1	1012-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK STAMP 5.5	8-97609-249-0	01	1	0812-1011
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> STAMP 5.5	8-97609-249-0	01	1	1012-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EURO2 SPECIFICATION<NT2> STAMP 5.5	8-97609-249-0	01	1	1012-
10	PLUG; AIR TANK EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> PT1/4	9-99204-513-0	05	1	1012-
10	PLUG; AIR TANK PT1/4	9-99204-513-0	04	1	0812-1011
10	PLUG; AIR TANK EURO2 SPECIFICATION<NT2> PT1/4	9-99204-513-0	04	1	1012-
28	BRACKET; AIR TANK	1-53318-338-6	02	1	0812-1011
28	BRACKET; AIR TANK EURO3 SPECIFICATION<NT3> AIR DRYER<PS7>	1-53318-338-6	02	1	1012-
28	BRACKET; AIR TANK EURO2 SPECIFICATION<NT2>	1-53318-338-6	02	1	1012-
42	WASHER; PL ID=8.4 OD=18	0-91610-608-0	04	1	0812-1011
42	WASHER; PL EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> ID=8.4 OD=18	0-91610-608-0	04	1	1012-
42	WASHER; PL EURO2 SPECIFICATION<NT2> ID=8.4 OD=18	0-91610-608-0	04	1	1012-
43	BOLT; STAY,AIR TANK,MAIN (A) M8X20 FLANGE	0-28650-820-0	02	1	0812-1011
43	BOLT; STAY,AIR TANK,MAIN EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (A) M8X20 FLANGE	0-28650-820-0	02	1	1012-
43	BOLT; STAY,AIR TANK,MAIN EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE	0-28650-820-0	02	1	1012-
43	BOLT; STAY,AIR TANK,MAIN (B) M10X25 FLANGE	0-28651-025-0	04	1	0812-1011
43	BOLT; STAY,AIR TANK,MAIN EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B) M10X25 FLANGE	0-28651-025-0	04	1	1012-
43	BOLT; STAY,AIR TANK,MAIN EURO2 SPECIFICATION<NT2> (B) M10X25 FLANGE	0-28651-025-0	04	1	1012-
54	NUT; STAY M8 FLANGE	0-91180-108-0	02	1	0812-1011
54	NUT; STAY EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> M8 FLANGE	0-91180-108-0	02	1	1012-
54	NUT; STAY EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	02	1	1012-
58	NUT; BAND,AIR TANK M8	0-91110-508-0	16	1	0812-1011
58	NUT; BAND,AIR TANK EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> M8	0-91110-508-0	16	1	1012-
58	NUT; BAND,AIR TANK EURO2 SPECIFICATION<NT2> M8	0-91110-508-0	16	1	1012-
64	STAY; AIR TANK,MAIN (A)	1-53318-293-1	01	1	0812-1011
64	STAY; AIR TANK,MAIN EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (A)	1-53318-293-1	01	1	1012-
64	STAY; AIR TANK,MAIN EURO2 SPECIFICATION<NT2> (A)	1-53318-293-1	01	1	1012-
64	STAY; AIR TANK,MAIN (B)	8-94301-490-0	01	1	0812-1011
64	STAY; AIR TANK,MAIN EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B)	8-94301-490-0	01	1	1012-
64	STAY; AIR TANK,MAIN EURO2 SPECIFICATION<NT2> (B)	8-94301-490-0	01	1	1012-
67	STAY; SUB TANK	8-97614-753-0	01	1	0812-1011
67	STAY; SUB TANK EURO3 SPECIFICATION<NT3> AIR DRYER<PS7>	8-97614-753-0	01	1	1012-
67	STAY; SUB TANK EURO2 SPECIFICATION<NT2>	8-97614-753-0	01	1	1012-
119	BOLT; STAY M8X20 FLANGE	0-28650-820-0	02	1	0812-1011
119	BOLT; STAY EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> M8X20 FLANGE	0-28650-820-0	02	1	1012-
119	BOLT; STAY EURO2 SPECIFICATION<NT2> M8X20 FLANGE	0-28650-820-0	02	1	1012-
126	CONNECTOR; ELBOW EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (D) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1012-
126	CONNECTOR; ELBOW (A) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	0812-1011
126	CONNECTOR; ELBOW EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (A) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	1012-
126	CONNECTOR; ELBOW EURO2 SPECIFICATION<NT2> (A) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	1012-
126	CONNECTOR; ELBOW (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0812-
126	CONNECTOR; ELBOW (B) PT1/4 2WAY	1-09660-693-0	01	1	0812-1011
126	CONNECTOR; ELBOW EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B) PT1/4 2WAY	1-09660-693-0	01	1	1012-
126	CONNECTOR; ELBOW EURO2 SPECIFICATION<NT2> (B) PT1/4 2WAY	1-09660-693-0	01	1	1012-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	02	1	0812-1011
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> STAMP 5.5	8-97609-249-0	02	1	1012-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EURO2 SPECIFICATION<NT2> STAMP 5.5	8-97609-249-0	02	1	1012-
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91180-108-0	02	1	0812-1011
172	NUT; STAY,AIR TANK,MAIN EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (A) M8 FLANGE	0-91180-108-0	02	1	1012-
172	NUT; STAY,AIR TANK,MAIN EURO2 SPECIFICATION<NT2> (A) M8 FLANGE	0-91180-108-0	02	1	1012-
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91180-210-0	04	1	0812-1011
172	NUT; STAY,AIR TANK,MAIN EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B) M10 FLANGE	0-91180-210-0	04	1	1012-
172	NUT; STAY,AIR TANK,MAIN EURO2 SPECIFICATION<NT2> (B) M10 FLANGE	0-91180-210-0	04	1	1012-
213	BOLT; U AIR TANK (A) L=97.5	1-48317-323-1	02	1	0812-1011
213	BOLT; U AIR TANK EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (A) L=97.5	1-48317-323-1	02	1	1012-
213	BOLT; U AIR TANK EURO2 SPECIFICATION<NT2> (A) L=97.5	1-48317-323-1	02	1	1012-
213	BOLT; U AIR TANK (B) L=195	1-48317-367-2	02	1	0812-1011
213	BOLT; U AIR TANK EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B) L=195	1-48317-367-2	02	1	1012-
213	BOLT; U AIR TANK EURO2 SPECIFICATION<NT2> (B) L=195	1-48317-367-2	02	1	1012-

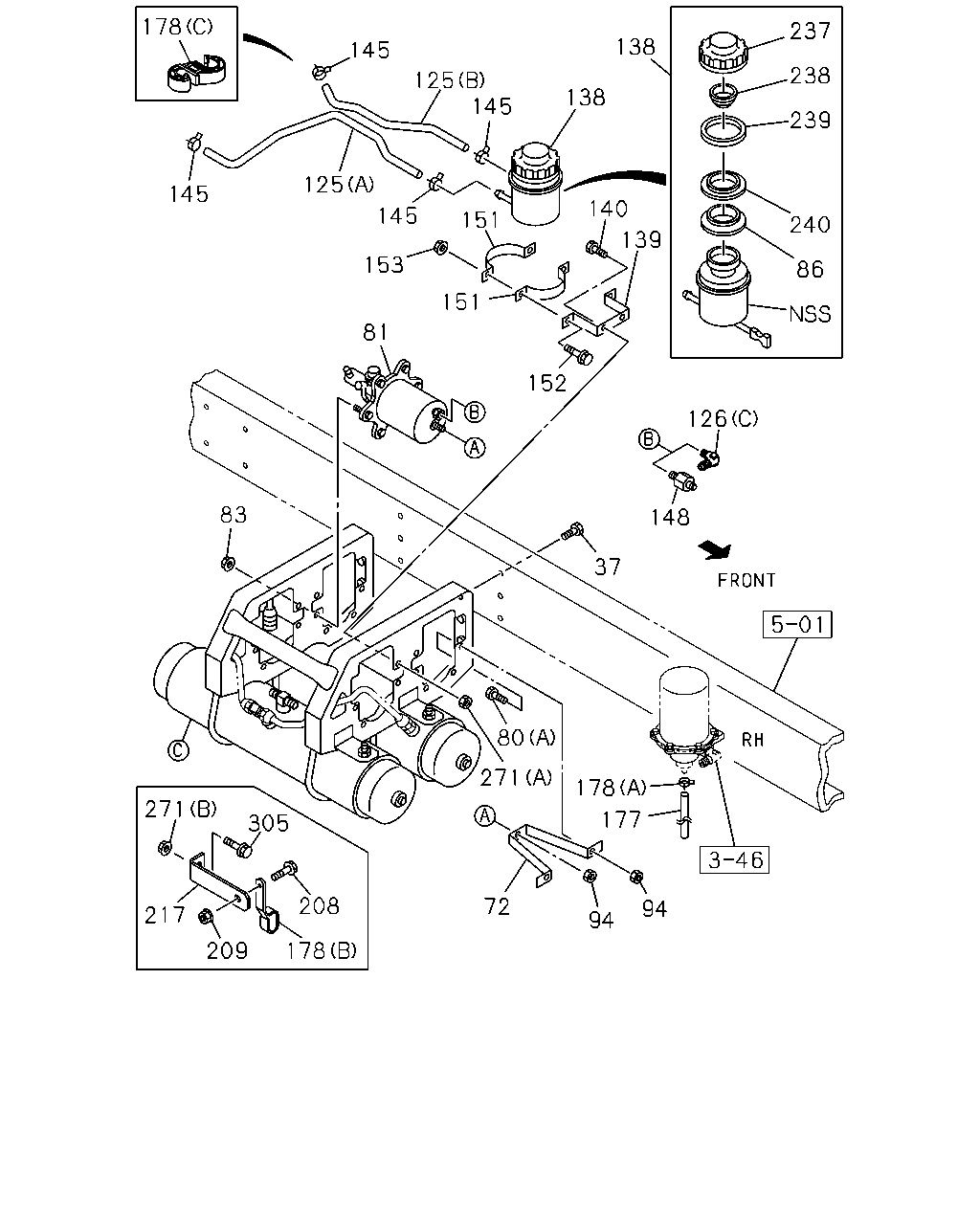

178 237 138 145 238 125 145 138 239 125 145 140 145 151 240 139 153 86 151 81 152 126 83 148 37 80 271 178 271 177 305 208 72 94 217 94 209 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	06	1	0812-
72	BRACKET; AIR MASTER	8-98120-254-0	02	1	0812-
80	BOLT; BRKT TRAILER BRAKE CONTROL<J91> (B) M8X16 FLANGE	0-28050-816-0	02	1	1003-
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	0812-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-663-1	02	1	0812-
83	NUT; AIR MASTER M10 FLANGE	0-91180-210-0	08	1	0812-
86	SEAL; DUST	1-47529-019-0	01	1	0812-
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	10	1	0812-0812
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	06	1	0812-
125	HOSE; OIL TANK TO AIR MASTER (B) L=270 SERVICED BY L=1800	1-09360-320-0	01	1	0812-
125	HOSE; OIL TANK TO AIR MASTER (A)	8-98098-558-0	01	1	0812-
126	CONNECTOR; ELBOW EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (D) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1012-
126	CONNECTOR; ELBOW (A) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	0812-1011
126	CONNECTOR; ELBOW EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (A) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	1012-
126	CONNECTOR; ELBOW EURO2 SPECIFICATION<NT2> (A) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	1012-
126	CONNECTOR; ELBOW (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0812-
126	CONNECTOR; ELBOW (B) PT1/4 2WAY	1-09660-693-0	01	1	0812-1011
126	CONNECTOR; ELBOW EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B) PT1/4 2WAY	1-09660-693-0	01	1	1012-
126	CONNECTOR; ELBOW EURO2 SPECIFICATION<NT2> (B) PT1/4 2WAY	1-09660-693-0	01	1	1012-
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	0812-
139	BRACKET; OIL TANK	1-47537-081-2	01	1	0812-
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28651-020-0	02	1	0812-
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	0812-
148	CONNECTOR; AIR MASTER M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0812-
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	0812-
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	0812-
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	0812-
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> L=55 SERVICED BY L=3000	0-03566-300-0	01	1	0812-1011
177	HOSE; RUBBER,DRAIN EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=55 SERVICED BY L=3000	0-03566-300-0	01	1	1012-
177	HOSE; RUBBER,DRAIN SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> L=55 SERVICED BY L=3000	0-03566-300-0	01	1	1012-
178	CLIP; HOSE AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	0812-1011
178	CLIP; HOSE EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	1012-
178	CLIP; HOSE SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (A) ID=21	8-94242-034-0	01	1	1012-
178	CLIP; HOSE (C) ID=12 & 12	1-09709-280-1	01	1	0812-
178	CLIP; HOSE (B)	9-09917-171-0	01	1	0812-
208	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0812-
209	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0812-
217	BRACKET; RUBBER HOSE L=112	1-47475-694-1	01	1	0812-
237	CAP; OIL TANK	1-47525-030-0	01	1	0812-
238	PLATE; BAFFLE	1-47529-022-0	01	1	0812-
239	FILTER; DUST	1-47529-017-0	01	1	0812-
240	HOLDER; FILTER	1-47529-018-0	01	1	0812-
271	NUT; BRKT,HOSE (B) M8 FLANGE	0-91180-108-0	01	1	0812-
271	NUT; BRKT,HOSE (A) M10 FLANGE	0-91180-210-0	02	1	0812-
305	BOLT; BRKT,HOSE M8X20 FLANGE	0-28650-820-0	01	1	0812-

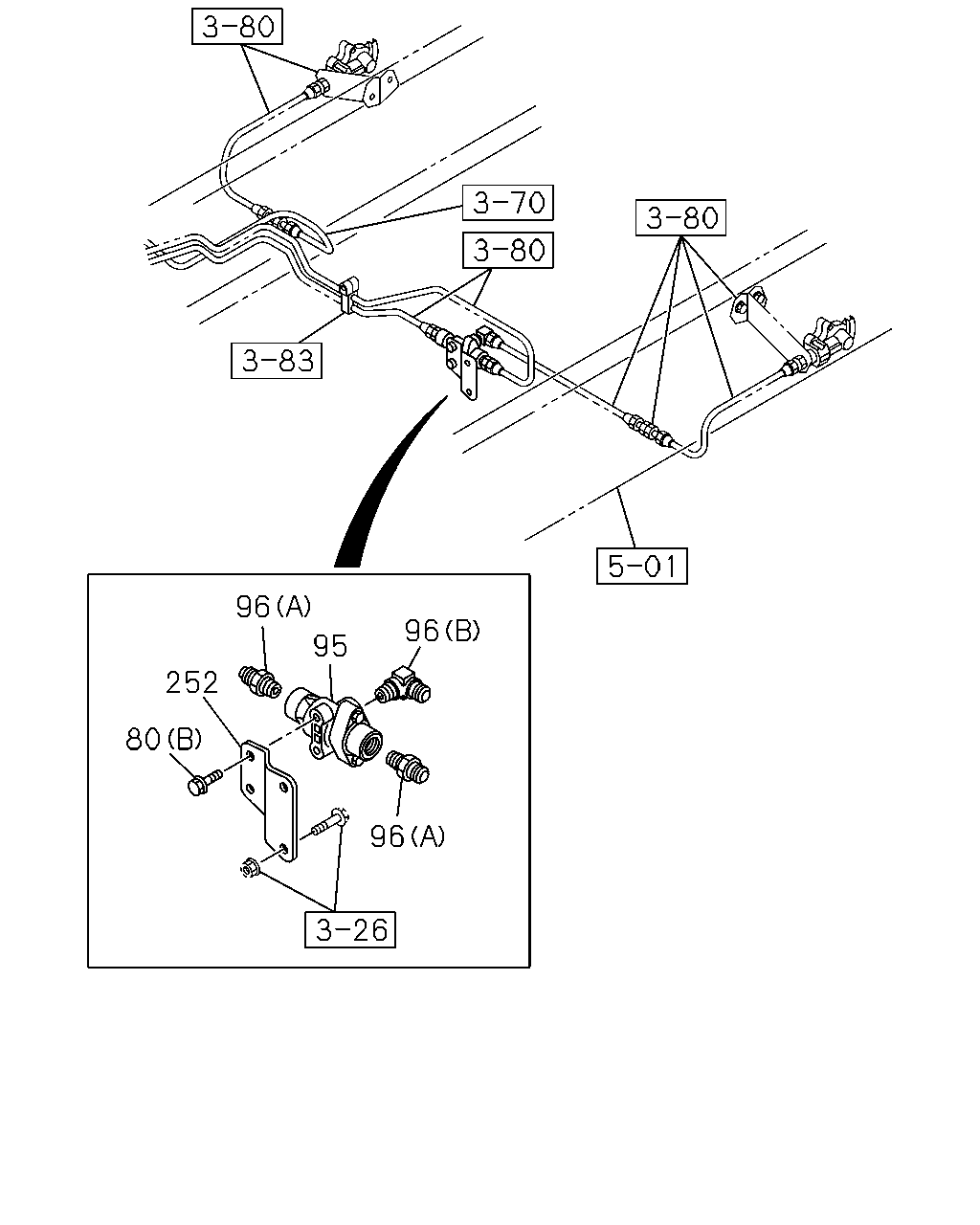

96 96 95 252 80 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	BOLT; BRKT TRAILER BRAKE CONTROL<J91> (B) M8X16 FLANGE	0-28050-816-0	02	1	1003-
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	0812-
95	VALVE; DOUBLE CHECK TRAILER BRAKE CONTROL<J91>	1-48410-531-1	01	1	1003-
96	CONNECTOR; DOUBLE CHECK VLV TRAILER BRAKE CONTROL<J91> (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	02	1	1003-
96	CONNECTOR; DOUBLE CHECK VLV TRAILER BRAKE CONTROL<J91> (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1003-
252	BRACKET; DOUBLE CHECK VLV TRAILER BRAKE CONTROL<J91>	8-98141-870-0	01	1	1003-
