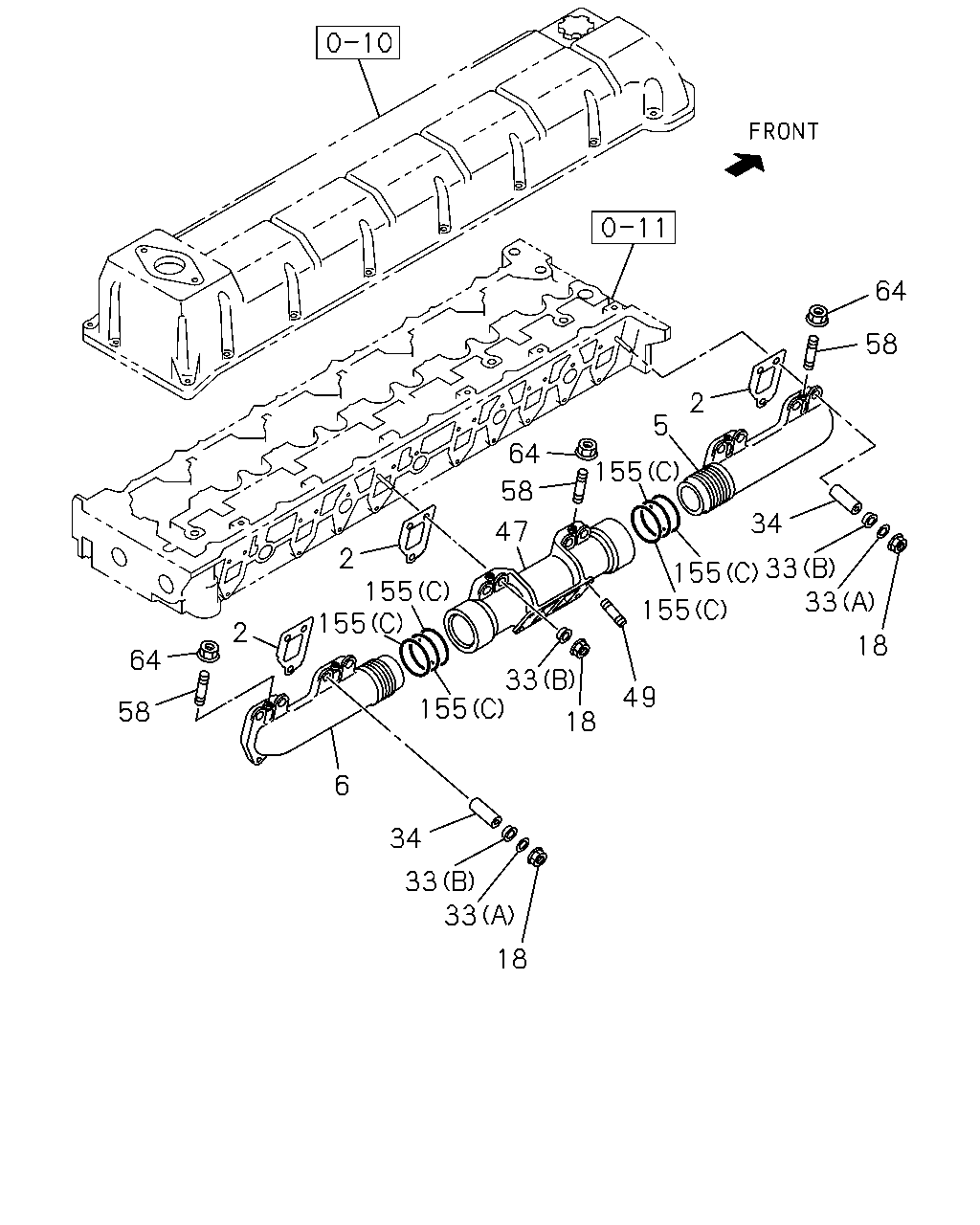

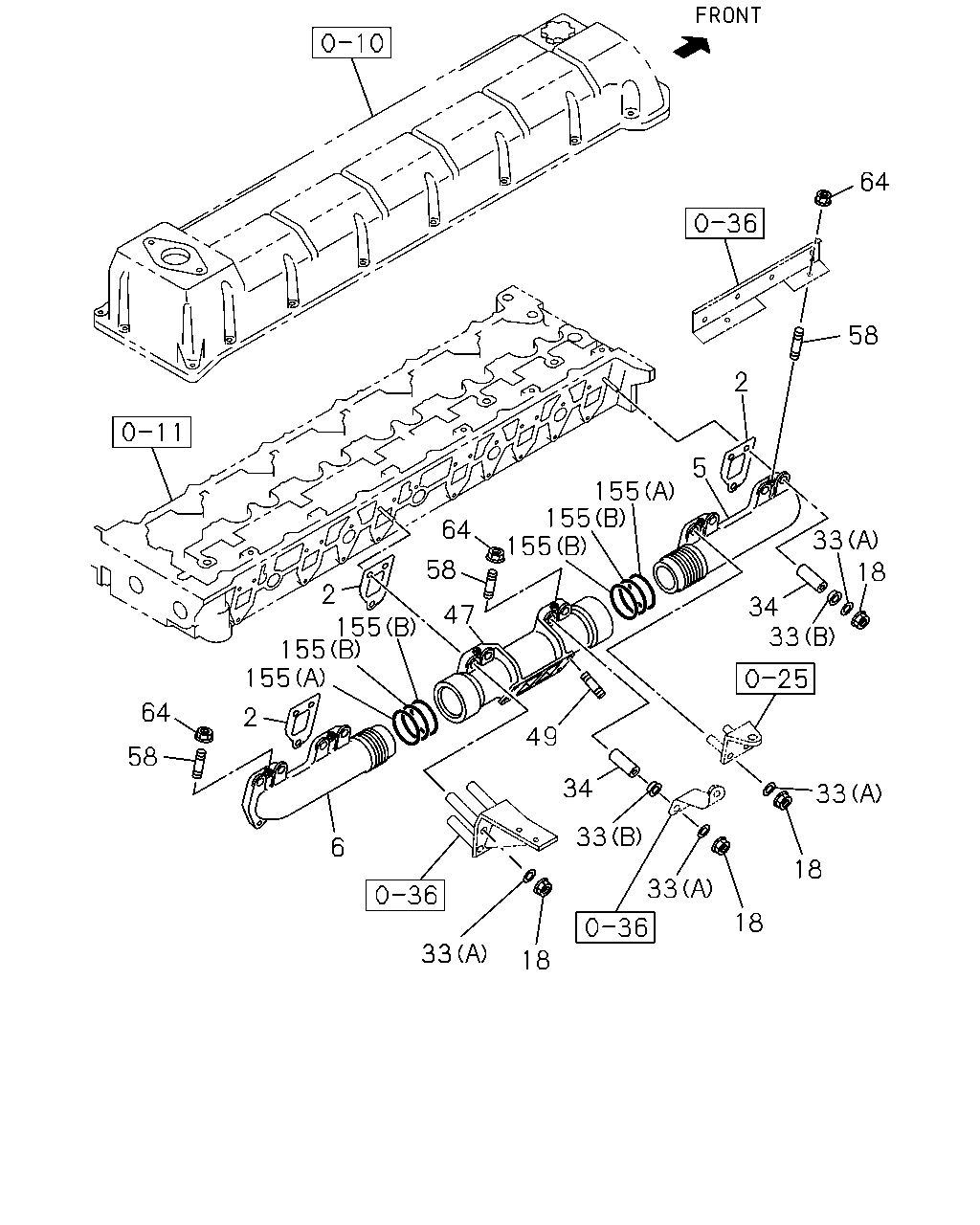

0-27 — EXHAUST MANIFOLD (#6925) — 114 parça

64 58 2 5 155 64 58 34 47 2 155 33 33 155 155 155 2 33 155 18 64 49 58 18 6 34 33 33 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-182-1	06	1	9812-9901	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-182-1	06	1	9902-9904	●	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-182-1	06	1	9905-9906	●	●	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-182-1	06	1	9907-	●	●	●
5	MANIFOLD; EXH,FRT	1-14141-881-0	01	1	9812-9901	●
5	MANIFOLD; EXH,FRT	1-14141-881-0	01	1	9902-0011	●		●
5	MANIFOLD; EXH,FRT	1-14141-999-0	01	1	0012-	●		●
5	MANIFOLD; EXH,FRT	1-14141-801-2	01	1	9902-9904		●
5	MANIFOLD; EXH,FRT	1-14141-801-2	01	1	9905-9908		●		●
5	MANIFOLD; EXH,FRT	1-14141-801-2	01	1	9909-		●
6	MANIFOLD; EXH,RR	1-14141-883-0	01	1	9812-9901	●
6	MANIFOLD; EXH,RR	1-14141-883-0	01	1	9902-0011	●		●
6	MANIFOLD; EXH,RR	1-14142-001-0	01	1	0012-	●		●
6	MANIFOLD; EXH,RR	1-14141-803-2	01	1	9902-9904		●
6	MANIFOLD; EXH,RR	1-14141-803-2	01	1	9905-9908		●		●
6	MANIFOLD; EXH,RR	1-14141-803-2	01	1	9909-		●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	18	1	9812-9901	●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	18	1	9902-9904	●	●	●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	18	1	9905-9906	●	●	●	●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	18	1	9907-	●	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	18	1	9812-9901	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	18	1	9902-9904	●	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	18	1	9905-9906	●	●	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	18	1	9907-	●	●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	13	1	9812-9901	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	13	1	9902-9904	●	●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	13	1	9905-9906	●	●	●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	13	1	9907-	●	●	●
34	COLLAR; DIST,EXH MANIF L=43	8-94396-406-0	13	1	9812-9901	●
34	COLLAR; DIST,EXH MANIF L=43	8-94396-406-0	13	1	9902-9904	●	●	●
34	COLLAR; DIST,EXH MANIF L=43	8-94396-406-0	13	1	9905-9906	●	●	●	●
34	COLLAR; DIST,EXH MANIF L=43	8-94396-406-0	13	1	9907-	●	●	●
47	MANIFOLD; EXH,CENTER	1-14141-882-0	01	1	9812-9901	●
47	MANIFOLD; EXH,CENTER	1-14141-882-0	01	1	9902-0011	●		●
47	MANIFOLD; EXH,CENTER	1-14141-938-0	01	1	0012-	●		●
47	MANIFOLD; EXH,CENTER	1-14141-802-3	01	1	9902-9904		●
47	MANIFOLD; EXH,CENTER	1-14141-802-3	01	1	9905-9908		●		●
47	MANIFOLD; EXH,CENTER	1-14141-802-3	01	1	9909-		●
49	STUD; CENTER MANIF TO TURBOCHARGER	1-09302-134-0	04	1	9812-9901	●
49	STUD; CENTER MANIF TO TURBOCHARGER	1-09302-134-0	04	1	9902-0011	●		●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X25 L=47	1-09302-167-1	04	1	0012-	●		●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X30,M10X22.5 L=45	9-04731-030-0	04	1	9902-9904		●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X30,M10X22.5 L=45	9-04731-030-0	04	1	9905-9908		●		●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X30,M10X22.5 L=45	9-04731-030-0	04	1	9909-		●
58	STUD; HEAT PROTECTOR M8X20 L=32	9-04110-820-0	06	1	9812-9901	●
58	STUD; HEAT PROTECTOR M8X20 L=32	9-04110-820-0	06	1	9902-	●	●	●
64	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	05	1	9812-9901	●
64	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	05	1	9902-9904	●	●	●
64	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	05	1	9905-9906	●	●	●	●
64	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	05	1	9907-	●	●	●
155	RING; SEAL,EXH MANIF (A)	1-14149-201-0	02	1	9812-9901	●
155	RING; SEAL,EXH MANIF (A)	1-14149-201-0	02	1	9902-	●		●
155	RING; SEAL,EXH MANIF (B)	9-14149-026-0	04	1	9812-9901	●
155	RING; SEAL,EXH MANIF (B)	9-14149-026-0	04	1	9902-	●		●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	06	1	9902-9904		●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	06	1	9905-9908		●		●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	06	1	9909-		●

64 58 2 5 155 155 155 64 33 18 58 2 34 33 155 155 155 47 64 2 49 58 34 33 33 6 18 33 18 33 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-182-1	06	1	9812-9901	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-182-1	06	1	9902-9904	●	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-182-1	06	1	9905-9906	●	●	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-182-1	06	1	9907-	●	●	●
5	MANIFOLD; EXH,FRT	1-14141-881-0	01	1	9812-9901	●
5	MANIFOLD; EXH,FRT	1-14141-881-0	01	1	9902-0011	●		●
5	MANIFOLD; EXH,FRT	1-14141-999-0	01	1	0012-	●		●
5	MANIFOLD; EXH,FRT	1-14141-801-2	01	1	9902-9904		●
5	MANIFOLD; EXH,FRT	1-14141-801-2	01	1	9905-9908		●		●
5	MANIFOLD; EXH,FRT	1-14141-801-2	01	1	9909-		●
6	MANIFOLD; EXH,RR	1-14141-883-0	01	1	9812-9901	●
6	MANIFOLD; EXH,RR	1-14141-883-0	01	1	9902-0011	●		●
6	MANIFOLD; EXH,RR	1-14142-001-0	01	1	0012-	●		●
6	MANIFOLD; EXH,RR	1-14141-803-2	01	1	9902-9904		●
6	MANIFOLD; EXH,RR	1-14141-803-2	01	1	9905-9908		●		●
6	MANIFOLD; EXH,RR	1-14141-803-2	01	1	9909-		●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	18	1	9812-9901	●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	18	1	9902-9904	●	●	●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	18	1	9905-9906	●	●	●	●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	18	1	9907-	●	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	18	1	9812-9901	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	18	1	9902-9904	●	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	18	1	9905-9906	●	●	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	18	1	9907-	●	●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	13	1	9812-9901	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	13	1	9902-9904	●	●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	13	1	9905-9906	●	●	●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	13	1	9907-	●	●	●
34	COLLAR; DIST,EXH MANIF L=43	8-94396-406-0	13	1	9812-9901	●
34	COLLAR; DIST,EXH MANIF L=43	8-94396-406-0	13	1	9902-9904	●	●	●
34	COLLAR; DIST,EXH MANIF L=43	8-94396-406-0	13	1	9905-9906	●	●	●	●
34	COLLAR; DIST,EXH MANIF L=43	8-94396-406-0	13	1	9907-	●	●	●
47	MANIFOLD; EXH,CENTER	1-14141-882-0	01	1	9812-9901	●
47	MANIFOLD; EXH,CENTER	1-14141-882-0	01	1	9902-0011	●		●
47	MANIFOLD; EXH,CENTER	1-14141-938-0	01	1	0012-	●		●
47	MANIFOLD; EXH,CENTER	1-14141-802-3	01	1	9902-9904		●
47	MANIFOLD; EXH,CENTER	1-14141-802-3	01	1	9905-9908		●		●
47	MANIFOLD; EXH,CENTER	1-14141-802-3	01	1	9909-		●
49	STUD; CENTER MANIF TO TURBOCHARGER	1-09302-134-0	04	1	9812-9901	●
49	STUD; CENTER MANIF TO TURBOCHARGER	1-09302-134-0	04	1	9902-0011	●		●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X25 L=47	1-09302-167-1	04	1	0012-	●		●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X30,M10X22.5 L=45	9-04731-030-0	04	1	9902-9904		●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X30,M10X22.5 L=45	9-04731-030-0	04	1	9905-9908		●		●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X30,M10X22.5 L=45	9-04731-030-0	04	1	9909-		●
58	STUD; HEAT PROTECTOR M8X20 L=32	9-04110-820-0	06	1	9812-9901	●
58	STUD; HEAT PROTECTOR M8X20 L=32	9-04110-820-0	06	1	9902-	●	●	●
64	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	05	1	9812-9901	●
64	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	05	1	9902-9904	●	●	●
64	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	05	1	9905-9906	●	●	●	●
64	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	05	1	9907-	●	●	●
155	RING; SEAL,EXH MANIF (A)	1-14149-201-0	02	1	9812-9901	●
155	RING; SEAL,EXH MANIF (A)	1-14149-201-0	02	1	9902-	●		●
155	RING; SEAL,EXH MANIF (B)	9-14149-026-0	04	1	9812-9901	●
155	RING; SEAL,EXH MANIF (B)	9-14149-026-0	04	1	9902-	●		●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	06	1	9902-9904		●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	06	1	9905-9908		●		●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	06	1	9909-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
