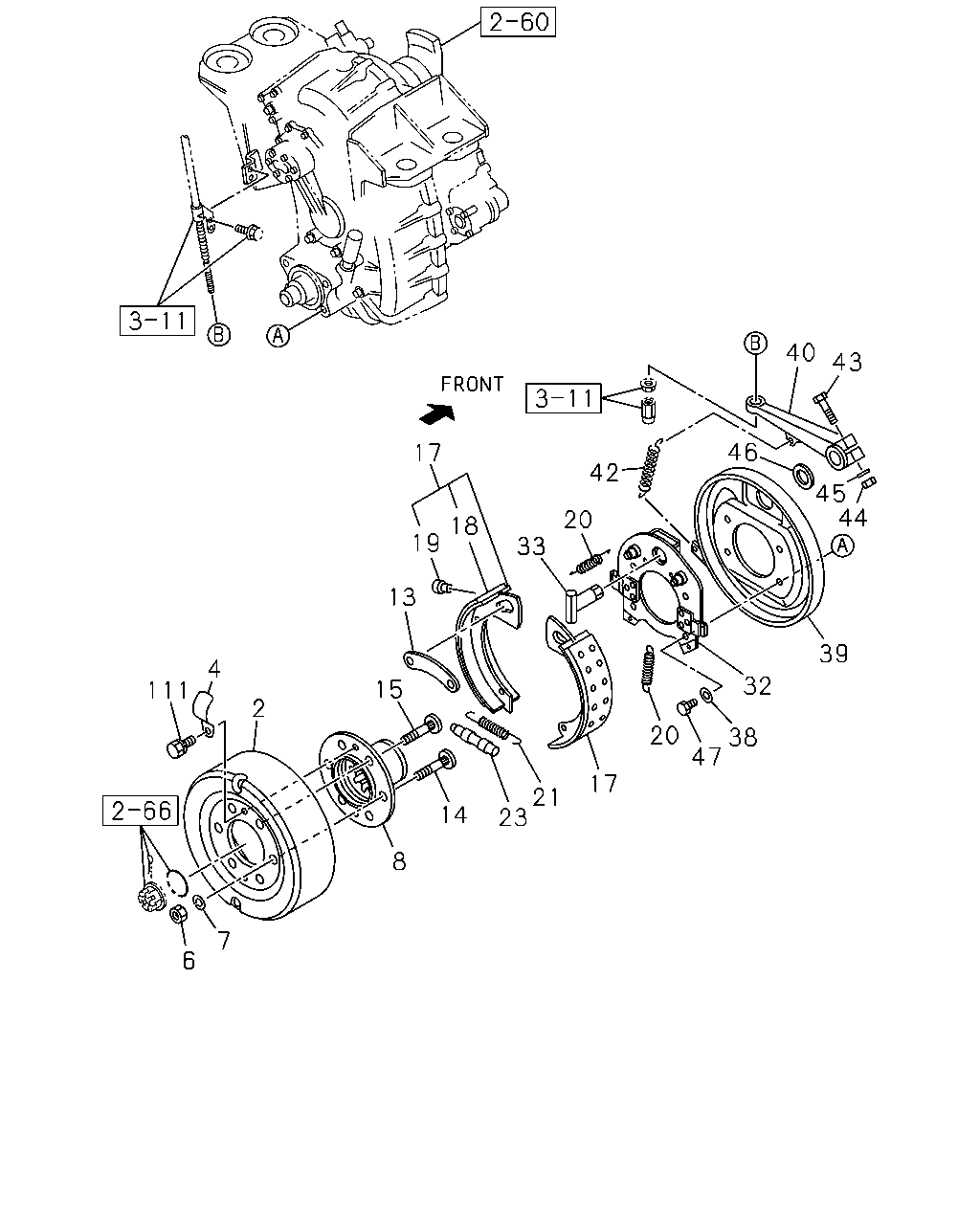

3-08 — PARKING BRAKE (#69249) — 52 parça

40 43 46 17 42 45 44 20 18 19 33 13 39 4 32 15 111 2 20 38 47 17 21 23 14 8 7 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	DRUM; PARKING BRK	1-46211-026-1	01	1	0812-0906	●	●
2	DRUM; PARKING BRK	1-46211-026-1	01	1	0907-	●	●	●
4	COVER; ADJ HOLE	8-98031-861-0	02	1	0812-0906	●	●
4	COVER; ADJ HOLE	8-98031-861-0	02	1	0907-	●	●	●
6	NUT; FLANGE M16	0-91110-516-0	02	1	0812-0906	●	●
6	NUT; FLANGE M16	0-91110-516-0	02	1	0907-	●	●	●
7	WASHER; LK,FLANGE ID=16.2	0-91510-516-0	02	1	0812-0906	●	●
7	WASHER; LK,FLANGE ID=16.2	0-91510-516-0	02	1	0907-	●	●	●
8	FLANGE; PARKING BRK	1-37243-213-0	01	1	0812-0906	●	●
8	FLANGE; PARKING BRK	1-37243-213-0	01	1	0907-	●	●	●
13	BRACE; PARKING BRK	9-46239-002-0	01	1	0812-0906	●	●
13	BRACE; PARKING BRK	9-46239-002-0	01	1	0907-	●	●	●
14	BOLT; DRUM TO FLANGE M16X38	1-46219-010-0	02	1	0812-0906	●	●
14	BOLT; DRUM TO FLANGE M16X38	1-46219-010-0	02	1	0907-	●	●	●
15	BOLT; FLANGE M16X55	8-98023-172-0	04	1	0812-0906	●	●
15	BOLT; FLANGE M16X55	8-98023-172-0	04	1	0907-	●	●	●
17	SHOE; PARKING BRK	1-46220-022-1	02	1	0812-0906	●	●
17	SHOE; PARKING BRK	1-46220-022-1	02	1	0907-	●	●	●
18	LINING; BRK,PARKING	1-46225-023-0	02	1	0812-0906	●	●
18	LINING; BRK,PARKING	1-46225-023-0	02	1	0907-	●	●	●
19	RIVET; LINING,PARKING BRK	1-09732-012-0	32	1	0812-0906	●	●
19	RIVET; LINING,PARKING BRK	1-09732-012-0	32	1	0907-	●	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-434-0	02	1	0812-0906	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-434-0	02	1	0907-	●	●	●
21	SPRING; RETURN,PARKING BRK SHOE	9-09942-516-0	01	1	0812-0906	●	●
21	SPRING; RETURN,PARKING BRK SHOE	9-09942-516-0	01	1	0907-	●	●	●
23	SCREW; ADJ,PARKING BRK SHOE	1-46240-003-0	01	1	0812-0906	●	●
23	SCREW; ADJ,PARKING BRK SHOE	1-46240-003-0	01	1	0907-	●	●	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-033-0	01	1	0812-0906	●	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-033-0	01	1	0907-	●	●	●
33	SHAFT; CAM,PARKING BRK	9-46251-069-0	01	1	0812-0906	●	●
33	SHAFT; CAM,PARKING BRK	9-46251-069-0	01	1	0907-	●	●	●
38	WASHER; LK,SUPPORT PLATE ID=16.2	0-91510-516-0	04	1	0812-0906	●	●
38	WASHER; LK,SUPPORT PLATE ID=16.2	0-91510-516-0	04	1	0907-	●	●	●
39	COVER; DUST,PARKING BRK	1-46213-061-0	01	1	0812-0906	●	●
39	COVER; DUST,PARKING BRK	1-46213-061-0	01	1	0907-	●	●	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-021-0	01	1	0812-0906	●	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-021-0	01	1	0907-	●	●	●
42	SPRING; RETURN,LEVER	1-09583-073-0	01	1	0812-0906	●	●
42	SPRING; RETURN,LEVER	1-09583-073-0	01	1	0907-	●	●	●
43	BOLT; LEVER TO CM/SHF	0-10811-045-0	01	1	0812-0906	●	●
43	BOLT; LEVER TO CM/SHF	0-10811-045-0	01	1	0907-	●	●	●
44	NUT; LEVER TO CM/SHF M10	0-91111-510-0	01	1	0812-0906	●	●
44	NUT; LEVER TO CM/SHF M10	0-91111-510-0	01	1	0907-	●	●	●
45	WASHER; LK,LEVER TO CM/SHF ID=10.2	0-91510-510-0	04	1	0812-0906	●	●
45	WASHER; LK,LEVER TO CM/SHF ID=10.2	0-91510-510-0	04	1	0907-	●	●	●
46	WASHER; LEVER	9-09855-362-0	01	1	0812-0906	●	●
46	WASHER; LEVER	9-09855-362-0	01	1	0907-	●	●	●
47	BOLT; SUPPORT PLATE M16X40	9-09804-155-0	04	1	0812-0906	●	●
47	BOLT; SUPPORT PLATE M16X40	9-09804-155-0	04	1	0907-	●	●	●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50040-820-0	02	1	0812-0906	●	●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50540-820-0	02	1	0907-	●	●	●
