Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#69234) — 423 parça

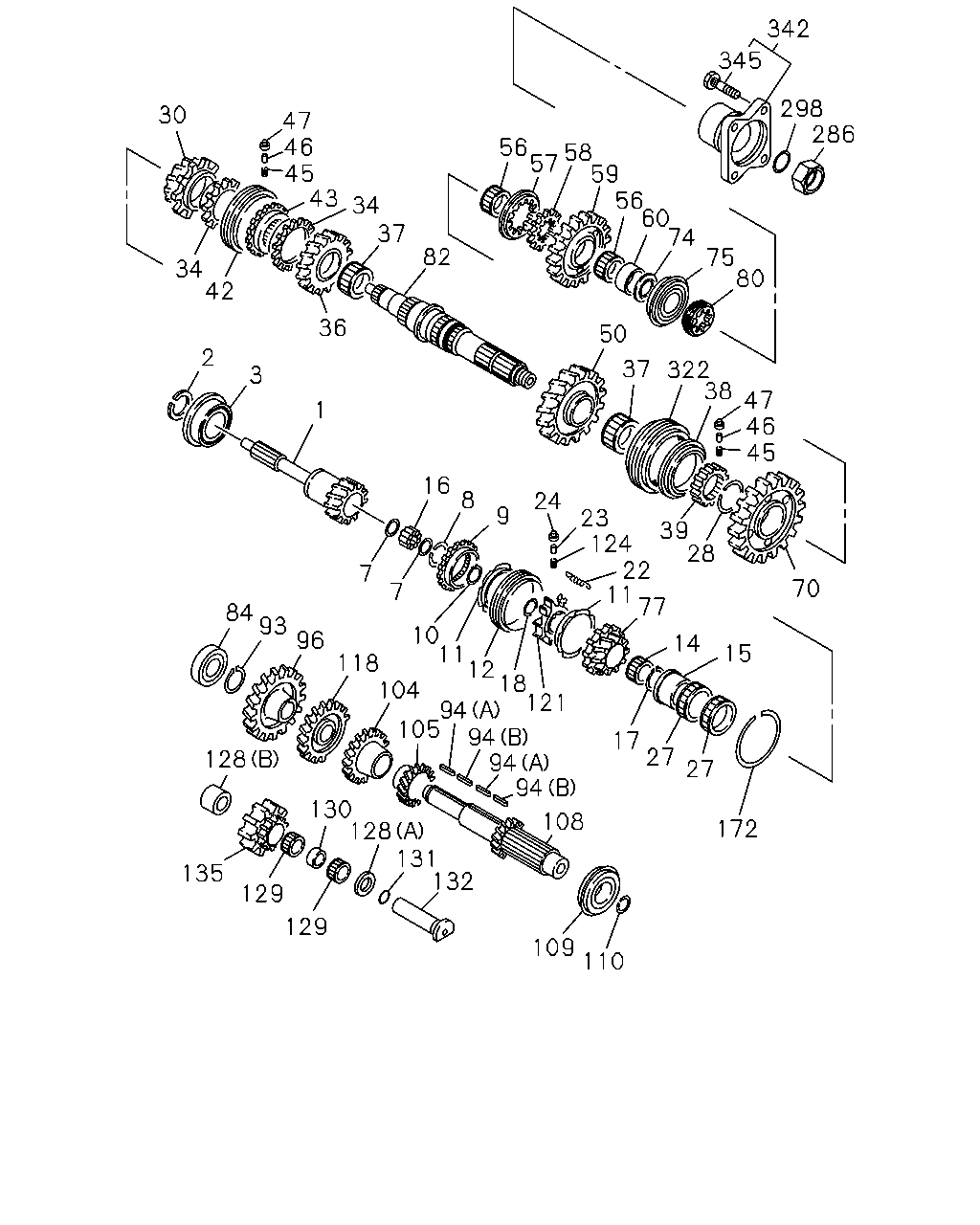

342 345 298 286 30 47 46 45 43 56 58 57 59 56 60 74 34 37 82 75 80 34 42 36 50 2 37 322 38 3 47 46 45 1 16 8 24 9 23 124 22 11 77 39 28 7 70 7 84 93 96 10 11 12 18 121 94 105 94 94 94 14 15 118 104 17 27 128 27 130 128 131 132 108 172 135 129 129 109 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-785-0	01	1	0812-	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	0812-	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	0812-	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	0812-	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	0812-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	0812-	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	0812-	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	0812-	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	0812-	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	0812-	●
11	RING; BLOCK,5TH & 6TH Z=45	8-97241-306-1	02	1	0812-0906		●
11	RING; BLOCK,5TH & 6TH Z=45	8-97241-306-1	02	1	0907-		●	●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	0812-	●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	0812-	●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	0812-	●
15	COLLAR; 4TH GEAR	8-97380-022-0	01	1	0812-0906		●
15	COLLAR; 4TH GEAR	8-97380-022-0	01	1	0907-1004		●	●
15	COLLAR; 4TH GEAR	8-98146-345-0	01	1	1005-		●	●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	0812-	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	0812-	●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	0812-	●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	0812-0906		●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	0907-		●	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	0812-	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	0812-	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0812-	●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	0812-0906		●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	0907-		●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0812-	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	0812-	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	0812-	●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-501-0	01	1	0812-1107	●
30	GEAR; 4TH,MAINSHAFT Z=33-54	1-33253-723-0	01	1	1108-	●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-619-0	02	1	0812-	●
36	GEAR; 3RD,MAINSHAFT Z=29	8-97377-696-0	01	1	0812-0906		●
36	GEAR; 3RD,MAINSHAFT Z=29	8-97377-696-0	01	1	0907-1010		●	●
36	GEAR; 3RD,MAINSHAFT Z=29	8-98168-499-0	01	1	1011-		●	●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	0812-	●
37	BEARING; NEEDLE,2ND & 3RD JTEKT	1-09811-277-0	02	1	0812-	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	0812-	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-619-0	01	1	0812-	●
39	HUB; CLU,LOW & 2ND Z=45	8-98075-732-0	01	1	0812-0906		●
39	HUB; CLU,LOW & 2ND Z=45	8-98075-732-0	01	1	0907-1501		●	●
39	HUB; CLU,LOW & 2ND Z=45	8-98303-646-0	01	1	1502-1507		●	●
39	HUB; CLU,LOW & 2ND Z=45	8-98309-852-0	01	1	1508-		●	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	0812-	●
42	SLEEVE Z=54	1-33262-154-0	01	1	0812-	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	0812-	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	0812-	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0812-	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0812-	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	0812-	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	0812-	●
57	SLEEVE; REV Z=45	8-94421-871-1	01	1	0812-0906		●
57	SLEEVE; REV Z=45	8-94421-871-1	01	1	0907-		●	●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	0812-	●
58	HUB; CLU,REV Z=45-27	8-98005-296-0	01	1	0812-0906		●
58	HUB; CLU,REV Z=45-27	8-98005-296-0	01	1	0907-		●	●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	0812-	●
59	GEAR; REV MAINSHAFT Z=45	1-33257-061-1	01	1	0812-	●
60	COLLAR; REV MAIN	1-33234-095-0	01	1	0812-	●
70	GEAR; 1ST,MAINSHAFT Z=51	1-33255-056-1	01	1	0812-	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	0812-	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	0812-	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	0812-	●
77	GEAR; 6TH,MAINSHAFT Z=46	8-98049-406-1	01	1	0812-0906		●
77	GEAR; 6TH,MAINSHAFT Z=46	8-98049-406-1	01	1	0907-1203		●	●
77	GEAR; 6TH,MAINSHAFT Z=46	8-98137-256-0	01	1	1204-		●	●
77	GEAR; 6TH,MAINSHAFT Z=25	1-33253-517-0	01	1	0812-	●
80	GEAR; SPD DRIVE Z=5	8-97377-978-0	01	1	0812-0906		●
80	GEAR; SPD DRIVE Z=5	8-97377-978-1	01	1	0907-		●	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	0812-	●
82	SHAFT; MAIN,TRANS Z=19-26	8-98049-375-2	01	1	0812-0905		●
82	SHAFT; MAIN,TRANS Z=13-21-19-26	8-98140-880-0	01	1	0906-0906		●
82	SHAFT; MAIN,TRANS Z=13-21-19-26	8-98140-880-0	01	1	0907-1308		●	●
82	SHAFT; MAIN,TRANS Z=13-21-19-26	8-98245-057-0	01	1	1309-		●	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	0812-	●
84	BEARING; COUNTER SHAFT,FRT	8-97377-957-0	01	1	0812-0906		●
84	BEARING; COUNTER SHAFT,FRT	8-97377-957-1	01	1	0907-		●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	0812-	●
93	RING; SNAP,COUNTER FRT BRG	8-97377-958-0	01	1	0812-0906		●
93	RING; SNAP,COUNTER FRT BRG	8-97377-958-0	01	1	0907-		●	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	0812-	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	0812-	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	0812-	●
96	GEAR; COUNTER DRIVE Z=42	1-33331-212-1	01	1	0812-	●
104	GEAR; 4TH,COUNTER Z=29	8-97377-682-0	01	1	0812-0906		●
104	GEAR; 4TH,COUNTER Z=29	8-97377-682-0	01	1	0907-1010		●	●
104	GEAR; 4TH,COUNTER Z=29	8-98168-502-0	01	1	1011-1203		●	●
104	GEAR; 4TH,COUNTER Z=29	8-98198-297-0	01	1	1204-		●	●
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	0812-1107	●
104	GEAR; 4TH,COUNTER Z=36	1-33332-133-0	01	1	1108-1311	●
104	GEAR; 4TH,COUNTER Z=36	8-98256-811-0	01	1	1312-	●
105	GEAR; 3RD,COUNTER Z=35	8-97377-704-0	01	1	0812-0906		●
105	GEAR; 3RD,COUNTER Z=35	8-97377-704-0	01	1	0907-1010		●	●
105	GEAR; 3RD,COUNTER Z=35	8-98168-501-0	01	1	1011-		●	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-161-0	01	1	0812-1311	●
105	GEAR; 3RD,COUNTER Z=28	8-98256-803-0	01	1	1312-	●
108	SHAFT; COUNTER Z=27-42-26	8-98005-608-2	01	1	0812-0901		●
108	SHAFT; COUNTER Z=27-42-26	8-98133-783-0	01	1	0902-0906		●
108	SHAFT; COUNTER Z=27-42-26	8-98133-783-0	01	1	0907-0912		●	●
108	SHAFT; COUNTER Z=27-42-26	8-98160-120-0	01	1	1001-1209		●	●
108	SHAFT; COUNTER Z=27-42-26	8-98223-607-0	01	1	1210-1501		●	●
108	SHAFT; COUNTER Z=27-42-26	8-98303-643-0	01	1	1502-		●	●
108	SHAFT; COUNTER Z=19-14	1-33311-280-1	01	1	0812-	●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	0812-	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	0812-	●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	0812-	●
118	GEAR; 6TH,COUNTER Z=17	8-98005-292-1	01	1	0812-0906		●
118	GEAR; 6TH,COUNTER Z=17	8-98005-292-1	01	1	0907-		●	●
118	GEAR; 6TH,COUNTER Z=55	1-33332-103-1	01	1	0812-	●
121	HUB; CLU,6TH	1-33261-270-0	01	1	0812-	●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	0812-	●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=42	1-33239-079-1	01	1	0812-	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=2	1-33363-024-1	01	1	0812-	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	0812-	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	0812-	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	0812-	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0	9-09571-410-0	02	1	0812-0906		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0	9-09571-410-0	02	1	0907-		●	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	0812-	●
132	SHAFT; REV	8-98009-372-0	01	1	0812-0906		●
132	SHAFT; REV	8-98009-372-0	01	1	0907-		●	●
132	SHAFT; REV	1-33351-017-0	01	1	0812-	●
135	GEAR; REV IDLER Z=27	8-98005-601-1	01	1	0812-0906		●
135	GEAR; REV IDLER Z=27	8-98005-601-1	01	1	0907-		●	●
135	GEAR; REV IDLER Z=29-24	1-33361-064-0	01	1	0812-	●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	0812-	●
286	NUT; LK,MAINSHAFT M36 FLANGE	8-98014-140-0	01	1	0812-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	0812-0906	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	0907-	●	●	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	0812-	●
342	FLANGE; OUTPUT	8-98044-770-0	01	1	0812-0906		●
342	FLANGE; OUTPUT	8-98044-770-0	01	1	0907-0912		●	●
342	FLANGE; OUTPUT	8-98155-334-0	01	1	1001-		●	●
342	FLANGE; OUTPUT	1-37243-307-1	01	1	0812-	●
345	BOLT; FLANGE TO YOKE M14X43 KNURL	8-98014-003-0	04	1	0812-	●

57 95 314 93 241 582 561 58 517 84 241 24 585 516 586 106 582 39 20 20 174 579 577 105 108 590 582 589 588 20 587 517 24 516 592 104 582 174 118 320 398 596 223 506 325 593 15 579 563 584

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	COLLAR; 4TH GEAR	8-97380-022-0	01	1	0812-0906		●
15	COLLAR; 4TH GEAR	8-97380-022-0	01	1	0907-1004		●	●
15	COLLAR; 4TH GEAR	8-98146-345-0	01	1	1005-		●	●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	0812-	●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	0812-0906		●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	0907-1210		●	●
20	SLEEVE (A) Z=45	8-97241-296-1	03	1	1211-1308		●	●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1309-1311		●	●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-1508		●	●
20	SLEEVE (A) Z=45	8-98258-279-0	03	1	1509-		●	●
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	0812-0906		●
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	0907-1210		●	●
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	1309-1508		●	●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	0812-0906		●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	0907-		●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0812-	●
39	HUB; CLU,LOW & 2ND Z=45	8-98075-732-0	01	1	0812-0906		●
39	HUB; CLU,LOW & 2ND Z=45	8-98075-732-0	01	1	0907-1501		●	●
39	HUB; CLU,LOW & 2ND Z=45	8-98303-646-0	01	1	1502-1507		●	●
39	HUB; CLU,LOW & 2ND Z=45	8-98309-852-0	01	1	1508-		●	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	0812-	●
57	SLEEVE; REV Z=45	8-94421-871-1	01	1	0812-0906		●
57	SLEEVE; REV Z=45	8-94421-871-1	01	1	0907-		●	●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	0812-	●
58	HUB; CLU,REV Z=45-27	8-98005-296-0	01	1	0812-0906		●
58	HUB; CLU,REV Z=45-27	8-98005-296-0	01	1	0907-		●	●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	0812-	●
84	BEARING; COUNTER SHAFT,FRT	8-97377-957-0	01	1	0812-0906		●
84	BEARING; COUNTER SHAFT,FRT	8-97377-957-1	01	1	0907-		●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	0812-	●
93	RING; SNAP,COUNTER FRT BRG	8-97377-958-0	01	1	0812-0906		●
93	RING; SNAP,COUNTER FRT BRG	8-97377-958-0	01	1	0907-		●	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	0812-	●
95	GEAR; REV,COUNTER Z=44	8-98005-229-0	01	1	0812-0906		●
95	GEAR; REV,COUNTER Z=44	8-98005-229-0	01	1	0907-		●	●
104	GEAR; 4TH,COUNTER Z=29	8-97377-682-0	01	1	0812-0906		●
104	GEAR; 4TH,COUNTER Z=29	8-97377-682-0	01	1	0907-1010		●	●
104	GEAR; 4TH,COUNTER Z=29	8-98168-502-0	01	1	1011-1203		●	●
104	GEAR; 4TH,COUNTER Z=29	8-98198-297-0	01	1	1204-		●	●
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	0812-1107	●
104	GEAR; 4TH,COUNTER Z=36	1-33332-133-0	01	1	1108-1311	●
104	GEAR; 4TH,COUNTER Z=36	8-98256-811-0	01	1	1312-	●
105	GEAR; 3RD,COUNTER Z=35	8-97377-704-0	01	1	0812-0906		●
105	GEAR; 3RD,COUNTER Z=35	8-97377-704-0	01	1	0907-1010		●	●
105	GEAR; 3RD,COUNTER Z=35	8-98168-501-0	01	1	1011-		●	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-161-0	01	1	0812-1311	●
105	GEAR; 3RD,COUNTER Z=28	8-98256-803-0	01	1	1312-	●
106	GEAR; 2ND,COUNTER Z=44	8-97376-989-0	01	1	0812-0905		●
106	GEAR; 2ND,COUNTER Z=44	8-98140-884-0	01	1	0906-0906		●
106	GEAR; 2ND,COUNTER Z=44	8-98140-884-0	01	1	0907-		●	●
108	SHAFT; COUNTER Z=27-42-26	8-98005-608-2	01	1	0812-0901		●
108	SHAFT; COUNTER Z=27-42-26	8-98133-783-0	01	1	0902-0906		●
108	SHAFT; COUNTER Z=27-42-26	8-98133-783-0	01	1	0907-0912		●	●
108	SHAFT; COUNTER Z=27-42-26	8-98160-120-0	01	1	1001-1209		●	●
108	SHAFT; COUNTER Z=27-42-26	8-98223-607-0	01	1	1210-1501		●	●
108	SHAFT; COUNTER Z=27-42-26	8-98303-643-0	01	1	1502-		●	●
108	SHAFT; COUNTER Z=19-14	1-33311-280-1	01	1	0812-	●
118	GEAR; 6TH,COUNTER Z=17	8-98005-292-1	01	1	0812-0906		●
118	GEAR; 6TH,COUNTER Z=17	8-98005-292-1	01	1	0907-		●	●
118	GEAR; 6TH,COUNTER Z=55	1-33332-103-1	01	1	0812-	●
174	SYNCHRONIZER ASM; 2ND-3RD	8-98315-823-2	02	1	1509-		●	●
223	NUT; COUNTER SHAFT END M34 FLANGE	8-98005-894-0	01	1	0812-0906		●
223	NUT; COUNTER SHAFT END M34 FLANGE	8-98005-894-0	01	1	0907-		●	●
241	RING; SNAP (A) ID=46.5 T=1.8	8-97254-743-0	01	1	0812-0906		●
241	RING; SNAP (A) ID=46.5 T=1.8	8-97254-743-0	01	1	0907-		●	●
241	RING; SNAP (B) ID=96 T=2.5	8-98009-391-0	01	1	0812-0906		●
241	RING; SNAP (B) ID=96 T=2.5	8-98009-391-0	01	1	0907-		●	●
314	BEARING; NEEDLE,REV GEAR (A) JTEKT	1-09811-017-0	02	1	0812-0906		●
314	BEARING; NEEDLE,REV GEAR (A) JTEKT	1-09811-017-0	02	1	0907-		●	●
314	BEARING; NEEDLE,REV GEAR (B) NSK	8-97253-111-0	01	1	0812-0906		●
314	BEARING; NEEDLE,REV GEAR (B) NSK	8-97253-111-0	01	1	0907-		●	●
320	HUB; CLU,4TH & 3RD Z=45	8-98075-733-0	01	1	0812-0906		●
320	HUB; CLU,4TH & 3RD Z=45	8-98075-733-0	01	1	0907-1501		●	●
320	HUB; CLU,4TH & 3RD Z=45	8-98303-649-0	01	1	1502-1507		●	●
320	HUB; CLU,4TH & 3RD Z=45	8-98309-859-0	01	1	1508-		●	●
325	SHIM; COUNTER SHAFT BRG T=1.56	8-97377-994-0	01	1	0812-0906		●
325	SHIM; COUNTER SHAFT BRG T=1.56	8-97377-994-0	01	1	0907-		●	●
325	SHIM; COUNTER SHAFT BRG T=1.62	8-97377-995-0	01	1	0812-0906		●
325	SHIM; COUNTER SHAFT BRG T=1.62	8-97377-995-0	01	1	0907-		●	●
325	SHIM; COUNTER SHAFT BRG T=1.68	8-97377-996-0	01	1	0812-0906		●
325	SHIM; COUNTER SHAFT BRG T=1.68	8-97377-996-0	01	1	0907-		●	●
325	SHIM; COUNTER SHAFT BRG T=1.74	8-97377-997-0	01	1	0812-0906		●
325	SHIM; COUNTER SHAFT BRG T=1.74	8-97377-997-0	01	1	0907-		●	●
325	SHIM; COUNTER SHAFT BRG T=1.80	8-97377-998-0	01	1	0812-0906		●
325	SHIM; COUNTER SHAFT BRG T=1.80	8-97377-998-0	01	1	0907-		●	●
325	SHIM; COUNTER SHAFT BRG T=1.26	8-98009-373-0	01	1	0812-0906		●
325	SHIM; COUNTER SHAFT BRG T=1.26	8-98009-373-0	01	1	0907-		●	●
325	SHIM; COUNTER SHAFT BRG T=1.32	8-98009-374-0	01	1	0812-0906		●
325	SHIM; COUNTER SHAFT BRG T=1.32	8-98009-374-0	01	1	0907-		●	●
325	SHIM; COUNTER SHAFT BRG T=1.38	8-98009-375-0	01	1	0812-0906		●
325	SHIM; COUNTER SHAFT BRG T=1.38	8-98009-375-0	01	1	0907-		●	●
325	SHIM; COUNTER SHAFT BRG T=1.44	8-98009-376-0	01	1	0812-0906		●
325	SHIM; COUNTER SHAFT BRG T=1.44	8-98009-376-0	01	1	0907-		●	●
325	SHIM; COUNTER SHAFT BRG T=1.50	8-98009-377-0	01	1	0812-0906		●
325	SHIM; COUNTER SHAFT BRG T=1.50	8-98009-377-0	01	1	0907-		●	●
325	SHIM; COUNTER SHAFT BRG T=1.14	8-98022-218-0	01	1	0812-0906		●
325	SHIM; COUNTER SHAFT BRG T=1.14	8-98022-218-0	01	1	0907-		●	●
325	SHIM; COUNTER SHAFT BRG T=1.20	8-98022-219-0	01	1	0812-0906		●
325	SHIM; COUNTER SHAFT BRG T=1.20	8-98022-219-0	01	1	0907-		●	●
398	GEAR; COUNTER Z=22	8-97380-568-0	01	1	0812-0906		●
398	GEAR; COUNTER Z=22	8-97380-568-0	01	1	0907-		●	●
506	COLLAR; 6TH,COUNTER	8-97377-965-0	01	1	0812-0906		●
506	COLLAR; 6TH,COUNTER	8-97377-965-0	01	1	0907-		●	●
516	SPRING; SYNCHRO,INDEX	8-98032-197-0	09	1	0812-0906		●
516	SPRING; SYNCHRO,INDEX	8-98032-197-0	09	1	0907-		●	●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	0812-0906		●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	0907-		●	●
561	GEAR; LOW,COUNTER Z=44	8-98000-330-0	01	1	0812-0906		●
561	GEAR; LOW,COUNTER Z=44	8-98000-330-0	01	1	0907-		●	●
563	COLLAR; 1ST GEAR	8-97380-022-0	01	1	0812-0906		●
563	COLLAR; 1ST GEAR	8-97380-022-0	01	1	0907-1004		●	●
563	COLLAR; 1ST GEAR	8-98146-345-0	01	1	1005-		●	●
577	HOSE; OIL PUMP (A)	8-98033-981-0	04	1	0812-0906		●
577	HOSE; OIL PUMP (A)	8-98033-981-0	04	1	0907-1205		●	●
577	HOSE; OIL PUMP (A)	8-98033-981-0	02	1	1206-		●	●
577	HOSE; OIL PUMP (B)	8-98033-982-0	02	1	0812-0906		●
577	HOSE; OIL PUMP (B)	8-98033-982-0	02	1	0907-		●	●
579	CLAMP; HOSE ID=16	8-97329-628-0	10	1	0812-0906		●
579	CLAMP; HOSE ID=16	8-97329-628-0	10	1	0907-1205		●	●
579	CLAMP; HOSE ID=16	8-97329-628-0	07	1	1206-		●	●
582	BEARING; NEEDLE,COUNTER GEAR	8-97253-110-0	04	1	0812-0906		●
582	BEARING; NEEDLE,COUNTER GEAR	8-97253-110-0	04	1	0907-		●	●
584	RING; BLOCK,2ND Z=45	8-98034-770-0	01	1	0812-0906		●
584	RING; BLOCK,2ND Z=45	8-98034-770-0	01	1	0907-1210		●	●
584	RING; BLOCK,2ND Z=45	8-98223-605-1	01	1	1211-1308		●	●
584	RING; BLOCK,2ND Z=45	8-98034-770-0	01	1	1309-1508		●	●
585	RING; OUTSIDE,2ND	8-97241-309-1	01	1	0812-0906		●
585	RING; OUTSIDE,2ND	8-97241-309-1	01	1	0907-1508		●	●
586	RING; INSIDE,2ND	8-97241-312-1	01	1	0812-0906		●
586	RING; INSIDE,2ND	8-97241-312-1	01	1	0907-1210		●	●
586	RING; INSIDE,2ND	8-98223-606-1	01	1	1211-1308		●	●
586	RING; INSIDE,2ND	8-97241-312-1	01	1	1309-1508		●	●
587	CASE; PUMP,COUNTER	8-97377-959-0	01	1	0812-0906		●
587	CASE; PUMP,COUNTER	8-97377-959-0	01	1	0907-1205		●	●
587	CASE; PUMP,COUNTER	8-98212-196-0	01	1	1206-1501		●	●
587	CASE; PUMP,COUNTER	8-98303-650-0	01	1	1502-		●	●
588	RING; BLOCK,3RD Z=45	8-97241-306-1	01	1	0812-0906		●
588	RING; BLOCK,3RD Z=45	8-97241-306-1	01	1	0907-1209		●	●
588	RING; BLOCK,3RD Z=45	8-98223-605-1	01	1	1210-1308		●	●
588	RING; BLOCK,3RD Z=45	8-97241-306-1	01	1	1309-1508		●	●
589	RING; OUTSIDE,3RD	8-97241-309-1	01	1	0812-0906		●
589	RING; OUTSIDE,3RD	8-97241-309-1	01	1	0907-1508		●	●
590	RING; INSIDE,3RD	8-97241-312-1	01	1	0812-0906		●
590	RING; INSIDE,3RD	8-97241-312-1	01	1	0907-1209		●	●
590	RING; INSIDE,3RD	8-98223-606-1	01	1	1210-1308		●	●
590	RING; INSIDE,3RD	8-97241-312-1	01	1	1309-1508		●	●
592	RING; BLOCK,4TH Z=45	8-97241-306-1	01	1	0812-0906		●
592	RING; BLOCK,4TH Z=45	8-97241-306-1	01	1	0907-		●	●
593	BEARING; COUNTER MIDDLE	8-97377-976-0	01	1	0812-0906		●
593	BEARING; COUNTER MIDDLE	8-97377-976-0	01	1	0907-		●	●
596	BEARING; ROOLER,COUNTER END	8-97377-968-0	01	1	0812-0906		●
596	BEARING; ROOLER,COUNTER END	8-97377-968-0	01	1	0907-		●	●

594 571 473 314 314 386 132 135 326 82 131 131 326 579 577 36 573 572 580 424 475 579 579 77 577 579 11 517 521 24 516 299 578 294 20 468 18 400 595 80 11 581 342 178 522 298 260

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	RING; BLOCK,5TH & 6TH Z=45	8-97241-306-1	02	1	0812-0906		●
11	RING; BLOCK,5TH & 6TH Z=45	8-97241-306-1	02	1	0907-		●	●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	0812-	●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	0812-0906		●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	0907-		●	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	0812-	●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	0812-0906		●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	0907-1210		●	●
20	SLEEVE (A) Z=45	8-97241-296-1	03	1	1211-1308		●	●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1309-1311		●	●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-1508		●	●
20	SLEEVE (A) Z=45	8-98258-279-0	03	1	1509-		●	●
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	0812-0906		●
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	0907-1210		●	●
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	1309-1508		●	●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	0812-0906		●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	0907-		●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0812-	●
36	GEAR; 3RD,MAINSHAFT Z=29	8-97377-696-0	01	1	0812-0906		●
36	GEAR; 3RD,MAINSHAFT Z=29	8-97377-696-0	01	1	0907-1010		●	●
36	GEAR; 3RD,MAINSHAFT Z=29	8-98168-499-0	01	1	1011-		●	●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	0812-	●
77	GEAR; 6TH,MAINSHAFT Z=46	8-98049-406-1	01	1	0812-0906		●
77	GEAR; 6TH,MAINSHAFT Z=46	8-98049-406-1	01	1	0907-1203		●	●
77	GEAR; 6TH,MAINSHAFT Z=46	8-98137-256-0	01	1	1204-		●	●
77	GEAR; 6TH,MAINSHAFT Z=25	1-33253-517-0	01	1	0812-	●
80	GEAR; SPD DRIVE Z=5	8-97377-978-0	01	1	0812-0906		●
80	GEAR; SPD DRIVE Z=5	8-97377-978-1	01	1	0907-		●	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	0812-	●
82	SHAFT; MAIN,TRANS Z=19-26	8-98049-375-2	01	1	0812-0905		●
82	SHAFT; MAIN,TRANS Z=13-21-19-26	8-98140-880-0	01	1	0906-0906		●
82	SHAFT; MAIN,TRANS Z=13-21-19-26	8-98140-880-0	01	1	0907-1308		●	●
82	SHAFT; MAIN,TRANS Z=13-21-19-26	8-98245-057-0	01	1	1309-		●	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	0812-	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0	9-09571-410-0	02	1	0812-0906		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0	9-09571-410-0	02	1	0907-		●	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	0812-	●
132	SHAFT; REV	8-98009-372-0	01	1	0812-0906		●
132	SHAFT; REV	8-98009-372-0	01	1	0907-		●	●
132	SHAFT; REV	1-33351-017-0	01	1	0812-	●
135	GEAR; REV IDLER Z=27	8-98005-601-1	01	1	0812-0906		●
135	GEAR; REV IDLER Z=27	8-98005-601-1	01	1	0907-		●	●
135	GEAR; REV IDLER Z=29-24	1-33361-064-0	01	1	0812-	●
178	BEARING; NEEDLE,MAINSHAFT	8-97253-099-1	01	1	0812-0906		●
178	BEARING; NEEDLE,MAINSHAFT	8-97253-099-1	01	1	0907-		●	●
260	NUT; MAINSHAFT END M36 FLANGE	8-98014-140-0	01	1	0812-0906		●
260	NUT; MAINSHAFT END M36 FLANGE	8-98014-140-0	01	1	0907-		●	●
294	SHAFT; OUTPUT Z=43	8-97380-571-0	01	1	0812-0906		●
294	SHAFT; OUTPUT Z=43	8-97380-571-0	01	1	0907-		●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	0812-0906	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	0907-	●	●	●
299	BEARING; OUTPUT SHAFT FRT	8-97377-970-0	01	1	0812-0906		●
299	BEARING; OUTPUT SHAFT FRT	8-97377-970-0	01	1	0907-		●	●
314	BEARING; NEEDLE,REV GEAR (A) JTEKT	1-09811-017-0	02	1	0812-0906		●
314	BEARING; NEEDLE,REV GEAR (A) JTEKT	1-09811-017-0	02	1	0907-		●	●
314	BEARING; NEEDLE,REV GEAR (B) NSK	8-97253-111-0	01	1	0812-0906		●
314	BEARING; NEEDLE,REV GEAR (B) NSK	8-97253-111-0	01	1	0907-		●	●
326	BOLT; REV SHAFT (A) M10X50 FLANGE	0-29261-050-0	01	1	0812-0906		●
326	BOLT; REV SHAFT (A) M10X50 FLANGE	0-29261-050-0	01	1	0907-		●	●
326	BOLT; REV SHAFT (B) M10X50	8-98014-738-0	01	1	0812-0906		●
326	BOLT; REV SHAFT (B) M10X50	8-98014-738-0	01	1	0907-		●	●
342	FLANGE; OUTPUT	8-98044-770-0	01	1	0812-0906		●
342	FLANGE; OUTPUT	8-98044-770-0	01	1	0907-0912		●	●
342	FLANGE; OUTPUT	8-98155-334-0	01	1	1001-		●	●
342	FLANGE; OUTPUT	1-37243-307-1	01	1	0812-	●
386	PIN; REV SHAFT OD=4 L=8	9-08150-408-0	01	1	0812-0906		●
386	PIN; REV SHAFT OD=4 L=8	9-08150-408-0	01	1	0907-		●	●
400	BEARING; OUTPUT SHAFT RR	8-97377-977-0	01	1	0812-0906		●
400	BEARING; OUTPUT SHAFT RR	8-97377-977-0	01	1	0907-		●	●
424	COLLAR; 6TH GEAR	8-97377-954-2	01	1	0812-0904		●
424	COLLAR; 6TH GEAR	8-98125-318-0	01	1	0905-0906		●
424	COLLAR; 6TH GEAR	8-98125-318-0	01	1	0907-		●	●
468	HUB; CLU,5TH & 6TH Z=45	8-98075-734-0	01	1	0812-0906		●
468	HUB; CLU,5TH & 6TH Z=45	8-98075-734-0	01	1	0907-		●	●
473	BEARING; INPUT SHAFT	8-97377-950-0	01	1	0812-0906		●
473	BEARING; INPUT SHAFT	8-97377-950-0	01	1	0907-		●	●
475	BEARING; 6TH COLLAR OD=50.000-	8-98142-265-0	01	1	0905-0906		●
475	BEARING; 6TH COLLAR OD=50.000-	8-98142-265-0	01	1	0907-		●	●
475	BEARING; 6TH COLLAR OD=-49.999	8-98101-505-0	01	1	0812-0906		●
475	BEARING; 6TH COLLAR OD=-49.999	8-98101-505-0	01	1	0907-		●	●
516	SPRING; SYNCHRO,INDEX	8-98032-197-0	09	1	0812-0906		●
516	SPRING; SYNCHRO,INDEX	8-98032-197-0	09	1	0907-		●	●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	0812-0906		●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	0907-		●	●
521	BOLT M8X12 FLANGE	0-28050-812-0	01	1	0812-0906		●
521	BOLT M8X12 FLANGE	0-28050-812-0	01	1	0907-		●	●
522	BOLT; FLANGE M14X43 KNURL	8-98014-003-0	04	1	0907-		●	●
522	BOLT; FLANGE M14X43 KNURL	8-98014-003-0	08	1	0812-0906		●
571	RING; SNAP,BRG	8-97377-951-0	01	1	0812-0906		●
571	RING; SNAP,BRG	8-97377-951-0	01	1	0907-		●	●
572	GEAR; 4TH,INPUT Z=37	8-97377-697-0	01	1	0812-0906		●
572	GEAR; 4TH,INPUT Z=37	8-97377-697-0	01	1	0907-1010		●	●
572	GEAR; 4TH,INPUT Z=37	8-98168-500-0	01	1	1011-		●	●
573	PUMP ASM; OIL	8-98044-683-0	01	1	0812-0906		●
573	PUMP ASM; OIL	8-98044-683-0	01	1	0907-1205		●	●
573	PUMP ASM; OIL	8-98212-241-0	01	1	1206-		●	●
577	HOSE; OIL PUMP (A)	8-98033-981-0	04	1	0812-0906		●
577	HOSE; OIL PUMP (A)	8-98033-981-0	04	1	0907-1205		●	●
577	HOSE; OIL PUMP (A)	8-98033-981-0	02	1	1206-		●	●
577	HOSE; OIL PUMP (B)	8-98033-982-0	02	1	0812-0906		●
577	HOSE; OIL PUMP (B)	8-98033-982-0	02	1	0907-		●	●
578	SCREEN; OIL PUMP	8-98009-345-0	02	1	0812-0906		●
578	SCREEN; OIL PUMP	8-98009-345-0	02	1	0907-		●	●
579	CLAMP; HOSE ID=16	8-97329-628-0	10	1	0812-0906		●
579	CLAMP; HOSE ID=16	8-97329-628-0	10	1	0907-1205		●	●
579	CLAMP; HOSE ID=16	8-97329-628-0	07	1	1206-		●	●
580	BEARING; MAINSHAFT RR	8-97377-953-0	01	1	0812-0906		●
580	BEARING; MAINSHAFT RR	8-97377-953-0	01	1	0907-		●	●
581	CLUTCH; DOG,5TH GEAR	8-97377-956-0	01	1	0812-0906		●
581	CLUTCH; DOG,5TH GEAR	8-97377-956-0	01	1	0907-		●	●
594	WASHER; THRUST,REV IDLE	8-98005-633-0	01	1	0812-0906		●
594	WASHER; THRUST,REV IDLE	8-98005-633-0	01	1	0907-		●	●
595	SHIM; OUTPUT SHAFT T=1.44	8-97377-984-0	01	1	0812-0906		●
595	SHIM; OUTPUT SHAFT T=1.44	8-97377-984-0	01	1	0907-		●	●
595	SHIM; OUTPUT SHAFT T=1.50	8-97377-985-0	01	1	0812-0906		●
595	SHIM; OUTPUT SHAFT T=1.50	8-97377-985-0	01	1	0907-		●	●
595	SHIM; OUTPUT SHAFT T=1.56	8-97377-986-0	01	1	0812-0906		●
595	SHIM; OUTPUT SHAFT T=1.56	8-97377-986-0	01	1	0907-		●	●
595	SHIM; OUTPUT SHAFT T=1.62	8-97377-987-0	01	1	0812-0906		●
595	SHIM; OUTPUT SHAFT T=1.62	8-97377-987-0	01	1	0907-		●	●
595	SHIM; OUTPUT SHAFT T=1.68	8-97377-988-0	01	1	0812-0906		●
595	SHIM; OUTPUT SHAFT T=1.68	8-97377-988-0	01	1	0907-		●	●
595	SHIM; OUTPUT SHAFT T=1.74	8-97377-989-0	01	1	0812-0906		●
595	SHIM; OUTPUT SHAFT T=1.74	8-97377-989-0	01	1	0907-		●	●
595	SHIM; OUTPUT SHAFT T=1.80	8-97377-990-0	01	1	0812-0906		●
595	SHIM; OUTPUT SHAFT T=1.80	8-97377-990-0	01	1	0907-		●	●
595	SHIM; OUTPUT SHAFT T=1.86	8-97377-991-0	01	1	0812-0906		●
595	SHIM; OUTPUT SHAFT T=1.86	8-97377-991-0	01	1	0907-		●	●
595	SHIM; OUTPUT SHAFT T=1.38	8-98009-379-0	01	1	0812-0906		●
595	SHIM; OUTPUT SHAFT T=1.38	8-98009-379-0	01	1	0907-		●	●
595	SHIM; OUTPUT SHAFT T=1.26	8-98022-221-0	01	1	0812-0906		●
595	SHIM; OUTPUT SHAFT T=1.26	8-98022-221-0	01	1	0907-		●	●
595	SHIM; OUTPUT SHAFT T=1.32	8-98022-222-0	01	1	0812-0906		●
595	SHIM; OUTPUT SHAFT T=1.32	8-98022-222-0	01	1	0907-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
