Sayfa 1-50 - Isuzu EPC

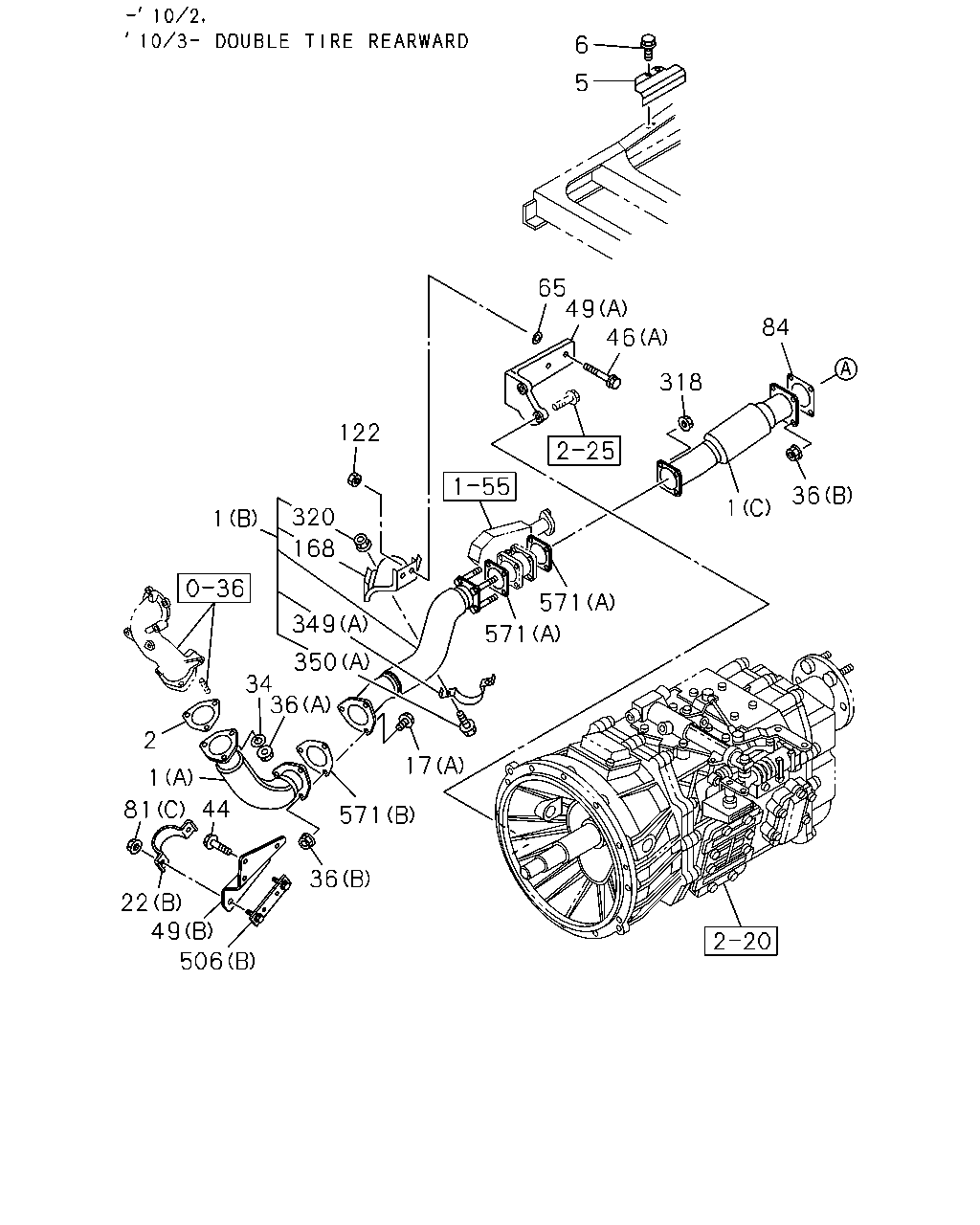

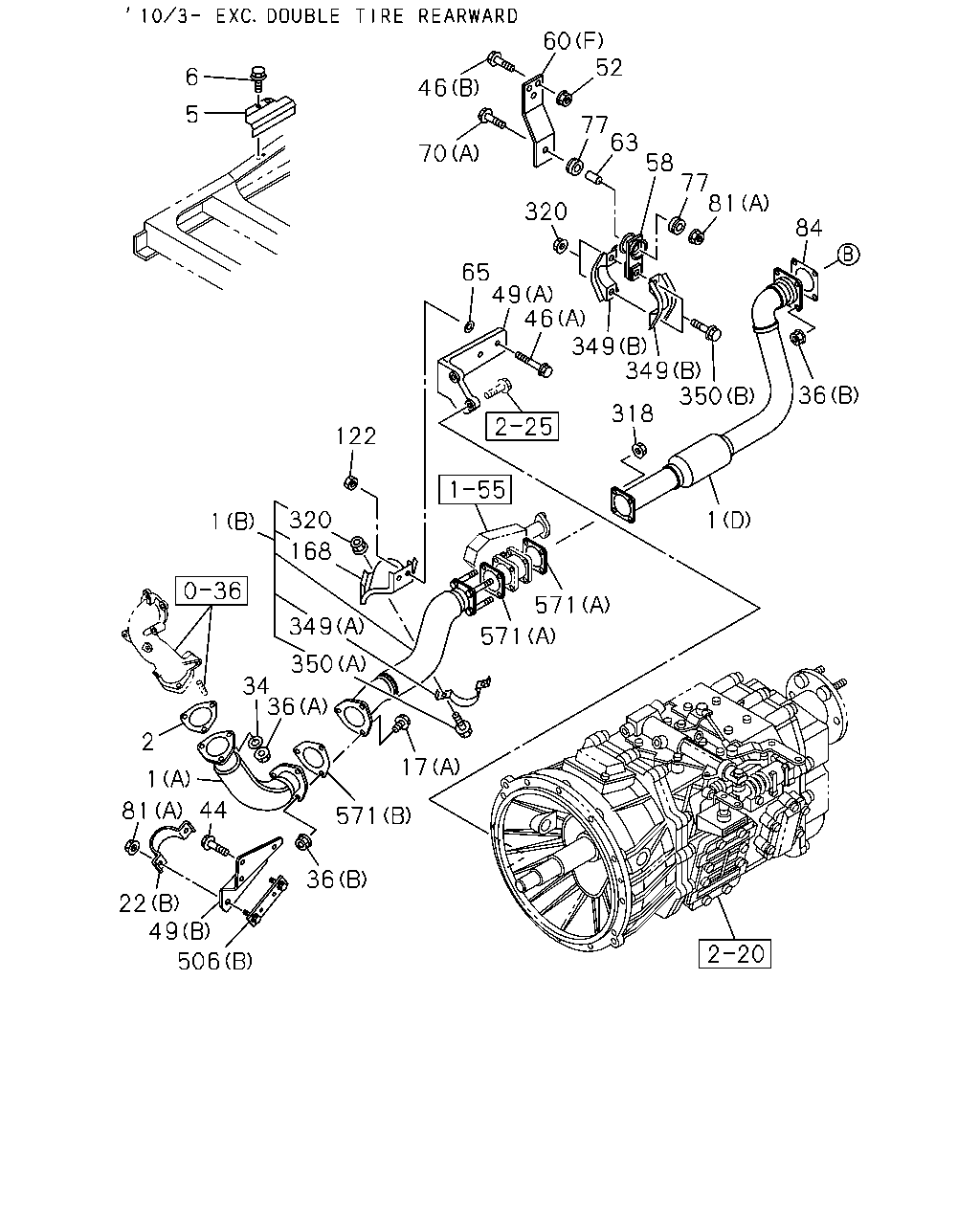

1-50 — EXHAUST PIPE AND SILENCER (#69223) — 311 parça

1 122 320 168 65 6 5 49 46 318 84 36 1 571 571 17 571 36 506 49 22 81 1 2 44 36 34 350 349

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98090-385-0	01	1	1012-
1	PIPE; EXH EXC. DOUBLE TIRE REARWARD<SR6> (D)	8-98152-441-1	01	1	1003-
1	PIPE; EXH (A)	8-98073-006-3	01	1	0812-1011
1	PIPE; EXH TURBO - CONVENTIONAL<Q5T> (A)	8-98073-006-3	01	1	1012-
1	PIPE; EXH (C)	8-98110-612-0	01	1	0812-1002
1	PIPE; EXH DOUBLE TIRE REARWARD<SR6> (C)	8-98110-612-1	01	1	1003-
1	PIPE; EXH (B)	8-98119-515-0	01	1	0812-1002
1	PIPE; EXH (B)	8-98119-515-0	01	1	1003-1209
1	PIPE; EXH (B)	8-98230-001-0	01	1	1210-1309
1	PIPE; EXH (B)	8-98245-502-0	01	1	1310-1406
1	PIPE; EXH (B)	8-98234-516-1	01	1	1407-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). ID=81	8-98043-481-0	01	1	0812-
5	PROTECTOR; HEAT	8-98044-124-0	01	1	0812-
6	BOLT; HEAT PROTECTOR M8X25 FLANGE	0-28650-825-0	02	1	0812-
17	BOLT; EXH PIPE KD PREPARATORY PACK<6HF> (A) M12X35 FLANGE	0-28051-235-0	04	1	1204-
17	BOLT; EXH PIPE (A) M12X35 FLANGE	0-28051-235-0	03	1	0812-
17	BOLT; EXH PIPE (B) M10X35 FLANGE	0-28651-035-0	02	1	0812-1002
17	BOLT; EXH PIPE DOUBLE TIRE REARWARD<SR6> (B) M10X35 FLANGE	0-28651-035-0	02	1	1003-
22	CLAMP; EXH PIPE TURBO - CONVENTIONAL<Q5T> (B)	8-97615-334-0	01	1	1305-
22	CLAMP; EXH PIPE EXC. DOUBLE TIRE REARWARD<SR6> (A) ID=80-84	1-22133-233-0	06	1	1003-
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	04	1	0812-1002
22	CLAMP; EXH PIPE DOUBLE TIRE REARWARD<SR6> (A) ID=80-84	1-22133-233-0	04	1	1003-
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	0812-
36	NUT; EXH PIPE (C) M10 FLANGE	0-91180-210-0	02	1	0812-1002
36	NUT; EXH PIPE DOUBLE TIRE REARWARD<SR6> (C) M10 FLANGE	0-91180-210-0	02	1	1003-
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	0812-
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	0812-
44	BOLT; BRKT TURBO - CONVENTIONAL<Q5T> M10X20 FLANGE	0-28751-020-0	03	1	1305-
46	BOLT; BRKT,EXH PIPE EXC. DOUBLE TIRE REARWARD<SR6> (B) M10X35 FLANGE	0-28651-035-0	02	1	1003-
46	BOLT; BRKT,EXH PIPE (A) M10X25 L=40	0-44011-025-0	02	1	0812-
49	BRACKET; EXH PIPE TO TRANS TURBO - CONVENTIONAL<Q5T> (B)	8-97629-970-0	01	1	1305-
49	BRACKET; EXH PIPE TO TRANS MZX6P M/T(RSW) (A)	8-98120-493-0	01	1	0812-0906
49	BRACKET; EXH PIPE TO TRANS MZX6P M/T(RSW),MZW6P M/T(RSZ) (A)	8-98120-493-0	01	1	0907-
49	BRACKET; EXH PIPE TO TRANS MLD6W M/T(Y2C) (A)	8-98113-012-0	01	1	0812-
65	WASHER; PL ID=10.5	8-98073-091-0	02	1	0812-
81	NUT; BRKT TURBO - CONVENTIONAL<Q5T> (C) M10 FLANGE	0-91180-110-0	02	1	1305-
81	NUT; BRKT EXC. DOUBLE TIRE REARWARD<SR6> (B) M10 LOCK NUT	0-91370-010-0	03	1	1003-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	03	1	0812-1011
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1012-
81	NUT; BRKT DOUBLE TIRE REARWARD<SR6> (A) M10 FLANGE	0-91180-210-0	02	1	1012-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0812-1002
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0812-1002
81	NUT; BRKT DOUBLE TIRE REARWARD<SR6> (A) M10 FLANGE	0-91180-210-0	02	1	1003-1011
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1003-1011
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	03	1	1012-
84	GASKET; EXH PIPE	8-98096-305-0	01	1	0812-1011
84	GASKET; EXH PIPE	8-98096-305-0	01	1	1012-
122	NUT; HANGER BRKT M10 FLANGE	0-91180-210-0	02	1	0812-
168	BRACKET; EXH PIPE,FRT	8-98071-144-0	01	1	0812-1002
168	BRACKET; EXH PIPE,FRT	8-98071-144-0	01	1	1003-1209
168	BRACKET; EXH PIPE,FRT	8-98221-369-1	01	1	1210-
318	NUT; EXH PIPE,FRT M10 FLANGE	0-91180-210-0	04	1	0812-
320	NUT; CLAMP,EXH PIPE M10 FLANGE	0-91180-210-0	02	1	0812-1002
320	NUT; CLAMP,EXH PIPE M10 FLANGE	0-91180-210-0	02	1	1003-
349	CLAMP; EXH PIPE EXC. DOUBLE TIRE REARWARD<SR6> (B) ID=80-84	1-22133-233-0	02	1	1003-
349	CLAMP; EXH PIPE (A)	8-98115-162-0	01	1	0812-1002
349	CLAMP; EXH PIPE (A)	8-98115-162-0	01	1	1003-
350	BOLT; CLAMP,EXH PIPE EXC. DOUBLE TIRE REARWARD<SR6> (B) M10X40 FLANGE	0-28651-040-0	02	1	1003-
350	BOLT; CLAMP,EXH PIPE (A) M10X30 FLANGE	0-28651-030-0	02	1	0812-1002
350	BOLT; CLAMP,EXH PIPE (A) M10X30 FLANGE	0-28651-030-0	02	1	1003-
506	BRACKET; STUD TURBO - CONVENTIONAL<Q5T> (B)	8-97615-333-1	01	1	1305-
506	BRACKET; STUD (A) M12X35	1-22131-963-0	02	1	0812-1203
506	BRACKET; STUD EXC. KD PREPARATORY PACK<6HF> (A) M12X35	1-22131-963-0	02	1	1204-
571	GASKET (A) ID=85.8	1-22116-043-0	02	1	0812-
571	GASKET (B) ID=81	8-98043-481-0	01	1	0812-

81 62 75 56 60 75 94 22 81 226 121 62 81 107 60 17 12 226 56 36 70 506 17 12 22 94 94 22 81 56 60 118 107 70 226 226 62 121 81 107 105 105 126 105 70 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

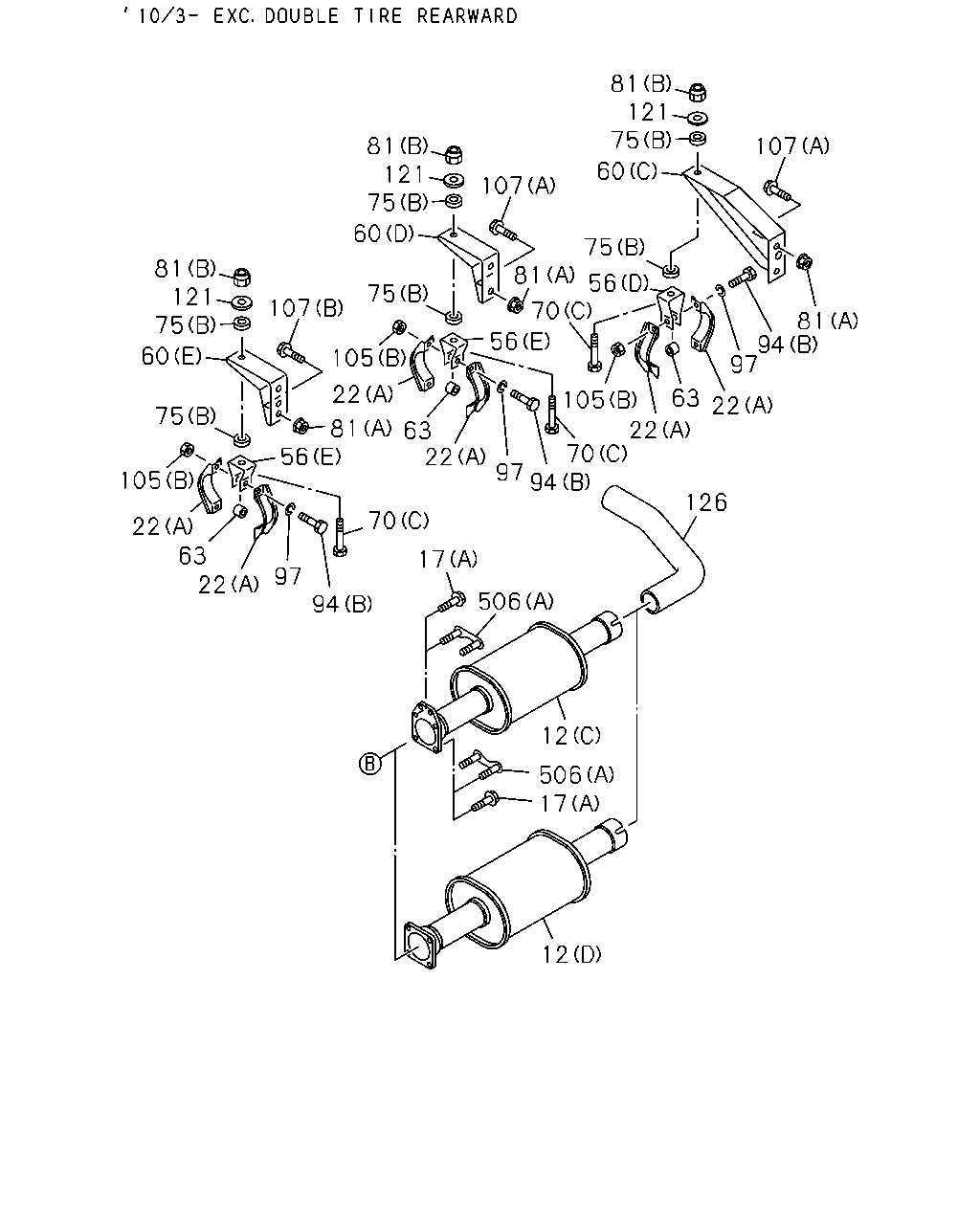

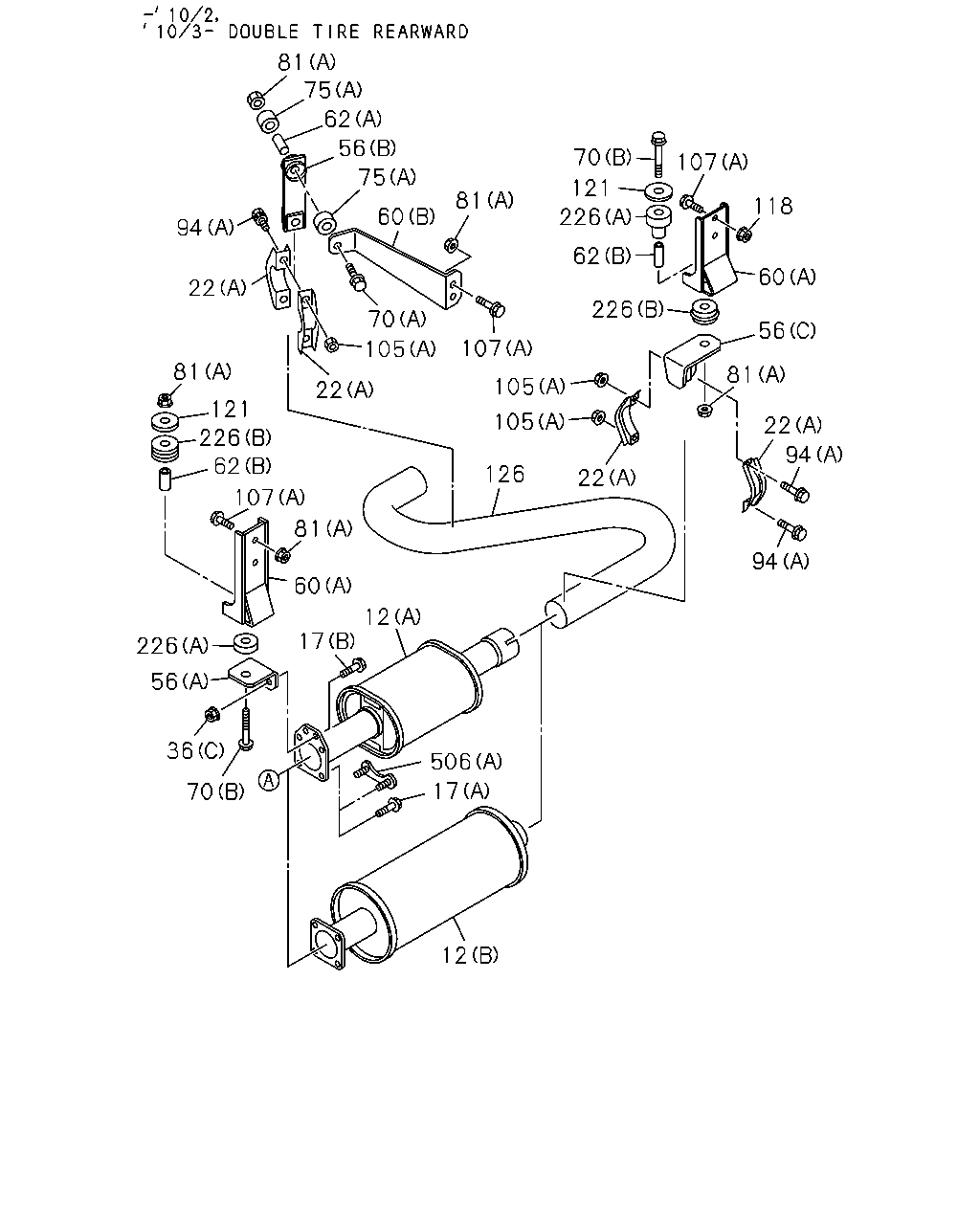

12	SILENCER ASM; EXH EURO3 SPECIFICATION<NT3> DOUBLE TIRE REARWARD<SR6> (A)	8-98090-389-1	01	1	1012-1201
12	SILENCER ASM; EXH EURO3 SPECIFICATION<NT3> DOUBLE TIRE REARWARD<SR6> (B)	8-98202-434-0	01	1	1202-
12	SILENCER ASM; EXH EXC. DOUBLE TIRE REARWARD<SR6> (C)	8-98164-249-0	01	1	1003-1201
12	SILENCER ASM; EXH EXC. DOUBLE TIRE REARWARD<SR6> (D)	8-98202-459-0	01	1	1202-
12	SILENCER ASM; EXH (A)	8-98101-274-0	01	1	0812-1002
12	SILENCER ASM; EXH DOUBLE TIRE REARWARD<SR6> (A)	8-98101-274-1	01	1	1003-1011
12	SILENCER ASM; EXH EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> (A)	8-98101-274-1	01	1	1012-
17	BOLT; EXH PIPE KD PREPARATORY PACK<6HF> (A) M12X35 FLANGE	0-28051-235-0	04	1	1204-
17	BOLT; EXH PIPE (A) M12X35 FLANGE	0-28051-235-0	03	1	0812-
17	BOLT; EXH PIPE (B) M10X35 FLANGE	0-28651-035-0	02	1	0812-1002
17	BOLT; EXH PIPE DOUBLE TIRE REARWARD<SR6> (B) M10X35 FLANGE	0-28651-035-0	02	1	1003-
22	CLAMP; EXH PIPE TURBO - CONVENTIONAL<Q5T> (B)	8-97615-334-0	01	1	1305-
22	CLAMP; EXH PIPE EXC. DOUBLE TIRE REARWARD<SR6> (A) ID=80-84	1-22133-233-0	06	1	1003-
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	04	1	0812-1002
22	CLAMP; EXH PIPE DOUBLE TIRE REARWARD<SR6> (A) ID=80-84	1-22133-233-0	04	1	1003-
36	NUT; EXH PIPE (C) M10 FLANGE	0-91180-210-0	02	1	0812-1002
36	NUT; EXH PIPE DOUBLE TIRE REARWARD<SR6> (C) M10 FLANGE	0-91180-210-0	02	1	1003-
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	0812-
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	0812-
56	BRACKET; CLAMP,EXH PIPE EXC. DOUBLE TIRE REARWARD<SR6> (D) H=67	1-22139-050-0	01	1	1003-
56	BRACKET; CLAMP,EXH PIPE EXC. DOUBLE TIRE REARWARD<SR6> (E)	1-22139-074-0	02	1	1003-
56	BRACKET; CLAMP,EXH PIPE (B)	1-22131-528-1	01	1	0812-1002
56	BRACKET; CLAMP,EXH PIPE DOUBLE TIRE REARWARD<SR6> (B)	1-22131-528-1	01	1	1003-
56	BRACKET; CLAMP,EXH PIPE (A)	1-22152-324-0	01	1	0812-1002
56	BRACKET; CLAMP,EXH PIPE DOUBLE TIRE REARWARD<SR6> (A)	1-22152-324-0	01	1	1003-
56	BRACKET; CLAMP,EXH PIPE (C)	8-98101-361-0	01	1	0812-1002
56	BRACKET; CLAMP,EXH PIPE DOUBLE TIRE REARWARD<SR6> (C)	8-98101-361-0	01	1	1003-1309
56	BRACKET; CLAMP,EXH PIPE DOUBLE TIRE REARWARD<SR6> (C)	8-98245-538-0	01	1	1310-
60	BRACKET; FRAME TO BRKT EXC. DOUBLE TIRE REARWARD<SR6> (C)	1-22131-835-0	01	1	1003-
60	BRACKET; FRAME TO BRKT EXC. DOUBLE TIRE REARWARD<SR6> (D)	1-22151-501-1	01	1	1003-
60	BRACKET; FRAME TO BRKT EXC. DOUBLE TIRE REARWARD<SR6> (E)	1-22151-847-0	01	1	1003-
60	BRACKET; FRAME TO BRKT EXC. DOUBLE TIRE REARWARD<SR6> (F)	8-98108-372-1	01	1	1003-
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	02	1	0812-1002
60	BRACKET; FRAME TO BRKT DOUBLE TIRE REARWARD<SR6> (A)	8-98070-628-0	02	1	1003-1309
60	BRACKET; FRAME TO BRKT DOUBLE TIRE REARWARD<SR6> (A)	8-98245-532-0	02	1	1310-
60	BRACKET; FRAME TO BRKT (B)	8-98108-507-0	01	1	0812-1002
60	BRACKET; FRAME TO BRKT DOUBLE TIRE REARWARD<SR6> (B)	8-98108-507-0	01	1	1003-
62	TUBE; DIST,BRKT (A) L=22	1-22159-392-0	01	1	0812-0906
62	TUBE; DIST,BRKT (A) L=22	9-22159-024-0	01	1	0907-
62	TUBE; DIST,BRKT (B) L=39	8-98060-852-0	02	1	0812-1002
62	TUBE; DIST,BRKT DOUBLE TIRE REARWARD<SR6> (B) L=39	8-98060-852-0	02	1	1003-
70	BOLT; BRKT EXC. DOUBLE TIRE REARWARD<SR6> (C) M10X50	0-10856-050-0	03	1	1003-
70	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	01	1	0812-1011
70	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	01	1	1012-
70	BOLT; BRKT (B) M10X70 FLANGE	0-28051-070-0	02	1	0812-1002
70	BOLT; BRKT DOUBLE TIRE REARWARD<SR6> (B) M10X70 FLANGE	0-28051-070-0	02	1	1003-
75	RUBBER; SUPPORT,BRKT EXC. DOUBLE TIRE REARWARD<SR6> (B) OD=30	1-22159-106-1	06	1	1003-
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-193-0	02	1	0812-1002
75	RUBBER; SUPPORT,BRKT DOUBLE TIRE REARWARD<SR6> (A) OD=40	1-22159-193-0	02	1	1003-
81	NUT; BRKT TURBO - CONVENTIONAL<Q5T> (C) M10 FLANGE	0-91180-110-0	02	1	1305-
81	NUT; BRKT EXC. DOUBLE TIRE REARWARD<SR6> (B) M10 LOCK NUT	0-91370-010-0	03	1	1003-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	03	1	0812-1011
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1012-
81	NUT; BRKT DOUBLE TIRE REARWARD<SR6> (A) M10 FLANGE	0-91180-210-0	02	1	1012-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0812-1002
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0812-1002
81	NUT; BRKT DOUBLE TIRE REARWARD<SR6> (A) M10 FLANGE	0-91180-210-0	02	1	1003-1011
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1003-1011
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	03	1	1012-
94	BOLT; CLAMP EXC. DOUBLE TIRE REARWARD<SR6> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	06	1	1003-
94	BOLT; CLAMP (A) M10X40 FLANGE	0-28651-040-0	04	1	0812-1002
94	BOLT; CLAMP DOUBLE TIRE REARWARD<SR6> (A) M10X40 FLANGE	0-28651-040-0	04	1	1003-
105	NUT; CLAMP EXC. DOUBLE TIRE REARWARD<SR6> (B) M10	0-91110-510-0	06	1	1003-
105	NUT; CLAMP EXC. DOUBLE TIRE REARWARD<SR6> (A) M10 FLANGE	0-91180-210-0	02	1	1003-
105	NUT; CLAMP (A) M10 FLANGE	0-91180-210-0	04	1	0812-1002
105	NUT; CLAMP DOUBLE TIRE REARWARD<SR6> (A) M10 FLANGE	0-91180-210-0	04	1	1003-
107	BOLT; BRKT EXC. DOUBLE TIRE REARWARD<SR6> (B) M10X40 FLANGE	0-28651-040-0	03	1	1003-
107	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	0812-1002
107	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	0812-1002
107	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	0812-1002
107	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	1003-
107	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	1003-
107	BOLT; BRKT DOUBLE TIRE REARWARD<SR6> (A) M10X35 FLANGE	0-28651-035-0	02	1	1003-
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	0812-
121	WASHER; PL,BRKT EXC. DOUBLE TIRE REARWARD<SR6> ID=10.5 OD=32	0-91614-810-0	03	1	1003-
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	02	1	0812-1002
121	WASHER; PL,BRKT DOUBLE TIRE REARWARD<SR6> ID=11 OD=54	1-09503-154-2	02	1	1003-
126	PIPE; EXH,RR EXC. DOUBLE TIRE REARWARD<SR6>	8-98108-373-0	01	1	1003-
126	PIPE; EXH,RR	8-98069-920-0	01	1	0812-1002
126	PIPE; EXH,RR DOUBLE TIRE REARWARD<SR6>	8-98069-920-0	01	1	1003-
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	0812-1002
226	RUBBER; CUSHION DOUBLE TIRE REARWARD<SR6> (A)	8-94457-277-1	02	1	1003-
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	0812-1002
226	RUBBER; CUSHION DOUBLE TIRE REARWARD<SR6> (B)	8-94457-278-1	02	1	1003-
506	BRACKET; STUD TURBO - CONVENTIONAL<Q5T> (B)	8-97615-333-1	01	1	1305-
506	BRACKET; STUD (A) M12X35	1-22131-963-0	02	1	0812-1203
506	BRACKET; STUD EXC. KD PREPARATORY PACK<6HF> (A) M12X35	1-22131-963-0	02	1	1204-

126 12 506 17 12 94 97 22 63 22 105 75 60 75 121 81 107 105 22 81 56 70 17 506 94 97 22 63 75 60 75 121 81 107 81 56 70 75 56 60 75 121 81 107 81 94 97 22 63 105 22 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	SILENCER ASM; EXH EURO3 SPECIFICATION<NT3> DOUBLE TIRE REARWARD<SR6> (A)	8-98090-389-1	01	1	1012-1201
12	SILENCER ASM; EXH EURO3 SPECIFICATION<NT3> DOUBLE TIRE REARWARD<SR6> (B)	8-98202-434-0	01	1	1202-
12	SILENCER ASM; EXH EXC. DOUBLE TIRE REARWARD<SR6> (C)	8-98164-249-0	01	1	1003-1201
12	SILENCER ASM; EXH EXC. DOUBLE TIRE REARWARD<SR6> (D)	8-98202-459-0	01	1	1202-
12	SILENCER ASM; EXH (A)	8-98101-274-0	01	1	0812-1002
12	SILENCER ASM; EXH DOUBLE TIRE REARWARD<SR6> (A)	8-98101-274-1	01	1	1003-1011
12	SILENCER ASM; EXH EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> (A)	8-98101-274-1	01	1	1012-
17	BOLT; EXH PIPE KD PREPARATORY PACK<6HF> (A) M12X35 FLANGE	0-28051-235-0	04	1	1204-
17	BOLT; EXH PIPE (A) M12X35 FLANGE	0-28051-235-0	03	1	0812-
17	BOLT; EXH PIPE (B) M10X35 FLANGE	0-28651-035-0	02	1	0812-1002
17	BOLT; EXH PIPE DOUBLE TIRE REARWARD<SR6> (B) M10X35 FLANGE	0-28651-035-0	02	1	1003-
22	CLAMP; EXH PIPE TURBO - CONVENTIONAL<Q5T> (B)	8-97615-334-0	01	1	1305-
22	CLAMP; EXH PIPE EXC. DOUBLE TIRE REARWARD<SR6> (A) ID=80-84	1-22133-233-0	06	1	1003-
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	04	1	0812-1002
22	CLAMP; EXH PIPE DOUBLE TIRE REARWARD<SR6> (A) ID=80-84	1-22133-233-0	04	1	1003-
56	BRACKET; CLAMP,EXH PIPE EXC. DOUBLE TIRE REARWARD<SR6> (D) H=67	1-22139-050-0	01	1	1003-
56	BRACKET; CLAMP,EXH PIPE EXC. DOUBLE TIRE REARWARD<SR6> (E)	1-22139-074-0	02	1	1003-
56	BRACKET; CLAMP,EXH PIPE (B)	1-22131-528-1	01	1	0812-1002
56	BRACKET; CLAMP,EXH PIPE DOUBLE TIRE REARWARD<SR6> (B)	1-22131-528-1	01	1	1003-
56	BRACKET; CLAMP,EXH PIPE (A)	1-22152-324-0	01	1	0812-1002
56	BRACKET; CLAMP,EXH PIPE DOUBLE TIRE REARWARD<SR6> (A)	1-22152-324-0	01	1	1003-
56	BRACKET; CLAMP,EXH PIPE (C)	8-98101-361-0	01	1	0812-1002
56	BRACKET; CLAMP,EXH PIPE DOUBLE TIRE REARWARD<SR6> (C)	8-98101-361-0	01	1	1003-1309
56	BRACKET; CLAMP,EXH PIPE DOUBLE TIRE REARWARD<SR6> (C)	8-98245-538-0	01	1	1310-
60	BRACKET; FRAME TO BRKT EXC. DOUBLE TIRE REARWARD<SR6> (C)	1-22131-835-0	01	1	1003-
60	BRACKET; FRAME TO BRKT EXC. DOUBLE TIRE REARWARD<SR6> (D)	1-22151-501-1	01	1	1003-
60	BRACKET; FRAME TO BRKT EXC. DOUBLE TIRE REARWARD<SR6> (E)	1-22151-847-0	01	1	1003-
60	BRACKET; FRAME TO BRKT EXC. DOUBLE TIRE REARWARD<SR6> (F)	8-98108-372-1	01	1	1003-
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	02	1	0812-1002
60	BRACKET; FRAME TO BRKT DOUBLE TIRE REARWARD<SR6> (A)	8-98070-628-0	02	1	1003-1309
60	BRACKET; FRAME TO BRKT DOUBLE TIRE REARWARD<SR6> (A)	8-98245-532-0	02	1	1310-
60	BRACKET; FRAME TO BRKT (B)	8-98108-507-0	01	1	0812-1002
60	BRACKET; FRAME TO BRKT DOUBLE TIRE REARWARD<SR6> (B)	8-98108-507-0	01	1	1003-
63	TUBE; DIST,BRKT EXC. DOUBLE TIRE REARWARD<SR6> L=11	1-22139-026-0	03	1	1003-
70	BOLT; BRKT EXC. DOUBLE TIRE REARWARD<SR6> (C) M10X50	0-10856-050-0	03	1	1003-
70	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	01	1	0812-1011
70	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	01	1	1012-
70	BOLT; BRKT (B) M10X70 FLANGE	0-28051-070-0	02	1	0812-1002
70	BOLT; BRKT DOUBLE TIRE REARWARD<SR6> (B) M10X70 FLANGE	0-28051-070-0	02	1	1003-
75	RUBBER; SUPPORT,BRKT EXC. DOUBLE TIRE REARWARD<SR6> (B) OD=30	1-22159-106-1	06	1	1003-
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-193-0	02	1	0812-1002
75	RUBBER; SUPPORT,BRKT DOUBLE TIRE REARWARD<SR6> (A) OD=40	1-22159-193-0	02	1	1003-
81	NUT; BRKT TURBO - CONVENTIONAL<Q5T> (C) M10 FLANGE	0-91180-110-0	02	1	1305-
81	NUT; BRKT EXC. DOUBLE TIRE REARWARD<SR6> (B) M10 LOCK NUT	0-91370-010-0	03	1	1003-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	03	1	0812-1011
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1012-
81	NUT; BRKT DOUBLE TIRE REARWARD<SR6> (A) M10 FLANGE	0-91180-210-0	02	1	1012-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0812-1002
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0812-1002
81	NUT; BRKT DOUBLE TIRE REARWARD<SR6> (A) M10 FLANGE	0-91180-210-0	02	1	1003-1011
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1003-1011
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	03	1	1012-
94	BOLT; CLAMP EXC. DOUBLE TIRE REARWARD<SR6> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	06	1	1003-
94	BOLT; CLAMP (A) M10X40 FLANGE	0-28651-040-0	04	1	0812-1002
94	BOLT; CLAMP DOUBLE TIRE REARWARD<SR6> (A) M10X40 FLANGE	0-28651-040-0	04	1	1003-
97	WASHER; PL,CLAMP EXC. DOUBLE TIRE REARWARD<SR6> ID=10.5	9-09164-510-0	06	1	1003-
105	NUT; CLAMP EXC. DOUBLE TIRE REARWARD<SR6> (B) M10	0-91110-510-0	06	1	1003-
105	NUT; CLAMP EXC. DOUBLE TIRE REARWARD<SR6> (A) M10 FLANGE	0-91180-210-0	02	1	1003-
105	NUT; CLAMP (A) M10 FLANGE	0-91180-210-0	04	1	0812-1002
105	NUT; CLAMP DOUBLE TIRE REARWARD<SR6> (A) M10 FLANGE	0-91180-210-0	04	1	1003-
107	BOLT; BRKT EXC. DOUBLE TIRE REARWARD<SR6> (B) M10X40 FLANGE	0-28651-040-0	03	1	1003-
107	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	0812-1002
107	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	0812-1002
107	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	0812-1002
107	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	1003-
107	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	1003-
107	BOLT; BRKT DOUBLE TIRE REARWARD<SR6> (A) M10X35 FLANGE	0-28651-035-0	02	1	1003-
121	WASHER; PL,BRKT EXC. DOUBLE TIRE REARWARD<SR6> ID=10.5 OD=32	0-91614-810-0	03	1	1003-
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	02	1	0812-1002
121	WASHER; PL,BRKT DOUBLE TIRE REARWARD<SR6> ID=11 OD=54	1-09503-154-2	02	1	1003-
126	PIPE; EXH,RR EXC. DOUBLE TIRE REARWARD<SR6>	8-98108-373-0	01	1	1003-
126	PIPE; EXH,RR	8-98069-920-0	01	1	0812-1002
126	PIPE; EXH,RR DOUBLE TIRE REARWARD<SR6>	8-98069-920-0	01	1	1003-
506	BRACKET; STUD TURBO - CONVENTIONAL<Q5T> (B)	8-97615-333-1	01	1	1305-
506	BRACKET; STUD (A) M12X35	1-22131-963-0	02	1	0812-1203
506	BRACKET; STUD EXC. KD PREPARATORY PACK<6HF> (A) M12X35	1-22131-963-0	02	1	1204-

6 5 46 70 320 77 52 60 63 58 77 81 84 36 350 1 318 349 349 46 49 65 122 1 320 168 349 350 34 36 2 1 81 44 22 49 506 36 571 17 571 571

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98090-385-0	01	1	1012-
1	PIPE; EXH EXC. DOUBLE TIRE REARWARD<SR6> (D)	8-98152-441-1	01	1	1003-
1	PIPE; EXH (A)	8-98073-006-3	01	1	0812-1011
1	PIPE; EXH TURBO - CONVENTIONAL<Q5T> (A)	8-98073-006-3	01	1	1012-
1	PIPE; EXH (C)	8-98110-612-0	01	1	0812-1002
1	PIPE; EXH DOUBLE TIRE REARWARD<SR6> (C)	8-98110-612-1	01	1	1003-
1	PIPE; EXH (B)	8-98119-515-0	01	1	0812-1002
1	PIPE; EXH (B)	8-98119-515-0	01	1	1003-1209
1	PIPE; EXH (B)	8-98230-001-0	01	1	1210-1309
1	PIPE; EXH (B)	8-98245-502-0	01	1	1310-1406
1	PIPE; EXH (B)	8-98234-516-1	01	1	1407-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). ID=81	8-98043-481-0	01	1	0812-
5	PROTECTOR; HEAT	8-98044-124-0	01	1	0812-
6	BOLT; HEAT PROTECTOR M8X25 FLANGE	0-28650-825-0	02	1	0812-
17	BOLT; EXH PIPE KD PREPARATORY PACK<6HF> (A) M12X35 FLANGE	0-28051-235-0	04	1	1204-
17	BOLT; EXH PIPE (A) M12X35 FLANGE	0-28051-235-0	03	1	0812-
17	BOLT; EXH PIPE (B) M10X35 FLANGE	0-28651-035-0	02	1	0812-1002
17	BOLT; EXH PIPE DOUBLE TIRE REARWARD<SR6> (B) M10X35 FLANGE	0-28651-035-0	02	1	1003-
22	CLAMP; EXH PIPE TURBO - CONVENTIONAL<Q5T> (B)	8-97615-334-0	01	1	1305-
22	CLAMP; EXH PIPE EXC. DOUBLE TIRE REARWARD<SR6> (A) ID=80-84	1-22133-233-0	06	1	1003-
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	04	1	0812-1002
22	CLAMP; EXH PIPE DOUBLE TIRE REARWARD<SR6> (A) ID=80-84	1-22133-233-0	04	1	1003-
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	0812-
36	NUT; EXH PIPE (C) M10 FLANGE	0-91180-210-0	02	1	0812-1002
36	NUT; EXH PIPE DOUBLE TIRE REARWARD<SR6> (C) M10 FLANGE	0-91180-210-0	02	1	1003-
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	0812-
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	0812-
44	BOLT; BRKT TURBO - CONVENTIONAL<Q5T> M10X20 FLANGE	0-28751-020-0	03	1	1305-
46	BOLT; BRKT,EXH PIPE EXC. DOUBLE TIRE REARWARD<SR6> (B) M10X35 FLANGE	0-28651-035-0	02	1	1003-
46	BOLT; BRKT,EXH PIPE (A) M10X25 L=40	0-44011-025-0	02	1	0812-
49	BRACKET; EXH PIPE TO TRANS TURBO - CONVENTIONAL<Q5T> (B)	8-97629-970-0	01	1	1305-
49	BRACKET; EXH PIPE TO TRANS MZX6P M/T(RSW) (A)	8-98120-493-0	01	1	0812-0906
49	BRACKET; EXH PIPE TO TRANS MZX6P M/T(RSW),MZW6P M/T(RSZ) (A)	8-98120-493-0	01	1	0907-
49	BRACKET; EXH PIPE TO TRANS MLD6W M/T(Y2C) (A)	8-98113-012-0	01	1	0812-
52	NUT; BRKT EXC. DOUBLE TIRE REARWARD<SR6> M10 FLANGE	0-91180-210-0	01	1	1003-
58	BRACKET; EXH PIPE,RR EXC. DOUBLE TIRE REARWARD<SR6> L=94	1-22131-575-0	01	1	1003-
60	BRACKET; FRAME TO BRKT EXC. DOUBLE TIRE REARWARD<SR6> (C)	1-22131-835-0	01	1	1003-
60	BRACKET; FRAME TO BRKT EXC. DOUBLE TIRE REARWARD<SR6> (D)	1-22151-501-1	01	1	1003-
60	BRACKET; FRAME TO BRKT EXC. DOUBLE TIRE REARWARD<SR6> (E)	1-22151-847-0	01	1	1003-
60	BRACKET; FRAME TO BRKT EXC. DOUBLE TIRE REARWARD<SR6> (F)	8-98108-372-1	01	1	1003-
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	02	1	0812-1002
60	BRACKET; FRAME TO BRKT DOUBLE TIRE REARWARD<SR6> (A)	8-98070-628-0	02	1	1003-1309
60	BRACKET; FRAME TO BRKT DOUBLE TIRE REARWARD<SR6> (A)	8-98245-532-0	02	1	1310-
60	BRACKET; FRAME TO BRKT (B)	8-98108-507-0	01	1	0812-1002
60	BRACKET; FRAME TO BRKT DOUBLE TIRE REARWARD<SR6> (B)	8-98108-507-0	01	1	1003-
63	TUBE; DIST,BRKT EXC. DOUBLE TIRE REARWARD<SR6> L=11	1-22139-026-0	03	1	1003-
65	WASHER; PL ID=10.5	8-98073-091-0	02	1	0812-
70	BOLT; BRKT EXC. DOUBLE TIRE REARWARD<SR6> (C) M10X50	0-10856-050-0	03	1	1003-
70	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	01	1	0812-1011
70	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	01	1	1012-
70	BOLT; BRKT (B) M10X70 FLANGE	0-28051-070-0	02	1	0812-1002
70	BOLT; BRKT DOUBLE TIRE REARWARD<SR6> (B) M10X70 FLANGE	0-28051-070-0	02	1	1003-
77	RUBBER; CUSHION,BRKT EXC. DOUBLE TIRE REARWARD<SR6> OD=40	1-22159-094-0	02	1	1003-
81	NUT; BRKT TURBO - CONVENTIONAL<Q5T> (C) M10 FLANGE	0-91180-110-0	02	1	1305-
81	NUT; BRKT EXC. DOUBLE TIRE REARWARD<SR6> (B) M10 LOCK NUT	0-91370-010-0	03	1	1003-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	03	1	0812-1011
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1012-
81	NUT; BRKT DOUBLE TIRE REARWARD<SR6> (A) M10 FLANGE	0-91180-210-0	02	1	1012-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0812-1002
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0812-1002
81	NUT; BRKT DOUBLE TIRE REARWARD<SR6> (A) M10 FLANGE	0-91180-210-0	02	1	1003-1011
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1003-1011
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	03	1	1012-
84	GASKET; EXH PIPE	8-98096-305-0	01	1	0812-1011
84	GASKET; EXH PIPE	8-98096-305-0	01	1	1012-
122	NUT; HANGER BRKT M10 FLANGE	0-91180-210-0	02	1	0812-
168	BRACKET; EXH PIPE,FRT	8-98071-144-0	01	1	0812-1002
168	BRACKET; EXH PIPE,FRT	8-98071-144-0	01	1	1003-1209
168	BRACKET; EXH PIPE,FRT	8-98221-369-1	01	1	1210-
318	NUT; EXH PIPE,FRT M10 FLANGE	0-91180-210-0	04	1	0812-
320	NUT; CLAMP,EXH PIPE M10 FLANGE	0-91180-210-0	02	1	0812-1002
320	NUT; CLAMP,EXH PIPE M10 FLANGE	0-91180-210-0	02	1	1003-
349	CLAMP; EXH PIPE EXC. DOUBLE TIRE REARWARD<SR6> (B) ID=80-84	1-22133-233-0	02	1	1003-
349	CLAMP; EXH PIPE (A)	8-98115-162-0	01	1	0812-1002
349	CLAMP; EXH PIPE (A)	8-98115-162-0	01	1	1003-
350	BOLT; CLAMP,EXH PIPE EXC. DOUBLE TIRE REARWARD<SR6> (B) M10X40 FLANGE	0-28651-040-0	02	1	1003-
350	BOLT; CLAMP,EXH PIPE (A) M10X30 FLANGE	0-28651-030-0	02	1	0812-1002
350	BOLT; CLAMP,EXH PIPE (A) M10X30 FLANGE	0-28651-030-0	02	1	1003-
506	BRACKET; STUD TURBO - CONVENTIONAL<Q5T> (B)	8-97615-333-1	01	1	1305-
506	BRACKET; STUD (A) M12X35	1-22131-963-0	02	1	0812-1203
506	BRACKET; STUD EXC. KD PREPARATORY PACK<6HF> (A) M12X35	1-22131-963-0	02	1	1204-
571	GASKET (A) ID=85.8	1-22116-043-0	02	1	0812-
571	GASKET (B) ID=81	8-98043-481-0	01	1	0812-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
