Sayfa 1-41 - Isuzu EPC

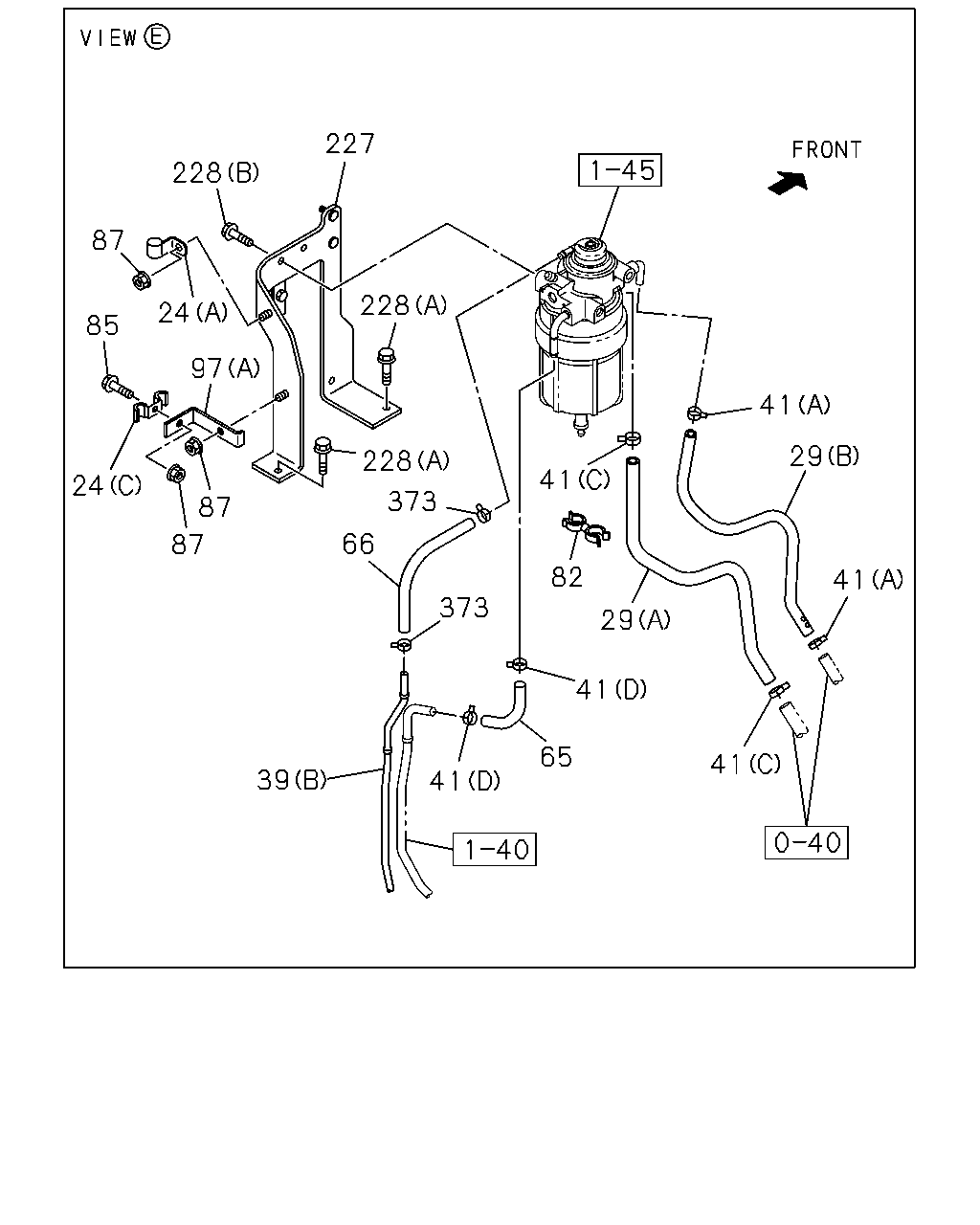

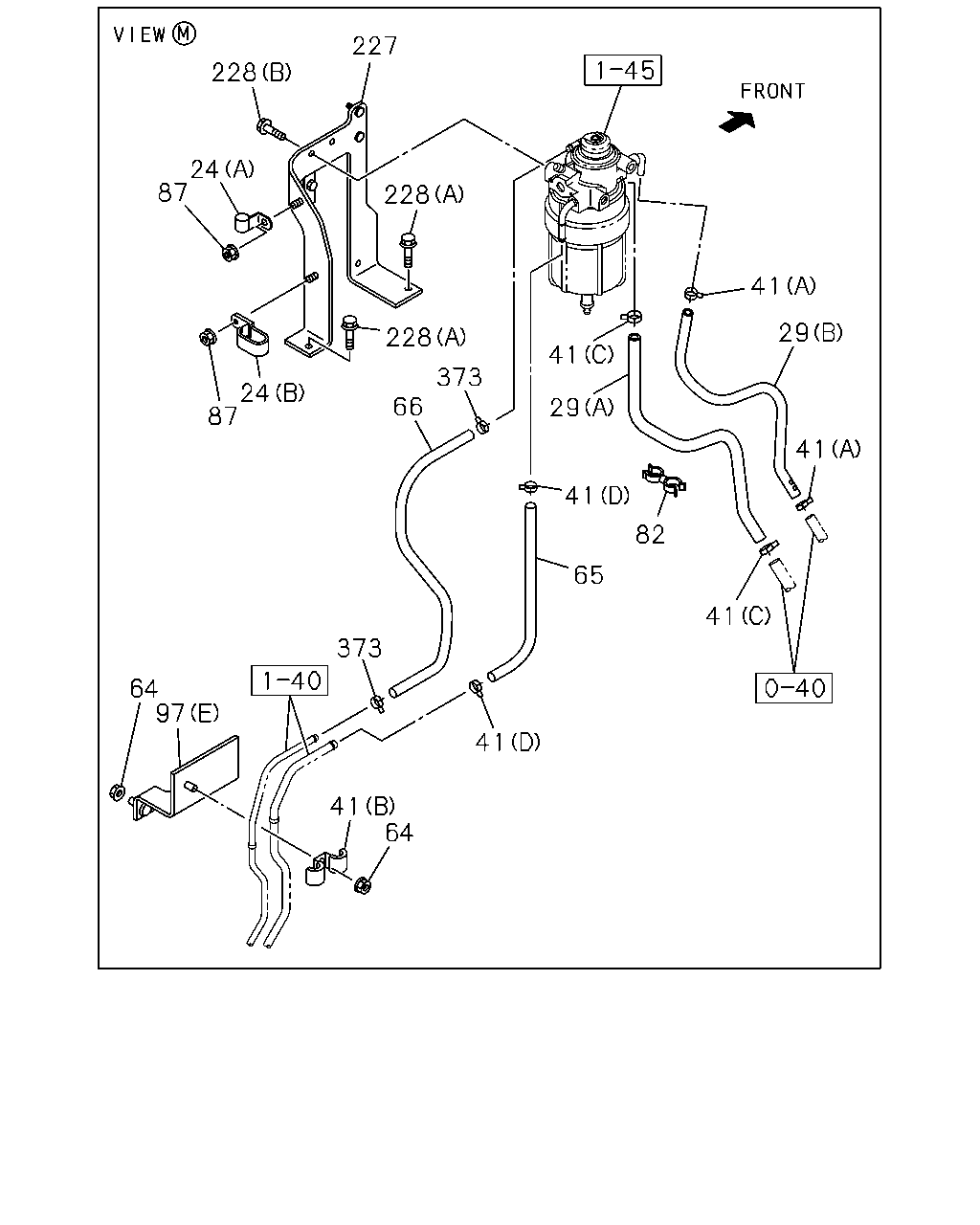

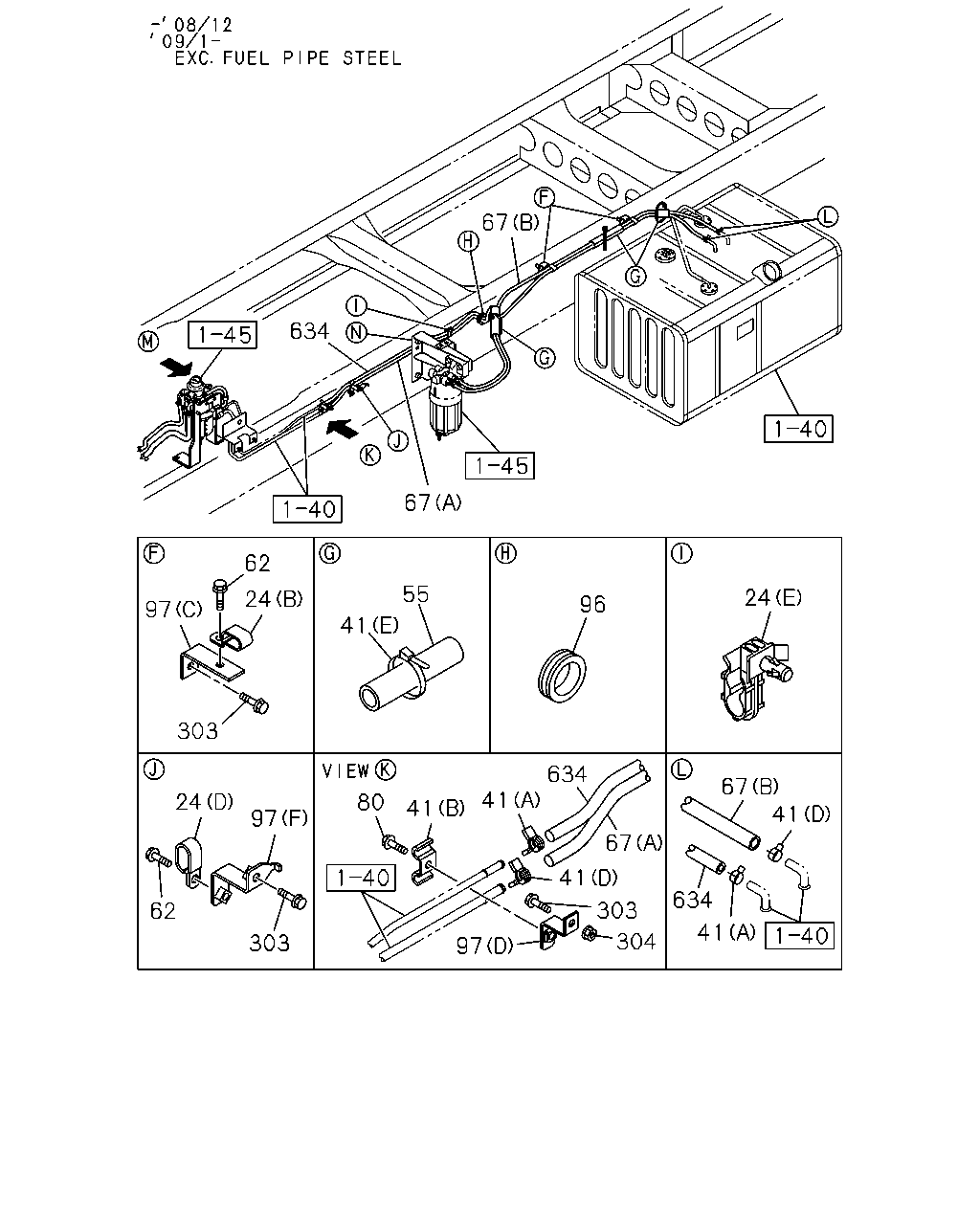

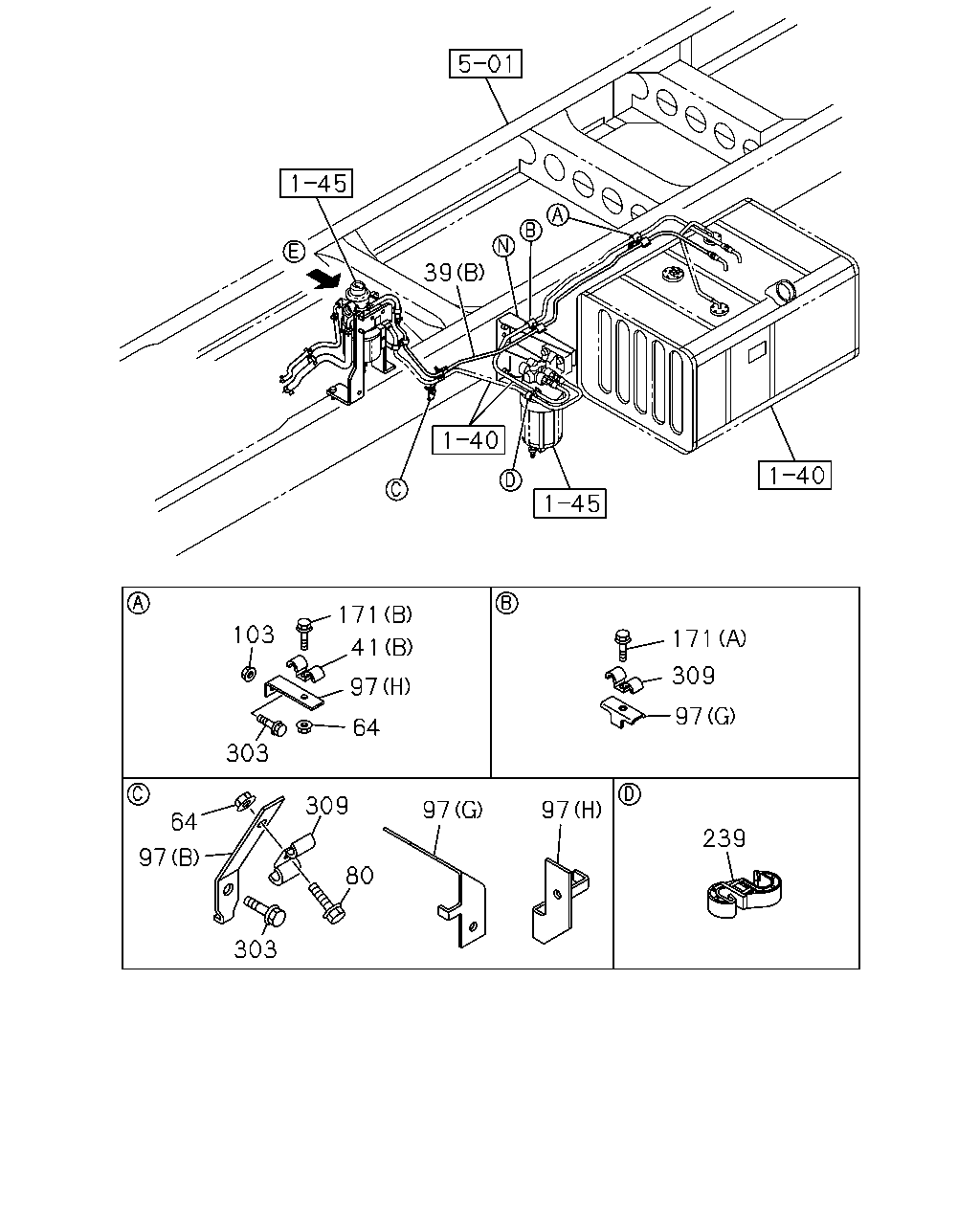

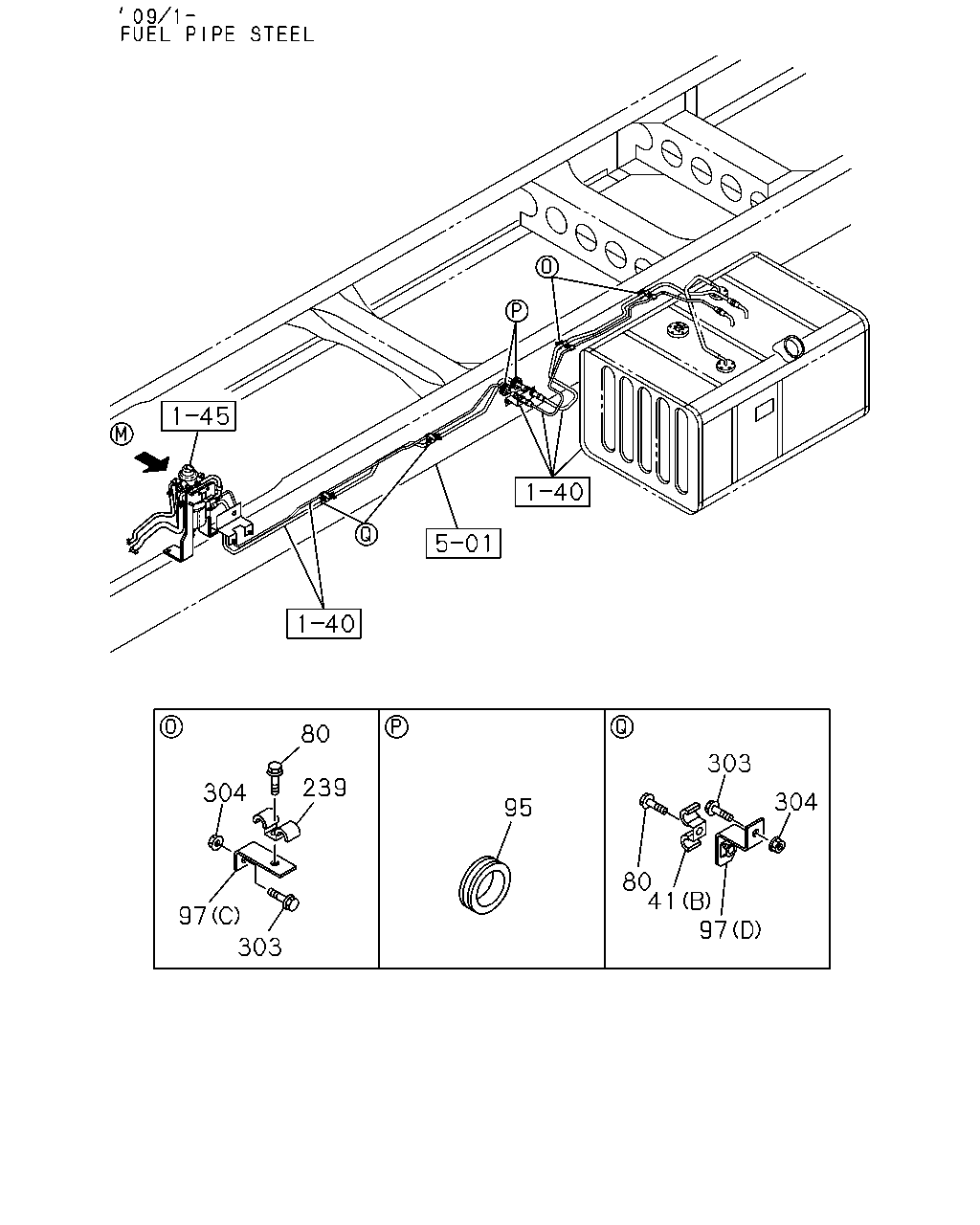

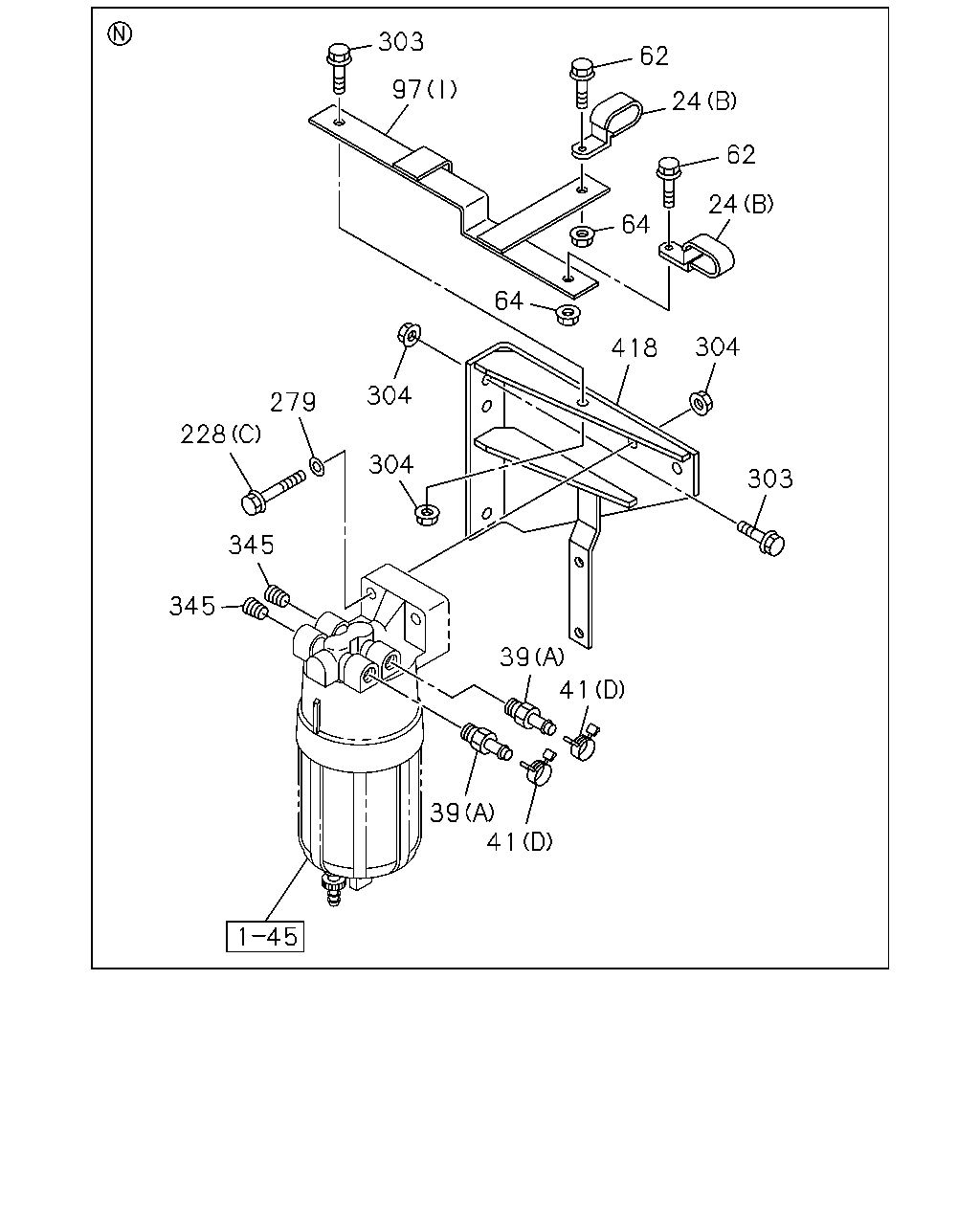

1-41 — FUEL PIPING; CHASSIS (#69221) — 543 parça

39 171 103 171 41 309 97 97 64 303 309 97 97 64 239 97 80 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	PIPE; FUEL WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B)	8-98164-238-0	01	1	1003-1003
39	PIPE; FUEL WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B)	8-98164-238-0	01	1	1004-
39	PIPE; FUEL FUEL PIPE STEEL<E2N> (A) M16 & NPT3/8	1-09650-327-1	02	1	0904-
39	PIPE; FUEL WHEEL BASE 3600MM(36W) (B)	8-98133-821-0	01	1	0812-0812
39	PIPE; FUEL WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (B)	8-98133-821-0	01	1	0901-1003
39	PIPE; FUEL (A)	8-97358-699-0	02	1	0812-0903
39	PIPE; FUEL EXC. FUEL PIPE STEEL<E2N> (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	0904-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0901-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0812-0812
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0901-1002
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1003-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0812-0812
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0901-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0812-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	04	1	0812-0812
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=14	1-09704-102-0	04	1	0901-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) (E) L=250	5-09707-030-1	03	1	0812-0812
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (E) L=250	5-09707-030-1	03	1	0901-1302
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (E) L=250	5-09707-030-1	02	1	1303-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	0812-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	0812-0812
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	0812-0812
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	0901-
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (A) ID=13	8-94238-571-0	02	1	0901-
64	NUT; CLIP WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	01	1	1502-
64	NUT; CLIP WHEEL BASE 3600MM(36W) M8 FLANGE	0-91180-108-0	02	1	0812-0812
64	NUT; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	03	1	0901-0908
64	NUT; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	0909-1002
64	NUT; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	0909-1002
64	NUT; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	1003-1003
64	NUT; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	1003-1003
64	NUT; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	03	1	1004-
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0812-0812
64	NUT; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	0901-1002
64	NUT; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1003-1003
64	NUT; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1003-1003
64	NUT; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1004-1302
64	NUT; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	1303-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	01	1	0901-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3600MM(36W) M8X25 FLANGE	0-28650-825-0	02	1	0812-0812
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	02	1	0901-1002
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	02	1	1003-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4200MM(42W) M8X16 FLANGE	0-28050-816-0	01	1	0812-0812
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	02	1	0901-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (I)	8-98204-698-0	01	1	1304-
97	BRACKET; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (C)	8-98111-711-0	01	1	1003-1003
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (C)	8-98111-711-0	01	1	1004-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	01	1	0901-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (G)	1-47475-427-1	01	1	0812-0812
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (G)	1-47475-427-1	01	1	0901-1002
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (G)	1-47475-427-1	01	1	1003-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (H)	1-47477-648-0	01	1	0812-0812
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (H)	1-47477-648-0	01	1	0901-1003
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (A)	8-98053-654-0	01	1	0812-0812
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (A)	8-98053-654-0	01	1	0901-1002
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A)	8-98053-654-0	01	1	1003-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (B)	8-98053-655-0	01	1	0812-0912
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (G)	8-98158-192-0	01	1	1001-1001
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (H)	8-98164-234-0	01	1	1002-1002
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) (H)	8-98164-234-0	01	1	1003-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (C)	8-98111-711-0	02	1	0812-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (D)	1-47478-981-0	01	1	0812-0812
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	02	1	0901-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (F)	8-97623-325-0	02	1	0812-0812
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (F)	8-97623-325-0	02	1	0901-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (E)	8-98115-316-1	01	1	0812-
103	NUT; BRKT WHEEL BASE 3600MM(36W) M8 FLANGE	0-91180-108-0	01	1	0812-0812
103	NUT; BRKT WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	0901-1002
103	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1003-
171	BOLT; CLIP WHEEL BASE 3600MM(36W) (B) M8X20 FLANGE	0-28650-820-0	01	1	0812-0812
171	BOLT; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (B) M8X20 FLANGE	0-28650-820-0	01	1	0901-1002
171	BOLT; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B) M8X20 FLANGE	0-28650-820-0	01	1	1003-
171	BOLT; CLIP WHEEL BASE 3600MM(36W) (A) M8X40 FLANGE	0-28650-840-0	01	1	0812-0812
171	BOLT; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (A) M8X40 FLANGE	0-28650-840-0	01	1	0901-1002
171	BOLT; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8X40 FLANGE	0-28650-840-0	01	1	1003-
239	CLIP; FUEL PIPE WHEEL BASE 3600MM(36W) ID=10 & 10	1-09709-277-1	01	1	0812-0812
239	CLIP; FUEL PIPE WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> ID=10 & 10	1-09709-277-1	01	1	0901-1002
239	CLIP; FUEL PIPE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> ID=10 & 10	1-09709-277-1	01	1	1003-
303	BOLT; BRKT WHEEL BASE 3600MM(36W) M8X25 FLANGE	0-28650-825-0	01	1	0812-0812
303	BOLT; BRKT WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	01	1	0901-1002
303	BOLT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	01	1	1003-
303	BOLT; BRKT WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28650-825-0	02	1	0812-0812
303	BOLT; BRKT WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28650-825-0	02	1	0901-
303	BOLT; BRKT WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	02	1	0901-
303	BOLT; BRKT WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28650-825-0	03	1	0812-0812
303	BOLT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	03	1	0901-1303
303	BOLT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	04	1	1304-
303	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0812-1002
303	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1003-
309	CLIP; PIPE WHEEL BASE 3600MM(36W) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0812-0812
309	CLIP; PIPE WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0901-1002
309	CLIP; PIPE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1003-

67 634 67 62 24 97 303 41 55 96 24 24 97 62 303 80 41 97 41 634 67 41 303 304 67 41 634 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (B) ID=14X29 H=15 L=20	1-09700-744-0	02	1	0812-0812
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) ID=14X29 H=15 L=20	1-09700-744-0	03	1	0901-1302
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) ID=14X29 H=15 L=20	1-09700-744-0	04	1	1303-
24	CLIP; FUEL HOSE WHEEL BASE 3600MM(36W) (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0812-0812
24	CLIP; FUEL HOSE WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0901-1002
24	CLIP; FUEL HOSE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1003-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (D) ID=16X2 L=20	0-95325-536-0	02	1	0812-0812
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (D) ID=16X2 L=20	0-95325-536-0	02	1	0901-
24	CLIP; FUEL HOSE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0812-0908
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0909-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0812-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (E) ID=14.5 & 14.5	1-09701-246-1	01	1	0812-0812
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (E) ID=14.5 & 14.5	1-09701-246-1	01	1	0901-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0901-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0812-0812
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0901-1002
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1003-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0812-0812
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0901-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0812-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	04	1	0812-0812
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=14	1-09704-102-0	04	1	0901-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) (E) L=250	5-09707-030-1	03	1	0812-0812
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (E) L=250	5-09707-030-1	03	1	0901-1302
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (E) L=250	5-09707-030-1	02	1	1303-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	0812-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	0812-0812
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	0812-0812
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	0901-
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (A) ID=13	8-94238-571-0	02	1	0901-
55	COVER; PIPE,FUEL TANK WHEEL BASE 4200MM(42W) L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0812-0812
55	COVER; PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0901-1302
55	COVER; PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1303-
62	BOLT; CLIP FIX WHEEL BASE 4200MM(42W) M8X16 FLANGE	0-28050-816-0	02	1	0812-0812
62	BOLT; CLIP FIX WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	03	1	0901-1302
62	BOLT; CLIP FIX WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	04	1	1303-
62	BOLT; CLIP FIX WHEEL BASE 4200MM(42W) M8X20 FLANGE	0-28650-820-0	02	1	0812-0812
62	BOLT; CLIP FIX WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X20 FLANGE	0-28650-820-0	02	1	0901-
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W) (A) L=1650 SERVICED BY L=3000	0-01260-300-0	01	1	0812-0812
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (A) L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	0901-1302
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (A) L=1650 SERVICED BY L=3000	0-01260-300-0	01	1	1303-
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W) (B) L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	0812-0812
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	0901-1302
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1303-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	01	1	0901-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3600MM(36W) M8X25 FLANGE	0-28650-825-0	02	1	0812-0812
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	02	1	0901-1002
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	02	1	1003-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4200MM(42W) M8X16 FLANGE	0-28050-816-0	01	1	0812-0812
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	02	1	0901-
96	GROMMET; PIPE,FUEL TANK WHEEL BASE 4200MM(42W) ID=28 OD=35 T=17	9-09956-256-2	01	1	0812-0812
96	GROMMET; PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> ID=28 OD=35 T=17	9-09956-256-2	01	1	0901-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (I)	8-98204-698-0	01	1	1304-
97	BRACKET; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (C)	8-98111-711-0	01	1	1003-1003
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (C)	8-98111-711-0	01	1	1004-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	01	1	0901-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (G)	1-47475-427-1	01	1	0812-0812
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (G)	1-47475-427-1	01	1	0901-1002
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (G)	1-47475-427-1	01	1	1003-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (H)	1-47477-648-0	01	1	0812-0812
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (H)	1-47477-648-0	01	1	0901-1003
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (A)	8-98053-654-0	01	1	0812-0812
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (A)	8-98053-654-0	01	1	0901-1002
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A)	8-98053-654-0	01	1	1003-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (B)	8-98053-655-0	01	1	0812-0912
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (G)	8-98158-192-0	01	1	1001-1001
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (H)	8-98164-234-0	01	1	1002-1002
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) (H)	8-98164-234-0	01	1	1003-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (C)	8-98111-711-0	02	1	0812-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (D)	1-47478-981-0	01	1	0812-0812
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	02	1	0901-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (F)	8-97623-325-0	02	1	0812-0812
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (F)	8-97623-325-0	02	1	0901-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (E)	8-98115-316-1	01	1	0812-
303	BOLT; BRKT WHEEL BASE 3600MM(36W) M8X25 FLANGE	0-28650-825-0	01	1	0812-0812
303	BOLT; BRKT WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	01	1	0901-1002
303	BOLT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	01	1	1003-
303	BOLT; BRKT WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28650-825-0	02	1	0812-0812
303	BOLT; BRKT WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28650-825-0	02	1	0901-
303	BOLT; BRKT WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	02	1	0901-
303	BOLT; BRKT WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28650-825-0	03	1	0812-0812
303	BOLT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	03	1	0901-1303
303	BOLT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	04	1	1304-
303	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0812-1002
303	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1003-
304	NUT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1304-
304	NUT; BRKT WHEEL BASE 4200MM(42W) M8 FLANGE	0-91180-108-0	03	1	0909-1011
304	NUT; BRKT WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	03	1	1012-
304	NUT; BRKT WHEEL BASE 3600MM(36W) M8 FLANGE	0-91180-108-0	01	1	0812-0812
304	NUT; BRKT WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	0901-0909
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0812-0908
304	NUT; BRKT WHEEL BASE 3600MM(36W) M8 FLANGE	0-91180-108-0	04	1	0909-0909
304	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0812-1001
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1002-
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1002-
634	HOSE; RUBBER RETURN WHEEL BASE 4200MM(42W) L=2000 SERVICED BY L=3000	0-01558-300-0	01	1	0812-0812
634	HOSE; RUBBER RETURN WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> L=2000 SERVICED BY L=3000	0-01558-300-0	01	1	0901-

227 228 87 228 24 85 97 41 29 228 41 24 373 87 66 87 82 41 373 29 41 65 41 39 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (B) ID=14X29 H=15 L=20	1-09700-744-0	02	1	0812-0812
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) ID=14X29 H=15 L=20	1-09700-744-0	03	1	0901-1302
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) ID=14X29 H=15 L=20	1-09700-744-0	04	1	1303-
24	CLIP; FUEL HOSE WHEEL BASE 3600MM(36W) (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0812-0812
24	CLIP; FUEL HOSE WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0901-1002
24	CLIP; FUEL HOSE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1003-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (D) ID=16X2 L=20	0-95325-536-0	02	1	0812-0812
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (D) ID=16X2 L=20	0-95325-536-0	02	1	0901-
24	CLIP; FUEL HOSE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0812-0908
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0909-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0812-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (E) ID=14.5 & 14.5	1-09701-246-1	01	1	0812-0812
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (E) ID=14.5 & 14.5	1-09701-246-1	01	1	0901-
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0812-
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0812-
39	PIPE; FUEL WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B)	8-98164-238-0	01	1	1003-1003
39	PIPE; FUEL WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B)	8-98164-238-0	01	1	1004-
39	PIPE; FUEL FUEL PIPE STEEL<E2N> (A) M16 & NPT3/8	1-09650-327-1	02	1	0904-
39	PIPE; FUEL WHEEL BASE 3600MM(36W) (B)	8-98133-821-0	01	1	0812-0812
39	PIPE; FUEL WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (B)	8-98133-821-0	01	1	0901-1003
39	PIPE; FUEL (A)	8-97358-699-0	02	1	0812-0903
39	PIPE; FUEL EXC. FUEL PIPE STEEL<E2N> (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	0904-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0901-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0812-0812
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0901-1002
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1003-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0812-0812
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0901-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0812-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	04	1	0812-0812
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=14	1-09704-102-0	04	1	0901-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) (E) L=250	5-09707-030-1	03	1	0812-0812
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (E) L=250	5-09707-030-1	03	1	0901-1302
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (E) L=250	5-09707-030-1	02	1	1303-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	0812-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	0812-0812
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	0812-0812
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	0901-
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (A) ID=13	8-94238-571-0	02	1	0901-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3600MM(36W) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	0812-0812
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> L=110 SERVICED BY L=3000	0-01260-300-0	01	1	0901-1002
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1003-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4200MM(42W) L=260 SERVICED BY L=3000	0-01260-300-0	01	1	0812-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3600MM(36W) L=200 SERVICED BY L=3000	0-01558-300-0	01	1	0812-0812
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> L=200 SERVICED BY L=3000	0-01558-300-0	01	1	0901-0908
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> L=210 SERVICED BY L=3000	0-01558-300-0	01	1	0909-1002
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1003-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4200MM(42W) L=450 SERVICED BY L=3000	0-01558-300-0	01	1	0812-
82	CLIP; FUEL HOSE ID=13 & 16.5	8-94169-028-0	01	1	0812-1011
82	CLIP; FUEL HOSE EURO2 SPECIFICATION<NT2> ID=13 & 16.5	8-94169-028-0	01	1	1012-
85	BOLT; CLIP,FUEL HOSE WHEEL BASE 3600MM(36W) M8X25 FLANGE	0-28650-825-0	01	1	0812-0812
85	BOLT; CLIP,FUEL HOSE WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	01	1	0901-1002
85	BOLT; CLIP,FUEL HOSE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	01	1	1003-
87	NUT; CLIP,FUEL HOSE WHEEL BASE 4200MM(42W) M8 FLANGE	0-91180-108-0	02	1	0909-
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	02	1	0812-0908
87	NUT; CLIP,FUEL HOSE WHEEL BASE 3600MM(36W) M8 FLANGE	0-91180-108-0	01	1	0909-1002
87	NUT; CLIP,FUEL HOSE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) M8 FLANGE	0-91180-108-0	01	1	1003-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (I)	8-98204-698-0	01	1	1304-
97	BRACKET; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (C)	8-98111-711-0	01	1	1003-1003
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (C)	8-98111-711-0	01	1	1004-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	01	1	0901-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (G)	1-47475-427-1	01	1	0812-0812
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (G)	1-47475-427-1	01	1	0901-1002
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (G)	1-47475-427-1	01	1	1003-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (H)	1-47477-648-0	01	1	0812-0812
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (H)	1-47477-648-0	01	1	0901-1003
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (A)	8-98053-654-0	01	1	0812-0812
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (A)	8-98053-654-0	01	1	0901-1002
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A)	8-98053-654-0	01	1	1003-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (B)	8-98053-655-0	01	1	0812-0912
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (G)	8-98158-192-0	01	1	1001-1001
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (H)	8-98164-234-0	01	1	1002-1002
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) (H)	8-98164-234-0	01	1	1003-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (C)	8-98111-711-0	02	1	0812-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (D)	1-47478-981-0	01	1	0812-0812
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	02	1	0901-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (F)	8-97623-325-0	02	1	0812-0812
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (F)	8-97623-325-0	02	1	0901-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (E)	8-98115-316-1	01	1	0812-
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	0812-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	0812-
228	BOLT; BRKT,SEDIMENTER (C) M10X50 FLANGE	0-28051-050-0	02	1	0812-1002
228	BOLT; BRKT,SEDIMENTER (C) M10X50 FLANGE	0-28051-050-0	02	1	1003-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	0812-
373	CLAMP; HOSE,FUEL ID=13	8-94238-571-0	02	1	0812-

227 228 24 87 228 41 29 228 41 373 24 87 66 29 41 41 82 65 41 373 64 97 41 41 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (B) ID=14X29 H=15 L=20	1-09700-744-0	02	1	0812-0812
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) ID=14X29 H=15 L=20	1-09700-744-0	03	1	0901-1302
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) ID=14X29 H=15 L=20	1-09700-744-0	04	1	1303-
24	CLIP; FUEL HOSE WHEEL BASE 3600MM(36W) (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0812-0812
24	CLIP; FUEL HOSE WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0901-1002
24	CLIP; FUEL HOSE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1003-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (D) ID=16X2 L=20	0-95325-536-0	02	1	0812-0812
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (D) ID=16X2 L=20	0-95325-536-0	02	1	0901-
24	CLIP; FUEL HOSE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0812-0908
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0909-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0812-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (E) ID=14.5 & 14.5	1-09701-246-1	01	1	0812-0812
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (E) ID=14.5 & 14.5	1-09701-246-1	01	1	0901-
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0812-
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0812-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0901-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0812-0812
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0901-1002
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1003-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0812-0812
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0901-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0812-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	04	1	0812-0812
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=14	1-09704-102-0	04	1	0901-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) (E) L=250	5-09707-030-1	03	1	0812-0812
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (E) L=250	5-09707-030-1	03	1	0901-1302
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (E) L=250	5-09707-030-1	02	1	1303-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	0812-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	0812-0812
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	0812-0812
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	0901-
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (A) ID=13	8-94238-571-0	02	1	0901-
64	NUT; CLIP WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	01	1	1502-
64	NUT; CLIP WHEEL BASE 3600MM(36W) M8 FLANGE	0-91180-108-0	02	1	0812-0812
64	NUT; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	03	1	0901-0908
64	NUT; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	0909-1002
64	NUT; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	0909-1002
64	NUT; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	1003-1003
64	NUT; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	1003-1003
64	NUT; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	03	1	1004-
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0812-0812
64	NUT; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	0901-1002
64	NUT; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1003-1003
64	NUT; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1003-1003
64	NUT; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1004-1302
64	NUT; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	1303-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3600MM(36W) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	0812-0812
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> L=110 SERVICED BY L=3000	0-01260-300-0	01	1	0901-1002
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1003-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4200MM(42W) L=260 SERVICED BY L=3000	0-01260-300-0	01	1	0812-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3600MM(36W) L=200 SERVICED BY L=3000	0-01558-300-0	01	1	0812-0812
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> L=200 SERVICED BY L=3000	0-01558-300-0	01	1	0901-0908
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> L=210 SERVICED BY L=3000	0-01558-300-0	01	1	0909-1002
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1003-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4200MM(42W) L=450 SERVICED BY L=3000	0-01558-300-0	01	1	0812-
82	CLIP; FUEL HOSE ID=13 & 16.5	8-94169-028-0	01	1	0812-1011
82	CLIP; FUEL HOSE EURO2 SPECIFICATION<NT2> ID=13 & 16.5	8-94169-028-0	01	1	1012-
87	NUT; CLIP,FUEL HOSE WHEEL BASE 4200MM(42W) M8 FLANGE	0-91180-108-0	02	1	0909-
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	02	1	0812-0908
87	NUT; CLIP,FUEL HOSE WHEEL BASE 3600MM(36W) M8 FLANGE	0-91180-108-0	01	1	0909-1002
87	NUT; CLIP,FUEL HOSE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) M8 FLANGE	0-91180-108-0	01	1	1003-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (I)	8-98204-698-0	01	1	1304-
97	BRACKET; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (C)	8-98111-711-0	01	1	1003-1003
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (C)	8-98111-711-0	01	1	1004-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	01	1	0901-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (G)	1-47475-427-1	01	1	0812-0812
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (G)	1-47475-427-1	01	1	0901-1002
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (G)	1-47475-427-1	01	1	1003-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (H)	1-47477-648-0	01	1	0812-0812
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (H)	1-47477-648-0	01	1	0901-1003
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (A)	8-98053-654-0	01	1	0812-0812
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (A)	8-98053-654-0	01	1	0901-1002
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A)	8-98053-654-0	01	1	1003-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (B)	8-98053-655-0	01	1	0812-0912
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (G)	8-98158-192-0	01	1	1001-1001
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (H)	8-98164-234-0	01	1	1002-1002
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) (H)	8-98164-234-0	01	1	1003-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (C)	8-98111-711-0	02	1	0812-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (D)	1-47478-981-0	01	1	0812-0812
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	02	1	0901-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (F)	8-97623-325-0	02	1	0812-0812
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (F)	8-97623-325-0	02	1	0901-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (E)	8-98115-316-1	01	1	0812-
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	0812-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	0812-
228	BOLT; BRKT,SEDIMENTER (C) M10X50 FLANGE	0-28051-050-0	02	1	0812-1002
228	BOLT; BRKT,SEDIMENTER (C) M10X50 FLANGE	0-28051-050-0	02	1	1003-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	0812-
373	CLAMP; HOSE,FUEL ID=13	8-94238-571-0	02	1	0812-

41 39 41 39 345 345 228 279 304 304 418 303 64 64 24 62 24 62 304 97 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (B) ID=14X29 H=15 L=20	1-09700-744-0	02	1	0812-0812
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) ID=14X29 H=15 L=20	1-09700-744-0	03	1	0901-1302
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) ID=14X29 H=15 L=20	1-09700-744-0	04	1	1303-
24	CLIP; FUEL HOSE WHEEL BASE 3600MM(36W) (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0812-0812
24	CLIP; FUEL HOSE WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0901-1002
24	CLIP; FUEL HOSE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1003-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (D) ID=16X2 L=20	0-95325-536-0	02	1	0812-0812
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (D) ID=16X2 L=20	0-95325-536-0	02	1	0901-
24	CLIP; FUEL HOSE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0812-0908
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0909-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0812-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (E) ID=14.5 & 14.5	1-09701-246-1	01	1	0812-0812
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (E) ID=14.5 & 14.5	1-09701-246-1	01	1	0901-
39	PIPE; FUEL WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B)	8-98164-238-0	01	1	1003-1003
39	PIPE; FUEL WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B)	8-98164-238-0	01	1	1004-
39	PIPE; FUEL FUEL PIPE STEEL<E2N> (A) M16 & NPT3/8	1-09650-327-1	02	1	0904-
39	PIPE; FUEL WHEEL BASE 3600MM(36W) (B)	8-98133-821-0	01	1	0812-0812
39	PIPE; FUEL WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (B)	8-98133-821-0	01	1	0901-1003
39	PIPE; FUEL (A)	8-97358-699-0	02	1	0812-0903
39	PIPE; FUEL EXC. FUEL PIPE STEEL<E2N> (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	0904-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0901-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0812-0812
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0901-1002
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1003-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0812-0812
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0901-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0812-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	04	1	0812-0812
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=14	1-09704-102-0	04	1	0901-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) (E) L=250	5-09707-030-1	03	1	0812-0812
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (E) L=250	5-09707-030-1	03	1	0901-1302
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (E) L=250	5-09707-030-1	02	1	1303-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	0812-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	0812-0812
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	0812-0812
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	0901-
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (A) ID=13	8-94238-571-0	02	1	0901-
62	BOLT; CLIP FIX WHEEL BASE 4200MM(42W) M8X16 FLANGE	0-28050-816-0	02	1	0812-0812
62	BOLT; CLIP FIX WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	03	1	0901-1302
62	BOLT; CLIP FIX WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	04	1	1303-
62	BOLT; CLIP FIX WHEEL BASE 4200MM(42W) M8X20 FLANGE	0-28650-820-0	02	1	0812-0812
62	BOLT; CLIP FIX WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X20 FLANGE	0-28650-820-0	02	1	0901-
64	NUT; CLIP WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	01	1	1502-
64	NUT; CLIP WHEEL BASE 3600MM(36W) M8 FLANGE	0-91180-108-0	02	1	0812-0812
64	NUT; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	03	1	0901-0908
64	NUT; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	0909-1002
64	NUT; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	0909-1002
64	NUT; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	1003-1003
64	NUT; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	1003-1003
64	NUT; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	03	1	1004-
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0812-0812
64	NUT; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	0901-1002
64	NUT; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1003-1003
64	NUT; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1003-1003
64	NUT; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1004-1302
64	NUT; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	1303-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (I)	8-98204-698-0	01	1	1304-
97	BRACKET; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (C)	8-98111-711-0	01	1	1003-1003
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (C)	8-98111-711-0	01	1	1004-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	01	1	0901-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (G)	1-47475-427-1	01	1	0812-0812
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (G)	1-47475-427-1	01	1	0901-1002
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (G)	1-47475-427-1	01	1	1003-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (H)	1-47477-648-0	01	1	0812-0812
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (H)	1-47477-648-0	01	1	0901-1003
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (A)	8-98053-654-0	01	1	0812-0812
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (A)	8-98053-654-0	01	1	0901-1002
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A)	8-98053-654-0	01	1	1003-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (B)	8-98053-655-0	01	1	0812-0912
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (G)	8-98158-192-0	01	1	1001-1001
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (H)	8-98164-234-0	01	1	1002-1002
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) (H)	8-98164-234-0	01	1	1003-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (C)	8-98111-711-0	02	1	0812-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (D)	1-47478-981-0	01	1	0812-0812
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	02	1	0901-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (F)	8-97623-325-0	02	1	0812-0812
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (F)	8-97623-325-0	02	1	0901-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (E)	8-98115-316-1	01	1	0812-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	0812-
228	BOLT; BRKT,SEDIMENTER (C) M10X50 FLANGE	0-28051-050-0	02	1	0812-1002
228	BOLT; BRKT,SEDIMENTER (C) M10X50 FLANGE	0-28051-050-0	02	1	1003-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	0812-
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	0812-1002
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1003-
303	BOLT; BRKT WHEEL BASE 3600MM(36W) M8X25 FLANGE	0-28650-825-0	01	1	0812-0812
303	BOLT; BRKT WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	01	1	0901-1002
303	BOLT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	01	1	1003-
303	BOLT; BRKT WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28650-825-0	02	1	0812-0812
303	BOLT; BRKT WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28650-825-0	02	1	0901-
303	BOLT; BRKT WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	02	1	0901-
303	BOLT; BRKT WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28650-825-0	03	1	0812-0812
303	BOLT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	03	1	0901-1303
303	BOLT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	04	1	1304-
303	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0812-1002
303	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1003-
304	NUT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1304-
304	NUT; BRKT WHEEL BASE 4200MM(42W) M8 FLANGE	0-91180-108-0	03	1	0909-1011
304	NUT; BRKT WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	03	1	1012-
304	NUT; BRKT WHEEL BASE 3600MM(36W) M8 FLANGE	0-91180-108-0	01	1	0812-0812
304	NUT; BRKT WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	0901-0909
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0812-0908
304	NUT; BRKT WHEEL BASE 3600MM(36W) M8 FLANGE	0-91180-108-0	04	1	0909-0909
304	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0812-1001
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1002-
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1002-
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	0812-1002
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1003-
418	BRACKET; PRE FUEL FILTER	8-98096-915-0	01	1	0812-0812
418	BRACKET; PRE FUEL FILTER	8-98136-381-0	01	1	0901-1002
418	BRACKET; PRE FUEL FILTER	8-98136-381-0	01	1	1003-

80 303 239 304 304 95 80 41 97 97 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0901-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0812-0812
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0901-1002
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1003-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0812-0812
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0901-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0812-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	04	1	0812-0812
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=14	1-09704-102-0	04	1	0901-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) (E) L=250	5-09707-030-1	03	1	0812-0812
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (E) L=250	5-09707-030-1	03	1	0901-1302
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (E) L=250	5-09707-030-1	02	1	1303-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	0812-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	0812-0812
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	0812-0812
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	0901-
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (A) ID=13	8-94238-571-0	02	1	0901-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	01	1	0901-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3600MM(36W) M8X25 FLANGE	0-28650-825-0	02	1	0812-0812
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	02	1	0901-1002
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	02	1	1003-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4200MM(42W) M8X16 FLANGE	0-28050-816-0	01	1	0812-0812
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	02	1	0901-
95	BUSHING; PIPE,FUEL TANK WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> ID=28 OD=35 T=17	9-09956-256-2	02	1	0901-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (I)	8-98204-698-0	01	1	1304-
97	BRACKET; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (C)	8-98111-711-0	01	1	1003-1003
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (C)	8-98111-711-0	01	1	1004-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	01	1	0901-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (G)	1-47475-427-1	01	1	0812-0812
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (G)	1-47475-427-1	01	1	0901-1002
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (G)	1-47475-427-1	01	1	1003-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (H)	1-47477-648-0	01	1	0812-0812
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (H)	1-47477-648-0	01	1	0901-1003
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (A)	8-98053-654-0	01	1	0812-0812
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (A)	8-98053-654-0	01	1	0901-1002
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A)	8-98053-654-0	01	1	1003-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (B)	8-98053-655-0	01	1	0812-0912
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (G)	8-98158-192-0	01	1	1001-1001
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (H)	8-98164-234-0	01	1	1002-1002
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) (H)	8-98164-234-0	01	1	1003-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (C)	8-98111-711-0	02	1	0812-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (D)	1-47478-981-0	01	1	0812-0812
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	02	1	0901-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (F)	8-97623-325-0	02	1	0812-0812
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (F)	8-97623-325-0	02	1	0901-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (E)	8-98115-316-1	01	1	0812-
239	CLIP; FUEL PIPE WHEEL BASE 3600MM(36W) ID=10 & 10	1-09709-277-1	01	1	0812-0812
239	CLIP; FUEL PIPE WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> ID=10 & 10	1-09709-277-1	01	1	0901-1002
239	CLIP; FUEL PIPE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> ID=10 & 10	1-09709-277-1	01	1	1003-
303	BOLT; BRKT WHEEL BASE 3600MM(36W) M8X25 FLANGE	0-28650-825-0	01	1	0812-0812
303	BOLT; BRKT WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	01	1	0901-1002
303	BOLT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	01	1	1003-
303	BOLT; BRKT WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28650-825-0	02	1	0812-0812
303	BOLT; BRKT WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28650-825-0	02	1	0901-
303	BOLT; BRKT WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	02	1	0901-
303	BOLT; BRKT WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28650-825-0	03	1	0812-0812
303	BOLT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	03	1	0901-1303
303	BOLT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	04	1	1304-
303	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0812-1002
303	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1003-
304	NUT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1304-
304	NUT; BRKT WHEEL BASE 4200MM(42W) M8 FLANGE	0-91180-108-0	03	1	0909-1011
304	NUT; BRKT WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	03	1	1012-
304	NUT; BRKT WHEEL BASE 3600MM(36W) M8 FLANGE	0-91180-108-0	01	1	0812-0812
304	NUT; BRKT WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	0901-0909
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0812-0908
304	NUT; BRKT WHEEL BASE 3600MM(36W) M8 FLANGE	0-91180-108-0	04	1	0909-0909
304	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0812-1001
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1002-
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1002-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
