◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11151 - FTS(LHD) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-40 - FUEL TANK ▶
1-40 — FUEL TANK (#69220) — 106 parça

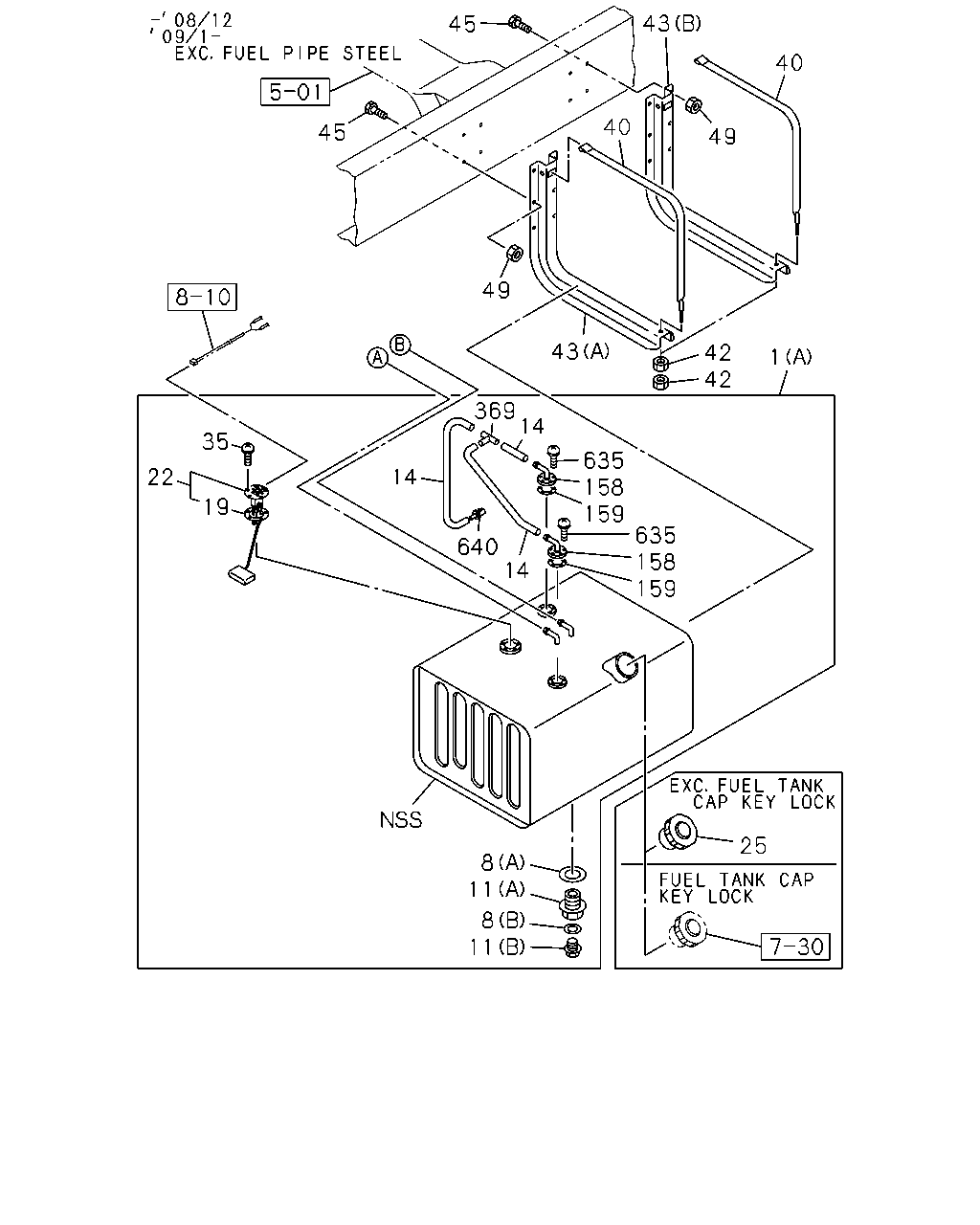

çizim 92978
43 45 40 40 45 49 49 43 42 42 1 369 14 35 635 158 159 22 14 19 635 158 159 640 14 25 8 11 8 11
BalonParca AdiParca NoAdetTipApplied Date
1 TANK; FUEL
FUEL PIPE STEEL<E2N> (B) 855X603X453 200L 		8-98122-997-2 01 1 0901-
1 TANK; FUEL
(A) 855X603X453 200L 		8-98122-995-0 01 1 0812-0812
1 TANK; FUEL
EXC. FUEL PIPE STEEL<E2N> (A) 855X603X453 200L 		8-98122-995-1 01 1 0901-1211
1 TANK; FUEL
EXC. FUEL PIPE STEEL<E2N> (A) 885X603X453 200L 		8-98187-002-1 01 1 1212-
8 GASKET; DRAIN PLUG,FUEL TANK
(A) ID=30 		8-98067-041-0 01 1 0812-
8 GASKET; DRAIN PLUG,FUEL TANK
(B) ID=14.2 OD=23.0 		9-09572-014-0 01 1 0812-
11 PLUG; DRAIN,FUEL TANK
(A) M30 		8-98067-038-0 01 1 0812-
11 PLUG; DRAIN,FUEL TANK
(B) M14X14 		9-09862-156-0 01 1 0812-
14 HOSE; BREATHER,OUTLET
L=90 SERVICED BY L=3000 		0-01256-300-0 01 1 0812-
14 HOSE; BREATHER,OUTLET
L=170 SERVICED BY L=3000 		0-01256-300-0 01 1 0812-
14 HOSE; BREATHER,OUTLET
L=600 SERVICED BY L=3000 		0-01256-300-0 01 1 0812-1003
14 HOSE; BREATHER,OUTLET
L=540 SERVICED BY L=3000 		0-01256-300-0 01 1 1004-
19 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 0812-
22 UNIT; FUEL TANK 8-98099-321-0 01 1 0812-
25 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP KEY LOCK<N05> 		8-97387-179-0 01 1 0812-
35 SCREW; FUEL TANK UNIT
M5X12 W/LK WASHER 		0-36220-512-0 05 1 0812-
40 BELT; SUPPORT,FUEL TANK
L=1070 		8-98067-501-1 02 1 0812-
42 NUT; SUPPORT BELT
M12 		0-91110-512-0 04 1 0812-
43 BRACKET; FUEL TANK
(A) 		8-98010-733-0 01 1 0812-
43 BRACKET; FUEL TANK
(B) 		8-98122-884-0 01 1 0812-
45 BOLT; BRKT,FUEL TANK
M12X40 FLANGE 		0-28651-240-0 08 1 0812-
49 NUT; BRKT
M12 FLANGE 		0-91180-212-0 08 1 0812-
158 VALVE; ROLL OVER & FLOAT 8-98067-039-0 02 1 0812-
159 SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67 		1-83149-003-0 02 1 0812-
369 JOINT; HOSE 8-98067-080-0 01 1 0812-
635 SCREW; ROLL OVER & FLOAT VALVE
M5X12 W/LK WASHER 		0-36220-512-0 10 1 0812-
640 VENTILATOR; HOSE,BREATHER 8-98092-398-0 01 1 0812-
çizim 93007
487 487 455 454 279 279 457 468 72 468 285
BalonParca AdiParca NoAdetTipApplied Date
72 NUT; BRKT
WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> M8 FLANGE 		0-91180-108-0 02 1 0901-
279 UNION; FUEL PIPE
WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> (B) M14 		0-92113-308-0 01 1 0901-
279 UNION; FUEL PIPE
WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> (A) M16 L=74 		0-92123-310-0 01 1 0901-
285 BOLT; BRKT
WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> M8X25 FLANGE 		0-28650-825-0 02 1 0901-
454 PIPE; FUEL,DELIVERY
WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) 		8-98152-792-0 01 1 1003-1003
454 PIPE; FUEL,DELIVERY
WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) 		8-98152-792-0 01 1 1004-
454 PIPE; FUEL,DELIVERY
WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> (D) L=1805 SERVICED BY L=1900 		1-47428-881-0 01 1 0901-
454 PIPE; FUEL,DELIVERY
WHEEL BASE 3600MM(36W) (A) 		8-98133-819-0 01 1 0812-0812
454 PIPE; FUEL,DELIVERY
WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (A) 		8-98133-819-0 01 1 0901-1003
454 PIPE; FUEL,DELIVERY
WHEEL BASE 3600MM(36W) (B) 		8-98133-820-0 01 1 0812-0812
454 PIPE; FUEL,DELIVERY
WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (B) 		8-98133-820-0 01 1 0901-1001
454 PIPE; FUEL,DELIVERY
WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (B) 		8-98164-237-0 01 1 1002-1002
454 PIPE; FUEL,DELIVERY
WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B) 		8-98164-237-0 01 1 1003-
454 PIPE; FUEL,DELIVERY
WHEEL BASE 4200MM(42W) (C) L=800 		8-98131-422-0 01 1 0812-0812
454 PIPE; FUEL,DELIVERY
WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (C) L=800 		8-98131-422-1 01 1 0901-
455 PIPE; FUEL,RETURN
WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> (B) L=1701 SERVICED BY L=1800 		1-47428-853-0 01 1 0901-
455 PIPE; FUEL,RETURN
WHEEL BASE 4200MM(42W) (A) L=791 		8-98131-423-0 01 1 0812-0812
455 PIPE; FUEL,RETURN
WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (A) L=791 		8-98131-423-1 01 1 0901-
457 BRACKET; UNION,FUEL PIPE
WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> 		8-98098-184-0 01 1 0901-
468 NUT
FUEL PIPE STEEL<E2N> (B) M14 		0-91111-514-0 01 1 0901-1009
468 NUT
WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> (B) M14 		0-91111-514-0 01 1 1010-
468 NUT
FUEL PIPE STEEL<E2N> (A) M16 		0-91111-516-0 01 1 0901-1009
468 NUT
WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> (A) M16 		0-91111-516-0 01 1 1010-
487 PIPE; FUEL HOSE
WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> (A) 		8-98132-315-0 01 1 0901-
487 PIPE; FUEL HOSE
WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> (B) L=1184 SERVICED BY L=1250 		1-47428-849-0 01 1 0901-
çizim 93097
455 454
BalonParca AdiParca NoAdetTipApplied Date
454 PIPE; FUEL,DELIVERY
WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) 		8-98152-792-0 01 1 1003-1003
454 PIPE; FUEL,DELIVERY
WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) 		8-98152-792-0 01 1 1004-
454 PIPE; FUEL,DELIVERY
WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> (D) L=1805 SERVICED BY L=1900 		1-47428-881-0 01 1 0901-
454 PIPE; FUEL,DELIVERY
WHEEL BASE 3600MM(36W) (A) 		8-98133-819-0 01 1 0812-0812
454 PIPE; FUEL,DELIVERY
WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (A) 		8-98133-819-0 01 1 0901-1003
454 PIPE; FUEL,DELIVERY
WHEEL BASE 3600MM(36W) (B) 		8-98133-820-0 01 1 0812-0812
454 PIPE; FUEL,DELIVERY
WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (B) 		8-98133-820-0 01 1 0901-1001
454 PIPE; FUEL,DELIVERY
WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (B) 		8-98164-237-0 01 1 1002-1002
454 PIPE; FUEL,DELIVERY
WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B) 		8-98164-237-0 01 1 1003-
454 PIPE; FUEL,DELIVERY
WHEEL BASE 4200MM(42W) (C) L=800 		8-98131-422-0 01 1 0812-0812
454 PIPE; FUEL,DELIVERY
WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (C) L=800 		8-98131-422-1 01 1 0901-
455 PIPE; FUEL,RETURN
WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> (B) L=1701 SERVICED BY L=1800 		1-47428-853-0 01 1 0901-
455 PIPE; FUEL,RETURN
WHEEL BASE 4200MM(42W) (A) L=791 		8-98131-423-0 01 1 0812-0812
455 PIPE; FUEL,RETURN
WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (A) L=791 		8-98131-423-1 01 1 0901-

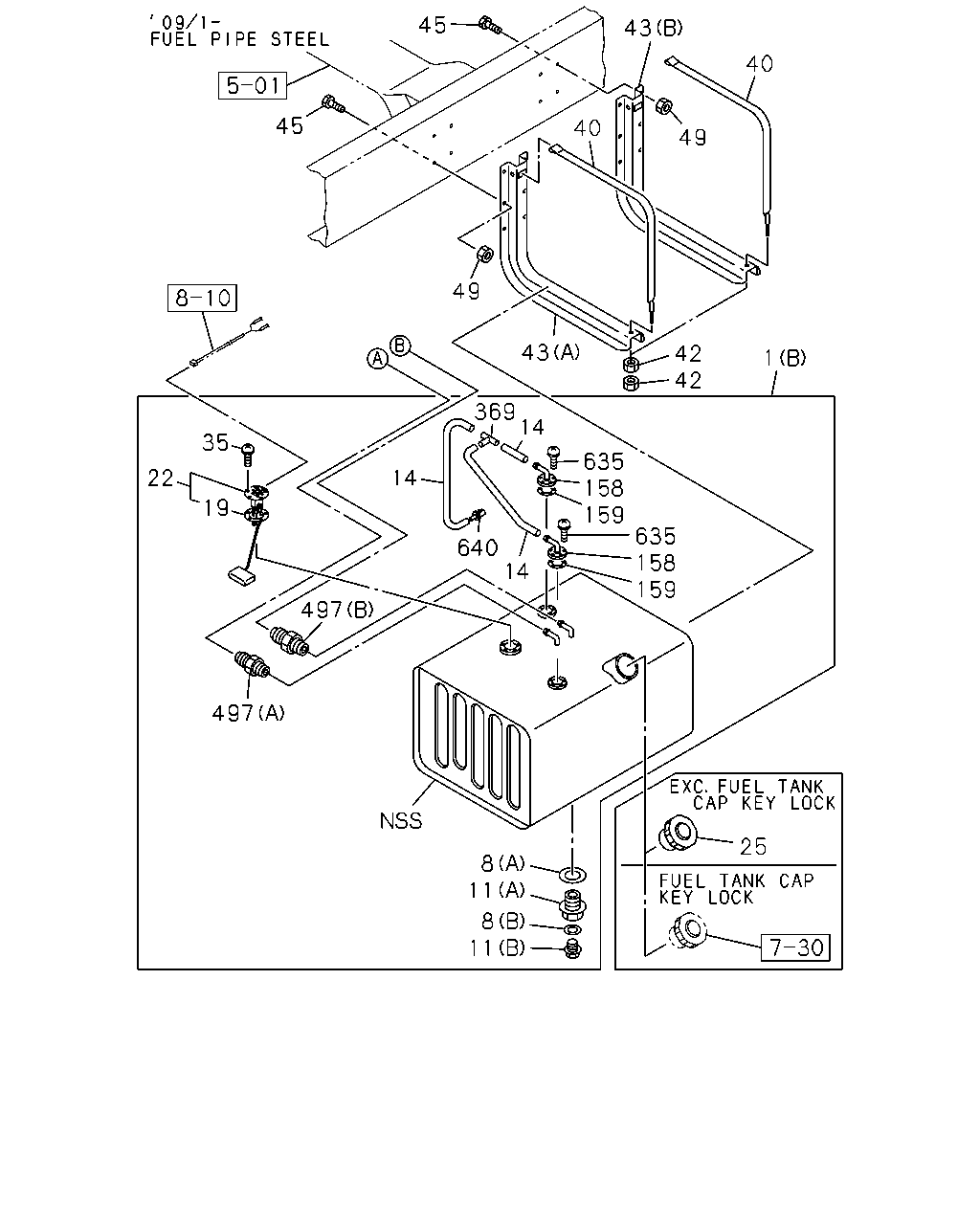

çizim 93106
45 43 40 45 40 49 49 43 42 42 1 369 14 35 635 158 159 22 14 19 635 158 159 640 14 497 497 25 8 11 8 11
BalonParca AdiParca NoAdetTipApplied Date
1 TANK; FUEL
FUEL PIPE STEEL<E2N> (B) 855X603X453 200L 		8-98122-997-2 01 1 0901-
1 TANK; FUEL
(A) 855X603X453 200L 		8-98122-995-0 01 1 0812-0812
1 TANK; FUEL
EXC. FUEL PIPE STEEL<E2N> (A) 855X603X453 200L 		8-98122-995-1 01 1 0901-1211
1 TANK; FUEL
EXC. FUEL PIPE STEEL<E2N> (A) 885X603X453 200L 		8-98187-002-1 01 1 1212-
8 GASKET; DRAIN PLUG,FUEL TANK
(A) ID=30 		8-98067-041-0 01 1 0812-
8 GASKET; DRAIN PLUG,FUEL TANK
(B) ID=14.2 OD=23.0 		9-09572-014-0 01 1 0812-
11 PLUG; DRAIN,FUEL TANK
(A) M30 		8-98067-038-0 01 1 0812-
11 PLUG; DRAIN,FUEL TANK
(B) M14X14 		9-09862-156-0 01 1 0812-
14 HOSE; BREATHER,OUTLET
L=90 SERVICED BY L=3000 		0-01256-300-0 01 1 0812-
14 HOSE; BREATHER,OUTLET
L=170 SERVICED BY L=3000 		0-01256-300-0 01 1 0812-
14 HOSE; BREATHER,OUTLET
L=600 SERVICED BY L=3000 		0-01256-300-0 01 1 0812-1003
14 HOSE; BREATHER,OUTLET
L=540 SERVICED BY L=3000 		0-01256-300-0 01 1 1004-
19 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 0812-
22 UNIT; FUEL TANK 8-98099-321-0 01 1 0812-
25 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP KEY LOCK<N05> 		8-97387-179-0 01 1 0812-
35 SCREW; FUEL TANK UNIT
M5X12 W/LK WASHER 		0-36220-512-0 05 1 0812-
40 BELT; SUPPORT,FUEL TANK
L=1070 		8-98067-501-1 02 1 0812-
42 NUT; SUPPORT BELT
M12 		0-91110-512-0 04 1 0812-
43 BRACKET; FUEL TANK
(A) 		8-98010-733-0 01 1 0812-
43 BRACKET; FUEL TANK
(B) 		8-98122-884-0 01 1 0812-
45 BOLT; BRKT,FUEL TANK
M12X40 FLANGE 		0-28651-240-0 08 1 0812-
49 NUT; BRKT
M12 FLANGE 		0-91180-212-0 08 1 0812-
158 VALVE; ROLL OVER & FLOAT 8-98067-039-0 02 1 0812-
159 SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67 		1-83149-003-0 02 1 0812-
369 JOINT; HOSE 8-98067-080-0 01 1 0812-
497 NIPPLE; FUEL PIPE
FUEL PIPE STEEL<E2N> (A) M14 & PT1/4 STRAIGHT 		1-09650-332-1 01 1 0901-
497 NIPPLE; FUEL PIPE
FUEL PIPE STEEL<E2N> (B) M16 & NPTF3/8 STRAIGHT 		1-09650-405-1 01 1 0901-
635 SCREW; ROLL OVER & FLOAT VALVE
M5X12 W/LK WASHER 		0-36220-512-0 10 1 0812-
640 VENTILATOR; HOSE,BREATHER 8-98092-398-0 01 1 0812-
çizim 187797
454 454
BalonParca AdiParca NoAdetTipApplied Date
454 PIPE; FUEL,DELIVERY
WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) 		8-98152-792-0 01 1 1003-1003
454 PIPE; FUEL,DELIVERY
WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) 		8-98152-792-0 01 1 1004-
454 PIPE; FUEL,DELIVERY
WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> (D) L=1805 SERVICED BY L=1900 		1-47428-881-0 01 1 0901-
454 PIPE; FUEL,DELIVERY
WHEEL BASE 3600MM(36W) (A) 		8-98133-819-0 01 1 0812-0812
454 PIPE; FUEL,DELIVERY
WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (A) 		8-98133-819-0 01 1 0901-1003
454 PIPE; FUEL,DELIVERY
WHEEL BASE 3600MM(36W) (B) 		8-98133-820-0 01 1 0812-0812
454 PIPE; FUEL,DELIVERY
WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (B) 		8-98133-820-0 01 1 0901-1001
454 PIPE; FUEL,DELIVERY
WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (B) 		8-98164-237-0 01 1 1002-1002
454 PIPE; FUEL,DELIVERY
WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B) 		8-98164-237-0 01 1 1003-
454 PIPE; FUEL,DELIVERY
WHEEL BASE 4200MM(42W) (C) L=800 		8-98131-422-0 01 1 0812-0812
454 PIPE; FUEL,DELIVERY
WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (C) L=800 		8-98131-422-1 01 1 0901-
