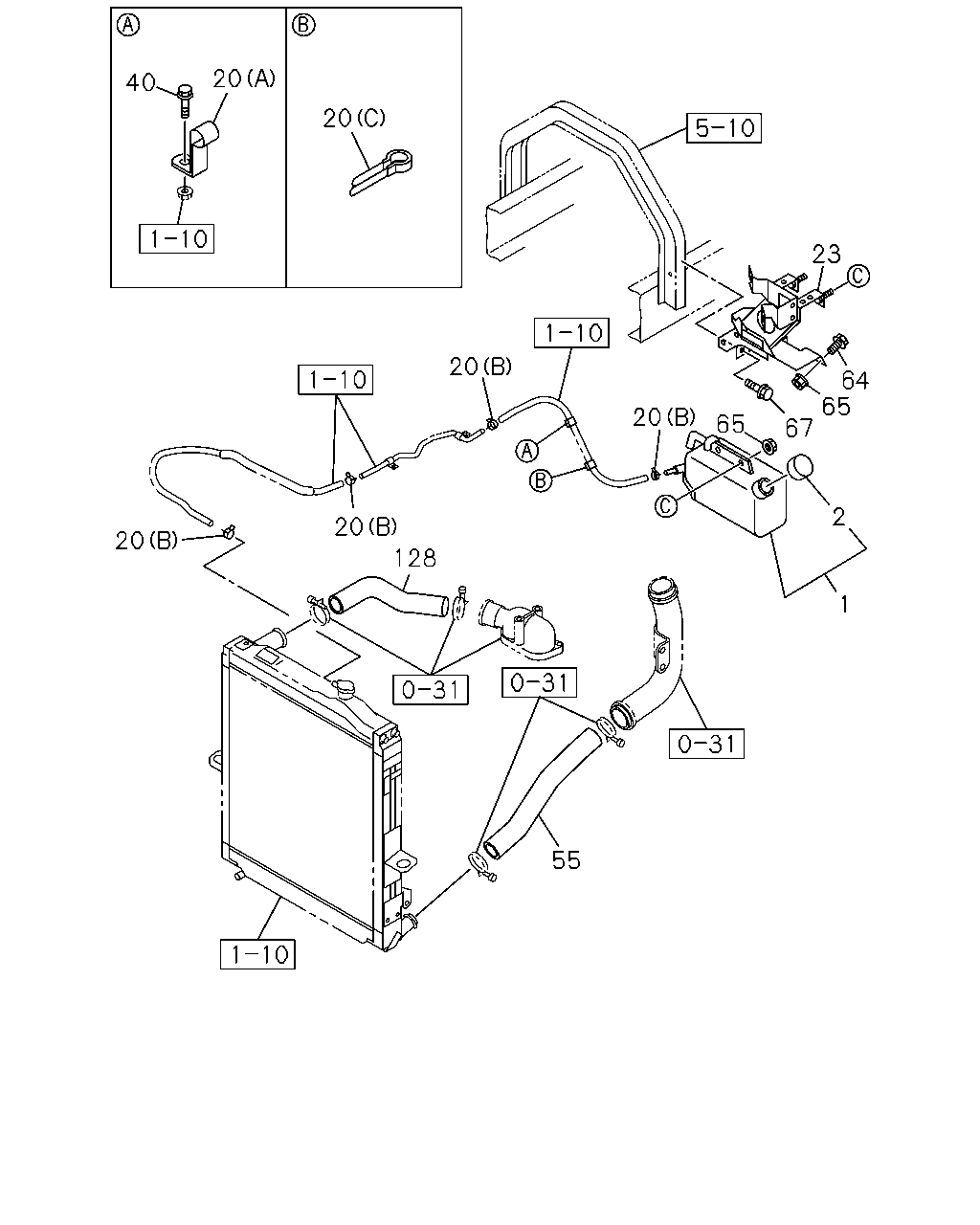

1-11 — RADIATOR HOSE AND SUB TANK
(#69216) — 14 parça
40
20
20
20
20
128
20
55
1
2
20
65
67
65
64
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; SURGE,RAD
8-98010-309-2
01
1
0812-1009
1
TANK; SURGE,RAD
8-98171-757-0
01
1
1010-
2
CAP; SURGE TANK
8-97217-796-0
01
1
0812-1009
2
CAP; SURGE TANK
8-98178-074-0
01
1
1010-
20
CLIP; HOSE,RAD
(A) ID=13 H=40 L=25
1-09700-620-0
01
1
0812-
20
CLIP; HOSE,RAD
(B) ID=11.5
8-97375-638-0
04
1
0812-
20
CLIP; HOSE,RAD
(C) ID=20 L=50
9-09917-430-0
01
1
0812-
23
BRACKET; RESERVE TANK
8-98049-965-4
01
1
0812-
40
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
0812-
55
HOSE; WATER,RAD OUTLET
8-98050-926-1
01
1
0812-
64
BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER
1-09030-093-0
01
1
0812-
65
NUT; BRKT,SUB TANK
M8 FLANGE
0-91180-108-0
03
1
0812-
67
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
03
1
0812-
128
HOSE; WATER,RAD INL
8-98050-925-1
01
1
0812-
