Isuzu WW
▶
TRUCKS
▶
FTS
▶
11151 - FTS(LHD)
▶
0 - Engine, Emission, Engine Electrical
▶
0-57 - EMISSION PIPING
▶
0-57 — EMISSION PIPING
(#69209) — 64 parça
◀
[057A] EURO2 (21 parça)

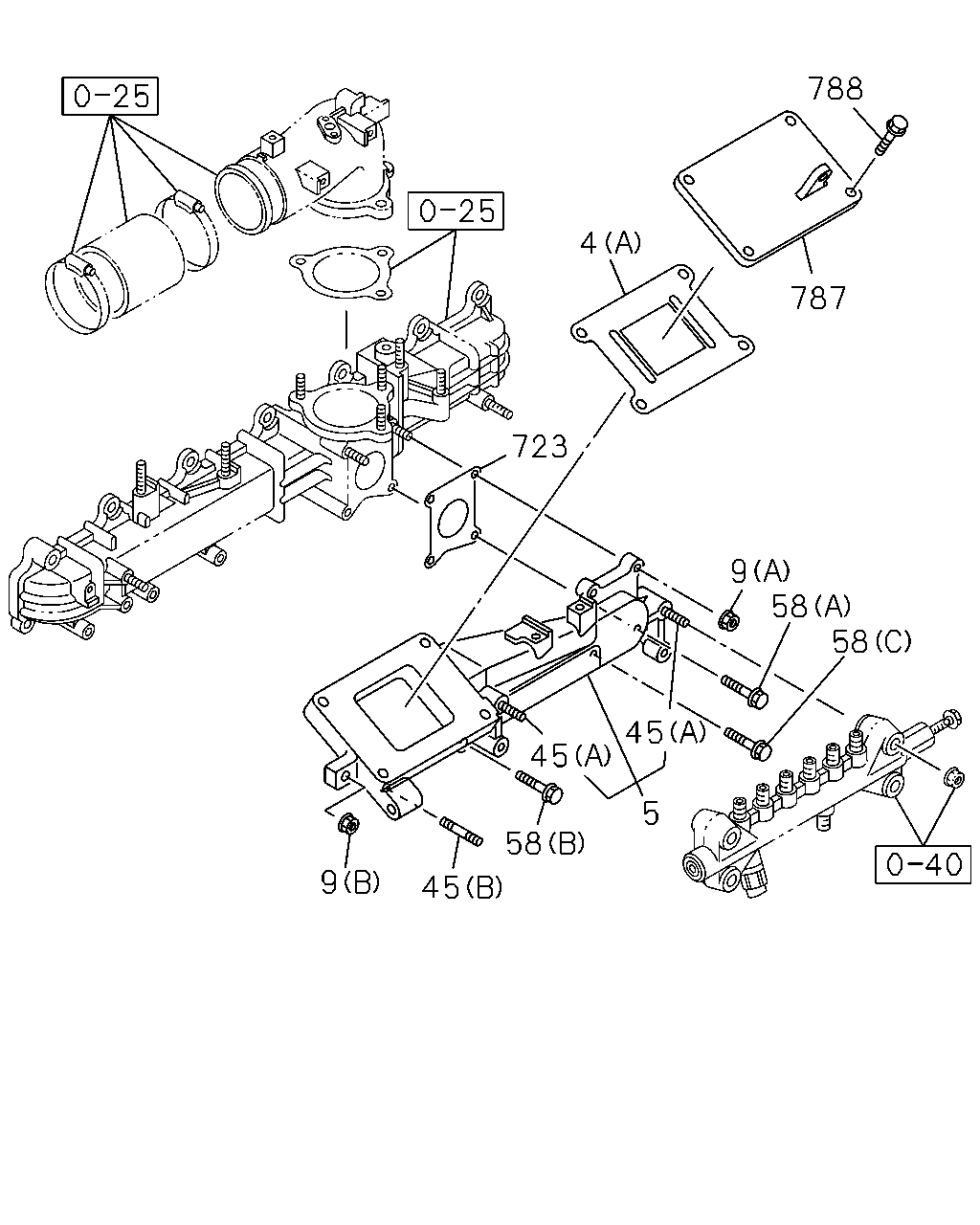

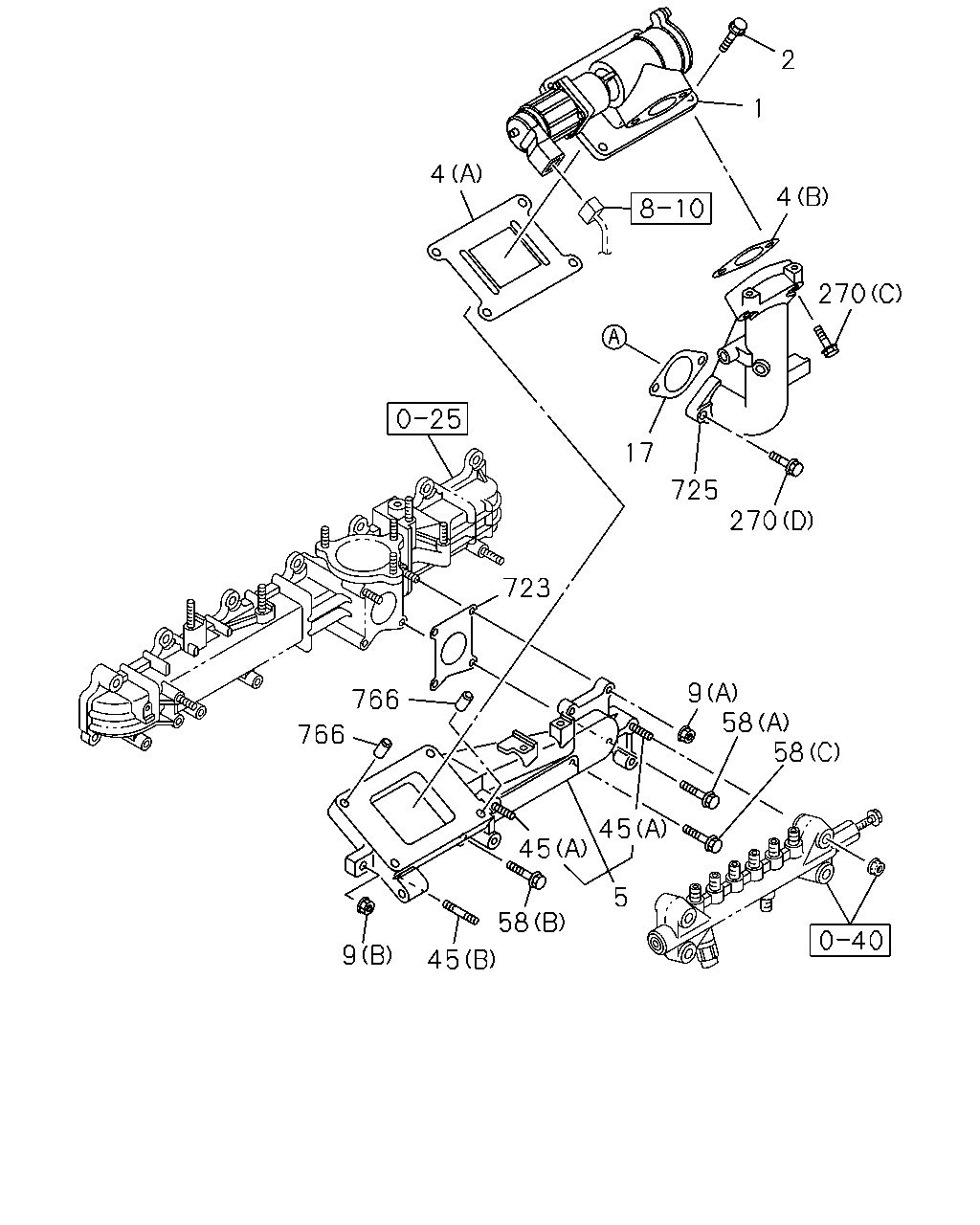

[057A] EURO3;INLET MANIF SIDE (25 parça)

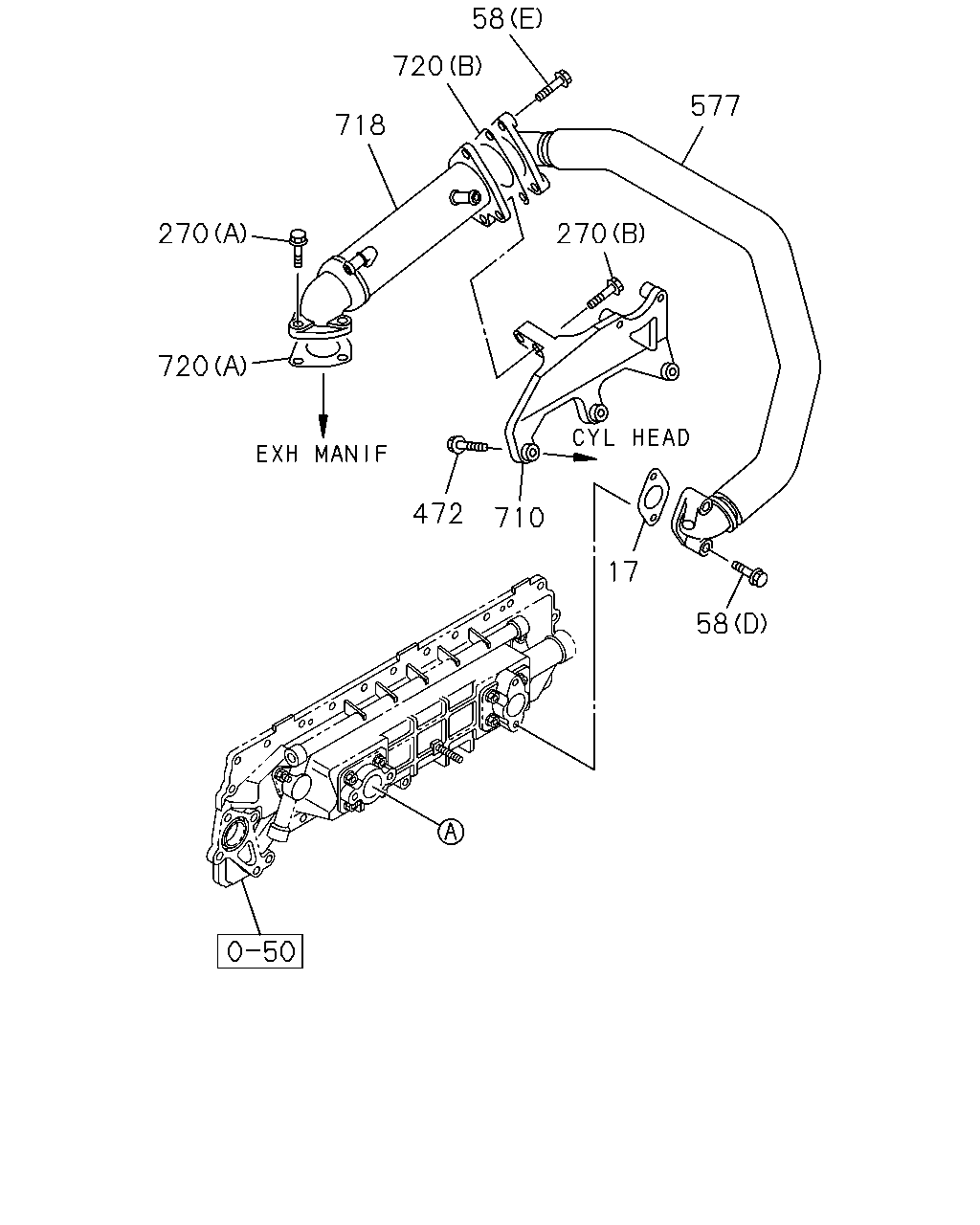

[057A] EURO3;EGR COOLER AND PIPE (18 parça)
▶
788
4
787
723
9
58
58
45
45
5
58
9
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-97608-423-0
01
1
1012-
4
GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-97608-423-0
01
1
0812-1011
4
GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (B) ID=47
8-97603-282-0
01
1
1012-
5
ADAPTER ASM
8-97606-201-3
01
1
0812-1305
5
ADAPTER ASM
8-98240-157-0
01
1
1306-
9
NUT; EGR ADAPTER
(A) M8 FLANGE
0-91180-108-0
02
1
0812-
9
NUT; EGR ADAPTER
(B) M10 FLANGE
0-91180-110-0
02
1
0812-
45
STUD; ADAPTER,EGR
(B) M10X30 L=45
0-44011-030-0
01
1
0812-
45
STUD; ADAPTER,EGR
(A) M10X50 L=65
0-44011-050-0
02
1
0812-
58
BOLT; PIPE
EURO3 SPECIFICATION<NT3> (D) M8X60 FLANGE
0-28050-860-0
02
1
1012-
58
BOLT; PIPE
EURO3 SPECIFICATION<NT3> (E) M10X35 FLANGE
0-28751-035-0
03
1
1012-
58
BOLT; PIPE
(B) M10X30 FLANGE
0-28151-030-0
01
1
0812-
58
BOLT; PIPE
(C) M8X30 FLANGE
0-28650-830-0
01
1
0812-
58
BOLT; PIPE
(A) M8X30 FLANGE
8-98034-764-0
01
1
0812-
723
GASKET; REED VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=52
8-97605-995-0
01
1
0812-
787
COVER; DUCT,EGR VLV
8-98058-709-0
01
1
0812-1011
787
COVER; DUCT,EGR VLV
EURO2 SPECIFICATION<NT2>
8-98058-709-0
01
1
1012-1402
787
COVER; DUCT,EGR VLV
EURO2 SPECIFICATION<NT2>
8-98238-416-0
01
1
1403-
788
BOLT; COVER
M10X35 FLANGE
0-28751-035-0
04
1
0812-1011
788
BOLT; COVER
EURO2 SPECIFICATION<NT2> M10X35 FLANGE
0-28751-035-0
04
1
1012-1402
788
BOLT; COVER
EURO2 SPECIFICATION<NT2> M10X25 FLANGE
0-28751-025-0
04
1
1403-
2
1
4
4
270
17
725
270
723
9
58
58
766
766
45
45
5
58
9
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; EGR
EURO3 SPECIFICATION<NT3>
8-97383-005-9
01
1
1012-
2
BOLT; EGR VLV
EURO3 SPECIFICATION<NT3> M10X35 FLANGE
0-28751-035-0
04
1
1012-
4
GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-97608-423-0
01
1
1012-
4
GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-97608-423-0
01
1
0812-1011
4
GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (B) ID=47
8-97603-282-0
01
1
1012-
5
ADAPTER ASM
8-97606-201-3
01
1
0812-1305
5
ADAPTER ASM
8-98240-157-0
01
1
1306-
9
NUT; EGR ADAPTER
(A) M8 FLANGE
0-91180-108-0
02
1
0812-
9
NUT; EGR ADAPTER
(B) M10 FLANGE
0-91180-110-0
02
1
0812-
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> ID=44.5
8-97601-144-0
02
1
1012-
45
STUD; ADAPTER,EGR
(B) M10X30 L=45
0-44011-030-0
01
1
0812-
45
STUD; ADAPTER,EGR
(A) M10X50 L=65
0-44011-050-0
02
1
0812-
58
BOLT; PIPE
EURO3 SPECIFICATION<NT3> (D) M8X60 FLANGE
0-28050-860-0
02
1
1012-
58
BOLT; PIPE
EURO3 SPECIFICATION<NT3> (E) M10X35 FLANGE
0-28751-035-0
03
1
1012-
58
BOLT; PIPE
(B) M10X30 FLANGE
0-28151-030-0
01
1
0812-
58
BOLT; PIPE
(C) M8X30 FLANGE
0-28650-830-0
01
1
0812-
58
BOLT; PIPE
(A) M8X30 FLANGE
8-98034-764-0
01
1
0812-
270
BOLT
EURO3 SPECIFICATION<NT3> (D) M8X25 FLANGE
0-28050-825-0
02
1
1012-
270
BOLT
EURO3 SPECIFICATION<NT3> (B) M8X35 FLANGE
0-28050-835-0
02
1
1012-
270
BOLT
EURO3 SPECIFICATION<NT3> (C) M10X45 FLANGE
0-28151-045-0
02
1
1012-
270
BOLT
EURO3 SPECIFICATION<NT3> (A) M8X28 FLANGE
8-98043-528-0
03
1
1012-
723
GASKET; REED VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=52
8-97605-995-0
01
1
0812-
725
DUCT; EGR VLV
EURO3 SPECIFICATION<NT3>
8-97604-972-2
01
1
1012-1305
725
DUCT; EGR VLV
EURO3 SPECIFICATION<NT3>
8-98240-120-0
01
1
1306-
766
DOWEL; EGR VLV
EURO3 SPECIFICATION<NT3> OD=14 L=10
9-11319-065-3
02
1
1012-
58
720
577
718
270
270
720
472
710
17
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> ID=44.5
8-97601-144-0
02
1
1012-
58
BOLT; PIPE
EURO3 SPECIFICATION<NT3> (D) M8X60 FLANGE
0-28050-860-0
02
1
1012-
58
BOLT; PIPE
EURO3 SPECIFICATION<NT3> (E) M10X35 FLANGE
0-28751-035-0
03
1
1012-
58
BOLT; PIPE
(B) M10X30 FLANGE
0-28151-030-0
01
1
0812-
58
BOLT; PIPE
(C) M8X30 FLANGE
0-28650-830-0
01
1
0812-
58
BOLT; PIPE
(A) M8X30 FLANGE
8-98034-764-0
01
1
0812-
270
BOLT
EURO3 SPECIFICATION<NT3> (D) M8X25 FLANGE
0-28050-825-0
02
1
1012-
270
BOLT
EURO3 SPECIFICATION<NT3> (B) M8X35 FLANGE
0-28050-835-0
02
1
1012-
270
BOLT
EURO3 SPECIFICATION<NT3> (C) M10X45 FLANGE
0-28151-045-0
02
1
1012-
270
BOLT
EURO3 SPECIFICATION<NT3> (A) M8X28 FLANGE
8-98043-528-0
03
1
1012-
472
BOLT; BRKT
EURO3 SPECIFICATION<NT3> M8X35 FLANGE
0-28060-835-0
03
1
1012-
577
PIPE; AIR,EGR
EURO3 SPECIFICATION<NT3>
8-98147-787-0
01
1
1012-
710
BRACKET; EGR COOLER
EURO3 SPECIFICATION<NT3>
8-98125-359-0
01
1
1012-1202
710
BRACKET; EGR COOLER
EURO3 SPECIFICATION<NT3>
8-98186-437-0
01
1
1203-
718
COOLER; EGR
EURO3 SPECIFICATION<NT3>
8-98030-582-3
01
1
1012-1401
718
COOLER; EGR
EURO3 SPECIFICATION<NT3>
8-98250-860-0
01
1
1402-
720
GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (B) ID=80
8-97603-889-0
01
1
1012-
720
GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (A) ID=51.5
8-98046-192-1
01
1
1012-
