Sayfa 0-50 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11151 - FTS(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50 - OIL COOLER AND OIL FILTER ▶

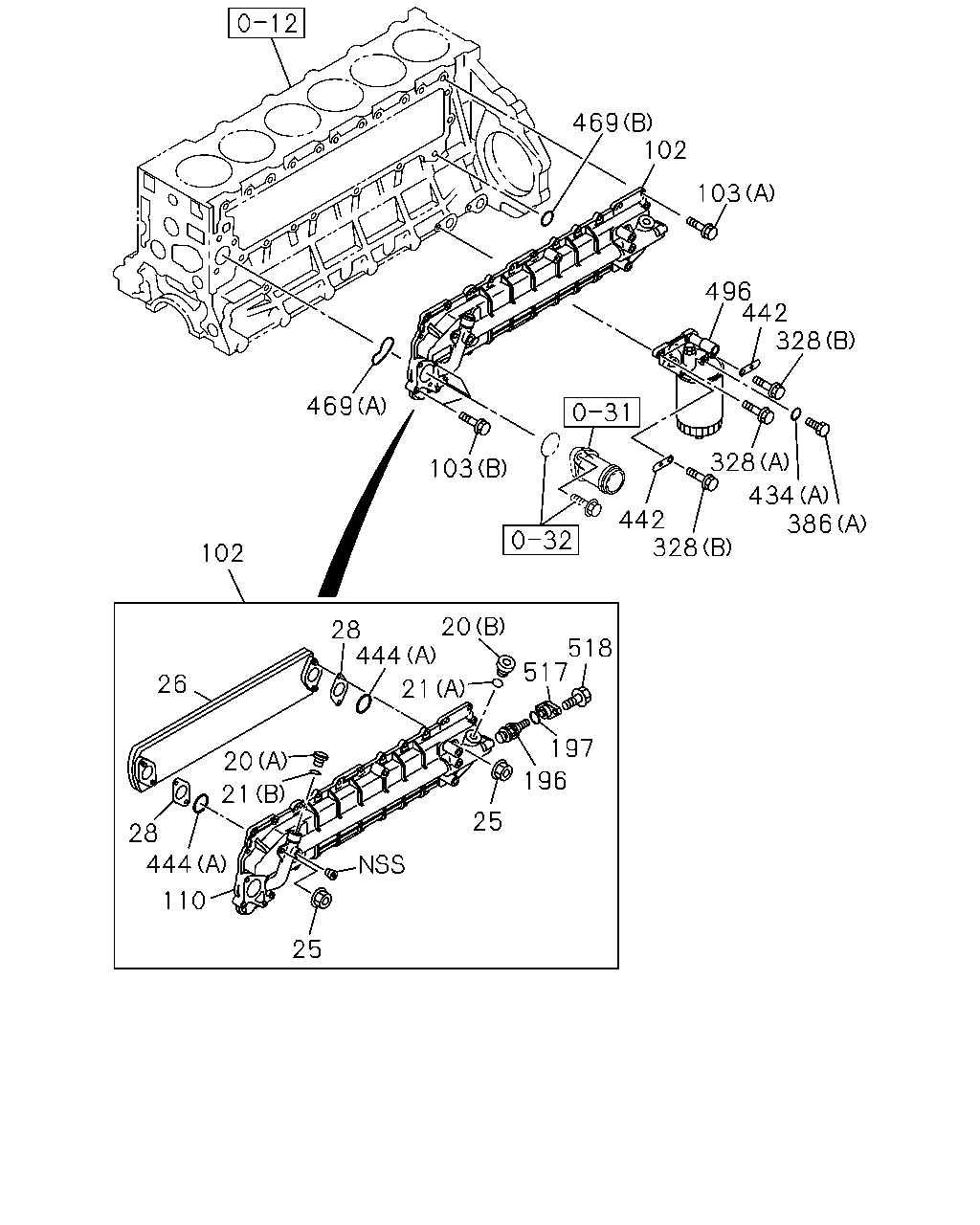

0-50 — OIL COOLER AND OIL FILTER (#69206) — 117 parça

25 110 444 28 21 20 26 28 444 21 20 517 518 197 196 25 328 442 103 469 102 469 102 103 496 442 328 328 434 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	PLUG; COOLER BODY EURO3 SPECIFICATION<NT3> (C)	1-13219-240-0	02	1	1012-
20	PLUG; COOLER BODY EURO3 SPECIFICATION<NT3> (D)	8-97608-567-0	02	1	1012-
20	PLUG; COOLER BODY (A)	8-94393-604-0	01	1	0812-1011
20	PLUG; COOLER BODY EURO2 SPECIFICATION<NT2> (A)	8-94393-604-0	01	1	1012-
20	PLUG; COOLER BODY (B)	8-94396-753-0	01	1	0812-1011
20	PLUG; COOLER BODY EURO2 SPECIFICATION<NT2> (B)	8-94396-753-0	01	1	1012-
21	GASKET; PLUG EURO3 SPECIFICATION<NT3> (C) ID=17.8	8-97608-568-0	02	1	1012-
21	GASKET; PLUG (B)	1-13219-253-0	01	1	0812-1011
21	GASKET; PLUG EURO2 SPECIFICATION<NT2> (B)	1-13219-253-0	01	1	1012-
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	0812-1011
21	GASKET; PLUG EURO2 SPECIFICATION<NT2> (A) M24	8-94396-755-0	01	1	1012-
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	0812-
26	CORE ASM; OIL COOLER EURO3 SPECIFICATION<NT3>	8-98062-207-0	01	1	1012-
26	CORE ASM; OIL COOLER	8-94391-738-1	01	1	0812-1011
26	CORE ASM; OIL COOLER EURO2 SPECIFICATION<NT2>	8-94391-738-1	01	1	1012-
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	0812-
102	COOLER ASM; OIL EURO3 SPECIFICATION<NT3>	8-98130-995-0	01	1	1012-1307
102	COOLER ASM; OIL EURO3 SPECIFICATION<NT3>	8-98236-650-0	01	1	1308-
102	COOLER ASM; OIL	8-97600-156-1	01	1	0812-1011
102	COOLER ASM; OIL EURO2 SPECIFICATION<NT2>	8-97600-156-1	01	1	1012-
103	BOLT; OIL COOLER EURO3 SPECIFICATION<NT3> (D) M8X18 FLANGE	8-98251-758-0	04	1	1309-
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	1012-
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	0812-1011
103	BOLT; OIL COOLER EURO3 SPECIFICATION<NT3> (C) M8X30 FLANGE	0-28650-830-0	24	1	1012-
103	BOLT; OIL COOLER (A) M8X22 FLANGE	0-28080-822-0	24	1	0812-1011
103	BOLT; OIL COOLER EURO2 SPECIFICATION<NT2> (A) M8X22 FLANGE	0-28080-822-0	24	1	1012-
110	BODY; CASE,OIL COOLER	8-97600-158-0	01	1	0812-0906
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	0812-
197	GASKET; THERMOSTAT EURO3 SPECIFICATION<NT3>	8-94391-728-0	01	1	1012-
197	GASKET; THERMOSTAT ID=25.7	8-94399-279-0	01	1	0812-1011
197	GASKET; THERMOSTAT EURO2 SPECIFICATION<NT2> ID=25.7	8-94399-279-0	01	1	1012-
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	0812-
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	0812-
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1308-
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	0812-
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1308-
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0812-
442	BRACKET; HARNESS,OIL FILTER	8-97601-310-0	02	1	0812-1011
444	GASKET; ELEMENT TO BODY EURO3 SPECIFICATION<NT3> (C)	8-97601-801-0	02	1	1309-
444	GASKET; ELEMENT TO BODY EURO3 SPECIFICATION<NT3> (B) ID=38.7	1-09623-299-0	02	1	1012-
444	GASKET; ELEMENT TO BODY (A)	8-94396-810-0	02	1	0812-1011
444	GASKET; ELEMENT TO BODY EURO2 SPECIFICATION<NT2> (A)	8-94396-810-0	02	1	1012-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	0812-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	0812-
496	FILTER ASM; OIL	8-94391-015-8	01	1	0812-1307
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-
517	PLUG; THERMOSTAT,OIL COOLER EURO3 SPECIFICATION<NT3>	8-94391-731-0	01	1	1012-
517	PLUG; THERMOSTAT,OIL COOLER	8-94391-740-0	01	1	0812-1011
517	PLUG; THERMOSTAT,OIL COOLER EURO2 SPECIFICATION<NT2>	8-94391-740-0	01	1	1012-
518	BOLT; PLUG,THERMOSTAT M8X16 FLANGE	0-28050-816-0	02	1	0812-1011
518	BOLT; PLUG,THERMOSTAT EURO2 SPECIFICATION<NT2> M8X16 FLANGE	0-28050-816-0	02	1	1012-

496 386 66 434 13 265 308 307 2 265 321 321 321

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-011-1	01	1	1010-1110
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-064-0	01	1	1111-
2	ELEMENT; OIL FILTER	8-94391-049-4	01	1	0812-
13	VALVE; RELIEF	8-98238-944-0	01	1	1308-
66	SPRING; VLV	8-98238-943-0	01	1	1308-
265	BODY; OIL FILTER	8-94391-016-4	01	1	0812-1307
265	BODY; OIL FILTER	8-98238-939-0	01	1	1308-
307	VALVE; OVERFLOW	8-94395-700-0	01	1	0812-1307
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	0812-1307
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	0812-
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	0812-
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1308-
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	0812-
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1308-
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0812-
496	FILTER ASM; OIL	8-94391-015-8	01	1	0812-1307
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-

103 379 25 444 444 28 26 28 444 111 444 20 25 379 103 197 196 517 21 20 102 103 469 469 102 103 496 328 328 328 434 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	PLUG; COOLER BODY EURO3 SPECIFICATION<NT3> (C)	1-13219-240-0	02	1	1012-
20	PLUG; COOLER BODY EURO3 SPECIFICATION<NT3> (D)	8-97608-567-0	02	1	1012-
20	PLUG; COOLER BODY (A)	8-94393-604-0	01	1	0812-1011
20	PLUG; COOLER BODY EURO2 SPECIFICATION<NT2> (A)	8-94393-604-0	01	1	1012-
20	PLUG; COOLER BODY (B)	8-94396-753-0	01	1	0812-1011
20	PLUG; COOLER BODY EURO2 SPECIFICATION<NT2> (B)	8-94396-753-0	01	1	1012-
21	GASKET; PLUG EURO3 SPECIFICATION<NT3> (C) ID=17.8	8-97608-568-0	02	1	1012-
21	GASKET; PLUG (B)	1-13219-253-0	01	1	0812-1011
21	GASKET; PLUG EURO2 SPECIFICATION<NT2> (B)	1-13219-253-0	01	1	1012-
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	0812-1011
21	GASKET; PLUG EURO2 SPECIFICATION<NT2> (A) M24	8-94396-755-0	01	1	1012-
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	0812-
26	CORE ASM; OIL COOLER EURO3 SPECIFICATION<NT3>	8-98062-207-0	01	1	1012-
26	CORE ASM; OIL COOLER	8-94391-738-1	01	1	0812-1011
26	CORE ASM; OIL COOLER EURO2 SPECIFICATION<NT2>	8-94391-738-1	01	1	1012-
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	0812-
102	COOLER ASM; OIL EURO3 SPECIFICATION<NT3>	8-98130-995-0	01	1	1012-1307
102	COOLER ASM; OIL EURO3 SPECIFICATION<NT3>	8-98236-650-0	01	1	1308-
102	COOLER ASM; OIL	8-97600-156-1	01	1	0812-1011
102	COOLER ASM; OIL EURO2 SPECIFICATION<NT2>	8-97600-156-1	01	1	1012-
103	BOLT; OIL COOLER EURO3 SPECIFICATION<NT3> (D) M8X18 FLANGE	8-98251-758-0	04	1	1309-
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	1012-
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	0812-1011
103	BOLT; OIL COOLER EURO3 SPECIFICATION<NT3> (C) M8X30 FLANGE	0-28650-830-0	24	1	1012-
103	BOLT; OIL COOLER (A) M8X22 FLANGE	0-28080-822-0	24	1	0812-1011
103	BOLT; OIL COOLER EURO2 SPECIFICATION<NT2> (A) M8X22 FLANGE	0-28080-822-0	24	1	1012-
111	CORE; OIL COOLER EURO3 SPECIFICATION<NT3>	8-98063-863-0	01	1	1309-
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	0812-
197	GASKET; THERMOSTAT EURO3 SPECIFICATION<NT3>	8-94391-728-0	01	1	1012-
197	GASKET; THERMOSTAT ID=25.7	8-94399-279-0	01	1	0812-1011
197	GASKET; THERMOSTAT EURO2 SPECIFICATION<NT2> ID=25.7	8-94399-279-0	01	1	1012-
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	0812-
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	0812-
379	NUT; OIL COOLER EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-108-0	04	1	1309-
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1308-
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	0812-
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1308-
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0812-
444	GASKET; ELEMENT TO BODY EURO3 SPECIFICATION<NT3> (C)	8-97601-801-0	02	1	1309-
444	GASKET; ELEMENT TO BODY EURO3 SPECIFICATION<NT3> (B) ID=38.7	1-09623-299-0	02	1	1012-
444	GASKET; ELEMENT TO BODY (A)	8-94396-810-0	02	1	0812-1011
444	GASKET; ELEMENT TO BODY EURO2 SPECIFICATION<NT2> (A)	8-94396-810-0	02	1	1012-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	0812-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	0812-
496	FILTER ASM; OIL	8-94391-015-8	01	1	0812-1307
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-
517	PLUG; THERMOSTAT,OIL COOLER EURO3 SPECIFICATION<NT3>	8-94391-731-0	01	1	1012-
517	PLUG; THERMOSTAT,OIL COOLER	8-94391-740-0	01	1	0812-1011
517	PLUG; THERMOSTAT,OIL COOLER EURO2 SPECIFICATION<NT2>	8-94391-740-0	01	1	1012-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
