Sayfa 0-40 - Isuzu EPC

0-40 — FUEL INJECTION SYSTEM (#69204) — 260 parça

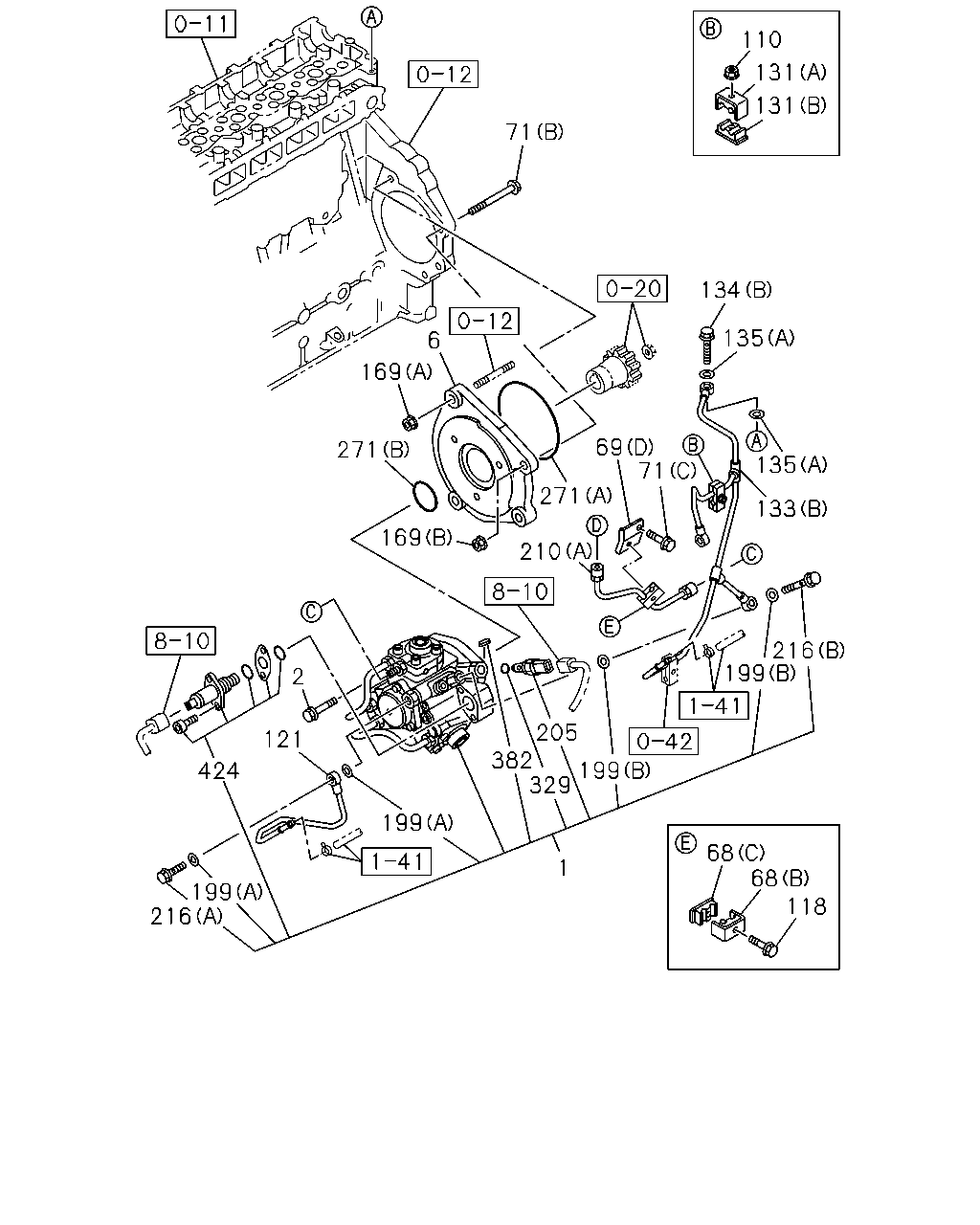

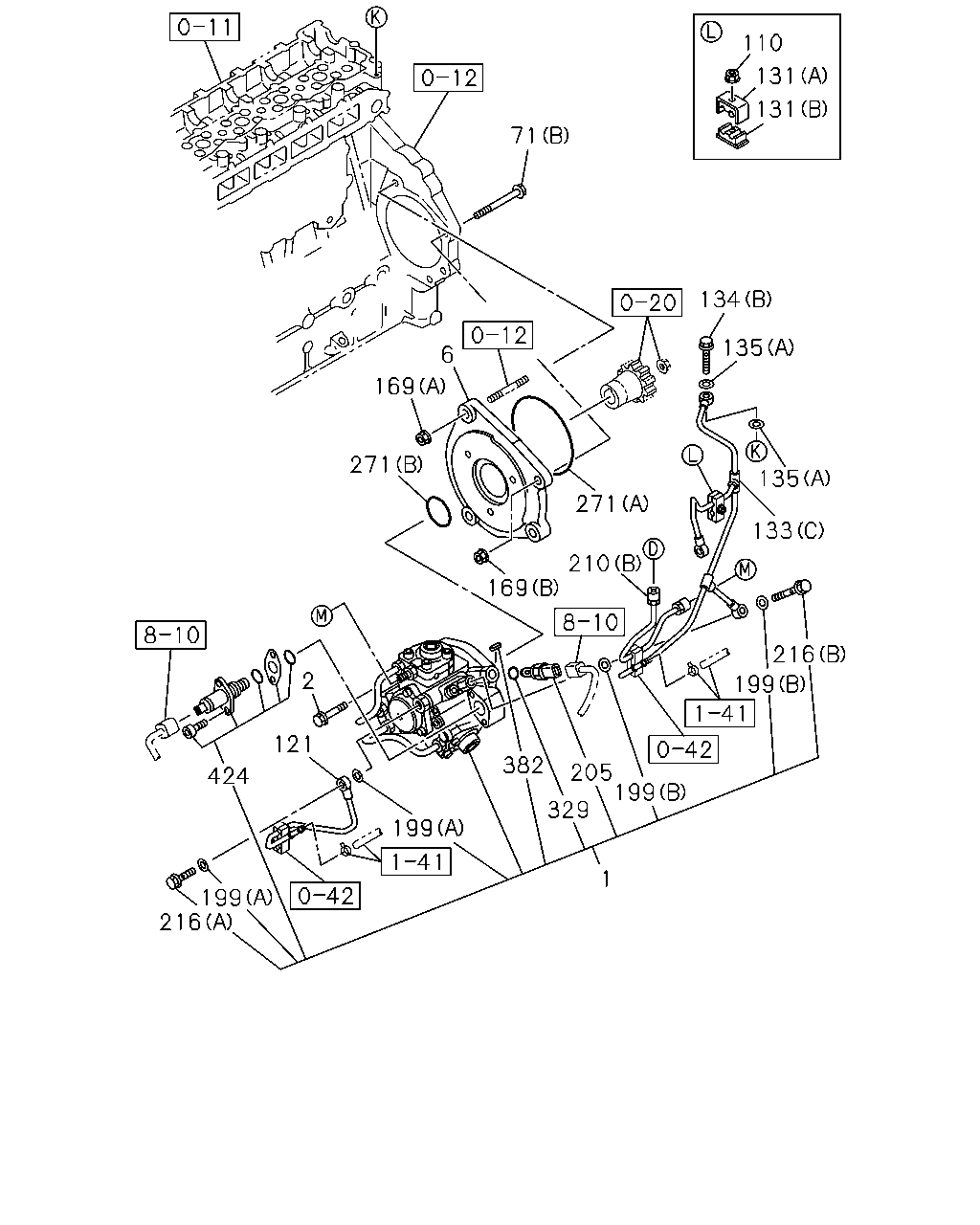

110 131 131 71 134 135 6 169 135 69 71 271 271 133 169 210 216 199 2 205 382 329 121 199 424 199 68 68 118 1 199 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; INJ	8-97605-946-7	01	1	0812-
2	BOLT; INJ PUMP M8X28	8-94399-256-0	03	1	0812-
6	BRACKET; INJ PUMP TO C/BL	8-97601-154-1	01	1	0812-
68	CLIP; INJ PIPE EURO3 SPECIFICATION<NT3> (A) ID=11 & 11 L=19	8-98039-293-0	10	1	1012-1405
68	CLIP; INJ PIPE EURO3 SPECIFICATION<NT3> (D) ID=11 & 11 L=19	8-98148-996-2	04	1	1012-1405
68	CLIP; INJ PIPE (D) ID=11 & 11 L=19	8-98148-996-2	14	1	1406-
68	CLIP; INJ PIPE (B) ID=7 & 9 L=25	8-98000-010-2	01	1	0812-1011
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2> (B) ID=7 & 9 L=25	8-98000-010-2	01	1	1012-
68	CLIP; INJ PIPE (C) ID=7 & 9 L=25	8-98000-011-2	01	1	0812-1011
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2> (C) ID=7 & 9 L=25	8-98000-011-2	01	1	1012-
68	CLIP; INJ PIPE (A) ID=11 & 11 L=19	8-98039-293-0	14	1	0812-1011
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2> (A) ID=11 & 11 L=19	8-98039-293-0	14	1	1012-1405
69	BRACKET; INJ PIPE CLIP (B)	8-98038-940-0	01	1	0812-
69	BRACKET; INJ PIPE CLIP (C)	8-98038-941-0	01	1	0812-
69	BRACKET; INJ PIPE CLIP (A)	8-98049-015-0	01	1	0812-
69	BRACKET; INJ PIPE CLIP (D)	8-98059-807-0	01	1	0812-1011
69	BRACKET; INJ PIPE CLIP EURO2 SPECIFICATION<NT2> (D)	8-98059-807-0	01	1	1012-
71	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	0812-
71	BOLT; BRKT (C) M10X16 FLANGE	0-28151-016-0	01	1	0812-1011
71	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M10X16 FLANGE	0-28151-016-0	01	1	1012-
71	BOLT; BRKT (B) M12X100 FLANGE	0-28151-200-0	01	1	0812-
110	NUT; CLIP M6 FLANGE	0-91180-106-0	05	1	0812-
118	BOLT; CLIP,INJ PIPE M6X35 FLANGE	0-28650-635-0	01	1	0812-1011
118	BOLT; CLIP,INJ PIPE EURO2 SPECIFICATION<NT2> M6X35 FLANGE	0-28650-635-0	01	1	1012-
121	PIPE; FUEL,FEED PUMP,SUCTION	8-98126-331-0	01	1	0812-
131	CLIP; OVERFLOW LEAK OFF (A) ID=7 & 9 L=25	8-98000-010-2	01	1	0812-
131	CLIP; OVERFLOW LEAK OFF (B) ID=7 & 9 L=25	8-98000-011-2	01	1	0812-
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-94391-311-0	01	1	1012-1206
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-98203-705-1	01	1	1207-
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-94391-311-0	01	1	0812-1011
133	PIPE; INJ NOZZLE LEAK OFF EURO3 SPECIFICATION<NT3> (C)	8-97610-504-0	01	1	1012-
133	PIPE; INJ NOZZLE LEAK OFF (B)	8-98059-804-0	01	1	0812-1011
133	PIPE; INJ NOZZLE LEAK OFF EURO2 SPECIFICATION<NT2> (B)	8-98059-804-0	01	1	1012-
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	06	1	0812-
134	BOLT; JOINT,LEAK OFF PIPE (B) M10X21 FLANGE	8-94396-711-0	02	1	0812-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0812-0908
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17	8-98079-755-0	01	1	0909-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6	8-97240-975-0	01	1	0812-1301
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6	8-98231-393-0	01	1	1302-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3	8-97600-925-0	06	1	0812-0908
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0	8-98065-992-0	06	1	0909-
169	NUT; BRKT (A) M10 FLANGE	0-91180-110-0	02	1	0812-
169	NUT; BRKT (B) M12 FLANGE	0-91180-112-0	01	1	0812-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	0812-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	0812-
205	SENSOR; FUEL TEMP	8-98023-581-0	01	1	0812-
210	PIPE; INJ,C/R EURO3 SPECIFICATION<NT3> (B)	8-97608-480-1	01	1	1012-
210	PIPE; INJ,C/R (A)	8-98059-805-0	01	1	0812-1011
210	PIPE; INJ,C/R EURO2 SPECIFICATION<NT2> (A)	8-98059-805-0	01	1	1012-
216	BOLT; EYE (A)	5-15759-003-0	01	1	0812-
216	BOLT; EYE (B)	8-97351-388-0	01	1	0812-
216	BOLT; EYE (C)	8-98043-033-0	01	1	0812-
271	GASKET; INJ PUMP (A) ID=139.6	1-09623-464-0	01	1	0812-
271	GASKET; INJ PUMP (B) ID=52	8-98031-844-0	01	1	0812-
329	GASKET; SENSOR,FUEL TEMP ID=9.8 OD=11.7	9-09566-110-0	01	1	0812-1201
382	KEY; DRIVE SHAFT	8-97375-384-0	01	1	0812-0910
382	KEY; DRIVE SHAFT	8-98161-995-0	01	1	0911-
424	OVERHAUL KIT; SUPPLY PUMP	8-98101-289-0	01	1	0812-0905
424	OVERHAUL KIT; SUPPLY PUMP	8-98145-449-1	01	1	0906-

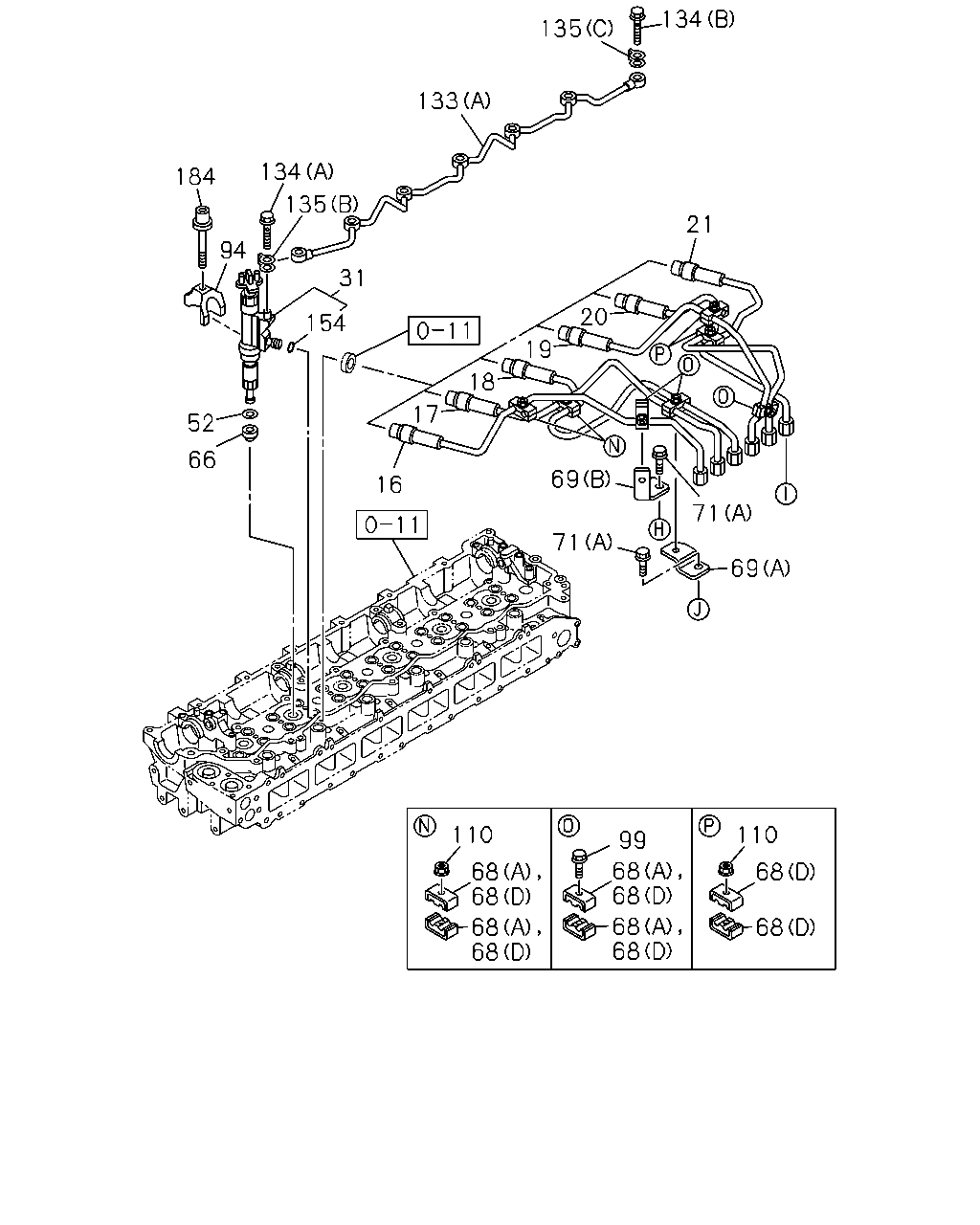

68 68 68 68 68 68 68 68 68 68 184 154 31 94 52 66 135 134 133 135 134 21 20 19 18 17 16 69 71 71 69 99 110 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	PIPE; INJ NO.1	8-98038-936-0	01	1	0812-1102
16	PIPE; INJ NO.1	8-98185-362-0	01	1	1103-1403
16	PIPE; INJ NO.1	8-98271-207-0	01	1	1404-1501
16	PIPE; INJ NO.1	8-98298-611-0	01	1	1502-
17	PIPE; INJ NO.2	8-98039-770-0	01	1	0812-1102
17	PIPE; INJ NO.2	8-98185-363-0	01	1	1103-1403
17	PIPE; INJ NO.2	8-98271-208-0	01	1	1404-1501
17	PIPE; INJ NO.2	8-98298-612-0	01	1	1502-
18	PIPE; INJ NO.3	8-98038-937-0	01	1	0812-1102
18	PIPE; INJ NO.3	8-98185-364-0	01	1	1103-1403
18	PIPE; INJ NO.3	8-98271-209-0	01	1	1404-1501
18	PIPE; INJ NO.3	8-98298-613-0	01	1	1502-
19	PIPE; INJ NO.4	8-98057-085-0	01	1	0812-1102
19	PIPE; INJ NO.4	8-98185-365-0	01	1	1103-1403
19	PIPE; INJ NO.4	8-98271-210-0	01	1	1404-1501
19	PIPE; INJ NO.4	8-98298-614-0	01	1	1502-
20	PIPE; INJ NO.5	8-98038-939-0	01	1	0812-1102
20	PIPE; INJ NO.5	8-98185-366-0	01	1	1103-1403
20	PIPE; INJ NO.5	8-98271-211-0	01	1	1404-1501
20	PIPE; INJ NO.5	8-98298-615-0	01	1	1502-
21	PIPE; INJ NO.6	8-98039-771-0	01	1	0812-1102
21	PIPE; INJ NO.6	8-98185-367-0	01	1	1103-1403
21	PIPE; INJ NO.6	8-98271-212-0	01	1	1404-1501
21	PIPE; INJ NO.6	8-98298-617-0	01	1	1502-
31	NOZZLE ASM; INJ EURO3 SPECIFICATION<NT3>	8-97609-788-6	06	1	1012-
31	NOZZLE ASM; INJ	8-97609-789-6	06	1	0812-1011
31	NOZZLE ASM; INJ EURO2 SPECIFICATION<NT2>	8-97609-789-6	06	1	1012-
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=23.3	8-94173-412-0	06	1	0812-
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-97601-447-2	06	1	0812-0909
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-98079-248-0	06	1	0910-
68	CLIP; INJ PIPE EURO3 SPECIFICATION<NT3> (A) ID=11 & 11 L=19	8-98039-293-0	10	1	1012-1405
68	CLIP; INJ PIPE EURO3 SPECIFICATION<NT3> (D) ID=11 & 11 L=19	8-98148-996-2	04	1	1012-1405
68	CLIP; INJ PIPE (D) ID=11 & 11 L=19	8-98148-996-2	14	1	1406-
68	CLIP; INJ PIPE (B) ID=7 & 9 L=25	8-98000-010-2	01	1	0812-1011
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2> (B) ID=7 & 9 L=25	8-98000-010-2	01	1	1012-
68	CLIP; INJ PIPE (C) ID=7 & 9 L=25	8-98000-011-2	01	1	0812-1011
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2> (C) ID=7 & 9 L=25	8-98000-011-2	01	1	1012-
68	CLIP; INJ PIPE (A) ID=11 & 11 L=19	8-98039-293-0	14	1	0812-1011
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2> (A) ID=11 & 11 L=19	8-98039-293-0	14	1	1012-1405
69	BRACKET; INJ PIPE CLIP (B)	8-98038-940-0	01	1	0812-
69	BRACKET; INJ PIPE CLIP (C)	8-98038-941-0	01	1	0812-
69	BRACKET; INJ PIPE CLIP (A)	8-98049-015-0	01	1	0812-
69	BRACKET; INJ PIPE CLIP (D)	8-98059-807-0	01	1	0812-1011
69	BRACKET; INJ PIPE CLIP EURO2 SPECIFICATION<NT2> (D)	8-98059-807-0	01	1	1012-
71	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	0812-
71	BOLT; BRKT (C) M10X16 FLANGE	0-28151-016-0	01	1	0812-1011
71	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M10X16 FLANGE	0-28151-016-0	01	1	1012-
71	BOLT; BRKT (B) M12X100 FLANGE	0-28151-200-0	01	1	0812-
94	BRACKET; INJ NOZZLE	8-98028-999-1	06	1	0812-
99	BOLT; CLIP,INJ,PIPE M6X35 FLANGE	0-28050-635-0	03	1	0812-
110	NUT; CLIP M6 FLANGE	0-91180-106-0	05	1	0812-
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-94391-311-0	01	1	1012-1206
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-98203-705-1	01	1	1207-
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-94391-311-0	01	1	0812-1011
133	PIPE; INJ NOZZLE LEAK OFF EURO3 SPECIFICATION<NT3> (C)	8-97610-504-0	01	1	1012-
133	PIPE; INJ NOZZLE LEAK OFF (B)	8-98059-804-0	01	1	0812-1011
133	PIPE; INJ NOZZLE LEAK OFF EURO2 SPECIFICATION<NT2> (B)	8-98059-804-0	01	1	1012-
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	06	1	0812-
134	BOLT; JOINT,LEAK OFF PIPE (B) M10X21 FLANGE	8-94396-711-0	02	1	0812-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0812-0908
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17	8-98079-755-0	01	1	0909-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6	8-97240-975-0	01	1	0812-1301
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6	8-98231-393-0	01	1	1302-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3	8-97600-925-0	06	1	0812-0908
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0	8-98065-992-0	06	1	0909-
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	9-09561-111-0	06	1	0812-1106
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	0-95690-111-0	06	1	1107-
184	BOLT; NOZZLE HOLDER M8X54	8-98008-895-0	06	1	0812-

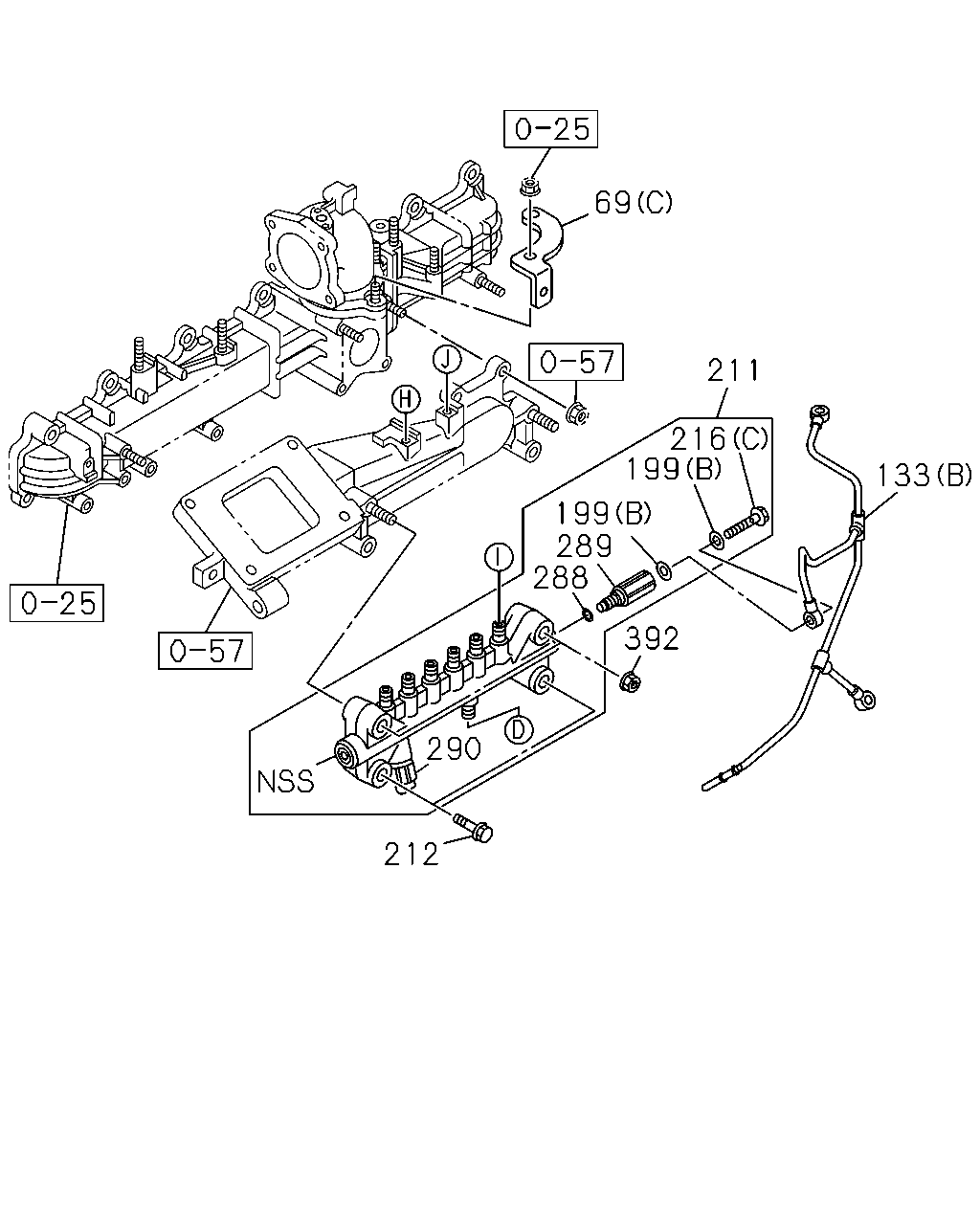

211 133 216 199 199 392 288 290 212 289 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
69	BRACKET; INJ PIPE CLIP (B)	8-98038-940-0	01	1	0812-
69	BRACKET; INJ PIPE CLIP (C)	8-98038-941-0	01	1	0812-
69	BRACKET; INJ PIPE CLIP (A)	8-98049-015-0	01	1	0812-
69	BRACKET; INJ PIPE CLIP (D)	8-98059-807-0	01	1	0812-1011
69	BRACKET; INJ PIPE CLIP EURO2 SPECIFICATION<NT2> (D)	8-98059-807-0	01	1	1012-
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-94391-311-0	01	1	1012-1206
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-98203-705-1	01	1	1207-
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-94391-311-0	01	1	0812-1011
133	PIPE; INJ NOZZLE LEAK OFF EURO3 SPECIFICATION<NT3> (C)	8-97610-504-0	01	1	1012-
133	PIPE; INJ NOZZLE LEAK OFF (B)	8-98059-804-0	01	1	0812-1011
133	PIPE; INJ NOZZLE LEAK OFF EURO2 SPECIFICATION<NT2> (B)	8-98059-804-0	01	1	1012-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	0812-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	0812-
211	RAIL ASM; COMMON	8-97609-980-2	01	1	0812-
212	BOLT; RAIL ASM M10X50 FLANGE	8-97372-243-0	02	1	0812-
216	BOLT; EYE (A)	5-15759-003-0	01	1	0812-
216	BOLT; EYE (B)	8-97351-388-0	01	1	0812-
216	BOLT; EYE (C)	8-98043-033-0	01	1	0812-
288	GASKET ID=11 OD=16.3	1-15641-046-0	01	1	0812-
289	LIMITER; FUEL PRESS	8-98032-549-0	01	1	0812-
290	SENSOR; PRESS	8-98119-790-0	01	1	0812-
392	NUT; RAIL ASM M10 FLANGE	0-91180-110-0	02	1	0812-

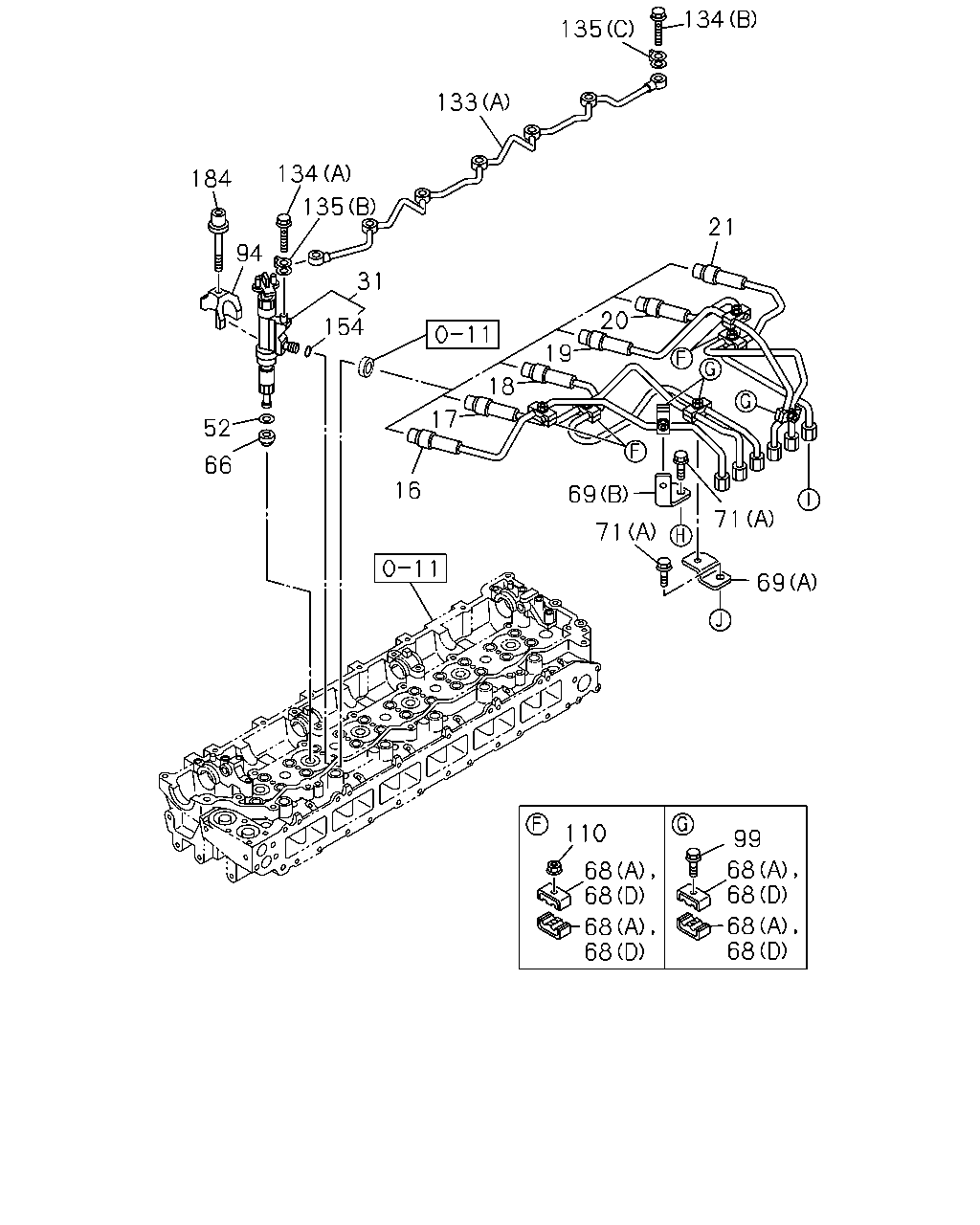

134 135 133 134 184 135 94 31 154 52 66 16 17 18 19 20 21 69 71 71 69 110 99 68 68 68 68 68 68 68 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	PIPE; INJ NO.1	8-98038-936-0	01	1	0812-1102
16	PIPE; INJ NO.1	8-98185-362-0	01	1	1103-1403
16	PIPE; INJ NO.1	8-98271-207-0	01	1	1404-1501
16	PIPE; INJ NO.1	8-98298-611-0	01	1	1502-
17	PIPE; INJ NO.2	8-98039-770-0	01	1	0812-1102
17	PIPE; INJ NO.2	8-98185-363-0	01	1	1103-1403
17	PIPE; INJ NO.2	8-98271-208-0	01	1	1404-1501
17	PIPE; INJ NO.2	8-98298-612-0	01	1	1502-
18	PIPE; INJ NO.3	8-98038-937-0	01	1	0812-1102
18	PIPE; INJ NO.3	8-98185-364-0	01	1	1103-1403
18	PIPE; INJ NO.3	8-98271-209-0	01	1	1404-1501
18	PIPE; INJ NO.3	8-98298-613-0	01	1	1502-
19	PIPE; INJ NO.4	8-98057-085-0	01	1	0812-1102
19	PIPE; INJ NO.4	8-98185-365-0	01	1	1103-1403
19	PIPE; INJ NO.4	8-98271-210-0	01	1	1404-1501
19	PIPE; INJ NO.4	8-98298-614-0	01	1	1502-
20	PIPE; INJ NO.5	8-98038-939-0	01	1	0812-1102
20	PIPE; INJ NO.5	8-98185-366-0	01	1	1103-1403
20	PIPE; INJ NO.5	8-98271-211-0	01	1	1404-1501
20	PIPE; INJ NO.5	8-98298-615-0	01	1	1502-
21	PIPE; INJ NO.6	8-98039-771-0	01	1	0812-1102
21	PIPE; INJ NO.6	8-98185-367-0	01	1	1103-1403
21	PIPE; INJ NO.6	8-98271-212-0	01	1	1404-1501
21	PIPE; INJ NO.6	8-98298-617-0	01	1	1502-
31	NOZZLE ASM; INJ EURO3 SPECIFICATION<NT3>	8-97609-788-6	06	1	1012-
31	NOZZLE ASM; INJ	8-97609-789-6	06	1	0812-1011
31	NOZZLE ASM; INJ EURO2 SPECIFICATION<NT2>	8-97609-789-6	06	1	1012-
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=23.3	8-94173-412-0	06	1	0812-
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-97601-447-2	06	1	0812-0909
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-98079-248-0	06	1	0910-
68	CLIP; INJ PIPE EURO3 SPECIFICATION<NT3> (A) ID=11 & 11 L=19	8-98039-293-0	10	1	1012-1405
68	CLIP; INJ PIPE EURO3 SPECIFICATION<NT3> (D) ID=11 & 11 L=19	8-98148-996-2	04	1	1012-1405
68	CLIP; INJ PIPE (D) ID=11 & 11 L=19	8-98148-996-2	14	1	1406-
68	CLIP; INJ PIPE (B) ID=7 & 9 L=25	8-98000-010-2	01	1	0812-1011
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2> (B) ID=7 & 9 L=25	8-98000-010-2	01	1	1012-
68	CLIP; INJ PIPE (C) ID=7 & 9 L=25	8-98000-011-2	01	1	0812-1011
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2> (C) ID=7 & 9 L=25	8-98000-011-2	01	1	1012-
68	CLIP; INJ PIPE (A) ID=11 & 11 L=19	8-98039-293-0	14	1	0812-1011
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2> (A) ID=11 & 11 L=19	8-98039-293-0	14	1	1012-1405
69	BRACKET; INJ PIPE CLIP (B)	8-98038-940-0	01	1	0812-
69	BRACKET; INJ PIPE CLIP (C)	8-98038-941-0	01	1	0812-
69	BRACKET; INJ PIPE CLIP (A)	8-98049-015-0	01	1	0812-
69	BRACKET; INJ PIPE CLIP (D)	8-98059-807-0	01	1	0812-1011
69	BRACKET; INJ PIPE CLIP EURO2 SPECIFICATION<NT2> (D)	8-98059-807-0	01	1	1012-
71	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	0812-
71	BOLT; BRKT (C) M10X16 FLANGE	0-28151-016-0	01	1	0812-1011
71	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M10X16 FLANGE	0-28151-016-0	01	1	1012-
71	BOLT; BRKT (B) M12X100 FLANGE	0-28151-200-0	01	1	0812-
94	BRACKET; INJ NOZZLE	8-98028-999-1	06	1	0812-
99	BOLT; CLIP,INJ,PIPE M6X35 FLANGE	0-28050-635-0	03	1	0812-
110	NUT; CLIP M6 FLANGE	0-91180-106-0	05	1	0812-
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-94391-311-0	01	1	1012-1206
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-98203-705-1	01	1	1207-
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-94391-311-0	01	1	0812-1011
133	PIPE; INJ NOZZLE LEAK OFF EURO3 SPECIFICATION<NT3> (C)	8-97610-504-0	01	1	1012-
133	PIPE; INJ NOZZLE LEAK OFF (B)	8-98059-804-0	01	1	0812-1011
133	PIPE; INJ NOZZLE LEAK OFF EURO2 SPECIFICATION<NT2> (B)	8-98059-804-0	01	1	1012-
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	06	1	0812-
134	BOLT; JOINT,LEAK OFF PIPE (B) M10X21 FLANGE	8-94396-711-0	02	1	0812-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0812-0908
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17	8-98079-755-0	01	1	0909-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6	8-97240-975-0	01	1	0812-1301
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6	8-98231-393-0	01	1	1302-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3	8-97600-925-0	06	1	0812-0908
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0	8-98065-992-0	06	1	0909-
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	9-09561-111-0	06	1	0812-1106
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	0-95690-111-0	06	1	1107-
184	BOLT; NOZZLE HOLDER M8X54	8-98008-895-0	06	1	0812-

110 131 131 71 169 6 134 135 135 133 271 210 169 271 2 121 424 199 216 199 382 329 205 199 199 216 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; INJ	8-97605-946-7	01	1	0812-
2	BOLT; INJ PUMP M8X28	8-94399-256-0	03	1	0812-
6	BRACKET; INJ PUMP TO C/BL	8-97601-154-1	01	1	0812-
71	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	0812-
71	BOLT; BRKT (C) M10X16 FLANGE	0-28151-016-0	01	1	0812-1011
71	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M10X16 FLANGE	0-28151-016-0	01	1	1012-
71	BOLT; BRKT (B) M12X100 FLANGE	0-28151-200-0	01	1	0812-
110	NUT; CLIP M6 FLANGE	0-91180-106-0	05	1	0812-
121	PIPE; FUEL,FEED PUMP,SUCTION	8-98126-331-0	01	1	0812-
131	CLIP; OVERFLOW LEAK OFF (A) ID=7 & 9 L=25	8-98000-010-2	01	1	0812-
131	CLIP; OVERFLOW LEAK OFF (B) ID=7 & 9 L=25	8-98000-011-2	01	1	0812-
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-94391-311-0	01	1	1012-1206
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-98203-705-1	01	1	1207-
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-94391-311-0	01	1	0812-1011
133	PIPE; INJ NOZZLE LEAK OFF EURO3 SPECIFICATION<NT3> (C)	8-97610-504-0	01	1	1012-
133	PIPE; INJ NOZZLE LEAK OFF (B)	8-98059-804-0	01	1	0812-1011
133	PIPE; INJ NOZZLE LEAK OFF EURO2 SPECIFICATION<NT2> (B)	8-98059-804-0	01	1	1012-
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	06	1	0812-
134	BOLT; JOINT,LEAK OFF PIPE (B) M10X21 FLANGE	8-94396-711-0	02	1	0812-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0812-0908
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17	8-98079-755-0	01	1	0909-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6	8-97240-975-0	01	1	0812-1301
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6	8-98231-393-0	01	1	1302-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3	8-97600-925-0	06	1	0812-0908
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0	8-98065-992-0	06	1	0909-
169	NUT; BRKT (A) M10 FLANGE	0-91180-110-0	02	1	0812-
169	NUT; BRKT (B) M12 FLANGE	0-91180-112-0	01	1	0812-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	0812-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	0812-
205	SENSOR; FUEL TEMP	8-98023-581-0	01	1	0812-
210	PIPE; INJ,C/R EURO3 SPECIFICATION<NT3> (B)	8-97608-480-1	01	1	1012-
210	PIPE; INJ,C/R (A)	8-98059-805-0	01	1	0812-1011
210	PIPE; INJ,C/R EURO2 SPECIFICATION<NT2> (A)	8-98059-805-0	01	1	1012-
216	BOLT; EYE (A)	5-15759-003-0	01	1	0812-
216	BOLT; EYE (B)	8-97351-388-0	01	1	0812-
216	BOLT; EYE (C)	8-98043-033-0	01	1	0812-
271	GASKET; INJ PUMP (A) ID=139.6	1-09623-464-0	01	1	0812-
271	GASKET; INJ PUMP (B) ID=52	8-98031-844-0	01	1	0812-
329	GASKET; SENSOR,FUEL TEMP ID=9.8 OD=11.7	9-09566-110-0	01	1	0812-1201
382	KEY; DRIVE SHAFT	8-97375-384-0	01	1	0812-0910
382	KEY; DRIVE SHAFT	8-98161-995-0	01	1	0911-
424	OVERHAUL KIT; SUPPLY PUMP	8-98101-289-0	01	1	0812-0905
424	OVERHAUL KIT; SUPPLY PUMP	8-98145-449-1	01	1	0906-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
