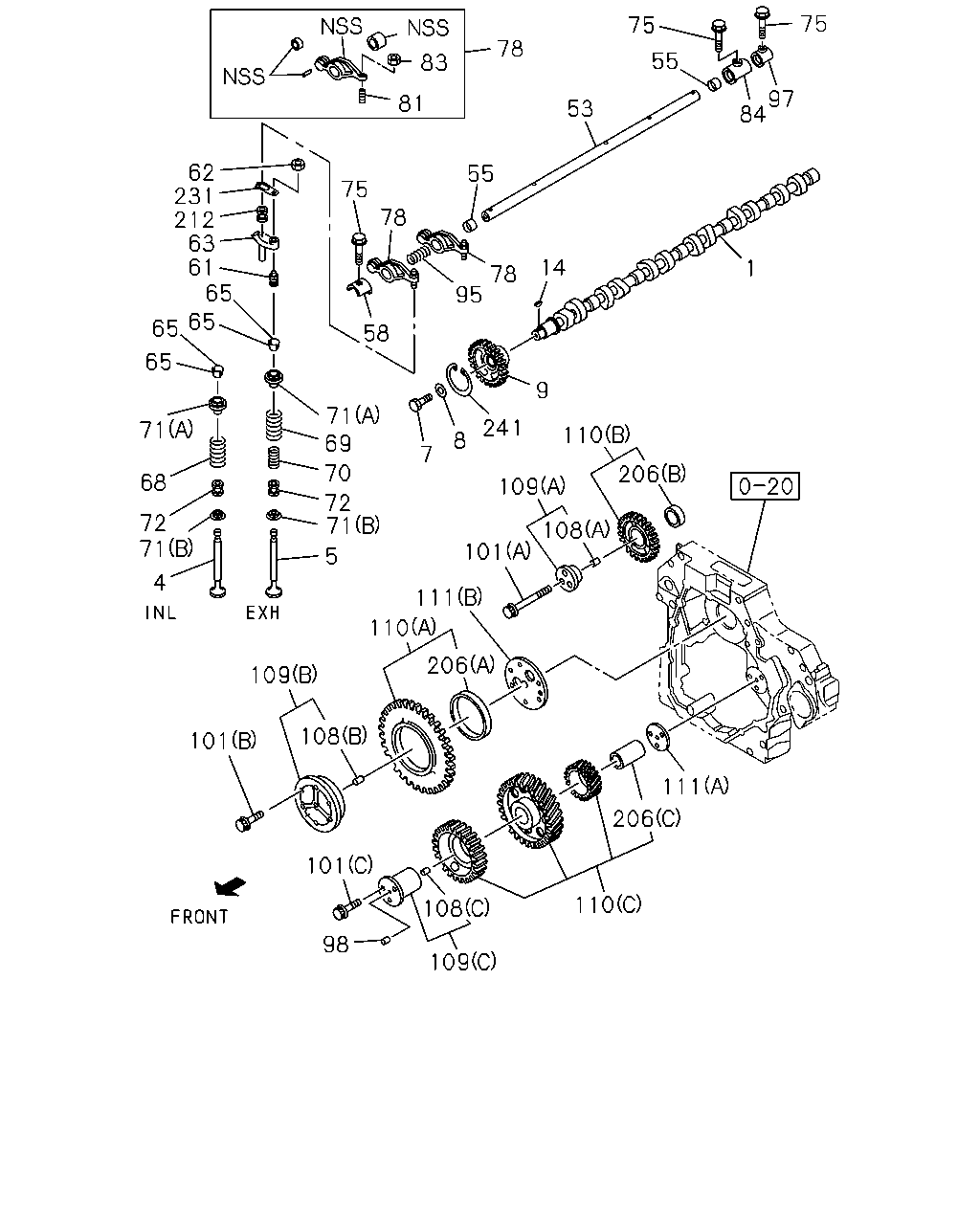

0-14 — CAMSHAFT AND VALVE (#6920) — 190 parça

75 75 78 55 83 97 84 81 53 62 231 212 63 61 65 55 75 78 14 1 78 95 65 65 58 65 9 71 69 241 71 110 8 7 70 206 68 109 72 71 72 71 108 101 5 4 111 110 206 109 108 101 111 206 101 110 108 98 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CAMSHAFT	1-12511-255-0	01	1	9812-9901	●
1	CAMSHAFT	1-12511-255-1	01	1	9902-9904	●	●	●
1	CAMSHAFT	1-12511-255-1	01	1	9905-9906	●	●	●	●
1	CAMSHAFT	1-12511-255-2	01	1	9907-	●	●	●
4	VALVE; INL	1-12551-151-0	12	1	9812-9901	●
4	VALVE; INL	1-12551-151-1	12	1	9902-	●		●
4	VALVE; INL	1-12551-145-2	12	1	9902-9904		●
4	VALVE; INL	1-12551-145-2	12	1	9905-9908		●		●
4	VALVE; INL	1-12551-145-3	12	1	9909-		●
5	VALVE; EXH	1-12552-098-0	12	1	9812-9901	●
5	VALVE; EXH	1-12552-098-0	12	1	9902-9902	●		●
5	VALVE; EXH	1-12552-109-1	12	1	9903-	●		●
5	VALVE; EXH	1-12552-102-0	12	1	9902-9904		●
5	VALVE; EXH	1-12552-102-0	12	1	9905-9908		●		●
5	VALVE; EXH	1-12552-102-1	12	1	9909-		●
7	BOLT; CM/SHF GEAR M14X28	9-92061-428-0	01	1	9812-9901	●
7	BOLT; CM/SHF GEAR M14X28	9-92061-428-0	01	1	9902-9904	●	●	●
7	BOLT; CM/SHF GEAR M14X28	9-92061-428-0	01	1	9905-9906	●	●	●	●
7	BOLT; CM/SHF GEAR M14X28	9-92061-428-0	01	1	9907-	●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9812-9901	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9902-9904	●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9905-9906	●	●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9907-	●	●	●
9	GEAR; CM/SHF Z=54	1-12522-043-1	01	1	9812-9901	●
9	GEAR; CM/SHF Z=54	1-12522-043-1	01	1	9902-9910	●	●	●
9	GEAR; CM/SHF Z=54	1-12522-055-2	01	1	9911-	●	●	●
14	KEY; CM/SHF	9-08055-516-0	01	1	9812-9901	●
14	KEY; CM/SHF	9-08055-516-0	01	1	9902-9904	●	●	●
14	KEY; CM/SHF	9-08055-516-0	01	1	9905-9906	●	●	●	●
14	KEY; CM/SHF	9-08055-516-0	01	1	9907-	●	●	●
53	SHAFT; ROCKER ARM	1-12621-090-0	01	1	9812-9901	●
53	SHAFT; ROCKER ARM	1-12621-090-0	01	1	9902-	●	●	●
55	PLUG; ROCKER SHAFT END OD=18	9-11129-082-0	02	1	9812-9901	●
55	PLUG; ROCKER SHAFT END OD=18	9-11129-082-0	02	1	9902-	●	●	●
58	BRACKET; ROCKER SHAFT,FRT	1-12628-070-1	01	1	9812-9901	●
58	BRACKET; ROCKER SHAFT,FRT	1-12628-070-1	01	1	9902-	●		●
58	BRACKET; ROCKER SHAFT,FRT	1-12628-071-0	01	1	9902-9904		●
58	BRACKET; ROCKER SHAFT,FRT	1-12628-071-0	01	1	9905-9908		●		●
58	BRACKET; ROCKER SHAFT,FRT	1-12628-071-0	01	1	9909-		●
61	SCREW; ADJ,BRIDGE	9-12616-053-0	12	1	9812-9901	●
61	SCREW; ADJ,BRIDGE	9-12616-053-0	12	1	9902-0012	●	●	●
61	SCREW; ADJ,BRIDGE	9-12616-053-0	12	1	0101-		●
61	SCREW; ADJ,BRIDGE	1-12616-042-0	12	1	0101-	●		●
62	NUT; ADJ SCREW LK BRIDGE M10	9-09840-310-0	12	1	9812-9901	●
62	NUT; ADJ SCREW LK BRIDGE M10	9-09840-310-0	12	1	9902-	●	●	●
63	BRIDGE	1-12611-277-1	12	1	9812-9901	●
63	BRIDGE	1-12611-277-2	12	1	9902-	●		●
63	BRIDGE	1-12611-281-0	12	1	9902-9904		●
63	BRIDGE	1-12611-281-0	12	1	9905-9908		●		●
63	BRIDGE	1-12611-281-0	12	1	9909-		●
65	COLLAR; SPLIT	1-12565-007-0	48	1	9812-9901	●
65	COLLAR; SPLIT	1-12565-007-0	48	1	9902-9904	●	●	●
65	COLLAR; SPLIT	1-12565-007-0	48	1	9905-9906	●	●	●	●
65	COLLAR; SPLIT	1-12565-007-0	48	1	9907-	●	●	●
68	SPRING; VLV	1-12561-092-0	12	1	9812-9901	●
68	SPRING; VLV	1-12561-092-0	12	1	9902-9904	●	●	●
68	SPRING; VLV	1-12561-092-0	12	1	9905-9906	●	●	●	●
68	SPRING; VLV	1-12561-092-0	12	1	9907-	●	●	●
69	SPRING; VLV,OUTER	1-12561-093-0	12	1	9812-9901	●
69	SPRING; VLV,OUTER	1-12561-093-0	12	1	9902-9904	●	●	●
69	SPRING; VLV,OUTER	1-12561-093-0	12	1	9905-9906	●	●	●	●
69	SPRING; VLV,OUTER	1-12561-093-0	12	1	9907-	●	●	●
70	SPRING; VLV,INNER	1-12562-060-0	12	1	9812-9901	●
70	SPRING; VLV,INNER	1-12562-060-0	12	1	9902-9904	●	●	●
70	SPRING; VLV,INNER	1-12562-060-0	12	1	9905-9906	●	●	●	●
70	SPRING; VLV,INNER	1-12562-060-0	12	1	9907-	●	●	●
71	SEAT; SPR (A) UPPER	1-12563-055-0	24	1	9812-9901	●
71	SEAT; SPR (A) UPPER	1-12563-055-0	24	1	9902-9904	●	●	●
71	SEAT; SPR (A) UPPER	1-12563-055-0	24	1	9905-9906	●	●	●	●
71	SEAT; SPR (A) UPPER	1-12563-055-0	24	1	9907-	●	●	●
71	SEAT; SPR (B) LOWER	1-12563-056-2	24	1	9812-9901	●
71	SEAT; SPR (B) LOWER	1-12563-056-2	24	1	9902-9904	●	●	●
71	SEAT; SPR (B) LOWER	1-12563-056-2	24	1	9905-9906	●	●	●	●
71	SEAT; SPR (B) LOWER	1-12563-056-2	24	1	9907-	●	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-019-1	24	1	9812-9901	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-019-1	24	1	9902-9904	●	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-019-1	24	1	9905-9906	●	●	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-019-1	24	1	9907-0005	●	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-020-0	24	1	0006-	●	●	●
75	BOLT; BRKT M12X97 FLANGE	1-09044-087-1	07	1	9812-9901	●
75	BOLT; BRKT M12X97 FLANGE	1-09044-087-1	07	1	9902-	●	●	●
78	ARM; ROCKER	1-12610-061-1	12	1	9812-9901	●
78	ARM; ROCKER	1-12610-061-1	12	1	9902-	●	●	●
81	SCREW; ADJ,ROCKER ARM	1-12616-034-1	12	1	9812-9901	●
81	SCREW; ADJ,ROCKER ARM	1-12616-034-1	12	1	9902-	●	●	●
83	NUT; ADJ SCREW,LK M12	9-99110-512-0	12	1	9812-9901	●
83	NUT; ADJ SCREW,LK M12	9-99110-512-0	12	1	9902-	●	●	●
84	BRACKET; ROCKER SHAFT,INTER	1-12628-068-1	05	1	9812-9901	●
84	BRACKET; ROCKER SHAFT,INTER	1-12628-068-1	05	1	9902-	●		●
84	BRACKET; ROCKER SHAFT,INTER	1-12628-069-0	05	1	9902-9904		●
84	BRACKET; ROCKER SHAFT,INTER	1-12628-069-0	05	1	9905-9908		●		●
84	BRACKET; ROCKER SHAFT,INTER	1-12628-069-0	05	1	9909-		●
95	SPRING; ROCKER SHAFT	1-09580-472-1	06	1	9812-9901	●
95	SPRING; ROCKER SHAFT	1-09580-472-1	06	1	9902-	●	●	●
97	BRACKET; ROCKER SHAFT,RR	1-12628-072-1	01	1	9812-9901	●
97	BRACKET; ROCKER SHAFT,RR	1-12628-072-1	01	1	9902-	●		●
97	BRACKET; ROCKER SHAFT,RR	1-12628-073-0	01	1	9902-9904		●
97	BRACKET; ROCKER SHAFT,RR	1-12628-073-0	01	1	9905-9908		●		●
97	BRACKET; ROCKER SHAFT,RR	1-12628-073-0	01	1	9909-		●
98	PIN; SHAFT SET OD=8 L=14	9-08160-814-0	01	1	9812-9901	●
98	PIN; SHAFT SET OD=8 L=14	9-08160-814-0	01	1	9902-9904	●	●	●
98	PIN; SHAFT SET OD=8 L=14	9-08160-814-0	01	1	9905-9906	●	●	●	●
98	PIN; SHAFT SET OD=8 L=14	9-08160-814-0	01	1	9907-0103	●	●	●
101	BOLT; THRUST COLLAR (A) M10X40 FLANGE	0-28181-040-0	03	1	9812-9901	●
101	BOLT; THRUST COLLAR (A) M10X40 FLANGE	0-28181-040-0	03	1	9902-9904	●	●	●
101	BOLT; THRUST COLLAR (A) M10X40 FLANGE	0-28181-040-0	03	1	9905-9906	●	●	●	●
101	BOLT; THRUST COLLAR (A) M10X40 FLANGE	0-28181-040-0	03	1	9907-	●	●	●
101	BOLT; THRUST COLLAR (B) M10X60 FLANGE	0-28181-060-0	06	1	9812-9901	●
101	BOLT; THRUST COLLAR (B) M10X60 FLANGE	0-28181-060-0	06	1	9902-9904	●	●	●
101	BOLT; THRUST COLLAR (B) M10X60 FLANGE	0-28181-060-0	06	1	9905-9906	●	●	●	●
101	BOLT; THRUST COLLAR (B) M10X60 FLANGE	0-28181-060-0	06	1	9907-	●	●	●
101	BOLT; THRUST COLLAR (C) M12X114	1-09070-087-2	03	1	9812-9901	●
101	BOLT; THRUST COLLAR (C) M12X114	1-09070-087-2	03	1	9902-9904	●	●	●
101	BOLT; THRUST COLLAR (C) M12X114	1-09070-087-2	03	1	9905-9906	●	●	●	●
101	BOLT; THRUST COLLAR (C) M12X114	1-09070-087-2	03	1	9907-	●	●	●
108	DOWEL; SHAFT (C)	1-12539-024-0	01	1	9812-9901	●
108	DOWEL; SHAFT (C)	1-12539-024-0	01	1	9902-9904	●	●	●
108	DOWEL; SHAFT (C)	1-12539-024-0	01	1	9905-9906	●	●	●	●
108	DOWEL; SHAFT (C)	1-12539-024-0	01	1	9907-0103	●	●	●
108	DOWEL; SHAFT (A)	8-94108-075-1	01	1	9812-9901	●
108	DOWEL; SHAFT (A)	8-94108-075-1	01	1	9902-9904	●	●	●
108	DOWEL; SHAFT (A)	8-94108-075-1	01	1	9905-9906	●	●	●	●
108	DOWEL; SHAFT (A)	8-94108-075-1	01	1	9907-0103	●	●	●
108	DOWEL; SHAFT (B) OD=12 L=32	9-08161-232-0	01	1	9812-9901	●
108	DOWEL; SHAFT (B) OD=12 L=32	9-08161-232-0	01	1	9902-9904	●	●	●
108	DOWEL; SHAFT (B) OD=12 L=32	9-08161-232-0	01	1	9905-9906	●	●	●	●
108	DOWEL; SHAFT (B) OD=12 L=32	9-08161-232-0	01	1	9907-	●	●	●
109	SHAFT; IDLE GEAR (C)	1-12531-048-4	01	1	9812-9901	●
109	SHAFT; IDLE GEAR (C)	1-12531-048-4	01	1	9902-9904	●	●	●
109	SHAFT; IDLE GEAR (C)	1-12531-048-4	01	1	9905-9906	●	●	●	●
109	SHAFT; IDLE GEAR (C)	1-12531-048-4	01	1	9907-0103	●	●	●
109	SHAFT; IDLE GEAR (C)	1-12531-092-1	01	1	0104-	●	●	●
109	SHAFT; IDLE GEAR (A)	1-12531-050-4	01	1	9812-9901	●
109	SHAFT; IDLE GEAR (A)	1-12531-050-4	01	1	9902-9904	●	●	●
109	SHAFT; IDLE GEAR (A)	1-12531-050-4	01	1	9905-9906	●	●	●	●
109	SHAFT; IDLE GEAR (A)	1-12531-050-4	01	1	9907-0103	●	●	●
109	SHAFT; IDLE GEAR (A)	1-12531-093-0	01	1	0104-	●	●	●
109	SHAFT; IDLE GEAR (B)	1-12531-076-0	01	1	9812-9901	●
109	SHAFT; IDLE GEAR (B)	1-12531-076-0	01	1	9902-9904	●	●	●
109	SHAFT; IDLE GEAR (B)	1-12531-076-0	01	1	9905-9906	●	●	●	●
109	SHAFT; IDLE GEAR (B)	1-12531-076-2	01	1	9907-	●	●	●
110	GEAR ASM; IDLE (B)	1-12523-215-3	01	1	9812-9901	●
110	GEAR ASM; IDLE (B)	1-12523-215-3	01	1	9902-9904	●	●	●
110	GEAR ASM; IDLE (B)	1-12523-215-3	01	1	9905-9906	●	●	●	●
110	GEAR ASM; IDLE (B)	1-12523-215-3	01	1	9907-	●	●	●
110	GEAR ASM; IDLE (C)	1-12523-231-5	01	1	9812-9909	●
110	GEAR ASM; IDLE EXC. EURO2 SPECIFICATION<THN> (C)	1-12523-231-6	01	1	9910-	●
110	GEAR ASM; IDLE (A)	1-12523-270-0	01	1	9812-9901	●
110	GEAR ASM; IDLE (A)	1-12523-270-0	01	1	9902-9904	●	●	●
110	GEAR ASM; IDLE (A)	1-12523-270-0	01	1	9905-9906	●	●	●	●
110	GEAR ASM; IDLE (A)	1-12523-270-0	01	1	9907-9910	●	●	●
110	GEAR ASM; IDLE (A)	1-12523-313-0	01	1	9911-	●	●	●
110	GEAR ASM; IDLE TROPICAL ZONE KIT<WB6> (C)	1-12523-325-2	01	1	9905-		●
110	GEAR ASM; IDLE (C)	1-12523-232-4	01	1	9902-9904		●	●
110	GEAR ASM; IDLE EXC. TROPICAL ZONE KIT<WB6> (C)	1-12523-232-4	01	1	9905-0001		●
110	GEAR ASM; IDLE (C)	1-12523-232-4	01	1	9905-0001			●	●
110	GEAR ASM; IDLE EXC. TROPICAL ZONE KIT<WB6> (C)	1-12523-232-6	01	1	0002-		●
110	GEAR ASM; IDLE EURO2 SPECIFICATION<THN> (C)	1-12523-232-6	01	1	0002-			●
111	COLLAR; THRUST,IDLE GEAR (A)	1-12535-008-1	01	1	9812-9901	●
111	COLLAR; THRUST,IDLE GEAR (A)	1-12535-008-1	01	1	9902-9904	●	●	●
111	COLLAR; THRUST,IDLE GEAR (A)	1-12535-008-1	01	1	9905-9906	●	●	●	●
111	COLLAR; THRUST,IDLE GEAR (A)	1-12535-008-1	01	1	9907-	●	●	●
111	COLLAR; THRUST,IDLE GEAR (B)	1-12535-019-0	01	1	9812-9901	●
111	COLLAR; THRUST,IDLE GEAR (B)	1-12535-019-0	01	1	9902-9904	●	●	●
111	COLLAR; THRUST,IDLE GEAR (B)	1-12535-019-0	01	1	9905-9906	●	●	●	●
111	COLLAR; THRUST,IDLE GEAR (B)	1-12535-019-0	01	1	9907-	●	●	●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	1-09330-108-0	01	1	9812-9901	●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	1-09330-108-0	01	1	9902-9904	●	●	●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	1-09330-108-0	01	1	9905-9906	●	●	●	●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	1-09330-108-0	01	1	9907-	●	●	●
206	BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	1-09330-113-0	01	1	9812-9901	●
206	BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	1-09330-113-0	01	1	9902-9904	●	●	●
206	BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	1-09330-113-0	01	1	9905-9909	●	●	●	●
206	BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	1-09330-113-0	01	1	9910-	●	●	●
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-09330-124-0	01	1	9812-9901	●
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-09330-124-0	01	1	9902-9904	●	●	●
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-09330-124-0	01	1	9905-9906	●	●	●	●
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-09330-124-0	01	1	9907-	●	●	●
212	CAP; ADJ SCREW	1-12616-040-0	12	1	9812-9901	●
212	CAP; ADJ SCREW	1-12616-040-0	12	1	9902-	●		●
212	CAP; ADJ SCREW	1-12616-037-0	12	1	9902-9904		●
212	CAP; ADJ SCREW	1-12616-037-0	12	1	9905-9908		●		●
212	CAP; ADJ SCREW	1-12616-037-0	12	1	9909-		●
231	PLATE; CAP	1-12619-011-2	12	1	9812-9901	●
231	PLATE; CAP	1-12619-011-2	12	1	9902-	●		●
231	PLATE; CAP	1-12619-004-0	12	1	9902-9904		●
231	PLATE; CAP	1-12619-004-0	12	1	9905-9908		●		●
231	PLATE; CAP	1-12619-004-0	12	1	9909-		●
241	RING; FRICTION	1-12529-003-0	01	1	9812-9901	●
241	RING; FRICTION	1-12529-003-0	01	1	9902-	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
