0-11 — CYLINDER HEAD (#6917) — 277 parça

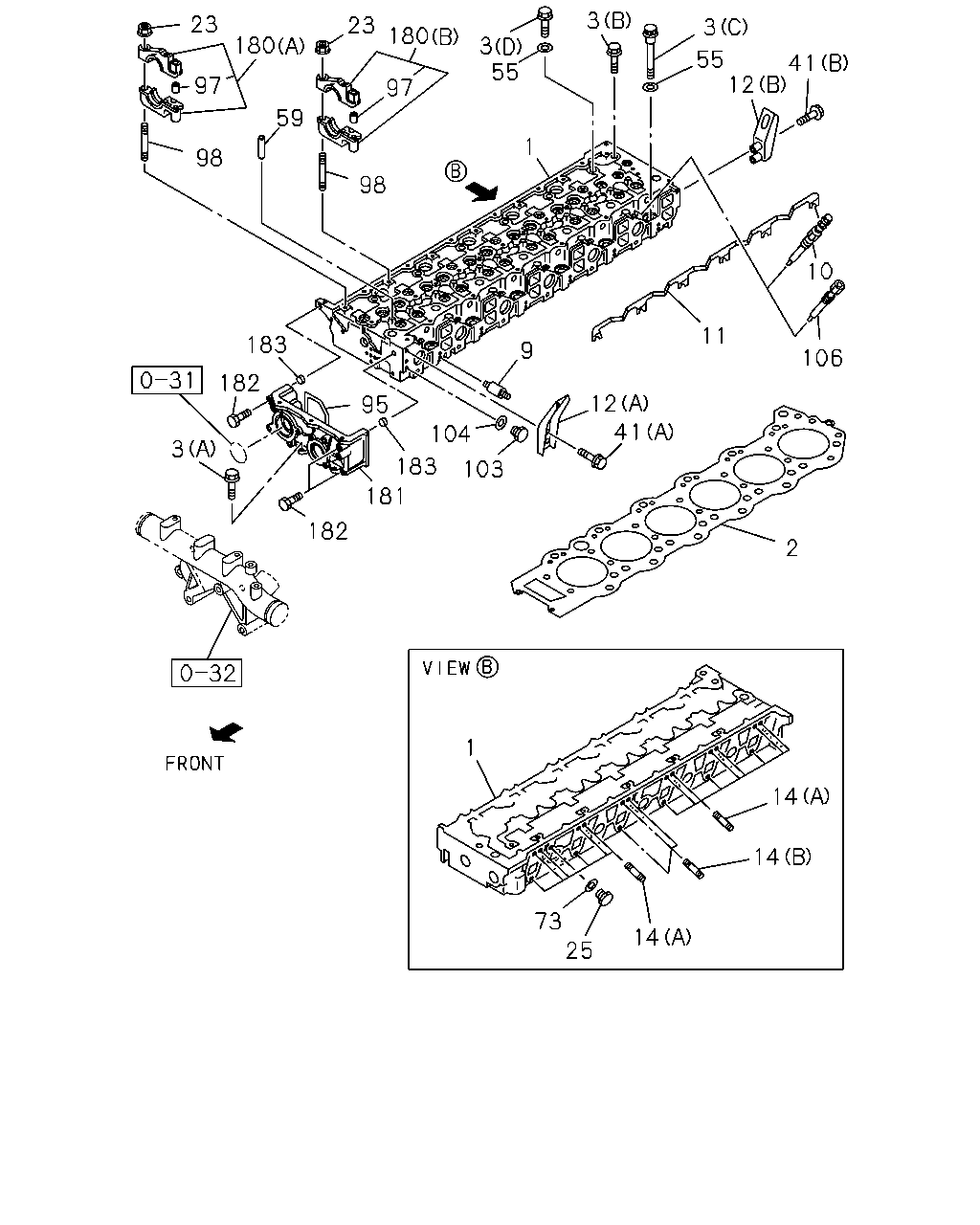

çizim 5919
3 23 23 3 55 55 41 12 97 97 59 1 98 98 10 95 11 183 9 106 182 12 41 104 3 183 103 181 182 2 1 14 14 73 14 25 180 180 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HEAD ASM; CYL 1-11110-861-8 01 1 9812-9901 ●
1 HEAD ASM; CYL 1-11110-861-9 01 1 9902- ● ●
1 HEAD ASM; CYL 1-11110-902-0 01 1 9902-9904 ●
1 HEAD ASM; CYL 1-11110-902-0 01 1 9905-9908 ● ●
1 HEAD ASM; CYL 1-11110-902-3 01 1 9909- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-265-1 01 1 9812-9901 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-265-2 01 1 9902- ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-271-0 01 1 9902-9904 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-271-0 01 1 9905-9908 ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-271-1 01 1 9909- ●
3 BOLT; CYL HD TO BLOCK
(A) M10X35 FLANGE 		0-28181-035-0 02 1 9812-9901 ●
3 BOLT; CYL HD TO BLOCK
(A) M10X35 FLANGE 		0-28181-035-0 02 1 9902-9904 ● ● ●
3 BOLT; CYL HD TO BLOCK
(A) M10X35 FLANGE 		0-28181-035-0 02 1 9905-9906 ● ● ● ●
3 BOLT; CYL HD TO BLOCK
(A) M10X35 FLANGE 		0-28181-035-0 02 1 9907- ● ● ●
3 BOLT; CYL HD TO BLOCK
(B) M12X120 FLANGE 		0-28186-212-0 01 1 9812-9901 ●
3 BOLT; CYL HD TO BLOCK
(B) M12X120 FLANGE 		0-28186-212-0 01 1 9902-9904 ● ● ●
3 BOLT; CYL HD TO BLOCK
(B) M12X120 FLANGE 		0-28186-212-0 01 1 9905-9906 ● ● ● ●
3 BOLT; CYL HD TO BLOCK
(B) M12X120 FLANGE 		0-28186-212-0 01 1 9907- ● ● ●
3 BOLT; CYL HD TO BLOCK
(C) M18X115 		1-09070-114-2 06 1 9812-9901 ●
3 BOLT; CYL HD TO BLOCK
(C) M18X115 		1-09070-114-2 06 1 9902-9902 ● ● ●
3 BOLT; CYL HD TO BLOCK
(C) M18X115 FLANGE 		1-09070-141-0 06 1 9903-9904 ● ● ●
3 BOLT; CYL HD TO BLOCK
(C) M18X115 FLANGE 		1-09070-141-0 06 1 9905-9906 ● ● ● ●
3 BOLT; CYL HD TO BLOCK
(C) M18X115 FLANGE 		1-09070-141-0 06 1 9907- ● ● ●
3 BOLT; CYL HD TO BLOCK
(D) M18X159 		1-09070-115-2 20 1 9812-9901 ●
3 BOLT; CYL HD TO BLOCK
(D) M18X159 		1-09070-115-2 20 1 9902-9902 ● ● ●
3 BOLT; CYL HD TO BLOCK
(D) M18X159 		1-09070-142-0 20 1 9903-9904 ● ● ●
3 BOLT; CYL HD TO BLOCK
(D) M18X159 		1-09070-142-0 20 1 9905-9906 ● ● ● ●
3 BOLT; CYL HD TO BLOCK
(D) M18X159 		1-09070-142-0 20 1 9907- ● ● ●
9 STUD; INL MANIF
M10X13,M10X17 L=65 		1-09309-008-0 12 1 9812-9901 ●
9 STUD; INL MANIF
M10X13,M10X17 L=65 		1-09309-008-0 12 1 9902-9904 ● ● ●
9 STUD; INL MANIF
M10X13,M10X17 L=65 		1-09309-008-0 12 1 9905-9906 ● ● ● ●
9 STUD; INL MANIF
M10X13,M10X17 L=65 		1-09309-008-0 12 1 9907- ● ● ●
10 PLUG; GLOW 1-82513-043-0 06 1 9812-9901 ●
10 PLUG; GLOW
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> 		1-82513-043-1 06 1 9902- ● ● ●
11 CONNECTOR; GLOW PLUG 1-19732-030-1 01 1 9812-9901 ●
11 CONNECTOR; GLOW PLUG
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> 		1-19732-030-2 01 1 9902- ● ● ●
12 HANGER; ENG,RR
(B) REAR 		1-11777-149-2 02 1 9812-9901 ●
12 HANGER; ENG,RR
(B) REAR 		1-11777-149-2 02 1 9902-9904 ● ● ●
12 HANGER; ENG,RR
(B) REAR 		1-11777-149-2 02 1 9905-9906 ● ● ● ●
12 HANGER; ENG,RR
(B) REAR 		1-11777-149-2 02 1 9907- ● ● ●
12 HANGER; ENG,RR
(A) FRONT 		1-11777-216-1 01 1 9812-9901 ●
12 HANGER; ENG,RR
(A) FRONT 		1-11777-216-1 01 1 9902-9904 ● ● ●
12 HANGER; ENG,RR
(A) FRONT 		1-11777-216-1 01 1 9905-9906 ● ● ● ●
12 HANGER; ENG,RR
(A) FRONT 		1-11777-216-1 01 1 9907- ● ● ●
14 STUD; EXH MANIF
(A) M10X95 L=110 		1-09302-063-0 15 1 9812-9901 ●
14 STUD; EXH MANIF
(A) M10X95 L=110 		1-09302-063-0 15 1 9902-9904 ● ● ●
14 STUD; EXH MANIF
(A) M10X95 L=110 		1-09302-063-0 15 1 9905-9906 ● ● ● ●
14 STUD; EXH MANIF
(A) M10X95 L=110 		1-09302-063-0 15 1 9907- ● ● ●
14 STUD; EXH MANIF
(B) M10X130 L=145 		1-09302-107-0 03 1 9812-9901 ●
14 STUD; EXH MANIF
(B) M10X130 L=145 		1-09302-107-0 03 1 9902-9904 ● ● ●
14 STUD; EXH MANIF
(B) M10X130 L=145 		1-09302-107-0 03 1 9905-9906 ● ● ● ●
14 STUD; EXH MANIF
(B) M10X130 L=145 		1-09302-107-0 03 1 9907- ● ● ●
23 NUT; CAM BRKT
M4 FLANGE 		1-09440-004-0 14 1 9812-9901 ●
23 NUT; CAM BRKT
M4 FLANGE 		1-09440-004-0 14 1 9902-9904 ● ● ●
23 NUT; CAM BRKT
M4 FLANGE 		1-09440-004-0 14 1 9905-9906 ● ● ● ●
23 NUT; CAM BRKT
M4 FLANGE 		1-09440-004-0 14 1 9907- ● ● ●
25 PLUG; CYL HD
M14X9 		9-99202-314-0 01 1 9812-9901 ●
25 PLUG; CYL HD
M14X9 		9-99202-314-0 01 1 9902-9904 ● ● ●
25 PLUG; CYL HD
M14X9 		9-99202-314-0 01 1 9905-9906 ● ● ● ●
25 PLUG; CYL HD
M14X9 		9-99202-314-0 01 1 9907- ● ● ●
41 BOLT; ENG HANGER
(A) FRONT M12X25 FLANGE 		0-28191-225-0 02 1 9812-9901 ●
41 BOLT; ENG HANGER
(A) FRONT M12X25 FLANGE 		0-28191-225-0 02 1 9902-9904 ● ● ●
41 BOLT; ENG HANGER
(A) FRONT M12X25 FLANGE 		0-28191-225-0 02 1 9905-9906 ● ● ● ●
41 BOLT; ENG HANGER
(A) FRONT M12X25 FLANGE 		0-28191-225-0 02 1 9907- ● ● ●
41 BOLT; ENG HANGER
(B) REAR M12X50 FLANGE 		0-28191-250-0 04 1 9812-9901 ●
41 BOLT; ENG HANGER
(B) REAR M12X50 FLANGE 		0-28191-250-0 04 1 9902-9904 ● ● ●
41 BOLT; ENG HANGER
(B) REAR M12X50 FLANGE 		0-28191-250-0 04 1 9905-9906 ● ● ● ●
41 BOLT; ENG HANGER
(B) REAR M12X50 FLANGE 		0-28191-250-0 04 1 9907- ● ● ●
55 WASHER; PL,CYL HD TO BLOCK
ID=18.2 OD=29 		1-09503-032-0 26 1 9812-9901 ●
55 WASHER; PL,CYL HD TO BLOCK
ID=18.2 OD=29 		1-09503-032-0 26 1 9902-9904 ● ● ●
55 WASHER; PL,CYL HD TO BLOCK
ID=18.2 OD=29 		1-09503-032-0 26 1 9905-9906 ● ● ● ●
55 WASHER; PL,CYL HD TO BLOCK
ID=18.2 OD=29 		1-09503-032-0 26 1 9907- ● ● ●
59 GUIDE; BRIDGE 1-11729-005-0 12 1 9812-9901 ●
59 GUIDE; BRIDGE 1-11729-005-0 12 1 9902-9904 ● ● ●
59 GUIDE; BRIDGE 1-11729-005-0 12 1 9905-9906 ● ● ● ●
59 GUIDE; BRIDGE 1-11729-005-0 12 1 9907- ● ● ●
73 GASKET; PLUG,HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 01 1 9812-9901 ●
73 GASKET; PLUG,HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 01 1 9902-9904 ● ● ●
73 GASKET; PLUG,HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 01 1 9905-9906 ● ● ● ●
73 GASKET; PLUG,HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 01 1 9907- ● ● ●
95 GASKET; CYL HD TO GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-403-0 01 1 9812-9901 ●
95 GASKET; CYL HD TO GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-403-0 01 1 9902- ● ● ●
97 DOWEL; CAM BRKT SET
OD=16 		1-13119-005-0 28 1 9812-9901 ●
97 DOWEL; CAM BRKT SET
OD=16 		1-13119-005-0 28 1 9902-9904 ● ● ●
97 DOWEL; CAM BRKT SET
OD=16 		1-13119-005-0 28 1 9905-9906 ● ● ● ●
97 DOWEL; CAM BRKT SET
OD=16 		1-13119-005-0 28 1 9907- ● ● ●
98 STUD; CAM BRKT
M12X100 L=120 		8-94397-322-0 14 1 9812-9901 ●
98 STUD; CAM BRKT
M12X100 L=120 		8-94397-322-0 14 1 9902-9904 ● ● ●
98 STUD; CAM BRKT
M12X100 L=120 		8-94397-322-0 14 1 9905-9906 ● ● ● ●
98 STUD; CAM BRKT
M12X100 L=120 		8-94397-322-0 14 1 9907- ● ● ●
103 PLUG; HD
M10X7 		1-09604-094-0 01 1 9812-9901 ●
103 PLUG; HD
M10X7 		1-09604-094-0 01 1 9902-9904 ● ● ●
103 PLUG; HD
M10X7 		1-09604-094-0 01 1 9905-9906 ● ● ● ●
103 PLUG; HD
M10X7 		1-09604-094-0 01 1 9907- ● ● ●
104 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 9812-9901 ●
104 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 9902-9904 ● ● ●
104 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 9905-9906 ● ● ● ●
104 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 9907- ● ● ●
106 PLUG; GLOW PLUG HOLE
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> 		1-11119-018-0 06 1 9902-9904 ● ●
106 PLUG; GLOW PLUG HOLE
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> 		1-11119-018-0 06 1 9905-9909 ● ●
106 PLUG; GLOW PLUG HOLE 1-11119-018-0 06 1 9905-9909 ●
106 PLUG; GLOW PLUG HOLE
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> 		1-11119-018-0 06 1 9910- ● ● ●
180 BRACKET SET; CAM,CYL HD
(A) FRONT 		1-12516-148-1 01 1 9812-9901 ●
180 BRACKET SET; CAM,CYL HD
(A) FRONT 		1-12516-148-1 01 1 9902-9904 ● ● ●
180 BRACKET SET; CAM,CYL HD
(A) FRONT 		1-12516-148-1 01 1 9905-9906 ● ● ● ●
180 BRACKET SET; CAM,CYL HD
(A) FRONT 		1-12516-148-1 01 1 9907- ● ● ●
180 BRACKET SET; CAM,CYL HD
(B) INNER 		1-12516-152-1 06 1 9812-9901 ●
180 BRACKET SET; CAM,CYL HD
(B) INNER 		1-12516-152-1 06 1 9902-9904 ● ● ●
180 BRACKET SET; CAM,CYL HD
(B) INNER 		1-12516-152-1 06 1 9905-9906 ● ● ● ●
180 BRACKET SET; CAM,CYL HD
(B) INNER 		1-12516-152-1 06 1 9907- ● ● ●
181 CASE; HEAD GEAR 1-11310-058-0 01 1 9812-9901 ●
181 CASE; HEAD GEAR 1-11310-058-1 01 1 9902- ● ● ●
182 BOLT; CASE
M10X80 		9-05921-080-0 07 1 9812-9901 ●
182 BOLT; CASE
M10X80 		9-05921-080-0 07 1 9902- ● ● ●
183 DOWEL; CYL HEAD 1-13119-004-0 02 1 9812-9901 ●
183 DOWEL; CYL HEAD 1-13119-004-0 02 1 9902- ● ● ●

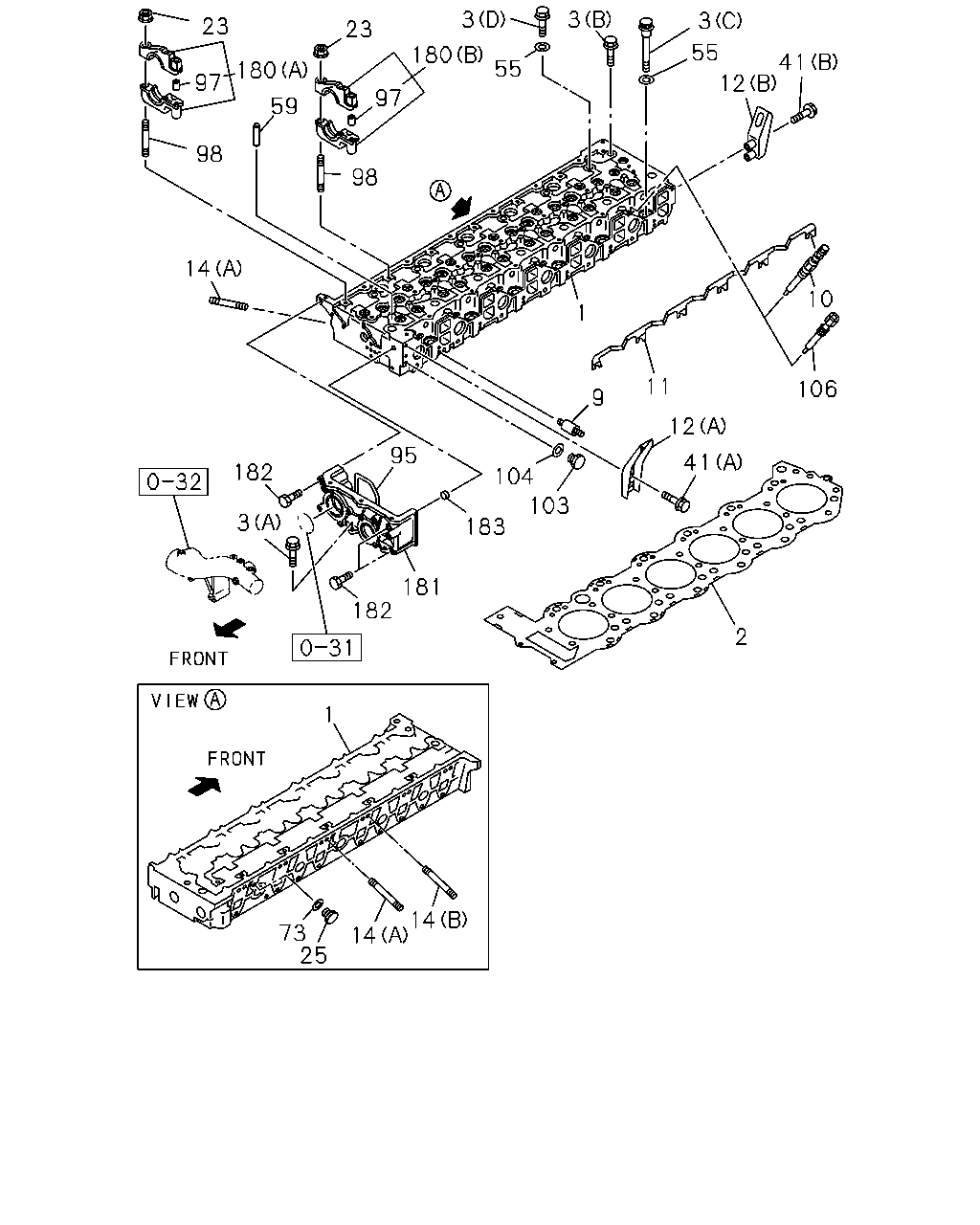

çizim 8433
3 3 3 23 23 55 180 41 12 55 180 97 97 59 98 98 14 10 1 11 106 9 12 95 41 182 104 103 3 183 181 182 2 1 14 73 25 14
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HEAD ASM; CYL 1-11110-861-8 01 1 9812-9901 ●
1 HEAD ASM; CYL 1-11110-861-9 01 1 9902- ● ●
1 HEAD ASM; CYL 1-11110-902-0 01 1 9902-9904 ●
1 HEAD ASM; CYL 1-11110-902-0 01 1 9905-9908 ● ●
1 HEAD ASM; CYL 1-11110-902-3 01 1 9909- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-265-1 01 1 9812-9901 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-265-2 01 1 9902- ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-271-0 01 1 9902-9904 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-271-0 01 1 9905-9908 ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-271-1 01 1 9909- ●
3 BOLT; CYL HD TO BLOCK
(A) M10X35 FLANGE 		0-28181-035-0 02 1 9812-9901 ●
3 BOLT; CYL HD TO BLOCK
(A) M10X35 FLANGE 		0-28181-035-0 02 1 9902-9904 ● ● ●
3 BOLT; CYL HD TO BLOCK
(A) M10X35 FLANGE 		0-28181-035-0 02 1 9905-9906 ● ● ● ●
3 BOLT; CYL HD TO BLOCK
(A) M10X35 FLANGE 		0-28181-035-0 02 1 9907- ● ● ●
3 BOLT; CYL HD TO BLOCK
(B) M12X120 FLANGE 		0-28186-212-0 01 1 9812-9901 ●
3 BOLT; CYL HD TO BLOCK
(B) M12X120 FLANGE 		0-28186-212-0 01 1 9902-9904 ● ● ●
3 BOLT; CYL HD TO BLOCK
(B) M12X120 FLANGE 		0-28186-212-0 01 1 9905-9906 ● ● ● ●
3 BOLT; CYL HD TO BLOCK
(B) M12X120 FLANGE 		0-28186-212-0 01 1 9907- ● ● ●
3 BOLT; CYL HD TO BLOCK
(C) M18X115 		1-09070-114-2 06 1 9812-9901 ●
3 BOLT; CYL HD TO BLOCK
(C) M18X115 		1-09070-114-2 06 1 9902-9902 ● ● ●
3 BOLT; CYL HD TO BLOCK
(C) M18X115 FLANGE 		1-09070-141-0 06 1 9903-9904 ● ● ●
3 BOLT; CYL HD TO BLOCK
(C) M18X115 FLANGE 		1-09070-141-0 06 1 9905-9906 ● ● ● ●
3 BOLT; CYL HD TO BLOCK
(C) M18X115 FLANGE 		1-09070-141-0 06 1 9907- ● ● ●
3 BOLT; CYL HD TO BLOCK
(D) M18X159 		1-09070-115-2 20 1 9812-9901 ●
3 BOLT; CYL HD TO BLOCK
(D) M18X159 		1-09070-115-2 20 1 9902-9902 ● ● ●
3 BOLT; CYL HD TO BLOCK
(D) M18X159 		1-09070-142-0 20 1 9903-9904 ● ● ●
3 BOLT; CYL HD TO BLOCK
(D) M18X159 		1-09070-142-0 20 1 9905-9906 ● ● ● ●
3 BOLT; CYL HD TO BLOCK
(D) M18X159 		1-09070-142-0 20 1 9907- ● ● ●
9 STUD; INL MANIF
M10X13,M10X17 L=65 		1-09309-008-0 12 1 9812-9901 ●
9 STUD; INL MANIF
M10X13,M10X17 L=65 		1-09309-008-0 12 1 9902-9904 ● ● ●
9 STUD; INL MANIF
M10X13,M10X17 L=65 		1-09309-008-0 12 1 9905-9906 ● ● ● ●
9 STUD; INL MANIF
M10X13,M10X17 L=65 		1-09309-008-0 12 1 9907- ● ● ●
10 PLUG; GLOW 1-82513-043-0 06 1 9812-9901 ●
10 PLUG; GLOW
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> 		1-82513-043-1 06 1 9902- ● ● ●
11 CONNECTOR; GLOW PLUG 1-19732-030-1 01 1 9812-9901 ●
11 CONNECTOR; GLOW PLUG
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> 		1-19732-030-2 01 1 9902- ● ● ●
12 HANGER; ENG,RR
(B) REAR 		1-11777-149-2 02 1 9812-9901 ●
12 HANGER; ENG,RR
(B) REAR 		1-11777-149-2 02 1 9902-9904 ● ● ●
12 HANGER; ENG,RR
(B) REAR 		1-11777-149-2 02 1 9905-9906 ● ● ● ●
12 HANGER; ENG,RR
(B) REAR 		1-11777-149-2 02 1 9907- ● ● ●
12 HANGER; ENG,RR
(A) FRONT 		1-11777-216-1 01 1 9812-9901 ●
12 HANGER; ENG,RR
(A) FRONT 		1-11777-216-1 01 1 9902-9904 ● ● ●
12 HANGER; ENG,RR
(A) FRONT 		1-11777-216-1 01 1 9905-9906 ● ● ● ●
12 HANGER; ENG,RR
(A) FRONT 		1-11777-216-1 01 1 9907- ● ● ●
14 STUD; EXH MANIF
(A) M10X95 L=110 		1-09302-063-0 15 1 9812-9901 ●
14 STUD; EXH MANIF
(A) M10X95 L=110 		1-09302-063-0 15 1 9902-9904 ● ● ●
14 STUD; EXH MANIF
(A) M10X95 L=110 		1-09302-063-0 15 1 9905-9906 ● ● ● ●
14 STUD; EXH MANIF
(A) M10X95 L=110 		1-09302-063-0 15 1 9907- ● ● ●
14 STUD; EXH MANIF
(B) M10X130 L=145 		1-09302-107-0 03 1 9812-9901 ●
14 STUD; EXH MANIF
(B) M10X130 L=145 		1-09302-107-0 03 1 9902-9904 ● ● ●
14 STUD; EXH MANIF
(B) M10X130 L=145 		1-09302-107-0 03 1 9905-9906 ● ● ● ●
14 STUD; EXH MANIF
(B) M10X130 L=145 		1-09302-107-0 03 1 9907- ● ● ●
23 NUT; CAM BRKT
M4 FLANGE 		1-09440-004-0 14 1 9812-9901 ●
23 NUT; CAM BRKT
M4 FLANGE 		1-09440-004-0 14 1 9902-9904 ● ● ●
23 NUT; CAM BRKT
M4 FLANGE 		1-09440-004-0 14 1 9905-9906 ● ● ● ●
23 NUT; CAM BRKT
M4 FLANGE 		1-09440-004-0 14 1 9907- ● ● ●
25 PLUG; CYL HD
M14X9 		9-99202-314-0 01 1 9812-9901 ●
25 PLUG; CYL HD
M14X9 		9-99202-314-0 01 1 9902-9904 ● ● ●
25 PLUG; CYL HD
M14X9 		9-99202-314-0 01 1 9905-9906 ● ● ● ●
25 PLUG; CYL HD
M14X9 		9-99202-314-0 01 1 9907- ● ● ●
41 BOLT; ENG HANGER
(A) FRONT M12X25 FLANGE 		0-28191-225-0 02 1 9812-9901 ●
41 BOLT; ENG HANGER
(A) FRONT M12X25 FLANGE 		0-28191-225-0 02 1 9902-9904 ● ● ●
41 BOLT; ENG HANGER
(A) FRONT M12X25 FLANGE 		0-28191-225-0 02 1 9905-9906 ● ● ● ●
41 BOLT; ENG HANGER
(A) FRONT M12X25 FLANGE 		0-28191-225-0 02 1 9907- ● ● ●
41 BOLT; ENG HANGER
(B) REAR M12X50 FLANGE 		0-28191-250-0 04 1 9812-9901 ●
41 BOLT; ENG HANGER
(B) REAR M12X50 FLANGE 		0-28191-250-0 04 1 9902-9904 ● ● ●
41 BOLT; ENG HANGER
(B) REAR M12X50 FLANGE 		0-28191-250-0 04 1 9905-9906 ● ● ● ●
41 BOLT; ENG HANGER
(B) REAR M12X50 FLANGE 		0-28191-250-0 04 1 9907- ● ● ●
55 WASHER; PL,CYL HD TO BLOCK
ID=18.2 OD=29 		1-09503-032-0 26 1 9812-9901 ●
55 WASHER; PL,CYL HD TO BLOCK
ID=18.2 OD=29 		1-09503-032-0 26 1 9902-9904 ● ● ●
55 WASHER; PL,CYL HD TO BLOCK
ID=18.2 OD=29 		1-09503-032-0 26 1 9905-9906 ● ● ● ●
55 WASHER; PL,CYL HD TO BLOCK
ID=18.2 OD=29 		1-09503-032-0 26 1 9907- ● ● ●
59 GUIDE; BRIDGE 1-11729-005-0 12 1 9812-9901 ●
59 GUIDE; BRIDGE 1-11729-005-0 12 1 9902-9904 ● ● ●
59 GUIDE; BRIDGE 1-11729-005-0 12 1 9905-9906 ● ● ● ●
59 GUIDE; BRIDGE 1-11729-005-0 12 1 9907- ● ● ●
73 GASKET; PLUG,HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 01 1 9812-9901 ●
73 GASKET; PLUG,HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 01 1 9902-9904 ● ● ●
73 GASKET; PLUG,HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 01 1 9905-9906 ● ● ● ●
73 GASKET; PLUG,HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 01 1 9907- ● ● ●
95 GASKET; CYL HD TO GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-403-0 01 1 9812-9901 ●
95 GASKET; CYL HD TO GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-403-0 01 1 9902- ● ● ●
97 DOWEL; CAM BRKT SET
OD=16 		1-13119-005-0 28 1 9812-9901 ●
97 DOWEL; CAM BRKT SET
OD=16 		1-13119-005-0 28 1 9902-9904 ● ● ●
97 DOWEL; CAM BRKT SET
OD=16 		1-13119-005-0 28 1 9905-9906 ● ● ● ●
97 DOWEL; CAM BRKT SET
OD=16 		1-13119-005-0 28 1 9907- ● ● ●
98 STUD; CAM BRKT
M12X100 L=120 		8-94397-322-0 14 1 9812-9901 ●
98 STUD; CAM BRKT
M12X100 L=120 		8-94397-322-0 14 1 9902-9904 ● ● ●
98 STUD; CAM BRKT
M12X100 L=120 		8-94397-322-0 14 1 9905-9906 ● ● ● ●
98 STUD; CAM BRKT
M12X100 L=120 		8-94397-322-0 14 1 9907- ● ● ●
103 PLUG; HD
M10X7 		1-09604-094-0 01 1 9812-9901 ●
103 PLUG; HD
M10X7 		1-09604-094-0 01 1 9902-9904 ● ● ●
103 PLUG; HD
M10X7 		1-09604-094-0 01 1 9905-9906 ● ● ● ●
103 PLUG; HD
M10X7 		1-09604-094-0 01 1 9907- ● ● ●
104 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 9812-9901 ●
104 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 9902-9904 ● ● ●
104 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 9905-9906 ● ● ● ●
104 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 9907- ● ● ●
106 PLUG; GLOW PLUG HOLE
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> 		1-11119-018-0 06 1 9902-9904 ● ●
106 PLUG; GLOW PLUG HOLE
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> 		1-11119-018-0 06 1 9905-9909 ● ●
106 PLUG; GLOW PLUG HOLE 1-11119-018-0 06 1 9905-9909 ●
106 PLUG; GLOW PLUG HOLE
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> 		1-11119-018-0 06 1 9910- ● ● ●
180 BRACKET SET; CAM,CYL HD
(A) FRONT 		1-12516-148-1 01 1 9812-9901 ●
180 BRACKET SET; CAM,CYL HD
(A) FRONT 		1-12516-148-1 01 1 9902-9904 ● ● ●
180 BRACKET SET; CAM,CYL HD
(A) FRONT 		1-12516-148-1 01 1 9905-9906 ● ● ● ●
180 BRACKET SET; CAM,CYL HD
(A) FRONT 		1-12516-148-1 01 1 9907- ● ● ●
180 BRACKET SET; CAM,CYL HD
(B) INNER 		1-12516-152-1 06 1 9812-9901 ●
180 BRACKET SET; CAM,CYL HD
(B) INNER 		1-12516-152-1 06 1 9902-9904 ● ● ●
180 BRACKET SET; CAM,CYL HD
(B) INNER 		1-12516-152-1 06 1 9905-9906 ● ● ● ●
180 BRACKET SET; CAM,CYL HD
(B) INNER 		1-12516-152-1 06 1 9907- ● ● ●
181 CASE; HEAD GEAR 1-11310-058-0 01 1 9812-9901 ●
181 CASE; HEAD GEAR 1-11310-058-1 01 1 9902- ● ● ●
182 BOLT; CASE
M10X80 		9-05921-080-0 07 1 9812-9901 ●
182 BOLT; CASE
M10X80 		9-05921-080-0 07 1 9902- ● ● ●
183 DOWEL; CYL HEAD 1-13119-004-0 02 1 9812-9901 ●
183 DOWEL; CYL HEAD 1-13119-004-0 02 1 9902- ● ● ●

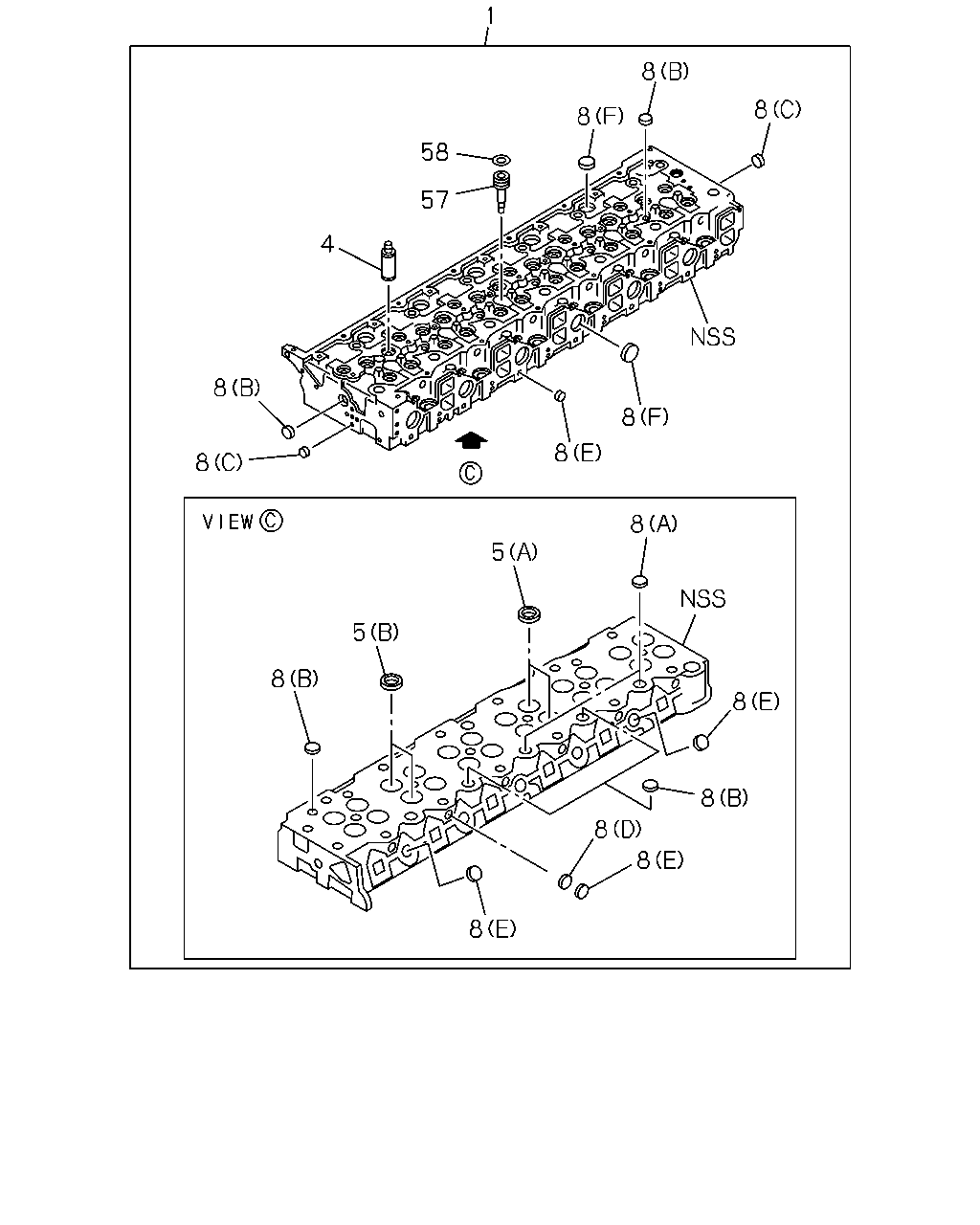

çizim 44648
1 8 8 8 58 57 4 8 8 8 8 8 5 5 8 8 8 8 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HEAD ASM; CYL 1-11110-861-8 01 1 9812-9901 ●
1 HEAD ASM; CYL 1-11110-861-9 01 1 9902- ● ●
1 HEAD ASM; CYL 1-11110-902-0 01 1 9902-9904 ●
1 HEAD ASM; CYL 1-11110-902-0 01 1 9905-9908 ● ●
1 HEAD ASM; CYL 1-11110-902-3 01 1 9909- ●
4 GUIDE; VLV 1-11721-004-0 24 1 9812-9901 ●
4 GUIDE; VLV 1-11721-004-0 24 1 9902-0005 ● ● ●
4 GUIDE; VLV 1-11721-012-0 24 1 0006- ● ● ●
5 SEAT; VLV INSERT
(B) EXHAUST 		1-11711-070-0 12 1 9812-9901 ●
5 SEAT; VLV INSERT
(B) EXHAUST 		1-11711-070-0 12 1 9902-0005 ● ●
5 SEAT; VLV INSERT
(B) EXHAUST 		1-11711-077-0 12 1 0006- ● ●
5 SEAT; VLV INSERT
(A) INLET 		1-11715-105-1 12 1 9812-9901 ●
5 SEAT; VLV INSERT
(A) INLET 		1-11715-105-1 12 1 9902-0005 ● ●
5 SEAT; VLV INSERT
(A) INLET 		1-11715-112-0 12 1 0006- ● ●
5 SEAT; VLV INSERT
(B) EXHAUST 		1-11711-076-0 12 1 9902-9904 ●
5 SEAT; VLV INSERT
(B) EXHAUST 		1-11711-076-0 12 1 9905-9908 ● ●
5 SEAT; VLV INSERT
(B) EXHAUST 		1-11711-076-0 12 1 9909- ●
5 SEAT; VLV INSERT
(A) INLET 		1-11715-111-0 12 1 9902-9904 ●
5 SEAT; VLV INSERT
(A) INLET 		1-11715-111-0 12 1 9905-9908 ● ●
5 SEAT; VLV INSERT
(A) INLET 		1-11715-111-0 12 1 9909- ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 02 1 9812-9901 ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 02 1 9902- ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 10 1 9812-9901 ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 10 1 9902- ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 02 1 9812-9901 ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 02 1 9902- ● ● ●
8 CUP; SEALING,WATER JACKET
(D) OD=16 		5-11129-006-0 06 1 9812-9901 ●
8 CUP; SEALING,WATER JACKET
(D) OD=16 		5-11129-006-0 06 1 9902- ● ● ●
8 CUP; SEALING,WATER JACKET
(E) OD=18 		5-11219-008-0 12 1 9812-9901 ●
8 CUP; SEALING,WATER JACKET
(E) OD=18 		5-11219-008-0 12 1 9902- ● ● ●
8 CUP; SEALING,WATER JACKET
(F) OD=40 		8-94241-637-0 18 1 9812-9901 ●
8 CUP; SEALING,WATER JACKET
(F) OD=40 		8-94241-637-0 18 1 9902- ● ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 03 1 9902-9904 ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 03 1 9905-9908 ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 03 1 9909- ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 09 1 9902-9904 ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 09 1 9905-9908 ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 09 1 9909- ●
57 SLEEVE; NOZZLE HOLDER 1-11129-057-1 06 1 9812-9901 ●
57 SLEEVE; NOZZLE HOLDER 1-11129-057-1 06 1 9902-0005 ● ● ●
57 SLEEVE; NOZZLE HOLDER 1-11129-058-0 06 1 0006- ● ● ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		9-09565-330-0 06 1 9812-9901 ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		9-09565-330-0 06 1 9902-0005 ● ● ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=30.9 BLACK 		8-97233-126-0 06 1 0006- ● ● ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=30.9 RED 		8-97233-127-0 06 1 0006- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
