Isuzu WW
▶
TRUCKS
▶
FSR
▶
11150 - FSR-LHD(EU)SPACE EU4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-21 - METER ASM
▶

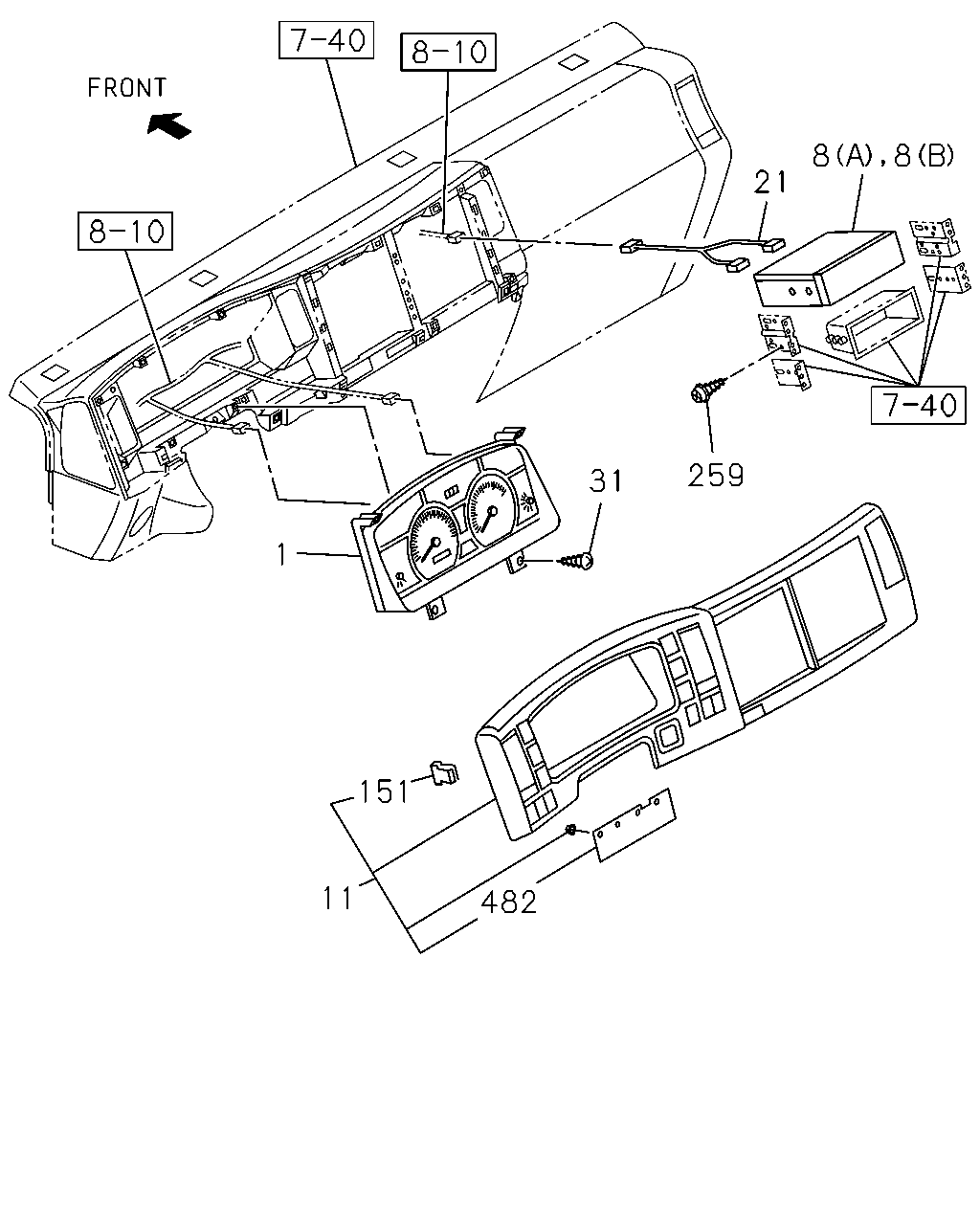

8-21 — METER ASM
(#69165) — 35 parça
◀
[821A] FIXING (18 parça)
[821A] COMPONENT (11 parça)
[821A] SHAFT;DRIVE,SPEED (6 parça)
▶
8
8
21
259
31
1
151
11
482
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
METER COMPL; CLUSTER
8-98064-915-6
01
1
0803-
8
TACHOGRAPH; CLUSTER METER
KD PREPARATORY PACK<6HF> (A)
8-98035-623-0
01
1
0803-0803
8
TACHOGRAPH; CLUSTER METER
KD PREPARATORY PACK<6HF> (B)
8-98113-385-0
01
1
0804-0806
8
TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (B)
8-98113-385-0
01
1
0807-1008
8
TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (B)
8-98178-334-0
01
1
1009-1107
8
TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (B)
8-98197-455-0
01
1
1108-
11
CLUSTER ASM; METER
EXC. TACHOGRAPH DIGITAL<EBB> DARK GRAY
8-97406-005-6
01
1
0807-
11
CLUSTER ASM; METER
DARK GRAY
8-97414-682-3
01
1
0803-0806
11
CLUSTER ASM; METER
TACHOGRAPH DIGITAL<EBB> DARK GRAY
8-97414-682-3
01
1
0807-
21
HARNESS; TACHOGRAPH
KD PREPARATORY PACK<6HF>
8-98099-111-0
01
1
0803-0803
21
HARNESS; TACHOGRAPH
8-98099-111-0
01
1
0804-0806
21
HARNESS; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB>
8-98099-111-0
01
1
0807-0807
21
HARNESS; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>
8-98099-111-0
01
1
0808-
31
SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
0803-
151
CLIP; METER CLUSTER
8-98021-271-0
13
1
0803-
259
SCREW; TACHOGRAPH
M5X7 HEXALOBULAR SOCKET
8-98063-767-0
04
1
0803-0806
259
SCREW; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> M5X7 HEXALOBULAR SOCKET
8-98063-767-0
04
1
0807-
482
SEAL; CLUSTER METER
8-98116-843-0
01
1
0806-
2
1
110
480
480
81
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
METER COMPL; CLUSTER
8-98064-915-6
01
1
0803-
2
PANEL; CLUSTER
8-98054-432-0
01
1
0803-
8
TACHOGRAPH; CLUSTER METER
KD PREPARATORY PACK<6HF> (A)
8-98035-623-0
01
1
0803-0803
8
TACHOGRAPH; CLUSTER METER
KD PREPARATORY PACK<6HF> (B)
8-98113-385-0
01
1
0804-0806
8
TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (B)
8-98113-385-0
01
1
0807-1008
8
TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (B)
8-98178-334-0
01
1
1009-1107
8
TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (B)
8-98197-455-0
01
1
1108-
81
METER SUB ASM
8-98079-687-0
01
1
0803-
110
GLASS; CLUSTER METER
8-98054-642-0
01
1
0803-
480
COVER; METER
(B) BLACK
8-98054-433-0
01
1
0803-
480
COVER; METER
(A) BLACK DOT MATRIX FOR FPC PROTECTION
8-98054-881-0
01
1
0803-
372
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
TACHOGRAPH; CLUSTER METER
KD PREPARATORY PACK<6HF> (A)
8-98035-623-0
01
1
0803-0803
8
TACHOGRAPH; CLUSTER METER
KD PREPARATORY PACK<6HF> (B)
8-98113-385-0
01
1
0804-0806
8
TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (B)
8-98113-385-0
01
1
0807-1008
8
TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (B)
8-98178-334-0
01
1
1009-1107
8
TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (B)
8-98197-455-0
01
1
1108-

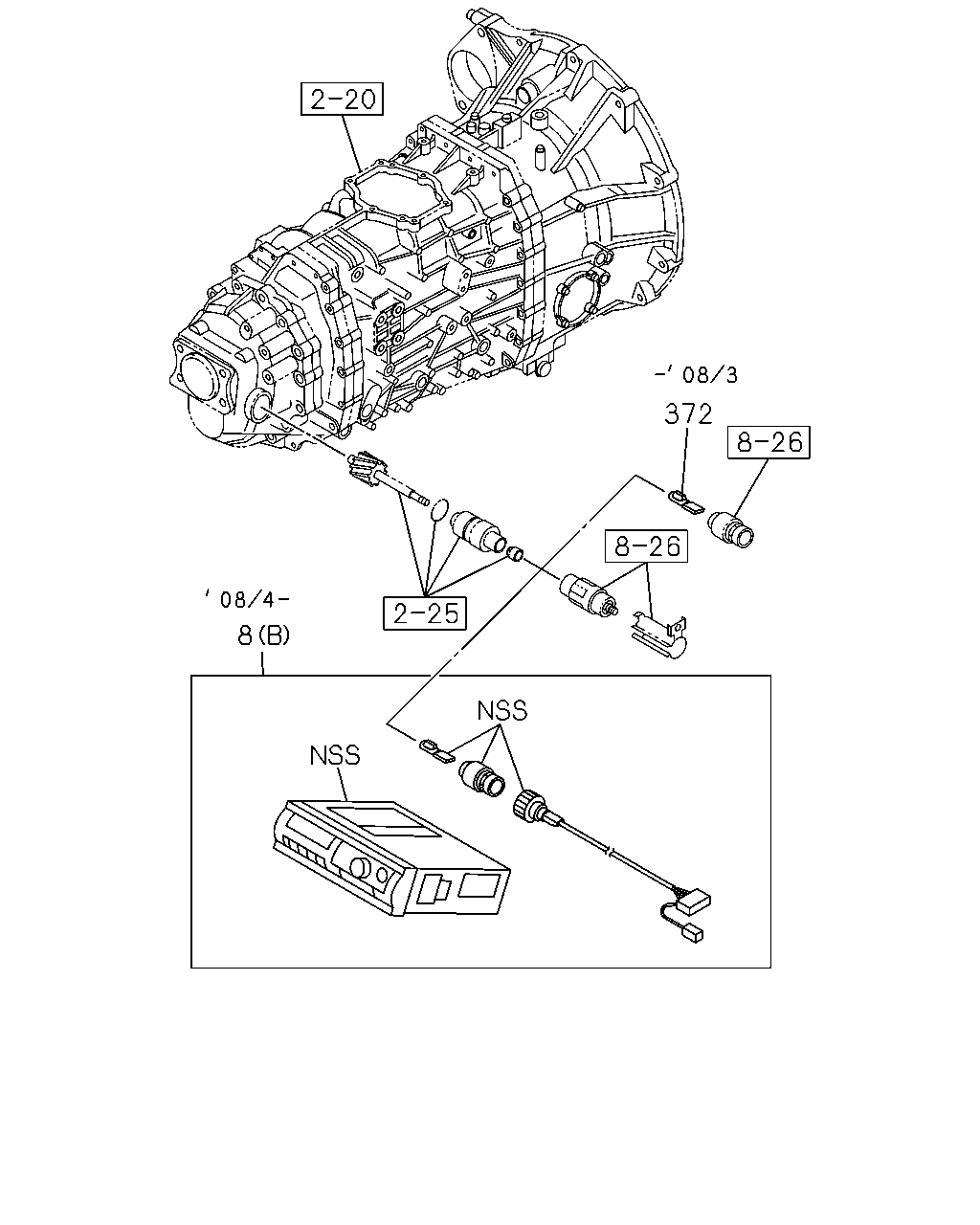

372
SHAFT; DRIVE,SPEED
KD PREPARATORY PACK<6HF>
8-97160-805-0
01
1
0803-0803
