Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#69163) — 454 parça

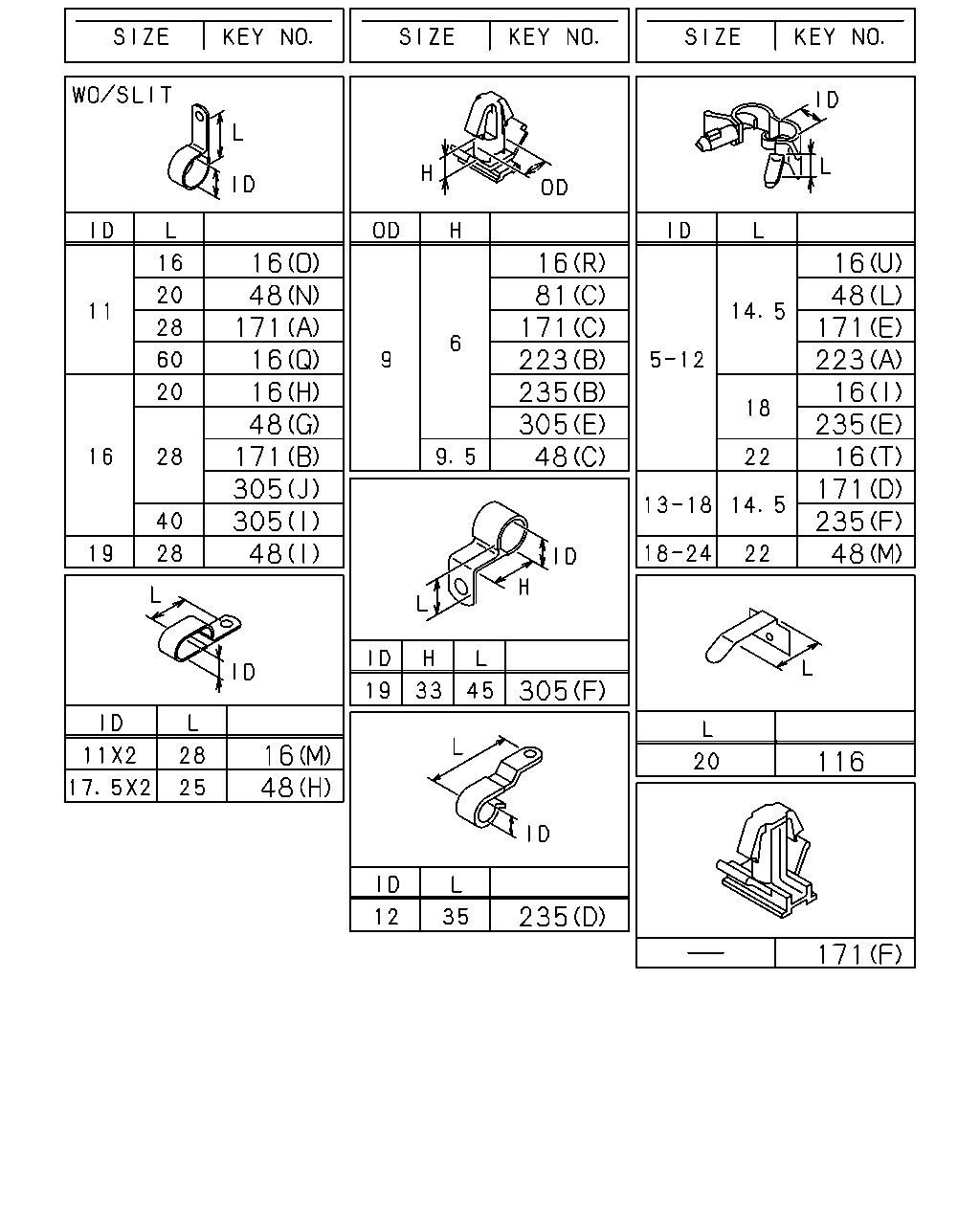

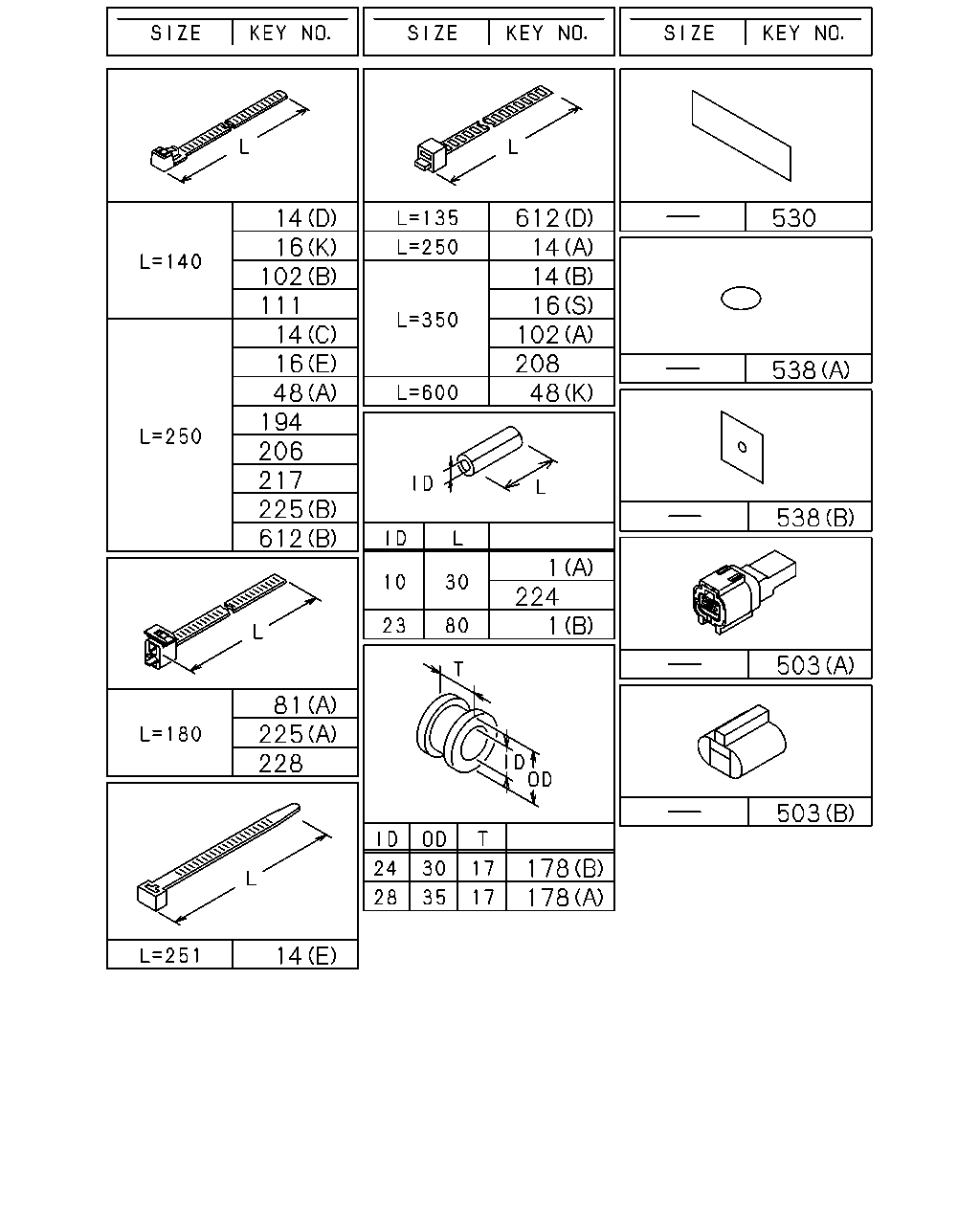

14 16 102 111 14 16 48 194 206 217 225 612 612 14 14 16 102 208 48 530 538 538 1 224 1 503 81 225 228 503 178 178 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	0803-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	0803-
14	CLIP; BAND,HARNESS (E) L=251	8-97619-917-0	01	1	0910-
14	CLIP; BAND,HARNESS (C) L=250	5-09707-030-1	15	1	0901-0909
14	CLIP; BAND,HARNESS (C) L=250	5-09707-030-1	14	1	0910-1205
14	CLIP; BAND,HARNESS (C) L=250	8-98216-430-0	14	1	1206-
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	0803-
14	CLIP; BAND,HARNESS (B) L=350	1-09707-183-0	01	1	0803-
14	CLIP; BAND,HARNESS (D) L=140	5-09707-031-1	01	1	0803-1109
14	CLIP; BAND,HARNESS KD PREPARATORY PACK<6HF> (C) L=250	5-09707-030-1	15	1	0803-0806
14	CLIP; BAND,HARNESS (C) L=250	5-09707-030-1	15	1	0803-0806
14	CLIP; BAND,HARNESS TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (C) L=250	5-09707-030-1	15	1	0807-0812
14	CLIP; BAND,HARNESS (C) L=250	5-09707-030-1	15	1	0807-0812
14	CLIP; BAND,HARNESS TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (C) L=250	5-09707-030-1	30	1	0901-
16	CLIP; HARNESS (S) L=350	1-09707-183-0	01	1	0809-
16	CLIP; HARNESS (O) ID=11 L=16	0-95235-025-0	02	1	0803-
16	CLIP; HARNESS (Q) ID=11 L=60	0-95235-096-0	01	1	0803-0807
16	CLIP; HARNESS (H) ID=16 L=20	0-95235-536-0	01	1	0803-0810
16	CLIP; HARNESS (T) ID=5-12 L=22	1-09709-288-0	01	1	0811-0902
16	CLIP; HARNESS (D) ID=11 L=41	1-09700-403-0	01	1	0803-0901
16	CLIP; HARNESS (M) ID=11X2 L=16	1-09700-734-0	01	1	0803-
16	CLIP; HARNESS (F) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	0803-0805
16	CLIP; HARNESS (F) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0806-
16	CLIP; HARNESS (L) ID=26 L=26	1-09701-236-0	01	1	0803-
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	03	1	0803-0810
16	CLIP; HARNESS (N) ID=10 & 12	1-09709-278-1	01	1	0803-0810
16	CLIP; HARNESS (P) ID=10 & 15	1-09709-279-1	01	1	0803-0810
16	CLIP; HARNESS (U) ID=5-12 L=14.5	1-09987-221-0	01	1	0811-0902
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	03	1	0803-
16	CLIP; HARNESS (E) L=250	5-09707-030-1	02	1	0803-
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	0803-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0803-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0803-
16	CLIP; HARNESS (G) L=40.6	8-97229-357-0	02	1	0803-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0803-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (R) OD=9 H=6	1-09709-178-0	01	1	0803-0805
16	CLIP; HARNESS (R) OD=9 H=6	1-09709-178-0	01	1	0806-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	0803-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (O) ID=14 L=44	9-09917-427-0	02	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50	9-09917-430-0	07	1	0803-0901
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50	9-09917-430-0	09	1	0902-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (D) ID=20 L=50	9-09917-430-0	09	1	0803-0901
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (D) ID=20 L=50	9-09917-430-0	11	1	0902-
48	CLIP; FRAME HARNESS (G) ID=16 L=28	0-95235-556-0	02	1	0803-0908
48	CLIP; FRAME HARNESS (N) ID=11 L=20	0-95235-035-0	02	1	0909-
48	CLIP; FRAME HARNESS (I) ID=19 L=28	0-95235-856-0	02	1	0803-
48	CLIP; FRAME HARNESS (F) ID=32 L=50	1-09701-055-1	01	1	0803-
48	CLIP; FRAME HARNESS (E) ID=35 L=50	1-09701-214-0	01	1	0803-
48	CLIP; FRAME HARNESS (K) L=600	1-09707-107-1	01	1	0803-
48	CLIP; FRAME HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	03	1	0803-
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=25	5-09700-358-0	01	1	0803-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	01	1	0803-0905
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	0803-1002
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	01	1	1003-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	01	1	1003-
48	CLIP; FRAME HARNESS (J) ID=21 L=24	8-94176-807-1	03	1	0803-
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	03	1	0803-0901
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	01	1	0902-1201
48	CLIP; FRAME HARNESS (O) ID=14 L=44	9-09917-427-0	01	1	1202-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0803-0901
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0803-0901
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	14	1	0803-0804
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	13	1	0805-0808
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	14	1	0809-0809
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	15	1	0810-0901
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	16	1	0902-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	14	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (M) ID=18-24 L=22	1-09709-295-0	01	1	0805-0808
81	CLIP; HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1012-
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (A) L=180	1-09707-162-1	01	1	0803-0805
81	CLIP; HARNESS (B) ID=6.35 & 15	1-09709-276-1	01	1	0803-0905
102	CLIP; BAND (A) L=350	1-09707-183-0	01	1	0803-0809
102	CLIP; BAND (A) L=350	1-09707-183-0	01	1	0810-0901
102	CLIP; BAND (A) L=350	1-09707-183-0	01	1	0810-0901
102	CLIP; BAND (A) L=350	1-09707-183-0	01	1	0902-
102	CLIP; BAND (B) L=140	5-09707-031-1	01	1	0803-0811
111	CLIP; STOP LAMP SW HARNESS L=140	5-09707-031-1	03	1	0803-0807
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	0803-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	0803-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	04	1	0803-
194	CLIP; BAND WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) L=250	5-09707-030-1	02	1	0902-
194	CLIP; BAND L=250	5-09707-030-1	02	1	0803-0901
194	CLIP; BAND WHEEL BASE 3700MM(37W) L=250	5-09707-030-1	01	1	0902-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	0803-0810
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	03	1	0811-
208	CLIP; HARNESS,MAG VLV L=350	1-09707-183-0	01	1	0803-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1101-
217	CLIP; RR BODY HARNESS EXC. REVERSING WARNING BUZZER<YM9> L=250	5-09707-030-1	01	1	0812-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	0803-0901
224	SLEEVE; RUBBER,HARNESS ID=10 OD=14 L=30	9-09956-682-0	01	1	0803-0803
225	CLIP; AIR TANK HARNESS (A) L=180	1-09707-162-1	01	1	0803-
225	CLIP; AIR TANK HARNESS (B) L=250	5-09707-030-1	01	1	0803-0811
228	CLIP; COOLER HARNESS L=180	1-09707-162-1	01	1	0803-0807
503	CONNECTOR EXC. H.S.A SYSTEM<6EP> (A)	1-82691-191-0	01	1	0803-0805
503	CONNECTOR (A)	1-82691-191-0	01	1	0806-
503	CONNECTOR HEATER & DEFROSTER(C41) (B)	1-82690-668-0	01	1	0803-
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	0803-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	15	1	1306-
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	0803-1305
538	SEAL; HOLE (A) OD=25 BLACK	1-76798-019-0	01	1	0803-
538	SEAL; HOLE (B) 25X25	8-94272-533-0	01	1	0803-0807
612	CLIP; HARNESS DPD (C) T=9 & 10.5	8-97371-949-0	03	1	0803-0804
612	CLIP; HARNESS DPD (A) ID=11 L=41	1-09700-403-0	01	1	0803-
612	CLIP; HARNESS DPD (E) ID=4.76 & 10.0	1-09709-305-0	03	1	0803-
612	CLIP; HARNESS DPD (D) L=135	1-09987-143-1	01	1	0803-
612	CLIP; HARNESS DPD (B) L=250	5-09707-030-1	01	1	0803-

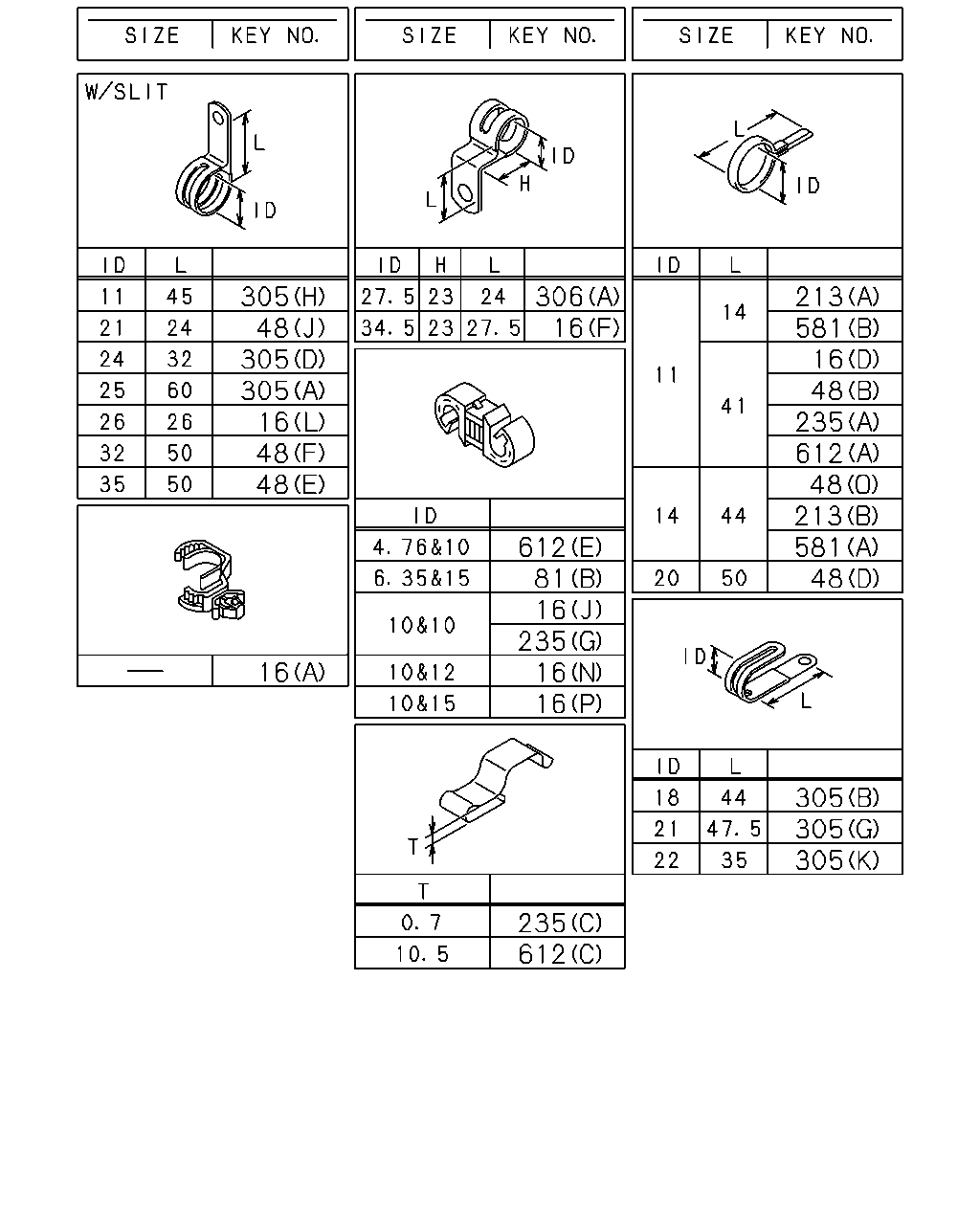

305 48 305 305 16 48 48 306 16 213 581 16 48 235 612 48 213 581 48 612 81 16 235 16 16 16 305 305 305 235 612

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (S) L=350	1-09707-183-0	01	1	0809-
16	CLIP; HARNESS (O) ID=11 L=16	0-95235-025-0	02	1	0803-
16	CLIP; HARNESS (Q) ID=11 L=60	0-95235-096-0	01	1	0803-0807
16	CLIP; HARNESS (H) ID=16 L=20	0-95235-536-0	01	1	0803-0810
16	CLIP; HARNESS (T) ID=5-12 L=22	1-09709-288-0	01	1	0811-0902
16	CLIP; HARNESS (D) ID=11 L=41	1-09700-403-0	01	1	0803-0901
16	CLIP; HARNESS (M) ID=11X2 L=16	1-09700-734-0	01	1	0803-
16	CLIP; HARNESS (F) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	0803-0805
16	CLIP; HARNESS (F) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0806-
16	CLIP; HARNESS (L) ID=26 L=26	1-09701-236-0	01	1	0803-
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	03	1	0803-0810
16	CLIP; HARNESS (N) ID=10 & 12	1-09709-278-1	01	1	0803-0810
16	CLIP; HARNESS (P) ID=10 & 15	1-09709-279-1	01	1	0803-0810
16	CLIP; HARNESS (U) ID=5-12 L=14.5	1-09987-221-0	01	1	0811-0902
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	03	1	0803-
16	CLIP; HARNESS (E) L=250	5-09707-030-1	02	1	0803-
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	0803-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0803-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0803-
16	CLIP; HARNESS (G) L=40.6	8-97229-357-0	02	1	0803-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0803-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (R) OD=9 H=6	1-09709-178-0	01	1	0803-0805
16	CLIP; HARNESS (R) OD=9 H=6	1-09709-178-0	01	1	0806-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	0803-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (O) ID=14 L=44	9-09917-427-0	02	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50	9-09917-430-0	07	1	0803-0901
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50	9-09917-430-0	09	1	0902-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (D) ID=20 L=50	9-09917-430-0	09	1	0803-0901
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (D) ID=20 L=50	9-09917-430-0	11	1	0902-
48	CLIP; FRAME HARNESS (G) ID=16 L=28	0-95235-556-0	02	1	0803-0908
48	CLIP; FRAME HARNESS (N) ID=11 L=20	0-95235-035-0	02	1	0909-
48	CLIP; FRAME HARNESS (I) ID=19 L=28	0-95235-856-0	02	1	0803-
48	CLIP; FRAME HARNESS (F) ID=32 L=50	1-09701-055-1	01	1	0803-
48	CLIP; FRAME HARNESS (E) ID=35 L=50	1-09701-214-0	01	1	0803-
48	CLIP; FRAME HARNESS (K) L=600	1-09707-107-1	01	1	0803-
48	CLIP; FRAME HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	03	1	0803-
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=25	5-09700-358-0	01	1	0803-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	01	1	0803-0905
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	0803-1002
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	01	1	1003-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	01	1	1003-
48	CLIP; FRAME HARNESS (J) ID=21 L=24	8-94176-807-1	03	1	0803-
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	03	1	0803-0901
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	01	1	0902-1201
48	CLIP; FRAME HARNESS (O) ID=14 L=44	9-09917-427-0	01	1	1202-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0803-0901
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0803-0901
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	14	1	0803-0804
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	13	1	0805-0808
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	14	1	0809-0809
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	15	1	0810-0901
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	16	1	0902-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	14	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (M) ID=18-24 L=22	1-09709-295-0	01	1	0805-0808
81	CLIP; HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1012-
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (A) L=180	1-09707-162-1	01	1	0803-0805
81	CLIP; HARNESS (B) ID=6.35 & 15	1-09709-276-1	01	1	0803-0905
213	CLIP; END CROSS HARNESS (A) ID=11 L=41	1-09700-403-0	02	1	0902-
213	CLIP; END CROSS HARNESS (B) ID=14 L=44	9-09917-427-0	09	1	0803-0901
213	CLIP; END CROSS HARNESS (B) ID=14 L=44	9-09917-427-0	07	1	0902-
235	CLIP; HARNESS,SPD SENSOR,SSPS (E) ID=5-12 L=18	1-09709-287-0	02	1	0809-
235	CLIP; HARNESS,SPD SENSOR,SSPS (F) ID=13-18 L=14.5	1-09709-290-0	01	1	0809-
235	CLIP; HARNESS,SPD SENSOR,SSPS (G) ID=10 & 10	1-09709-277-1	01	1	0810-0902
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=11 L=41	1-09700-403-0	02	1	0803-0901
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) OD=9 H=6	1-09709-178-0	01	1	0803-
235	CLIP; HARNESS,SPD SENSOR,SSPS (C) T=9 & 10.5	8-97371-949-0	01	1	0803-0807
235	CLIP; HARNESS,SPD SENSOR,SSPS (C) T=9 & 10.5	8-97371-949-0	02	1	0808-0902
235	CLIP; HARNESS,SPD SENSOR,SSPS MLD6W M/T(Y2C) (D) ID=12 L=35	5-09700-206-0	01	1	0807-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0803-
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	0803-
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	0803-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0803-
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	0803-
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	0803-
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	0803-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	0803-
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0803-
305	CLIP; ENG HARNESS (K) ID=22 L=35	8-97375-643-0	01	1	0803-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	0803-
306	CLIP; HARNESS,ELEC GOV (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0803-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	0803-
581	CLIP; HARNESS,REAR SUSP (A) ID=14 L=44	9-09917-427-0	03	1	0803-0908
581	CLIP; HARNESS,REAR SUSP (B) ID=11 L=41	1-09700-403-0	03	1	0909-0910
581	CLIP; HARNESS,REAR SUSP (B) ID=11 L=41	1-09700-403-0	02	1	0911-
612	CLIP; HARNESS DPD (C) T=9 & 10.5	8-97371-949-0	03	1	0803-0804
612	CLIP; HARNESS DPD (A) ID=11 L=41	1-09700-403-0	01	1	0803-
612	CLIP; HARNESS DPD (E) ID=4.76 & 10.0	1-09709-305-0	03	1	0803-
612	CLIP; HARNESS DPD (D) L=135	1-09987-143-1	01	1	0803-
612	CLIP; HARNESS DPD (B) L=250	5-09707-030-1	01	1	0803-

16 306 16 305 16 183

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (S) L=350	1-09707-183-0	01	1	0809-
16	CLIP; HARNESS (O) ID=11 L=16	0-95235-025-0	02	1	0803-
16	CLIP; HARNESS (Q) ID=11 L=60	0-95235-096-0	01	1	0803-0807
16	CLIP; HARNESS (H) ID=16 L=20	0-95235-536-0	01	1	0803-0810
16	CLIP; HARNESS (T) ID=5-12 L=22	1-09709-288-0	01	1	0811-0902
16	CLIP; HARNESS (D) ID=11 L=41	1-09700-403-0	01	1	0803-0901
16	CLIP; HARNESS (M) ID=11X2 L=16	1-09700-734-0	01	1	0803-
16	CLIP; HARNESS (F) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	0803-0805
16	CLIP; HARNESS (F) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0806-
16	CLIP; HARNESS (L) ID=26 L=26	1-09701-236-0	01	1	0803-
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	03	1	0803-0810
16	CLIP; HARNESS (N) ID=10 & 12	1-09709-278-1	01	1	0803-0810
16	CLIP; HARNESS (P) ID=10 & 15	1-09709-279-1	01	1	0803-0810
16	CLIP; HARNESS (U) ID=5-12 L=14.5	1-09987-221-0	01	1	0811-0902
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	03	1	0803-
16	CLIP; HARNESS (E) L=250	5-09707-030-1	02	1	0803-
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	0803-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0803-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0803-
16	CLIP; HARNESS (G) L=40.6	8-97229-357-0	02	1	0803-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0803-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (R) OD=9 H=6	1-09709-178-0	01	1	0803-0805
16	CLIP; HARNESS (R) OD=9 H=6	1-09709-178-0	01	1	0806-
183	CLIP; CONNECTOR L=175	1-09707-178-0	01	1	0803-0803
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0803-
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	0803-
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	0803-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0803-
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	0803-
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	0803-
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	0803-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	0803-
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0803-
305	CLIP; ENG HARNESS (K) ID=22 L=35	8-97375-643-0	01	1	0803-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	0803-
306	CLIP; HARNESS,ELEC GOV (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0803-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	0803-

16 48 171 16 16 48 171 305 305 48 16 81 171 223 235 305 48 16 48 171 223 16 235 16 171 235 48 305 16 48 116 235 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (S) L=350	1-09707-183-0	01	1	0809-
16	CLIP; HARNESS (O) ID=11 L=16	0-95235-025-0	02	1	0803-
16	CLIP; HARNESS (Q) ID=11 L=60	0-95235-096-0	01	1	0803-0807
16	CLIP; HARNESS (H) ID=16 L=20	0-95235-536-0	01	1	0803-0810
16	CLIP; HARNESS (T) ID=5-12 L=22	1-09709-288-0	01	1	0811-0902
16	CLIP; HARNESS (D) ID=11 L=41	1-09700-403-0	01	1	0803-0901
16	CLIP; HARNESS (M) ID=11X2 L=16	1-09700-734-0	01	1	0803-
16	CLIP; HARNESS (F) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	0803-0805
16	CLIP; HARNESS (F) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0806-
16	CLIP; HARNESS (L) ID=26 L=26	1-09701-236-0	01	1	0803-
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	03	1	0803-0810
16	CLIP; HARNESS (N) ID=10 & 12	1-09709-278-1	01	1	0803-0810
16	CLIP; HARNESS (P) ID=10 & 15	1-09709-279-1	01	1	0803-0810
16	CLIP; HARNESS (U) ID=5-12 L=14.5	1-09987-221-0	01	1	0811-0902
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	03	1	0803-
16	CLIP; HARNESS (E) L=250	5-09707-030-1	02	1	0803-
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	0803-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0803-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0803-
16	CLIP; HARNESS (G) L=40.6	8-97229-357-0	02	1	0803-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0803-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (R) OD=9 H=6	1-09709-178-0	01	1	0803-0805
16	CLIP; HARNESS (R) OD=9 H=6	1-09709-178-0	01	1	0806-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	0803-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (O) ID=14 L=44	9-09917-427-0	02	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50	9-09917-430-0	07	1	0803-0901
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50	9-09917-430-0	09	1	0902-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (D) ID=20 L=50	9-09917-430-0	09	1	0803-0901
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (D) ID=20 L=50	9-09917-430-0	11	1	0902-
48	CLIP; FRAME HARNESS (G) ID=16 L=28	0-95235-556-0	02	1	0803-0908
48	CLIP; FRAME HARNESS (N) ID=11 L=20	0-95235-035-0	02	1	0909-
48	CLIP; FRAME HARNESS (I) ID=19 L=28	0-95235-856-0	02	1	0803-
48	CLIP; FRAME HARNESS (F) ID=32 L=50	1-09701-055-1	01	1	0803-
48	CLIP; FRAME HARNESS (E) ID=35 L=50	1-09701-214-0	01	1	0803-
48	CLIP; FRAME HARNESS (K) L=600	1-09707-107-1	01	1	0803-
48	CLIP; FRAME HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	03	1	0803-
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=25	5-09700-358-0	01	1	0803-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	01	1	0803-0905
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	0803-1002
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	01	1	1003-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	01	1	1003-
48	CLIP; FRAME HARNESS (J) ID=21 L=24	8-94176-807-1	03	1	0803-
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	03	1	0803-0901
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	01	1	0902-1201
48	CLIP; FRAME HARNESS (O) ID=14 L=44	9-09917-427-0	01	1	1202-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0803-0901
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0803-0901
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	14	1	0803-0804
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	13	1	0805-0808
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	14	1	0809-0809
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	15	1	0810-0901
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	16	1	0902-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	14	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (M) ID=18-24 L=22	1-09709-295-0	01	1	0805-0808
81	CLIP; HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1012-
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (A) L=180	1-09707-162-1	01	1	0803-0805
81	CLIP; HARNESS (B) ID=6.35 & 15	1-09709-276-1	01	1	0803-0905
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	04	1	0803-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (A) ID=11 L=28	0-95235-055-0	01	1	0807-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (B) ID=16 L=28	0-95235-556-0	01	1	0807-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (C) OD=9 H=6	1-09709-178-0	02	1	0807-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (D) ID=13-18 L=14.5	1-09709-290-0	01	1	0807-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (E) ID=5-12 L=14.5	1-09987-221-0	01	1	0807-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (F) OD=8.95 H=6.25	8-97375-754-0	01	1	0807-0809
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	04	1	1002-
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	03	1	0803-
235	CLIP; HARNESS,SPD SENSOR,SSPS (E) ID=5-12 L=18	1-09709-287-0	02	1	0809-
235	CLIP; HARNESS,SPD SENSOR,SSPS (F) ID=13-18 L=14.5	1-09709-290-0	01	1	0809-
235	CLIP; HARNESS,SPD SENSOR,SSPS (G) ID=10 & 10	1-09709-277-1	01	1	0810-0902
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=11 L=41	1-09700-403-0	02	1	0803-0901
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) OD=9 H=6	1-09709-178-0	01	1	0803-
235	CLIP; HARNESS,SPD SENSOR,SSPS (C) T=9 & 10.5	8-97371-949-0	01	1	0803-0807
235	CLIP; HARNESS,SPD SENSOR,SSPS (C) T=9 & 10.5	8-97371-949-0	02	1	0808-0902
235	CLIP; HARNESS,SPD SENSOR,SSPS MLD6W M/T(Y2C) (D) ID=12 L=35	5-09700-206-0	01	1	0807-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0803-
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	0803-
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	0803-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0803-
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	0803-
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	0803-
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	0803-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	0803-
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0803-
305	CLIP; ENG HARNESS (K) ID=22 L=35	8-97375-643-0	01	1	0803-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	0803-

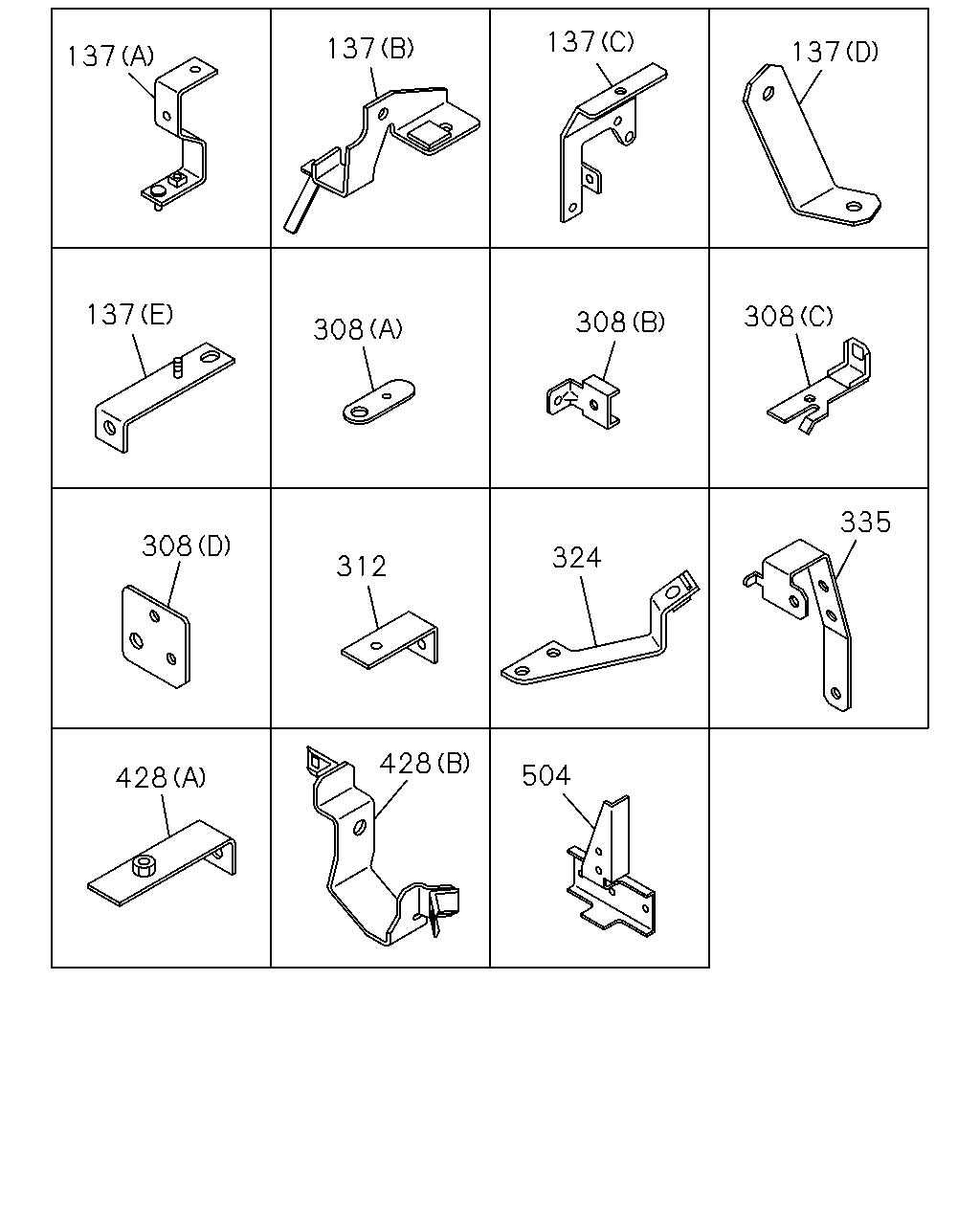

137 137 137 137 137 308 308 308 335 308 324 312 428 504 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	BRACKET; HARNESS CLAMP (D)	8-97614-728-1	01	1	0803-
137	BRACKET; HARNESS CLAMP (C)	8-97618-098-2	01	1	0803-
137	BRACKET; HARNESS CLAMP (E)	8-97624-013-0	01	1	0803-
137	BRACKET; HARNESS CLAMP (B)	8-98047-324-0	01	1	0803-
137	BRACKET; HARNESS CLAMP (A)	8-98065-904-0	01	1	0803-
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	03	1	0803-1010
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1011-
308	BRACKET; CLIP,ENG HARNESS (B)	8-97614-078-0	01	1	0803-
308	BRACKET; CLIP,ENG HARNESS (C)	8-98021-291-2	01	1	0803-
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	0803-
312	BRACKET; CLIP HARNESS L=55	1-47475-304-0	01	1	0803-0901
324	BRACKET; CLIP	8-98051-648-1	01	1	0803-
324	BRACKET; CLIP	8-98051-649-1	01	1	0803-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	0803-
428	BRACKET (A)	1-47475-519-0	01	1	0803-
428	BRACKET (B)	8-98090-952-0	01	1	0803-
504	PROTECTOR; HARNESS	8-98042-155-0	01	1	0803-0807

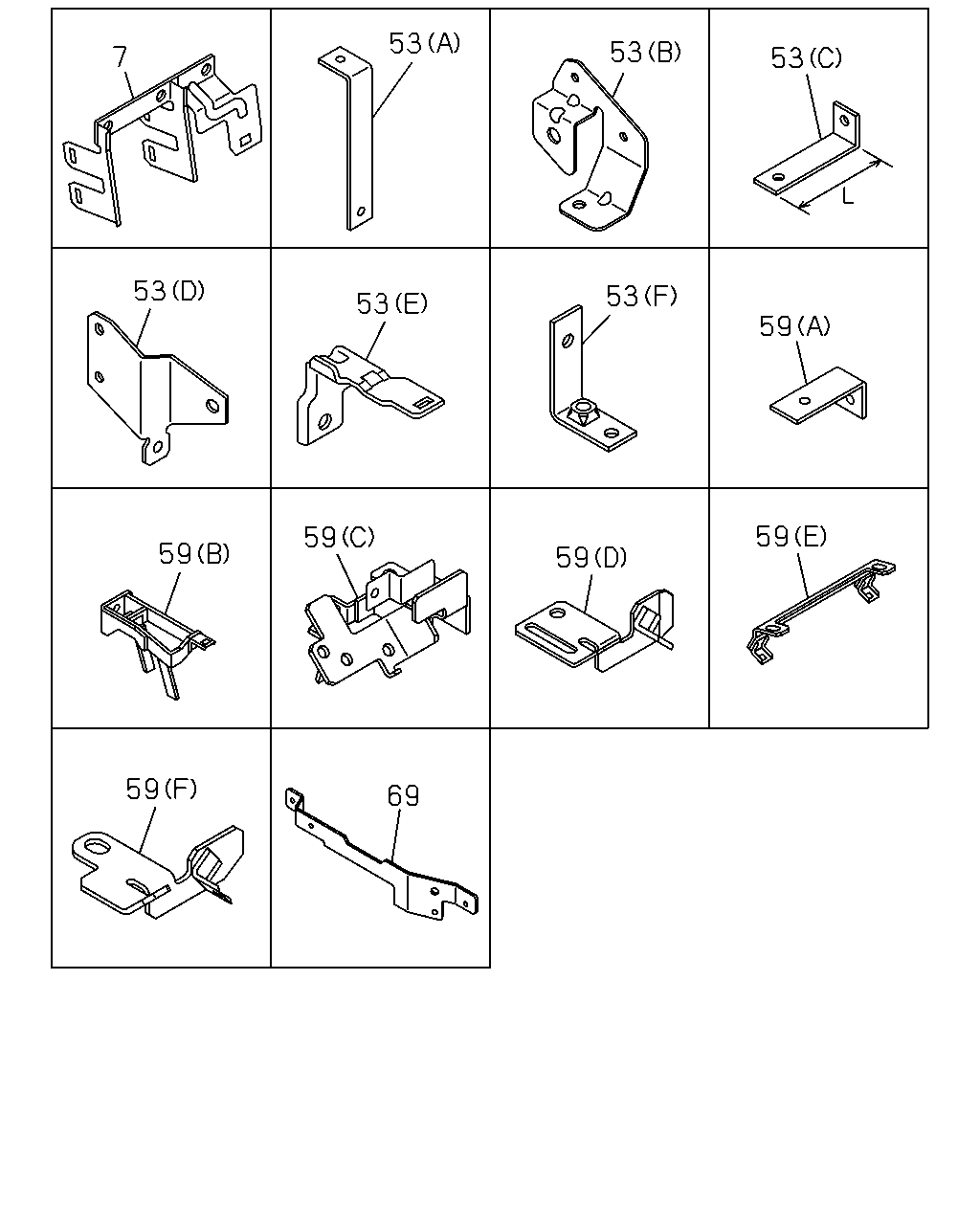

7 53 53 53 53 53 53 59 59 59 59 59 59 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98090-846-0	01	1	0803-
53	BRACKET; HARNESS (C) L=75	1-47478-323-0	01	1	0803-0805
53	BRACKET; HARNESS (F)	8-98125-684-0	01	1	0806-
53	BRACKET; HARNESS (D)	8-98047-890-0	01	1	0803-
53	BRACKET; HARNESS (D)	8-98047-891-0	01	1	0803-
53	BRACKET; HARNESS (E)	8-98052-458-0	01	1	0803-
53	BRACKET; HARNESS (A) L=145	1-47475-655-0	02	1	0803-
53	BRACKET; HARNESS (A) L=145	1-47475-655-0	02	1	0803-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B)	8-98084-699-0	01	1	0803-
53	BRACKET; HARNESS (C) L=95	1-82699-085-0	01	1	0803-0804
53	BRACKET; HARNESS (C) L=95	1-82699-085-0	01	1	0803-0804
53	BRACKET; HARNESS (C) L=95	1-82699-085-0	01	1	0805-
59	BRACKET; FRAME HARNESS KD PREPARATORY PACK<6HF> (A) L=55	1-47475-304-0	01	1	0812-0901
59	BRACKET; FRAME HARNESS (A) L=55	1-47475-304-0	01	1	0803-0807
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	0803-1502
59	BRACKET; FRAME HARNESS (F)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (E)	8-97619-533-0	01	1	0803-
59	BRACKET; FRAME HARNESS (C)	8-97619-534-0	01	1	0803-
59	BRACKET; FRAME HARNESS (B)	8-97609-264-2	01	1	0803-0804
59	BRACKET; FRAME HARNESS MZX6P M/T(RSW) (B)	8-97609-264-2	01	1	0805-
59	BRACKET; FRAME HARNESS MLD6W M/T(Y2C) (B)	8-97627-325-0	01	1	0807-0901
59	BRACKET; FRAME HARNESS MLD6W M/T(Y2C) (B)	8-97627-325-0	01	1	0807-0901
59	BRACKET; FRAME HARNESS MLD6W M/T(Y2C) (B)	8-97627-325-0	01	1	0902-
69	BRACKET; CLIP	8-97614-738-0	01	1	0803-

304 304 139 304 38 304 516 304 139 139 184 38 38 242 313 19 38 139 313 139 150 242 313 38 139 38 139 313 38 386 516 377 38 386 524 294 515 525 294 47 219

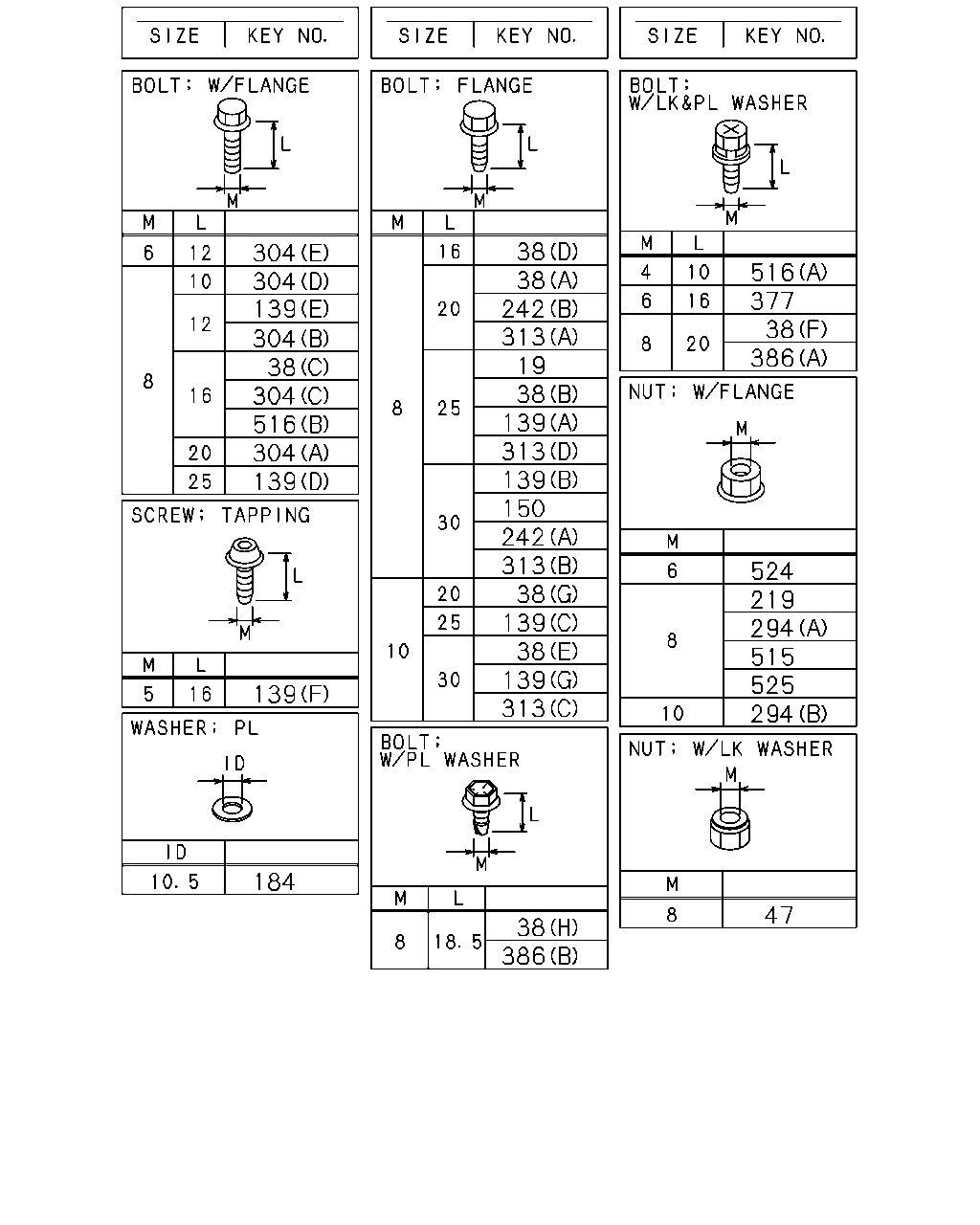

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	BOLT; PROTECTOR M8X25 FLANGE	0-28650-825-0	02	1	0803-0807
38	BOLT; CLIP,HARNESS (C) M8X16 FLANGE	0-28050-816-0	03	1	0803-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	03	1	0803-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	05	1	0803-
38	BOLT; CLIP,HARNESS (E) M10X30 FLANGE	0-28651-030-0	01	1	0803-
38	BOLT; CLIP,HARNESS (F) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0803-1201
38	BOLT; CLIP,HARNESS (H) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-
38	BOLT; CLIP,HARNESS (D) M8X16 FLANGE	8-98076-109-0	01	1	0803-0807
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	0803-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	0803-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	01	1	0803-0810
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	01	1	0803-0810
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	01	1	0811-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	02	1	0803-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	02	1	0803-
38	BOLT; CLIP,HARNESS MLD6W M/T(Y2C) (G) M10X20 FLANGE	0-28751-020-0	01	1	0807-
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0803-
139	BOLT; BRKT KD PREPARATORY PACK<6HF> (A) M8X25 FLANGE	0-28650-825-0	01	1	0812-0901
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	0803-
139	BOLT; BRKT (D) M8X25 FLANGE	0-28050-825-0	02	1	0803-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0803-0807
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	0803-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	0803-
139	BOLT; BRKT (G) M10X30 FLANGE	0-28651-030-0	01	1	0803-
139	BOLT; BRKT (G) M10X30 FLANGE	0-28651-030-0	01	1	0803-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0803-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0803-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0803-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (F) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0803-
150	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	02	1	0803-0805
150	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	01	1	0806-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0806-
219	NUT M8 FLANGE	0-91180-108-0	04	1	0803-
219	NUT M8 FLANGE	0-91180-108-0	01	1	0803-0901
219	NUT M8 FLANGE	0-91180-108-0	01	1	0803-0901
219	NUT M8 FLANGE	0-91180-108-0	01	1	0902-0902
219	NUT M8 FLANGE	0-91180-108-0	01	1	0902-
219	NUT M8 FLANGE	0-91180-108-0	01	1	0902-
219	NUT M8 FLANGE	0-91180-108-0	02	1	0803-0901
219	NUT M8 FLANGE	0-91180-108-0	02	1	0803-0901
219	NUT M8 FLANGE	0-91180-108-0	02	1	0803-0901
219	NUT M8 FLANGE	0-91180-108-0	02	1	0902-
219	NUT M8 FLANGE	0-91180-108-0	02	1	0902-
242	BOLT; BRKT,HARNESS (A) M8X30 FLANGE	0-28650-830-0	02	1	0803-0804
242	BOLT; BRKT,HARNESS (A) M8X30 FLANGE	0-28650-830-0	01	1	0805-0806
242	BOLT; BRKT,HARNESS (B) M8X20 FLANGE	0-28650-820-0	01	1	0807-
294	NUT (B) M10 FLANGE	0-91180-210-0	01	1	0803-1010
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	1011-
294	NUT (B) M10 FLANGE	0-91180-210-0	03	1	0803-1010
294	NUT (B) M10 FLANGE	0-91180-210-0	01	1	1011-
294	NUT (B) M10 FLANGE	0-91180-210-0	01	1	1011-
294	NUT (A) M8 FLANGE	0-91180-108-0	04	1	0803-0901
294	NUT (A) M8 FLANGE	0-91180-108-0	04	1	0803-0901
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0902-0912
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0902-0912
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1001-
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1001-
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0803-0901
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0803-0901
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0803-0901
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0902-0902
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0902-0902
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0902-0902
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0902-0902
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0902-0912
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0902-0912
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0902-0912
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1001-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1001-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1001-
294	NUT (A) M8 FLANGE	0-91180-108-0	03	1	0803-0804
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0805-0901
294	NUT (A) M8 FLANGE	0-91180-108-0	04	1	0902-
304	BOLT; ENG HARNESS CLIP (E) M6X12 FLANGE	0-28050-612-0	01	1	0803-
304	BOLT; ENG HARNESS CLIP (D) M8X10 FLANGE	0-28050-810-0	01	1	0803-1010
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	03	1	0803-
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE	0-28050-816-0	02	1	0803-
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	01	1	0803-
313	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	0803-
313	BOLT; BRKT (D) M8X25 FLANGE	0-28650-825-0	01	1	0803-0901
313	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0803-
313	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0803-
313	BOLT; BRKT (C) M10X30 FLANGE	0-28651-030-0	01	1	0803-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	0803-
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0803-1202
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-
515	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0803-
516	BOLT; HARNESS (A) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	0803-
516	BOLT; HARNESS MLD6W M/T(Y2C) (B) M8X16 FLANGE	0-28050-816-0	02	1	0807-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	0803-
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	02	1	0902-
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	02	1	0803-0901
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	02	1	0803-0901
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	01	1	0902-
525	NUT; CLIP T=8.5 M8 FLANGE	5-09440-010-0	01	1	0803-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
