7-50 — FRONT SEAT (#69156) — 150 parça

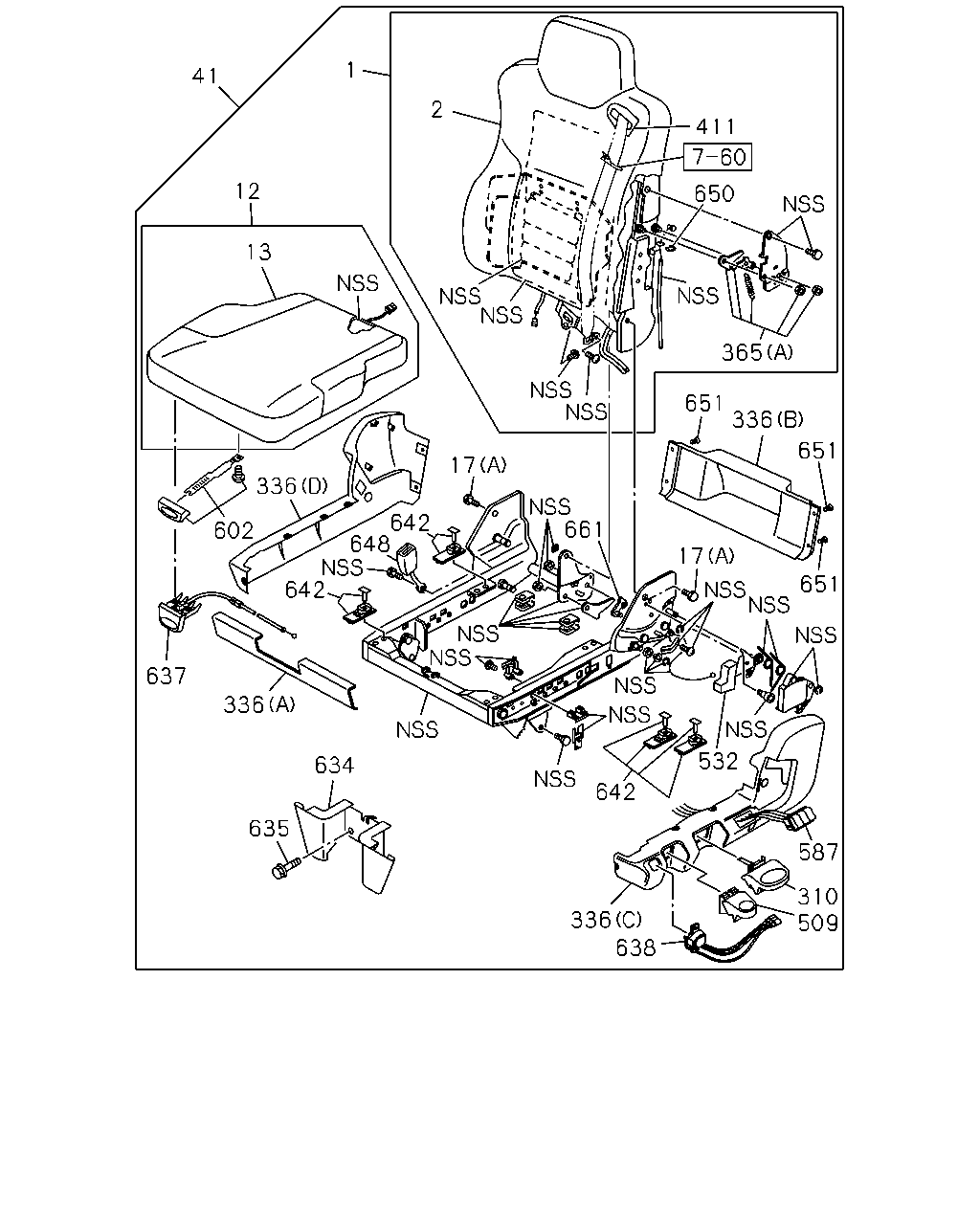

çizim 134140
41 1 2 12 13 336 602 637 17 642 648 642 336 634 635 661 651 336 651 17 651 532 642 587 310 509 638 336 411 650 365
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-962-0 01 1 0803-
1 BACK ASM; SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-961-0 01 1 0803-
2 COVER; TRIM,FRT SEAT,BACK 8-98097-965-0 01 1 0803-1212
2 COVER; TRIM,FRT SEAT,BACK 8-98232-352-0 01 1 1301-
12 CUSHION; SEAT,FRT 8-98098-006-0 01 1 0803-
13 COVER; TRIM,FRT SEAT,CUSHION 8-98098-007-0 01 1 0803-
17 BOLT; RECLINING
(A) 		8-98097-974-0 02 1 0803-
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 0803-
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-985-2 01 1 0803-1212
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-065-0 01 1 1301-
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98000-537-2 01 1 0803-1212
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-064-0 01 1 1301-
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT 8-98097-991-0 01 1 0803-
336 COVER; DRIVER SEAT
(D) 		8-98097-977-0 01 1 0803-
336 COVER; DRIVER SEAT
(C) 		8-98097-983-0 01 1 0803-
336 COVER; DRIVER SEAT
(A) 		8-98097-995-0 01 1 0803-
336 COVER; DRIVER SEAT
(B) 		8-98097-996-0 01 1 0803-
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 0803-
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 0803-
411 GUIDE; SEAT BELT 8-98097-967-0 01 1 0803-
509 LEVER; DAMPER 8-98097-987-0 01 1 0803-
532 LEVER ASM; TILT 8-98097-981-0 01 1 0803-
587 VALVE; LUMBAR SUPPORT 8-98097-985-0 01 1 0803-
602 KNOB; ADJ,SEAT 8-98098-008-0 01 1 0803-
634 COVER; CONNECTOR,SEAT 8-98088-279-0 01 1 0803-
635 BOLT; COVER
M6X16 		0-52000-616-0 02 1 0803-
637 LEVER; SLOPE ADJ 8-98097-989-0 01 1 0803-
638 VALVE; LOWERING 8-98097-993-0 01 1 0803-
642 SLIDER; CUSHION 8-98192-932-0 04 1 0803-
648 BUCKLE; SEAT BELT 8-98097-976-0 01 1 0803-
650 CABLE 8-98097-973-0 01 1 0803-1212
650 CABLE 8-98232-354-0 01 1 1301-
651 RIVET 8-98194-075-0 04 1 0803-
661 LOCK ASM; RECLINING 8-98097-979-0 01 1 0803-

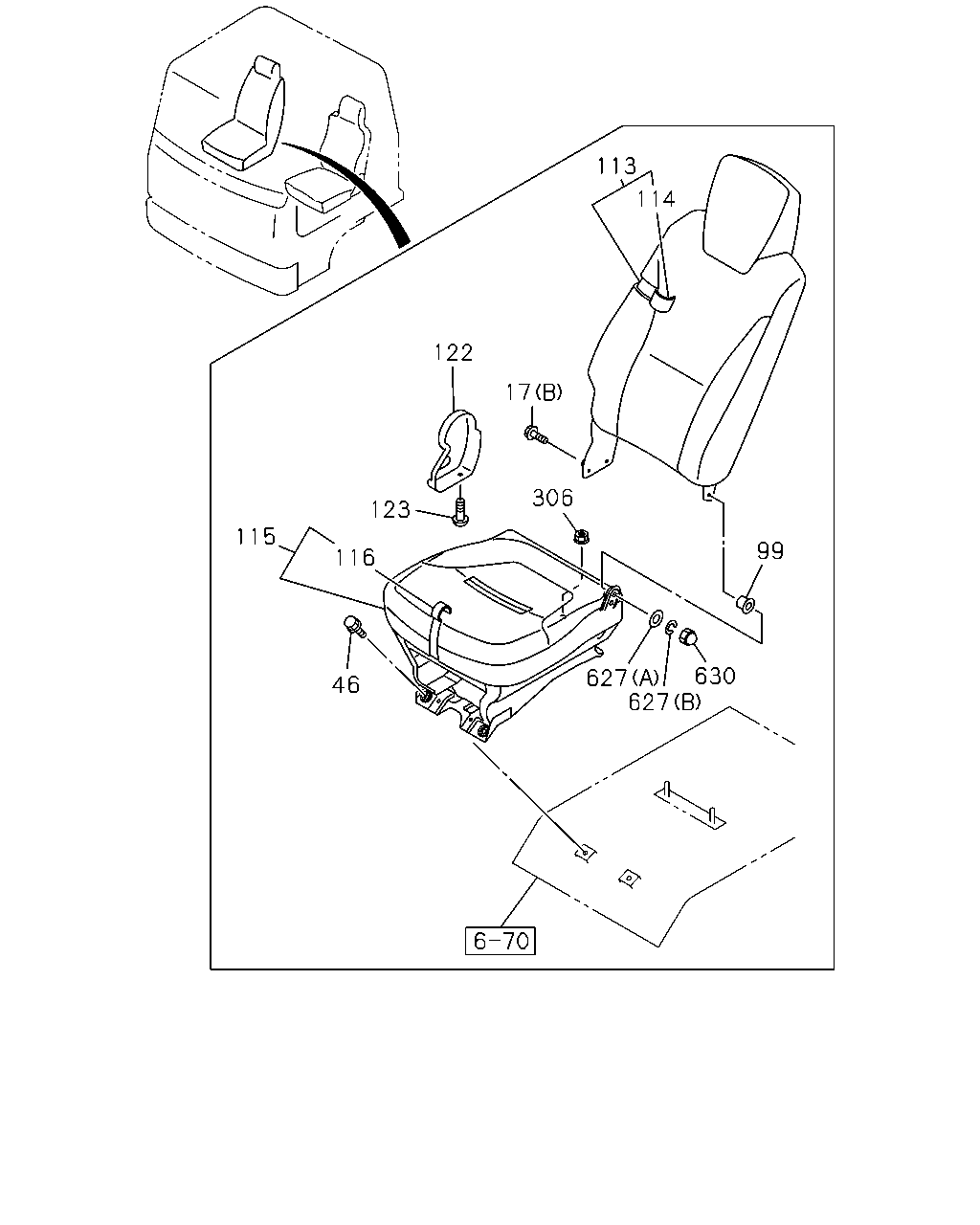

çizim 135099
113 114 122 17 306 123 116 115 46 627 627 630 99
BalonParca AdiParca NoAdetTipApplied Date
17 BOLT; RECLINING
(A) 		8-98097-974-0 02 1 0803-
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 0803-
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0803-
99 BUSHING; SEAT BACK 8-98063-219-0 01 1 0803-1009
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 1010-
113 BACK ASM; SEAT
DARK GRAY 		8-97414-126-0 01 1 0803-0902
113 BACK ASM; SEAT
DARK GRAY 		8-97416-222-0 01 1 0903-1009
113 BACK ASM; SEAT
DARK GRAY 		8-97421-423-0 01 1 1010-
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97414-127-0 01 1 0803-0902
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97416-224-0 01 1 0903-1009
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97421-425-0 01 1 1010-
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97414-124-0 01 1 0803-0902
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97416-226-0 01 1 0903-1009
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97421-419-1 01 1 1010-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97414-125-0 01 1 0803-0902
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97416-228-0 01 1 0903-1009
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97421-421-0 01 1 1010-
122 COVER; ADJ,RECLINING
GRAY 		8-97414-043-0 01 1 0803-
123 SCREW; COVER,RECLINING 8-98070-026-0 01 1 0803-
306 NUT; SEAT ADJ
M10 FLANGE 		0-91180-110-0 02 1 0803-
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 0803-
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 0803-
630 NUT; CAP
M8 		8-98063-225-0 01 1 0803-

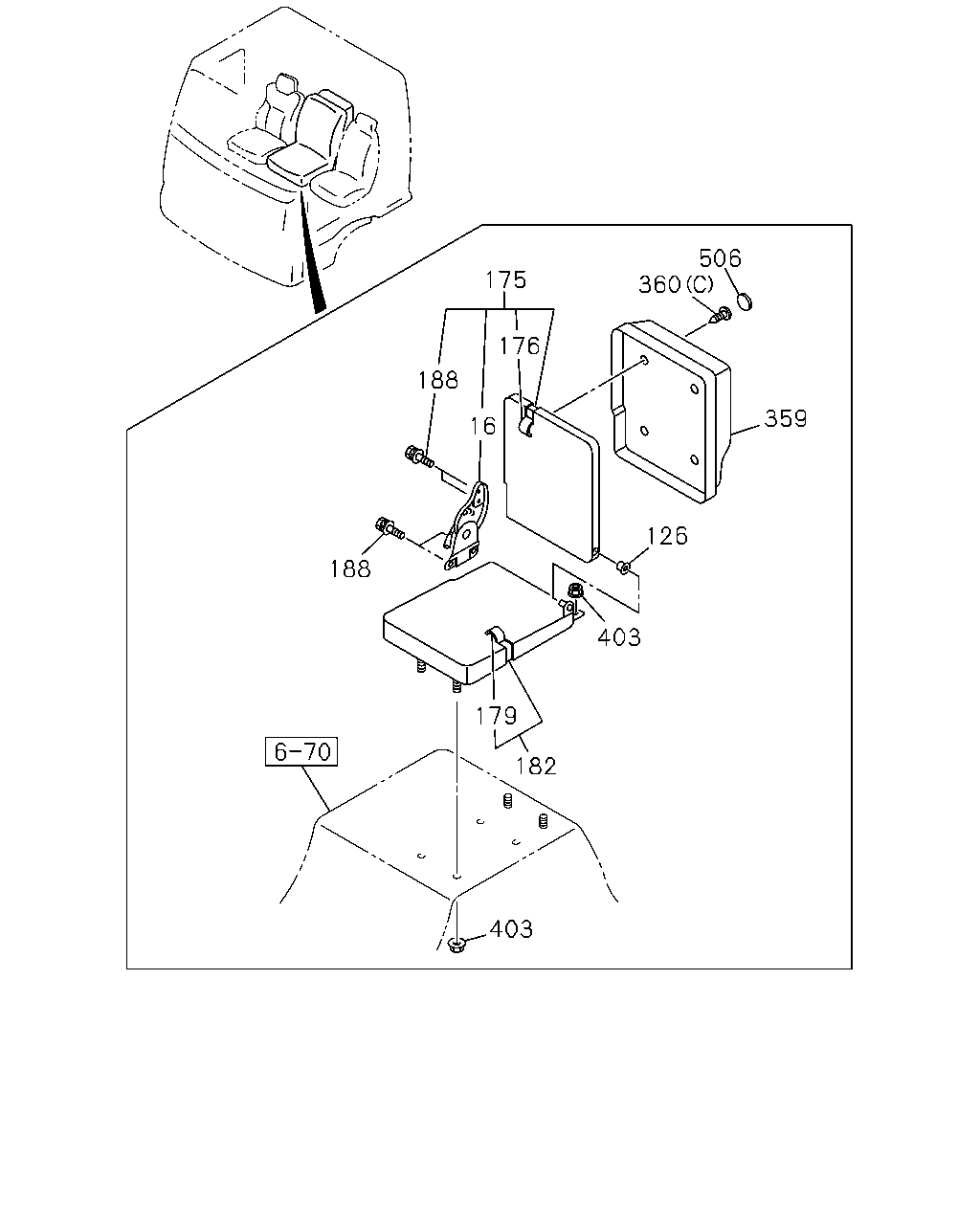

çizim 135139
506 360 359 126 175 176 188 16 188 403 179 182 403
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		1-75418-062-1 01 1 0803-
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		8-97854-900-0 01 1 0803-
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-984-0 01 1 0803-0902
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97416-233-0 01 1 0903-1009
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-434-1 01 1 1010-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-985-0 01 1 0803-0902
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97416-234-0 01 1 0903-1009
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-435-1 01 1 1010-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97414-691-0 01 1 0803-0902
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97416-238-0 01 1 0903-1009
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-433-1 01 1 1010-
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97414-131-0 01 1 0803-0902
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97416-236-0 01 1 0903-1009
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-431-3 01 1 1010-
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE 		1-75198-053-0 04 1 0803-
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-977-2 01 1 0803-1006
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1007-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0803-1009
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1010-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 0803-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0803-1110
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1111-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20 		9-09829-324-1 02 1 0803-1009
403 NUT; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE 		0-91180-108-0 04 1 0803-
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-980-1 04 1 0803-1006
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-980-1 02 1 1007-

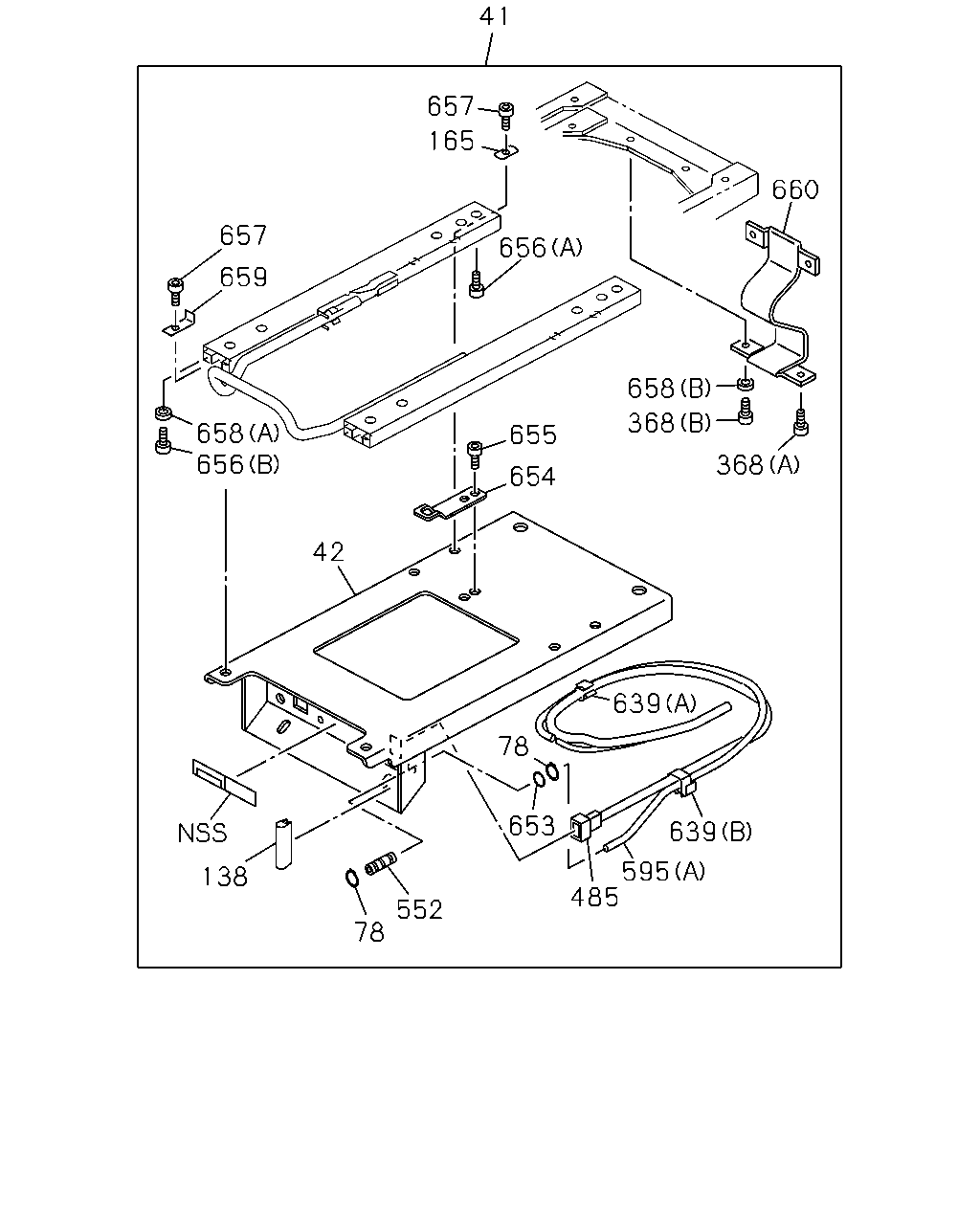

çizim 135214
485 595 639 653 552 78 78 639 138 42 654 655 368 368 658 660 656 656 658 659 657 165 657 41
BalonParca AdiParca NoAdetTipApplied Date
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-985-2 01 1 0803-1212
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-065-0 01 1 1301-
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98000-537-2 01 1 0803-1212
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-064-0 01 1 1301-
42 STAND; DRIVER SEAT 8-98106-346-0 01 1 0803-
78 RING; SNAP 8-98101-900-0 02 1 0803-
138 PROTECTOR; SEAT STAND 8-98106-351-0 01 1 0803-
165 WASHER; PL 1-75590-086-0 04 1 0803-
368 BOLT; SEAT
(A) 		8-98106-353-0 03 1 0803-
368 BOLT; SEAT
(B) 		8-98106-358-0 01 1 0803-
485 HARNESS; FRT SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-360-0 01 1 0803-
485 HARNESS; FRT SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-361-0 01 1 0803-
552 CONNECTOR 8-98101-902-0 01 1 0803-
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 0803-
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 0803-
639 CLIP; SEAT
(A) 		8-98106-349-0 01 1 0803-
639 CLIP; SEAT
(B) 		8-98106-350-0 01 1 0803-
653 GASKET 8-98101-901-0 01 1 0803-
654 HOOK; STOPPER 8-98106-352-0 01 1 0803-
655 BOLT; HOOK 8-98106-353-0 02 1 0803-
656 BOLT; SLIDER TO SEAT
(A) 		1-75590-085-0 04 1 0803-
656 BOLT; SLIDER TO SEAT
(B) 		8-98106-354-0 02 1 0803-
657 BOLT; SLIDER TO STAND 1-75590-085-0 06 1 0803-
658 SPACER; BOLT
(A) 		8-98106-355-0 02 1 0803-
658 SPACER; BOLT
(B) 		8-98106-359-0 01 1 0803-
659 STOPPER 8-98106-356-0 02 1 0803-
660 BELT; TETHER 8-98106-357-0 01 1 0803-

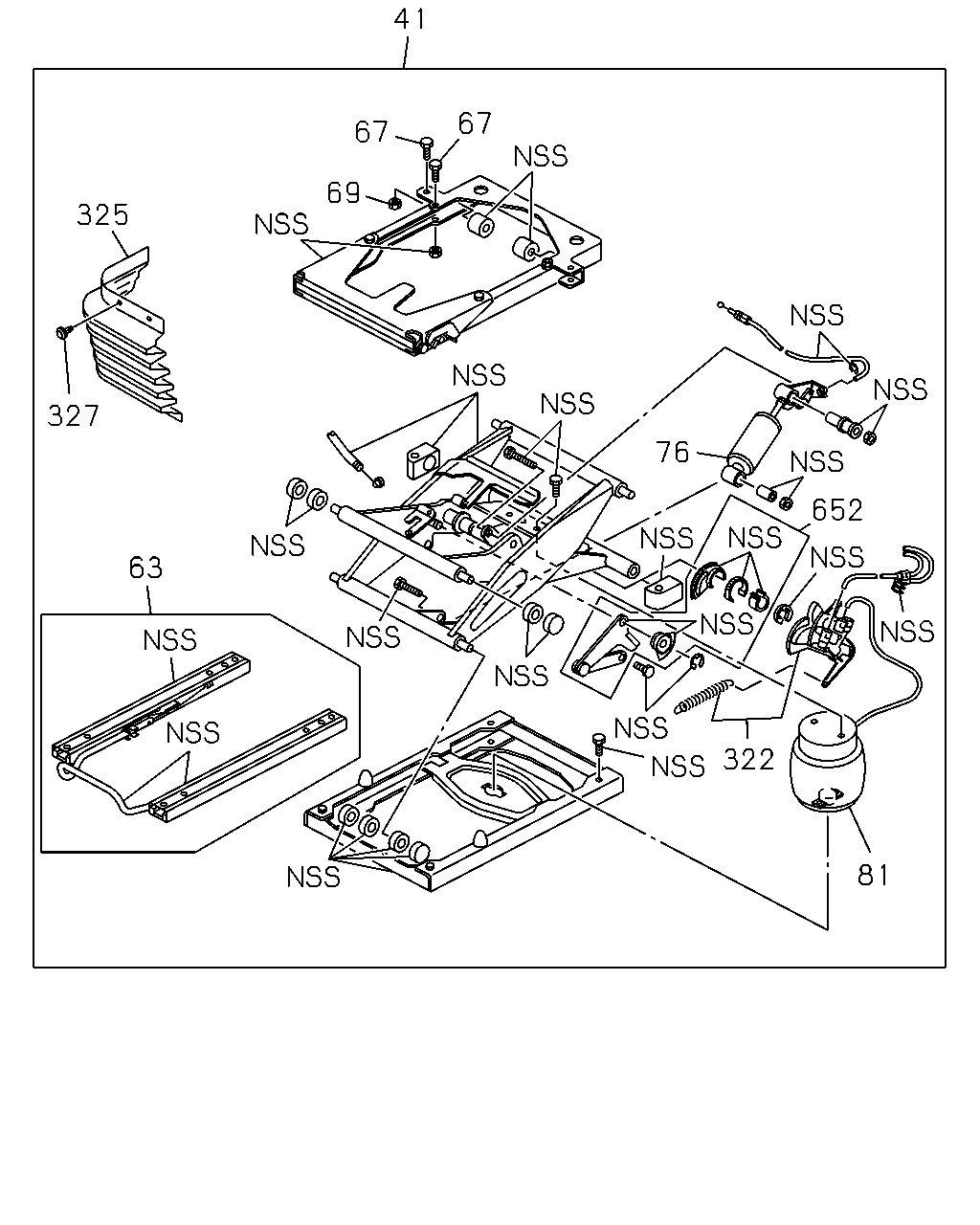

çizim 187721
41 67 67 69 325 327 63 76 652 81 322
BalonParca AdiParca NoAdetTipApplied Date
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-985-2 01 1 0803-1212
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-065-0 01 1 1301-
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98000-537-2 01 1 0803-1212
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-064-0 01 1 1301-
63 ADJUSTER; SEAT SLIDE 8-98098-005-0 01 1 0803-
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 0803-
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 0803-
76 DAMPER; AIR SUSP 8-98097-999-0 01 1 0803-
81 SPRING; AIR 8-98098-000-0 01 1 0803-
322 VALVE; AIR SPRING 8-98098-001-0 01 1 0803-
325 COVER; SUSPENSION DEVICE 8-98098-003-0 01 1 0803-
327 CLIP; COVER 8-98098-004-0 01 1 0803-
652 LOCK ASM; HEIGHT 8-98098-002-0 01 1 0803-

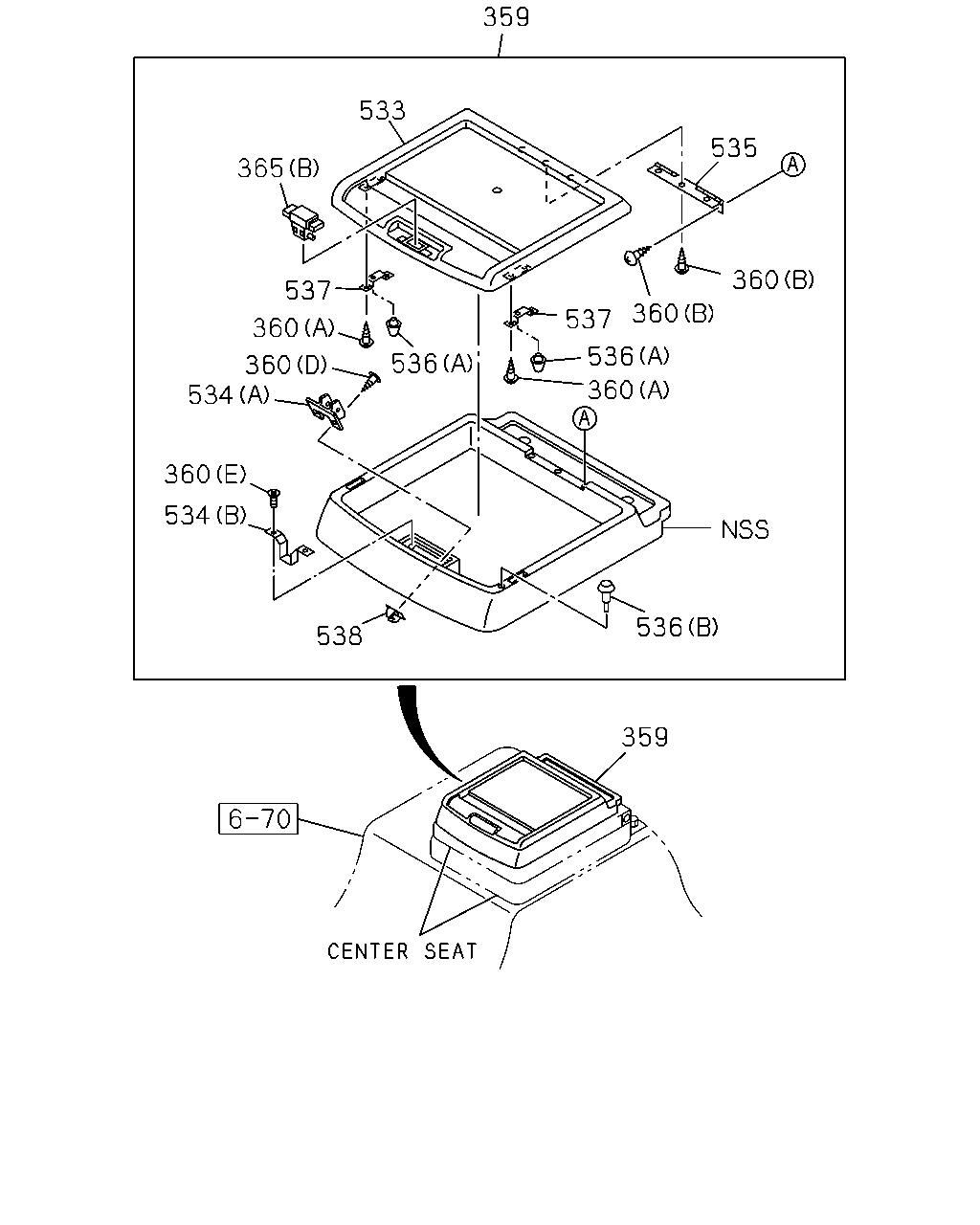

çizim 187723
359 533 365 537 360 360 534 360 534 538 359 536 360 536 537 360 360 535 536
BalonParca AdiParca NoAdetTipApplied Date
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-977-2 01 1 0803-1006
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1007-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0803-1009
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1010-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 0803-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0803-1110
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1111-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20 		9-09829-324-1 02 1 0803-1009
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 0803-
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 0803-
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-979-1 01 1 0803-1006
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-263-0 01 1 1007-
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> (A) 		1-72538-181-0 01 1 0803-1009
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-190-0 01 1 1010-
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72447-391-1 01 1 0803-
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> (A) 		5-09983-002-1 02 1 0803-1009
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-187-0 02 1 1010-
537 BRACKET; RUBBER
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72548-057-1 02 1 0803-1009
538 GROMMET; SCREW
SEAT ASM - WITH CENTER SEAT<7BC> 		1-09983-165-0 02 1 0803-1009

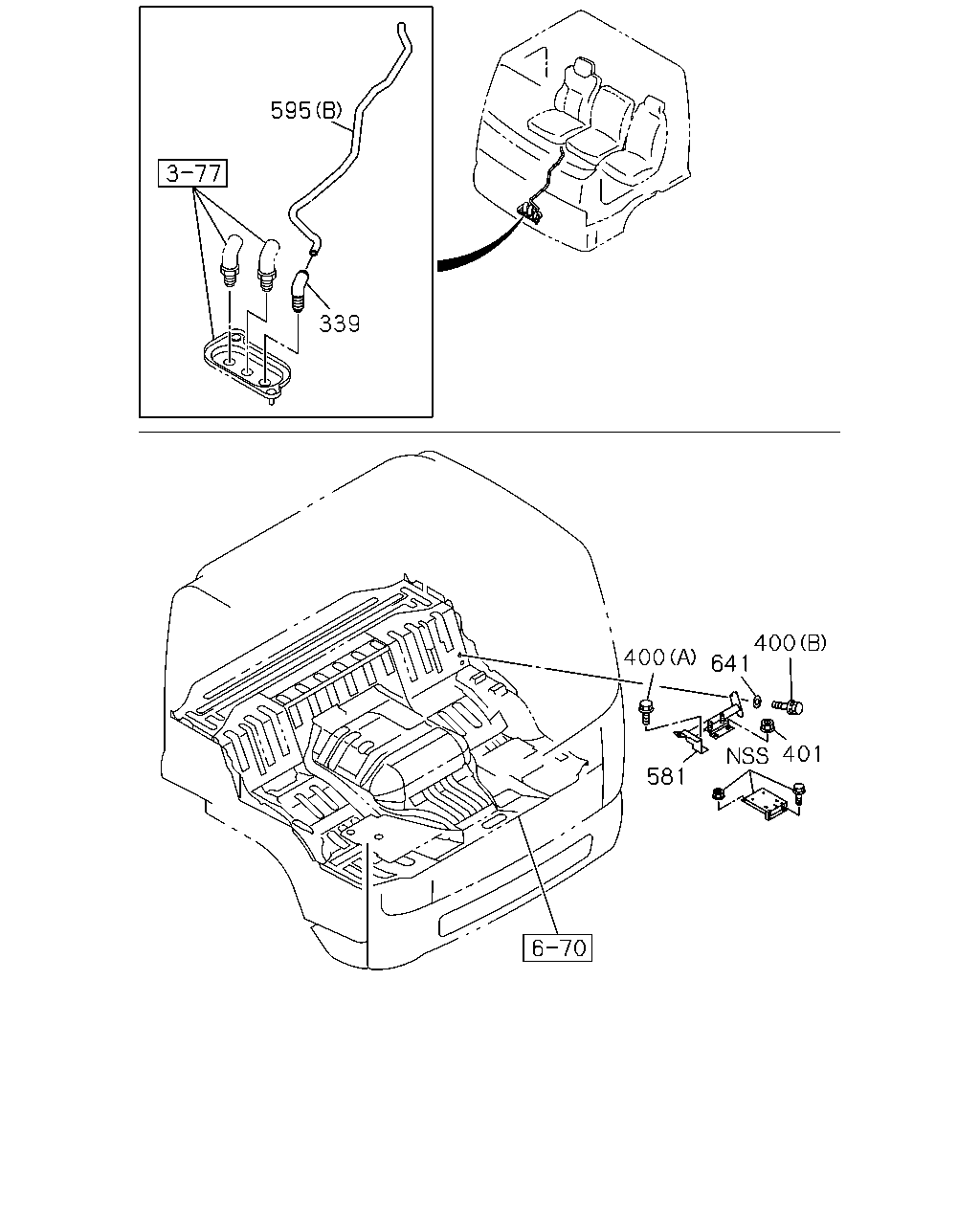

çizim 320096
595 339 400 581 401 400 641
BalonParca AdiParca NoAdetTipApplied Date
339 UNION; DRIVER SEAT 8-98014-971-0 01 1 0803-
400 BOLT; SUPPORT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0803-
400 BOLT; SUPPORT
(B) 		8-98098-996-0 02 1 0803-
401 NUT; SUPPORT
M10 FLANGE 		0-91180-110-0 02 1 0803-
581 PIPE; SEAT 8-98049-531-3 01 1 0803-
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 0803-
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 0803-
641 WASHER; SUPPORT 8-98099-007-0 02 1 0803-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
