◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11150 - FSR-LHD(EU)SPACE EU4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#69152) — 155 parça

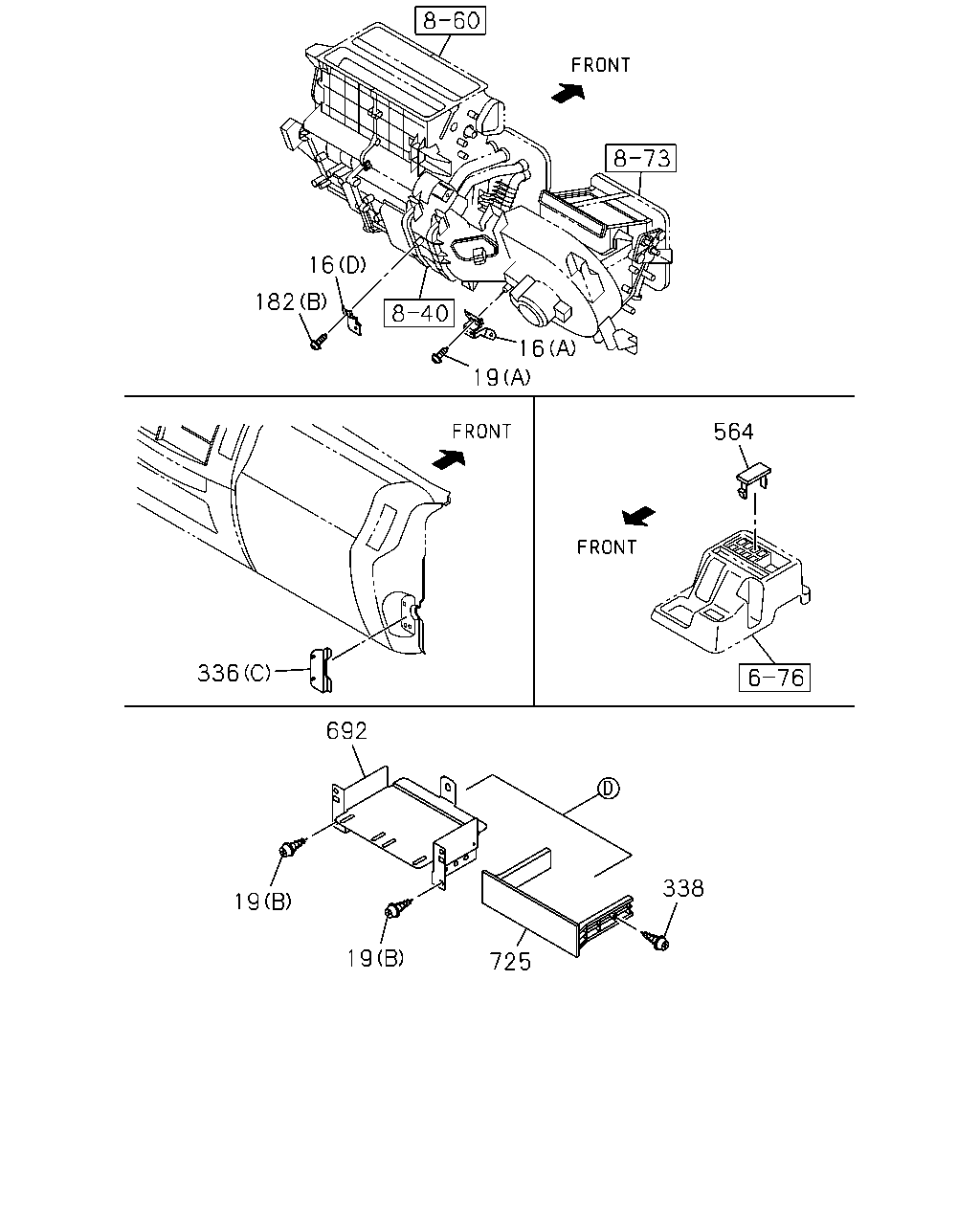

çizim 133036
16 182 19 16 564 336 692 19 19 725 338
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97585-612-2 01 1 0803-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-98017-527-0 01 1 0803-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0803-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0803-
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 0803-
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0803-
19 SCREW; BRKT
KD PREPARATORY PACK<6HF> (B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0803-0806
19 SCREW; BRKT
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0807-0807
19 SCREW; BRKT
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0808-
19 SCREW; BRKT
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0808-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0803-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0803-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0803-1111
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0803-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 0803-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 0803-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97409-782-3 01 1 0803-1208
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1209-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 0803-
338 SCREW; COVER
KD PREPARATORY PACK<6HF> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0803-0806
338 SCREW; COVER
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0807-0807
338 SCREW; COVER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0808-
338 SCREW; COVER
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0808-
564 COVER; SW 8-97043-732-1 06 1 0803-
692 BRACKET; TACHOGRAPH
KD PREPARATORY PACK<6HF> 		8-98094-272-0 01 1 0803-0806
692 BRACKET; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> 		8-98094-272-0 01 1 0807-0807
692 BRACKET; TACHOGRAPH
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-98094-272-0 01 1 0808-
692 BRACKET; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> 		8-98094-272-0 01 1 0808-
725 COVER; TACHOGRAPH
KD PREPARATORY PACK<6HF> BLACK 		8-97407-896-1 01 1 0803-0806
725 COVER; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> BLACK 		8-97407-896-1 01 1 0807-0807
725 COVER; TACHOGRAPH
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> BLACK 		8-97407-896-2 01 1 0808-
725 COVER; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> BLACK 		8-97407-896-2 01 1 0808-

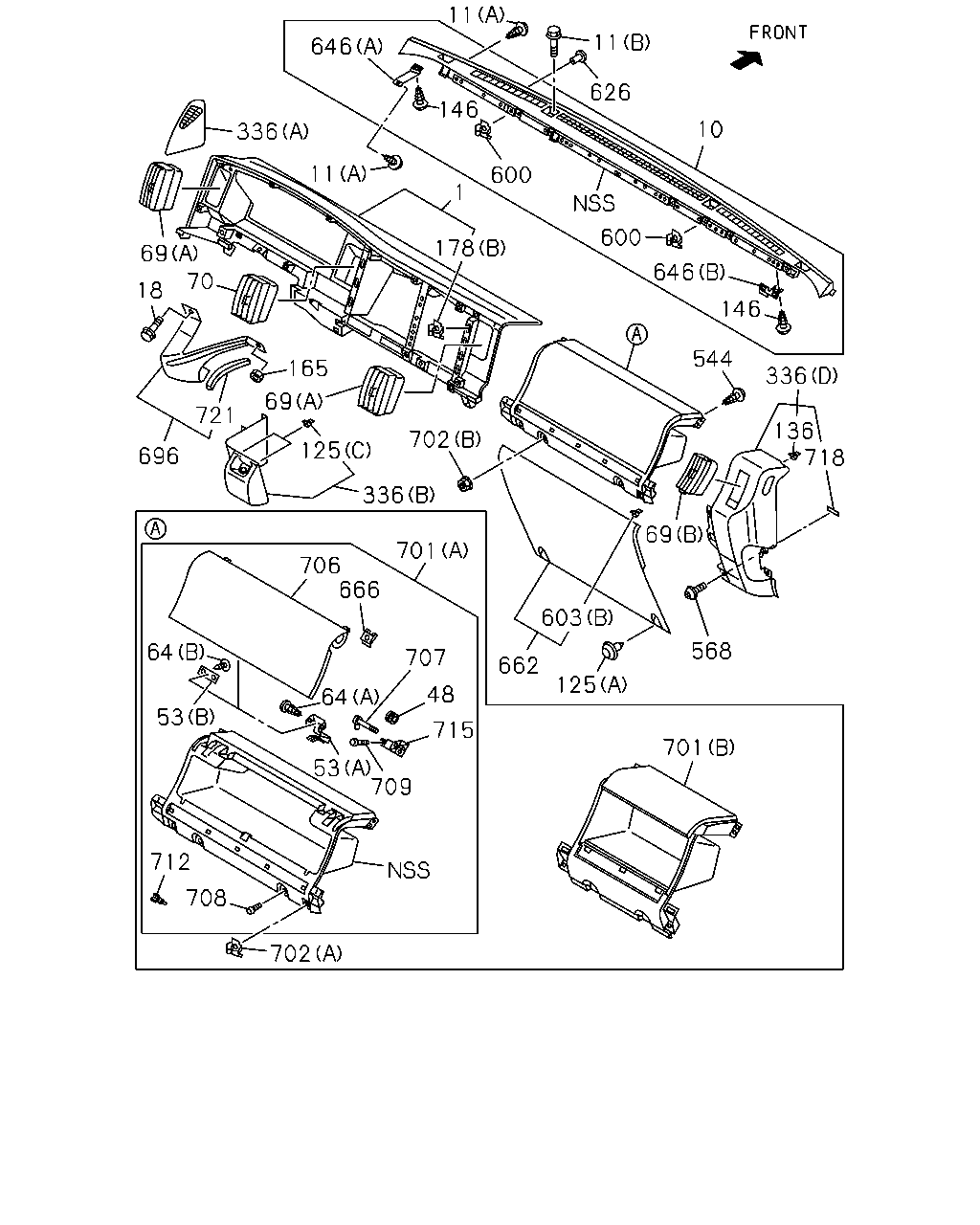

çizim 187715
11 11 626 10 646 146 600 1 336 11 178 600 646 544 146 336 136 718 69 568 603 662 125 701 706 666 707 48 715 64 64 53 53 709 712 708 702 696 721 165 69 125 702 336 18 69 70 701
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97409-777-3 01 1 0803-
10 PANEL ASM; GARNISH
GRAY 		8-97409-997-6 01 1 0803-1008
10 PANEL ASM; GARNISH
GRAY 		8-97422-096-1 01 1 1009-
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0803-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0803-
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 0803-
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-986-0 01 1 0803-1311
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-410-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-763-0 01 1 1406-
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-987-0 01 1 0803-1311
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-411-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-764-0 01 1 1406-
53 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-913-0 01 1 0805-1405
53 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98270-765-0 01 1 1406-
64 SCREW; STRIKER
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-915-0 01 1 0805-1405
64 SCREW; STRIKER
EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) M4X85 		8-97926-404-0 02 1 1406-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0803-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-563-2 02 1 0803-
70 GRILLE; CENTER,AIR OUTLET 8-98028-561-2 01 1 0803-
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0803-1007
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0803-
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 0803-
136 CLIP; INST COVER 8-98076-254-0 02 1 0803-
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0803-
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 0803-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0803-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0803-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 0803-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 0803-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97409-782-3 01 1 0803-1208
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1209-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 0803-
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0803-
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0803-
600 NUT; PANEL 8-98037-629-0 02 1 0803-1008
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0803-
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 0803-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0803-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 0803-
646 BRACKET; GARNISH PANEL
(A) 		8-98066-952-1 01 1 0803-
646 BRACKET; GARNISH PANEL
(B) 		8-98066-953-1 01 1 0803-
662 COVER; LWR,INST PANEL
GRAY 		8-97407-428-2 01 1 0803-
666 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98038-450-0 04 1 0803-1311
666 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) M5 		8-97926-400-0 04 1 1312-
696 BRACKET; KNEE 8-98057-569-0 01 1 0803-1109
696 BRACKET; KNEE 8-98098-126-1 01 1 1110-
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) (B) GRAY 		8-97412-914-2 01 1 0803-0905
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) (B) GRAY 		8-97417-196-2 01 1 0906-
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97412-913-0 01 1 0803-0804
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97415-540-6 01 1 0805-1405
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97429-703-1 01 1 1406-
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 0803-
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 0803-
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97405-372-2 01 1 0803-0804
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97415-541-0 01 1 0805-1405
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97429-992-0 01 1 1406-
707 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98035-730-1 02 1 0803-1311
707 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-393-0 02 1 1312-
708 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98010-867-1 02 1 0803-
709 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING 		0-71040-516-0 04 1 0803-
712 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98031-846-0 01 1 0803-
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-928-0 01 1 0803-1311
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-396-0 01 1 1312-
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-929-0 01 1 0803-1311
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-397-0 01 1 1312-
718 SEAL; COVER 8-98185-153-0 01 1 1209-
721 FINISHER; BRKT,KNEE
L=95 		8-97995-992-0 01 1 0803-1109

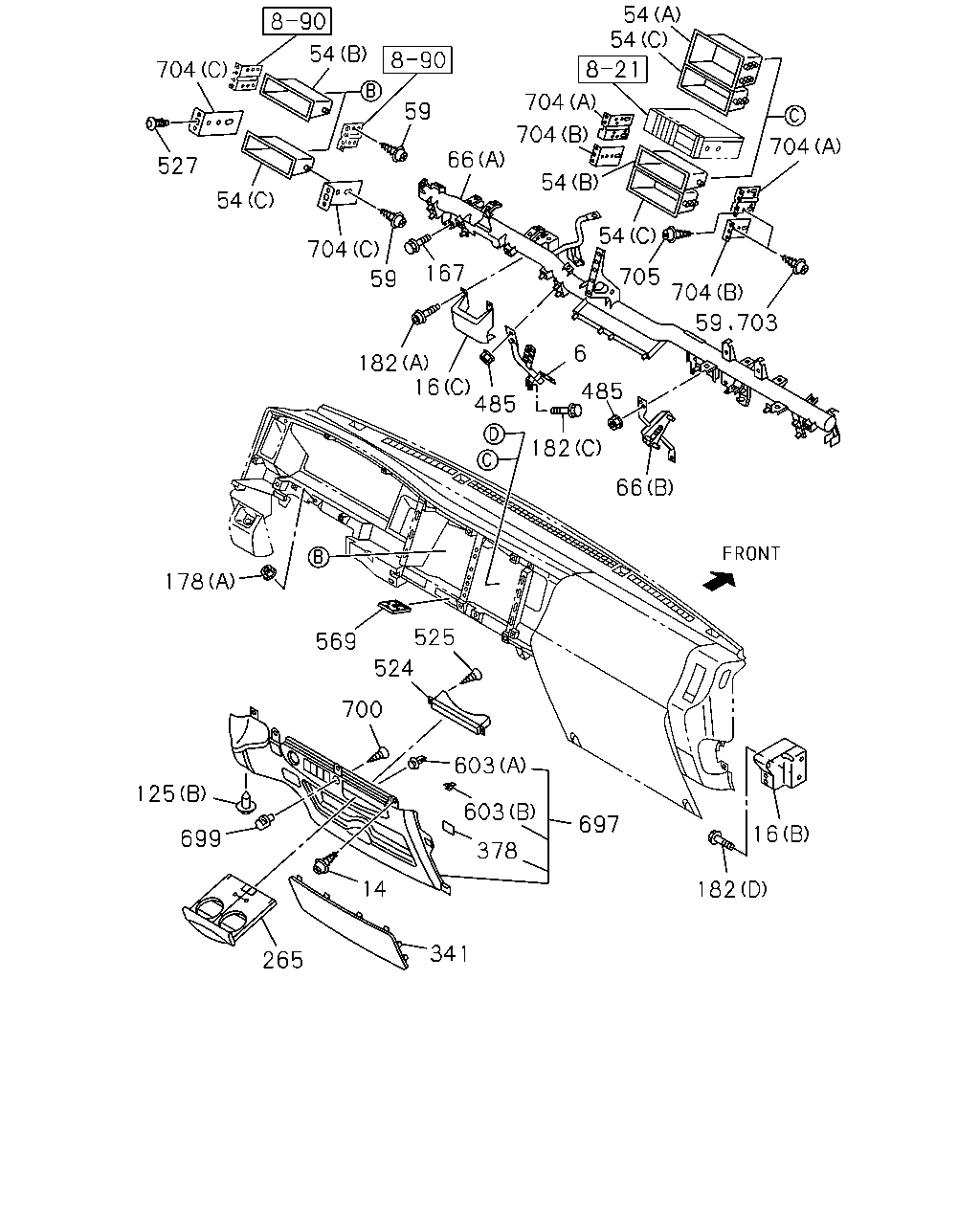

çizim 187719
527 704 54 59 66 704 167 59 54 182 16 485 485 182 66 59 703 705 54 54 704 704 704 54 54 704 6 178 569 524 700 525 603 603 378 697 341 14 265 699 125 182 16
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 8-98064-936-1 01 1 0803-
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0803-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97585-612-2 01 1 0803-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-98017-527-0 01 1 0803-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0803-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0803-
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 0803-
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 0803-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 0803-
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 0803-
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (C) H=69.8 BLACK 		8-97408-865-3 01 1 0803-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0803-
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0803-
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98082-466-1 01 1 0803-
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98038-221-7 01 1 0803-1406
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98241-974-0 01 1 1407-
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-97585-581-1 01 1 0803-
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-97585-569-7 01 1 0803-1406
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98240-606-0 01 1 1407-
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0803-1007
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0803-
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 0803-
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 0803-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0803-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0803-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0803-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0803-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0803-1111
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0803-
265 HOLDER; CUP
GRAY 		8-97407-897-2 01 1 0803-0909
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 0910-
341 LID; FUSE BOX
GRAY 		8-97407-419-3 01 1 0803-1010
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1011-
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1011-
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 0803-
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 0803-
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0803-
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) DARK GRAY 		8-97098-326-0 01 1 0803-
569 HOLDER; CARD 8-97410-276-1 01 1 0803-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0803-
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 0803-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0803-
697 PANEL; INST CENTER
GRAY 		8-97409-781-2 01 1 0803-1010
697 PANEL; INST CENTER
GRAY 		8-97422-208-1 01 1 1011-
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0803-
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0803-
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0803-
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0803-
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0803-
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (C) 		8-98107-549-0 02 1 0803-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 0803-
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0803-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
