Isuzu WW
▶
TRUCKS
▶
FSR
▶
11150 - FSR-LHD(EU)SPACE EU4
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-30 - LOCK CYLINDER SET
▶

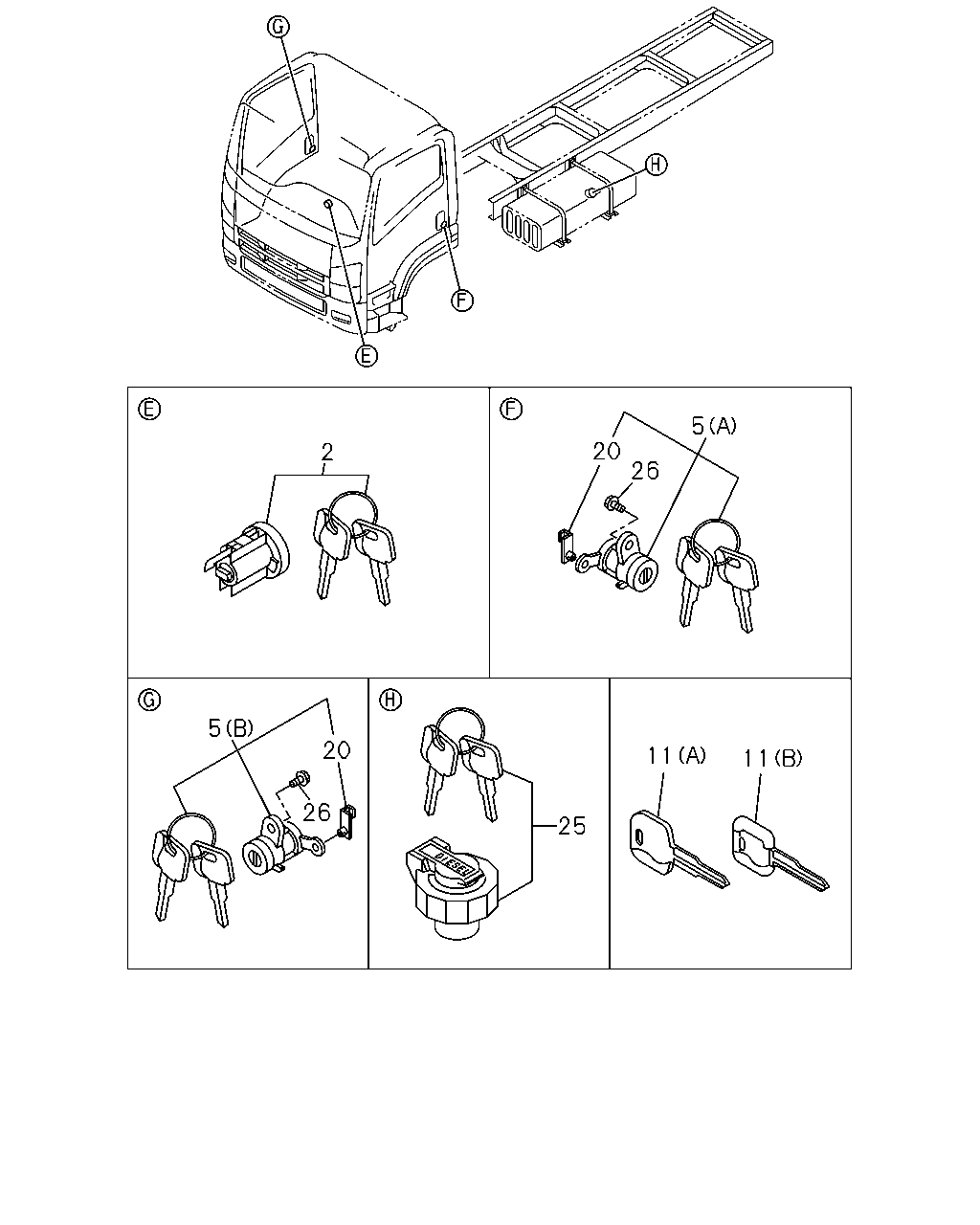

7-30 — LOCK CYLINDER SET
(#69151) — 18 parça
◀
[730A] NO.2 (12 parça)
[730A] NO.1 (6 parça)
▶
5
20
26
2
5
20
11
11
26
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BARREL ASM; W/KEY,STRG LOCK
8-98055-147-0
01
1
0803-1203
2
BARREL ASM; W/KEY,STRG LOCK
8-98201-341-0
01
1
1204-
5
CYLINDER ASM; DOOR LOCK
(B)
8-98055-149-0
01
1
0803-
5
CYLINDER ASM; DOOR LOCK
(A)
8-98055-150-0
01
1
0803-
11
KEY; BLANK
(B) IMMOBILIZER
8-98055-168-0
AR
1
0803-
11
KEY; BLANK
(A)
8-98055-170-0
AR
1
0803-
20
SNAP; DOOR LOCK CYL
8-98055-181-0
01
1
0803-
20
SNAP; DOOR LOCK CYL
8-98055-182-0
01
1
0803-
25
CAP; FUEL TANK,W/KEY
8-98033-157-0
01
1
0803-0804
25
CAP; FUEL TANK,W/KEY
8-98088-982-0
01
1
0805-0911
25
CAP; FUEL TANK,W/KEY
8-98146-010-0
01
1
0912-
26
BOLT; KEY CYL,DOOR
M6X8 FLANGE
8-98031-839-0
02
1
0803-

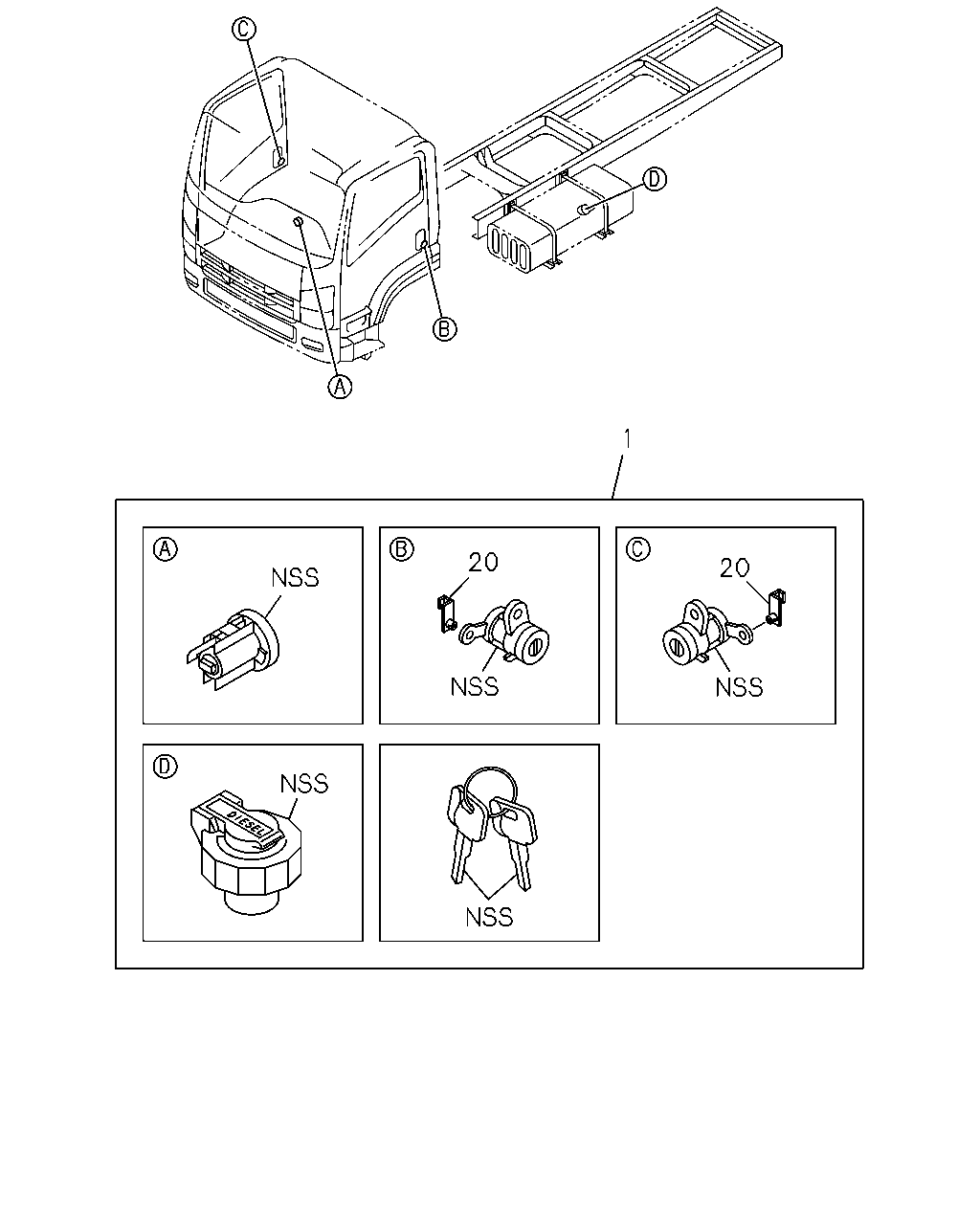

1
20
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CYLINDER SET; CAR LOCK
8-98029-406-1
01
1
0803-0804
1
CYLINDER SET; CAR LOCK
8-98088-949-0
01
1
0805-0911
1
CYLINDER SET; CAR LOCK
8-98145-977-0
01
1
0912-1203
1
CYLINDER SET; CAR LOCK
8-98201-214-0
01
1
1204-
20
SNAP; DOOR LOCK CYL
8-98055-181-0
01
1
0803-
20
SNAP; DOOR LOCK CYL
8-98055-182-0
01
1
0803-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
