◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11150 - FSR-LHD(EU)SPACE EU4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#69149) — 19 parça

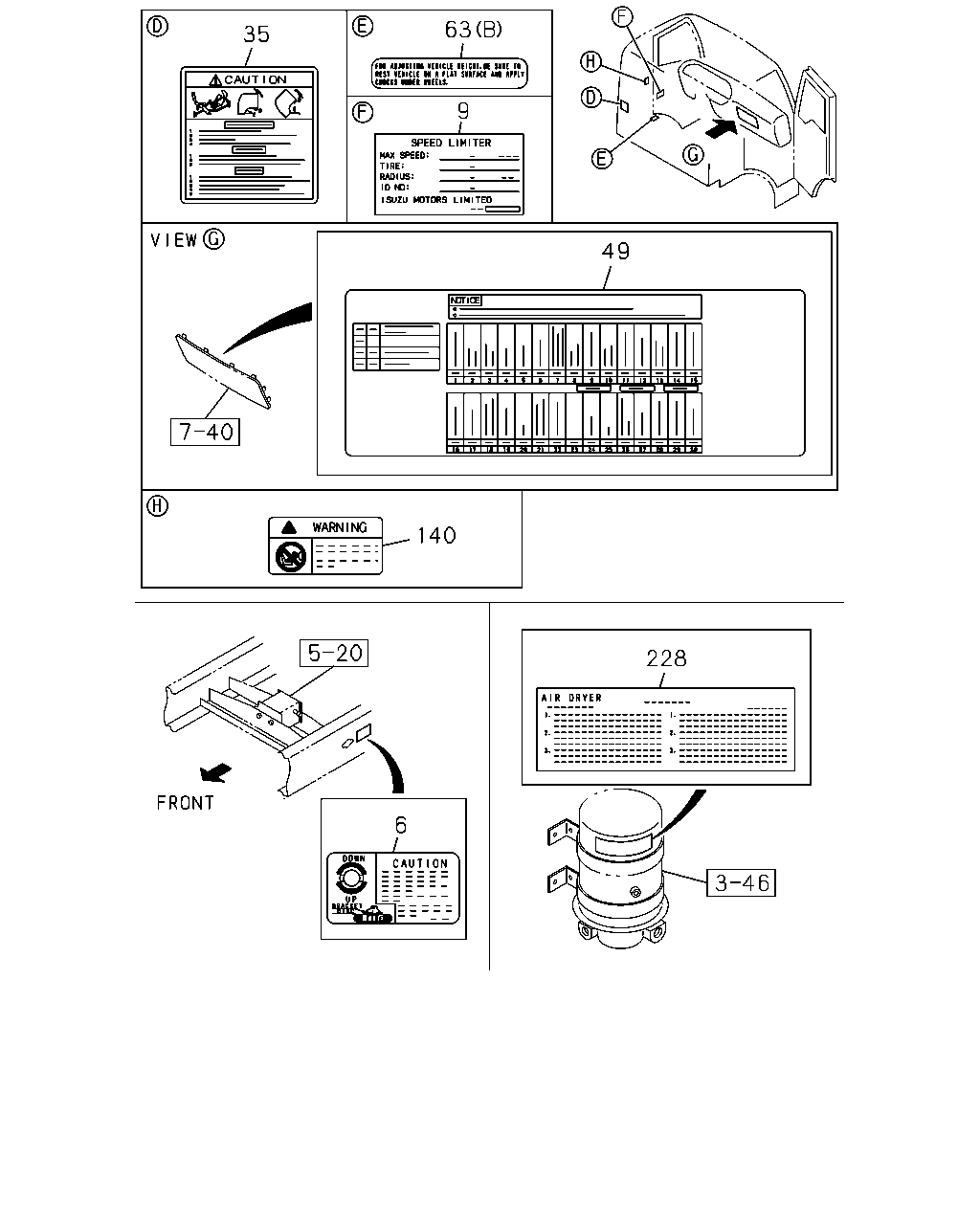

çizim 133001
63 35 9 49 140 228 6
BalonParca AdiParca NoAdetTipApplied Date
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		8-98082-437-0 01 1 0803-
9 PLATE; NAME,SPD RANGE
AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98115-620-1 01 1 0806-0806
9 PLATE; NAME,SPD RANGE
AUTO CRUISE<K30> EXC. ISRAEL COUNTRY(CV4) 6 PER 1 SHEET 		8-98115-620-1 01 1 0807-
9 PLATE; NAME,SPD RANGE
EXC. AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98115-619-1 01 1 0806-0806
9 PLATE; NAME,SPD RANGE
EXC. ISRAEL COUNTRY(CV4),AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98115-619-1 01 1 0807-
35 PLATE; CAUTION,CAB 8-98065-363-0 01 1 0803-
49 PLATE; CAUTION,FUSE BOX 8-98111-970-0 01 1 0803-0805
49 PLATE; CAUTION,FUSE BOX 8-98122-354-0 01 1 0806-
63 PLATE; CAUTION,SEAT AIR
(B) 		1-85881-823-0 01 1 0803-
63 PLATE; CAUTION,SEAT AIR
(A) 		1-85881-861-0 01 1 0803-
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER(AK5) 		8-98080-839-0 02 1 0803-
228 PLATE; CAUTION,AIR DRYER 1-48199-325-0 01 1 0803-1001

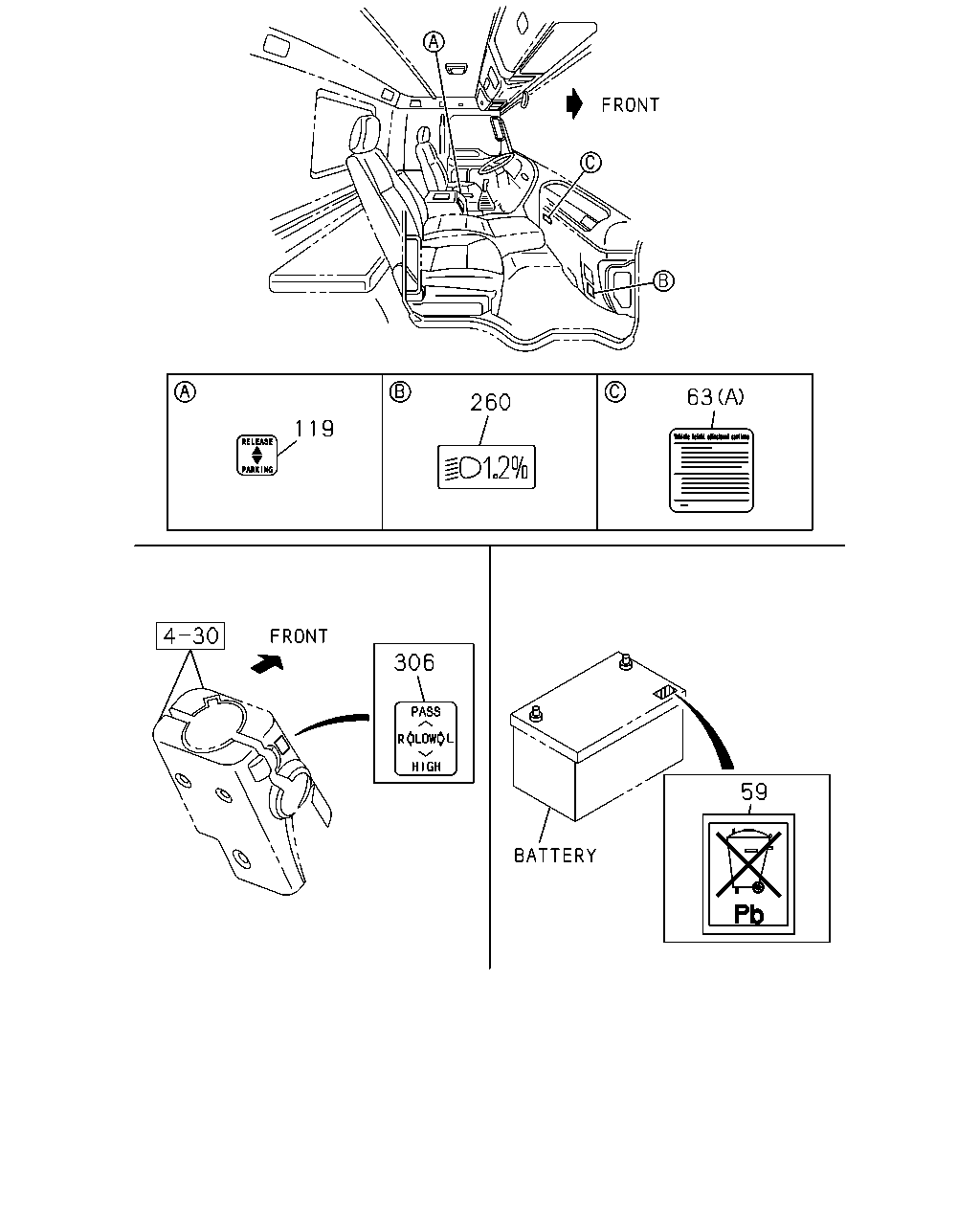

çizim 187713
63 260 119 306 59
BalonParca AdiParca NoAdetTipApplied Date
59 PLATE; CAUTION,BATTERY
10 PER 1 SHEET 		8-97116-760-0 02 1 0803-0805
59 PLATE; CAUTION,BATTERY
EXC. KD PREPARATORY PACK<6HF> 10 PER 1 SHEET 		8-97116-760-0 02 1 0806-
63 PLATE; CAUTION,SEAT AIR
(B) 		1-85881-823-0 01 1 0803-
63 PLATE; CAUTION,SEAT AIR
(A) 		1-85881-861-0 01 1 0803-
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 0803-
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-416-1 01 1 0803-
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 0803-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
