◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11150 - FSR-LHD(EU)SPACE EU4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#69140) — 108 parça

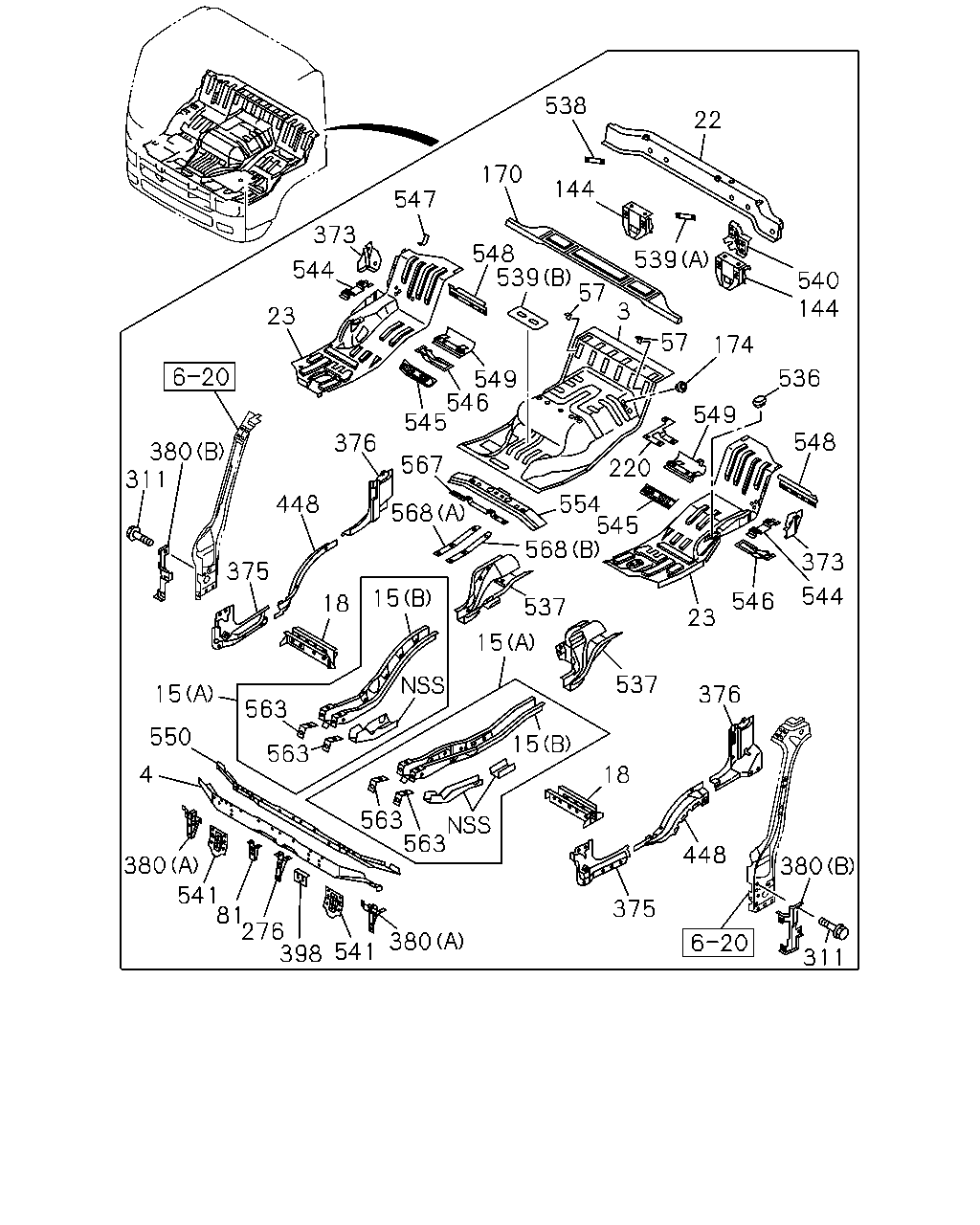

çizim 187714
538 22 170 144 547 373 548 539 57 539 544 540 144 3 23 57 174 536 549 546 545 549 548 376 380 311 567 220 448 554 545 568 568 373 375 544 15 546 18 537 23 15 537 15 376 563 550 563 15 4 18 563 563 448 380 380 541 81 276 398 375 380 541 311
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG 8-98081-362-4 01 1 0803-1206
3 HOOD ASM; ENG
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-98081-362-4 01 1 1207-
4 FRAME; FLOOR,FRT 8-98077-806-1 01 1 0803-1206
4 FRAME; FLOOR,FRT
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-98077-806-1 01 1 1207-
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 0803-1206
15 FRAME; UNDER
MZX6P M/T(RSW),MLD6W M/T(Y2C) (A) 		8-97584-387-9 01 1 1207-
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 0803-1206
15 FRAME; UNDER
MZX6P M/T(RSW),MLD6W M/T(Y2C) (B) 		8-97584-388-9 01 1 1207-
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 0803-1206
15 FRAME; UNDER
MZX6P M/T(RSW),MLD6W M/T(Y2C) (A) 		8-97584-411-9 01 1 1207-
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 0803-1206
15 FRAME; UNDER
MZX6P M/T(RSW),MLD6W M/T(Y2C) (B) 		8-97584-412-7 01 1 1207-
18 FRAME; FLOOR,CENTER SIDE 8-97584-420-4 01 1 0803-1206
18 FRAME; FLOOR,CENTER SIDE
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-97584-420-4 01 1 1207-
18 FRAME; FLOOR,CENTER SIDE 8-98017-380-1 01 1 0803-1206
18 FRAME; FLOOR,CENTER SIDE
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-98017-380-2 01 1 1207-
22 FRAME; FLOOR REAR 8-97584-430-5 01 1 0803-1206
22 FRAME; FLOOR REAR
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-97584-430-5 01 1 1207-
23 PANEL; FLOOR,SIDE 8-98017-358-5 01 1 0803-1206
23 PANEL; FLOOR,SIDE
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-98017-358-5 01 1 1207-
23 PANEL; FLOOR,SIDE 8-98080-738-0 01 1 0803-1206
23 PANEL; FLOOR,SIDE
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-98080-738-0 01 1 1207-
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 0803-1206
57 BRACKET; SPARE TIRE
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-98038-970-1 02 1 1207-
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 0803-1206
81 BRACKET; HARNESS SUPPORT
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-98041-333-3 01 1 1207-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 0803-1206
144 BRACKET; MTG,RR
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-97584-432-6 01 1 1207-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 0803-1206
144 BRACKET; MTG,RR
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-97589-666-6 01 1 1207-
170 EXTENSION; RR FLOOR 8-97589-204-3 01 1 0803-1206
170 EXTENSION; RR FLOOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-97589-204-3 01 1 1207-
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 0803-
220 PATCH 8-97589-704-0 01 1 0803-1206
220 PATCH
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-97589-704-0 01 1 1207-
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 0803-1206
276 BRACKET; RAD GRILLE
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-97589-596-3 01 1 1207-
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 0803-
373 REINFORCEMENT; SEAT BELT 8-97584-367-2 01 1 0803-1206
373 REINFORCEMENT; SEAT BELT
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-97584-367-2 01 1 1207-
373 REINFORCEMENT; SEAT BELT 8-97584-375-2 01 1 0803-1206
373 REINFORCEMENT; SEAT BELT
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-97584-375-2 01 1 1207-
375 CLOSING; PILLAR 8-98044-897-3 01 1 0803-1206
375 CLOSING; PILLAR
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-98044-897-3 01 1 1207-
375 CLOSING; PILLAR 8-98044-898-3 01 1 0803-1206
375 CLOSING; PILLAR
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-98044-898-3 01 1 1207-
376 CLOSING; PILLAR,LWR 8-97589-553-1 01 1 0803-1206
376 CLOSING; PILLAR,LWR
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-97589-553-1 01 1 1207-
376 CLOSING; PILLAR,LWR 8-97589-555-1 01 1 0803-1206
376 CLOSING; PILLAR,LWR
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-97589-555-1 01 1 1207-
380 BRACKET; HEAD LAMP
(A) 		8-97589-707-1 01 1 0803-1206
380 BRACKET; HEAD LAMP
MZX6P M/T(RSW),MLD6W M/T(Y2C) (A) 		8-97589-707-1 01 1 1207-
380 BRACKET; HEAD LAMP
(A) 		8-97589-708-1 01 1 0803-1206
380 BRACKET; HEAD LAMP
MZX6P M/T(RSW),MLD6W M/T(Y2C) (A) 		8-97589-708-1 01 1 1207-
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 0803-
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 0803-
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 0803-1206
398 BRACKET; PIPE SUPPORT
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-97589-681-3 01 1 1207-
448 CLOSING; ROCKER 8-97589-551-2 01 1 0803-1206
448 CLOSING; ROCKER
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-97589-551-2 01 1 1207-
448 CLOSING; ROCKER 8-97589-552-2 01 1 0803-1206
448 CLOSING; ROCKER
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-97589-552-2 01 1 1207-
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 0803-
537 SUPPORT ASM; MTG RR 8-97584-390-4 01 1 0803-1206
537 SUPPORT ASM; MTG RR
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-97584-390-4 01 1 1207-
537 SUPPORT ASM; MTG RR 8-97584-416-4 01 1 0803-1206
537 SUPPORT ASM; MTG RR
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-97584-416-4 01 1 1207-
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 0803-1206
538 REINFORCEMENT ASM; AIR INT DUCT
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-97610-207-2 01 1 1207-
539 PATCH ASM; SAFTY HOOK
KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98131-661-0 01 1 0809-
539 PATCH ASM; SAFTY HOOK
(A) 		8-97584-440-2 01 1 0803-1206
539 PATCH ASM; SAFTY HOOK
MZX6P M/T(RSW),MLD6W M/T(Y2C) (A) 		8-97584-440-2 01 1 1207-
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 0803-1206
540 BRACKET ASM; CAB LOCK LEVER
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-97584-438-1 01 1 1207-
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 0803-1206
541 REINFORCEMENT; MTG,FRT
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-98067-903-0 02 1 1207-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 0803-1206
544 BRACKET; DUMP CONT
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-97584-363-1 01 1 1207-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 0803-1206
544 BRACKET; DUMP CONT
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-98049-529-0 01 1 1207-
545 BRACKET; SEAT FRT 8-97589-705-0 01 1 0803-1206
545 BRACKET; SEAT FRT
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-97589-705-0 01 1 1207-
545 BRACKET; SEAT FRT 8-98050-188-0 01 1 0803-1206
545 BRACKET; SEAT FRT
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-98050-188-0 01 1 1207-
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 0803-1206
546 REINFORCEMENT; FLOOR SIDE
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-97584-426-0 02 1 1207-
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 0803-1206
547 BRACKET; JACK HANDLE
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-97588-843-1 01 1 1207-
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 0803-1206
548 BRACKET; MUD GUARD
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-97588-964-1 01 1 1207-
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 0803-1206
548 BRACKET; MUD GUARD
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-97588-965-1 01 1 1207-
549 BRACKET; SEAT RR 8-98017-363-1 01 1 0803-1206
549 BRACKET; SEAT RR
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-98017-363-1 01 1 1207-
549 BRACKET; SEAT RR 8-98050-189-1 01 1 0803-1206
549 BRACKET; SEAT RR
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-98050-189-1 01 1 1207-
550 CLOSING ASM; MTG,FRT 8-97589-709-3 01 1 0803-1206
550 CLOSING ASM; MTG,FRT
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-97589-709-3 01 1 1207-
554 REINFORCEMENT; FLOOR CENTER 8-98017-330-1 01 1 0803-1206
554 REINFORCEMENT; FLOOR CENTER
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-98017-330-1 01 1 1207-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 0803-1206
563 REINFORCEMENT; MTG FRT,RR
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-97589-579-2 04 1 1207-
567 REINFORCEMENT; CONT LEVER 8-98046-522-3 01 1 0803-1206
567 REINFORCEMENT; CONT LEVER
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-98046-522-3 01 1 1207-
568 BRACKET; ACCEL STOPPER
(A) 		8-98089-177-0 01 1 0803-1206
568 BRACKET; ACCEL STOPPER
MZX6P M/T(RSW),MLD6W M/T(Y2C) (A) 		8-98089-177-0 01 1 1207-
568 BRACKET; ACCEL STOPPER
(B) 		8-98089-178-0 01 1 0803-1206
568 BRACKET; ACCEL STOPPER
MZX6P M/T(RSW),MLD6W M/T(Y2C) (B) 		8-98089-178-0 01 1 1207-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
