◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10794 - LT(TAIWAN) ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#6914) — 90 parça

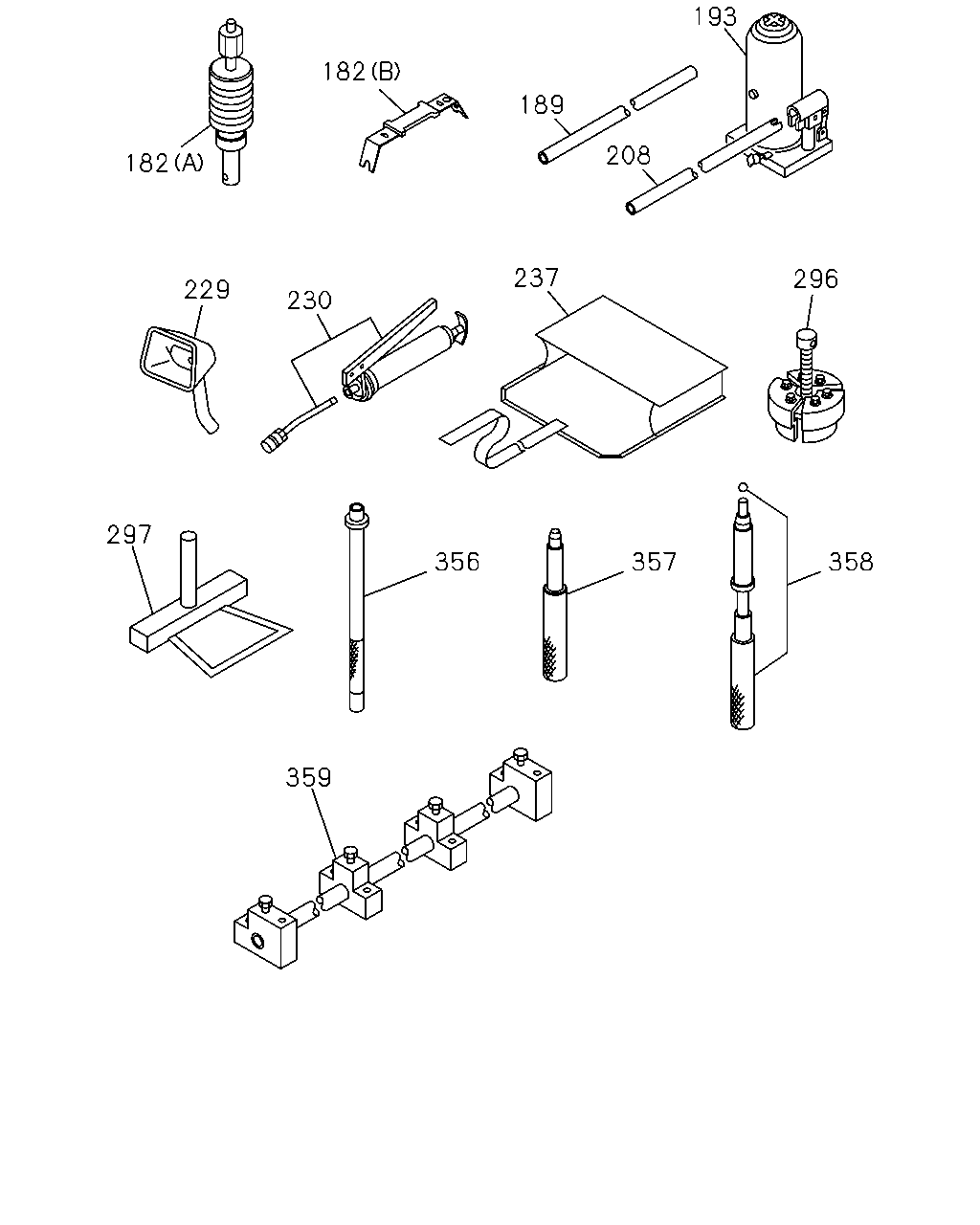

çizim 26295
193 182 189 208 182 237 296 229 230 297 356 357 358 359
BalonParca AdiParca NoAdetTipApplied Date
182 REMOVER ASM
(B) 		1-85239-008-0 01 1 9806-
182 REMOVER ASM
(A) 		9-85210-095-0 01 1 9806-9911
189 TUBE; AIR BREATHER
EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) L=460 		9-85291-414-0 01 1 9806-9911
189 TUBE; AIR BREATHER
L=460 		8-97530-211-0 01 1 9912-
193 JACK ASM
EXC. TOOL KIT DELETE(V68) 10TON 		1-85510-013-1 01 1 9806-9911
193 JACK ASM
12TON 		8-97530-217-0 01 1 9912-
208 HANDLE; JACK
EXC. TOOL KIT DELETE(V68) L=600 		1-85515-008-0 01 1 9806-9911
208 HANDLE; JACK
L=600 		8-97530-154-0 01 1 9912-
229 FUNNEL; RAD
INTERNATIONAL STD ISO<B3V> EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) 		9-85531-110-0 01 1 9806-9911
230 PUMP; GREASE
EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) 		1-85556-007-2 01 1 9806-9911
230 PUMP; GREASE 8-97530-196-0 01 1 9912-
237 BAG; TOOL
EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) 		8-97130-902-0 01 1 9806-9911
237 BAG; TOOL 8-97965-388-0 01 1 9912-
296 REPLACER; SLINGER 8-94396-858-0 01 1 9806-9911
297 CUTTER; SEAL,OIL PAN 8-94393-112-0 01 1 9806-9911
356 TOOL; SETTING,OIL SEAL,CYL HEAD 8-94391-527-0 01 1 9912-
357 REPLACER; NOZZLE SLEEVE 8-94391-555-0 01 1 9912-
358 PLACER; NOZZLE SLEEVE 8-94391-556-0 01 1 9912-
359 PIVOT 8-94396-862-0 01 1 9912-

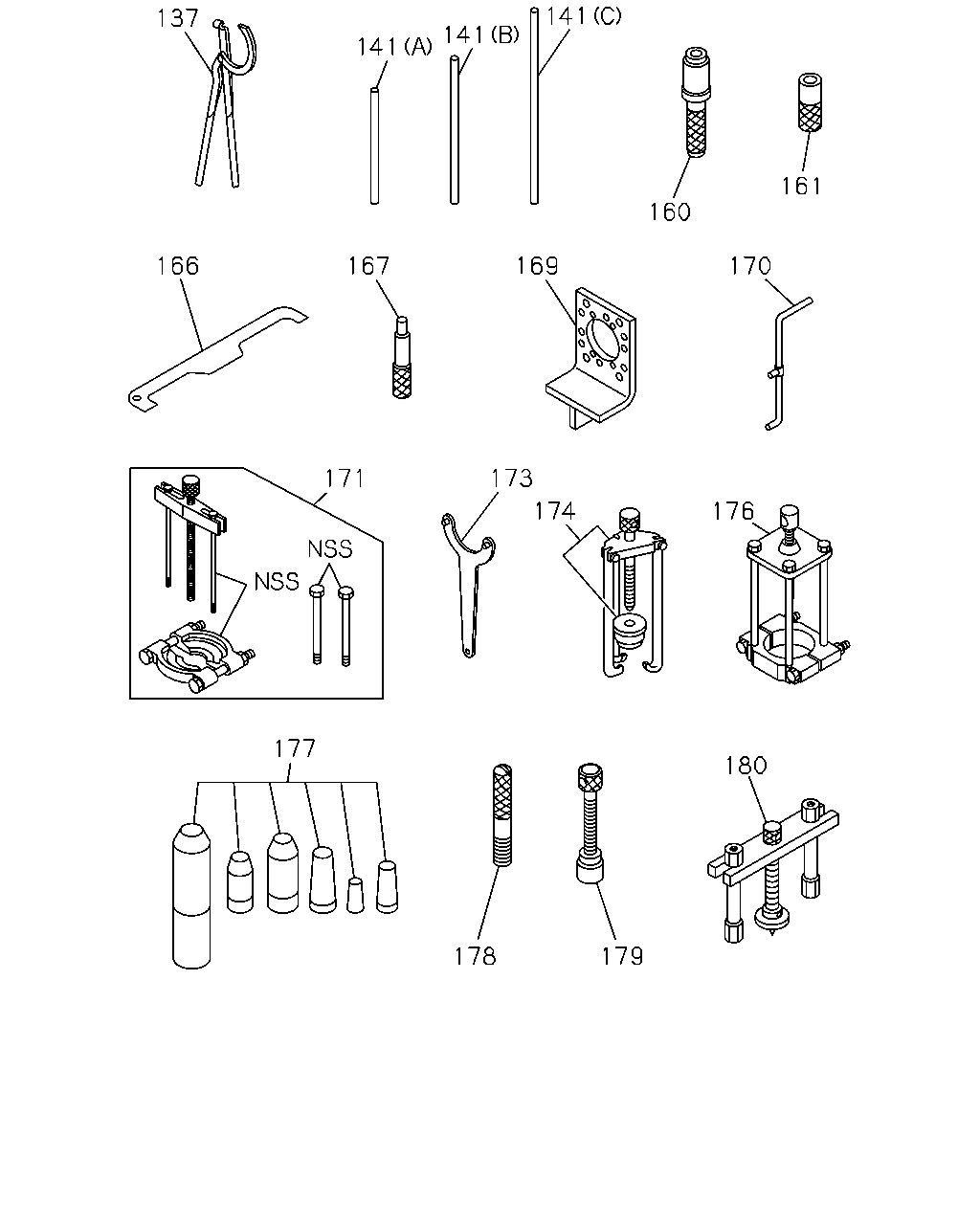

çizim 26296
141 137 141 141 161 160 166 167 169 170 171 173 174 176 177 180 178 179
BalonParca AdiParca NoAdetTipApplied Date
137 PLIER; SHOE,RETURN SPRING 9-85220-026-0 01 1 9806-9911
141 HANDLE; WRENCH
(C) OD=25 L=480 		1-85116-011-0 01 1 9806-
141 HANDLE; WRENCH
(B) OD=19 L=400 		9-85114-306-0 01 1 9806-9911
141 HANDLE; WRENCH
(A) OD=16 L=300 		9-85114-307-0 01 1 9806-9911
160 REMOVER; NEEDLE BRG
L=228 		1-85238-010-0 01 1 9806-
161 REMOVER; TIE ROD ARM 9-85141-603-0 01 1 9806-9911
166 ALIGNER; CLU RELEASE LEVER
L=480 		1-85253-023-0 01 1 9806-
167 ALIGNER; CLU PILOT
L=185 		1-85253-008-0 01 1 9806-
169 BRACKET; SPLINE YOKE 9-85221-243-1 01 1 9806-9911
170 HANDLE; TURNING,FINAL 9-85251-121-0 01 1 9806-9911
171 PULLER ASM; PINION BRG 9-85210-152-0 01 1 9806-
173 WRENCH; COUPLING DRIVER 9-85111-942-0 01 1 9806-9911
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 9806-
176 PULLER ASM; COUNTER SHAFT MAIN 9-85210-169-0 01 1 9806-
177 SETTING TOOL KIT 9-85220-040-0 01 1 9806-9911
178 BAR; TRANS GUIDE 9-85291-203-0 01 1 9806-
179 PULLER; SPD METER GEAR 9-85210-181-0 01 1 9806-9911
180 PULLER; FRT & RR HUB 1-85210-002-0 01 1 9806-

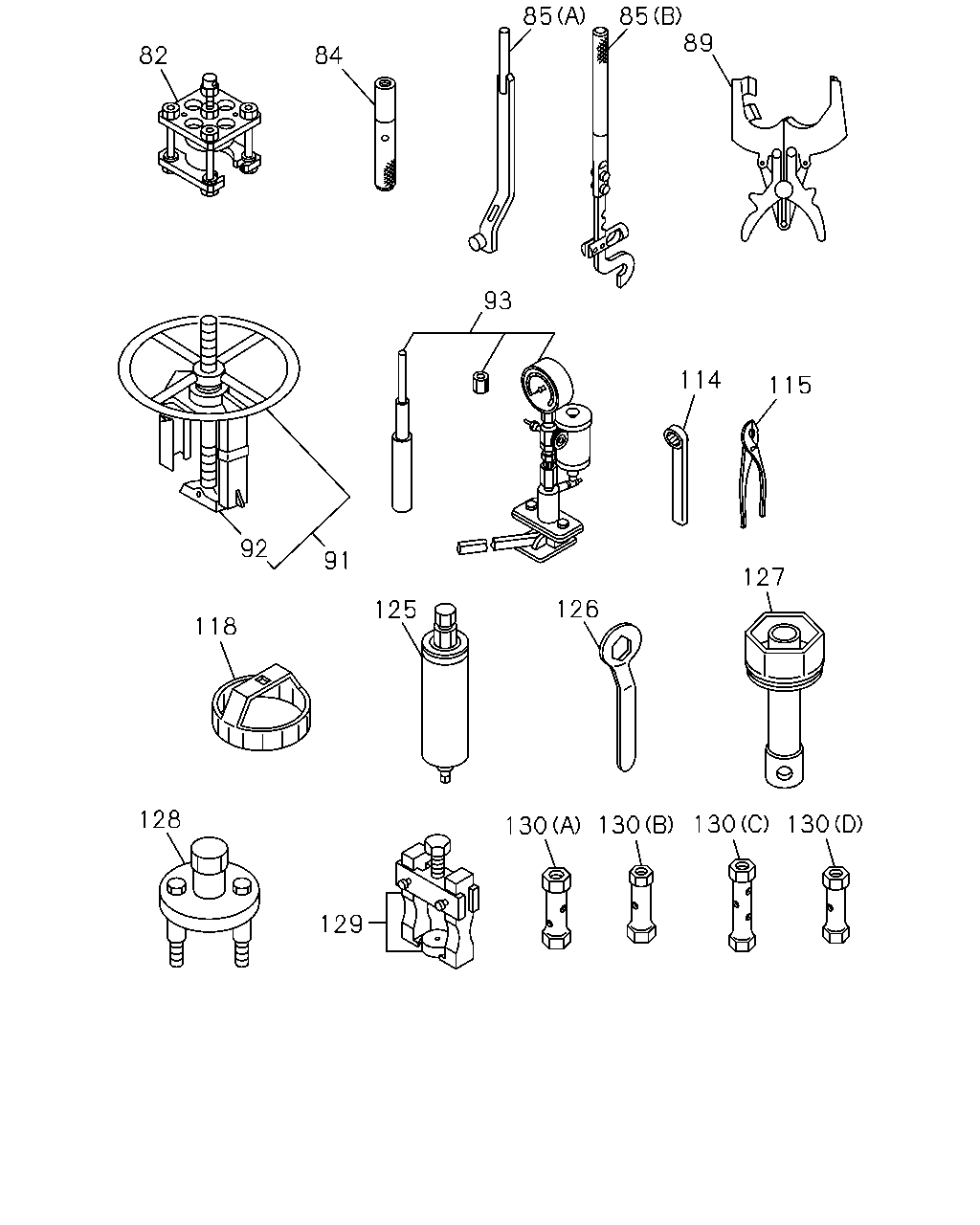

çizim 26666
85 85 89 82 84 93 114 115 92 91 127 126 125 118 128 130 130 130 130 129
BalonParca AdiParca NoAdetTipApplied Date
82 PULLER ASM; CR/SHF GEAR 8-94396-818-0 01 1 9806-9911
84 REPLACER; VALVE SEAL
L=130 		8-94396-815-0 01 1 9806-9911
85 REPLACER ASM; VALVE SPR
(A) 		8-94396-861-0 01 1 9806-9911
85 REPLACER ASM; VALVE SPR
(B) 		8-94391-528-0 01 1 9912-
89 TOOL; PISTON RING 1-85221-029-0 01 1 9806-9911
91 REPLACER ASM; CYL LINER 8-94396-849-0 01 1 9806-9911
92 ANKLE; REPLACER,CYL LINER 8-94396-821-0 01 1 9806-9911
93 SETTING KIT; VALVE GUIDE 1-85220-001-0 01 1 9806-9911
114 WRENCH; INJ PUMP
6HE1-TC ENG(57L) L=200 		1-85112-002-0 01 1 9806-9911
114 WRENCH; INJ PUMP
L=200 		1-85112-002-0 01 1 9912-0503
115 PLIER
EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) L=203 		5-85171-001-0 01 1 9806-9911
115 PLIER
L=200 		8-97530-155-0 01 1 9912-
118 WRENCH; OIL FILTER 1-85221-097-0 01 1 9806-9911
125 PULLER ASM; KING PIN
L=360 		9-85210-151-0 01 1 9806-9911
126 WRENCH; FRT HUB BRG NUT
L=257 B=63 		9-85111-373-0 01 1 9806-9911
127 WRENCH ASM; HUB BRG NUT
B=98 L=305 		9-85113-533-0 01 1 9806-
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 9806-
129 PULLER ASM; PITMAN ARM 1-85210-011-0 02 1 9806-
130 WRENCH; BOX
(A) B=46 & 54 L=165 		9-85112-320-0 01 1 9806-9911
130 WRENCH; BOX
(B) B=32 & 41 L=150 		9-85112-322-0 01 1 9806-9911
130 WRENCH; BOX
(C) B=36 & 41 L=200 		9-85112-330-0 01 1 9806-9911
130 WRENCH; BOX
(D) B=41 & 46 L=165 		9-85113-401-0 01 1 9806-9911

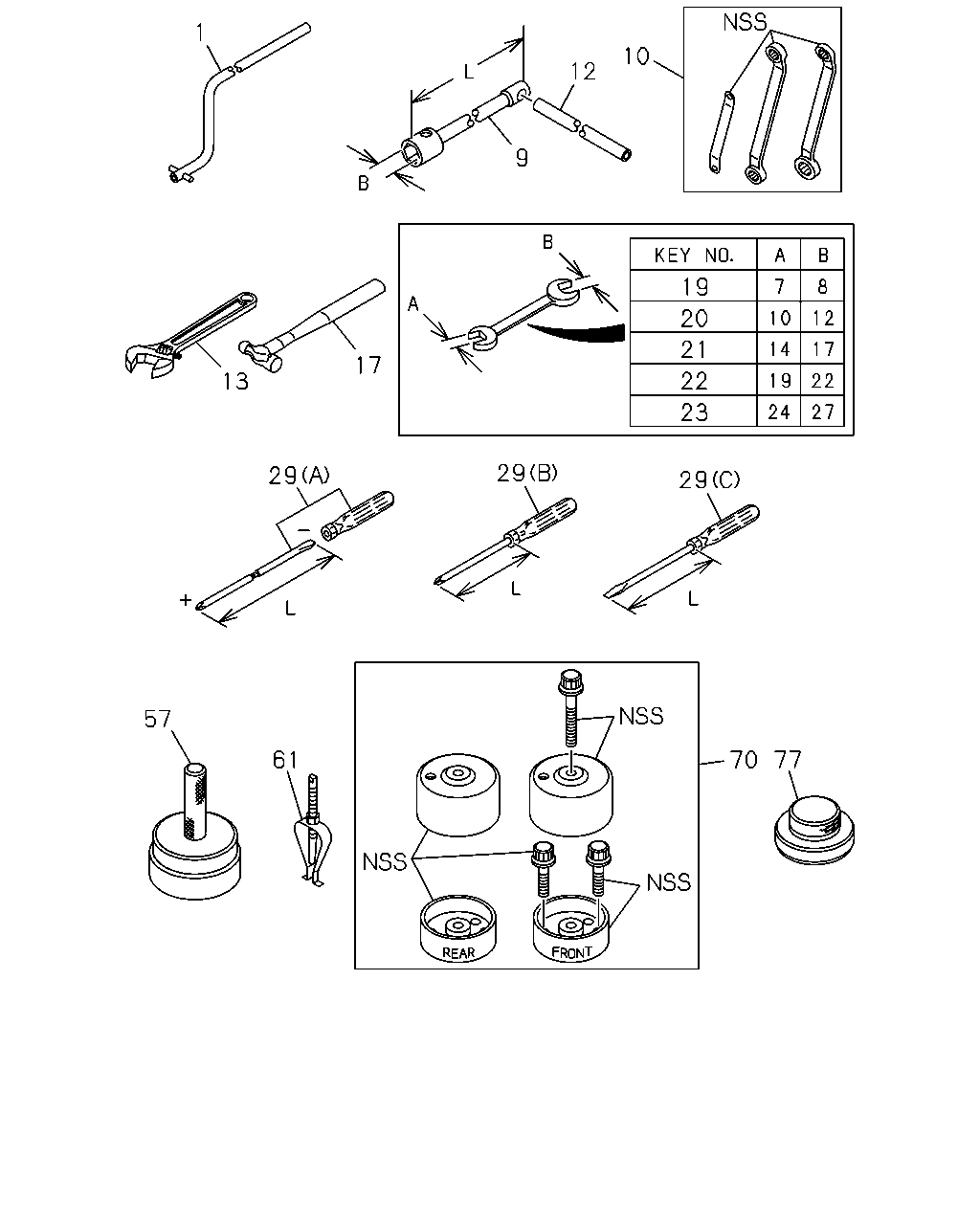

çizim 26667
1 10 12 9 19 20 21 17 22 13 23 29 29 29 57 61 70 77
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; SPARE TIRE CARRIER
SPARE WHL CARRIER(SFB) 		9-23110-018-0 01 1 9806-9911
9 WRENCH; WHEEL PIN
INTERNATIONAL STD ISO<B3V> EXC. TOOL KIT DELETE(V68) B=33X30 L=450 		1-85111-033-1 01 1 9806-9911
9 WRENCH; WHEEL PIN
B=41X21 L=410 		8-97530-146-0 01 1 9912-
9 WRENCH; WHEEL PIN
EXC. INTERNATIONAL STD ISO<B3V>,TOOL KIT DELETE(V68) 41X21 L=440 		1-85113-015-1 01 1 9806-9911
10 WRENCH KIT; BRK ADJ
14X17,24X27,27X36 		9-85110-013-0 01 1 9806-
12 HANDLE; WRENCH,WHEEL PIN
EXC. TOOL KIT DELETE(V68) OD=25 L=480 		1-85116-011-0 01 1 9806-9911
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		8-97530-147-0 01 1 9912-
13 WRENCH; MONKEY
EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) L=255 		1-85117-002-1 01 1 9806-9911
13 WRENCH; MONKEY
L=260 		8-97530-148-0 01 1 9912-
17 HAMMER
EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) L=310 3/4LBS 		9-85121-406-0 01 1 9806-9911
17 HAMMER
L=300 3/4LBS 		8-97530-156-0 01 1 9912-
19 WRENCH; 7X8
EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) 7X8 		9-09592-107-0 01 1 9806-9911
19 WRENCH; 7X8
7X8 L=115 		8-97530-151-0 01 1 9912-
20 WRENCH; 10X12
EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) 10X12 		9-09592-110-0 01 1 9806-9911
20 WRENCH; 10X12
10X12 L=130 		8-97530-149-0 01 1 9912-
21 WRENCH; 14X17
EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) 14X17 		9-09592-114-0 01 1 9806-9911
21 WRENCH; 14X17
14X17 L=165 		8-97530-150-0 01 1 9912-
22 WRENCH; 19X22
EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) 19X22 		9-99592-119-0 01 1 9806-9911
22 WRENCH; 19X22
19X22 L=180 		8-97530-152-0 01 1 9912-
23 WRENCH; 24X27
EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) 24X27 		9-09592-124-0 01 1 9806-9911
23 WRENCH; 24X27
24X27 L=220 		8-97530-153-0 01 1 9912-
29 DRIVER; SCREW
EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) (A) <+>,<-> L=160 		8-94242-798-1 01 1 9806-9911
29 DRIVER; SCREW
(A) (+),(-) L=150 		8-97530-216-0 01 1 9912-
29 DRIVER; SCREW
EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) (B) <+> L=270 		9-09595-523-0 01 1 9806-9911
29 DRIVER; SCREW
(B) (+) L=100 		8-97530-337-0 01 1 9912-
29 DRIVER; SCREW
EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) (C) <-> L=320 		9-09595-729-0 01 1 9806-9911
29 DRIVER; SCREW
(C) (-), L=193 		8-97530-336-0 01 1 9912-
57 TOOL; SETTING CRANK GEAR
ID=134.5 		8-94396-819-0 01 1 9806-9911
61 PULLER ASM; PILOT BRG 9-85210-157-0 01 1 9806-9911
70 TOOL; SETTING,OIL SEAL 8-94396-856-0 01 1 9806-9911
77 TOOL; SETTING,CYL LINER
6HE1-TC ENG(57L) 		8-94396-816-0 01 1 9806-9911
