Isuzu WW
▶
TRUCKS
▶
FSR
▶
11150 - FSR-LHD(EU)SPACE EU4
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-01 - FRONT BUMPER
▶

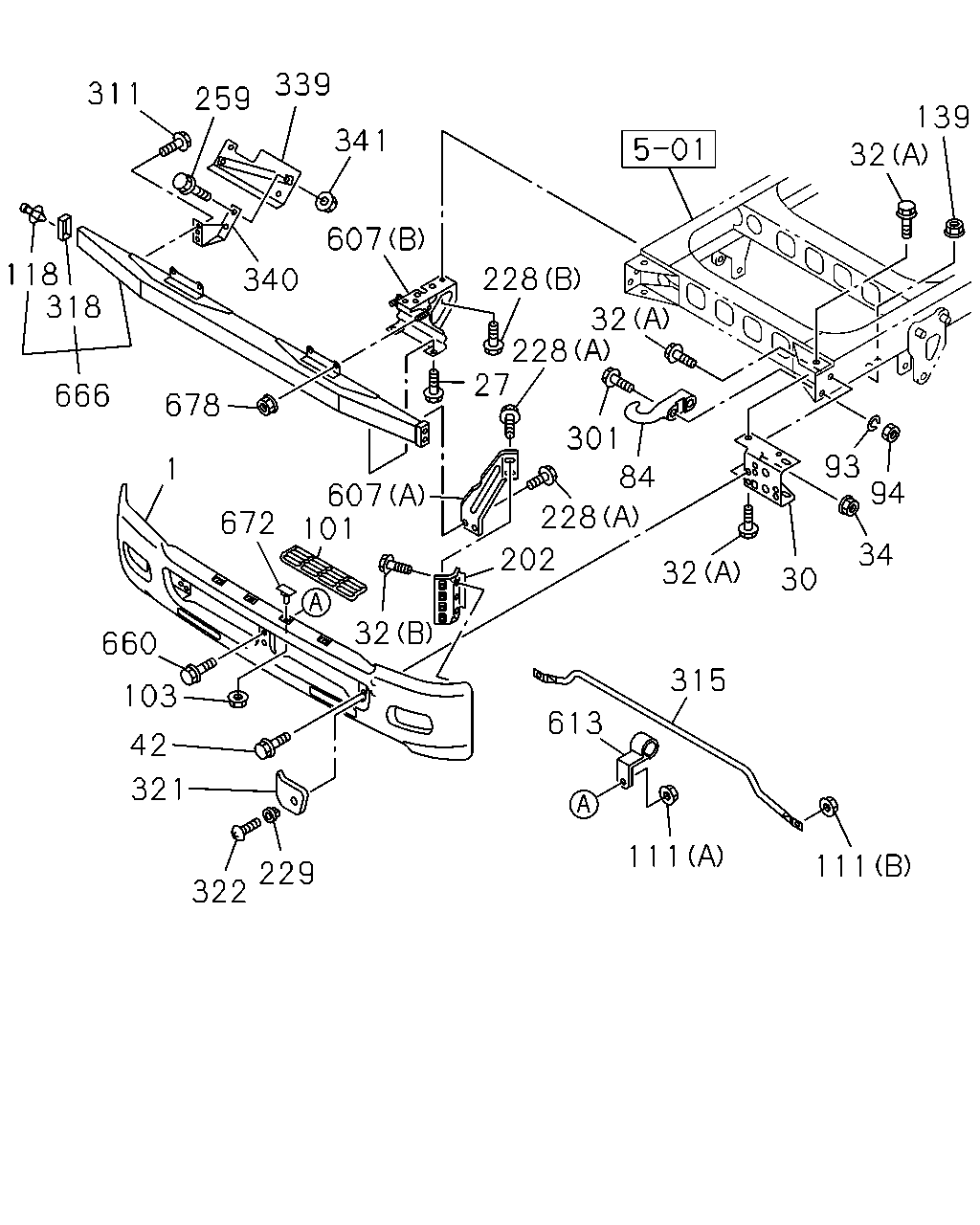

6-01 — FRONT BUMPER
(#69126) — 50 parça
139
32
94
34
93
30
32
315
111
111
613
202
84
301
228
607
101
672
32
229
322
321
42
103
660
1
678
666
318
118
311
259
339
341
607
228
228
27
340
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BUMPER ASM; FRT
WHITE
8-97412-930-0
01
1
0803-1301
1
BUMPER ASM; FRT
WHITE
8-97425-907-0
01
1
1302-
27
BOLT; BUMPER TO BACK BAR
M12X30 FLANGE
0-28051-230-0
04
1
0803-1009
27
BOLT; BUMPER TO BACK BAR
M12X35 FLANGE
0-28651-235-0
04
1
1010-
30
BRACKET; FRT BUMPER
8-97611-517-5
01
1
0803-
30
BRACKET; FRT BUMPER
8-97611-518-4
01
1
0803-
32
BOLT; BRKT,BUMPER
(B) M6X12 FLANGE
0-28050-612-0
06
1
0803-
32
BOLT; BRKT,BUMPER
(A) M10X35 FLANGE
0-28651-035-0
06
1
0803-
34
NUT; BRKT,BUMPER
M10 FLANGE
0-91180-210-0
02
1
0803-
42
BOLT; BUMPER
M10X30
8-94324-205-0
06
1
0803-
84
HOOK
1-57181-003-5
01
1
0803-
93
WASHER; LK,HOOK
ID=14.2
0-91510-814-0
02
1
0803-
94
NUT; HOOK
M14
0-91110-514-0
02
1
0803-
101
STEP; BUMPER
8-97611-540-0
01
1
0803-
101
STEP; BUMPER
8-97611-541-0
01
1
0803-
103
NUT; BUMPER STEP
M6 FLANGE
0-91180-106-0
04
1
0803-
111
NUT; STAY
(A) M6 FLANGE
0-91180-106-0
01
1
0803-
111
NUT; STAY
(B) M8 FLANGE
0-91180-108-0
02
1
0803-
118
RETAINER; BUMPER SIDE
8-98232-279-0
04
1
1212-
139
NUT; BRKT FIX
M14 FLANGE
0-91180-214-0
04
1
0803-0805
139
NUT; BRKT FIX
M14 FLANGE
0-91180-214-0
02
1
0806-
202
BRACKET; BUMPER SIDE
8-97620-619-0
02
1
0803-
228
BOLT; BRKT
(A) M10X25 FLANGE
0-28651-025-0
08
1
0803-1009
228
BOLT; BRKT
(B) M14X45 FLANGE
0-28851-445-0
06
1
0803-
229
GROMMET
D=7X7 L=7.5
5-09983-007-0
02
1
0803-
259
BOLT; COVER
M8X25 FLANGE
0-28050-825-0
04
1
0803-0809
259
BOLT; COVER
M8X25 FLANGE
0-28650-825-0
04
1
0810-
301
BOLT; HOOK TO FRAME
M14X60
0-10861-460-0
02
1
0803-
311
BOLT; BRKT
M10X25 FLANGE
0-28651-025-0
08
1
1010-
311
BOLT; BRKT
M10X25 FLANGE
0-28051-025-0
02
1
0803-0809
311
BOLT; BRKT
M10X25 FLANGE
0-28651-025-0
02
1
0810-
315
STAY; BUMPER
8-97611-513-0
01
1
0803-
318
CAP; BUMPER SIDE
8-98232-191-0
02
1
1212-
321
COVER; BUMPER FRT SIDE
8-97616-290-1
01
1
0803-
321
COVER; BUMPER FRT SIDE
8-97616-291-1
01
1
0803-
322
SCREW; COVER FIX
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
0803-
339
COVER; SNOW GUARD
8-98056-520-2
01
1
0803-1402
339
COVER; SNOW GUARD
8-98258-274-0
01
1
1403-
340
BRACKET; SNOW GUARD
8-98056-523-1
01
1
0803-1312
340
BRACKET; SNOW GUARD
8-98258-223-0
01
1
1401-
341
NUT; COVER
M8 FLANGE
0-91180-108-0
02
1
0803-
607
BRACKET
(A)
8-97620-615-0
01
1
0803-
607
BRACKET
(A)
8-97620-616-0
01
1
0803-
607
BRACKET
(B)
8-98045-835-4
01
1
0803-
607
BRACKET
(B)
8-98045-836-3
01
1
0803-
613
CLIP
8-97623-589-0
01
1
0803-
660
BOLT; STAY
M6X16 W/LK&PL WASHER
0-50640-616-0
01
1
0803-
666
PROTECTOR; UNDER
8-98045-817-1
01
1
0803-
672
STUD; STEP
M6X20
8-97611-666-0
04
1
0803-
678
NUT; BUMPER TO BACK BAR
M12 FLANGE
0-91180-212-0
04
1
0803-
