Isuzu WW
▶
TRUCKS
▶
FSR
▶
11150 - FSR-LHD(EU)SPACE EU4
▶
5 - Frame, Cab Mounting
▶
5-30 - SPARE TIRE CARRIER AND COVER
▶

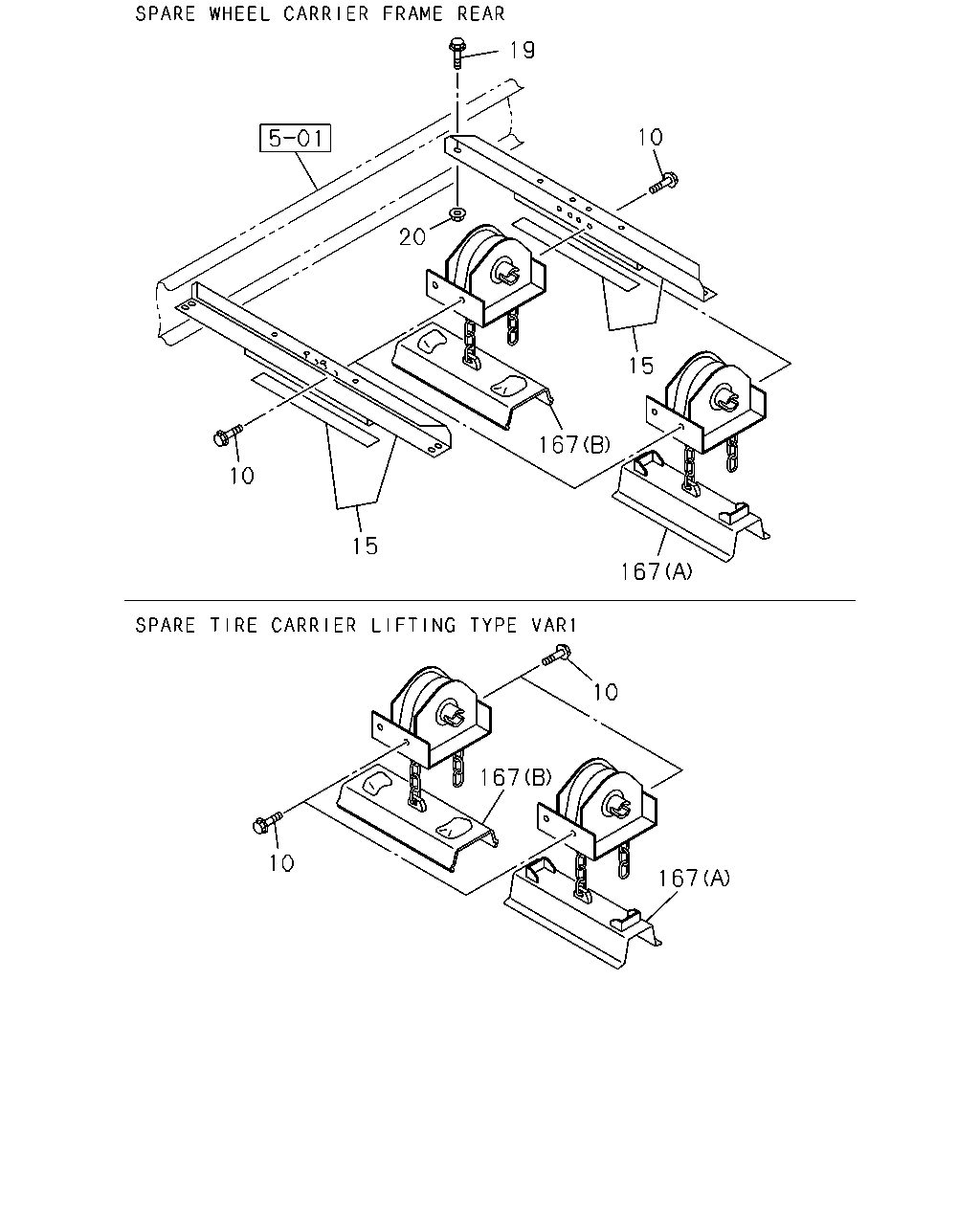

5-30 — SPARE TIRE CARRIER AND COVER
(#69125) — 7 parça
19
10
20
15
167
10
15
167
10
167
10
167
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> M10X20 FLANGE
0-28651-020-0
04
1
0803-0808
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M10X20 FLANGE
0-28651-020-0
04
1
0809-
15
MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>
1-53631-461-0
02
1
0803-
19
BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE
0-28051-025-0
08
1
0803-
20
NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE
0-91180-210-0
08
1
0803-
167
HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A)
1-53630-225-1
01
1
0803-0901
167
HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B)
8-98139-250-1
01
1
0902-
