5-01 — FRAME AND OTHER PARTS (#69121) — 73 parça

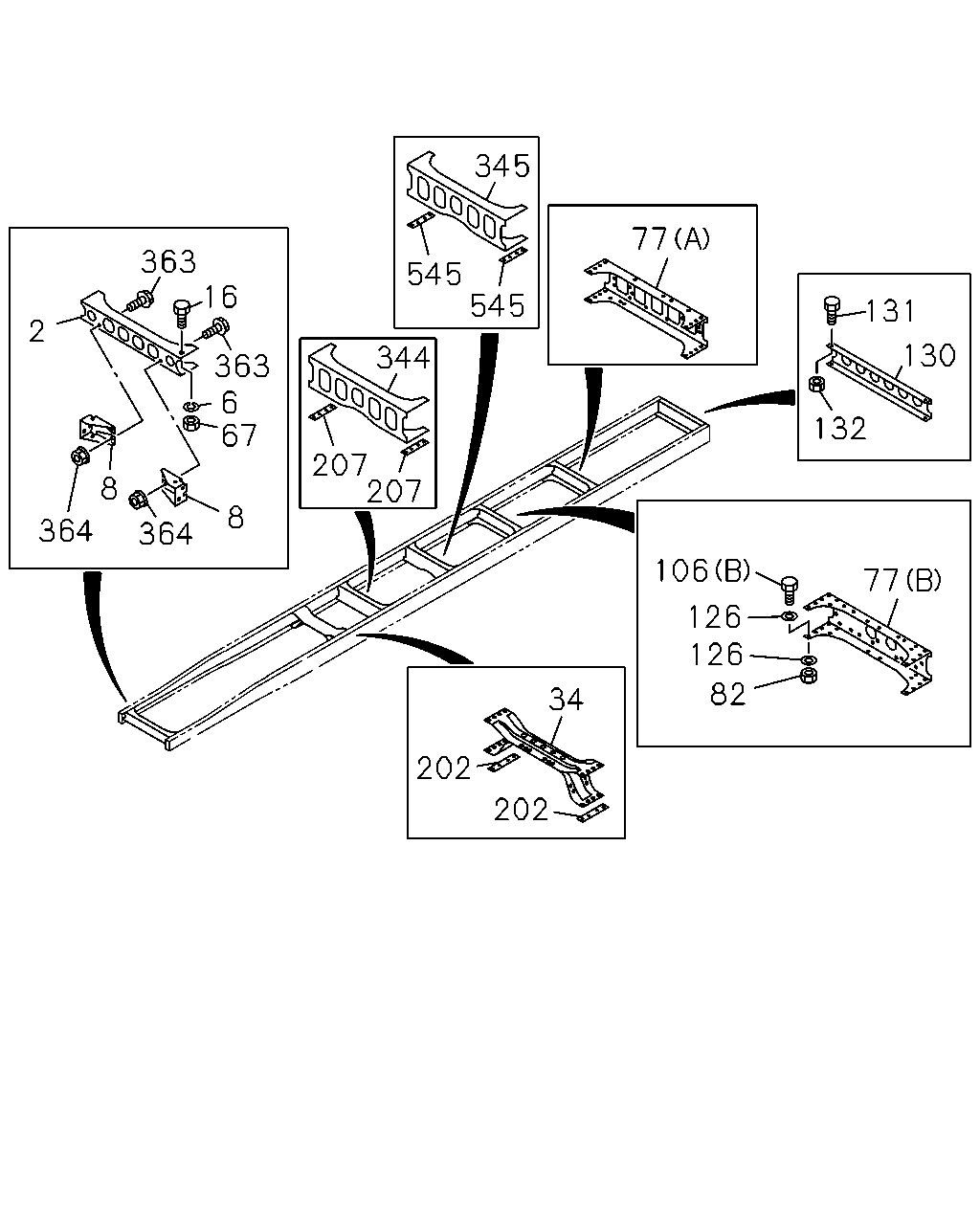

çizim 125473
345 77 363 16 545 545 131 2 130 344 363 6 67 132 207 207 8 8 364 364 106 77 126 126 82 34 202 202
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MEMBER; CROSS,1ST 8-97626-854-3 01 1 0803- ● ● ●
6 WASHER; LK,1ST C/MBR
ID=12.2 		0-91510-512-0 02 1 0803- ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-913-2 01 1 0803- ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-912-1 01 1 0803- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M12X30 		0-20851-230-0 02 1 0803- ● ● ●
34 MEMBER; CROSS,3RD 8-97609-755-0 01 1 0803- ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 0803- ● ● ●
77 MEMBER; CROSS,TRUNNION RR
(A) 		8-97609-481-4 01 1 0803- ● ● ●
77 MEMBER; CROSS,TRUNNION RR
(B) 		8-97609-483-0 01 1 0803- ● ● ●
82 NUT; BRKT
M10 		0-91110-510-0 04 1 0803- ● ● ●
106 BOLT; BRKT
(B) M10X35 		0-10961-035-0 04 1 0803- ● ● ●
106 BOLT; BRKT
(A) M14X35 FLANGE 		0-28661-435-0 12 1 0803- ● ● ●
126 WASHER; PL,BRKT
ID=10.5 OD=22 		0-91614-610-0 08 1 0803- ● ● ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 0803- ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 0803- ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 0803- ● ● ●
202 SPACER; 3RD C/MBR 8-97609-757-0 02 1 0803- ● ● ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 0803- ● ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 0803- ● ●
345 MEMBER; CROSS,5TH 8-97609-473-2 01 1 0803- ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 0803- ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 0803- ● ● ●
545 SPACER; 5TH C/MBR 8-97609-758-0 02 1 0803- ●

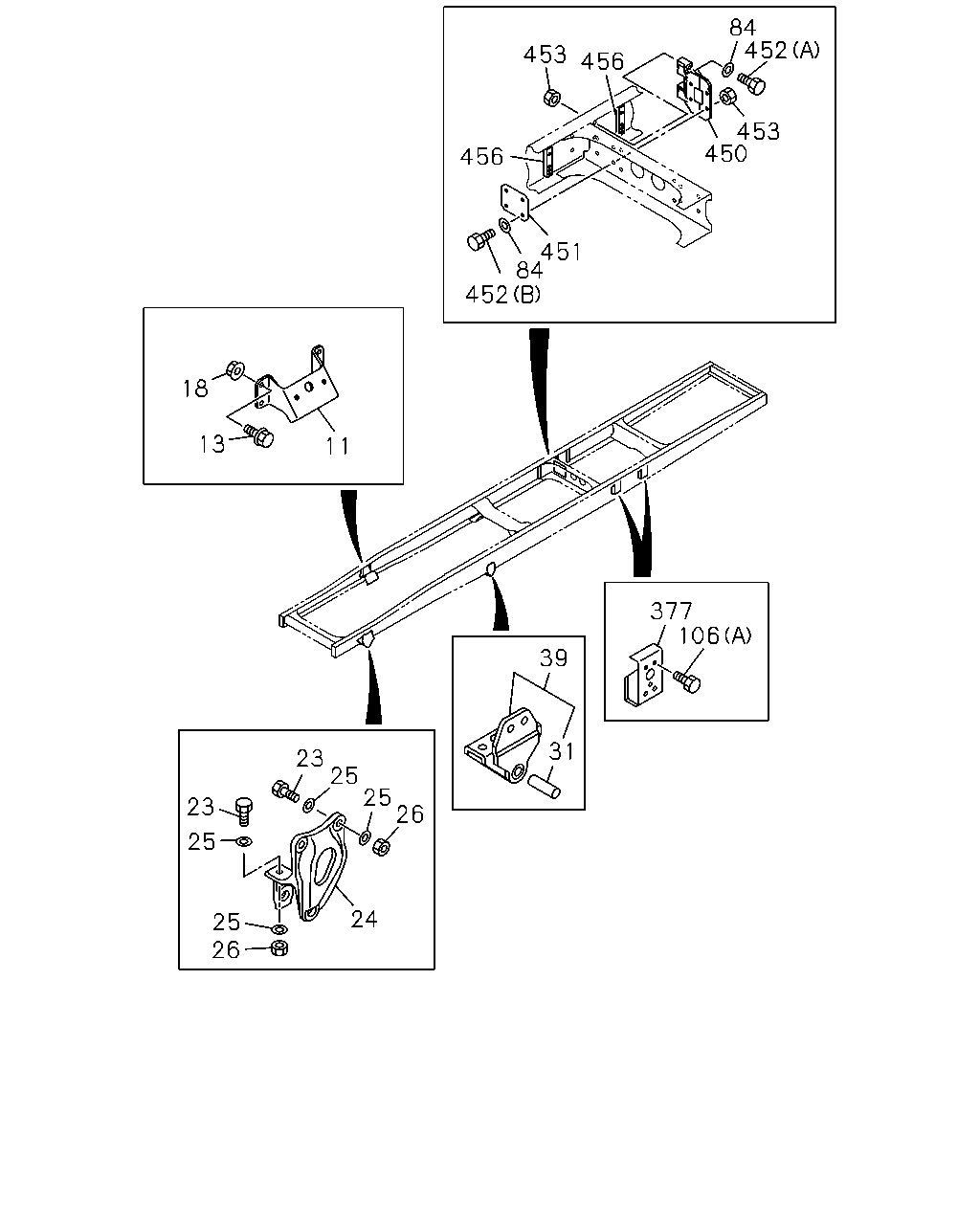

çizim 125612
84 452 453 456 453 450 456 451 84 452 18 13 11 377 106 39 31 23 25 25 26 23 25 24 25 26
BalonParca AdiParca NoAdetTipApplied Date A B C
11 BRACKET; ENG MTG 8-97610-244-0 01 1 0803- ● ● ●
11 BRACKET; ENG MTG 8-97610-245-0 01 1 0803- ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0803- ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0803- ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 0803- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-983-0 01 1 0803- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-984-0 01 1 0803- ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 0803- ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 08 1 0803- ● ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 0803- ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-126-2 02 1 0803- ● ● ●
84 WASHER; PL,BRKT
ID=16.2 		1-09503-316-0 12 1 0803- ● ● ●
106 BOLT; BRKT
(B) M10X35 		0-10961-035-0 04 1 0803- ● ● ●
106 BOLT; BRKT
(A) M14X35 FLANGE 		0-28661-435-0 12 1 0803- ● ● ●
377 BRACKET; TOP PLATE 8-98061-350-0 04 1 0803- ● ● ●
450 BRACKET; V ROD 1-53353-121-0 02 1 0803- ● ● ●
451 GUSSET; V ROD 8-97610-436-0 02 1 0803- ● ● ●
452 BOLT; V ROD
(A) M16X120 		1-09000-677-0 04 1 0803-0908 ● ● ●
452 BOLT; V ROD
(A) M16X110 		1-09000-738-0 04 1 0909- ● ● ●
452 BOLT; V ROD
(B) M16X50 		1-09000-679-0 08 1 0803- ● ● ●
453 NUT; V ROD
M16 FLANGE 		1-09440-066-0 12 1 0803- ● ● ●
456 PATCH; STOPPER 8-97610-437-1 04 1 0803- ● ● ●

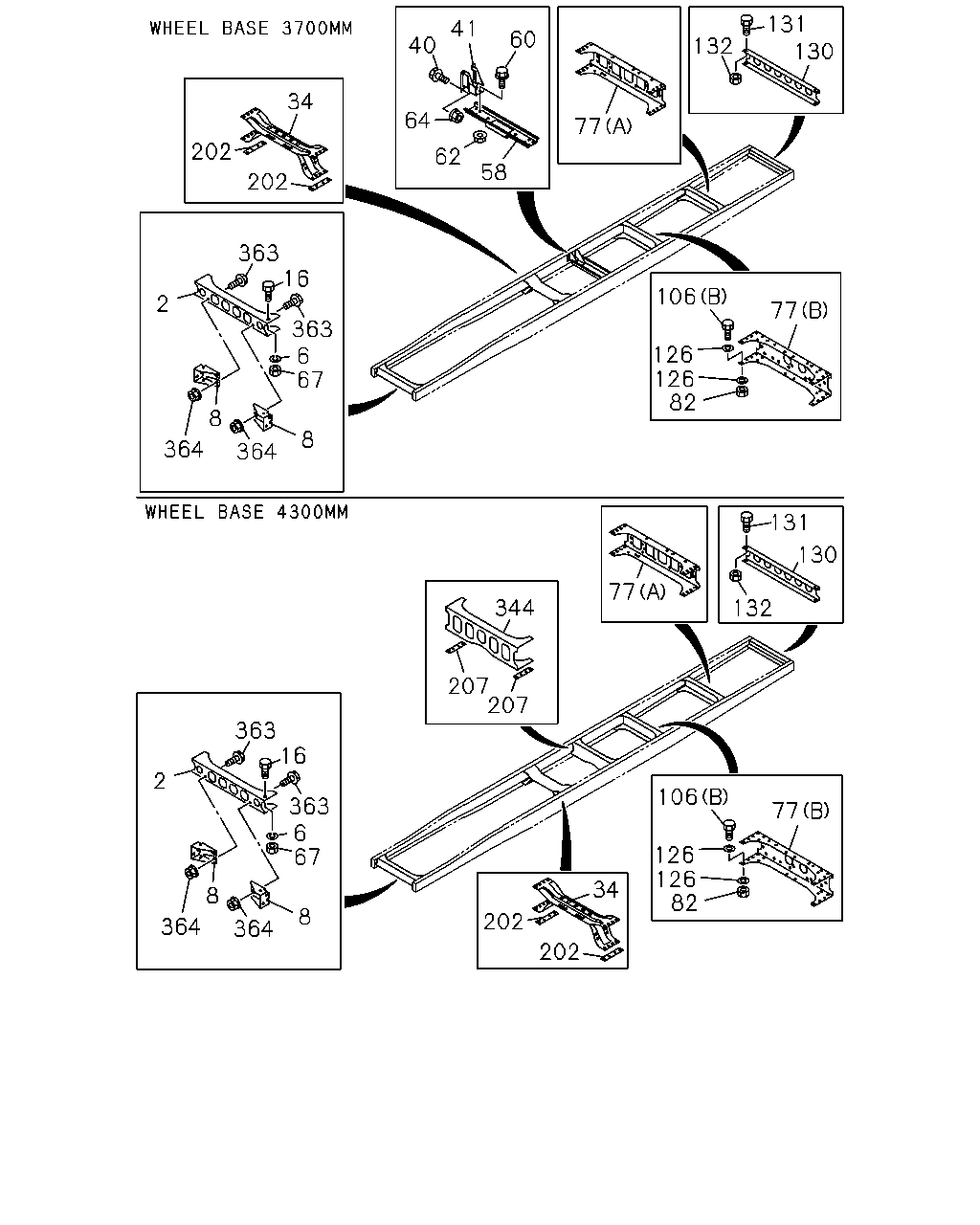

çizim 187701
131 132 130 41 60 40 34 64 77 202 62 58 202 363 16 106 2 77 363 6 67 126 126 82 8 8 364 364 131 130 77 344 132 207 207 363 16 2 106 363 6 67 77 126 126 2 34 8 8 202 364 364 202
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MEMBER; CROSS,1ST 8-97626-854-3 01 1 0803- ● ● ●
6 WASHER; LK,1ST C/MBR
ID=12.2 		0-91510-512-0 02 1 0803- ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-913-2 01 1 0803- ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-912-1 01 1 0803- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M12X30 		0-20851-230-0 02 1 0803- ● ● ●
34 MEMBER; CROSS,3RD 8-97609-755-0 01 1 0803- ● ● ●
40 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28651-035-0 08 1 0803- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-973-2 01 1 0803- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-974-2 01 1 0803- ●
58 MEMBER; CENTER BRG 8-97619-112-0 01 1 0803- ●
60 BOLT; MBR
M10X25 FLANGE 		0-28651-025-0 08 1 0803- ●
62 NUT; MBR
M10 FLANGE 		0-91180-110-0 08 1 0803- ●
64 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 08 1 0803- ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 0803- ● ● ●
77 MEMBER; CROSS,TRUNNION RR
(A) 		8-97609-481-4 01 1 0803- ● ● ●
77 MEMBER; CROSS,TRUNNION RR
(B) 		8-97609-483-0 01 1 0803- ● ● ●
82 NUT; BRKT
M10 		0-91110-510-0 04 1 0803- ● ● ●
106 BOLT; BRKT
(B) M10X35 		0-10961-035-0 04 1 0803- ● ● ●
106 BOLT; BRKT
(A) M14X35 FLANGE 		0-28661-435-0 12 1 0803- ● ● ●
126 WASHER; PL,BRKT
ID=10.5 OD=22 		0-91614-610-0 08 1 0803- ● ● ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 0803- ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 0803- ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 0803- ● ● ●
202 SPACER; 3RD C/MBR 8-97609-757-0 02 1 0803- ● ● ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 0803- ● ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 0803- ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 0803- ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 0803- ● ● ●
