Isuzu WW
▶
TRUCKS
▶
FSR
▶
11150 - FSR-LHD(EU)SPACE EU4
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-71 - AIR SUSPENSION PIPING
▶

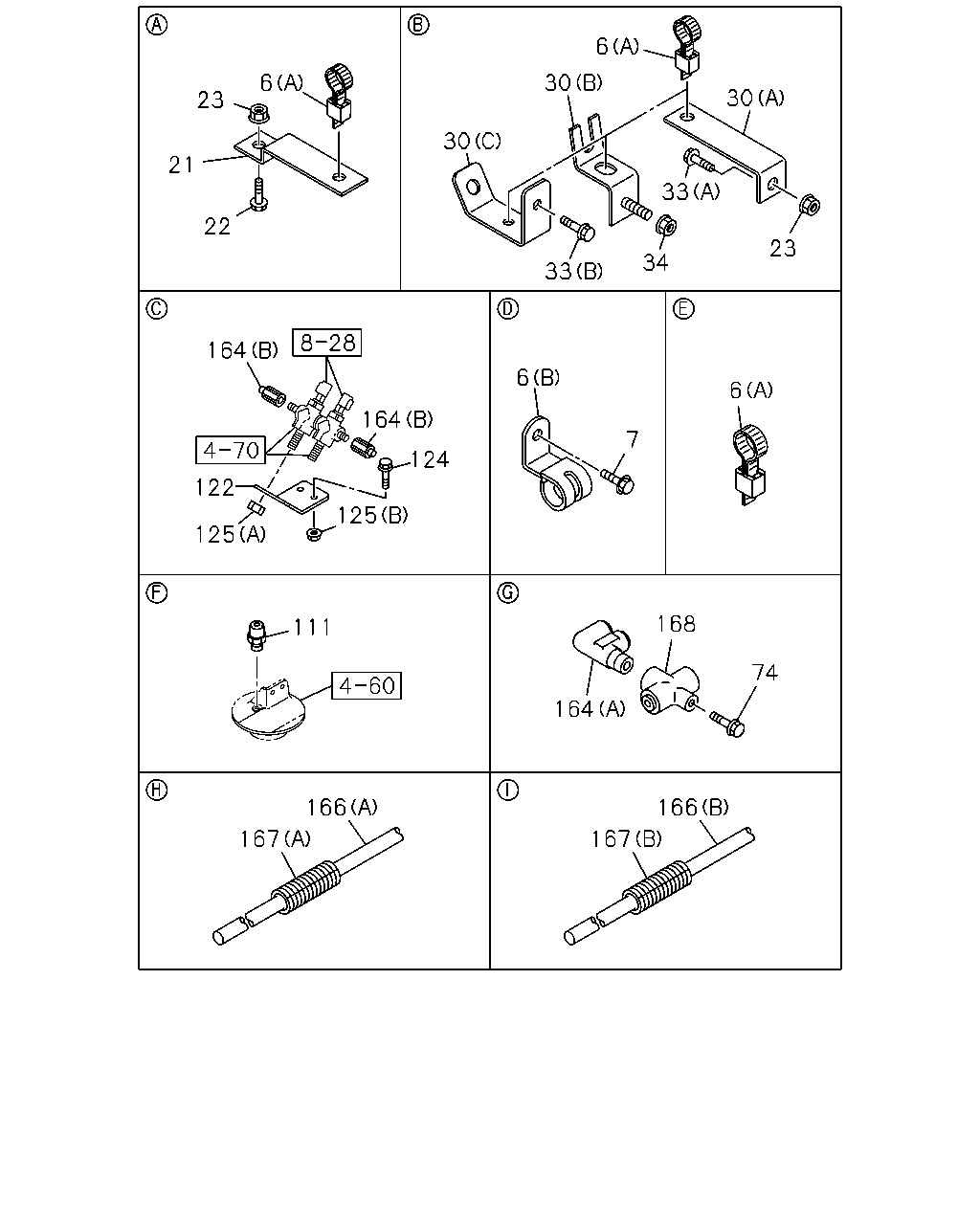

4-71 — AIR SUSPENSION PIPING
(#69119) — 33 parça
6
30
6
30
23
30
21
33
22
23
34
33
164
6
6
164
7
124
122
125
125
168
111
74
164
166
166
167
167
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
CLIP; AIR PIPE
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (A) L=350
1-09707-183-0
13
1
1110-
6
CLIP; AIR PIPE
WHEEL BASE 4300MM(43W) (A) L=350
1-09707-183-0
03
1
0803-
6
CLIP; AIR PIPE
WHEEL BASE 4900MM(49W) (A) L=350
1-09707-183-0
05
1
0803-
6
CLIP; AIR PIPE
(B) ID=31.5 H=23 L=25
1-09701-017-0
01
1
0803-
6
CLIP; AIR PIPE
(A) L=350
1-09707-183-0
13
1
0803-1109
6
CLIP; AIR PIPE
WHEEL BASE 3700MM(37W) (A) L=350
1-09707-183-0
12
1
1110-
7
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
0803-
21
BRACKET; AIR PIPE
1-47471-163-0
03
1
0803-
22
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
03
1
0803-
23
NUT; BRKT
M8 FLANGE
0-91180-108-0
03
1
0803-
30
BRACKET; CLIP
WHEEL BASE 4900MM(49W) ISRAEL COUNTRY(CV4) (C)
8-98117-686-0
01
1
0807-
30
BRACKET; CLIP
WHEEL BASE 4900MM(49W) (B)
8-98096-272-0
02
1
0803-0806
30
BRACKET; CLIP
WHEEL BASE 4900MM(49W) EXC. ISRAEL COUNTRY(CV4) (B)
8-98096-272-0
02
1
0807-
30
BRACKET; CLIP
(A) L=55 B=25
1-47478-439-0
01
1
0803-
33
BOLT; BRKT
WHEEL BASE 4900MM(49W) ISRAEL COUNTRY(CV4) (B) M10X30 FLANGE
0-28651-030-0
01
1
0807-
33
BOLT; BRKT
(A) M8X20 FLANGE
0-28650-820-0
01
1
0803-
34
NUT; BRKT
WHEEL BASE 4900MM(49W) M10 FLANGE
0-91180-210-0
02
1
0803-0806
34
NUT; BRKT
WHEEL BASE 4900MM(49W) EXC. ISRAEL COUNTRY(CV4) M10 FLANGE
0-91180-210-0
02
1
0807-
74
BOLT; CLIP AIR PIPE
M8X20 FLANGE
0-28050-820-0
02
1
0803-
111
UNION; AIR PIPE
DIN8 & R3/8 STRAIGHT
1-09660-964-0
04
1
0803-
122
BRACKET; AIR PIPE
1-47479-878-0
01
1
0803-
124
BOLT; CLIP AIR PIPE
M8X25 FLANGE
0-28650-825-0
02
1
0803-
125
NUT; CLIP AIR PIPE
(A) M12
0-91111-512-0
02
1
0803-
125
NUT; CLIP AIR PIPE
(B) M8 FLANGE
0-91180-108-0
02
1
0803-
164
CONNECTOR
(B) DIN8 & M12 STRAIGHT
1-09660-873-0
02
1
0803-
164
CONNECTOR
(A) DIN8X2 & PT3/8 DOUBLE ELBOW
1-09661-025-0
02
1
0803-
166
TUBE; NYLON
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) (A) SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
0803-
166
TUBE; NYLON
WHEEL BASE 4900MM(49W) (A) SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
0803-
166
TUBE; NYLON
(B) SERVICED BY L=2000 OD=8
1-87410-073-0
AR
1
0803-
166
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0803-
167
TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10
1-87410-088-0
AR
1
0803-
167
TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
0803-
168
UNION; 3WAY
DIN8 & RC3/8 3WAY
1-09661-129-0
02
1
0803-
