8-71 — COMPRESSOR; AIR CONDITIONING (#6911) — 35 parça

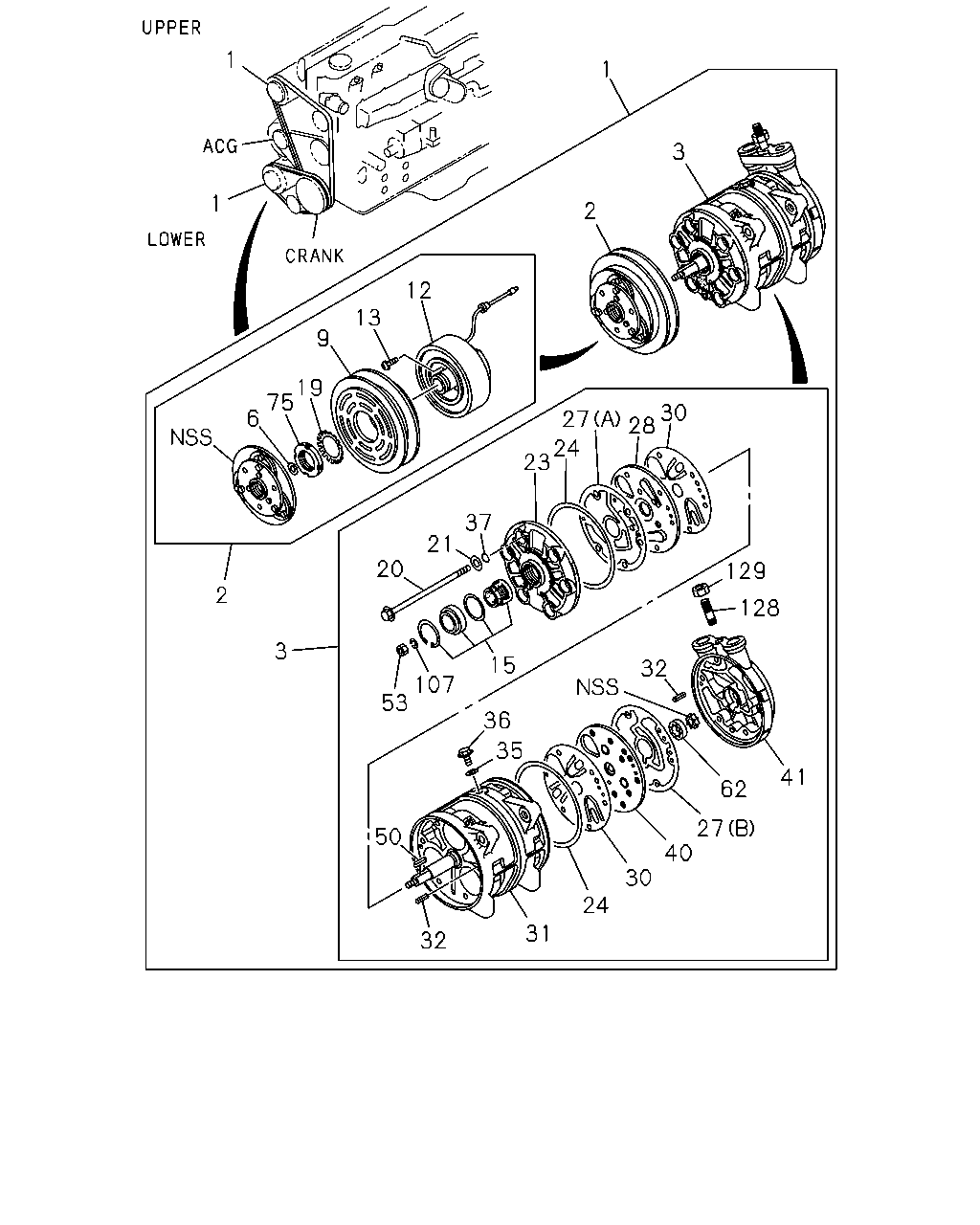

çizim 99247
1 1 3 1 2 12 13 9 19 75 6 30 28 27 24 23 37 21 20 129 2 128 3 15 32 107 53 36 35 41 62 27 40 50 30 24 31 32
BalonParca AdiParca NoAdetTipApplied Date
1 COMPRESSOR ASM; A/C
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> UPPER & LOWER 		1-83532-221-1 02 1 9806-9911
2 CLUTCH; MAGNET,A/C
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 		1-83533-026-0 02 1 9806-9911
3 COMPRESSOR ASM; A/C
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 		1-83532-236-1 02 1 9806-9911
6 SHIM; MAGNET CLU
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> T=0.8 		8-94455-721-0 AR 1 9806-9911
6 SHIM; MAGNET CLU
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> T=0.5 		8-94455-722-0 AR 1 9806-9911
6 SHIM; MAGNET CLU
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> T=0.3 		8-94455-723-0 AR 1 9806-9911
6 SHIM; MAGNET CLU
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> T=0.1 		8-94455-724-0 AR 1 9806-9911
6 SHIM; MAGNET CLU
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> T=2.2 		8-94455-725-0 AR 1 9806-9911
9 PULLEY; MAGNET CLU
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 		1-83533-027-0 02 1 9806-9911
12 COIL; FIELD,MAGNET CLU
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 		1-83579-550-0 02 1 9806-9911
13 SCREW; COIL FIELD
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> M5X12 		8-94202-634-0 12 1 9806-9911
15 SEAL; SHAFT
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 		8-97095-626-0 02 1 9806-9911
19 WASHER; LK,PULLEY,MAGNET CLU
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 		8-94223-745-0 02 1 9806-9911
20 BOLT; CMPR
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 		1-83579-554-0 12 1 9806-9911
21 WASHER; COOLER CMPR
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 		1-83579-547-0 12 1 9806-9911
23 HEAD; CYL,FRT
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 		8-97095-625-0 02 1 9806-9911
24 GASKET; CMPR
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 		1-83579-612-0 04 1 9806-9911
27 GASKET; CYL HD
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A) 		1-83579-611-0 02 1 9806-9911
27 GASKET; CYL HD
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (B) 		1-83579-613-0 02 1 9806-9911
28 PLATE; VLV,CMPR
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 		1-83571-866-0 02 1 9806-9911
30 VALVE; SUCTION
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 		1-19131-001-0 04 1 9806-9911
31 CYLINDER & SHAFT ASM; AIR CMPR
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 		1-83579-610-1 02 1 9806-9911
32 PIN; CMPR
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 		1-83579-546-0 08 1 9806-9911
35 GASKET; PLUG,CYL
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 		1-83539-212-0 02 1 9806-9911
36 PLUG; CYL
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 		1-83579-543-0 02 1 9806-9911
37 GASKET; CMPR
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> "R-134A" 		8-97081-395-0 12 1 9806-9911
40 PLATE; VLV,RR
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 		1-83571-867-0 02 1 9806-9911
41 HEAD; CYL,RR
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 		1-19111-027-0 02 1 9806-9911
50 KEY; CR/SHF,CMPR
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 		8-94455-712-0 02 1 9806-9911
53 NUT; SHAFT,COOLER CMPR
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 		8-94455-928-0 02 1 9806-9911
62 GEAR; COOLER CMPR
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 		8-94202-616-0 02 1 9806-9911
75 NUT; PULLEY MAGNET CLU,CMPR
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 		8-94223-746-0 02 1 9806-9911
107 WASHER; LK,COOLER CMPR
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 		1-83579-492-0 02 1 9806-9911
128 STUD; CMPR
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 		1-83579-614-0 02 1 9806-9911
129 NUT; CMPR
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> M10 		1-83579-615-0 02 1 9806-9911
