Sayfa 4-01 - Isuzu EPC

4-01 — PROPELLER SHAFT (#69101) — 241 parça

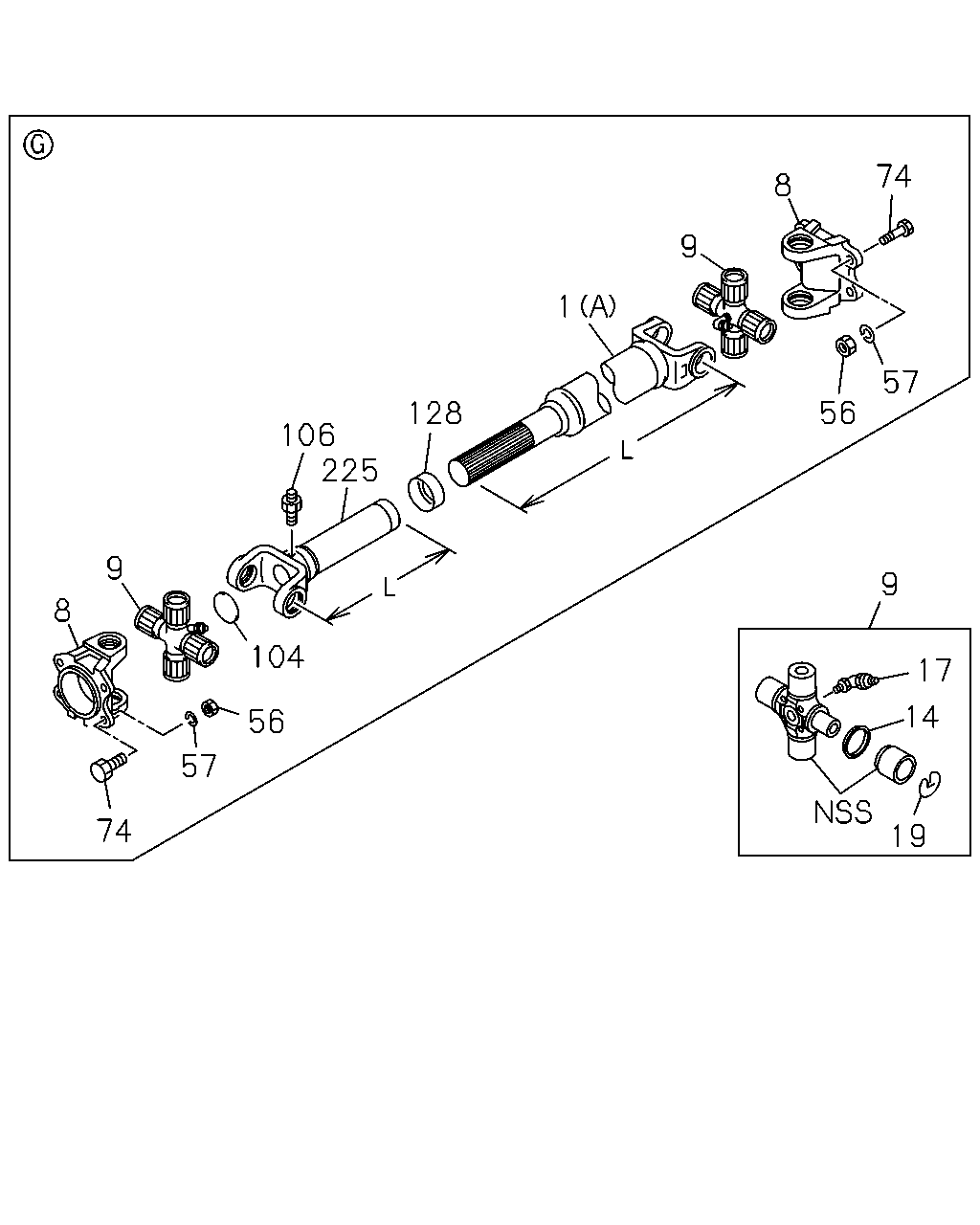

74 8 9 1 57 56 128 106 225 9 9 8 104 17 14 56 57 74 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP MZX6P M/T(RSW) (B) L=704	8-98069-606-0	01	1	0803-	●
1	SHAFT; PROP MZX6P M/T(RSW) (B) L=1094	8-98069-588-0	01	1	0803-		●	●
1	SHAFT; PROP (A) L=921	8-98069-698-0	01	1	0803-	●
1	SHAFT; PROP (A) L=1101	8-98069-675-0	01	1	0803-		●
1	SHAFT; PROP (C) L=569	8-98069-566-0	01	1	0803-			●
1	SHAFT; PROP (A) L=986	8-98083-014-0	01	1	0803-0803			●
1	SHAFT; PROP (A) L=1086	8-98069-690-0	01	1	0804-			●
1	SHAFT; PROP MLD6W M/T(Y2C) (B) L=814	8-98110-589-0	01	1	0807-	●
1	SHAFT; PROP MLD6W M/T(Y2C) (B) L=1204	8-98110-587-0	01	1	0807-		●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	02	1	0803-	●	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	0803-	●	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	0803-			●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	02	1	0803-	●	●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	01	1	0803-	●	●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	01	1	0803-			●
14	COVER; DUST,SPIDER	8-98020-800-0	08	1	0803-	●	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	0803-	●	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	0803-			●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0803-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	0803-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	0803-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	0803-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	0803-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	0803-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	0803-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	0803-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	0803-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	0803-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	0803-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	0803-			●
56	NUT; YOKE M14	0-91110-514-0	04	1	0803-	●	●	●
56	NUT; YOKE M14	0-91110-514-0	04	1	0803-	●	●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	0803-	●	●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	0803-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	0803-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	0803-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	0803-			●
104	PLUG; SLEEVE YOKE	1-09600-064-0	01	1	0803-	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	01	1	0803-	●	●	●
128	SEAL; SLEEVE	1-37247-024-0	01	1	0803-	●	●	●
225	YOKE; SLEEVE,PROP SHAFT L=254	8-98020-885-0	01	1	0803-	●	●	●

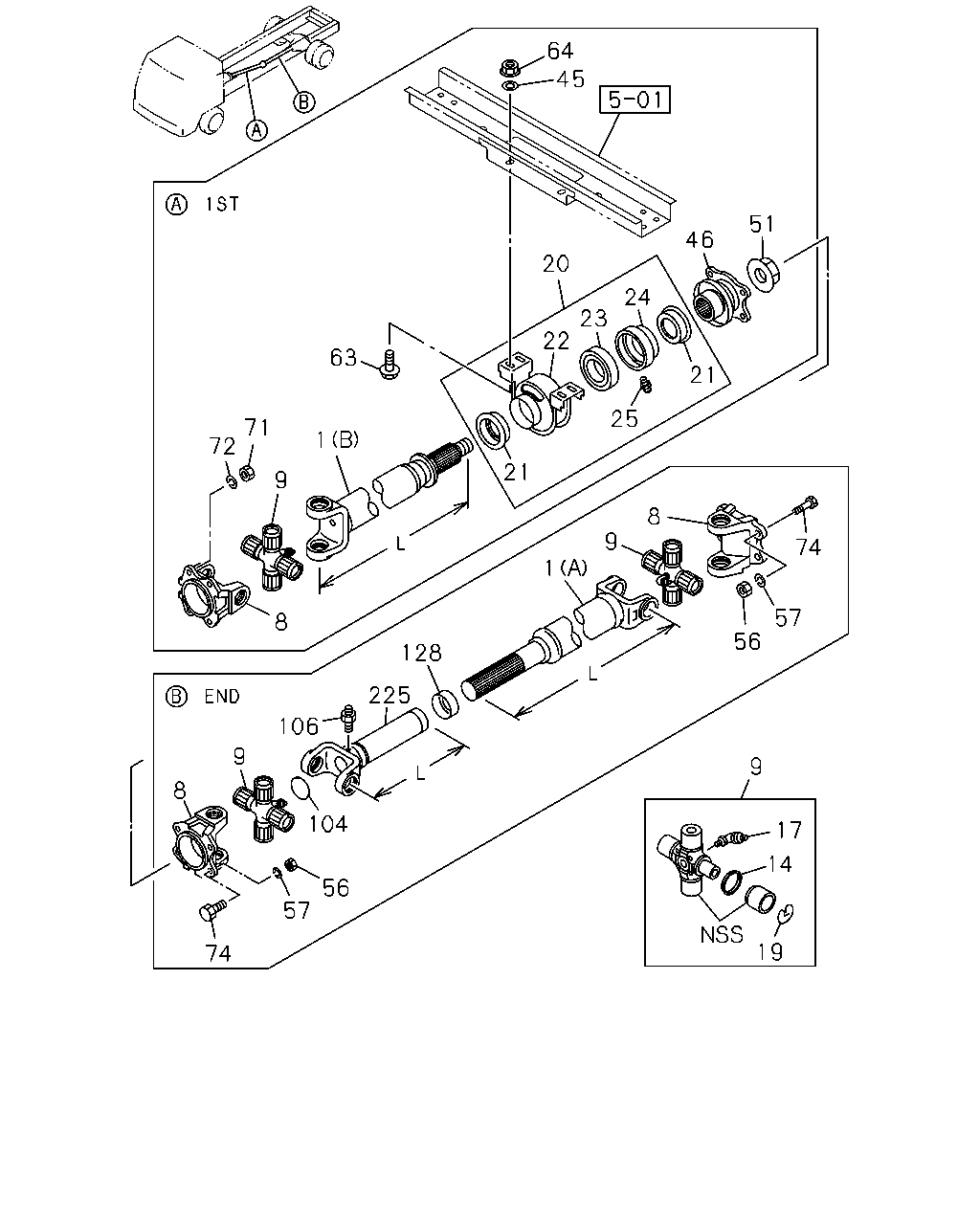

64 45 51 46 20 24 23 22 63 21 25 71 72 1 21 9 8 9 74 1 57 8 56 128 225 106 9 9 8 104 17 14 56 57 19 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP MZX6P M/T(RSW) (B) L=704	8-98069-606-0	01	1	0803-	●
1	SHAFT; PROP MZX6P M/T(RSW) (B) L=1094	8-98069-588-0	01	1	0803-		●	●
1	SHAFT; PROP (A) L=921	8-98069-698-0	01	1	0803-	●
1	SHAFT; PROP (A) L=1101	8-98069-675-0	01	1	0803-		●
1	SHAFT; PROP (C) L=569	8-98069-566-0	01	1	0803-			●
1	SHAFT; PROP (A) L=986	8-98083-014-0	01	1	0803-0803			●
1	SHAFT; PROP (A) L=1086	8-98069-690-0	01	1	0804-			●
1	SHAFT; PROP MLD6W M/T(Y2C) (B) L=814	8-98110-589-0	01	1	0807-	●
1	SHAFT; PROP MLD6W M/T(Y2C) (B) L=1204	8-98110-587-0	01	1	0807-		●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	02	1	0803-	●	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	0803-	●	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	0803-			●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	02	1	0803-	●	●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	01	1	0803-	●	●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	01	1	0803-			●
14	COVER; DUST,SPIDER	8-98020-800-0	08	1	0803-	●	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	0803-	●	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	0803-			●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0803-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	0803-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	0803-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	0803-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	0803-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	0803-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	0803-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	0803-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	0803-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	0803-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	0803-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	0803-			●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	0803-	●	●	●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	0803-			●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	0803-	●	●	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	0803-			●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	0803-	●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	0803-			●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	0803-	●	●	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	0803-			●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	0803-	●	●	●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	0803-			●
25	NIPPLE; GREASE,CENTER BRG	8-98020-889-0	01	1	0803-	●	●	●
25	NIPPLE; GREASE,CENTER BRG	8-98020-889-0	01	1	0803-			●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	0803-	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	0803-	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	0803-			●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	0803-	●	●	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	0803-			●
56	NUT; YOKE M14	0-91110-514-0	04	1	0803-	●	●	●
56	NUT; YOKE M14	0-91110-514-0	04	1	0803-	●	●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	0803-	●	●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	0803-	●	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	0803-	●	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	0803-			●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	0803-	●	●	●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	0803-			●
71	NUT; YOKE M14	0-91110-514-0	04	1	0803-	●	●	●
72	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	0803-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	0803-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	0803-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	0803-			●
104	PLUG; SLEEVE YOKE	1-09600-064-0	01	1	0803-	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	01	1	0803-	●	●	●
128	SEAL; SLEEVE	1-37247-024-0	01	1	0803-	●	●	●
225	YOKE; SLEEVE,PROP SHAFT L=254	8-98020-885-0	01	1	0803-	●	●	●

174 172 173 64 45 20 51 63 46 21 24 25 23 1 22 71 72 9 21 177 172 173 20 8 64 60 51 46 63 21 24 25 23 1 49 22 52 9 9 21 17 8 74 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP MZX6P M/T(RSW) (B) L=704	8-98069-606-0	01	1	0803-	●
1	SHAFT; PROP MZX6P M/T(RSW) (B) L=1094	8-98069-588-0	01	1	0803-		●	●
1	SHAFT; PROP (A) L=921	8-98069-698-0	01	1	0803-	●
1	SHAFT; PROP (A) L=1101	8-98069-675-0	01	1	0803-		●
1	SHAFT; PROP (C) L=569	8-98069-566-0	01	1	0803-			●
1	SHAFT; PROP (A) L=986	8-98083-014-0	01	1	0803-0803			●
1	SHAFT; PROP (A) L=1086	8-98069-690-0	01	1	0804-			●
1	SHAFT; PROP MLD6W M/T(Y2C) (B) L=814	8-98110-589-0	01	1	0807-	●
1	SHAFT; PROP MLD6W M/T(Y2C) (B) L=1204	8-98110-587-0	01	1	0807-		●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	02	1	0803-	●	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	0803-	●	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	0803-			●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	02	1	0803-	●	●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	01	1	0803-	●	●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	01	1	0803-			●
14	COVER; DUST,SPIDER	8-98020-800-0	08	1	0803-	●	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	0803-	●	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	0803-			●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0803-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	0803-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	0803-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	0803-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	0803-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	0803-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	0803-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	0803-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	0803-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	0803-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	0803-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	0803-			●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	0803-	●	●	●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	0803-			●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	0803-	●	●	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	0803-			●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	0803-	●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	0803-			●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	0803-	●	●	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	0803-			●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	0803-	●	●	●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	0803-			●
25	NIPPLE; GREASE,CENTER BRG	8-98020-889-0	01	1	0803-	●	●	●
25	NIPPLE; GREASE,CENTER BRG	8-98020-889-0	01	1	0803-			●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	0803-	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	0803-	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	0803-			●
49	NUT; YOKE M14	0-91110-514-0	04	1	0803-			●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	0803-	●	●	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	0803-			●
52	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	0803-			●
60	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	0803-			●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	0803-	●	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	0803-			●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	0803-	●	●	●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	0803-			●
71	NUT; YOKE M14	0-91110-514-0	04	1	0803-	●	●	●
72	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	0803-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	0803-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	0803-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	0803-			●
172	BRACKET; CENTER BRG (A)	1-37515-122-0	01	1	0803-		●
172	BRACKET; CENTER BRG (B)	1-37515-120-0	01	1	0803-			●
172	BRACKET; CENTER BRG (C)	1-37515-121-0	01	1	0803-			●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	0803-		●	●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	0803-			●
174	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0803-		●	●
177	NUT M10 FLANGE	0-91180-210-0	04	1	0803-			●

174 172 173 64 45 20 51 46 63 21 24 25 23 1 22 9 71 21 72 74 8 9 8 1 57 56 128 106 225 9 9 8 104 17 14 56 57 74 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP MZX6P M/T(RSW) (B) L=704	8-98069-606-0	01	1	0803-	●
1	SHAFT; PROP MZX6P M/T(RSW) (B) L=1094	8-98069-588-0	01	1	0803-		●	●
1	SHAFT; PROP (A) L=921	8-98069-698-0	01	1	0803-	●
1	SHAFT; PROP (A) L=1101	8-98069-675-0	01	1	0803-		●
1	SHAFT; PROP (C) L=569	8-98069-566-0	01	1	0803-			●
1	SHAFT; PROP (A) L=986	8-98083-014-0	01	1	0803-0803			●
1	SHAFT; PROP (A) L=1086	8-98069-690-0	01	1	0804-			●
1	SHAFT; PROP MLD6W M/T(Y2C) (B) L=814	8-98110-589-0	01	1	0807-	●
1	SHAFT; PROP MLD6W M/T(Y2C) (B) L=1204	8-98110-587-0	01	1	0807-		●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	02	1	0803-	●	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	0803-	●	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	0803-			●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	02	1	0803-	●	●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	01	1	0803-	●	●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	01	1	0803-			●
14	COVER; DUST,SPIDER	8-98020-800-0	08	1	0803-	●	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	0803-	●	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	0803-			●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0803-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	0803-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	0803-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	0803-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	0803-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	0803-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	0803-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	0803-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	0803-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	0803-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	0803-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	0803-			●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	0803-	●	●	●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	0803-			●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	0803-	●	●	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	0803-			●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	0803-	●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	0803-			●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	0803-	●	●	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	0803-			●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	0803-	●	●	●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	0803-			●
25	NIPPLE; GREASE,CENTER BRG	8-98020-889-0	01	1	0803-	●	●	●
25	NIPPLE; GREASE,CENTER BRG	8-98020-889-0	01	1	0803-			●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	0803-	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	0803-	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	0803-			●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	0803-	●	●	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	0803-			●
56	NUT; YOKE M14	0-91110-514-0	04	1	0803-	●	●	●
56	NUT; YOKE M14	0-91110-514-0	04	1	0803-	●	●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	0803-	●	●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	0803-	●	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	0803-	●	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	0803-			●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	0803-	●	●	●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	0803-			●
71	NUT; YOKE M14	0-91110-514-0	04	1	0803-	●	●	●
72	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	0803-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	0803-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	0803-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	0803-			●
104	PLUG; SLEEVE YOKE	1-09600-064-0	01	1	0803-	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	01	1	0803-	●	●	●
128	SEAL; SLEEVE	1-37247-024-0	01	1	0803-	●	●	●
172	BRACKET; CENTER BRG (A)	1-37515-122-0	01	1	0803-		●
172	BRACKET; CENTER BRG (B)	1-37515-120-0	01	1	0803-			●
172	BRACKET; CENTER BRG (C)	1-37515-121-0	01	1	0803-			●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	0803-		●	●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	0803-			●
174	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0803-		●	●
225	YOKE; SLEEVE,PROP SHAFT L=254	8-98020-885-0	01	1	0803-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
