◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11150 - FSR-LHD(EU)SPACE EU4 ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#69100) — 111 parça

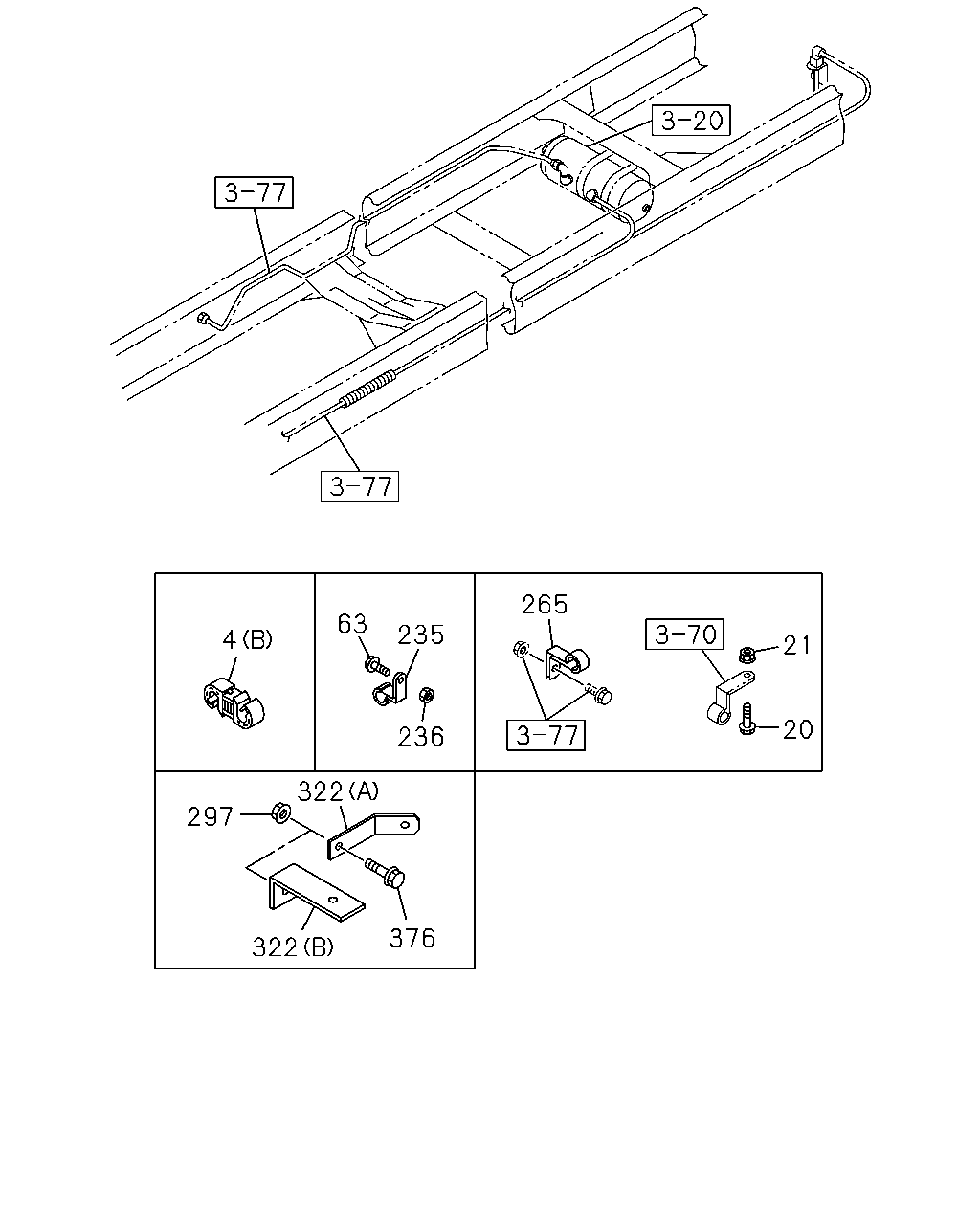

çizim 122820
265 63 235 4 21 20 236 322 297 376 322
BalonParca AdiParca NoAdetTipApplied Date
4 CLIP; AIR PIPE
(B) ID=6.35 & 10.0 		1-09709-274-1 02 1 0803-
4 CLIP; AIR PIPE
(A) ID=10 & 10 		1-09709-277-1 02 1 0803-0901
4 CLIP; AIR PIPE
(A) ID=10 & 10 		1-09709-277-1 03 1 0902-
4 CLIP; AIR PIPE
(A) ID=12 & 12 		1-09709-280-1 01 1 0803-0901
20 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0807-0807
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 0807-
20 BOLT; CLIP
M8X45 FLANGE 		0-28050-845-0 01 1 0807-
20 BOLT; CLIP
M8X70 FLANGE 		0-28050-870-0 01 1 0803-0805
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0803-0805
20 BOLT; CLIP
WHEEL BASE 3700MM(37W) M8X20 FLANGE 		0-28650-820-0 02 1 0803-0805
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0806-0806
20 BOLT; CLIP
WHEEL BASE 3700MM(37W) M8X20 FLANGE 		0-28650-820-0 02 1 0806-0806
20 BOLT; CLIP
WHEEL BASE 3700MM(37W) M8X20 FLANGE 		0-28650-820-0 02 1 0807-
20 BOLT; CLIP
M8X50 FLANGE 		0-28050-850-0 02 1 0803-0805
20 BOLT; CLIP
M8X50 FLANGE 		0-28050-850-0 04 1 0806-0806
20 BOLT; CLIP
M8X50 FLANGE 		0-28050-850-0 03 1 0807-0807
20 BOLT; CLIP
M8X50 FLANGE 		0-28050-850-0 02 1 0807-
21 NUT; CLIP 9-14149-158-0 01 1 0807-
21 NUT; CLIP
WHEEL BASE 3700MM(37W) M8 FLANGE 		0-91180-108-0 01 1 0803-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 0803-0805
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 06 1 0806-0806
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 0807-
63 BOLT; CLIP
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) M8X25 FLANGE 		0-28650-825-0 03 1 0803-0810
63 BOLT; CLIP
WHEEL BASE 3700MM(37W) M8X25 FLANGE 		0-28650-825-0 03 1 0811-
63 BOLT; CLIP
WHEEL BASE 4900MM(49W) M8X25 FLANGE 		0-28650-825-0 05 1 0803-0810
63 BOLT; CLIP
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) M8X25 FLANGE 		0-28650-825-0 05 1 0811-
235 CLIP; AIR PIPE
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) ID=11 H=20 L=20 		8-98033-780-0 03 1 0803-0810
235 CLIP; AIR PIPE
WHEEL BASE 3700MM(37W) ID=11 H=20 L=20 		8-98033-780-0 03 1 0811-
235 CLIP; AIR PIPE
WHEEL BASE 4900MM(49W) ID=11 H=20 L=20 		8-98033-780-0 05 1 0803-0810
235 CLIP; AIR PIPE
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) ID=11 H=20 L=20 		8-98033-780-0 05 1 0811-
236 NUT; CLIP
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) M8 FLANGE 		0-91180-108-0 03 1 0803-0810
236 NUT; CLIP
WHEEL BASE 3700MM(37W) M8 FLANGE 		0-91180-108-0 03 1 0811-
236 NUT; CLIP
WHEEL BASE 4900MM(49W) M8 FLANGE 		0-91180-108-0 05 1 0803-0810
236 NUT; CLIP
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) M8 FLANGE 		0-91180-108-0 05 1 0811-
265 CLIP; NYLON TUBE
ID=21 H=25.5 L=26 		8-94176-806-0 01 1 0803-
297 NUT; BRKT
WHEEL BASE 3700MM(37W) M10 FLANGE 		0-91180-210-0 01 1 0803-
297 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) M8 FLANGE 		0-91180-108-0 02 1 0803-
322 BRACKET; CLIP
WHEEL BASE 3700MM(37W) (B) L=55 B=25 		1-47478-439-0 01 1 0803-
322 BRACKET; CLIP
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (A) 		1-47479-936-1 02 1 0803-
376 BOLT; BRKT
WHEEL BASE 3700MM(37W) M8X20 FLANGE 		0-28650-820-0 01 1 0803-

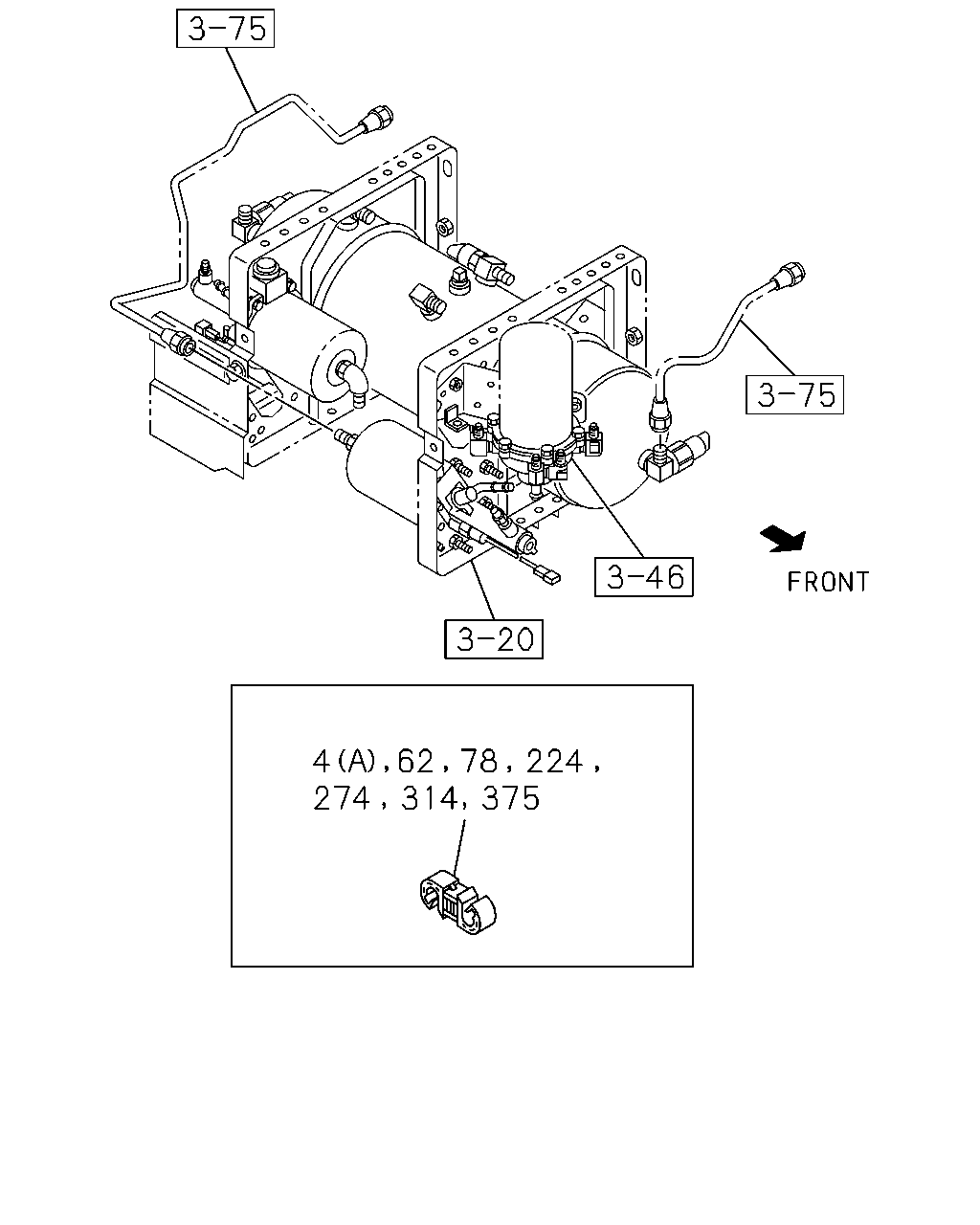

çizim 187688
4 62 78 224 274 314 375
BalonParca AdiParca NoAdetTipApplied Date
4 CLIP; AIR PIPE
(B) ID=6.35 & 10.0 		1-09709-274-1 02 1 0803-
4 CLIP; AIR PIPE
(A) ID=10 & 10 		1-09709-277-1 02 1 0803-0901
4 CLIP; AIR PIPE
(A) ID=10 & 10 		1-09709-277-1 03 1 0902-
4 CLIP; AIR PIPE
(A) ID=12 & 12 		1-09709-280-1 01 1 0803-0901
62 CLIP; AIR PIPE
ID=10 & 10 		1-09709-277-1 02 1 0803-0809
78 CLIP; AIR PIPE
ID=10 & 12 		1-09709-278-1 01 1 0803-0901
224 CLIP; AIR PIPE
ID=10 & 10 		1-09709-277-1 01 1 0803-
224 CLIP; AIR PIPE
ID=10 & 10 		1-09709-277-1 03 1 0803-0901
274 CLIP; AIR PIPE
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0 		1-09709-274-1 01 1 0803-0805
274 CLIP; AIR PIPE
THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0 		1-09709-274-1 03 1 0803-0805
274 CLIP; AIR PIPE
THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10 		1-09709-277-1 01 1 0803-0805
274 CLIP; AIR PIPE
THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10 		1-09709-277-1 04 1 0803-0805
274 CLIP; AIR PIPE
THROTTLE CONTROL SYSTEM(6XH) ID=4.76 & 10.0 		1-09709-305-0 01 1 0803-0805
314 CLIP; AIR PIPE
THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0 		1-09709-274-1 01 1 0803-0805
375 CLIP; AIR PIPE
ID=10 & 10 		1-09709-277-1 02 1 0803-0901

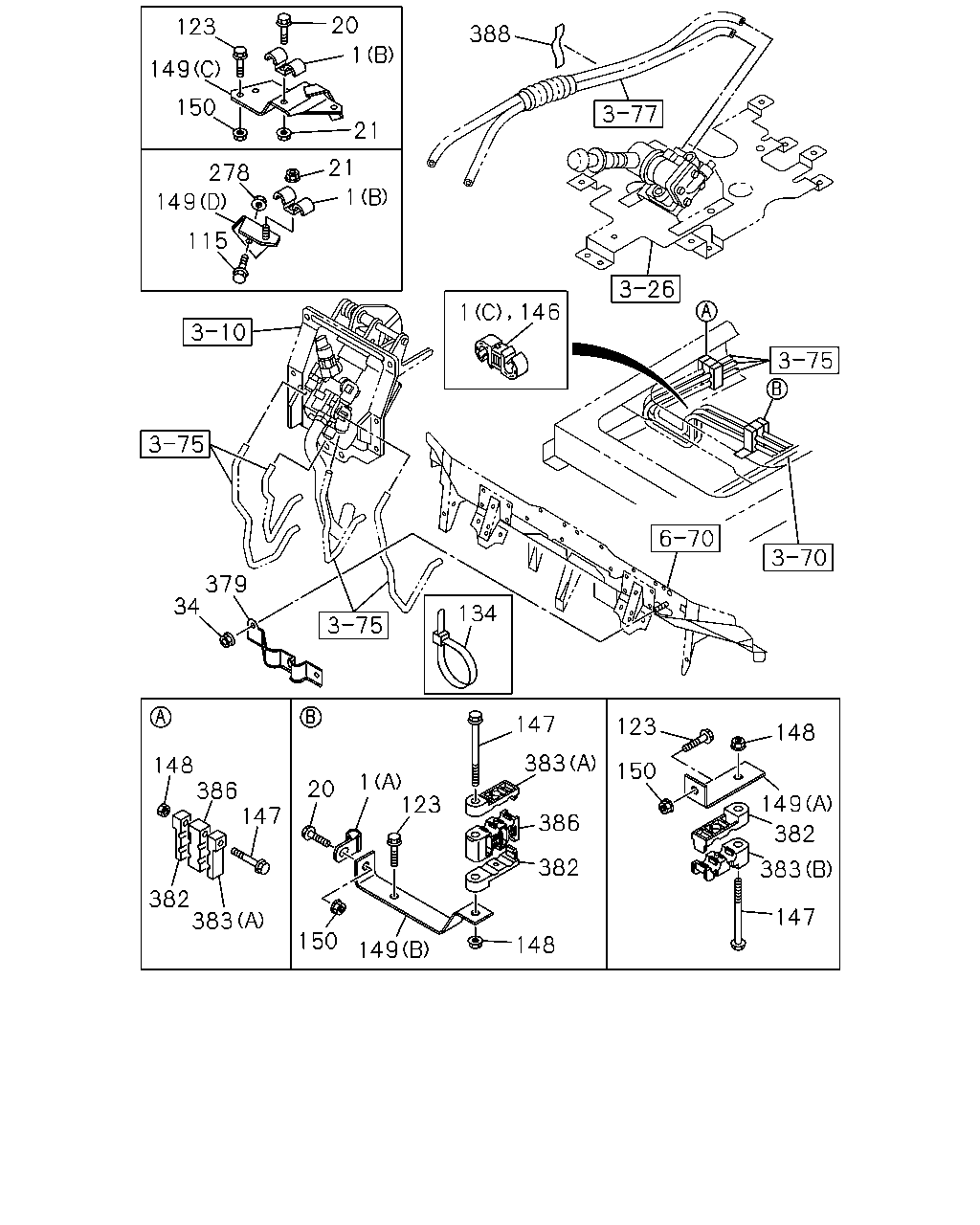

çizim 187689
20 123 388 1 149 150 21 21 278 1 149 115 146 1 379 34 134 147 123 148 383 148 386 147 150 1 123 20 149 386 382 382 383 382 383 147 150 148 149
BalonParca AdiParca NoAdetTipApplied Date
1 CLIP; AIR PIPE
(C) ID=10 & 10 		1-09709-277-1 02 1 0809-
1 CLIP; AIR PIPE
(A) ID=11 L=20 		0-95235-035-0 01 1 0803-0805
1 CLIP; AIR PIPE
(B) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 0806-0806
1 CLIP; AIR PIPE
(B) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 03 1 0807-0808
1 CLIP; AIR PIPE
(B) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 0809-
20 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0807-0807
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 0807-
20 BOLT; CLIP
M8X45 FLANGE 		0-28050-845-0 01 1 0807-
20 BOLT; CLIP
M8X70 FLANGE 		0-28050-870-0 01 1 0803-0805
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0803-0805
20 BOLT; CLIP
WHEEL BASE 3700MM(37W) M8X20 FLANGE 		0-28650-820-0 02 1 0803-0805
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0806-0806
20 BOLT; CLIP
WHEEL BASE 3700MM(37W) M8X20 FLANGE 		0-28650-820-0 02 1 0806-0806
20 BOLT; CLIP
WHEEL BASE 3700MM(37W) M8X20 FLANGE 		0-28650-820-0 02 1 0807-
20 BOLT; CLIP
M8X50 FLANGE 		0-28050-850-0 02 1 0803-0805
20 BOLT; CLIP
M8X50 FLANGE 		0-28050-850-0 04 1 0806-0806
20 BOLT; CLIP
M8X50 FLANGE 		0-28050-850-0 03 1 0807-0807
20 BOLT; CLIP
M8X50 FLANGE 		0-28050-850-0 02 1 0807-
21 NUT; CLIP 9-14149-158-0 01 1 0807-
21 NUT; CLIP
WHEEL BASE 3700MM(37W) M8 FLANGE 		0-91180-108-0 01 1 0803-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 0803-0805
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 06 1 0806-0806
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 0807-
34 NUT; BRKT
M6 FLANGE 		0-91180-106-0 02 1 0803-
115 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0803-
123 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0803-0805
123 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 0806-0806
123 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0807-
134 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 0809-
146 CLIP; AIR PIPE
ID=10 & 10 		1-09709-277-1 02 1 0803-0908
147 BOLT; PIPE CLIP
M8X70 FLANGE 		0-28050-870-0 04 1 0803-
148 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 04 1 0803-
149 BRACKET; PIPE CLIP
(A) L=75 		1-47478-323-0 01 1 0803-0806
149 BRACKET; PIPE CLIP
(B) 		8-98110-729-0 01 1 0803-0805
149 BRACKET; PIPE CLIP
(C) 		8-98123-971-0 01 1 0806-
149 BRACKET; PIPE CLIP
(D) 		8-98124-703-0 01 1 0806-
150 NUT; CLIP BRKT 9-14149-158-0 01 1 0807-0807
150 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 0803-0805
150 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 03 1 0806-0806
150 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 0807-
278 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 01 1 0803-
379 BRACKET; NYLON TUBE 8-98112-515-1 01 1 0803-
382 CLIP; UPR
ID=10 & 10 		1-09709-241-0 03 1 0803-0805
382 CLIP; UPR
ID=10 & 10 		1-09709-241-0 04 1 0807-
382 CLIP; UPR
ID=10 & 10 		1-09709-241-0 04 1 0803-0805
382 CLIP; UPR
ID=10 & 10 		1-09709-241-0 04 1 0806-0806
382 CLIP; UPR
ID=10 & 10 		1-09709-241-0 04 1 0806-0806
382 CLIP; UPR
ID=10 & 10 		1-09709-241-0 03 1 0807-
383 CLIP; LWR
(A) ID=10 & 10 		1-09709-241-0 01 1 0803-0805
383 CLIP; LWR
(A) ID=10 & 10 		1-09709-241-0 04 1 0803-
383 CLIP; LWR
(B) ID=10 & 10 		1-09709-243-0 02 1 0803-0805
383 CLIP; LWR
(B) ID=10 & 10 		1-09709-243-0 04 1 0806-0806
383 CLIP; LWR
(B) ID=10 & 10 		1-09709-243-0 03 1 0807-
386 CLIP; CENTER
ID=10 		1-09709-242-0 01 1 0803-0805
386 CLIP; CENTER
ID=10 		1-09709-242-0 04 1 0803-
388 SEAL
100X40 		1-72498-022-1 03 1 0803-
