3-75 — BRAKE PIPING; AIR,FRONT (#69098) — 78 parça

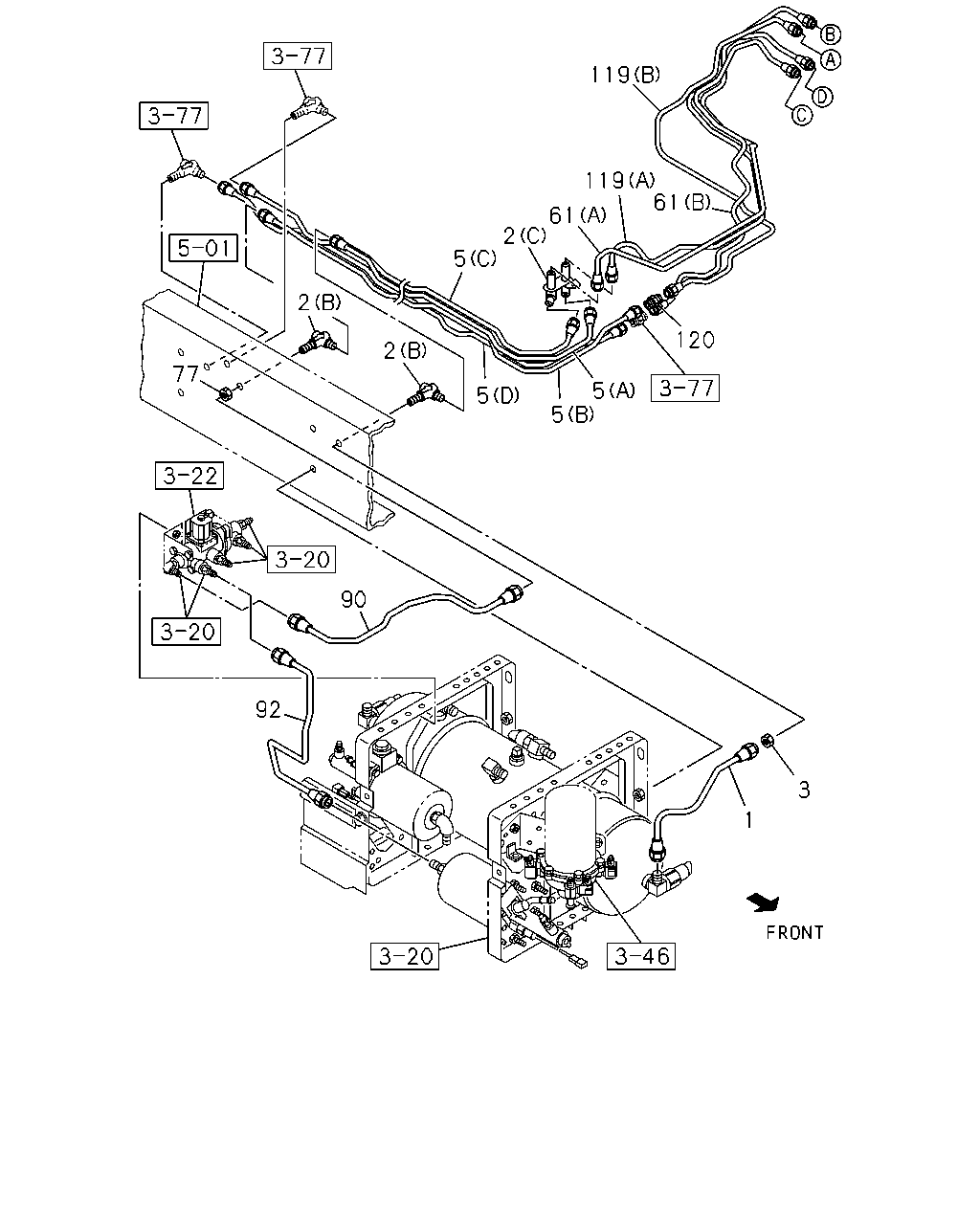

çizim 121757
119 119 61 61 2 5 2 120 2 77 5 5 5 90 92 3 1
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; AIR,AIR TANK TO UNION
L=290 		8-98044-172-0 01 1 0803-
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 0803-
2 UNION; AIR PIPE
(C) 		8-98110-583-0 01 1 0803-
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0803-
3 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0803-
3 NUT; PIPE UNION
M8 FLANGE 		0-91180-108-0 01 1 0803-
5 PIPE; AIR,UNION TO UNION
(D) L=2455 SERVICED BY L=2500 		1-47428-883-0 01 1 0807-
5 PIPE; AIR,UNION TO UNION
(D) L=2443 SERVICED BY L=2500 		1-47428-883-0 01 1 0803-0805
5 PIPE; AIR,UNION TO UNION
(A) L=2030 SERVICED BY L=2100 		1-47428-882-0 01 1 0803-0805
5 PIPE; AIR,UNION TO UNION
(A) L=2078 SERVICED BY L=2100 		1-47428-882-0 01 1 0806-
5 PIPE; AIR,UNION TO UNION
(B) L=2372 SERVICED BY L=2500 		1-47428-883-0 01 1 0803-0805
5 PIPE; AIR,UNION TO UNION
(B) L=2297 SERVICED BY L=2500 		1-47428-883-0 01 1 0806-
5 PIPE; AIR,UNION TO UNION
(C) L=2214 SERVICED BY L=2500 		1-47428-883-0 01 1 0803-0805
5 PIPE; AIR,UNION TO UNION
(C) L=2208 SERVICED BY L=2500 		1-47428-883-0 01 1 0806-
61 PIPE; AIR,UNION TO UNION
(A) L=1407 SERVICED BY L=1550 		1-47428-879-0 01 1 0803-0805
61 PIPE; AIR,UNION TO UNION
(A) L=1382 SERVICED BY L=1400 		1-47428-878-0 01 1 0806-0806
61 PIPE; AIR,UNION TO UNION
(A) SERVICED BY L=1550 		1-47428-879-0 01 1 0807-
61 PIPE; AIR,UNION TO UNION
(B) L=1118 SERVICED BY L=1250 		1-47428-876-0 01 1 0803-0805
61 PIPE; AIR,UNION TO UNION
(B) L=1169 		8-98123-095-0 01 1 0806-
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0803-
90 PIPE; AIR,UNION TO HSA VLV
H.S.A SYSTEM<6EP> L=493 		8-98077-878-0 01 1 0803-0805
92 PIPE; AIR,HSA VLV TO AIR MASTER
H.S.A SYSTEM<6EP> L=513 SERVICED BY L=550 		1-47428-867-0 01 1 0803-0805
119 PIPE; AIR,UNION TO UNION
(A) L=1237 		8-98126-356-0 01 1 0807-
119 PIPE; AIR,UNION TO UNION
(B) L=1225 SERVICED BY L=1250 		1-47428-876-0 01 1 0803-0805
119 PIPE; AIR,UNION TO UNION
(A) L=1400 		8-98110-182-1 01 1 0803-0805
119 PIPE; AIR,UNION TO UNION
(B) L=1413 SERVICED BY L=1550 		1-47428-879-0 01 1 0806-0806
119 PIPE; AIR,UNION TO UNION
(B) L=1343 SERVICED BY L=1400 		1-47428-878-0 01 1 0807-
120 UNION; AIR PIPE
M16 L=42 		0-92123-010-0 01 1 0803-

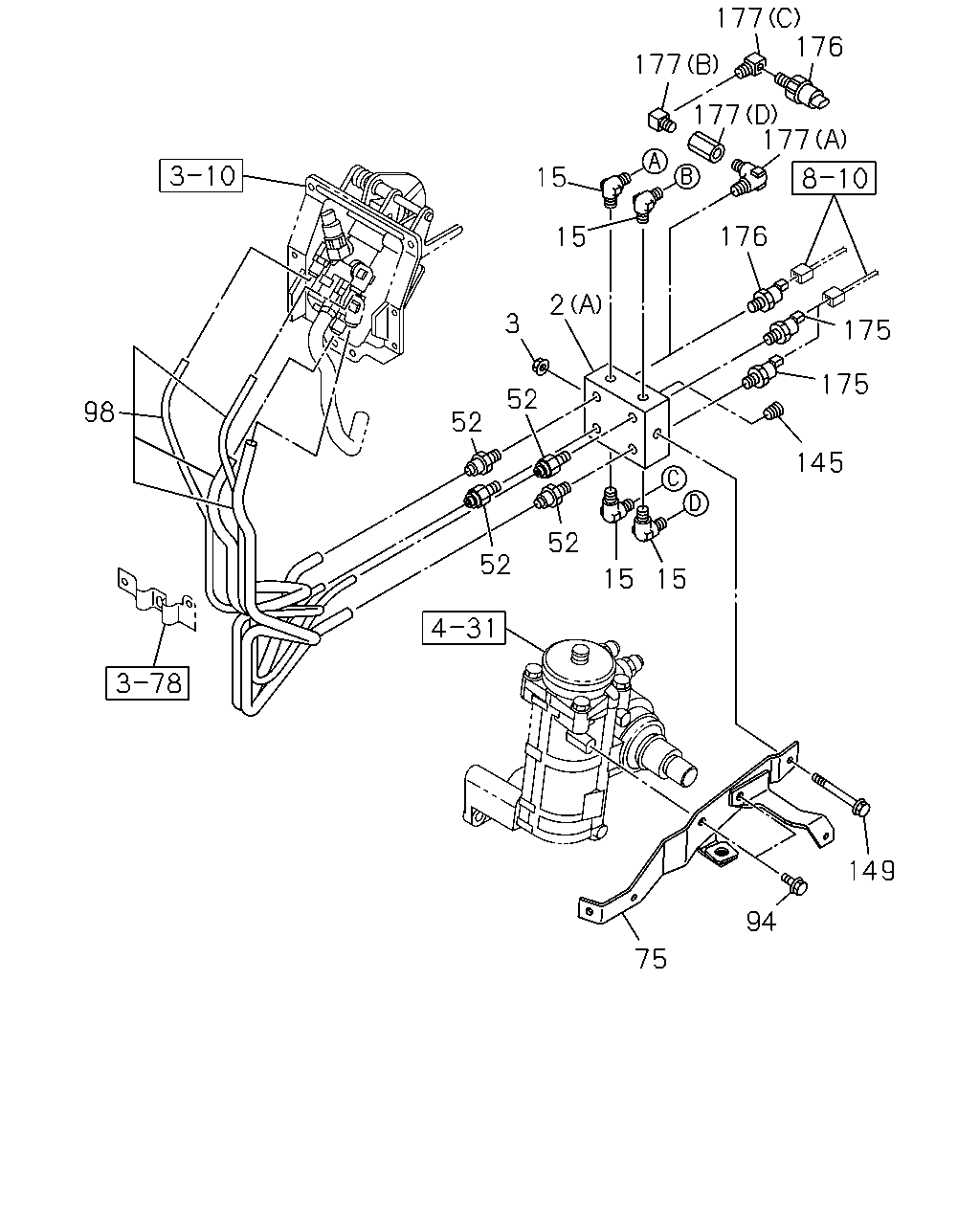

çizim 121825
177 176 177 177 177 15 176 15 2 3 175 175 52 98 52 145 52 52 15 15 149 94 75
BalonParca AdiParca NoAdetTipApplied Date
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 0803-
2 UNION; AIR PIPE
(C) 		8-98110-583-0 01 1 0803-
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0803-
3 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0803-
3 NUT; PIPE UNION
M8 FLANGE 		0-91180-108-0 01 1 0803-
15 CONNECTOR; AIR PIPE
M16 & PT1/4 ELBOW 		0-92134-310-0 04 1 0803-
52 CONNECTOR; NYLON TUBE
DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 0803-
75 BRACKET; UNION 8-98116-763-0 01 1 0803-0805
75 BRACKET; UNION 8-98123-962-0 01 1 0806-
94 BOLT; BRKT
M10X20 FLANGE 		0-28151-020-0 02 1 0803-
98 TUBE; NYLON 8-98095-946-0 01 1 0803-0805
98 TUBE; NYLON 8-98123-961-0 01 1 0806-
145 PLUG
PT1/4 		9-99204-513-0 01 1 0803-
149 BOLT; UNION
M8X100 FLANGE 		0-28050-800-0 01 1 0803-
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 0803-
176 SWITCH; AIR PRESS
H.S.A SYSTEM<6EP> STAMP 0.7 		8-97622-710-0 01 1 0803-0805
176 SWITCH; AIR PRESS
EXC. H.S.A SYSTEM<6EP> STAMP 0.3 		8-98010-857-0 01 1 0803-0805
176 SWITCH; AIR PRESS
STAMP 0.3 		8-98010-857-0 01 1 0806-
177 CONNECTOR
H.S.A SYSTEM<6EP> (A) 		1-09650-433-0 01 1 0803-0805
177 CONNECTOR
H.S.A SYSTEM<6EP> (B) PT3/8 ELBOW 		1-09660-696-0 01 1 0803-0805
177 CONNECTOR
H.S.A SYSTEM<6EP> (C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0803-0805
177 CONNECTOR
H.S.A SYSTEM<6EP> (D) 		1-09660-881-0 01 1 0803-0805

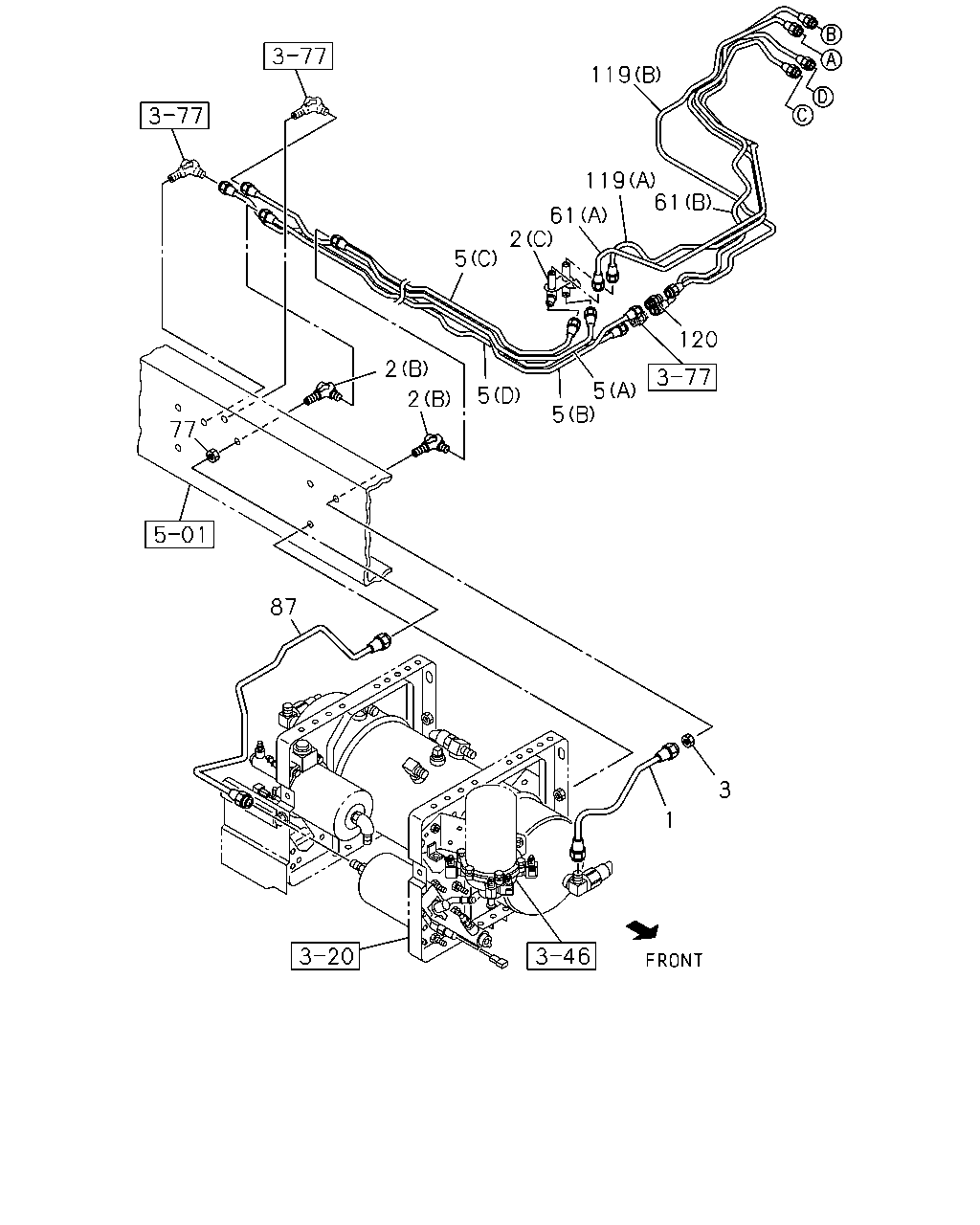

çizim 122201
119 119 61 61 2 5 120 2 5 5 5 2 77 87 3 1
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; AIR,AIR TANK TO UNION
L=290 		8-98044-172-0 01 1 0803-
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 0803-
2 UNION; AIR PIPE
(C) 		8-98110-583-0 01 1 0803-
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0803-
3 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0803-
3 NUT; PIPE UNION
M8 FLANGE 		0-91180-108-0 01 1 0803-
5 PIPE; AIR,UNION TO UNION
(D) L=2455 SERVICED BY L=2500 		1-47428-883-0 01 1 0807-
5 PIPE; AIR,UNION TO UNION
(D) L=2443 SERVICED BY L=2500 		1-47428-883-0 01 1 0803-0805
5 PIPE; AIR,UNION TO UNION
(A) L=2030 SERVICED BY L=2100 		1-47428-882-0 01 1 0803-0805
5 PIPE; AIR,UNION TO UNION
(A) L=2078 SERVICED BY L=2100 		1-47428-882-0 01 1 0806-
5 PIPE; AIR,UNION TO UNION
(B) L=2372 SERVICED BY L=2500 		1-47428-883-0 01 1 0803-0805
5 PIPE; AIR,UNION TO UNION
(B) L=2297 SERVICED BY L=2500 		1-47428-883-0 01 1 0806-
5 PIPE; AIR,UNION TO UNION
(C) L=2214 SERVICED BY L=2500 		1-47428-883-0 01 1 0803-0805
5 PIPE; AIR,UNION TO UNION
(C) L=2208 SERVICED BY L=2500 		1-47428-883-0 01 1 0806-
61 PIPE; AIR,UNION TO UNION
(A) L=1407 SERVICED BY L=1550 		1-47428-879-0 01 1 0803-0805
61 PIPE; AIR,UNION TO UNION
(A) L=1382 SERVICED BY L=1400 		1-47428-878-0 01 1 0806-0806
61 PIPE; AIR,UNION TO UNION
(A) SERVICED BY L=1550 		1-47428-879-0 01 1 0807-
61 PIPE; AIR,UNION TO UNION
(B) L=1118 SERVICED BY L=1250 		1-47428-876-0 01 1 0803-0805
61 PIPE; AIR,UNION TO UNION
(B) L=1169 		8-98123-095-0 01 1 0806-
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0803-
87 PIPE; AIR,UNION TO AIR MASTER
EXC. H.S.A SYSTEM<6EP> L=798 SERVICED BY L=800 		1-47428-872-0 01 1 0803-0805
87 PIPE; AIR,UNION TO AIR MASTER
L=798 SERVICED BY L=800 		1-47428-872-0 01 1 0806-
119 PIPE; AIR,UNION TO UNION
(A) L=1237 		8-98126-356-0 01 1 0807-
119 PIPE; AIR,UNION TO UNION
(B) L=1225 SERVICED BY L=1250 		1-47428-876-0 01 1 0803-0805
119 PIPE; AIR,UNION TO UNION
(A) L=1400 		8-98110-182-1 01 1 0803-0805
119 PIPE; AIR,UNION TO UNION
(B) L=1413 SERVICED BY L=1550 		1-47428-879-0 01 1 0806-0806
119 PIPE; AIR,UNION TO UNION
(B) L=1343 SERVICED BY L=1400 		1-47428-878-0 01 1 0807-
120 UNION; AIR PIPE
M16 L=42 		0-92123-010-0 01 1 0803-
