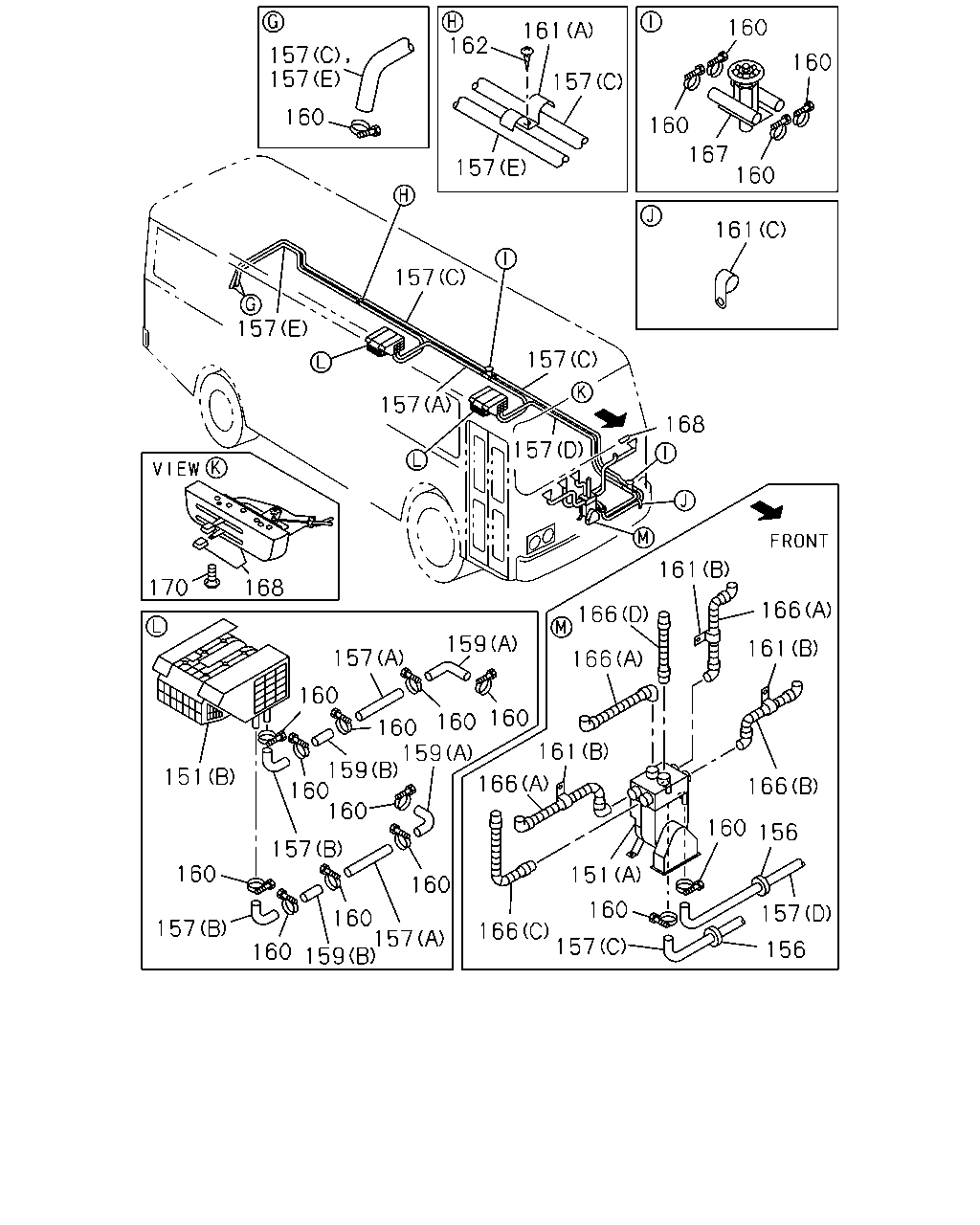

8-60 — HEATER UNIT; FRONT (#6909) — 51 parça

162 160 161 157 157 160 157 160 160 167 160 157 161 157 157 157 157 168 157 161 170 168 166 166 159 161 157 166 160 160 160 160 159 159 160 160 161 151 166 166 160 156 157 151 160 160 160 157 160 157 159 157 166 157 156 160

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
151	HEATER UNIT; HTR KIT AUXILIARY HTR<C36>,HTR & DEFR<C41> (A)	1-83511-071-0	01	1	9806-9911
151	HEATER UNIT; HTR KIT HTR & DEFR<C41> (B)	1-83511-118-0	02	1	9806-9911
156	GROMMET; HTR KIT AUXILIARY HTR<C36>,HTR & DEFR<C41>	9-09956-292-0	02	1	9806-9911
157	HOSE; WATER,HTR KIT AUXILIARY HTR<C36> (F)	1-09360-565-0	02	1	9806-9911
157	HOSE; WATER,HTR KIT HTR & DEFR<C41> (A) L=2000	1-83565-083-0	01	1	9806-9911
157	HOSE; WATER,HTR KIT HTR & DEFR<C41> (B) LTYPE L=60+60	1-83565-102-0	04	1	9806-9911
157	HOSE; WATER,HTR KIT HTR & DEFR<C41> (C) L=15000	9-09912-957-0	01	1	9806-9911
157	HOSE; WATER,HTR KIT HTR & DEFR<C41> (D) L=5000	9-09912-958-0	01	1	9806-9911
157	HOSE; WATER,HTR KIT HTR & DEFR<C41> (E) L=10000	9-09912-960-0	01	1	9806-9911
159	CONNECTOR; HOSE,HTR KIT HTR & DEFR<C41> (A)	1-83575-019-0	04	1	9806-9911
159	CONNECTOR; HOSE,HTR KIT HTR & DEFR<C41> (B)	9-09903-482-0	04	1	9806-9911
160	CLAMP; HOSE,HTR KIT AUXILIARY HTR<C36> ID=25	9-09915-642-2	08	1	9806-9911
160	CLAMP; HOSE,HTR KIT HTR & DEFR<C41> ID=25	9-09915-642-2	48	1	9806-9911
161	CLIP; HOSE FIX AUXILIARY HTR<C36> (A)	9-09915-664-0	24	1	9806-9911
161	CLIP; HOSE FIX AUXILIARY HTR<C36>,HTR & DEFR<C41> (B)	9-09915-526-0	03	1	9806-9911
161	CLIP; HOSE FIX AUXILIARY HTR<C36>,HTR & DEFR<C41> (C)	9-09915-660-0	01	1	9806-9911
161	CLIP; HOSE FIX HTR & DEFR<C41> (A)	9-09915-664-0	23	1	9806-9911
162	SCREW; CLIP FIX AUXILIARY HTR<C36>	9-83651-988-0	24	1	9806-9911
162	SCREW; CLIP FIX HTR & DEFR<C41>	9-83651-988-0	23	1	9806-9911
166	HOSE; AIR,HTR KIT AUXILIARY HTR<C36>,HTR & DEFR<C41> (C) L=410	9-83653-201-0	01	1	9806-9911
166	HOSE; AIR,HTR KIT AUXILIARY HTR<C36>,HTR & DEFR<C41> (A) L=1000	9-83653-231-0	03	1	9806-9911
166	HOSE; AIR,HTR KIT AUXILIARY HTR<C36>,HTR & DEFR<C41> (B) L=500	9-83653-232-0	01	1	9806-9911
166	HOSE; AIR,HTR KIT AUXILIARY HTR<C36>,HTR & DEFR<C41> (D) L=500	9-83653-233-0	01	1	9806-9911
167	COCK ASM; DRAIN,HTR KIT AUXILIARY HTR<C36>	9-09904-202-0	01	1	9806-9911
167	COCK ASM; DRAIN,HTR KIT HTR & DEFR<C41>	9-09904-202-0	02	1	9806-9911
168	LEVER ASM; CONT,HTR KIT AUXILIARY HTR<C36>,HTR & DEFR<C41>	1-83513-076-0	01	1	9806-9911
170	SCREW; LVR KNOB,HTR CONT LVR HTR & DEFR<C41>	9-09810-051-0	02	1	9806-9911

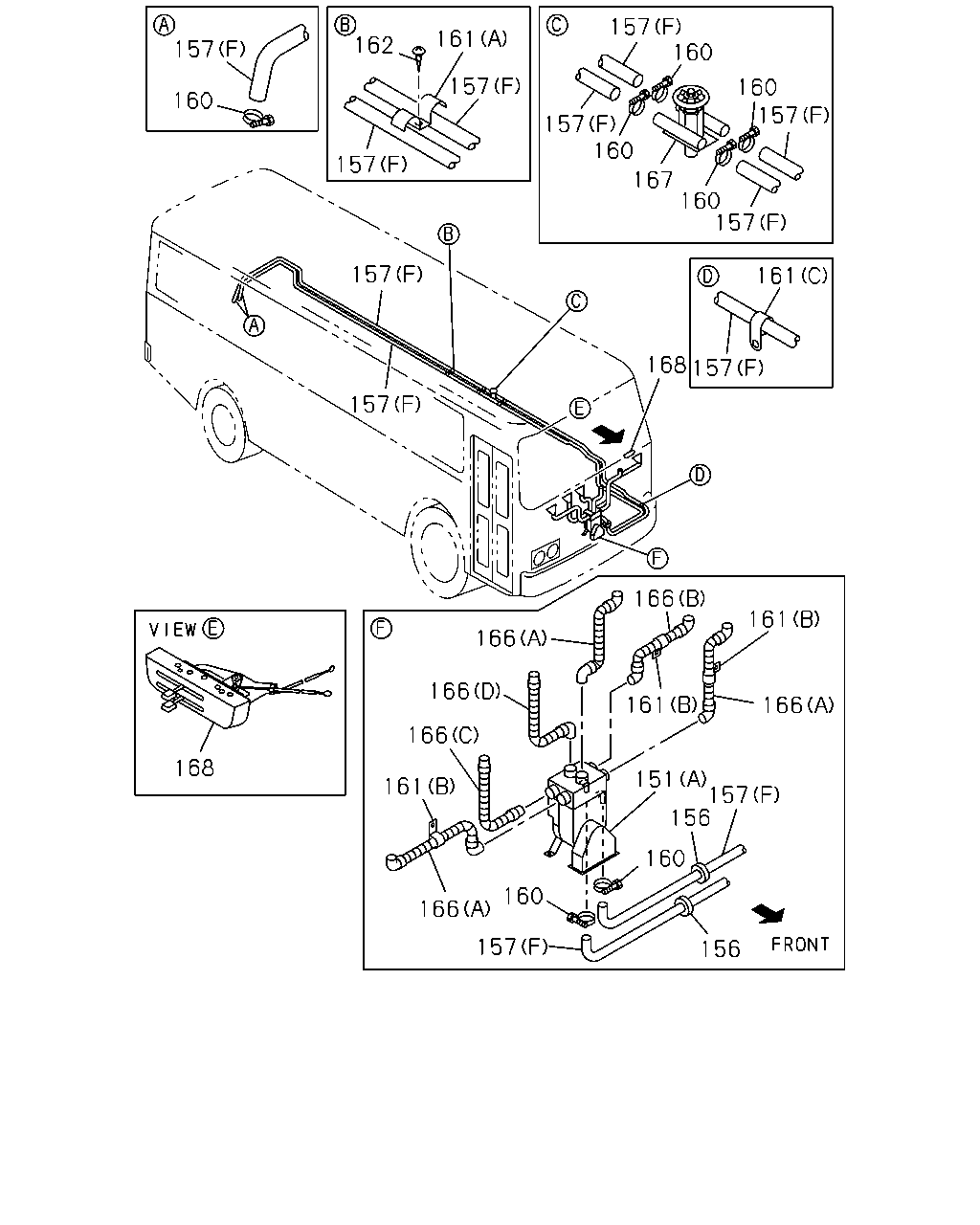

157 162 157 160 161 157 160 157 160 157 160 157 167 160 157 157 161 168 157 157 166 161 166 166 161 166 166 168 151 157 156 161 160 160 166 157 156

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
151	HEATER UNIT; HTR KIT AUXILIARY HTR<C36>,HTR & DEFR<C41> (A)	1-83511-071-0	01	1	9806-9911
151	HEATER UNIT; HTR KIT HTR & DEFR<C41> (B)	1-83511-118-0	02	1	9806-9911
156	GROMMET; HTR KIT AUXILIARY HTR<C36>,HTR & DEFR<C41>	9-09956-292-0	02	1	9806-9911
157	HOSE; WATER,HTR KIT AUXILIARY HTR<C36> (F)	1-09360-565-0	02	1	9806-9911
157	HOSE; WATER,HTR KIT HTR & DEFR<C41> (A) L=2000	1-83565-083-0	01	1	9806-9911
157	HOSE; WATER,HTR KIT HTR & DEFR<C41> (B) LTYPE L=60+60	1-83565-102-0	04	1	9806-9911
157	HOSE; WATER,HTR KIT HTR & DEFR<C41> (C) L=15000	9-09912-957-0	01	1	9806-9911
157	HOSE; WATER,HTR KIT HTR & DEFR<C41> (D) L=5000	9-09912-958-0	01	1	9806-9911
157	HOSE; WATER,HTR KIT HTR & DEFR<C41> (E) L=10000	9-09912-960-0	01	1	9806-9911
160	CLAMP; HOSE,HTR KIT AUXILIARY HTR<C36> ID=25	9-09915-642-2	08	1	9806-9911
160	CLAMP; HOSE,HTR KIT HTR & DEFR<C41> ID=25	9-09915-642-2	48	1	9806-9911
161	CLIP; HOSE FIX AUXILIARY HTR<C36> (A)	9-09915-664-0	24	1	9806-9911
161	CLIP; HOSE FIX AUXILIARY HTR<C36>,HTR & DEFR<C41> (B)	9-09915-526-0	03	1	9806-9911
161	CLIP; HOSE FIX AUXILIARY HTR<C36>,HTR & DEFR<C41> (C)	9-09915-660-0	01	1	9806-9911
161	CLIP; HOSE FIX HTR & DEFR<C41> (A)	9-09915-664-0	23	1	9806-9911
162	SCREW; CLIP FIX AUXILIARY HTR<C36>	9-83651-988-0	24	1	9806-9911
162	SCREW; CLIP FIX HTR & DEFR<C41>	9-83651-988-0	23	1	9806-9911
166	HOSE; AIR,HTR KIT AUXILIARY HTR<C36>,HTR & DEFR<C41> (C) L=410	9-83653-201-0	01	1	9806-9911
166	HOSE; AIR,HTR KIT AUXILIARY HTR<C36>,HTR & DEFR<C41> (A) L=1000	9-83653-231-0	03	1	9806-9911
166	HOSE; AIR,HTR KIT AUXILIARY HTR<C36>,HTR & DEFR<C41> (B) L=500	9-83653-232-0	01	1	9806-9911
166	HOSE; AIR,HTR KIT AUXILIARY HTR<C36>,HTR & DEFR<C41> (D) L=500	9-83653-233-0	01	1	9806-9911
167	COCK ASM; DRAIN,HTR KIT AUXILIARY HTR<C36>	9-09904-202-0	01	1	9806-9911
167	COCK ASM; DRAIN,HTR KIT HTR & DEFR<C41>	9-09904-202-0	02	1	9806-9911
168	LEVER ASM; CONT,HTR KIT AUXILIARY HTR<C36>,HTR & DEFR<C41>	1-83513-076-0	01	1	9806-9911

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
