3-22 — AIR CONTROL PARTS (#69088) — 80 parça

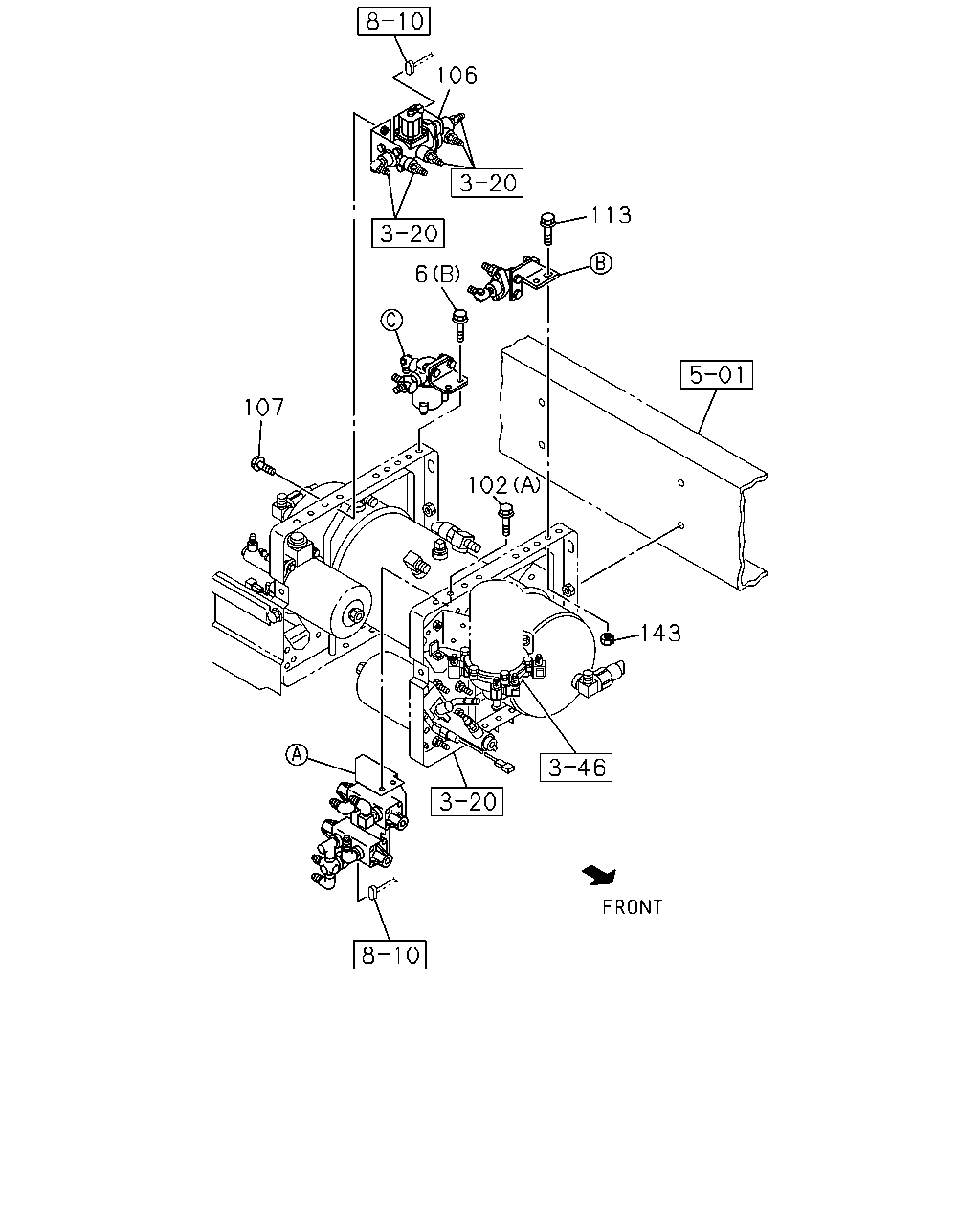

106 113 6 107 102 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	BOLT; VLV THROTTLE CONTROL SYSTEM(6XH) (A) M8X16 FLANGE	0-28050-816-0	02	1	0803-0805
6	BOLT; VLV THROTTLE CONTROL SYSTEM(6XH) (B) M8X25 FLANGE	0-28650-825-0	02	1	0803-0805
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE	0-28050-816-0	02	1	0803-
102	BOLT; PROTECTION VALVE (A) M8X20 FLANGE	0-28650-820-0	02	1	0803-
106	VALVE; HSA H.S.A SYSTEM<6EP>	1-46362-147-0	01	1	0803-0805
107	BOLT; VLV H.S.A SYSTEM<6EP> M8X20 FLANGE	0-28650-820-0	03	1	0803-0805
113	BOLT; VLV THROTTLE CONTROL SYSTEM(6XH) M8X20 FLANGE	0-28650-820-0	02	1	0803-0805
143	NUT; VLV THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE	0-91180-108-0	02	1	0803-0805

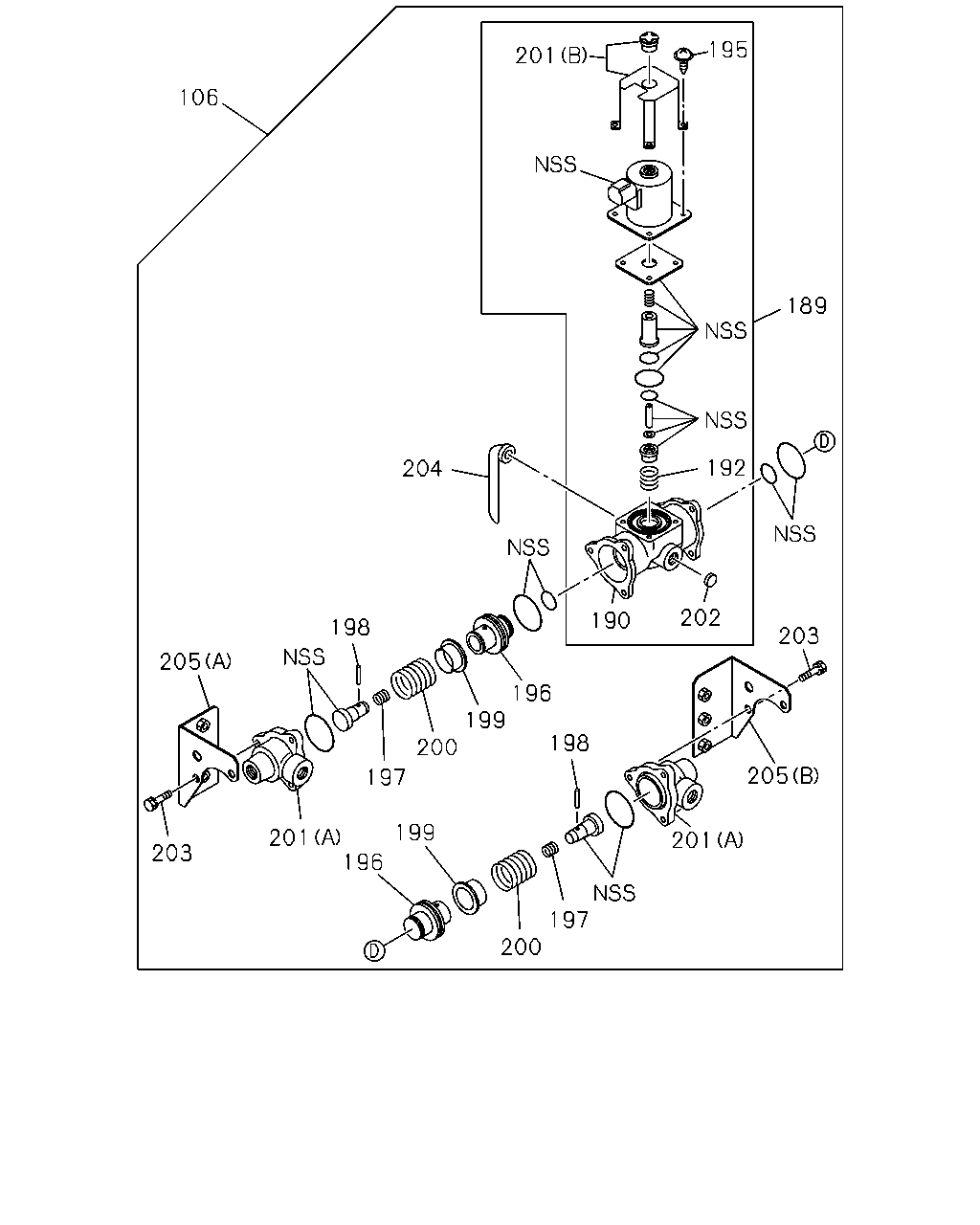

195 201 106 189 192 204 202 190 198 203 205 196 199 200 198 205 197 201 199 201 196 203 197 200

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
106	VALVE; HSA H.S.A SYSTEM<6EP>	1-46362-147-0	01	1	0803-0805
189	VALVE ASM; SOLENOID,HSA VLV H.S.A SYSTEM<6EP>	1-46366-253-0	01	1	0803-0805
190	BODY; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP>	1-46366-192-0	01	1	0803-0805
192	SPRING; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP>	1-46366-181-0	01	1	0803-0805
195	SCREW; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP>	1-46366-191-0	04	1	0803-0805
196	PISTON; HSA VLV H.S.A SYSTEM<6EP>	1-46366-251-0	02	1	0803-0805
197	SPRING; INNER,HSA VLV H.S.A SYSTEM<6EP>	1-46366-161-0	02	1	0803-0805
198	PIN; STRAIGHT,HSA VLV H.S.A SYSTEM<6EP>	1-46366-122-0	02	1	0803-0805
199	RETAINER; HSA VLV H.S.A SYSTEM<6EP>	1-46366-121-0	02	1	0803-0805
200	SPRING; OUTER,HSA VLV H.S.A SYSTEM<6EP>	1-46366-120-0	02	1	0803-0805
201	COVER; HSA VLV H.S.A SYSTEM<6EP> (A)	1-46366-118-1	02	1	0803-0805
201	COVER; HSA VLV H.S.A SYSTEM<6EP> (B)	1-46366-241-0	01	1	0803-0805
202	FILTER; HSA VLV H.S.A SYSTEM<6EP>	1-46366-117-1	02	1	0803-0805
203	SCREW; HSA VLV H.S.A SYSTEM<6EP>	1-46366-116-1	06	1	0803-0805
204	PIPE ASM; HSA VLV H.S.A SYSTEM<6EP>	1-46366-194-0	01	1	0803-0805
205	BRACKET; HSA VLV H.S.A SYSTEM<6EP> (A)	1-46366-149-0	01	1	0803-0805
205	BRACKET; HSA VLV H.S.A SYSTEM<6EP> (B)	1-46366-150-0	01	1	0803-0805

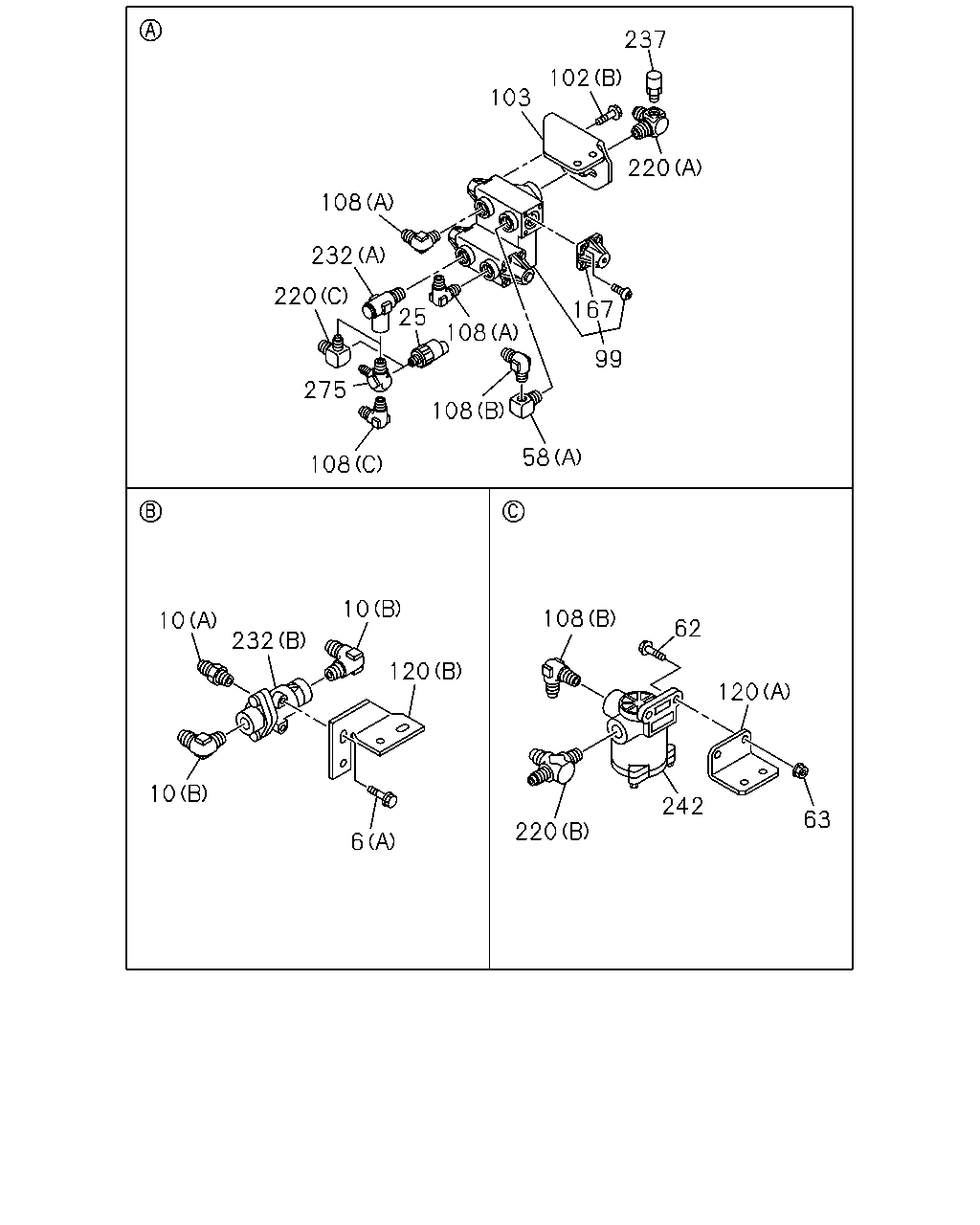

108 108 108 275 220 232 108 25 99 167 58 220 237 102 103 10 232 10 120 6 10 108 62 120 63 242 220

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	BOLT; VLV THROTTLE CONTROL SYSTEM(6XH) (A) M8X16 FLANGE	0-28050-816-0	02	1	0803-0805
6	BOLT; VLV THROTTLE CONTROL SYSTEM(6XH) (B) M8X25 FLANGE	0-28650-825-0	02	1	0803-0805
10	CONNECTOR THROTTLE CONTROL SYSTEM(6XH) (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0803-0805
10	CONNECTOR THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0803-0805
25	SWITCH; PRESSURE STAMP 5.5	8-97609-249-0	01	1	0803-
58	ADAPTER (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0803-
58	ADAPTER (B)	1-09661-815-0	02	1	0803-
62	BOLT; BRKT FIX THROTTLE CONTROL SYSTEM(6XH) M8X30 FLANGE	0-28650-830-0	02	1	0803-0805
62	BOLT; BRKT FIX THROTTLE CONTROL SYSTEM(6XH) M8X30 FLANGE	0-28650-830-0	02	1	0803-0805
63	NUT; BRKT FIX THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE	0-91180-108-0	02	1	0803-0805
63	NUT; BRKT FIX THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE	0-91180-108-0	02	1	0803-0805
99	VALVE; PROTECTION	1-48110-290-2	01	1	0803-
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE	0-28050-816-0	02	1	0803-
102	BOLT; PROTECTION VALVE (A) M8X20 FLANGE	0-28650-820-0	02	1	0803-
103	BRACKET; PROTECTION VALVE	8-98034-985-1	01	1	0803-1311
103	BRACKET; PROTECTION VALVE	8-98221-293-0	01	1	1312-
108	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0803-0805
108	CONNECTOR; ELBOW THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	0803-0805
108	CONNECTOR; ELBOW (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	0803-0805
108	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0803-
108	CONNECTOR; ELBOW THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW	0-92134-310-0	02	1	0803-0805
108	CONNECTOR; ELBOW (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	0806-
120	BRACKET; VLV THROTTLE CONTROL SYSTEM(6XH) (B)	8-98050-131-0	01	1	0803-0805
120	BRACKET; VLV THROTTLE CONTROL SYSTEM(6XH) (A)	1-48316-012-0	01	1	0803-0805
120	BRACKET; VLV THROTTLE CONTROL SYSTEM(6XH) (A)	1-48316-012-0	01	1	0803-0805
167	COVER; VALVE	1-48119-625-0	04	1	0803-
220	CONNECTOR; 3WAY THROTTLE CONTROL SYSTEM(6XH) (B)	1-09656-331-1	01	1	0803-0805
220	CONNECTOR; 3WAY THROTTLE CONTROL SYSTEM(6XH) (B)	1-09656-331-1	01	1	0803-0805
220	CONNECTOR; 3WAY (A)	8-98031-239-0	01	1	0803-
220	CONNECTOR; 3WAY EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (C)	1-09656-698-0	01	1	0803-0805
220	CONNECTOR; 3WAY (C)	1-09656-698-0	01	1	0806-
232	VALVE; CHECK THROTTLE CONTROL SYSTEM(6XH) (B)	1-48410-531-1	01	1	0803-0805
232	VALVE; CHECK (A) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	0803-
237	VALVE; SAFETY	1-48320-012-2	01	1	0803-
242	VALVE; REGULATION THROTTLE CONTROL SYSTEM(6XH)	1-48410-723-0	01	1	0803-0805
242	VALVE; REGULATION THROTTLE CONTROL SYSTEM(6XH)	1-48410-723-0	01	1	0803-0805
275	CONNECTOR; 4WAY H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH)	8-98035-011-0	01	1	0803-0805
275	CONNECTOR; 4WAY THROTTLE CONTROL SYSTEM(6XH)	8-98035-011-0	01	1	0803-0805

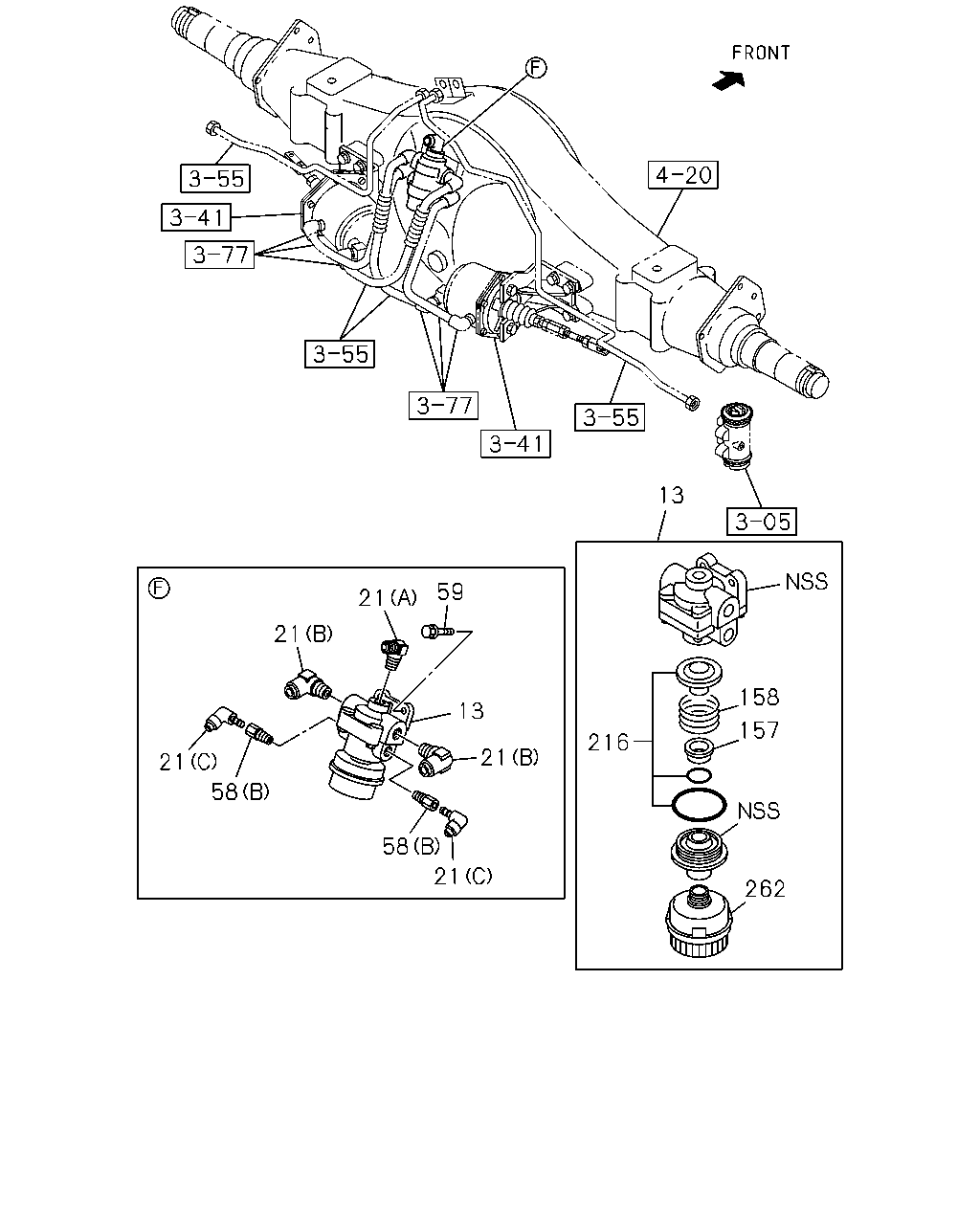

13 158 157 262 216 21 13 59 21 21 58 21 21 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	VALVE ASM; QUICK RELEASE	1-48410-781-2	01	1	0803-
21	CONNECTOR; QUICK RELEASE VLV (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0803-
21	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0803-
21	CONNECTOR; QUICK RELEASE VLV (C)	1-09661-816-0	02	1	0803-
58	ADAPTER (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0803-
58	ADAPTER (B)	1-09661-815-0	02	1	0803-
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28650-825-0	02	1	0803-0906
59	BOLT; RELEASE VALVE FIX M8X20 FLANGE	0-28050-820-0	02	1	0907-
157	RETAINER; VALVE	1-48419-036-0	01	1	0810-
158	SPRING; VALVE	9-48419-003-0	01	1	0810-
216	REPAIR KIT; QUICK RELEASE VLV	1-85579-062-0	01	1	0810-
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	0810-

259

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	259	REPAIR KIT; VALVE THROTTLE CONTROL SYSTEM(6XH)	1-85576-381-0	01	1	0803-0805
	259	REPAIR KIT; VALVE THROTTLE CONTROL SYSTEM(6XH)	1-85576-381-0	01	1	0803-0805

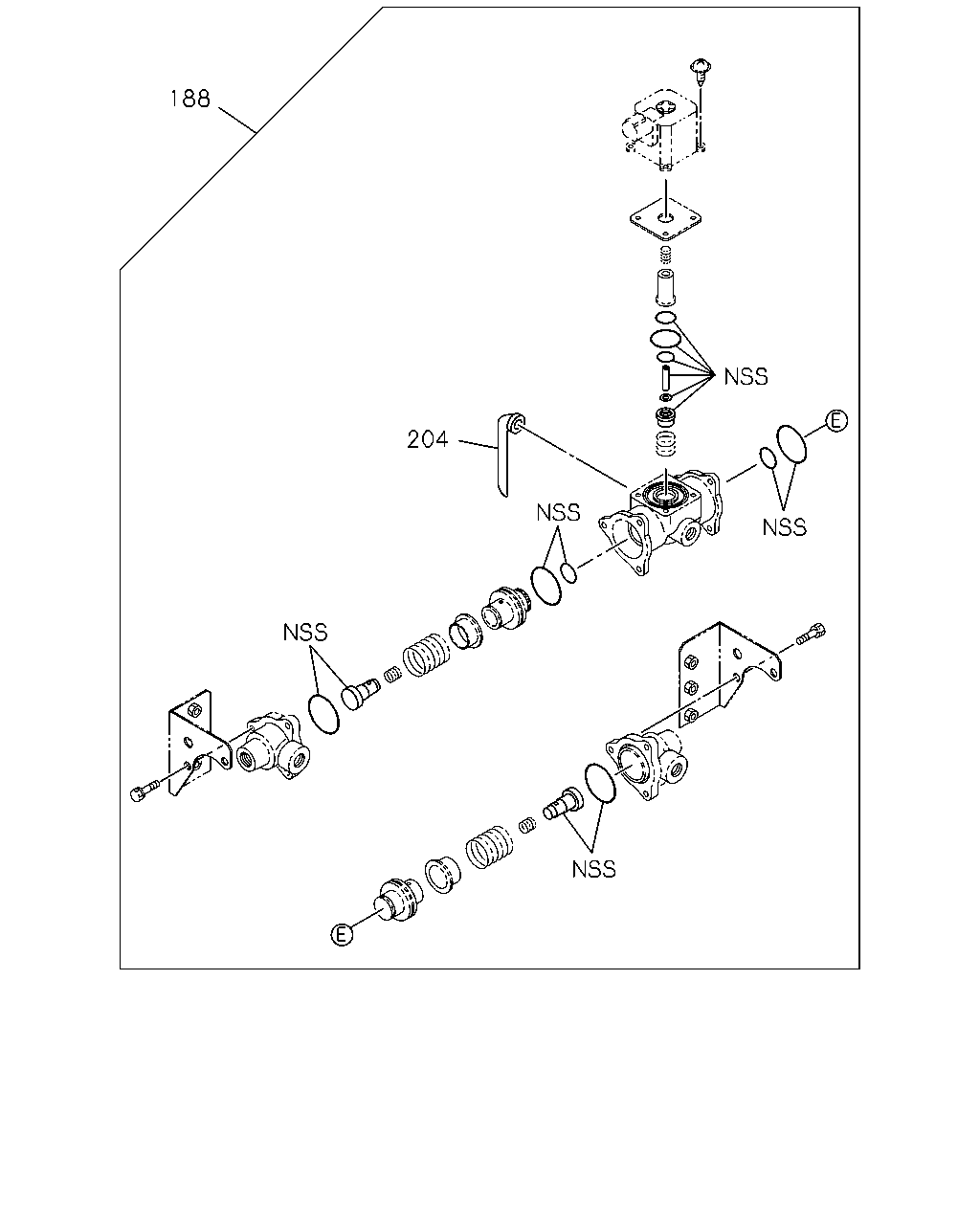

188 204

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	188	REPAIR KIT; HSA VLV H.S.A SYSTEM<6EP>	1-85576-469-0	01	1	0803-0805
	204	PIPE ASM; HSA VLV H.S.A SYSTEM<6EP>	1-46366-194-0	01	1	0803-0805

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	REPAIR KIT; PROTECTION VALVE	1-85576-451-1	01	1	0803-
