Isuzu WW
▶
TRUCKS
▶
FSR
▶
11150 - FSR-LHD(EU)SPACE EU4
▶
3 - Brakes, Brake System
▶
3-20 - AIR TANK
▶
3-20 — AIR TANK
(#69087) — 143 parça
◀

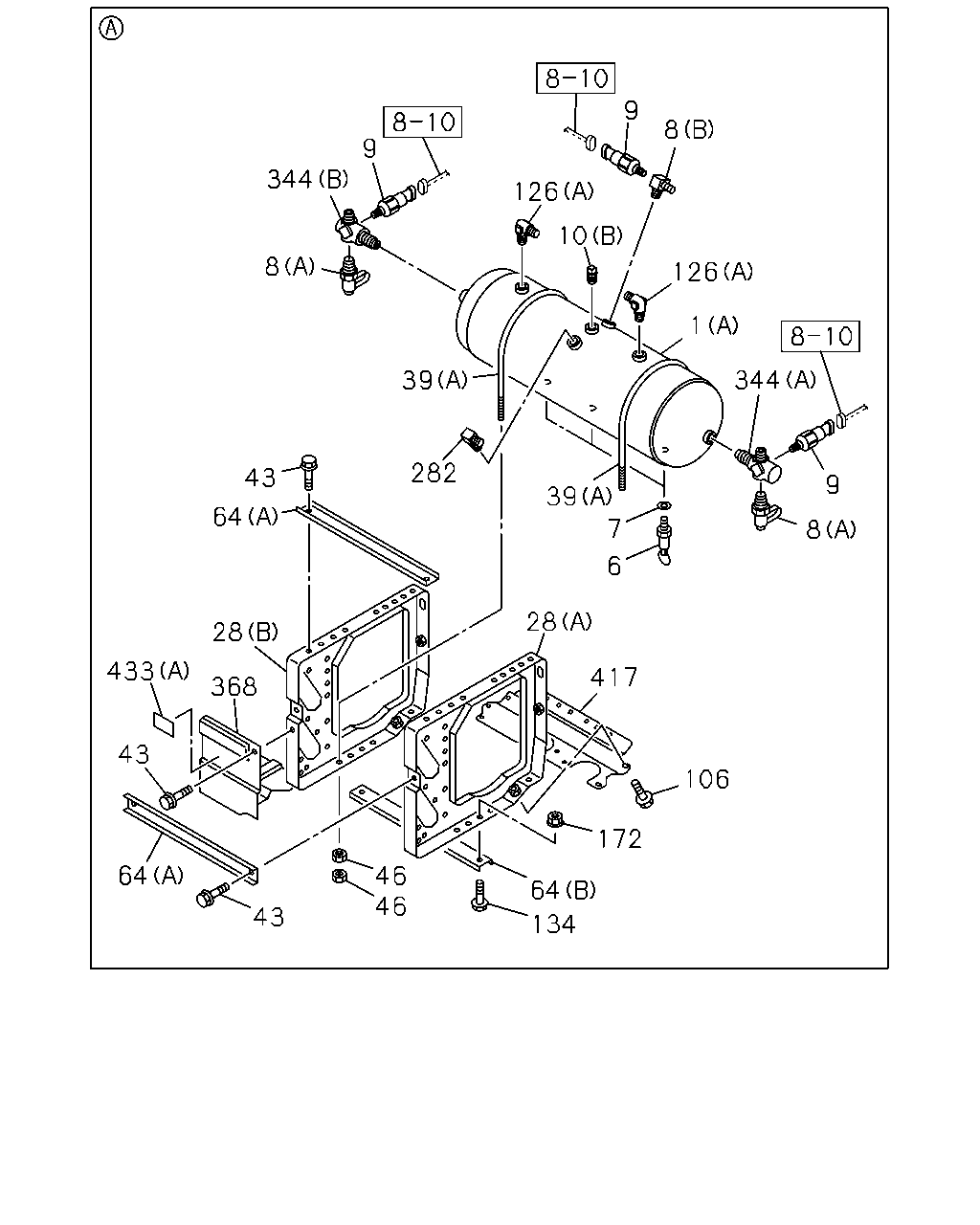

[320A] COMPONENT;AIR TANK (54 parça)
[320A] CAB SIDE (1 parça)
[320A] FRAME SIDE (55 parça)
[320A] FIXING (33 parça)
▶
9
8
9
344
126
10
8
126
1
344
39
282
43
9
39
64
7
8
6
28
28
433
417
368
43
106
172
64
46
46
64
43
134
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK ASM; AIR
ISRAEL COUNTRY(CV4) (A)
8-98018-785-3
01
1
1009-
1
TANK ASM; AIR
ISRAEL COUNTRY(CV4) (C)
8-98081-870-1
01
1
1009-
1
TANK ASM; AIR
(A)
8-98056-178-1
01
1
0803-1008
1
TANK ASM; AIR
EXC. ISRAEL COUNTRY(CV4) (A)
8-98056-178-1
01
1
1009-
1
TANK ASM; AIR
(B)
8-98056-183-2
01
1
0803-1008
1
TANK ASM; AIR
EXC. ISRAEL COUNTRY(CV4) (B)
8-98056-183-2
01
1
1009-
1
TANK ASM; AIR
(C)
8-98081-872-2
01
1
0803-1008
1
TANK ASM; AIR
EXC. ISRAEL COUNTRY(CV4) (C)
8-98081-872-2
01
1
1009-
6
COCK; DRAIN,AIR TANK
1-48312-015-0
03
1
0803-
6
COCK; DRAIN,AIR TANK
1-48312-015-0
01
1
0803-1008
6
COCK; DRAIN,AIR TANK
1-48312-015-0
01
1
0803-1008
6
COCK; DRAIN,AIR TANK
1-48312-015-0
01
1
1009-
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
03
1
0803-
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
01
1
0803-1008
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
01
1
0803-1008
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
01
1
1009-
8
CONNECTOR; AIR TANK
ISRAEL COUNTRY(CV4) (D) PT1/4 & PT3/8 2WAY
1-09660-809-0
01
1
1009-
8
CONNECTOR; AIR TANK
ISRAEL COUNTRY(CV4) (E) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
1009-
8
CONNECTOR; AIR TANK
(C)
1-09656-462-1
01
1
0803-
8
CONNECTOR; AIR TANK
(B)
1-09656-759-0
01
1
0803-
8
CONNECTOR; AIR TANK
(A) R1/4 & M16 TEST CONNECTOR
1-47459-013-1
01
1
0803-
8
CONNECTOR; AIR TANK
(A) R1/4 & M16 TEST CONNECTOR
1-47459-013-1
02
1
0803-
9
SWITCH; LOW PRESSURE GAGE,AIR TANK
STAMP 5.5
8-97609-249-0
03
1
0803-
10
PLUG; AIR TANK
(B) PT3/8
9-09204-517-0
01
1
0803-1008
10
PLUG; AIR TANK
ISRAEL COUNTRY(CV4) (B) PT3/8
9-09204-517-0
01
1
1009-
10
PLUG; AIR TANK
(B) PT3/8
9-09204-517-0
01
1
1009-
10
PLUG; AIR TANK
(B) PT3/8
9-09204-517-0
02
1
0803-
10
PLUG; AIR TANK
(A) PT3/4
9-09204-526-0
01
1
0803-1008
10
PLUG; AIR TANK
EXC. ISRAEL COUNTRY(CV4) (A) PT3/4
9-09204-526-0
01
1
1009-
28
BRACKET; AIR TANK
(A)
8-98021-918-5
01
1
0803-
28
BRACKET; AIR TANK
(B)
8-98044-509-5
01
1
0803-
28
BRACKET; AIR TANK
(C)
8-98100-165-3
01
1
0803-
39
U-BOLT; AIR TANK
(B) L=210
1-48317-458-1
02
1
0803-
39
U-BOLT; AIR TANK
(A)
8-98022-041-0
02
1
0803-
43
BOLT; STAY,AIR TANK,MAIN
M8X16 FLANGE
0-28050-816-0
06
1
0803-
46
NUT; U-BOLT
M8
0-91110-508-0
08
1
0803-1008
46
NUT; U-BOLT
M8
0-91110-508-0
08
1
0803-1008
46
NUT; U-BOLT
M8
0-91110-508-0
08
1
1009-
64
STAY; AIR TANK,MAIN
(A)
8-98044-510-3
02
1
0803-
64
STAY; AIR TANK,MAIN
(B)
8-98044-511-2
01
1
0803-
106
BOLT; COVER
M8X16 FLANGE
0-28050-816-0
04
1
0803-
126
CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW
1-09650-438-0
02
1
0803-
126
CONNECTOR; ELBOW
(B) PT1/4 & PT3/8 2WAY
1-09660-809-0
01
1
0803-1008
126
CONNECTOR; ELBOW
EXC. ISRAEL COUNTRY(CV4) (B) PT1/4 & PT3/8 2WAY
1-09660-809-0
01
1
1009-
134
BOLT; COVER FIX
M8X16 FLANGE
0-28050-816-0
04
1
0803-
172
NUT; STAY,AIR TANK,MAIN
M8 FLANGE
0-91180-108-0
02
1
0803-
282
UNION; 2 WAY
M20 & PT3/4 ELBOW
8-98067-083-1
01
1
0803-
344
CONNECTOR; 4WAY
(A)
1-09656-726-0
01
1
0803-
344
CONNECTOR; 4WAY
(B)
1-09656-767-0
01
1
0803-
368
COVER; AIR TANK
8-98061-625-3
01
1
0803-
417
COVER; HARNESS
8-98111-401-0
01
1
0803-
433
PLATE; NAME
(A)
8-98121-999-0
01
1
0806-
433
PLATE; NAME
ISRAEL COUNTRY(CV4) (B) WHEEL PARK
8-98121-997-0
01
1
1009-
433
PLATE; NAME
ISRAEL COUNTRY(CV4) (B) ACCESSORY
8-98121-998-0
01
1
1009-

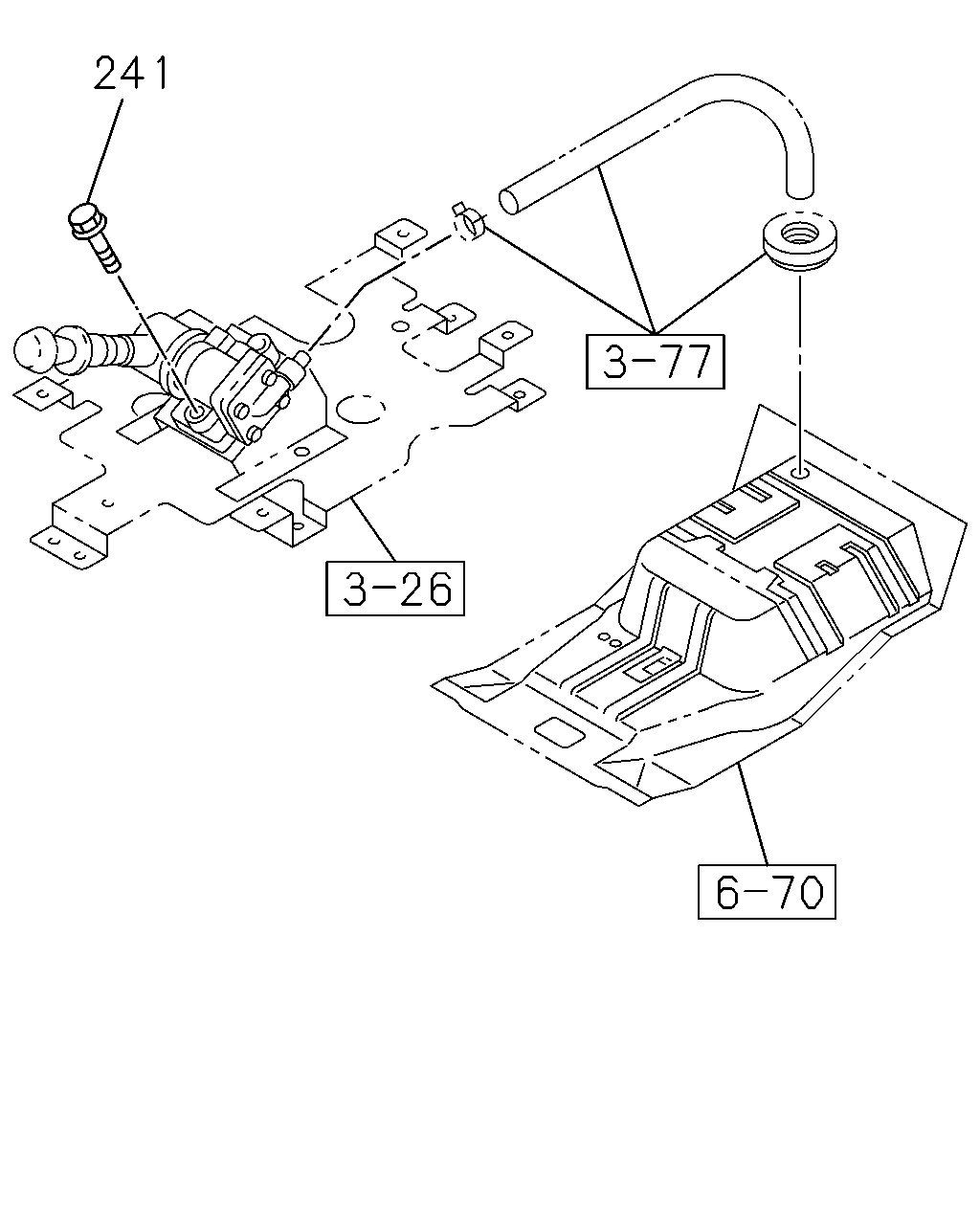

241
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
241
BOLT; SET,CONT VLV
M8X70 FLANGE
0-28050-870-0
02
1
0803-
39
5
10
5
39
1
5
46
46
433
10
7
6
28
94
80
34
30
31
10

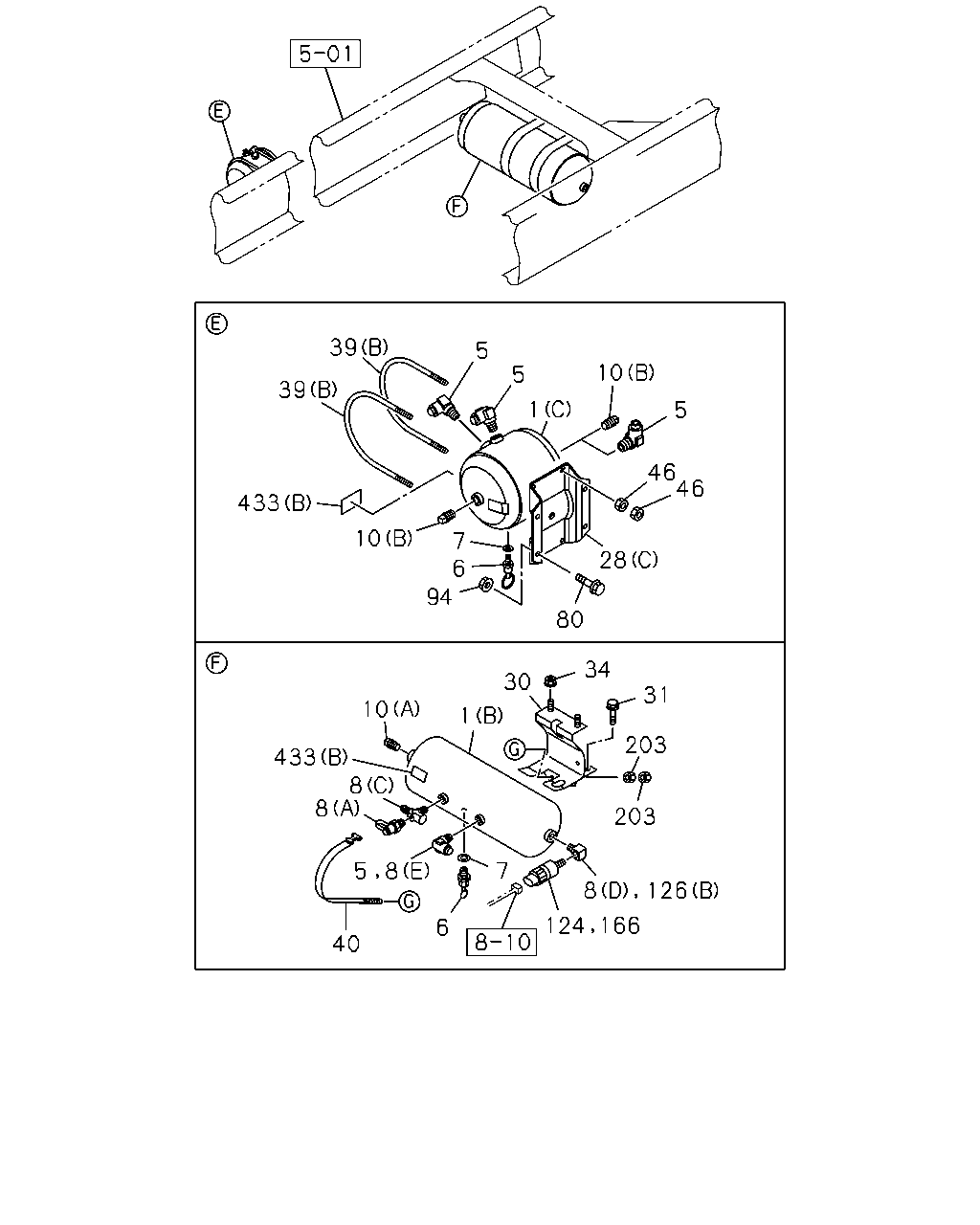

1
203
433
8
8
203
7
8
126
6
40
5
8
124
166
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK ASM; AIR
ISRAEL COUNTRY(CV4) (A)
8-98018-785-3
01
1
1009-
1
TANK ASM; AIR
ISRAEL COUNTRY(CV4) (C)
8-98081-870-1
01
1
1009-
1
TANK ASM; AIR
(A)
8-98056-178-1
01
1
0803-1008
1
TANK ASM; AIR
EXC. ISRAEL COUNTRY(CV4) (A)
8-98056-178-1
01
1
1009-
1
TANK ASM; AIR
(B)
8-98056-183-2
01
1
0803-1008
1
TANK ASM; AIR
EXC. ISRAEL COUNTRY(CV4) (B)
8-98056-183-2
01
1
1009-
1
TANK ASM; AIR
(C)
8-98081-872-2
01
1
0803-1008
1
TANK ASM; AIR
EXC. ISRAEL COUNTRY(CV4) (C)
8-98081-872-2
01
1
1009-
5
UNION; AIR TANK
DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
0803-1008
5
UNION; AIR TANK
EXC. ISRAEL COUNTRY(CV4) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
1009-
5
UNION; AIR TANK
DIN8 & R3/8 ELBOW
1-09660-957-0
02
1
0803-
6
COCK; DRAIN,AIR TANK
1-48312-015-0
03
1
0803-
6
COCK; DRAIN,AIR TANK
1-48312-015-0
01
1
0803-1008
6
COCK; DRAIN,AIR TANK
1-48312-015-0
01
1
0803-1008
6
COCK; DRAIN,AIR TANK
1-48312-015-0
01
1
1009-
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
03
1
0803-
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
01
1
0803-1008
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
01
1
0803-1008
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
01
1
1009-
8
CONNECTOR; AIR TANK
ISRAEL COUNTRY(CV4) (D) PT1/4 & PT3/8 2WAY
1-09660-809-0
01
1
1009-
8
CONNECTOR; AIR TANK
ISRAEL COUNTRY(CV4) (E) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
1009-
8
CONNECTOR; AIR TANK
(C)
1-09656-462-1
01
1
0803-
8
CONNECTOR; AIR TANK
(B)
1-09656-759-0
01
1
0803-
8
CONNECTOR; AIR TANK
(A) R1/4 & M16 TEST CONNECTOR
1-47459-013-1
01
1
0803-
8
CONNECTOR; AIR TANK
(A) R1/4 & M16 TEST CONNECTOR
1-47459-013-1
02
1
0803-
10
PLUG; AIR TANK
(B) PT3/8
9-09204-517-0
01
1
0803-1008
10
PLUG; AIR TANK
ISRAEL COUNTRY(CV4) (B) PT3/8
9-09204-517-0
01
1
1009-
10
PLUG; AIR TANK
(B) PT3/8
9-09204-517-0
01
1
1009-
10
PLUG; AIR TANK
(B) PT3/8
9-09204-517-0
02
1
0803-
10
PLUG; AIR TANK
(A) PT3/4
9-09204-526-0
01
1
0803-1008
10
PLUG; AIR TANK
EXC. ISRAEL COUNTRY(CV4) (A) PT3/4
9-09204-526-0
01
1
1009-
28
BRACKET; AIR TANK
(A)
8-98021-918-5
01
1
0803-
28
BRACKET; AIR TANK
(B)
8-98044-509-5
01
1
0803-
28
BRACKET; AIR TANK
(C)
8-98100-165-3
01
1
0803-
30
BRACKET; AIR TANK,SUB
1-48317-903-0
01
1
0803-
31
BOLT; BRKT TO FRAME
M10X30 FLANGE
0-28651-030-0
02
1
0803-
34
NUT; BRKT,AIR TANK
M10 FLANGE
0-91180-210-0
02
1
0803-
39
U-BOLT; AIR TANK
(B) L=210
1-48317-458-1
02
1
0803-
39
U-BOLT; AIR TANK
(A)
8-98022-041-0
02
1
0803-
40
BAND ASM; AIR TANK
1-48317-893-1
01
1
0803-
46
NUT; U-BOLT
M8
0-91110-508-0
08
1
0803-1008
46
NUT; U-BOLT
M8
0-91110-508-0
08
1
0803-1008
46
NUT; U-BOLT
M8
0-91110-508-0
08
1
1009-
80
BOLT; BRKT
M10X30 FLANGE
0-28651-030-0
03
1
0803-
94
NUT; BRKT FIX
M10 FLANGE
0-91180-210-0
04
1
0803-
124
SWITCH; AIR PRESSURE
ISRAEL COUNTRY(CV4) STAMP 5.5
8-97609-249-0
01
1
1009-
126
CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW
1-09650-438-0
02
1
0803-
126
CONNECTOR; ELBOW
(B) PT1/4 & PT3/8 2WAY
1-09660-809-0
01
1
0803-1008
126
CONNECTOR; ELBOW
EXC. ISRAEL COUNTRY(CV4) (B) PT1/4 & PT3/8 2WAY
1-09660-809-0
01
1
1009-
166
SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5
8-97609-249-0
01
1
0803-1008
166
SWITCH ASM; LOW PRESSURE,MAIN TANK
EXC. ISRAEL COUNTRY(CV4) STAMP 5.5
8-97609-249-0
01
1
1009-
203
NUT
M8
0-91110-508-0
02
1
0803-
433
PLATE; NAME
(A)
8-98121-999-0
01
1
0806-
433
PLATE; NAME
ISRAEL COUNTRY(CV4) (B) WHEEL PARK
8-98121-997-0
01
1
1009-
433
PLATE; NAME
ISRAEL COUNTRY(CV4) (B) ACCESSORY
8-98121-998-0
01
1
1009-

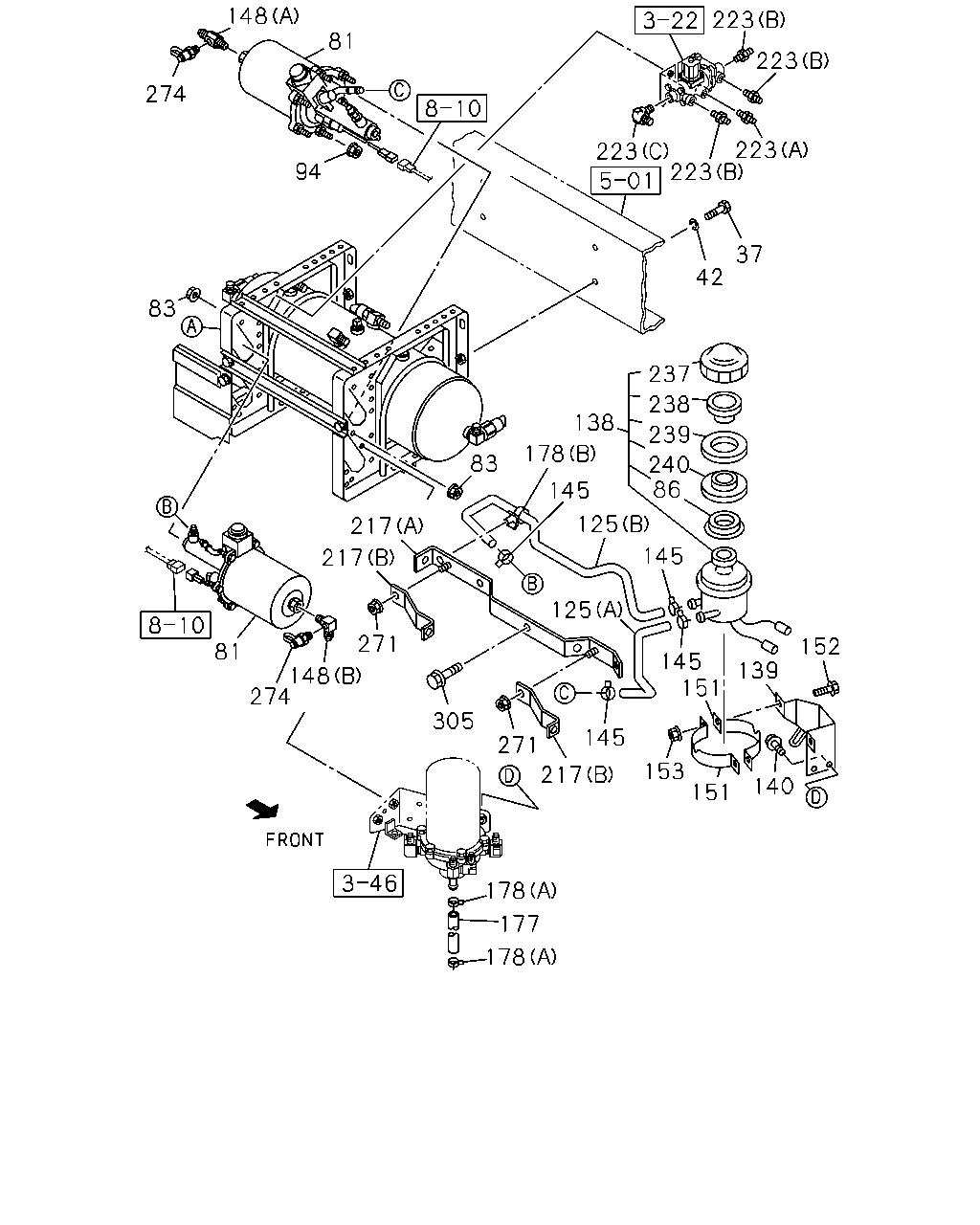

148
223
81
223
274
223
223
223
94
37
42
83
237
238
138
239
178
83
240
86
145
125
217
145
217
125
271
152
81
145
151
139
148
274
305
145
271
153
151
217
140
178
177
178
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
BOLT; AIR TANK
M12X40 FLANGE
0-28651-240-0
04
1
0803-
42
WASHER; PL
ID=12.5 OD=32
0-91614-712-0
04
1
0803-
81
AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT.
1-47800-777-0
02
1
0803-0905
81
AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT.
1-47800-826-0
02
1
0906-
83
NUT; AIR MASTER
M8 FLANGE
0-91180-108-0
09
1
0803-
86
SEAL; DUST
1-47529-019-0
01
1
0803-
94
NUT; BRKT FIX
M10 FLANGE
0-91180-210-0
04
1
0803-
125
HOSE; OIL TANK TO AIR MASTER
(A)
8-98051-217-0
01
1
0803-
125
HOSE; OIL TANK TO AIR MASTER
(B)
8-98051-218-1
01
1
0803-
138
TANK ASM; OIL,AIR MASTER
1-47530-186-0
01
1
0803-
139
BRACKET; OIL TANK
8-98051-105-0
01
1
0803-
140
BOLT; OIL TANK TO BRKT
M8X20 FLANGE
0-28650-820-0
02
1
0803-
145
CLIP; OIL TANK TO AIR MASTER HOSE
ID=14
1-09704-102-0
04
1
0803-
148
CONNECTOR; AIR MASTER
(A) M16 & PT3/8 STRAIGHT
1-09656-643-1
01
1
0803-
148
CONNECTOR; AIR MASTER
(B) M16 & PT1/4 & PT3/8 3WAY
1-09656-671-0
01
1
0803-
151
BAND; OIL TANK,AIR MASTER
1-47537-056-2
02
1
0803-
152
BOLT; OIL TANK TO BAND
M8X20 FLANGE
0-28650-820-0
02
1
0803-
153
NUT; OIL TANK TO BAND
M8 FLANGE
0-91180-108-0
02
1
0803-
177
HOSE; RUBBER,DRAIN
L=60 SERVICED BY L=3000
0-03566-300-0
01
1
0803-
178
CLIP; HOSE
(B) ID=13-18 L=14.5
1-09709-290-0
08
1
0803-
178
CLIP; HOSE
(A) ID=21
8-94242-034-0
02
1
0803-
217
BRACKET; RUBBER HOSE
(A)
8-98082-871-0
01
1
0803-
217
BRACKET; RUBBER HOSE
(B)
8-98085-273-1
02
1
0803-
223
UNION
H.S.A SYSTEM<6EP> (A) M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
0803-0805
223
UNION
H.S.A SYSTEM<6EP> (B) M16 & PT3/8 STRAIGHT
1-09650-179-1
03
1
0803-0805
223
UNION
H.S.A SYSTEM<6EP> (C) M16 & PT3/8 ELBOW
1-09650-438-0
01
1
0803-0805
237
CAP; OIL TANK
1-47525-030-0
01
1
0803-
238
PLATE; BAFFLE
1-47529-022-0
01
1
0803-
239
FILTER; DUST
1-47529-017-0
01
1
0803-
240
HOLDER; FILTER
1-47529-018-0
01
1
0803-
271
NUT; BRKT,HOSE
M8 FLANGE
0-91180-108-0
02
1
0803-
274
CONNECTOR; VLV
R1/4 & M16 TEST CONNECTOR
1-47459-013-1
02
1
0803-
305
BOLT; BRKT,HOSE
M8X16 FLANGE
0-28050-816-0
01
1
0803-1008
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
