8-50 — AIR CONDITIONING SYSTEM; FRONT (#6908) — 38 parça

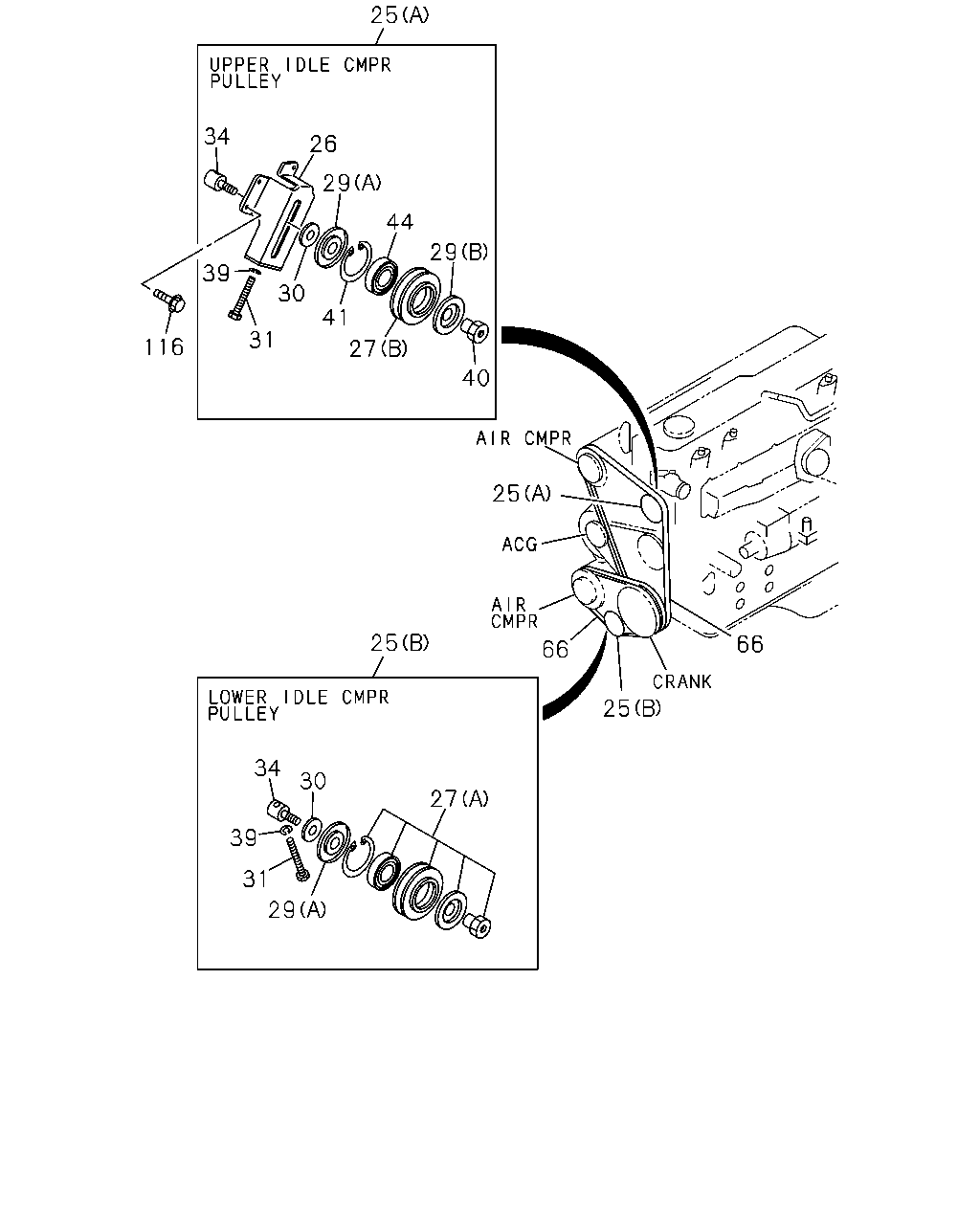

25 34 26 29 44 29 39 30 41 31 116 27 40 25 66 25 66 25 34 30 27 39 31 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	PULLEY ASM; IDLER,CMPR OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (B) LOWER	8-94396-213-0	01	1	9806-9911
25	PULLEY ASM; IDLER,CMPR OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A) UPPER	8-94396-528-1	01	1	9806-9911
26	BRACKET; IDLE PULLEY,A/C OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> UPPER	8-94396-532-0	01	1	9806-9911
27	PULLEY; IDLE,A/C OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A) LOWER	1-13660-258-0	01	1	9806-9911
27	PULLEY; IDLE,A/C OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (B) UPPER	1-13663-074-0	01	1	9806-9911
29	COVER; DUST,IDLE PULLEY OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (B) UPPER	1-13664-013-0	01	1	9806-9911
29	COVER; DUST,IDLE PULLEY OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A) UPPER & LOWER	1-13664-014-0	02	1	9806-9911
30	COLLAR; IDLE PULLEY OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> UPPER & LOWER	1-13666-030-0	02	1	9806-9911
31	BOLT; ADJ,IDLE PULLEY OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> UPPER & LOWER	1-13669-145-0	02	1	9806-9911
34	SHAFT; IDLE PULLEY OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> UPPER & LOWER	1-13665-033-0	02	1	9806-9911
39	WASHER; LK,ADJ BOLT OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> UPPER & LOWER ID=10.2	9-09150-510-0	02	1	9806-9911
40	BUSHING; IDLE PULLEY OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> UPPER	1-13669-144-0	01	1	9806-9911
41	RING; SNAP,IDLE PULLEY OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> UPPER	1-13669-143-0	01	1	9806-9911
44	BEARING; IDLE PULLEY OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> UPPER	1-83576-032-0	01	1	9806-9911
66	BELT; A/C CMPR OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> LOWER L=1150	1-13671-197-0	01	1	9806-9911
66	BELT; A/C CMPR OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> UPPER L=1791	8-94399-431-0	01	1	9806-9911
116	BOLT; IDLER PULLEY TO TIMING GEAR CASE OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> M10X20 FLANGE	0-28181-020-0	01	1	9806-9911
116	BOLT; IDLER PULLEY TO TIMING GEAR CASE OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> M10X30 FLANGE	0-28181-030-0	02	1	9806-9911
116	BOLT; IDLER PULLEY TO TIMING GEAR CASE OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> M12X40 FLANGE	0-28181-240-0	01	1	9806-9911

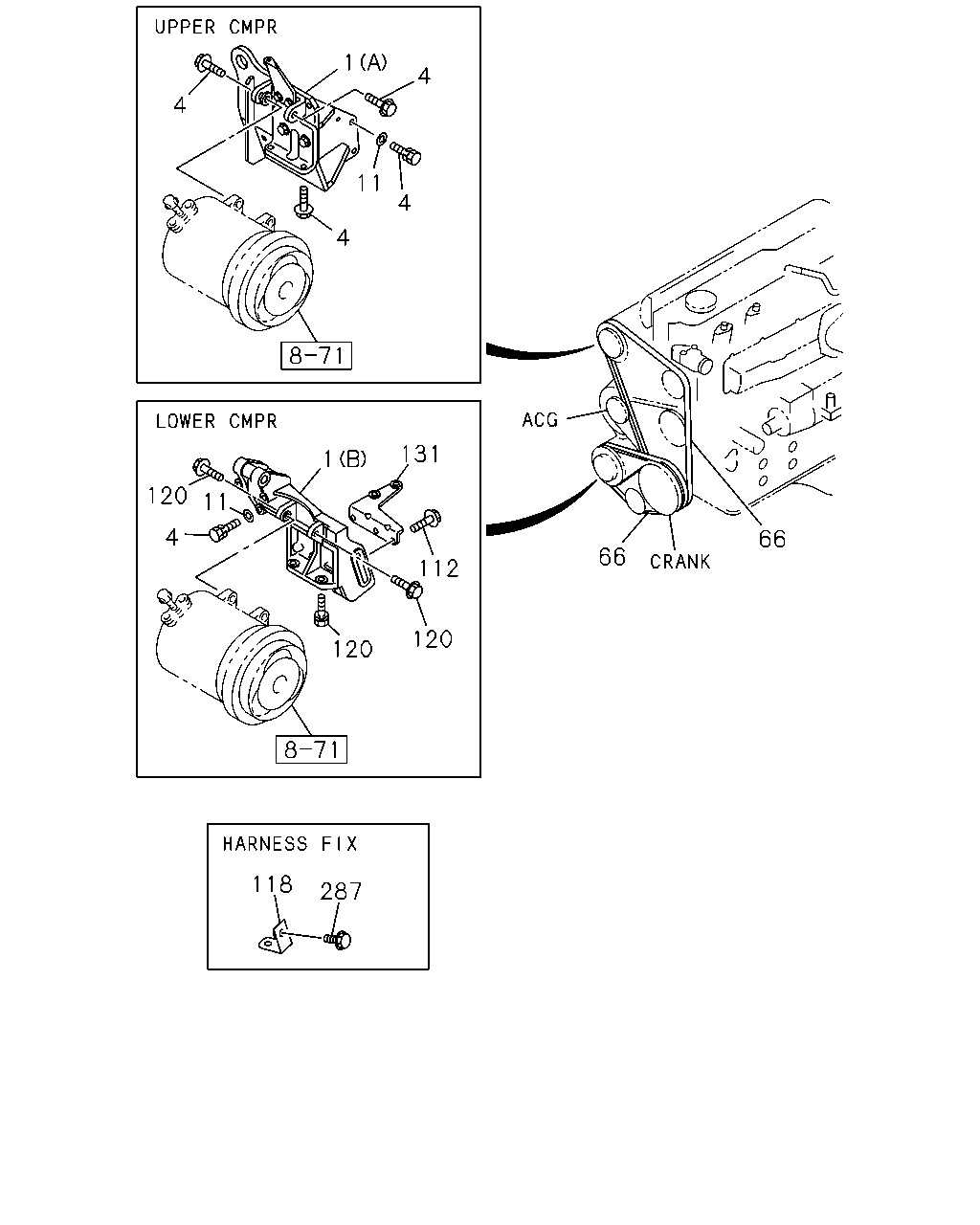

1 4 4 11 4 4 131 1 120 11 4 66 66 112 120 120 118 287

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; A/C OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A) UPPER FOR COMP.	8-94394-968-0	01	1	9806-9911
1	BRACKET; A/C OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (B) LOWER FOR ACG & COMP.	8-94396-215-0	01	1	9806-9911
4	BOLT; A/C CMPR BRKT OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> M10X22 FLANGE	0-28181-022-0	02	1	9806-9911
4	BOLT; A/C CMPR BRKT OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> M12X35 FLANGE	0-28181-235-0	02	1	9806-9911
4	BOLT; A/C CMPR BRKT OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> M10X55 FLANGE	8-94399-863-1	01	1	9806-9911
4	BOLT; A/C CMPR BRKT OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> M10X40	9-01666-040-0	04	1	9806-9911
4	BOLT; A/C CMPR BRKT OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> M10X20	9-02361-020-0	02	1	9806-9911
4	BOLT; A/C CMPR BRKT OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> M10X25	9-02361-025-0	02	1	9806-9911
11	WASHER; PL,A/C CMPR BRKT OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> ID=10.5	9-09164-510-0	08	1	9806-9911
66	BELT; A/C CMPR OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> LOWER L=1150	1-13671-197-0	01	1	9806-9911
66	BELT; A/C CMPR OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> UPPER L=1791	8-94399-431-0	01	1	9806-9911
112	BOLT; STAY OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> M8X16 FLANGE	0-28080-816-0	03	1	9806-9911
118	BRACKET; HARNESS CLIP,A/C OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94393-074-1	01	1	9806-9911
120	BOLT; BRKT TO CMPR LWR OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> M8X40 FLANGE	0-28080-840-0	02	1	9806-9911
120	BOLT; BRKT TO CMPR LWR OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> M10X35 FLANGE	0-28181-035-0	01	1	9806-9911
120	BOLT; BRKT TO CMPR LWR OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> M10X45 FLANGE	0-28181-045-0	01	1	9806-9911
120	BOLT; BRKT TO CMPR LWR OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> M10X107 FLANGE	8-94399-488-1	02	1	9806-9911
131	STAY; CMPR BRKT OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> LOWER	8-94393-121-0	01	1	9806-9911
287	BOLT; BRKT,HARNESS OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> M8X12 FLANGE	0-28080-812-0	01	1	9806-9911
