Sayfa 8-45 - Isuzu EPC

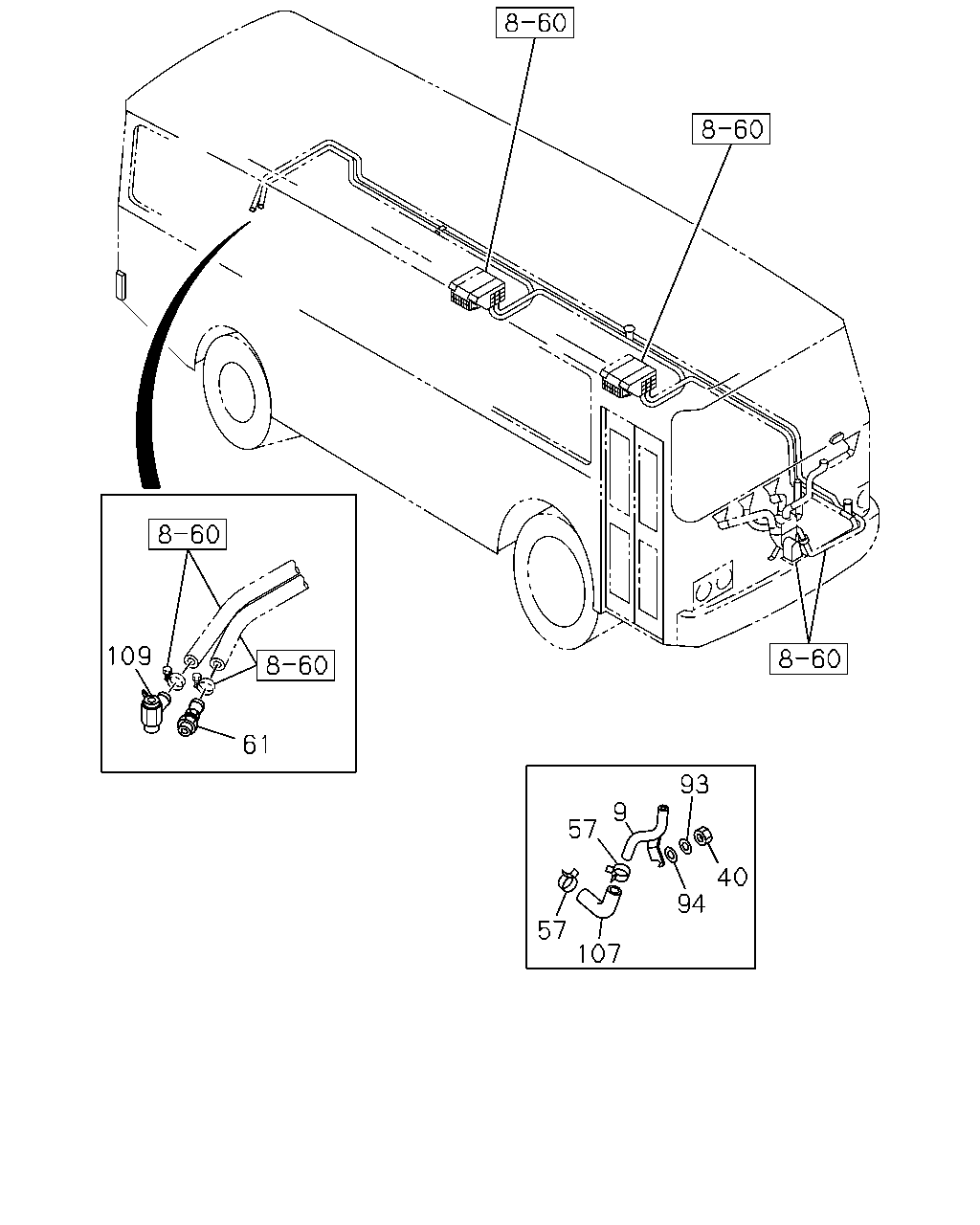

8-45 — HEATER PIPING (#6907) — 8 parça

109 61 93 9 57 40 94 57 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	PIPE; HTR AUXILIARY HTR<C36>,HTR & DEFR<C41> D=18 W/BRACKET	1-13711-273-1	01	1	9806-9911
40	NUT; CLIP AUXILIARY HTR<C36>,HTR & DEFR<C41> M10 FLANGE	0-91150-210-0	01	1	9806-9911
57	CLIP; HOSE AUXILIARY HTR<C36>,HTR & DEFR<C41> ID=26	1-09707-091-0	02	1	9806-9911
61	JOINT; HTR HOSE AUXILIARY HTR<C36>,HTR & DEFR<C41>	1-13619-042-0	01	1	9806-9911
93	WASHER; LK,CLIP AUXILIARY HTR<C36>,HTR & DEFR<C41> ID=10.2	9-09150-510-0	01	1	9806-9911
94	WASHER; PL,CLIP AUXILIARY HTR<C36>,HTR & DEFR<C41> ID=10.5 OD=18	9-09160-510-0	01	1	9806-9911
107	HOSE; WATER,HTR AUXILIARY HTR<C36>,HTR & DEFR<C41>	1-09360-337-0	01	1	9806-9911
109	COCK; HTR AUXILIARY HTR<C36>,HTR & DEFR<C41> PT3/4 & OD=18	9-09904-169-1	01	1	9806-9911
