2-05 — CLUTCH PIPING (#69068) — 56 parça

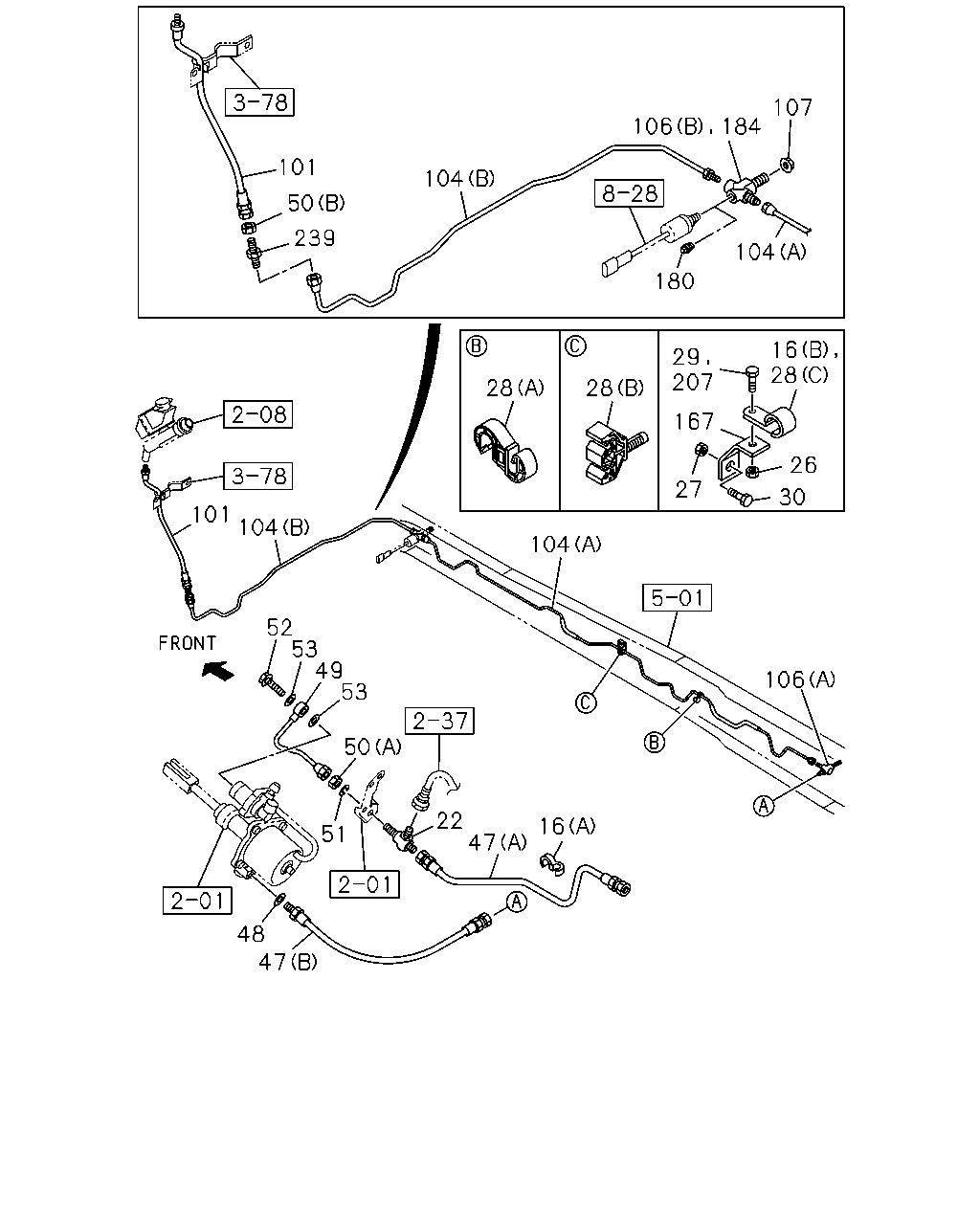

çizim 187777
107 106 184 101 104 50 239 104 180 16 28 29 207 28 28 167 26 27 30 101 104 104 52 53 49 53 106 50 22 47 16 51 48 47
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
(B) ID=18 L=28 		1-09701-067-0 01 1 0803-
16 CLIP; FLEX HOSE
(A) ID=10 & 12 		1-09709-278-1 01 1 0803-0901
16 CLIP; FLEX HOSE
(A) ID=10 & 12 		1-09709-278-1 01 1 0803-0901
16 CLIP; FLEX HOSE
(A) ID=10 & 12 		1-09709-278-1 02 1 0902-
16 CLIP; FLEX HOSE
MLD6W M/T(Y2C) (A) ID=10 & 10 		1-09709-277-1 01 1 0807-0901
22 UNION; CLU PIPE
ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 0803-
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 01 1 0807-
27 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0807-
28 CLIP; OIL PIPE
(A) ID=6.35 & 10.0 		1-09709-274-1 01 1 0807-
28 CLIP; OIL PIPE
(A) ID=6.35 & 10.0 		1-09709-274-1 01 1 0807-
28 CLIP; OIL PIPE
(A) ID=6.35 & 10.0 		1-09709-274-1 01 1 0803-0806
28 CLIP; OIL PIPE
(C) ID=7 L=20 		0-95234-635-0 01 1 0807-
28 CLIP; OIL PIPE
(B) 		8-98012-254-1 06 1 0803-0806
28 CLIP; OIL PIPE
(B) 		8-98012-254-1 04 1 0807-
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 0807-
30 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0807-
30 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0803-0806
47 HOSE; FLEX,CLU CONT
(B) L=550 		8-98080-979-0 01 1 0803-
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> (A) L=580 		1-09363-613-1 01 1 0803-0805
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> (A) L=580 		1-09363-613-1 01 1 0806-
47 HOSE; FLEX,CLU CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=660 		1-09363-719-0 01 1 0803-0805
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=660 		1-09363-719-0 01 1 0806-
47 HOSE; FLEX,CLU CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> (A) L=560 		1-09363-914-0 01 1 0807-
47 HOSE; FLEX,CLU CONT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=640 		1-09363-974-0 01 1 0807-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 0803-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=239 		1-49117-401-0 01 1 0803-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 0803-1006
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 0803-1006
50 NUT; UNION
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M12 		0-91111-512-0 01 1 1007-1009
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1007-1009
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1010-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1010-
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 0803-1009
50 NUT; UNION
MANUAL TRANSMISSION<X9C> EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 1010-
50 NUT; UNION
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 1010-
51 WASHER; LK
ID=12.2 		0-91510-512-0 01 1 0803-1009
51 WASHER; LK
MANUAL TRANSMISSION<X9C> EXC. ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-512-0 01 1 1010-
51 WASHER; LK
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-512-0 01 1 1010-
52 BOLT; EYE,AIR PIPE
M14X27 FLANGE 		1-09675-086-0 01 1 0803-
53 GASKET; JOINT BOLT
ID=14.2 OD=19.2 		1-09630-085-0 02 1 0803-1312
53 GASKET; JOINT BOLT
ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=570 		8-98116-741-0 01 1 0803-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=3149 SERVICED BY L=3200 		1-47428-745-0 01 1 0803-0805
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=1017 SERVICED BY L=1100 		1-47428-731-0 01 1 0806-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=1078 SERVICED BY L=1100 		1-47428-731-0 01 1 0803-0805
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=3185 		8-98123-105-0 01 1 0806-
106 UNION; OIL PIPE
(A) M12 2WAY 		1-09654-059-2 01 1 0803-
106 UNION; OIL PIPE
(B) M12 3WAY 		8-98051-113-0 01 1 0803-0910
107 NUT; UNION,OIL PIPE
M12 		0-91111-512-0 01 1 0803-
167 BRACKET; UNION 8-98111-368-0 01 1 0803-0805
167 BRACKET; UNION 8-98123-111-1 01 1 0806-
180 PLUG; PIPE
EXC. H.S.A SYSTEM<6EP> 		9-09204-510-0 01 1 0803-0805
180 PLUG; PIPE 9-09204-510-0 01 1 0806-0910
184 UNION; FLEX HOSE 8-98150-865-0 01 1 0911-
207 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0803-
239 UNION; CLU HOSE
M12 2WAY 		1-09654-059-2 01 1 0803-
