1-50 — EXHAUST PIPE AND SILENCER (#69063) — 204 parça

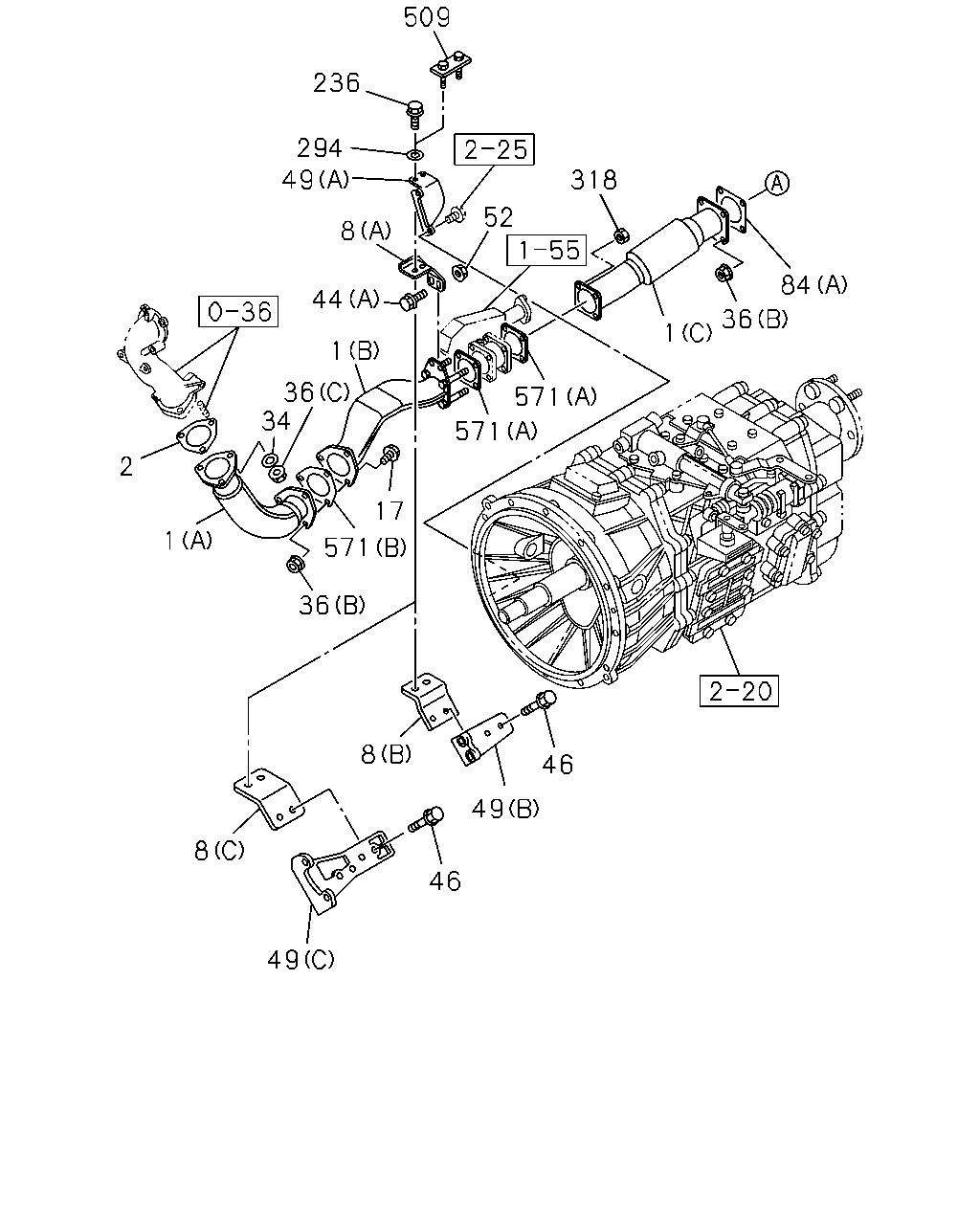

çizim 96582
509 236 294 49 8 44 1 36 34 1 2 571 17 36 8 8 49 46 49 46 571 571 52 318 84 36 1
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(C) 		1-22123-882-1 01 1 0803-
1 PIPE; EXH
(B) 		8-98056-495-1 01 1 0803-1209
1 PIPE; EXH
(B) 		8-98220-314-0 01 1 1210-1301
1 PIPE; EXH
(B) 		8-98234-517-0 01 1 1302-
1 PIPE; EXH
(A) 		8-98061-088-1 01 1 0803-0902
1 PIPE; EXH
(A) 		8-98120-560-0 01 1 0903-1209
1 PIPE; EXH
(A) 		8-98215-406-0 01 1 1210-
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98043-481-0 01 1 0803-
8 BRACKET; EXH PIPE
MLD6W M/T(Y2C) (A) 		8-98233-349-0 01 1 1302-
8 BRACKET; EXH PIPE
MZX6P M/T(RSW) (C) 		8-98122-675-0 01 1 1210-1301
8 BRACKET; EXH PIPE
MZX6P M/T(RSW) (C) 		8-98233-340-0 01 1 1302-1310
8 BRACKET; EXH PIPE
MZX6P M/T(RSW) (C) 		8-98259-862-0 01 1 1311-
8 BRACKET; EXH PIPE
(A) 		8-98089-801-0 01 1 0803-1301
8 BRACKET; EXH PIPE
MZX6P M/T(RSW) (A) 		8-98233-346-0 01 1 1302-
8 BRACKET; EXH PIPE
MLD6W M/T(Y2C) (B) 		8-98114-389-0 01 1 0807-1301
8 BRACKET; EXH PIPE
MLD6W M/T(Y2C) (B) 		8-98233-342-0 01 1 1302-1310
8 BRACKET; EXH PIPE
MLD6W M/T(Y2C) (B) 		8-98259-868-0 01 1 1311-
17 BOLT; EXH PIPE
KD PREPARATORY PACK<6HF> M12X35 FLANGE 		0-28051-235-0 04 1 1204-
17 BOLT; EXH PIPE
M12X35 		0-20851-235-0 03 1 0803-0804
17 BOLT; EXH PIPE
M12X35 FLANGE 		0-28051-235-0 03 1 0805-
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0803-
36 NUT; EXH PIPE
(A) M10 		0-91110-510-0 04 1 0803-
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 0803-
36 NUT; EXH PIPE
(C) M12 		1-09400-010-0 03 1 0803-
44 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0803-0907
44 BOLT; BRKT
(A) M10X35 FLANGE 		0-28651-035-0 02 1 0908-
44 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 08 1 0803-
46 BOLT; BRKT,EXH PIPE
MLD6W M/T(Y2C) M10X30 FLANGE 		0-28051-030-0 02 1 0807-1209
46 BOLT; BRKT,EXH PIPE
MZX6P M/T(RSW),MLD6W M/T(Y2C) M10X30 FLANGE 		0-28051-030-0 02 1 1210-
49 BRACKET; EXH PIPE TO TRANS
(A) 		8-98085-315-2 01 1 0803-0803
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW) (A) 		8-98085-315-2 01 1 0804-1209
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW) (C) 		8-98122-671-0 01 1 1210-
49 BRACKET; EXH PIPE TO TRANS
MLD6W M/T(Y2C) (B) 		8-98113-008-0 01 1 0807-
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0803-0809
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 06 1 0810-
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0803-0809
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0810-
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0810-
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 0803-
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 0803-
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 02 1 0803-
236 BOLT; PIPE CLAMP TO BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0803-1301
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 0803-
318 NUT; EXH PIPE,FRT
M10 FLANGE 		0-91180-210-0 04 1 0803-
509 STUD; BRKT 8-98233-625-0 01 1 1302-1311
509 STUD; BRKT 8-98259-983-0 01 1 1312-
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 0803-
571 GASKET
(B) 		8-98043-481-0 01 1 0803-

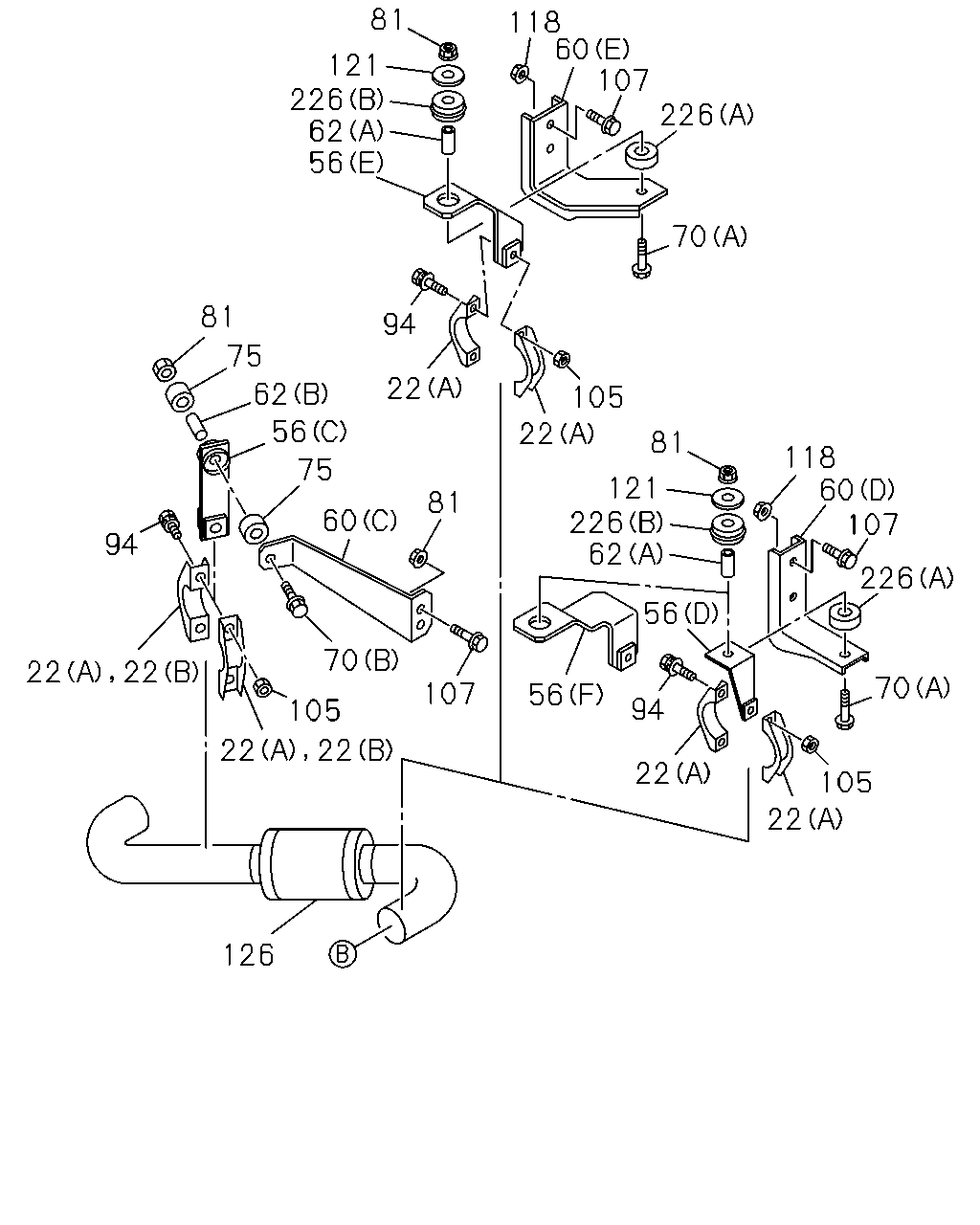

çizim 97106
22 105 70 226 107 60 118 81 121 226 62 56 94 22 56 107 22 105 22 126 70 81 60 75 22 94 56 62 75 81 56 62 226 121 81 118 60 107 226 70 105 22 22 22 94
BalonParca AdiParca NoAdetTipApplied Date
22 CLAMP; EXH PIPE
WHEEL BASE 3700MM(37W) (B) ID=94-98 		1-22133-237-0 02 1 1302-
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0803-1301
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0803-1301
22 CLAMP; EXH PIPE
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (A) ID=80-84 		1-22133-233-0 02 1 1302-
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 1302-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W) (C) 		8-98234-307-0 01 1 1302-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W) (D) 		8-98059-758-0 01 1 0803-1301
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W) (E) 		8-98233-506-0 01 1 1302-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (D) 		8-98059-754-0 01 1 0803-1301
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (F) 		8-98233-508-0 01 1 1302-
56 BRACKET; CLAMP,EXH PIPE
(C) 		1-22131-584-0 01 1 0803-1301
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (C) 		1-22131-584-0 01 1 1302-1309
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (C) 		8-98245-522-0 01 1 1310-
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98059-729-0 01 1 0803-
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98074-824-1 01 1 0803-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) (C) 		8-97645-579-1 01 1 1302-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (D) 		8-98233-509-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
(A) 		1-22152-274-1 01 1 0803-
60 BRACKET; FRAME TO BRKT
(B) 		8-98059-712-1 01 1 0803-
60 BRACKET; FRAME TO BRKT
(D) 		8-98059-753-1 01 1 0803-1301
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) (E) 		8-98234-144-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
(C) 		8-98070-640-0 01 1 0803-1301
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (C) 		8-98070-640-0 01 1 1302-1309
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (C) 		8-98245-521-0 01 1 1310-
62 TUBE; DIST,BRKT
(B) L=22 		1-22159-392-0 01 1 0803-0906
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 0907-
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 0803-
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 0803-
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 0803-
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 0803-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0803-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0803-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0803-
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-193-0 02 1 0803-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0803-1301
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0803-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0803-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0803-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0803-
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 0803-
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 0803-
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 0803-
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 0803-
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0803-
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0803-
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0803-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 0803-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 0803-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 0803-
126 PIPE; EXH,RR
WHEEL BASE 3700MM(37W) 		8-98234-296-1 01 1 1302-
126 PIPE; EXH,RR 8-98043-365-2 01 1 0803-1301
126 PIPE; EXH,RR
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) 		8-97645-571-0 01 1 1302-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0803-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0803-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0803-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0803-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0803-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0803-

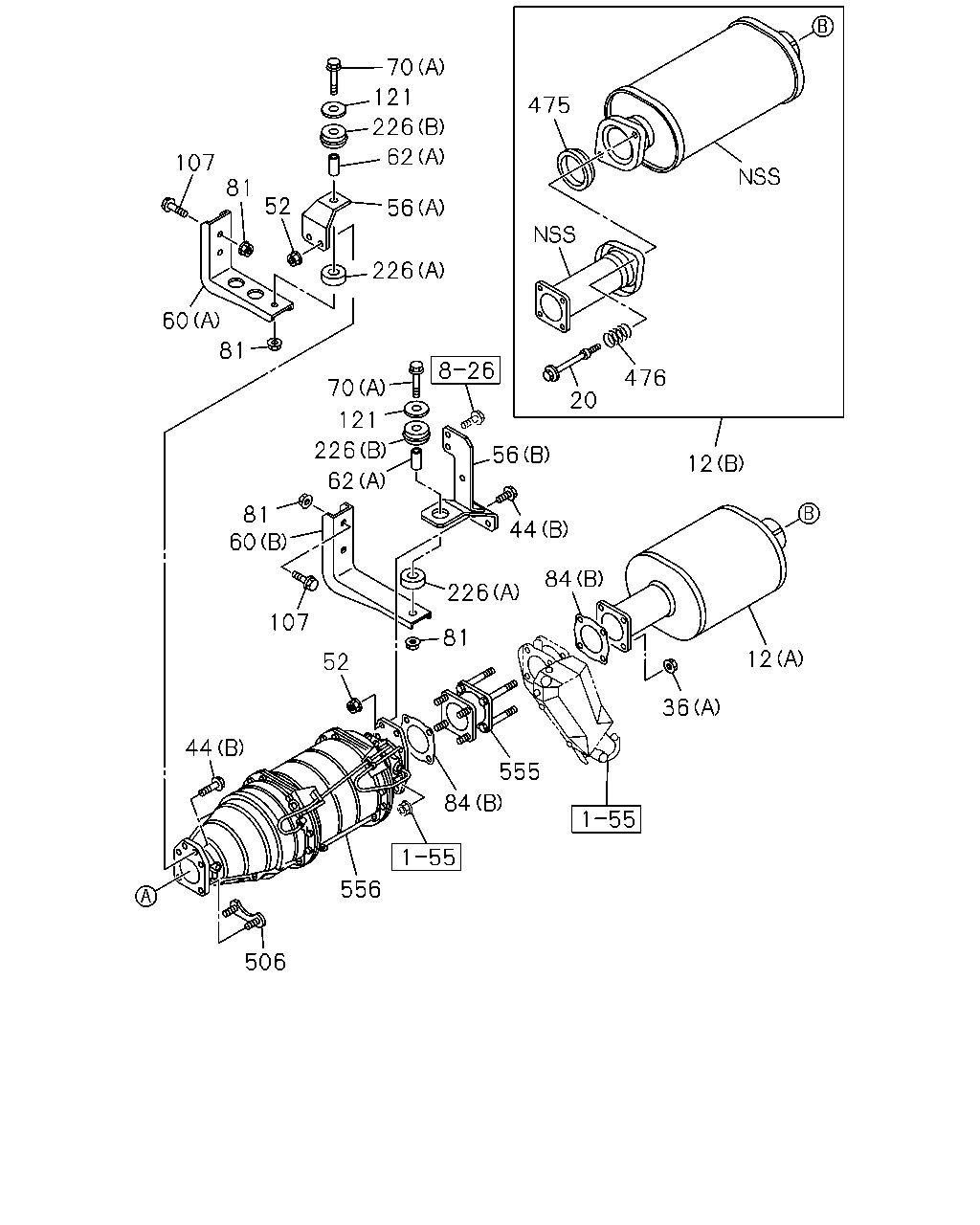

çizim 97183
70 121 226 62 56 226 52 81 107 60 81 70 121 226 62 56 20 476 475 44 84 226 81 52 107 60 81 44 556 84 555 36 12 12 506
BalonParca AdiParca NoAdetTipApplied Date
12 SILENCER ASM; EXH
(A) 		8-98041-924-1 01 1 0803-1301
12 SILENCER ASM; EXH
(B) 		8-98234-506-0 01 1 1302-
20 BOLT; FLANGE,EXH PIPE 8-98233-481-0 02 1 1302-
36 NUT; EXH PIPE
(A) M10 		0-91110-510-0 04 1 0803-
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 0803-
36 NUT; EXH PIPE
(C) M12 		1-09400-010-0 03 1 0803-
44 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0803-0907
44 BOLT; BRKT
(A) M10X35 FLANGE 		0-28651-035-0 02 1 0908-
44 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 08 1 0803-
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0803-0809
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 06 1 0810-
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0803-0809
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0810-
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0810-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W) (C) 		8-98234-307-0 01 1 1302-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W) (D) 		8-98059-758-0 01 1 0803-1301
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W) (E) 		8-98233-506-0 01 1 1302-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (D) 		8-98059-754-0 01 1 0803-1301
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (F) 		8-98233-508-0 01 1 1302-
56 BRACKET; CLAMP,EXH PIPE
(C) 		1-22131-584-0 01 1 0803-1301
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (C) 		1-22131-584-0 01 1 1302-1309
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (C) 		8-98245-522-0 01 1 1310-
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98059-729-0 01 1 0803-
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98074-824-1 01 1 0803-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) (C) 		8-97645-579-1 01 1 1302-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (D) 		8-98233-509-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
(A) 		1-22152-274-1 01 1 0803-
60 BRACKET; FRAME TO BRKT
(B) 		8-98059-712-1 01 1 0803-
60 BRACKET; FRAME TO BRKT
(D) 		8-98059-753-1 01 1 0803-1301
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) (E) 		8-98234-144-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
(C) 		8-98070-640-0 01 1 0803-1301
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (C) 		8-98070-640-0 01 1 1302-1309
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (C) 		8-98245-521-0 01 1 1310-
62 TUBE; DIST,BRKT
(B) L=22 		1-22159-392-0 01 1 0803-0906
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 0907-
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 0803-
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 0803-
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 0803-
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 0803-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0803-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0803-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0803-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0803-1301
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0803-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0803-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0803-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0803-
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 0803-
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 0803-
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 02 1 0803-
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0803-
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0803-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 0803-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 0803-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 0803-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0803-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0803-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0803-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0803-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0803-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0803-
475 BEARING; SEAL,VIBNON,EXH PIPE 8-98233-479-0 01 1 1302-
476 SPRING; VIBNON,EXH PIPE 8-98233-482-0 02 1 1302-
506 BRACKET; STUD
M12X35 		1-22131-963-0 02 1 0803-1203
506 BRACKET; STUD
EXC. KD PREPARATORY PACK<6HF> M12X35 		1-22131-963-0 02 1 1204-
555 PIPE; EXH,DPD 8-98073-334-0 01 1 0803-
556 DPD ASM 8-97613-331-6 01 1 0803-1010
556 DPD ASM 8-97622-883-4 01 1 1011-

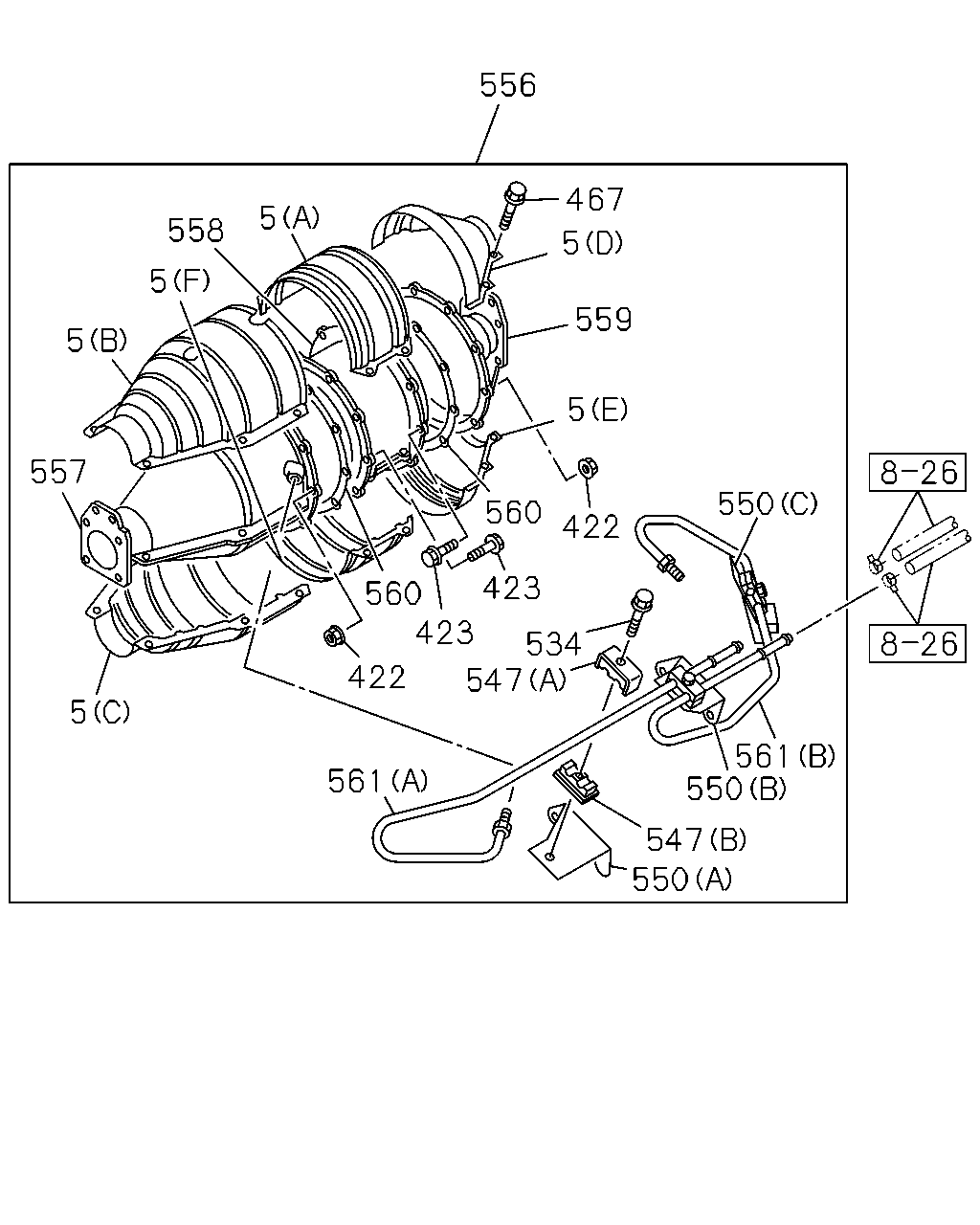

çizim 97454
556 467 5 558 5 5 559 5 5 557 550 560 422 423 560 423 534 547 422 5 561 550 561 547 550
BalonParca AdiParca NoAdetTipApplied Date
5 PROTECTOR; HEAT
(A) 		8-97605-172-0 01 1 0803-
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 0803-
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 0803-
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 0803-
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 0803-
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 0803-
422 NUT; PIPE
M8 FLANGE 		0-91180-108-0 20 1 0803-
423 BOLT; PIPE
M8X35 FLANGE 		0-28650-835-0 20 1 0803-
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 0803-
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 0803-
547 CLIP; PIPE
(A) 		8-97381-635-0 03 1 0803-
547 CLIP; PIPE
(B) 		8-97381-636-0 03 1 0803-
550 BRACKET; DPD
(A) 		8-97611-083-0 01 1 0803-
550 BRACKET; DPD
(B) 		8-97611-084-0 01 1 0803-
550 BRACKET; DPD
(C) 		8-97611-085-0 01 1 0803-
556 DPD ASM 8-97613-331-6 01 1 0803-1010
556 DPD ASM 8-97622-883-4 01 1 1011-
557 CATALYST ASM 8-97608-055-8 01 1 0803-
558 FILTER ASM 8-97608-057-3 01 1 0803-
559 COVER; RR 8-97611-078-0 01 1 0803-1010
559 COVER; RR 8-97622-887-0 01 1 1011-
560 GASKET; DPD 8-97611-080-0 02 1 0803-
561 PIPE; DPD
(A) 		8-97611-081-0 01 1 0803-1010
561 PIPE; DPD
(A) 		8-97622-888-0 01 1 1011-
561 PIPE; DPD
(B) 		8-97611-082-0 01 1 0803-1010
561 PIPE; DPD
(B) 		8-97622-889-0 01 1 1011-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
