8-28 — CHASSIS ELECTRICAL (#6905) — 131 parça

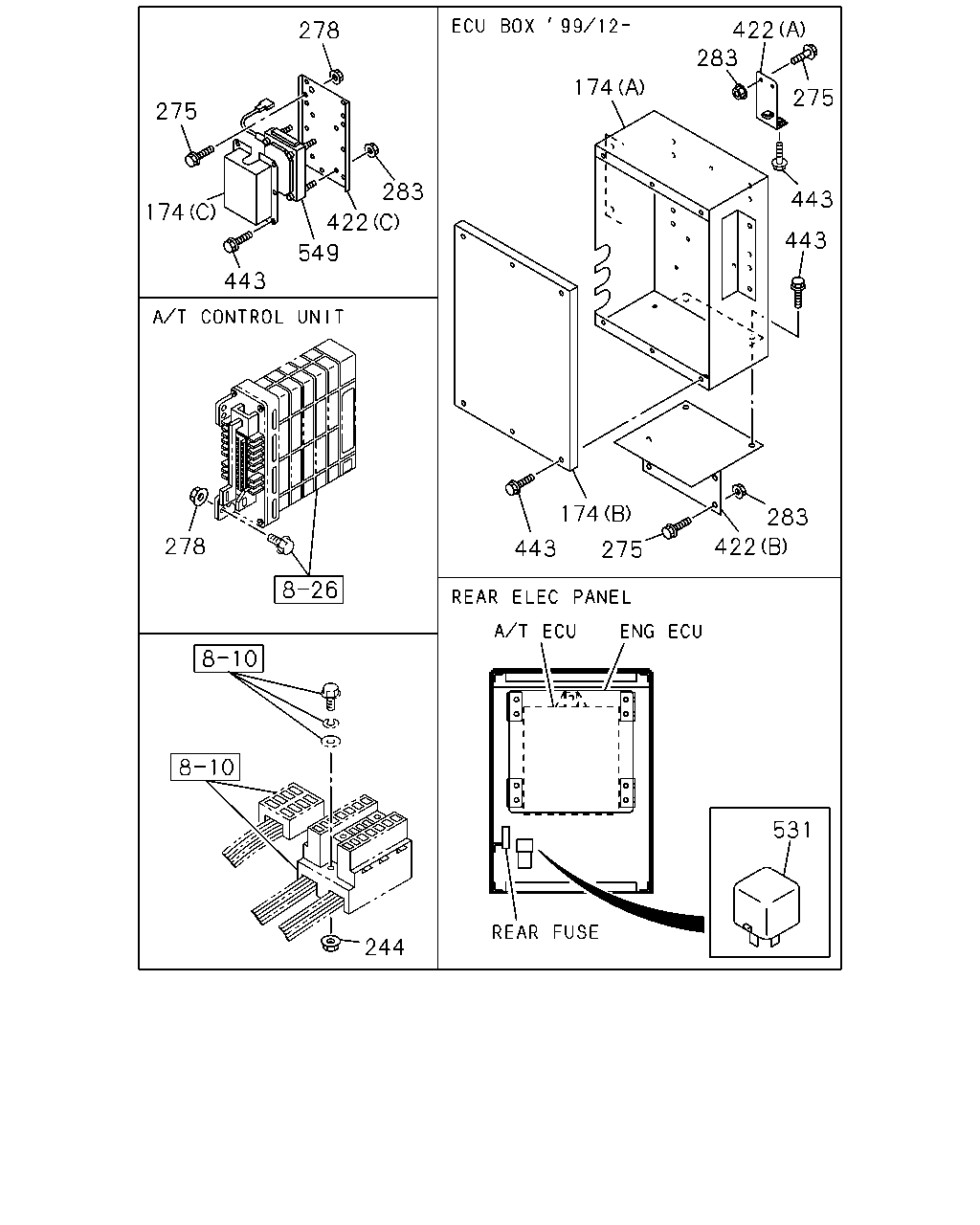

422 278 283 174 275 275 283 443 174 422 443 549 443 174 283 278 422 443 275 531 244

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
174	COVER (B) BOX COVER	8-97530-881-2	01	1	9912-
174	COVER 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (C)	1-82699-985-1	01	1	9806-9911
174	COVER (A) ECU BOX	8-97530-880-1	01	1	9912-0001
174	COVER (A) ECU BOX	8-97531-229-1	01	1	0002-
244	NUT; FUSE BOX GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) M6 FLANGE	0-91150-106-0	02	1	9908-9911
244	NUT; FUSE BOX GEN NIKKO 24V-110A 3KW(PU1) EMIS REGULATION W/CONV<TCA> M6 FLANGE	0-91150-106-0	02	1	9908-9911
244	NUT; FUSE BOX OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> M6 FLANGE	0-91150-106-0	02	1	9908-9911
244	NUT; FUSE BOX M6 FLANGE	0-91150-106-0	04	1	9912-0602
244	NUT; FUSE BOX M6 FLANGE	0-91180-106-0	04	1	0603-
275	BOLT; BRKT 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> M8X35 FLANGE	0-28680-835-0	04	1	9806-9911
275	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	10	1	9912-0512
275	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	10	1	0601-
278	NUT; CONT UNIT 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> M6 FLANGE W/RUBBER	1-09984-180-0	04	1	9806-9911
278	NUT; CONT UNIT A/T<X9D> M6 FLANGE	0-91150-106-0	03	1	9912-0602
278	NUT; CONT UNIT A/T<X9D> M6 FLANGE	0-91180-106-0	03	1	0603-
283	NUT; BRKT 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> M8 FLANGE	0-91150-108-0	04	1	9806-9911
283	NUT; BRKT M8 FLANGE	0-91150-108-0	10	1	9912-0602
283	NUT; BRKT M8 FLANGE	0-91180-108-0	10	1	0603-
422	BRACKET; CONT UNIT (B)	8-97530-885-0	01	1	9912-
422	BRACKET; CONT UNIT 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (C)	1-82699-986-1	01	1	9806-9911
422	BRACKET; CONT UNIT (A)	8-97530-884-0	04	1	9912-
443	BOLT; COVER 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> M8X20 FLANGE	0-28680-820-0	07	1	9806-9911
443	BOLT; COVER M8X20 FLANGE	0-28680-820-0	14	1	9912-0512
443	BOLT; COVER M8X20 FLANGE	0-28650-820-0	14	1	0601-
531	RELAY; MAIN 24V 12.5A JIDECO	8-97062-815-1	01	1	9912-0111
531	RELAY; MAIN 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
549	CONTROL UNIT; ENGINE 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA>	8-94392-440-1	01	1	9806-9911

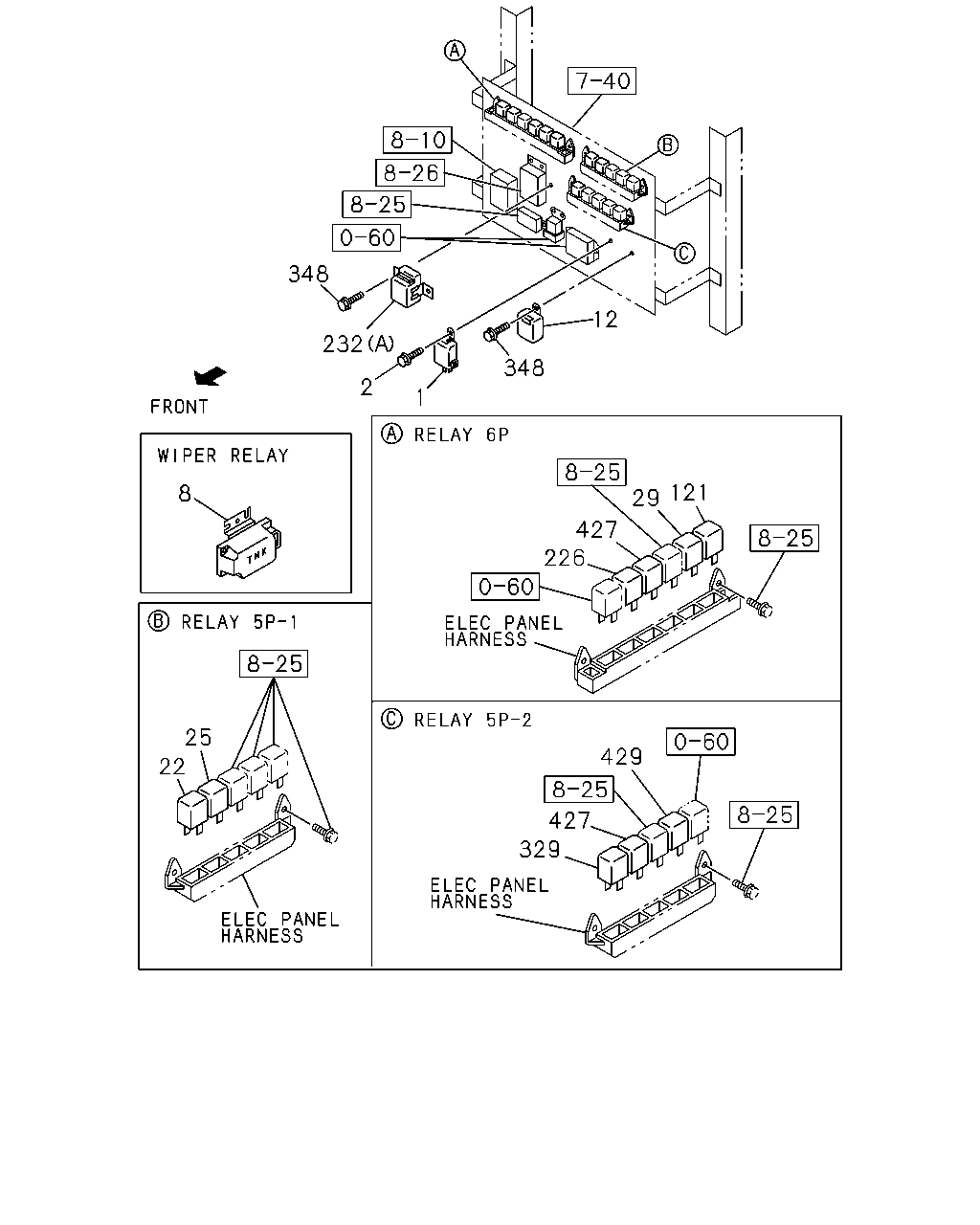

348 12 232 348 2 1 121 8 29 427 226 25 429 22 427 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER SIDE TURN SIGNAL LAMP<TEL>	1-83470-058-0	01	1	9806-9911
1	UNIT; FLASHER	1-83470-055-0	01	1	9912-
1	UNIT; FLASHER EXC. SIDE TURN SIGNAL LAMP<TEL>	1-83470-055-0	01	1	9806-9911
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28680-616-0	01	1	9806-0512
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	01	1	0601-
8	RELAY; WIPER PARL WIPER<SBT> WIPER MTR KIT<ST7> TNK	1-82550-169-0	01	1	9806-9911
8	RELAY; WIPER TNK	1-82550-169-0	01	1	9912-
12	RELAY; LAMP,FAILURE INDICATOR	1-82550-143-2	01	1	9806-
22	RELAY; STOP LAMP 24V 12.5A JIDECO	8-97062-815-1	01	1	9806-0111
22	RELAY; STOP LAMP 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
25	RELAY; TAIL LAMP 24V 12.5A JIDECO	8-97062-815-1	01	1	9806-0111
25	RELAY; TAIL LAMP 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
29	RELAY; HORN EXC. AIR HORN(WB8) 24V 12.5A JIDECO	8-97062-815-1	01	1	9806-9911
29	RELAY; HORN 24V 12.5A JIDECO	8-97062-815-1	01	1	9912-0111
29	RELAY; HORN 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
121	RELAY; PARKING BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) 24V 12.5A JIDECO	8-97062-815-1	01	1	9806-9911
121	RELAY; PARKING BRK 24V 12.5A JIDECO	8-97062-815-1	01	1	9912-0111
121	RELAY; PARKING BRK 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
226	RELAY; EXH BRK 24V 12.5A JIDECO	8-97062-815-1	01	1	9806-9911
226	RELAY; EXH BRK MLD6Q M/T(X5J),A/T ZF 4 HP500 WO/HYD RETARDER(Y3X) 24V 12.5A JIDECO	8-97062-815-1	02	1	9912-0111
226	RELAY; EXH BRK MLD6Q M/T(X5J),A/T ZF 4 HP500 WO/HYD RETARDER(Y3X) 24V 12.5A MATSUSHITA	8-97262-933-0	02	1	0112-
232	RELAY; WARNING BUZZER WARNING BUZZER-SPEED<RF8> (B) 24V 12.5A JIDECO	8-97062-815-1	01	1	0001-0111
232	RELAY; WARNING BUZZER WARNING BUZZER-SPEED<RF8> (B) 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
232	RELAY; WARNING BUZZER ENG OVERRUN BUZZER<SK4> EXC. INDICATOR WARNING BUZZER<WF9> (A)	1-82550-119-1	01	1	9806-9911
232	RELAY; WARNING BUZZER INDICATOR WARNING BUZZER<WF9> (A)	1-82550-119-1	01	1	9806-9911
232	RELAY; WARNING BUZZER (A)	1-82550-119-1	01	1	9912-
329	RELAY; BACK LAMP 24V 12.5A JIDECO	8-97062-815-1	01	1	9806-0111
329	RELAY; BACK LAMP 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
348	SCREW; LAMP FAILURE RELAY M6X16 FLANGE	0-28680-616-0	01	1	9806-0512
348	SCREW; LAMP FAILURE RELAY M6X16 FLANGE	0-28650-616-0	01	1	0601-
348	SCREW; LAMP FAILURE RELAY ENG OVERRUN BUZZER<SK4> EXC. INDICATOR WARNING BUZZER<WF9> M6X16 FLANGE	0-28680-616-0	02	1	9806-9911
348	SCREW; LAMP FAILURE RELAY INDICATOR WARNING BUZZER<WF9> M6X16 FLANGE	0-28680-616-0	02	1	9806-9911
348	SCREW; LAMP FAILURE RELAY M6X16 FLANGE	0-28680-616-0	02	1	9912-0512
348	SCREW; LAMP FAILURE RELAY M6X16 FLANGE	0-28650-616-0	02	1	0601-
427	RELAY; RETARDER BRK SYSTEM RETARDER<RE2> 24V 12.5A JIDECO	8-97062-815-1	02	1	9806-9911
427	RELAY; RETARDER A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E) 24V 12.5A JIDECO	8-97062-815-1	02	1	9912-9912
427	RELAY; RETARDER A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E),A/T ZF 5 HP500 W/HYD RETARDER(Y4M) 24V 12.5A JIDECO	8-97062-815-1	02	1	0001-0111
427	RELAY; RETARDER A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E),A/T ZF 5 HP500 W/HYD RETARDER(Y4M) 24V 12.5A MATSUSHITA	8-97262-933-0	02	1	0112-
429	RELAY; POWER CUT EMIS REGULATION W/CONV<TCA> 24V 12.5A JIDECO	8-97062-815-1	01	1	9806-9911

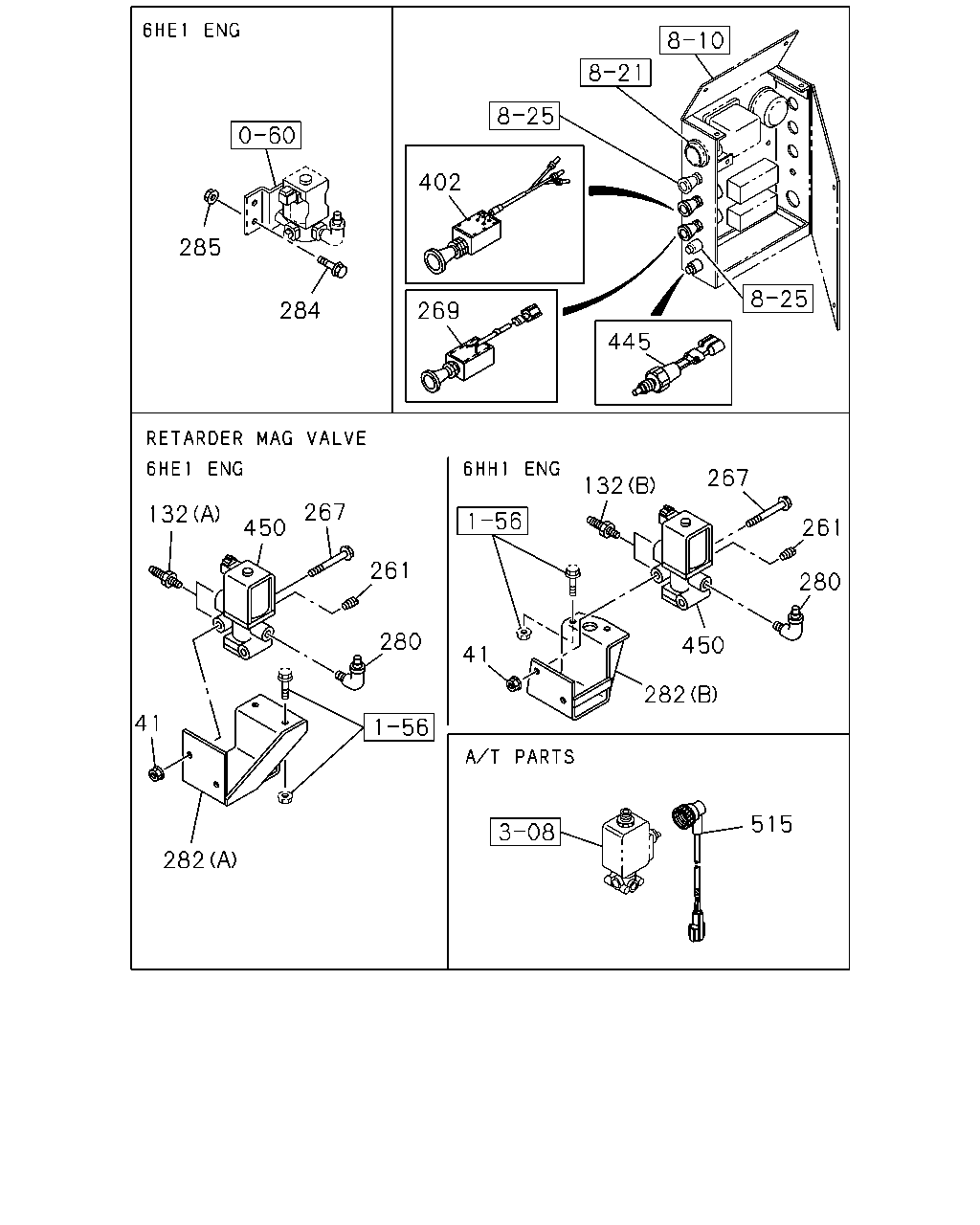

402 285 284 269 445 267 132 267 132 261 450 261 280 280 450 41 282 41 515 282

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	NUT; BRKT,MAG VLV BRK SYSTEM RETARDER<RE2> M8 FLANGE	0-91150-108-0	02	1	9806-9911
132	CONNECTOR; OUTLET,MAG VLV 6HE1-TC ENG(57L) BRK SYSTEM RETARDER<RE2> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9806-9911
132	CONNECTOR; OUTLET,MAG VLV 6HH1-S ENG(65L) BRK SYSTEM RETARDER<RE2> (B) M20 & PT1/4	9-09902-386-0	02	1	9806-9911
261	PLUG; MAG VLV BRK SYSTEM RETARDER<RE2> PT1/4	9-99204-513-0	01	1	9806-9911
267	BOLT; VLV TO BRKT BRK SYSTEM RETARDER<RE2> M8X60 FLANGE	0-28080-860-0	02	1	9806-9911
269	SWITCH; BATTERY,ENG ROOM ELEC SW BOX ENG ROOM<TEK>	1-82340-358-0	01	1	9806-9911
269	SWITCH; BATTERY,ENG ROOM	1-82340-358-1	01	1	9912-
280	CONNECTOR; IN,MAG VLV BRK SYSTEM RETARDER<RE2> DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9806-9911
282	BRACKET; MAG VLV 6HE1-TC ENG(57L) BRK SYSTEM RETARDER<RE2> (A)	1-47477-864-1	01	1	9806-9911
282	BRACKET; MAG VLV 6HH1-S ENG(65L) BRK SYSTEM RETARDER<RE2> (B)	1-47477-627-1	01	1	9806-9911
284	BOLT; MAG VLV 6HE1-TC ENG(57L) M8X30 FLANGE	0-28680-830-0	02	1	9806-9911
285	NUT; MAG VLV 6HE1-TC ENG(57L) M8 FLANGE	0-91150-108-0	02	1	9806-9911
402	SWITCH; IGNITION SAFETY ELEC SW BOX ENG ROOM<TEK>	1-82340-382-0	01	1	9806-9911
402	SWITCH; IGNITION SAFETY	1-82340-382-1	01	1	9912-
445	SWITCH; ENG STOP ELEC SW BOX ENG ROOM<TEK>	1-82380-107-1	01	1	9806-9911
445	SWITCH; ENG STOP	1-82380-107-1	01	1	9912-
450	VALVE; MAG BRK SYSTEM RETARDER<RE2>	1-82563-597-5	01	1	9806-9911
515	HARNESS; VLV A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E)	1-82449-002-0	01	1	9912-9912
515	HARNESS; VLV A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E),A/T ZF 5 HP500 W/HYD RETARDER(Y4M)	1-82449-002-0	01	1	0001-

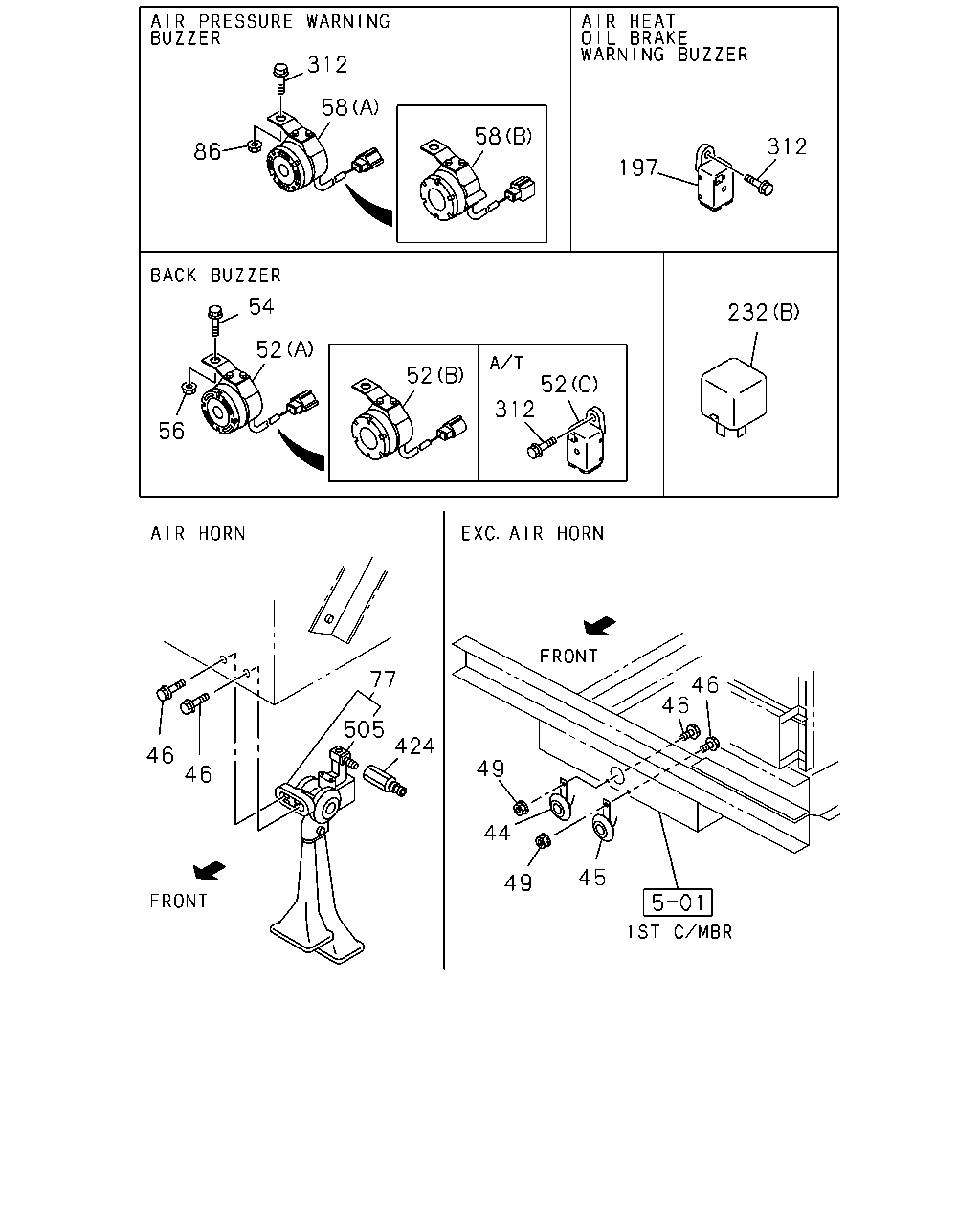

312 58 58 312 86 197 54 232 52 52 52 312 56 77 46 46 505 424 46 49 46 44 45 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	HORN; HIGH NOTE EXC. AIR HORN(WB8)	1-83410-057-1	01	1	9806-9911
44	HORN; HIGH NOTE	8-97530-255-0	01	1	9912-0107
44	HORN; HIGH NOTE	8-97531-279-0	01	1	0108-
45	HORN; LOW NOTE EXC. AIR HORN(WB8)	1-83410-058-1	01	1	9806-9911
45	HORN; LOW NOTE	8-97530-256-0	01	1	9912-0107
45	HORN; LOW NOTE	8-97531-278-0	01	1	0108-
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28680-825-0	02	1	9806-0512
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28650-825-0	02	1	0601-
49	NUT; HORN TO BODY EXC. AIR HORN(WB8) M8 FLANGE	0-91150-108-0	02	1	9806-9911
49	NUT; HORN TO BODY M8 FLANGE	0-91150-108-0	02	1	9912-0602
49	NUT; HORN TO BODY M8 FLANGE	0-91180-108-0	02	1	0603-
52	BUZZER; BACK A/T<X9D> (C)	1-83460-040-0	01	1	9912-
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> (A) NIKKO	1-83460-052-0	01	1	9806-9911
52	BUZZER; BACK (A) NIKKO	1-83460-052-0	01	1	9912-
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> (B) METRO	1-83460-088-1	01	1	9904-9911
52	BUZZER; BACK (B) METRO	1-83460-088-1	01	1	9912-
54	BOLT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10X30 FLANGE	0-28681-030-0	01	1	9806-9911
54	BOLT; BACK BUZZER M10X30 FLANGE	0-28681-030-0	01	1	9912-0512
54	BOLT; BACK BUZZER M10X30 FLANGE	0-28651-030-0	01	1	0601-
56	NUT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10 FLANGE	0-91150-210-0	01	1	9806-9911
56	NUT; BACK BUZZER M10 FLANGE	0-91150-210-0	01	1	9912-0602
56	NUT; BACK BUZZER M10 FLANGE	0-91180-210-0	01	1	0603-
58	BUZZER; AIR PRESSURE WARNING (A) NIKKO	1-83460-056-0	01	1	9806-
58	BUZZER; AIR PRESSURE WARNING (B) METRO	1-83460-074-0	01	1	9904-9907
58	BUZZER; AIR PRESSURE WARNING EXC. NIKKO<Y70> (B) METRO	1-83460-074-1	01	1	9908-9911
58	BUZZER; AIR PRESSURE WARNING (B) METRO	1-83460-074-1	01	1	9912-
77	HORN ASM AIR HORN(WB8)	1-83430-038-1	01	1	9806-9911
86	NUT; BUZZER M6 FLANGE	0-91150-106-0	01	1	9806-0602
86	NUT; BUZZER M6 FLANGE	0-91180-106-0	01	1	0603-
197	BUZZER; WARNING,AIR HEAT OIL BRK ENG OVERRUN BUZZER<SK4> EXC. INDICATOR WARNING BUZZER<WF9>	1-83460-051-1	01	1	9806-9911
197	BUZZER; WARNING,AIR HEAT OIL BRK INDICATOR WARNING BUZZER<WF9>	1-83460-051-1	01	1	9806-9911
197	BUZZER; WARNING,AIR HEAT OIL BRK	1-83460-051-1	01	1	9912-
232	RELAY; WARNING BUZZER WARNING BUZZER-SPEED<RF8> (B) 24V 12.5A JIDECO	8-97062-815-1	01	1	0001-0111
232	RELAY; WARNING BUZZER WARNING BUZZER-SPEED<RF8> (B) 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
232	RELAY; WARNING BUZZER ENG OVERRUN BUZZER<SK4> EXC. INDICATOR WARNING BUZZER<WF9> (A)	1-82550-119-1	01	1	9806-9911
232	RELAY; WARNING BUZZER INDICATOR WARNING BUZZER<WF9> (A)	1-82550-119-1	01	1	9806-9911
232	RELAY; WARNING BUZZER (A)	1-82550-119-1	01	1	9912-
312	BOLT; BUZZER M6X16 FLANGE	0-28680-616-0	01	1	9806-9911
312	BOLT; BUZZER ENG OVERRUN BUZZER<SK4> EXC. INDICATOR WARNING BUZZER<WF9> M6X16 FLANGE	0-28680-616-0	01	1	9806-9911
312	BOLT; BUZZER INDICATOR WARNING BUZZER<WF9> M6X16 FLANGE	0-28680-616-0	01	1	9806-9911
312	BOLT; BUZZER A/T<X9D> M6X16 FLANGE	0-28680-616-0	01	1	9912-0512
312	BOLT; BUZZER A/T<X9D> M6X16 FLANGE	0-28650-616-0	01	1	0601-
312	BOLT; BUZZER M6X16 FLANGE	0-28680-616-0	02	1	9912-0512
312	BOLT; BUZZER M6X16 FLANGE	0-28650-616-0	02	1	0601-
424	ADAPTER AIR HORN(WB8) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9806-9911
505	JOINT; AIR HORN AIR HORN(WB8)	1-83439-005-0	01	1	9806-9911
