Isuzu WW
▶
BUSES
▶
LT
▶
10794 - LT(TAIWAN)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

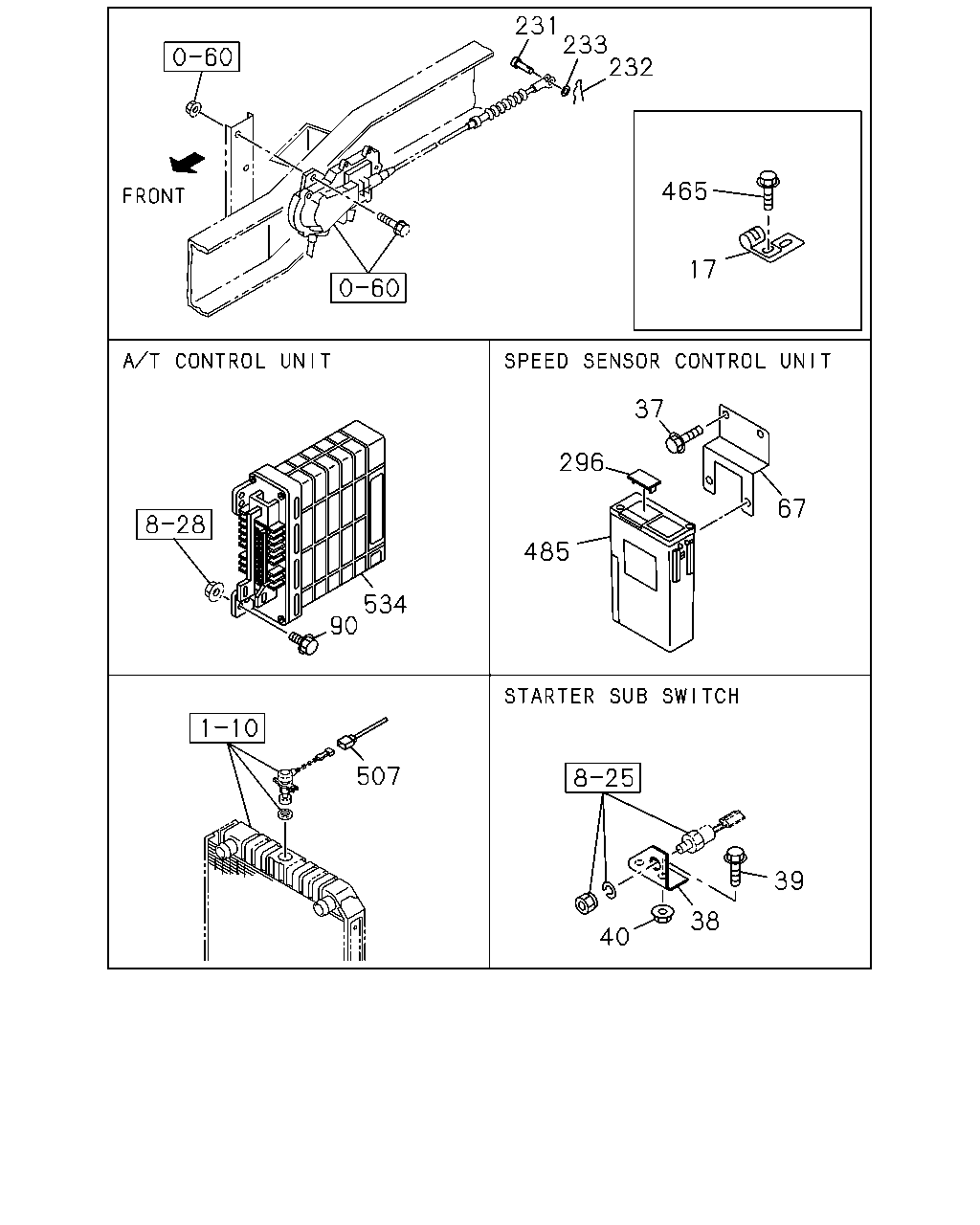

8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#6904) — 27 parça
231
233
232
465
17
37
296
67
485
534
90
507
39
38
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
17
CLIP; ACTUATOR TO HARNESS
1-23219-004-2
01
1
9806-9911
37
BOLT; BRKT FIX
M6X16 FLANGE
0-28680-616-0
02
1
9806-0512
37
BOLT; BRKT FIX
M6X16 FLANGE
0-28650-616-0
02
1
0601-
38
BRACKET; SW,STARTER SUB
EXC. ELEC SW BOX ENG ROOM<TEK>
1-82699-351-0
01
1
9806-9911
39
BOLT; BRKT,STARTER SUB SW
EXC. ELEC SW BOX ENG ROOM<TEK> M8X20 FLANGE
0-28680-820-0
01
1
9806-9911
40
NUT; BRKT,STARTER SUB SWITCH
EXC. ELEC SW BOX ENG ROOM<TEK> M8 FLANGE
0-91150-108-0
02
1
9806-9911
67
BRACKET; CONT UNIT
1-82699-720-0
01
1
9806-9911
67
BRACKET; CONT UNIT
8-97530-134-0
01
1
9912-
90
BOLT; QOS CONTROLLER
M5X10 W/LK+PL WASHER
9-03920-510-0
08
1
9912-0604
90
BOLT; QOS CONTROLLER
M5X10 W/LK+PL WASHER
0-36230-510-0
08
1
0605-
90
BOLT; QOS CONTROLLER
A/T<X9D> M6X16 FLANGE
0-28680-616-0
03
1
9912-0512
90
BOLT; QOS CONTROLLER
A/T<X9D> M6X16 FLANGE
0-28650-616-0
03
1
0601-
231
PIN; JOINT,ENG STOP ACTUATOR
1-09744-118-0
01
1
9806-9901
232
PIN; COTTER,ENG STOP ACTUATOR
L=17.9
1-09747-002-0
01
1
9806-9911
233
WASHER; PL,ENG STOP ACTUATOR
ID=5.3
9-09160-505-0
01
1
9806-9907
233
WASHER; PL,ENG STOP ACTUATOR
6HE1-TC ENG(57L) ID=5.3
9-09160-505-0
01
1
9908-9911
233
WASHER; PL,ENG STOP ACTUATOR
6HH1-S ENG(65L) ID=5.3
9-09160-505-0
02
1
9908-9911
296
COVER; CONT UNIT
1-82549-010-0
01
1
9806-9911
465
BOLT; CLIP
6HE1-TC ENG(57L) M8X16 FLANGE
0-28080-816-0
02
1
9806-9909
465
BOLT; CLIP
6HE1-TC ENG(57L) M8X20 FLANGE
0-28680-820-0
02
1
9910-9911
465
BOLT; CLIP
6HH1-S ENG(65L) M8X12 FLANGE
0-28080-812-0
02
1
9806-9911
485
CONTROL UNIT; SPEED SENSOR
1-82540-065-0
01
1
9806-9911
485
CONTROL UNIT; SPEED SENSOR
1-80190-059-1
01
1
9912-
507
CONNECTOR
1-82690-974-0
01
1
9806-
534
CONTROL UNIT; AUTO MISSION
A/T ZF 5 HP500 W/HYD RETARDER(Y4M)
1-80110-709-0
01
1
0001-
534
CONTROL UNIT; AUTO MISSION
A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E)
1-80110-502-0
01
1
9912-
534
CONTROL UNIT; AUTO MISSION
A/T ZF 4 HP500 WO/HYD RETARDER(Y3X)
1-80110-493-0
01
1
9912-
