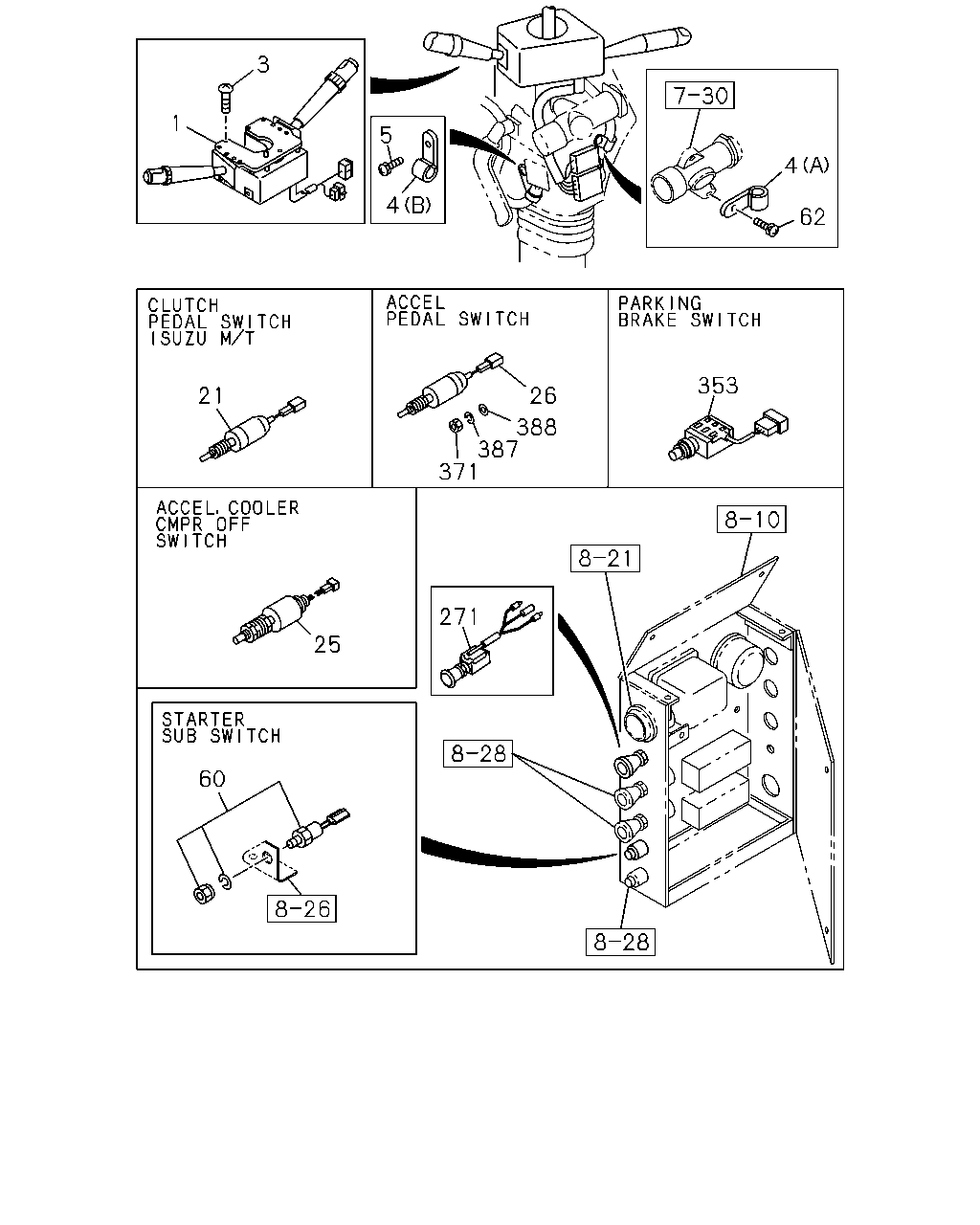

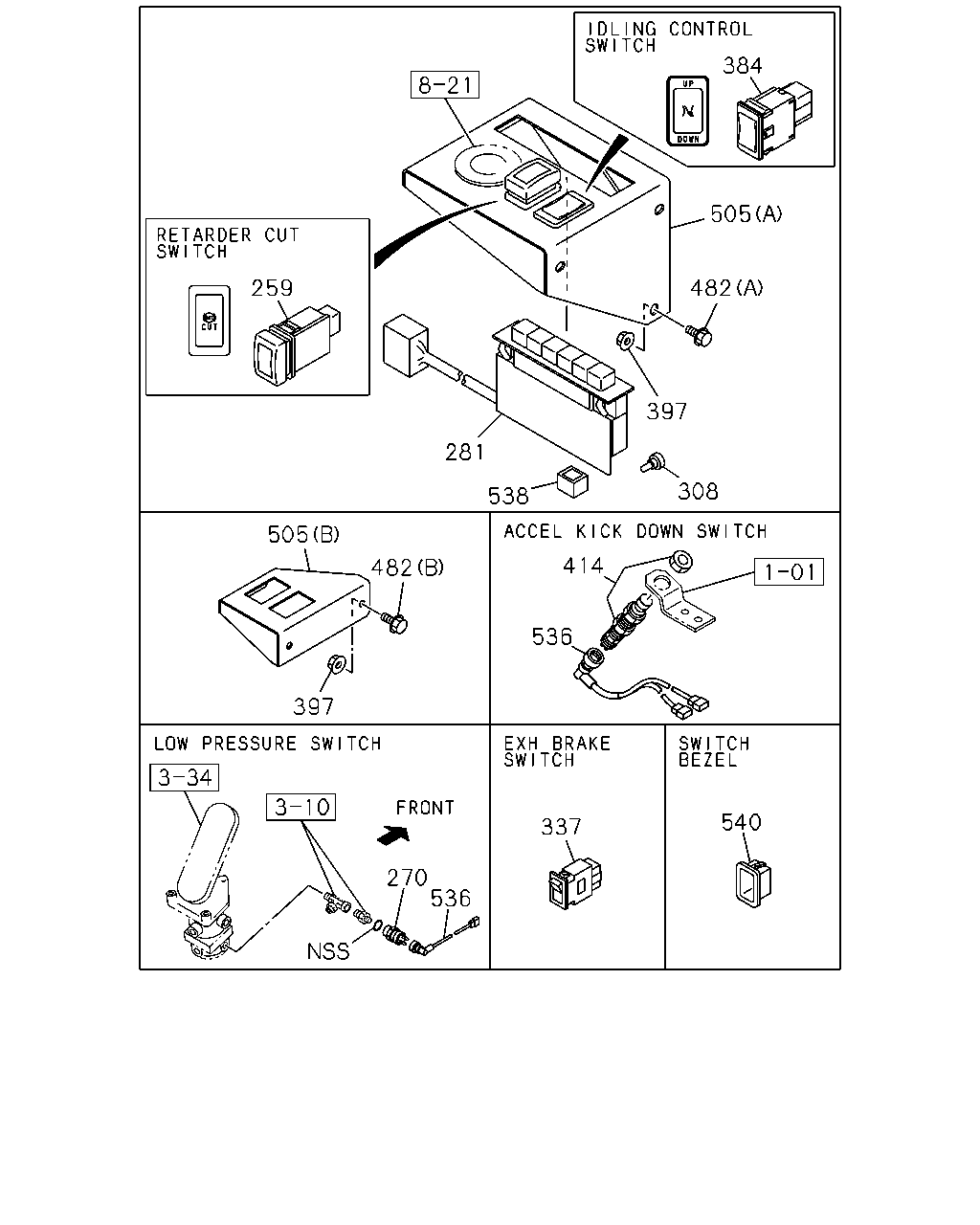

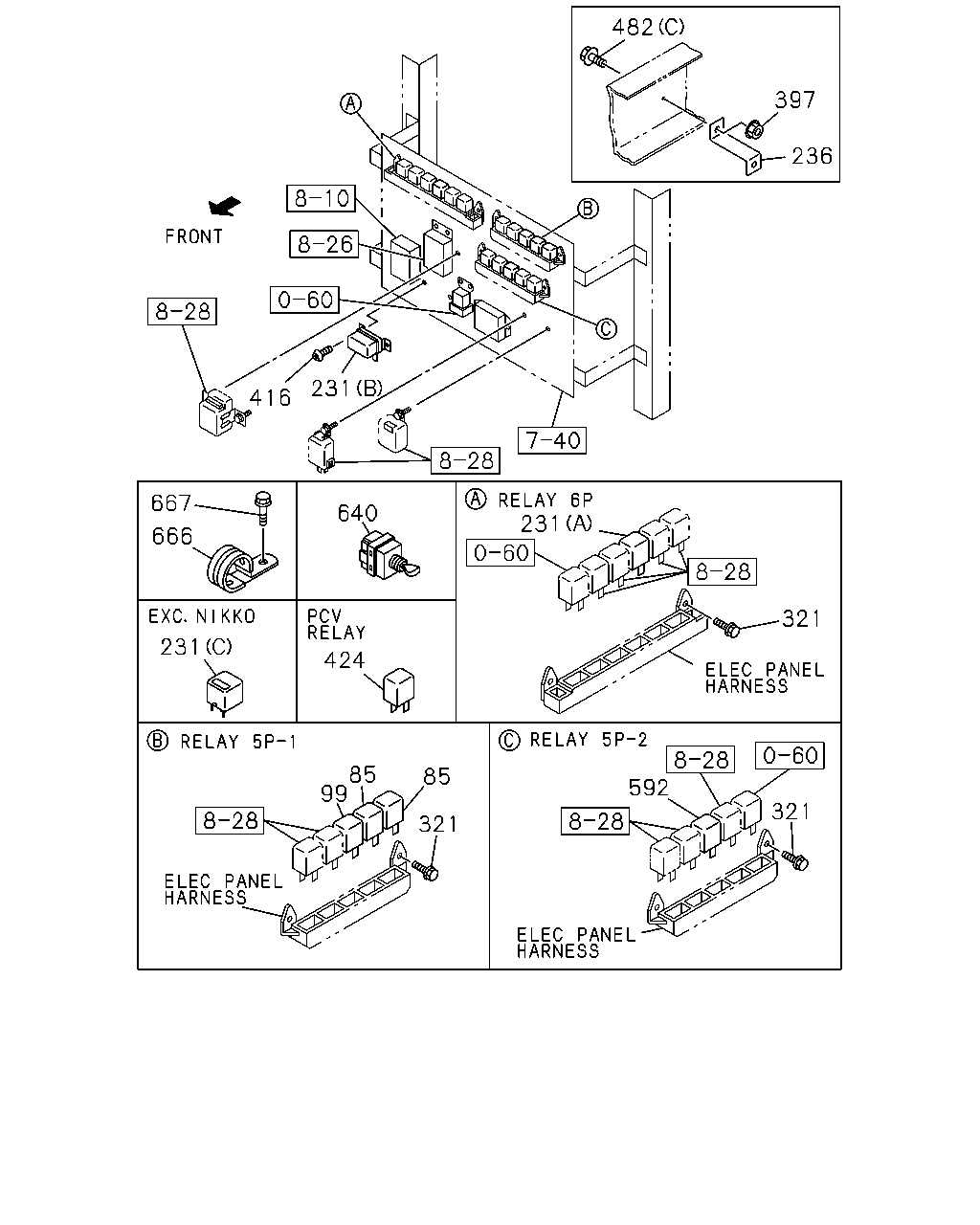

8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#6903) — 107 parça

3 1 5 4 4 62 353 21 26 388 387 371 271 25 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SWITCH; COMB BRK SYSTEM RETARDER<RE2>	1-82360-407-3	01	1	9806-9911
1	SWITCH; COMB A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E)	1-82360-510-0	01	1	9912-9912
1	SWITCH; COMB A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E),A/T ZF 5 HP500 W/HYD RETARDER(Y4M)	1-82360-510-0	01	1	0001-0103
1	SWITCH; COMB A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E),A/T ZF 5 HP500 W/HYD RETARDER(Y4M)	1-82360-651-0	01	1	0104-0312
1	SWITCH; COMB A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E),A/T ZF 5 HP500 W/HYD RETARDER(Y4M)	1-82360-736-0	01	1	0401-
1	SWITCH; COMB EXC. BRK SYSTEM RETARDER<RE2>	1-82360-406-3	01	1	9806-9911
1	SWITCH; COMB MLD6Q M/T(X5J),A/T ZF 4 HP500 WO/HYD RETARDER(Y3X)	1-82360-406-3	01	1	9912-0103
1	SWITCH; COMB MLD6Q M/T(X5J),A/T ZF 4 HP500 WO/HYD RETARDER(Y3X)	1-82360-644-0	01	1	0104-0312
1	SWITCH; COMB MLD6Q M/T(X5J),A/T ZF 4 HP500 WO/HYD RETARDER(Y3X)	1-82360-732-0	01	1	0401-
3	SCREW; COMB SW M5X12 TAPPING W/PL WASHER	0-74105-512-0	04	1	9806-0604
3	SCREW; COMB SW M5X12 TAPPING W/PL WASHER	0-74165-512-0	04	1	0605-
4	CLIP; COMB SW (A) ID=16 L=20	9-09525-535-0	01	1	9806-0606
4	CLIP; COMB SW (A) ID=16 L=20	0-95235-535-0	01	1	0607-
4	CLIP; COMB SW (B) ID=19 L=32	9-09525-862-0	01	1	9806-0011
4	CLIP; COMB SW (B) ID=14.5 L=30	9-09916-893-1	01	1	0012-
5	SCREW; COMB SW CABLE M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	9806-0110
5	SCREW; COMB SW CABLE M6X12 W/PL WASHER	8-97806-950-0	01	1	0111-
21	SWITCH; CLU	1-82380-077-1	01	1	9806-9911
21	SWITCH; CLU ISUZU M/T<X9A>	1-82380-114-3	01	1	9912-
25	SWITCH; ACCEL,COOLER CMPR OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	1-82380-077-1	01	1	9806-9911
26	SWITCH; ACCEL	1-82440-098-0	01	1	9806-9911
60	SWITCH; IGNITION SUB	1-82380-107-1	01	1	9806-
62	BOLT; STARTER SW M8X30 W/PL WASHER	1-09981-482-2	02	1	9806-0111
62	BOLT; STARTER SW M8X30 W/PL WASHER	1-09980-621-1	02	1	0112-
271	SWITCH; OIL PRESS METER ELEC SW BOX ENG ROOM<TEK>	1-82340-526-0	01	1	9806-9911
271	SWITCH; OIL PRESS METER	1-82340-526-1	01	1	9912-
353	SWITCH ASM; PARKING BRAKE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-82340-185-1	01	1	9806-9911
371	NUT; SW M10	9-09111-410-0	01	1	9806-9911
371	NUT; SW ISUZU M/T<X9A> M10	9-09111-410-0	01	1	9912-0005
387	WASHER; LK,ACCEL SW ID=10.2	9-09150-510-0	01	1	9806-9911
387	WASHER; LK,ACCEL SW ISUZU M/T<X9A> ID=10.2	9-09150-510-0	01	1	9912-0005
388	WASHER; PL,ACCEL SW ID=10.5 OD=18	9-09160-510-0	02	1	9806-9911
388	WASHER; PL,ACCEL SW ISUZU M/T<X9A> ID=10.5 OD=18	9-09160-510-0	02	1	9912-0005

384 505 259 482 397 281 308 538 505 414 482 536 397 540 337 270 536

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
259	SWITCH; RETARDER A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E)	1-82340-407-1	01	1	9912-9912
259	SWITCH; RETARDER A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E),A/T ZF 5 HP500 W/HYD RETARDER(Y4M)	1-82340-407-1	01	1	0001-
270	SWITCH; PRESS,WHEEL PARKING A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E)	1-48340-047-0	01	1	9912-9912
270	SWITCH; PRESS,WHEEL PARKING A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E),A/T ZF 5 HP500 W/HYD RETARDER(Y4M)	1-48340-047-0	01	1	0001-
281	SWITCH; SELECT,TRANS CONT A/T<X9D>	1-82380-163-0	01	1	9912-
308	BULB; SELECT SW A/T<X9D>	8-98069-434-0	06	1	9912-
337	SWITCH; EXH BRK SYSTEM RETARDER<RE2>,FOOT BRK W/EXH BRK<SJB>	1-82350-220-1	01	1	9806-9911
337	SWITCH; EXH MLD6Q M/T(X5J),A/T ZF 4 HP500 WO/HYD RETARDER(Y3X)	1-82350-220-2	01	1	9912-
384	SWITCH; IDLING CONT,ELEC	1-82350-213-1	01	1	9912-
397	NUT; BRKT FIX M8 FLANGE	0-91150-108-0	01	1	9806-0602
397	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	0603-
397	NUT; BRKT FIX A/T<X9D> M8 FLANGE	0-91150-108-0	03	1	9912-0602
397	NUT; BRKT FIX A/T<X9D> M8 FLANGE	0-91180-108-0	03	1	0603-
397	NUT; BRKT FIX ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	9912-0602
397	NUT; BRKT FIX ISUZU M/T<X9A> M8 FLANGE	0-91180-108-0	02	1	0603-
414	SWITCH; KICK DOWN A/T<X9D>	1-82380-139-0	01	1	9912-
482	BOLT; BRKT (C) M8X30 FLANGE	0-28680-830-0	01	1	9806-0512
482	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	01	1	0601-
482	BOLT; BRKT A/T<X9D> (A) M8X20 FLANGE	0-28680-820-0	03	1	9912-0512
482	BOLT; BRKT A/T<X9D> (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-
482	BOLT; BRKT ISUZU M/T<X9A> (B) M8X20 FLANGE	0-28680-820-0	02	1	9912-0512
482	BOLT; BRKT ISUZU M/T<X9A> (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-
505	BRACKET; SW A/T<X9D> (A)	1-47478-776-0	01	1	9912-
505	BRACKET; SW ISUZU M/T<X9A> (B)	1-47478-336-0	01	1	9912-
536	HARNESS; SW A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E)	1-82449-002-0	02	1	9912-9912
536	HARNESS; SW A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E),A/T ZF 5 HP500 W/HYD RETARDER(Y4M)	1-82449-002-0	02	1	0001-
536	HARNESS; SW A/T ZF 4 HP500 WO/HYD RETARDER(Y3X)	1-82449-002-0	01	1	9912-
538	CAP; SW A/T<X9D> MARK"N"	1-82389-014-0	01	1	9912-
538	CAP; SW A/T<X9D> MARK"R"	1-82389-015-0	01	1	9912-
538	CAP; SW A/T<X9D> MARK"D"	1-82389-016-0	01	1	9912-
538	CAP; SW A/T<X9D> MARK"1"	1-82389-019-0	01	1	9912-
538	CAP; SW A/T<X9D> MARK"2"	1-82389-020-0	01	1	9912-
538	CAP; SW A/T<X9D> MARK"3"	1-82389-021-0	01	1	9912-
540	BEZEL; SW BRK SYSTEM RETARDER<RE2>,FOOT BRK W/EXH BRK<SJB>	1-82490-017-0	01	1	9806-9911
540	BEZEL; SW	1-82490-017-0	02	1	9912-

482 397 236 231 416 231 667 640 666 321 231 424 592 85 99 85 321 321

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
85	RELAY; HEADLAMP 24V 12.5A JIDECO	8-97062-815-1	02	1	9806-0111
85	RELAY; HEADLAMP 24V 12.5A MATSUSHITA	8-97262-933-0	02	1	0112-
99	RELAY; FOG LAMP EXC. FOG LAMPS DELETE<SJE> 24V 12.5A JIDECO	8-97062-815-1	01	1	9806-9911
99	RELAY; FOG LAMP 24V 12.5A JIDECO	8-97062-815-1	01	1	9912-0111
99	RELAY; FOG LAMP 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
231	RELAY; NEUTRAL (A) 24V 12.5A JIDECO	8-97062-815-1	01	1	9806-9911
231	RELAY; NEUTRAL (A) 24V 12.5A JIDECO	8-97062-815-1	01	1	9912-0111
231	RELAY; NEUTRAL (A) 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
231	RELAY; NEUTRAL OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (B) 24V-12A NIKKO	9-83420-043-1	01	1	9806-9911
231	RELAY; NEUTRAL A/T<X9D> (A) 24V 12.5A JIDECO	8-97062-815-1	02	1	9912-0111
231	RELAY; NEUTRAL A/T<X9D> (A) 24V 12.5A MATSUSHITA	8-97262-933-0	02	1	0112-
231	RELAY; NEUTRAL OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (C) 24V 12.5A JIDECO	1-82550-318-0	01	1	9905-9911
236	BRACKET; AXLE HARNESS,RR BRK PAD & LINING ELEC WEAR INDICATOR<BAD> L=110	1-82699-589-0	01	1	9806-9911
236	BRACKET; AXLE HARNESS,RR L=110	1-82699-589-0	01	1	9912-
321	BOLT; RELAY M6X16 FLANGE	0-28680-616-0	06	1	9806-0512
321	BOLT; RELAY M6X16 FLANGE	0-28650-616-0	06	1	0601-
397	NUT; BRKT FIX M8 FLANGE	0-91150-108-0	01	1	9806-0602
397	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	0603-
397	NUT; BRKT FIX A/T<X9D> M8 FLANGE	0-91150-108-0	03	1	9912-0602
397	NUT; BRKT FIX A/T<X9D> M8 FLANGE	0-91180-108-0	03	1	0603-
397	NUT; BRKT FIX ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	9912-0602
397	NUT; BRKT FIX ISUZU M/T<X9A> M8 FLANGE	0-91180-108-0	02	1	0603-
416	SCREW; RELAY OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> M5X12	9-93490-512-0	02	1	9806-9911
424	RELAY PCV 24V 12.5A JIDECO	8-97062-815-1	01	1	9912-0111
424	RELAY 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
482	BOLT; BRKT (C) M8X30 FLANGE	0-28680-830-0	01	1	9806-0512
482	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	01	1	0601-
482	BOLT; BRKT A/T<X9D> (A) M8X20 FLANGE	0-28680-820-0	03	1	9912-0512
482	BOLT; BRKT A/T<X9D> (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-
482	BOLT; BRKT ISUZU M/T<X9A> (B) M8X20 FLANGE	0-28680-820-0	02	1	9912-0512
482	BOLT; BRKT ISUZU M/T<X9A> (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-
592	RELAY; WEAR INDICATOR BRK PAD & LINING ELEC WEAR INDICATOR<BAD> 24V 12.5A JIDECO	8-97062-815-1	01	1	9806-9911
592	RELAY; WEAR INDICATOR 24V 12.5A JIDECO	8-97062-815-1	01	1	9912-0111
592	RELAY; WEAR INDICATOR 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
640	SWITCH; WARNING BUZZER A/T ZF 5 HP500 W/HYD RETARDER(Y4M) WARNING BUZZER-SPEED<RF8>	1-82350-182-0	01	1	0001-
666	CLIP; AXLE HARNESS ID=11 L=24	9-09525-045-0	01	1	9912-0606
666	CLIP; AXLE HARNESS ID=11 L=24	0-95235-045-0	01	1	0607-
667	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	9912-0512
667	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-
