8-21 — METER ASM (#6902) — 87 parça
çizim 26260
51 307 50 48 58 49 262 52 56 58 393 393
BalonParca AdiParca NoAdetTipApplied Date
48 SENSOR; BOOST 1-81531-011-0 01 1 9912-
49 BRACKET; SENSOR 8-97530-867-0 01 1 9912-
50 BOLT; FIX
M8X20 FLANGE 		0-28680-820-0 02 1 9912-0512
50 BOLT; FIX
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
51 NUT; FIX
M8 FLANGE 		0-91150-108-0 02 1 9912-0602
51 NUT; FIX
M8 FLANGE 		0-91180-108-0 02 1 0603-
52 BOLT; SENSOR
M6X16 FLANGE 		0-28680-616-0 02 1 9912-0512
52 BOLT; SENSOR
M6X16 FLANGE 		0-28650-616-0 02 1 0601-
56 HOSE; NIPPLE TO SENSOR
L=330 SERVICED BY L=3000 		0-04740-300-0 01 1 9912-
58 CLIP; HOSE
ID=7.8 		8-94246-958-0 02 1 9912-
262 METER; OIL THERMO
A/T<X9D> 		1-83160-094-0 01 1 9912-
307 NUT
M6 FLANGE 		0-91150-106-0 02 1 9912-0602
307 NUT
M6 FLANGE 		0-91180-106-0 02 1 0603-
393 CONNECTOR; THERMO METER
A/T<X9D> (A) 		1-82699-838-0 01 1 9912-
393 CONNECTOR; THERMO METER
A/T<X9D> (B) 		1-82699-840-0 03 1 9912-

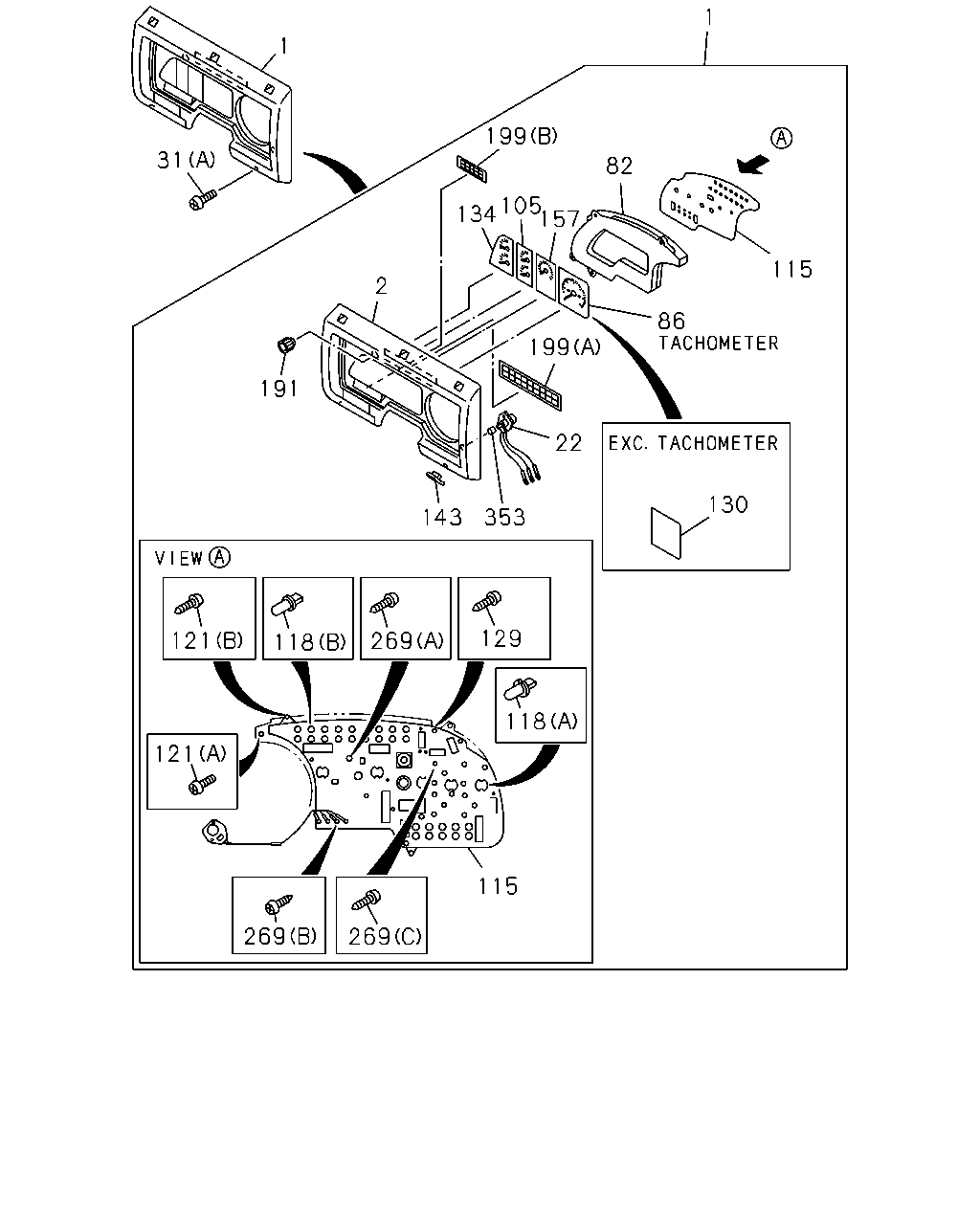

çizim 26434
1 1 199 31 82 105 134 157 115 2 86 199 191 22 130 143 353 129 121 269 118 118 121 115 269 269
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. EMIS REGULATION W/CONV<TCA>,TACHOMETER<UD7> 		1-83115-060-1 01 1 9806-9911
1 METER COMPL; CLUSTER
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TACHOMETER<UD7> EXC. EMIS REGULATION W/CONV<TCA> 		1-83115-059-1 01 1 9806-9911
1 METER COMPL; CLUSTER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK PAD & LINING ELEC WEAR INDICATOR<BAD> EMIS REGULATION W/CONV<TCA> TACHOMETER<UD7> 		1-83115-151-0 01 1 9806-9911
1 METER COMPL; CLUSTER 1-83115-151-1 01 1 9912-0502
1 METER COMPL; CLUSTER 1-83116-339-0 01 1 0503-
1 METER COMPL; CLUSTER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EMIS REGULATION W/CONV<TCA> TACHOMETER<UD7> EXC. BRK PAD & LINING ELEC WEAR INDICATOR<BAD> 		1-83115-083-1 01 1 9806-9911
1 METER COMPL; CLUSTER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. EMIS REGULATION W/CONV<TCA>,TACHOMETER<UD7> 		1-83115-058-1 01 1 9806-9911
1 METER COMPL; CLUSTER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TACHOMETER<UD7> EXC. EMIS REGULATION W/CONV<TCA> 		1-83115-057-1 01 1 9806-9911
2 PANEL; CLUSTER 1-83119-508-0 01 1 9806-
22 RHEOSTAT; CLUSTER METER 1-83119-470-0 01 1 9806-
31 SCREW; METER,INST PANEL
(A) M6X20 W/LK&PL WASHER 		9-03920-620-0 08 1 9806-0604
31 SCREW; METER,INST PANEL
(A) M6X20 W/LK&PL WASHER 		0-36230-620-0 08 1 0605-
31 SCREW; METER,INST PANEL
ELEC SW BOX ENG ROOM<TEK> (B) M4X16 TAPPING 		9-07066-416-0 01 1 9806-9911
31 SCREW; METER,INST PANEL
(B) M4X16 TAPPING 		9-07066-416-0 01 1 9912-0603
31 SCREW; METER,INST PANEL
(B) M4X16 TAPPING 		0-71040-416-0 01 1 0604-
82 CASE ASM; CLUSTER METER 1-83119-509-0 01 1 9806-
86 TACHOMETER; CLUSTER METER
EMIS REGULATION W/CONV<TCA> TACHOMETER<UD7> 		1-83120-717-0 01 1 9806-9911
86 TACHOMETER; CLUSTER METER 1-83120-717-1 01 1 9912-
86 TACHOMETER; CLUSTER METER
TACHOMETER<UD7> EXC. EMIS REGULATION W/CONV<TCA> 		1-83120-661-0 01 1 9806-9911
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-275-0 01 1 9806-
115 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<UD7> 		1-83189-297-0 01 1 9806-9911
115 CIRCUIT; PRINTED,CLUSTER METER 1-83189-297-0 01 1 9912-
115 CIRCUIT; PRINTED,CLUSTER METER
EXC. TACHOMETER<UD7> 		1-83189-298-0 01 1 9806-9911
118 BULB; CLUSTER METER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK PAD & LINING ELEC WEAR INDICATOR<BAD> EMIS REGULATION W/CONV<TCA> TACHOMETER<UD7> (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 14 1 9806-9911
118 BULB; CLUSTER METER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EMIS REGULATION W/CONV<TCA> TACHOMETER<UD7> EXC. BRK PAD & LINING ELEC WEAR INDICATOR<BAD> (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 13 1 9806-9911
118 BULB; CLUSTER METER
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. EMIS REGULATION W/CONV<TCA> (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 13 1 9806-9911
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 14 1 9912-0502
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 15 1 0503-
118 BULB; CLUSTER METER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. EMIS REGULATION W/CONV<TCA> (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 12 1 9806-9911
118 BULB; CLUSTER METER
TACHOMETER<UD7> (A) 24V 3W GREEN SOCKET 		1-82194-061-0 05 1 9806-9911
118 BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET 		1-82194-061-0 05 1 9912-
118 BULB; CLUSTER METER
EXC. TACHOMETER<UD7> (A) 24V 3W GREEN SOCKET 		1-82194-061-0 04 1 9806-9911
121 SCREW; PANEL FIX,CLUSTER METER
(A) M4 TAPPING 		1-83119-442-0 04 1 9806-
121 SCREW; PANEL FIX,CLUSTER METER
(B) M4 TAPPING 		1-83119-515-0 04 1 9806-
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
M3 TAPPING 		1-83119-052-0 10 1 9806-
130 COVER; METER HOLE,CLUSTER METER
EXC. TACHOMETER<UD7> 		1-83119-523-0 01 1 9806-9911
134 GAUGE; OIL PRESSURE & VOLTAGE 1-83180-276-0 01 1 9806-
143 COVER; CLUSTER METER 1-83119-516-0 05 1 9806-
157 METER; AIR PRESSURE,CLUSTER METER 1-83150-178-0 01 1 9806-0012
157 METER; AIR PRESSURE,CLUSTER METER 1-83150-245-0 01 1 0101-
191 KNOB; BULB CHECK 1-83119-431-0 01 1 9806-
199 LENS; WARNING LAMP
(B) 		1-83119-435-0 01 1 9806-
199 LENS; WARNING LAMP
EMIS REGULATION W/CONV<TCA> TACHOMETER<UD7> (A) 		1-83119-594-0 01 1 9806-9911
199 LENS; WARNING LAMP
(A) 		1-83119-594-0 01 1 9912-0502
199 LENS; WARNING LAMP
(A) 		1-83119-910-0 01 1 0503-
199 LENS; WARNING LAMP
EXC. EMIS REGULATION W/CONV<TCA> (A) 		1-83119-512-0 01 1 9806-9911
269 SCREW; METER CLUSTER
(B) M3 TAPPING 		1-83119-440-0 03 1 9806-
269 SCREW; METER CLUSTER
(C) M3 TAPPING 		1-83119-441-0 11 1 9806-
269 SCREW; METER CLUSTER
TACHOMETER<UD7> (A) M3 TAPPING 		1-83119-439-0 04 1 9806-9911
269 SCREW; METER CLUSTER
(A) M3 TAPPING 		1-83119-439-0 04 1 9912-
353 KNOB; RHEOSTAT 1-83119-471-0 01 1 9806-

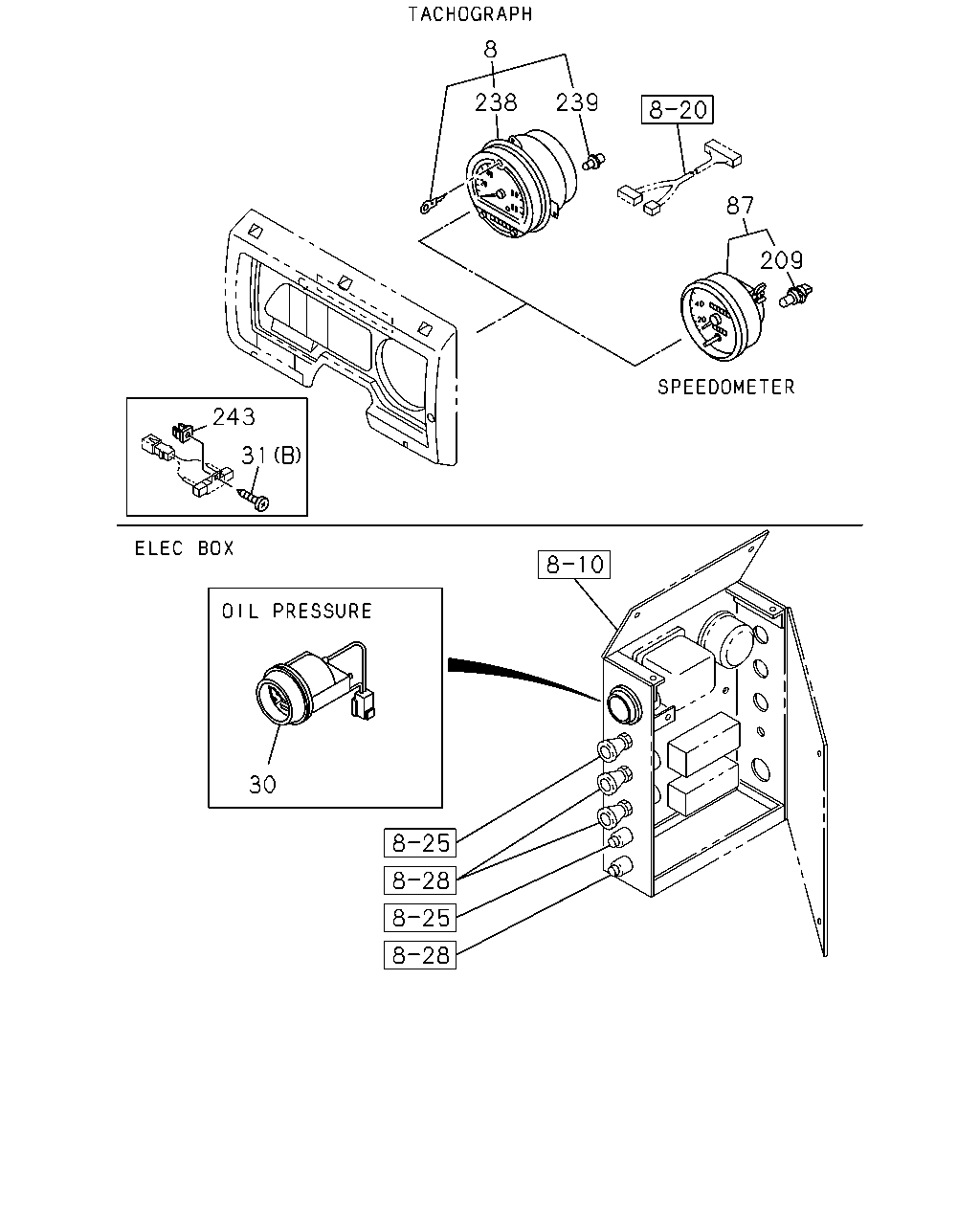

çizim 99354
8 238 239 87 209 243 31 30
BalonParca AdiParca NoAdetTipApplied Date
8 TACHOGRAPH; CLUSTER METER
ELECTRICAL TACHOGRAPH 15-6<PN3> 		1-83120-745-0 01 1 9806-9911
8 TACHOGRAPH; CLUSTER METER 1-83120-743-0 01 1 9912-0204
8 TACHOGRAPH; CLUSTER METER 1-83120-932-0 01 1 0205-
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H 1DAY<WC8> 		1-83120-743-0 01 1 9806-9911
30 GAUGE; OIL PRESSURE
ELEC SW BOX ENG ROOM<TEK> 		1-83150-180-0 01 1 9806-9908
30 GAUGE; OIL PRESSURE
ELEC SW BOX ENG ROOM<TEK> 		1-83150-232-0 01 1 9909-9911
30 GAUGE; OIL PRESSURE 1-83150-232-0 01 1 9912-
31 SCREW; METER,INST PANEL
(A) M6X20 W/LK&PL WASHER 		9-03920-620-0 08 1 9806-0604
31 SCREW; METER,INST PANEL
(A) M6X20 W/LK&PL WASHER 		0-36230-620-0 08 1 0605-
31 SCREW; METER,INST PANEL
ELEC SW BOX ENG ROOM<TEK> (B) M4X16 TAPPING 		9-07066-416-0 01 1 9806-9911
31 SCREW; METER,INST PANEL
(B) M4X16 TAPPING 		9-07066-416-0 01 1 9912-0603
31 SCREW; METER,INST PANEL
(B) M4X16 TAPPING 		0-71040-416-0 01 1 0604-
87 SPEEDOMETER
EXC. ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H 1DAY<WC8> 		1-83120-490-1 01 1 9806-9911
209 BULB; SPEEDOMETER
EXC. ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H 1DAY<WC8> 24V 3W GREEN SOCKET 		1-82194-061-0 02 1 9806-9911
238 PANEL; TACHOGRAPH
ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H 1DAY<WC8> 		1-83129-311-0 01 1 9806-9911
238 PANEL; TACHOGRAPH 1-83129-311-0 01 1 9912-
239 BULB; TACHOGRAPH
ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H 1DAY<WC8> 24V 1.8W 		1-82194-076-0 03 1 9806-9911
239 BULB; TACHOGRAPH
24V 1.8W 		1-82194-076-0 03 1 9912-0204
239 BULB; TACHOGRAPH
24V 1.4W 		1-82194-101-0 03 1 0205-
243 GROMMET; SCREW
ELEC SW BOX ENG ROOM<TEK> D=7.5X7.5 L=7 		8-94430-147-0 01 1 9806-9911
243 GROMMET; SCREW
D=7.5X7.5 L=7 		8-94430-147-0 01 1 9912-
